FESTO R-3-1/4-B 8985 Roller Lever Valve 3/2-Way Normally Closed G1/4 600 L/min

FESTO R-3-1/4-B 8985 Roller Lever Valve 3/2-Way Normally Closed G1/4 600 L/min

$79.99 USD
$79.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

FESTO R-3-1/4-B 8985 Roller Lever Valve

3/2-way Normally Closed | Mechanical Actuation | G1/4 | 600 L/min
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Model and Part Number Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number R-3-1/4-B
Part Number 8985
Product Family R-3
Product Type Roller Lever Valve
Valve Function 3/2-way, Normally Closed, Monostable
Actuation Type Mechanical
Actuating Element Roller Lever
Control Type Direct
Structural Design Piston Seat
Standard Nominal Flow Rate 600 L/min
Flow Reference DIN 1343
Pneumatic Working Port G1/4
Operating Pressure -0.095 to 1 MPa / -0.95 to 10 bar
Nominal Size 7 mm
Ambient Temperature -10°C to +60°C
Actuating Force 26 N
Explosion Protection ATEX Zones 1, 2, 21, 22 - Refer to Manufacturer Requirements
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Product Weight 230 g
Mounting Type With Through-hole
Pneumatic Connection, Port 1 G1/4
Pneumatic Connection, Port 2 G1/4
Pneumatic Connection, Port 3 G1/4
Seal Material NBR
Housing Material Die-cast Aluminium
Manufacturer GTIN 4052568001698
Packaging Series 01-2024:14 - Actual Packaging Label
Packaging Quantity 1 Piece - Actual Packaging Label
Country of Origin Made in Brazil - Actual Packaging Label

Product Overview

The FESTO R-3-1/4-B, manufacturer part number 8985, is a mechanically actuated pneumatic roller lever valve designed for pneumatic directional control and mechanical position-actuated switching. This model features a 3/2-way normally closed, monostable valve function with a roller lever actuator and direct-operated piston seat construction. The manufacturer specifies a standard nominal flow rate of 600 L/min, normalized according to DIN 1343, and an operating pressure range of -0.95 to 10 bar. All three pneumatic connections use G1/4 ports, with a 7 mm nominal size. Its manufacturer-specified actuating force is 26 N and the rated ambient temperature range is -10°C to +60°C. The housing is made from die-cast aluminium, with NBR seals and a manufacturer-specified product weight of 230 g. The valve is designed for through-hole mounting. FESTO lists explosion-protection zones 1, 2, 21 and 22 in its technical data; suitability for a particular hazardous-area installation must be checked against the applicable manufacturer documentation. No solenoid coil or electrical supply is required for the mechanical actuation function. Actual supplied photographs show the FESTO roller lever valve with its product nameplate marked R-3-1/4-B, part number 8985, and matching FESTO packaging labeled Made in Brazil. Please verify pneumatic connections, actuation conditions, mounting requirements and required operating pressure before ordering.

Key Product Features

  • FESTO Roller Lever Valve — Manufacturer model R-3-1/4-B, part number 8985.
  • 3/2-way Normally Closed Function — Monostable directional valve for pneumatic switching.
  • Mechanical Roller Lever Actuation — Direct mechanical operation without an electrical solenoid coil.
  • 600 L/min Nominal Flow — Standard nominal flow normalized according to DIN 1343.
  • G1/4 Pneumatic Ports — G1/4 connections at ports 1, 2 and 3.
  • -0.95 to 10 Bar Operating Pressure — Manufacturer-specified pneumatic pressure range.
  • Die-cast Aluminium Housing — NBR seals, 26N actuating force and -10°C to +60°C ambient temperature rating.

Actual Product Verification

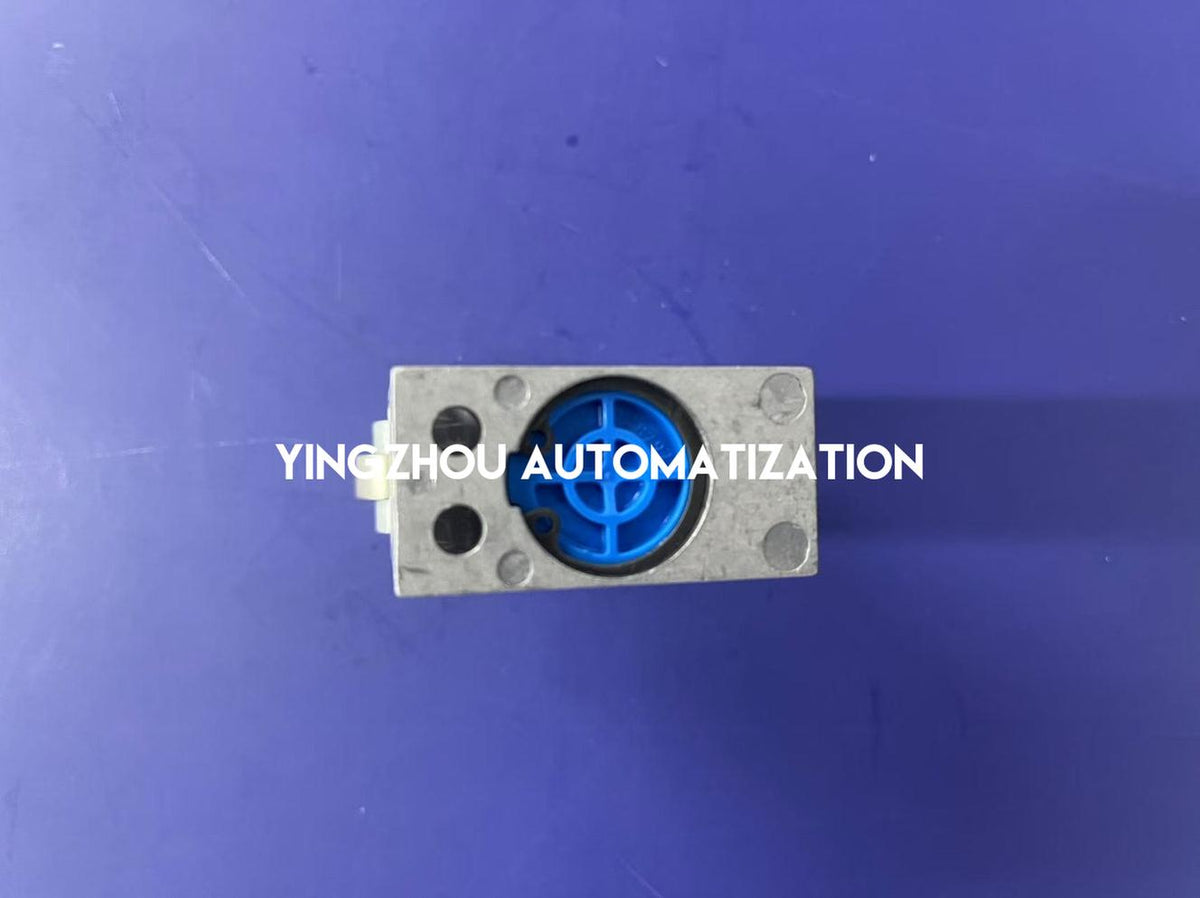

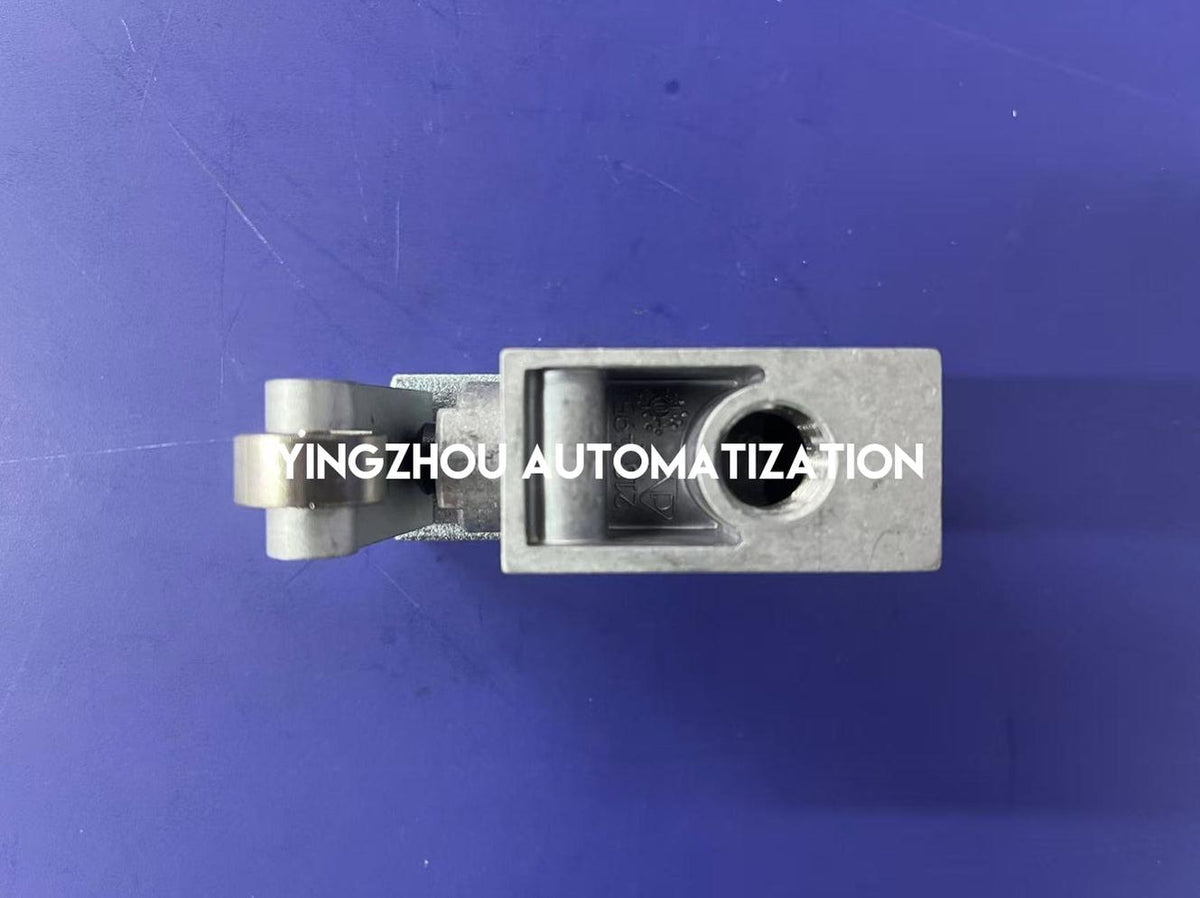

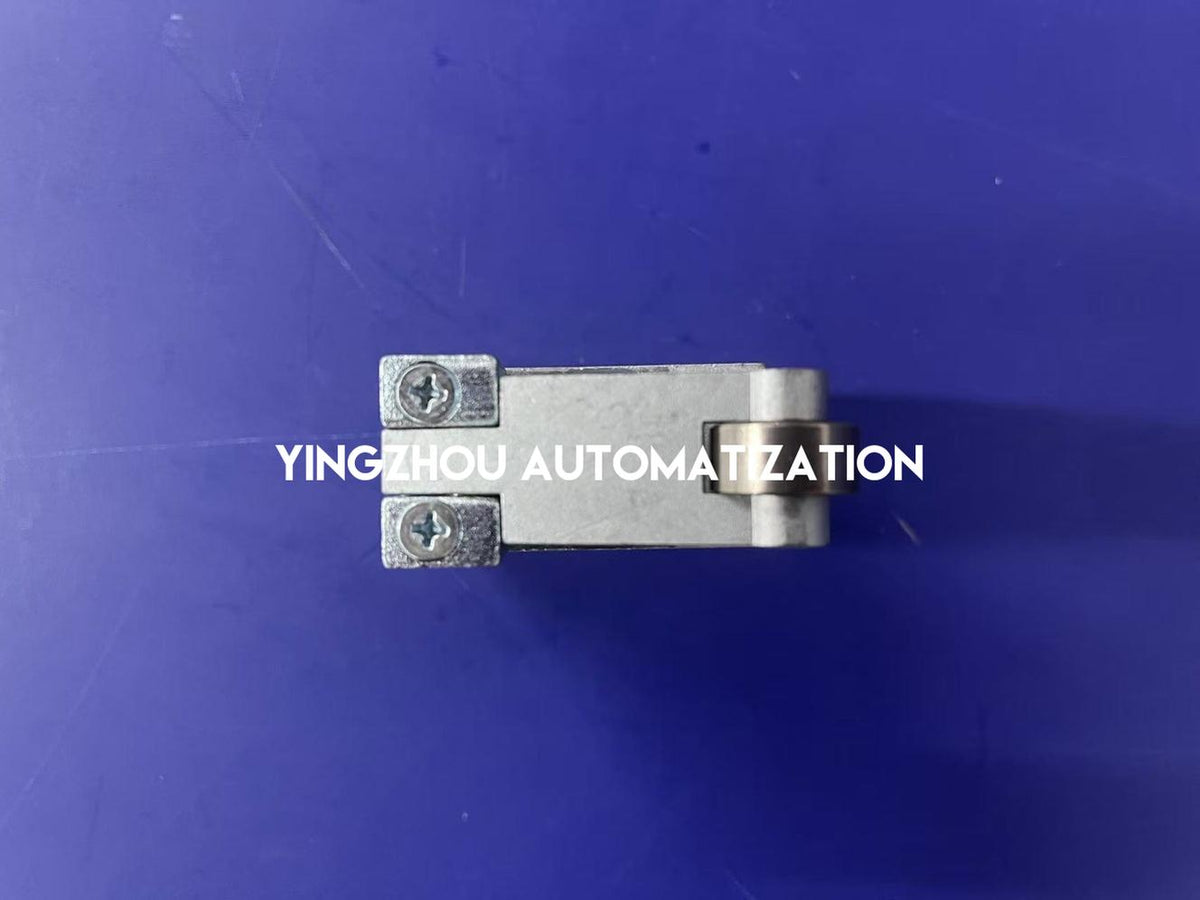

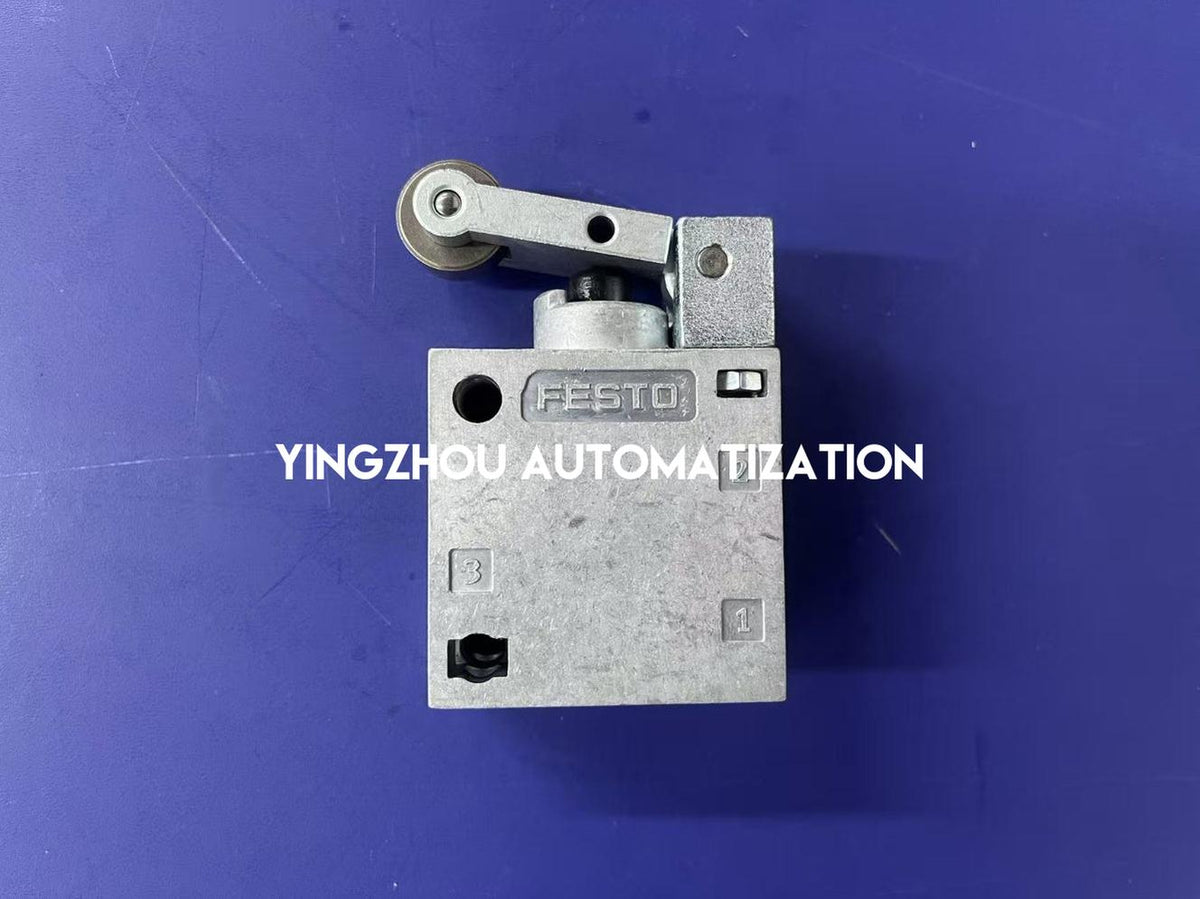

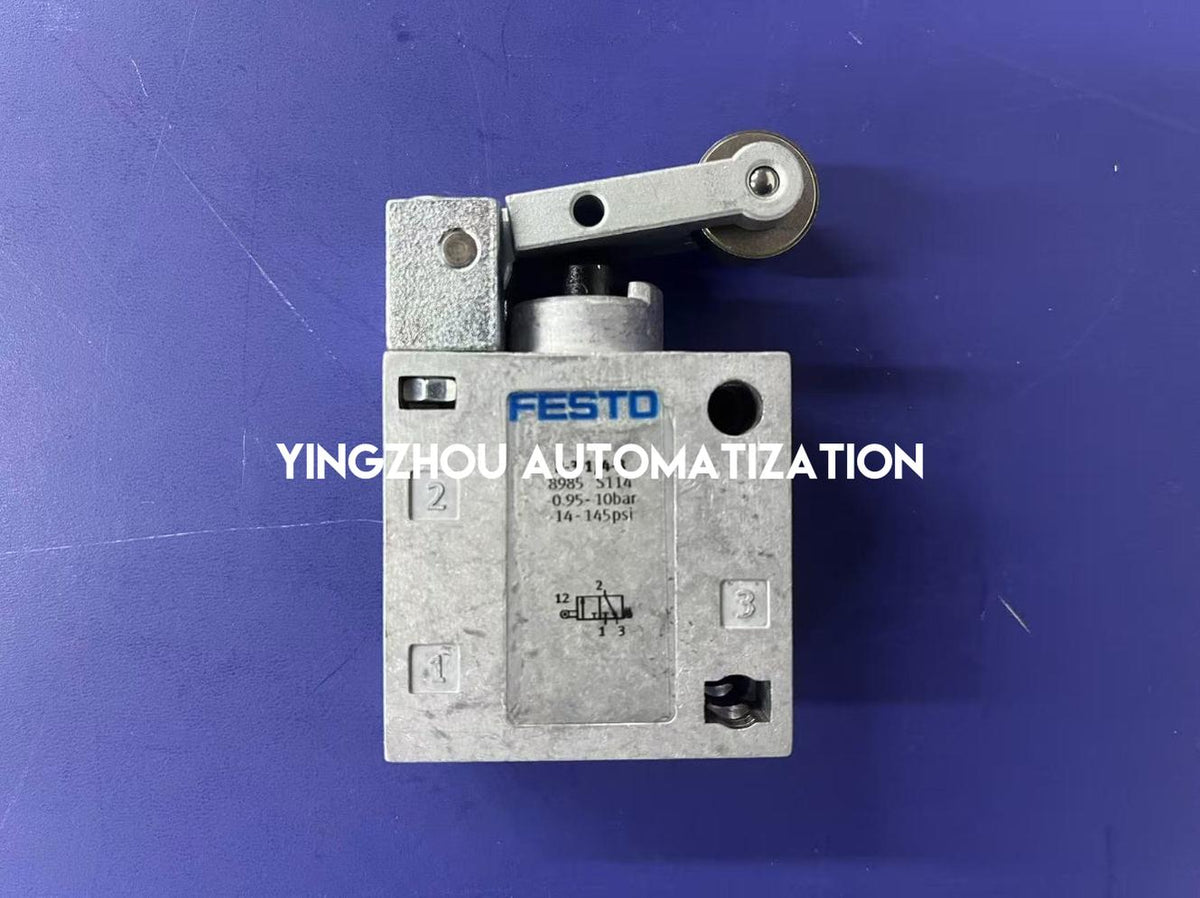

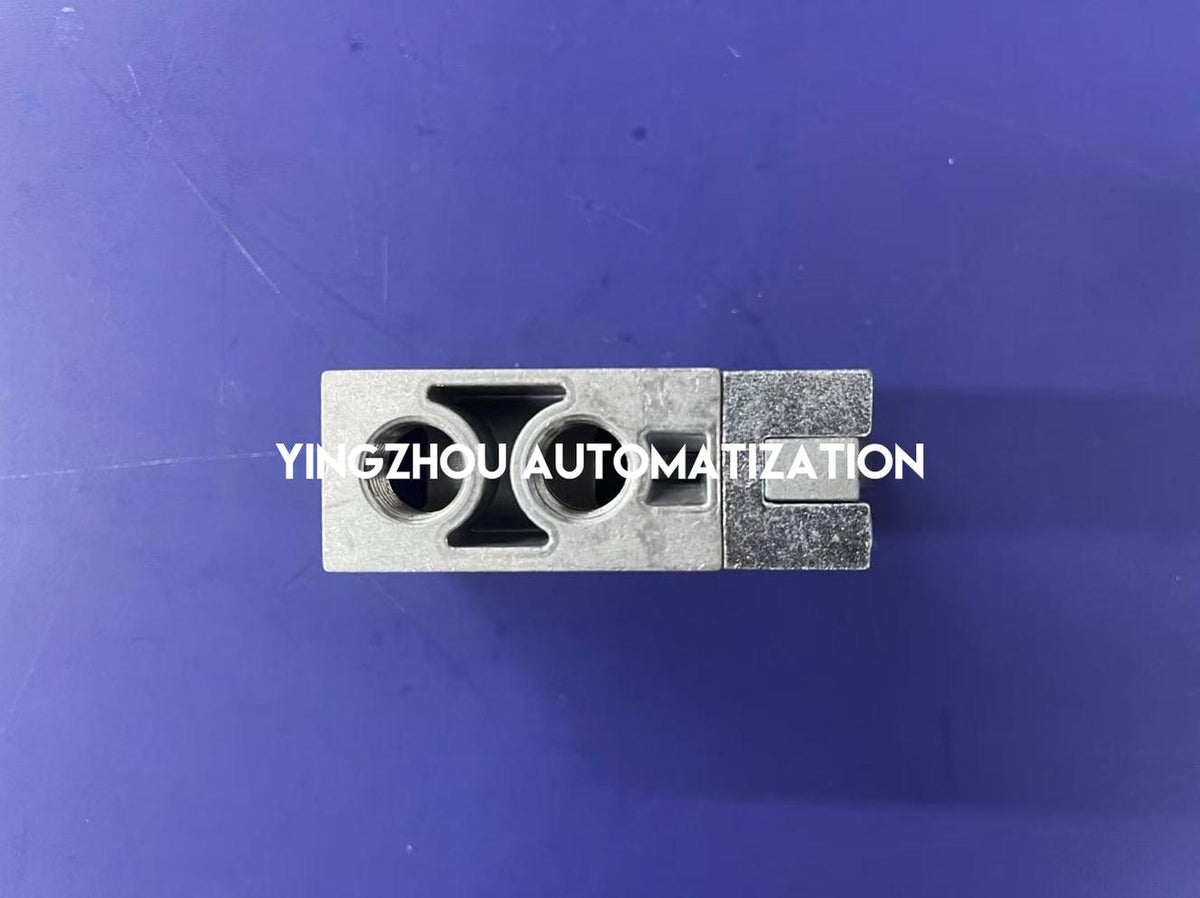

✓ Actual FESTO roller lever valve photograph supplied

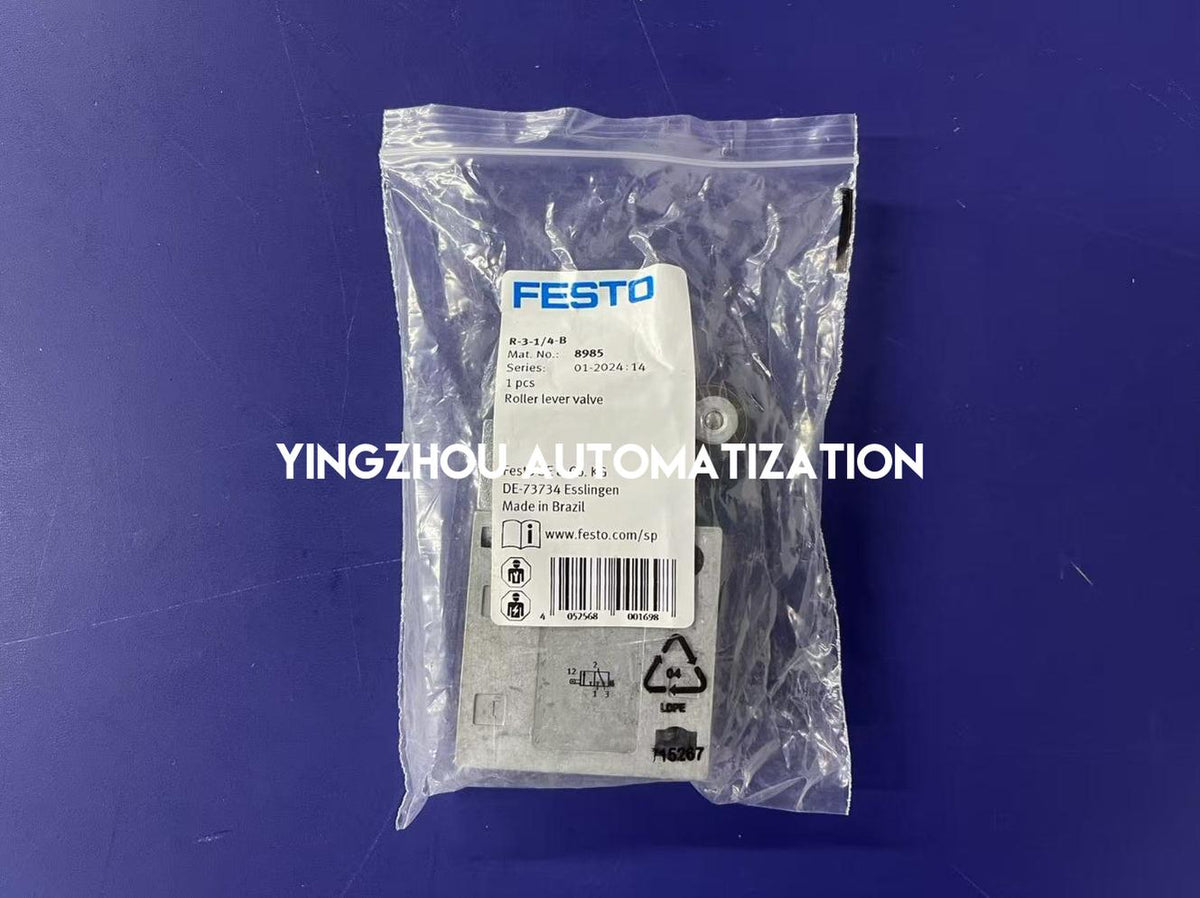

✓ Actual manufacturer packaging photograph supplied
✓ Product body manufacturer: FESTO
✓ Product body catalog number: R-3-1/4-B
✓ Product body material number: 8985
✓ Product body pressure marking: -0.95 to 10 bar
✓ Mechanical roller lever visibly fitted
✓ Pneumatic valve function symbol visible on product body
✓ Packaging catalog number: R-3-1/4-B
✓ Packaging material number: 8985
✓ Packaging series marking: 01-2024:14
✓ Packaging description: Roller Lever Valve
✓ Packaging quantity marking: 1 Piece
✓ Packaging origin marking: Made in Brazil
✓ Product nameplate and packaging model numbers match
✓ Mechanical switching function not independently tested
✓ Pneumatic pressure and leakage testing not performed

In Stock & Available to Order

FESTO R-3-1/4-B 8985 is marked in stock based on the supplied inventory information. This mechanical pneumatic roller lever valve is offered for industrial equipment maintenance, pneumatic position-actuated switching and exact-model replacement sourcing. The supplied actual photographs show the FESTO valve with a readable product nameplate and matching manufacturer packaging. Before ordering, please verify the 3/2-way normally closed function, G1/4 pneumatic connections, -0.95 to 10 bar operating pressure, 26 N actuating force and the required installation conditions. This is a mechanically actuated valve and does not require an electrical solenoid coil for operation. Any separate mounting or pneumatic installation accessories should be confirmed before purchase.

IN STOCK

FESTO R-3-1/4-B 8985

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 3/2-way normally closed valve function, G1/4 connections, roller lever actuation and mounting requirements before ordering.
