FESTO HE-2-QS-8 153468 Manual Pneumatic Shut-Off Valve 2/2 Bistable QS-8 −0.95 to 10 Bar 415.8 L/min

FESTO HE-2-QS-8 153468 Manual Pneumatic Shut-Off Valve 2/2 Bistable QS-8 −0.95 to 10 Bar 415.8 L/min

$10.99 USD
$10.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

FESTO HE-2-QS-8 153468 Manual Pneumatic Shut-Off Valve

2/2 Bistable | Manual Actuation | QS-8 Ports | −0.95 to 10 bar | 415.8 L/min
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photo  |  Product Body Verification Pending
Specification Verified Product Data
Manufacturer Festo SE & Co. KG
Exact Model HE-2-QS-8
Manufacturer Part Number 153468
Product Family HE Series
Product Type Manual Pneumatic Shut-Off Valve
Valve Function 2/2 Bistable
Actuation Manual
Pneumatic Port 1 QS-8
Pneumatic Port 2 QS-8
Normal Nominal Flow Rate 415.8 L/min
Nominal Size 3.5 mm
Operating Pressure −0.95 to 10 bar
Operating Temperature 0 to +60°C
Design Piston Gate Valve
Mounting Through-Hole / In-Line
Flow Direction Reversible
Sealing Principle Soft
Operating Medium Compressed Air ISO 8573-1:2010 [7:-:-]
Housing Material Reinforced PBT
Seal Material NBR
Corrosion Resistance Class CRC 2
Product Weight 26 g
LABS (PWIS) VDMA24364-B1/B2-L

Product Overview

The FESTO HE-2-QS-8 (part no. 153468) is a manual pneumatic shut-off valve with a 2/2 bistable function and QS-8 push-in connections on both ports. It has a manufacturer-specified nominal flow rate of 415.8 L/min and an operating pressure range of −0.95 to 10 bar. The valve uses a reinforced PBT housing and an NBR seal, and can be installed in-line or through a mounting hole. The supplied photograph confirms the exact model and part number on the packaging label; the valve body itself has not been verified.

Key Product Features

  • 2/2 Bistable Shut-Off Valve — Manufacturer-confirmed HE-series configuration.
  • Manual Operation — Direct manual actuation for pneumatic line isolation.
  • QS-8 Ports — Push-in connection size QS-8 at both ports.
  • 415.8 L/min Nominal Flow — Manufacturer-specified normal nominal flow rate.
  • −0.95 to 10 Bar — Operating pressure includes a specified vacuum range.
  • 0 to +60°C — Manufacturer-specified ambient and media temperature range.
  • Reinforced PBT Housing — Lightweight construction with NBR seals.

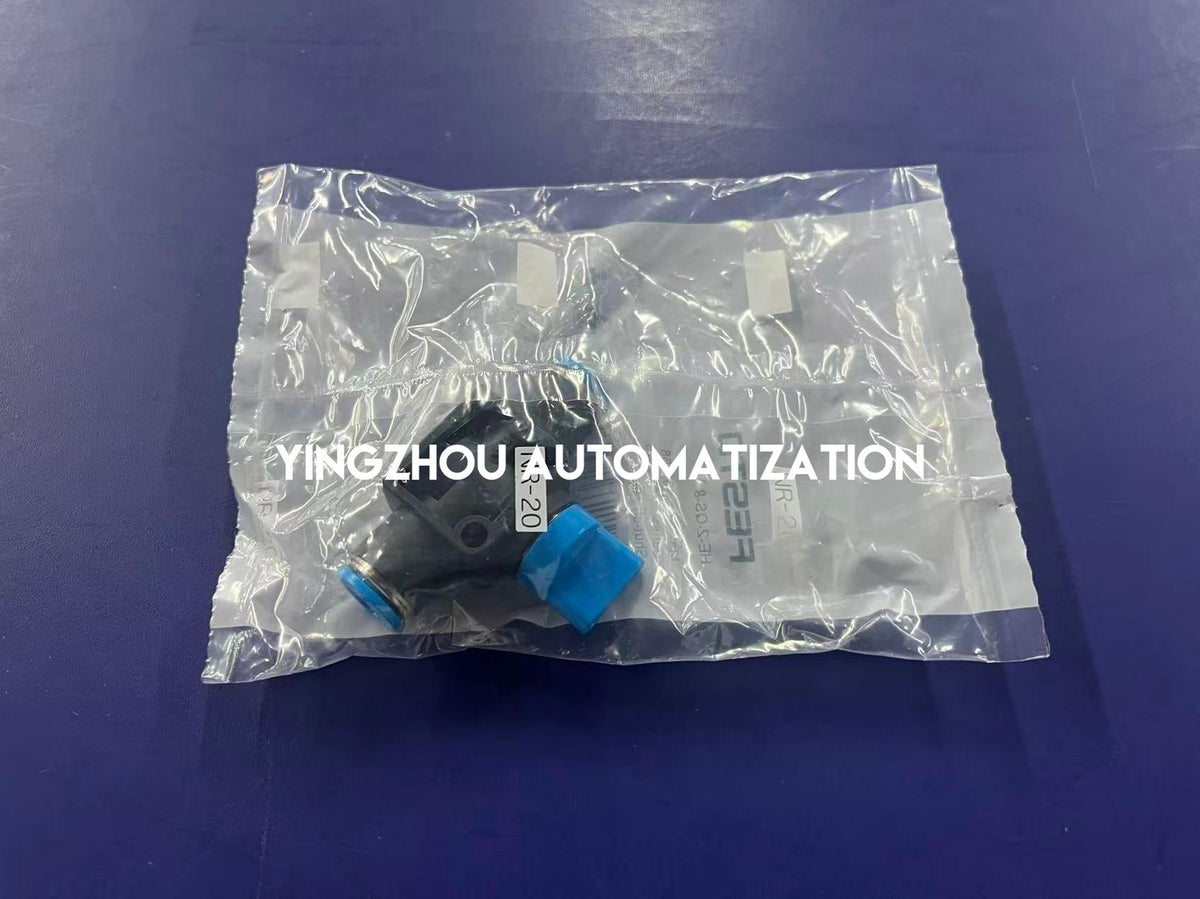

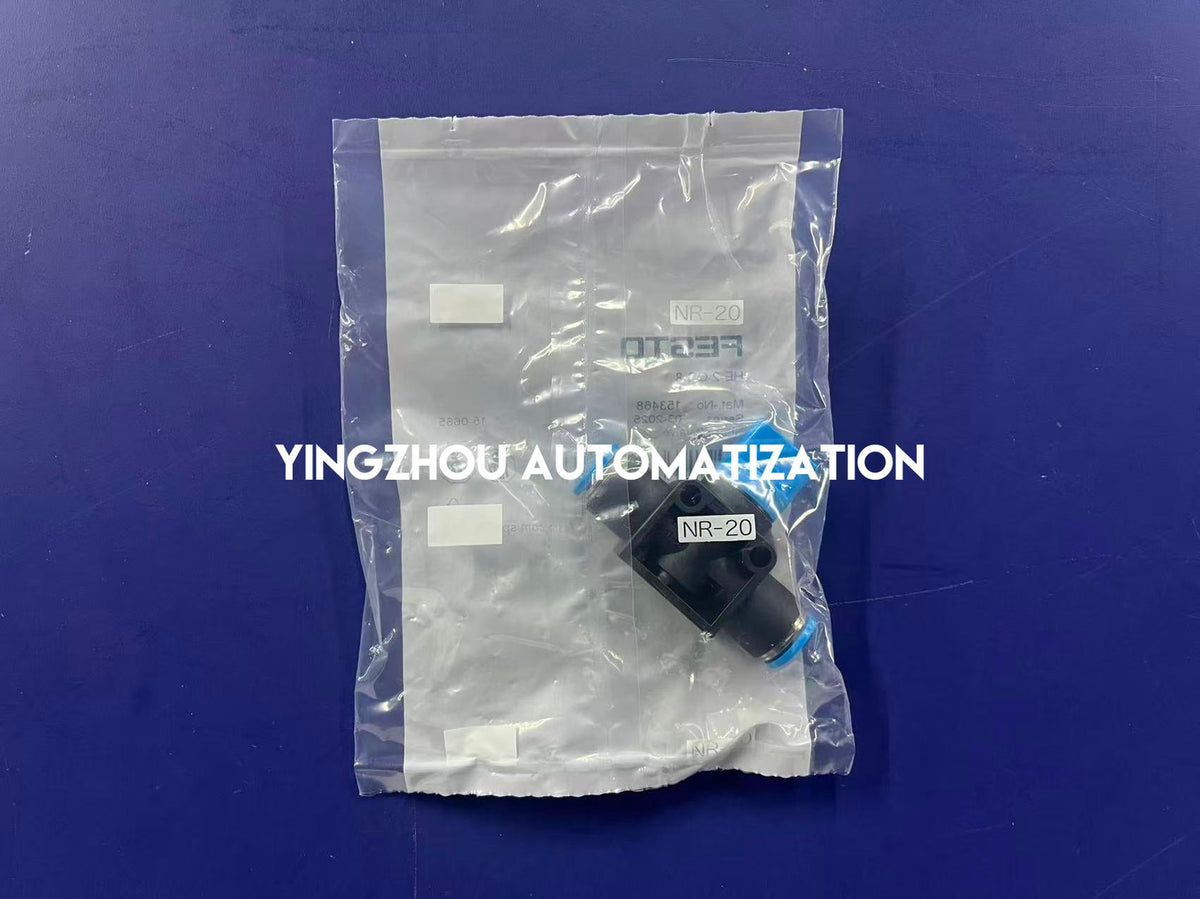

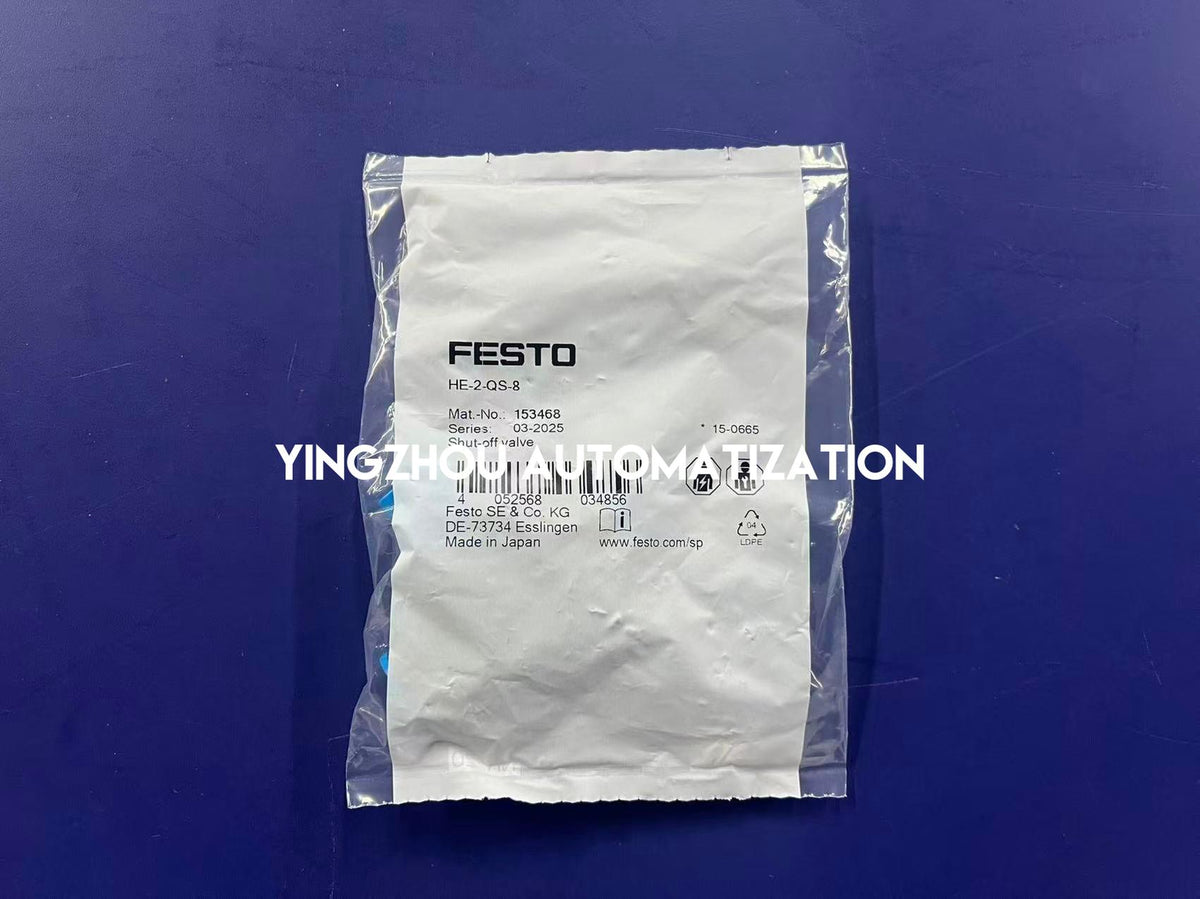

Actual Product Verification

✓ Actual manufacturer packaging photograph supplied
✓ Packaging brand: FESTO
✓ Packaging model: HE-2-QS-8
✓ Packaging part number: 153468
✓ Packaging product type: Shut-off valve
✓ Packaging marked Made in Japan
✓ Valve body/nameplate is not visible; confirm unit and condition before dispatch

In Stock & Available to Order

FESTO HE-2-QS-8 (153468) is marked in stock based on seller-supplied inventory information. The supplied photo confirms the exact model and part number on the manufacturer packaging. Please confirm the actual valve body, QS-8 connection requirements, quantity and dispatch terms before ordering.

IN STOCK

FESTO HE-2-QS-8 153468

Contact us for exact-model confirmation, bulk sourcing and dispatch arrangements. Verify QS-8 connections, pressure requirements and actual unit condition before ordering.
