FESTO HE-2-QS-6 153467 2/2-Way Manual Pneumatic Shut-off Valve QS-6

FESTO HE-2-QS-6 153467 2/2-Way Manual Pneumatic Shut-off Valve QS-6

$8.99 USD
$8.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

FESTO HE-2-QS-6 153467 Pneumatic Shut-off Valve

2/2-Way Bistable | QS-6 | Manual Actuation | -0.95 to 10 bar
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number HE-2-QS-6
Part Number 153467
Product Family HE Series
Product Type Pneumatic Shut-off Valve
Valve Function 2/2-way, bistable
Pneumatic Connection 1 QS-6
Pneumatic Connection 2 QS-6
Actuation Type Manual
Mounting Type Direct mounting via through-hole / In-line installation
Standard Nominal Flow Rate 256.5 l/min
Nominal Size 3 mm
Operating Pressure -0.95 to 10 bar
Ambient Temperature 0°C to +60°C
Medium Temperature 0°C to +60°C
Operating Medium Compressed air per ISO 8573-1:2010 [7:-:-]
Sealing Principle Soft
Structural Design Piston gate valve
Type of Control Direct
Flow Direction Reversible
Mounting Position Any
Housing Material PBT-reinforced
Seal Material NBR
Corrosion Resistance Class CRC 2
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Suitability Class 4 according to ISO 14644-1
Product Weight 23 g
Materials Compliance RoHS-compliant

Product Overview

The FESTO HE-2-QS-6, manufacturer part number 153467, is a manually actuated pneumatic shut-off valve from the FESTO HE series. The valve features a 2/2-way bistable function with QS-6 push-in pneumatic connections on both ports. It provides a manufacturer-specified 256.5 l/min standard nominal flow rate, a 3 mm nominal size and an operating pressure range of -0.95 to 10 bar. The valve is designed for compressed-air operation with ambient and medium temperatures from 0°C to +60°C. Its construction includes a PBT-reinforced housing, NBR seals and a directly operated piston gate valve mechanism. Installation options include in-line installation and direct mounting via a through-hole. The supplied actual product photographs show FESTO packaging labeled HE-2-QS-6 with material number 153467 and a product appearance consistent with the manufacturer illustration.

Key Product Features

  • FESTO HE Series Shut-off Valve — Manufacturer catalog model HE-2-QS-6, part number 153467.
  • 2/2-Way Bistable Function — Manual pneumatic shut-off valve with direct actuation.
  • QS-6 Pneumatic Connections — Push-in fittings on both ports for 6 mm outer-diameter tubing.
  • 256.5 l/min Nominal Flow — Manufacturer-specified standard nominal flow rate.
  • -0.95 to 10 bar Operating Pressure — Suitable for the manufacturer's specified vacuum and compressed-air operating range.
  • 0°C to +60°C Temperature Range — Specified ambient and operating-medium temperature range.
  • Industrial PBT Construction — Reinforced PBT housing, NBR seals and CRC 2 corrosion resistance classification.

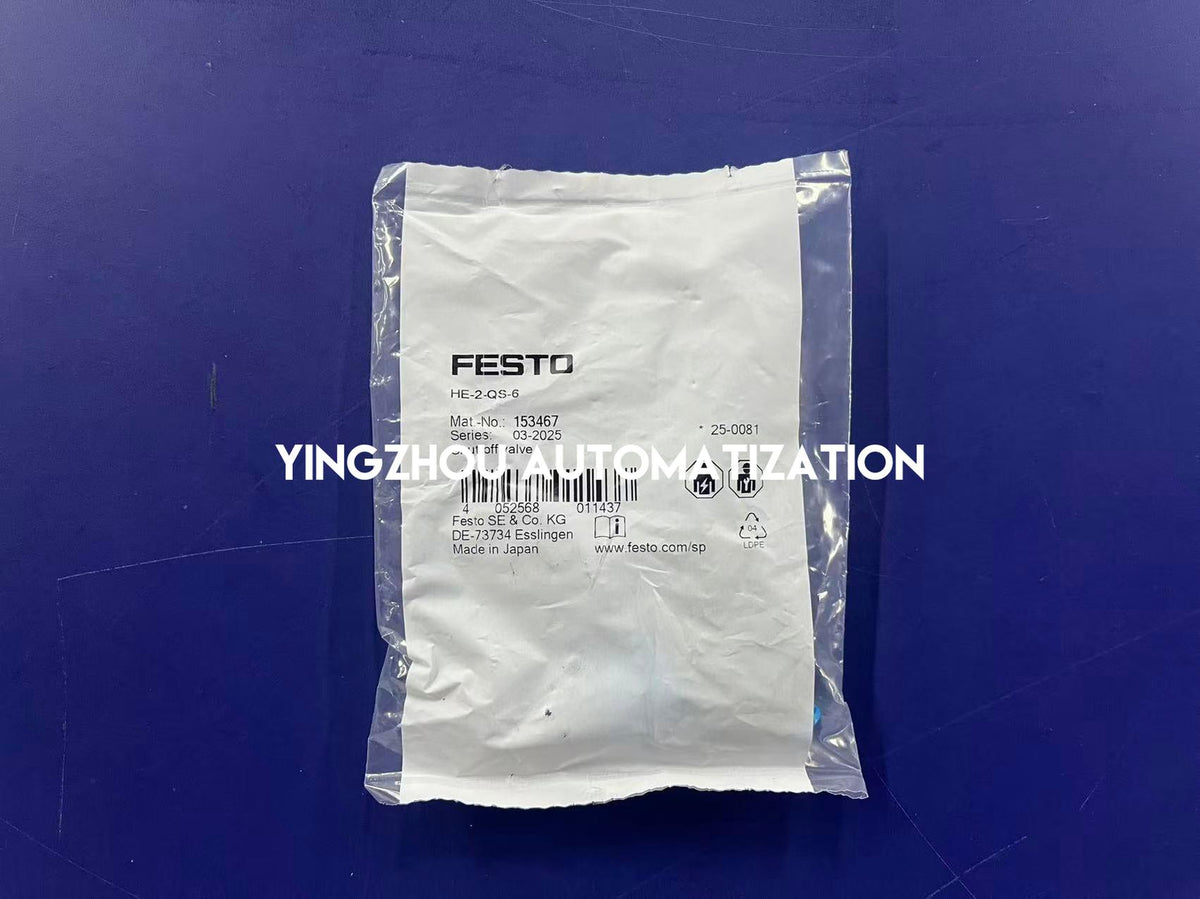

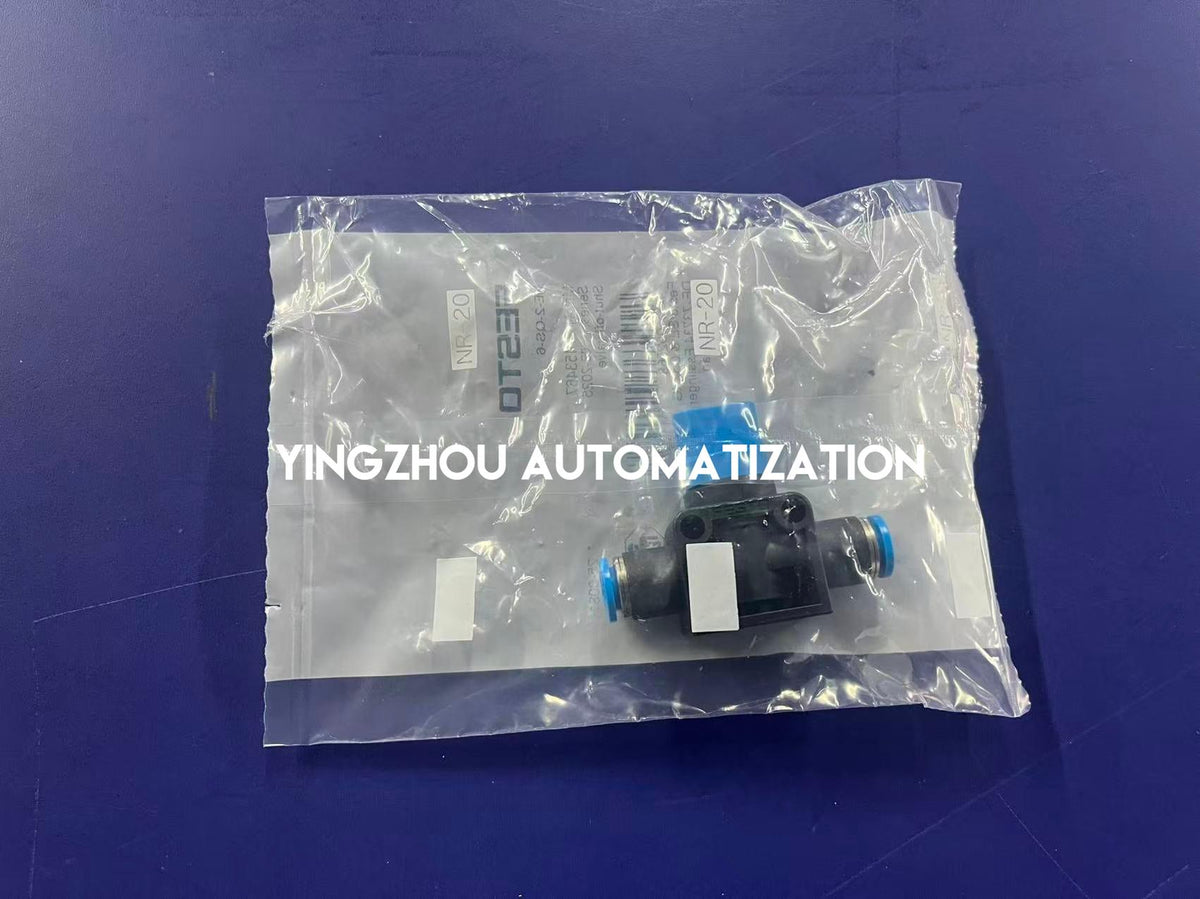

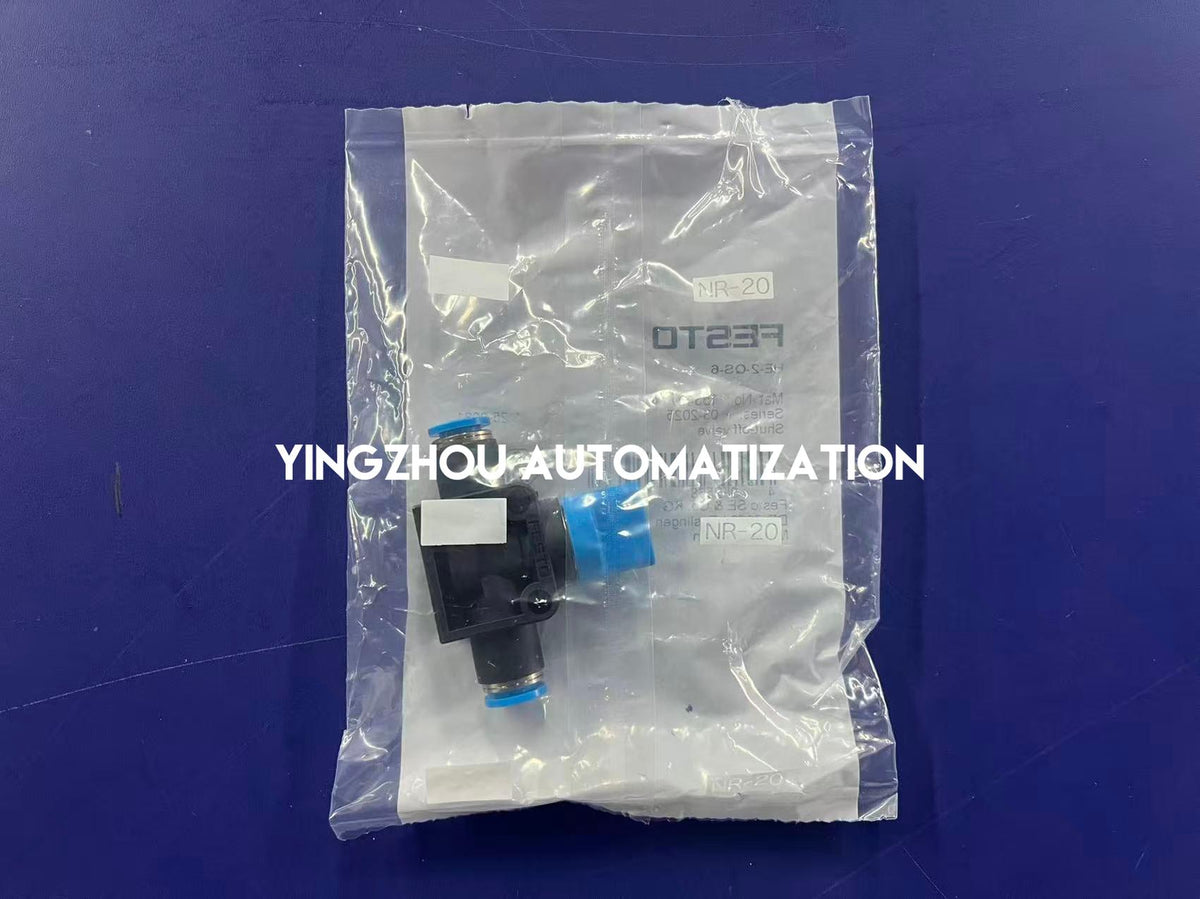

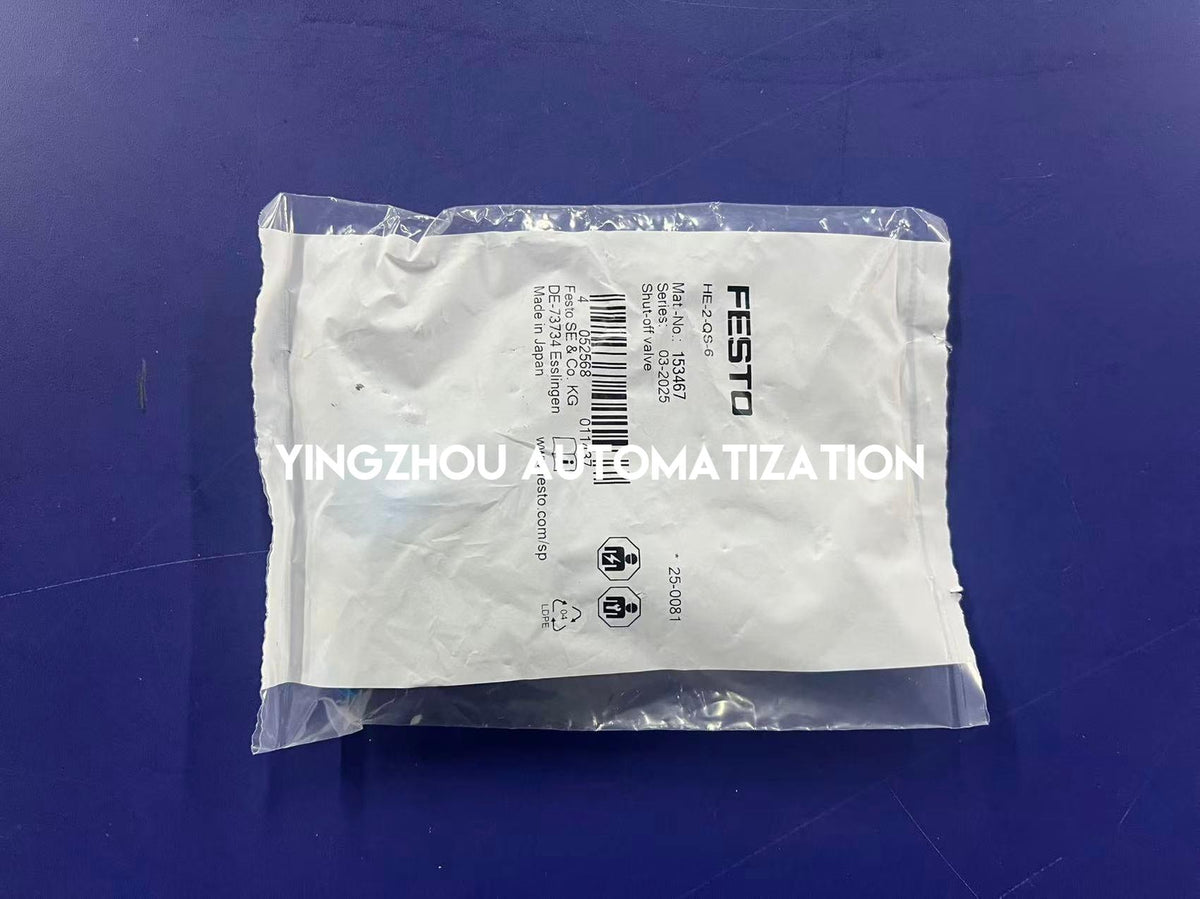

Actual Product Verification

✓ Actual product and original packaging photographs supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: HE-2-QS-6
✓ Packaging material number: 153467
✓ Packaging series marking: 03-2025
✓ Packaging country-of-origin marking: Made in Japan
✓ Visible product configuration is consistent with manufacturer product imagery

In Stock & Available to Order

FESTO HE-2-QS-6 153467 is marked in stock based on the supplied inventory information. This manually operated 2/2-way pneumatic shut-off valve is available for industrial maintenance, pneumatic equipment procurement and replacement-part inquiries. Actual product and packaging photographs are available for confirmation. Please verify the required quantity, QS-6 pneumatic connections, shipping arrangements and installation requirements before completing an order.

IN STOCK

FESTO HE-2-QS-6 153467

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the QS-6 pneumatic connections, operating pressure and installation requirements before ordering.
