FESTO DFM-16-30-P-A-GF 170835 Double Acting Guided Drive 16mm Bore 30mm Stroke Plain Bearing

FESTO DFM-16-30-P-A-GF 170835 Double Acting Guided Drive 16mm Bore 30mm Stroke Plain Bearing

$71.99 USD
$71.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

FESTO DFM-16-30-P-A-GF 170835 Guided Drive

Double-acting | 16mm Bore | 30mm Stroke | Plain-bearing Guide
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number DFM-16-30-P-A-GF
Part Number 170835
Product Family DFM
Product Type Pneumatic Guided Drive
Piston Diameter 16 mm
Stroke 30 mm
Operating Mode, Drive Unit Yoke
Mode of Operation Double-acting
Guide Type Plain-bearing Guide
Structural Design Guide
Cushioning Elastic Cushioning Rings / Pads at Both Ends
Position Detection Via Proximity Switch
Proximity Switch Included Not Confirmed
Operating Pressure 0.2-1 MPa / 2-10 bar
Maximum Speed 0.8 m/s
Mounting Position Any
Pneumatic Connection M5
Operating Medium Compressed Air per ISO 8573-1:2010 [7:4:4]
Lubricated Operation Possible; Continued Lubrication Required Thereafter
Ambient Temperature -20°C to +80°C
Corrosion Resistance Class CRC 1 - Low Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Suitability Class 6 per ISO 14644-1, Measured According to ISO 14644-14
Impact Energy at End Positions 0.15 Nm
Load Centre-of-Gravity Distance xs 50 mm
Maximum Force Fy 304 N
Maximum Static Force Fy 304 N
Maximum Force Fz 304 N
Maximum Static Force Fz 304 N
Maximum Torque Mx 6.99 Nm
Maximum Static Moment Mx 6.99 Nm
Maximum Torque My 2.89 Nm
Maximum Static Moment My 2.89 Nm
Maximum Torque Mz 2.89 Nm
Maximum Static Moment Mz 2.89 Nm
Maximum Permissible Torque Load Mx at Specified Stroke 0.98 Nm
Maximum Payload at Defined xs 24 N
Theoretical Advance Force at 6 bar 121 N
Theoretical Return Force at 6 bar 90 N
Moving Mass 264 g
Product Weight 565 g
Cover Material Wrought Aluminium Alloy
Housing Material Wrought Aluminium Alloy
Piston Rod Material High-alloy Stainless Steel
Seal Material NBR
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568139636
Packaging Series 02-2025:58 - Actual Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO DFM-16-30-P-A-GF, manufacturer part number 170835, is a double-acting pneumatic guided drive from the FESTO DFM series. This model features a 16 mm piston diameter, a 30 mm stroke and a plain-bearing guide with a yoke for guided linear motion. The manufacturer specifies an operating pressure range of 2 to 10 bar, a maximum speed of 0.8 m/s and an M5 pneumatic connection. Elastic cushioning rings or pads are provided at both ends. Position detection is supported through compatible proximity switches, which are not confirmed as included. At 6 bar, the manufacturer specifies a 121 N theoretical advancing force and 90 N theoretical retracting force. The maximum payload under the specified stroke and 50 mm load centre-of-gravity distance conditions is 24 N. The ambient temperature range is -20°C to +80°C, with CRC 1 corrosion resistance classification. The covers and housing use wrought aluminium alloy, with high-alloy stainless-steel piston rods and NBR seals. The specified product weight is 565 g and moving mass is 264 g. The supplied actual photograph shows the protected FESTO guided drive and its packaging label marked DFM-16-30-P-A-GF, material number 170835. Please confirm the installation conditions, load requirements, sensors and mounting accessories before ordering.

Key Product Features

  • FESTO DFM Guided Drive — Manufacturer model DFM-16-30-P-A-GF, part number 170835.
  • 16mm Bore and 30mm Stroke — Manufacturer-confirmed guided drive dimensions.
  • Double-acting Pneumatic Operation — Powered advancing and retracting linear movements.
  • Plain-bearing Guide — GF configuration with a guided yoke for controlled linear movement.
  • 2-10 Bar Operating Pressure — Manufacturer-rated pneumatic drive with M5 air connection.
  • Elastic Cushioning at Both Ends — Elastic rings or pads for end-position operation.
  • 121N Theoretical Advance Force — Rated at 6 bar, with a 90N theoretical return force.

Actual Product Verification

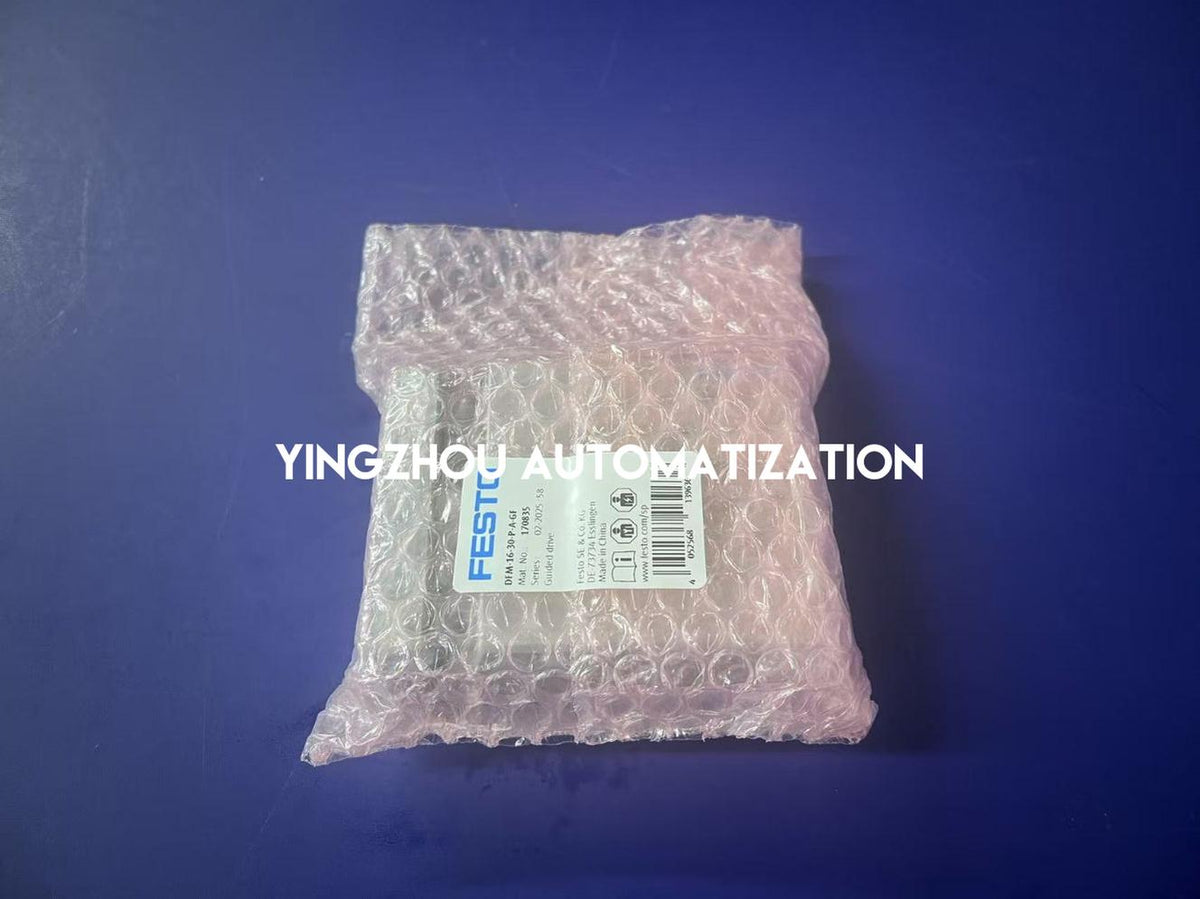

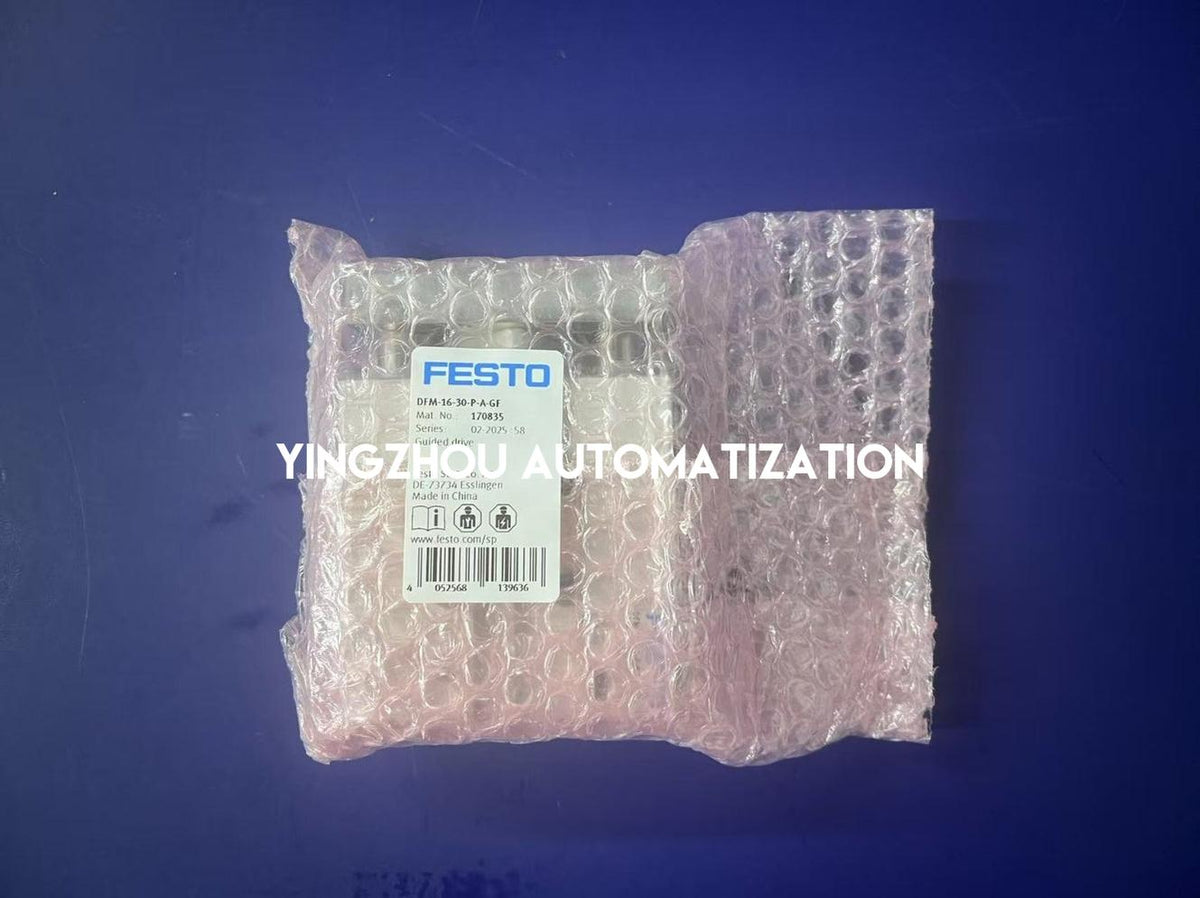

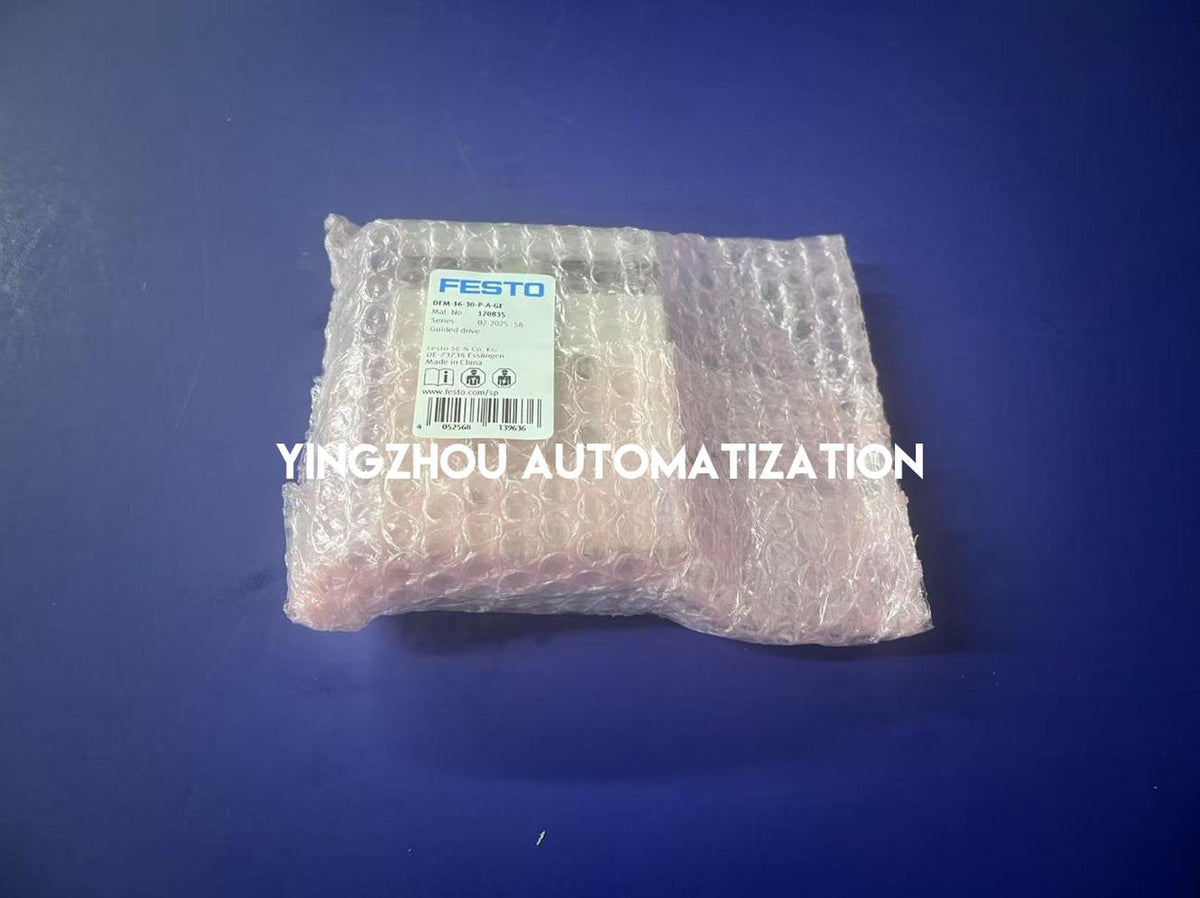

✓ Actual protective packaging photograph supplied
✓ FESTO manufacturer label visible
✓ Packaging catalog number: DFM-16-30-P-A-GF
✓ Packaging material number: 170835
✓ Packaging series marking: 02-2025:58
✓ Packaging description: Guided Drive
✓ Packaging origin marking: Made in China

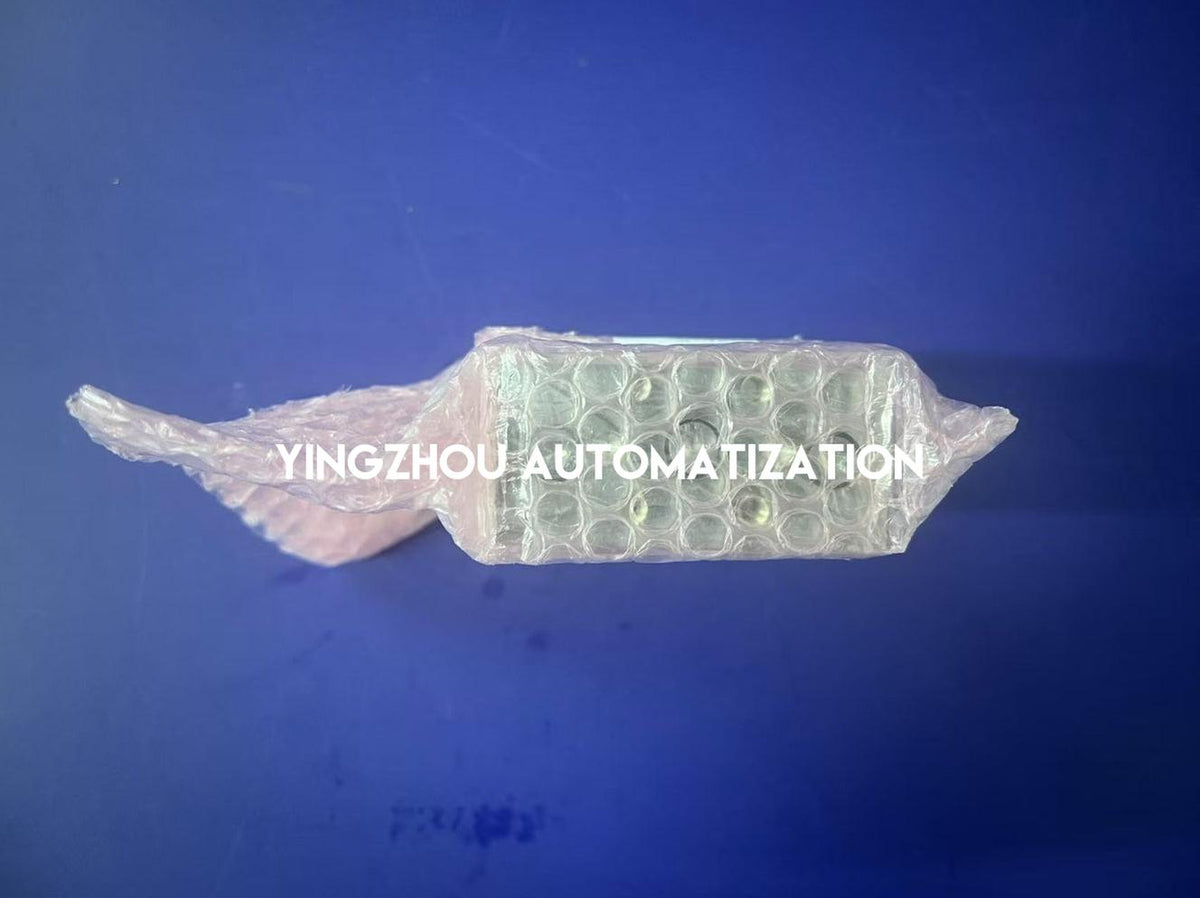

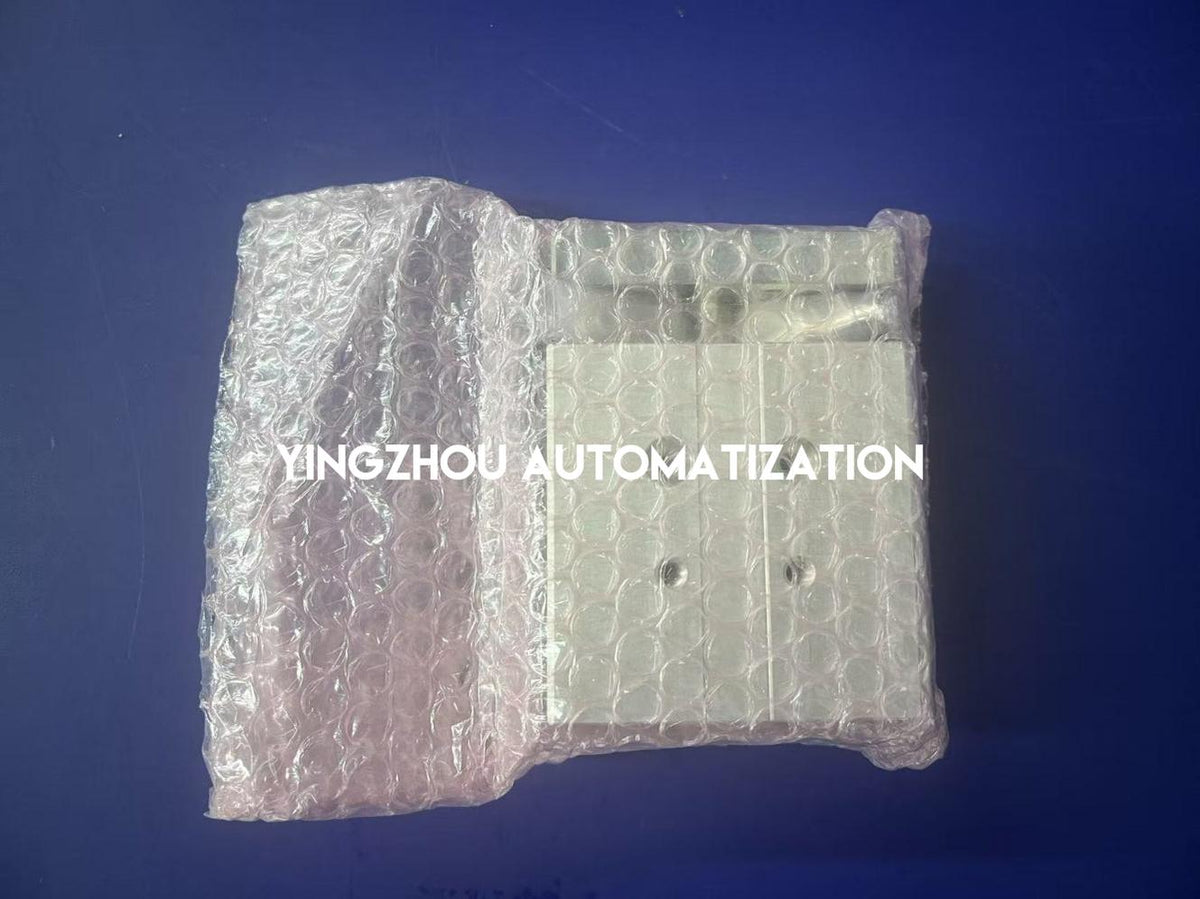

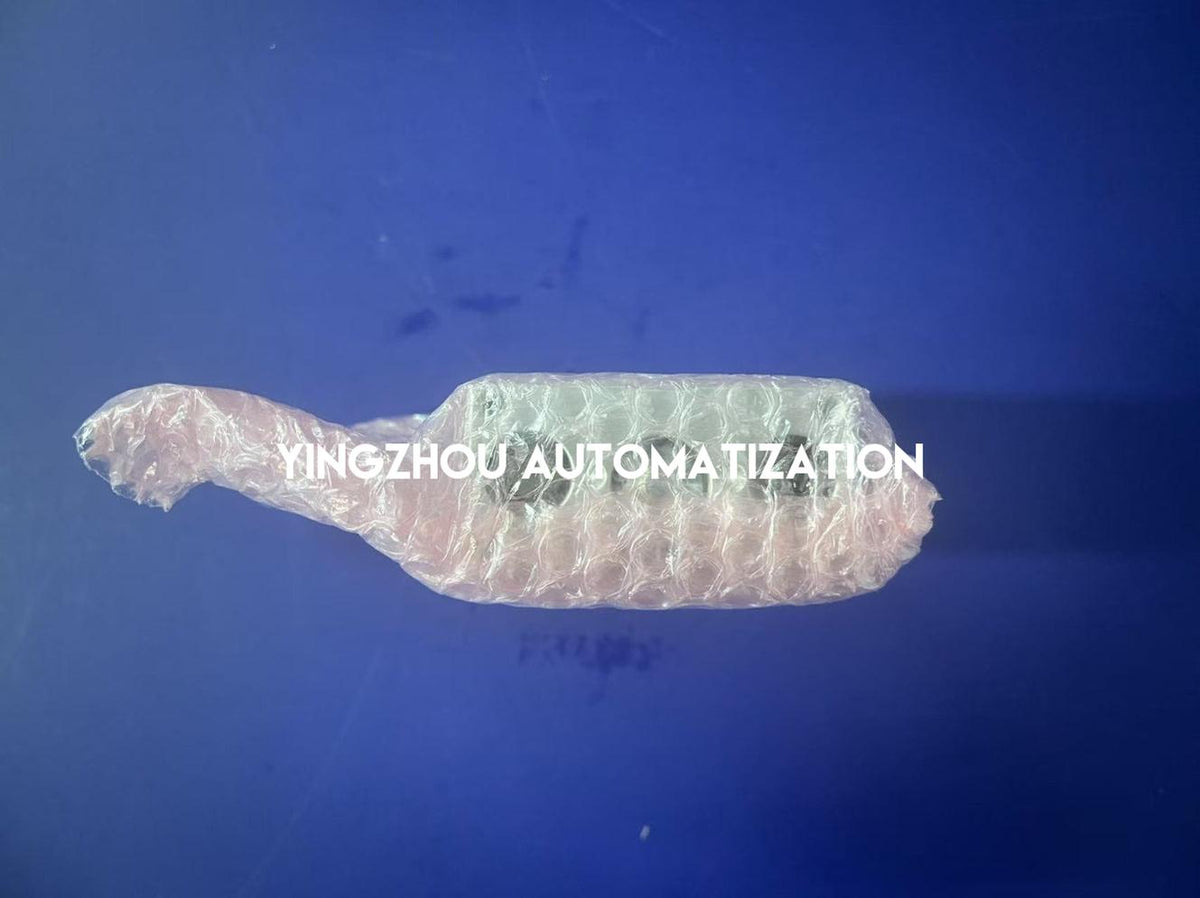

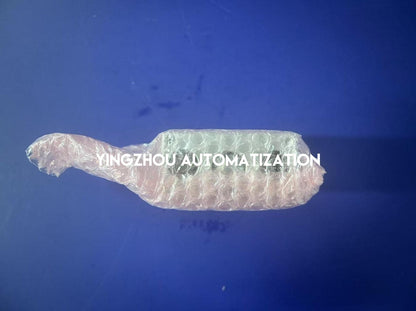

✓ Guided drive partially visible through protective bubble wrapping
✓ Full catalog model and part number match the requested product
✓ Exposed product body nameplate not independently verified
✓ Functional testing and accessory completeness not confirmed

In Stock & Available to Order

FESTO DFM-16-30-P-A-GF 170835 is marked in stock based on the supplied inventory information. This double-acting pneumatic guided drive is offered for industrial automation procurement, pneumatic handling equipment maintenance and exact-model replacement requirements. The supplied actual photograph confirms the FESTO packaging label, complete model and manufacturer material number. Please verify the 16 mm piston diameter, 30 mm stroke, GF plain-bearing guide, M5 pneumatic connection, 2-10 bar operating pressure and required load conditions before completing an order. Proximity switches and separate mounting accessories are not confirmed as included.

IN STOCK

FESTO DFM-16-30-P-A-GF 170835

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the double-acting configuration, 16mm bore, 30mm stroke, GF plain-bearing guide, M5 pneumatic connection and installation requirements before ordering.
