Delta ASD-B3-1043-E ASDA-B3 EtherCAT AC Servo Drive
1 kW | 400 V Class | Three-Phase 380-440 VAC | EtherCAT CN6 | 3.37 A
|
Specification
|
Product Data
|
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-1043-E |
| Product Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
1 kW / 1000 W |
| Voltage Class |
400 V Class |
| Main Circuit Input Phase |
Three-Phase |
| Main Circuit Rated Voltage |
400 VAC |
| Permissible Main Input Voltage |
Three-Phase 380-440 VAC, -10% to +10% |
| Input Frequency |
50/60 Hz |
| Rated Input Current |
2.91 Arms |
| Inrush Current |
5.66 Arms |
| Control Circuit Rated Voltage |
Single-Phase 400 VAC |
| Continuous Output Current |
3.37 Arms |
| Maximum Instantaneous Output Current |
7.07 Arms |
| Nameplate Output |
220 V, 0-166.7 Hz, 3.37 A |
| Communication |
EtherCAT |
| EtherCAT Communication Connector |
CN6 |
| EtherCAT Network Ports |
CN6A IN / CN6B OUT |
| PC Communication |
Mini USB (CN4) |
| RS-485 Modbus Communication |
Not Supported on B3-E |
| CANopen Communication |
Not Supported on B3-E |
| DMCNET Communication |
Not Supported on B3-E |
| External Pulse Train Input |
Not Supported on B3-E |
| Encoder Pulse Output (OA / OB / OZ) |
Supported |
| Internal Positioning |
PR Mode Supported |
| EtherCAT Touch Probe |
DI1 and DI2 |
| High-Speed Capture DI (PR) |
Not Supported on B3-E |
| Analog Voltage Input / Output |
2 / 2 |
| Analog Command Voltage Range |
0 to +/-10 VDC |
| Digital Inputs |
4 |
| Digital Outputs |
2 |
| CN1 Connector |
26 Pins |
| Motor Encoder Connector |
CN2 |
| Drive Resolution |
24-bit |
| Main Circuit Control |
SVPWM |
| Tuning Mode |
Auto / Manual |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Built-In Regenerative Resistor |
100 Ohm, 80 W |
| Built-In Regenerative Capacity |
40 W |
| Minimum External Regenerative Resistance |
80 Ohm |
| Cooling Method |
Fan Cooling |
| Hardware Safe Torque Off |
Not Supported on B3-E |
| Hardware Dynamic Brake |
Not Supported on B3-E |
| Operating Temperature |
0 to +55 degrees C |
| Cooling Above 45 degrees C |
Forced Cooling Required |
| Storage Temperature |
-20 to +65 degrees C |
| Operating Humidity |
0-90% RH, Non-Condensing |
| Protection Rating |
IP20 |
Product Overview
The Delta ASD-B3-1043-E is a
1 kW single-axis AC servo drive
from the ASDA-B3 Series.
Designed for 400 V class industrial
power systems, the drive supports
three-phase 380-440 VAC input
and provides 3.37 A continuous output current.
The B3-E configuration features
EtherCAT communication through CN6
for compatible industrial motion control networks.
It supports internal PR positioning,
EtherCAT touch probe functions through DI1 and DI2,
and configurable digital I/O.
The drive provides 24-bit resolution,
high-response servo control and a built-in
100 Ohm, 80 W regenerative resistor.
CANopen, RS-485 Modbus, DMCNET and external
pulse train input are not supported on this B3-E model.
Key Product Features
-
1 kW Rated Servo Capacity for compatible industrial AC servo motor systems
-
400 V Class Three-Phase Input supporting industrial 380-440 VAC supply configurations
-
EtherCAT Communication through the dedicated CN6 fieldbus interface
-
EtherCAT IN / OUT Network Ports for controller and drive network connections
-
EtherCAT Touch Probe with DI1 and DI2 support
-
Internal PR Positioning for supported parameter-based motion sequences
-
4 Digital Inputs and 2 Digital Outputs for configurable machine control signals
-
24-bit Drive Resolution for high-resolution servo control
-
Speed Loop Bandwidth Up to 3.1 kHz for high-response motion control
-
Built-In Regenerative Resistor with 100 Ohm and 80 W specifications

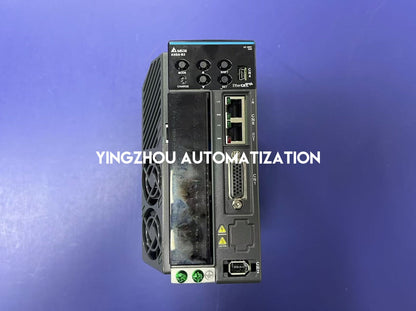

Actual Product Verification
✓

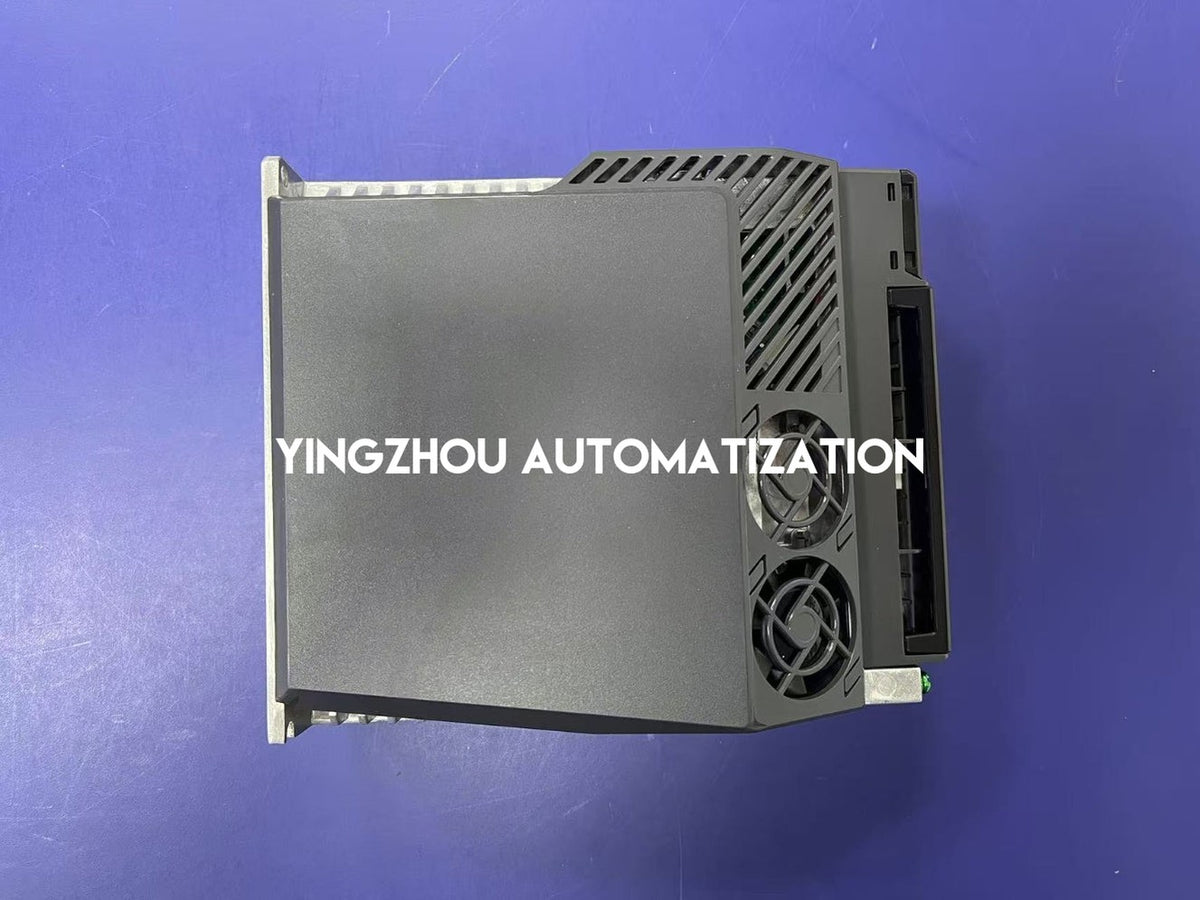

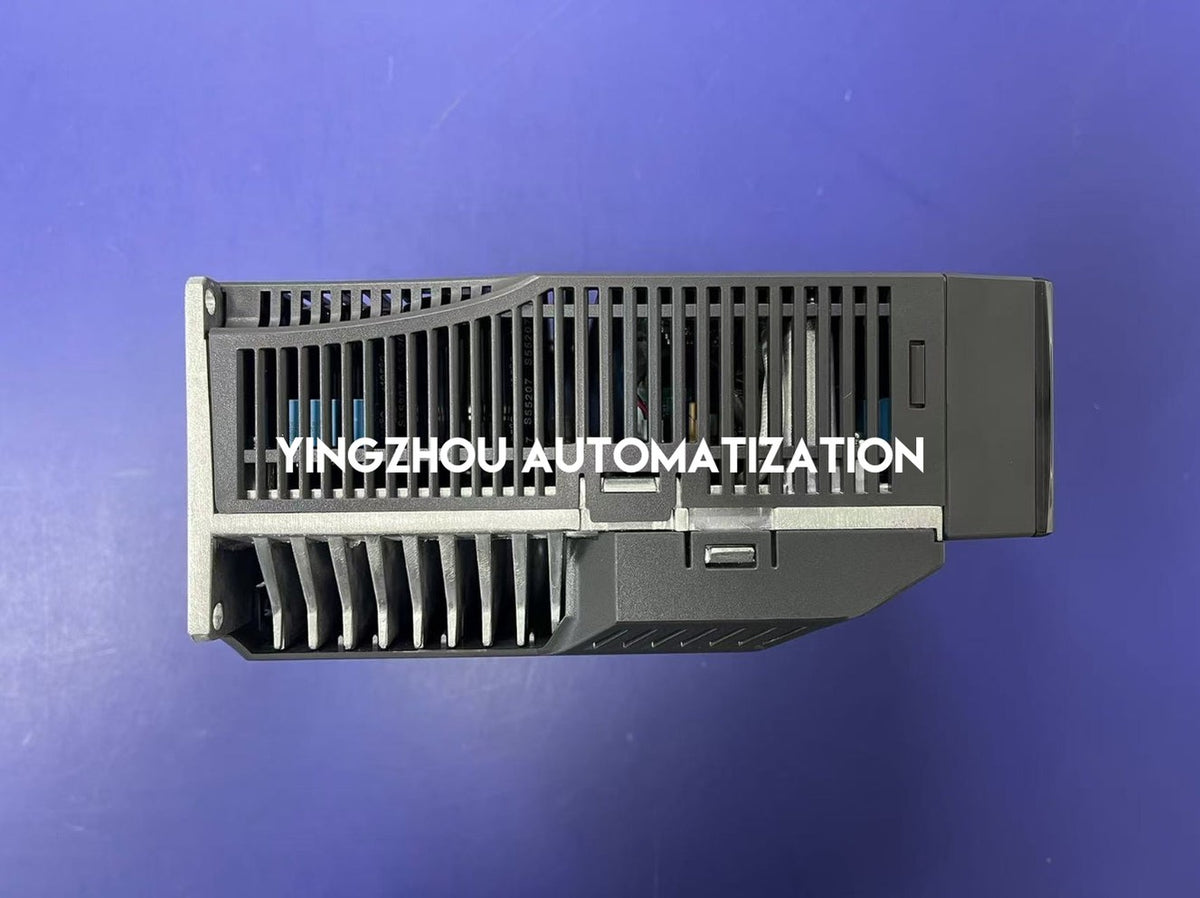

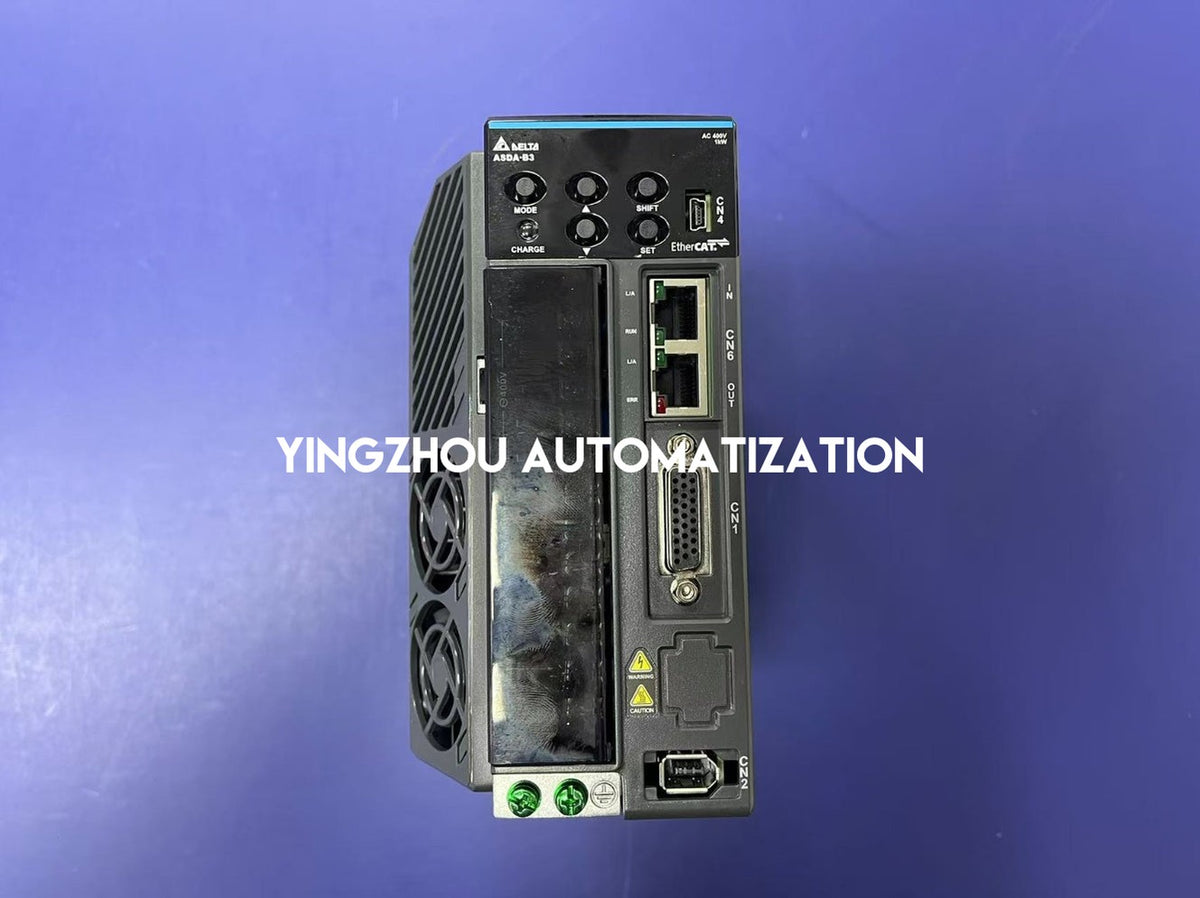

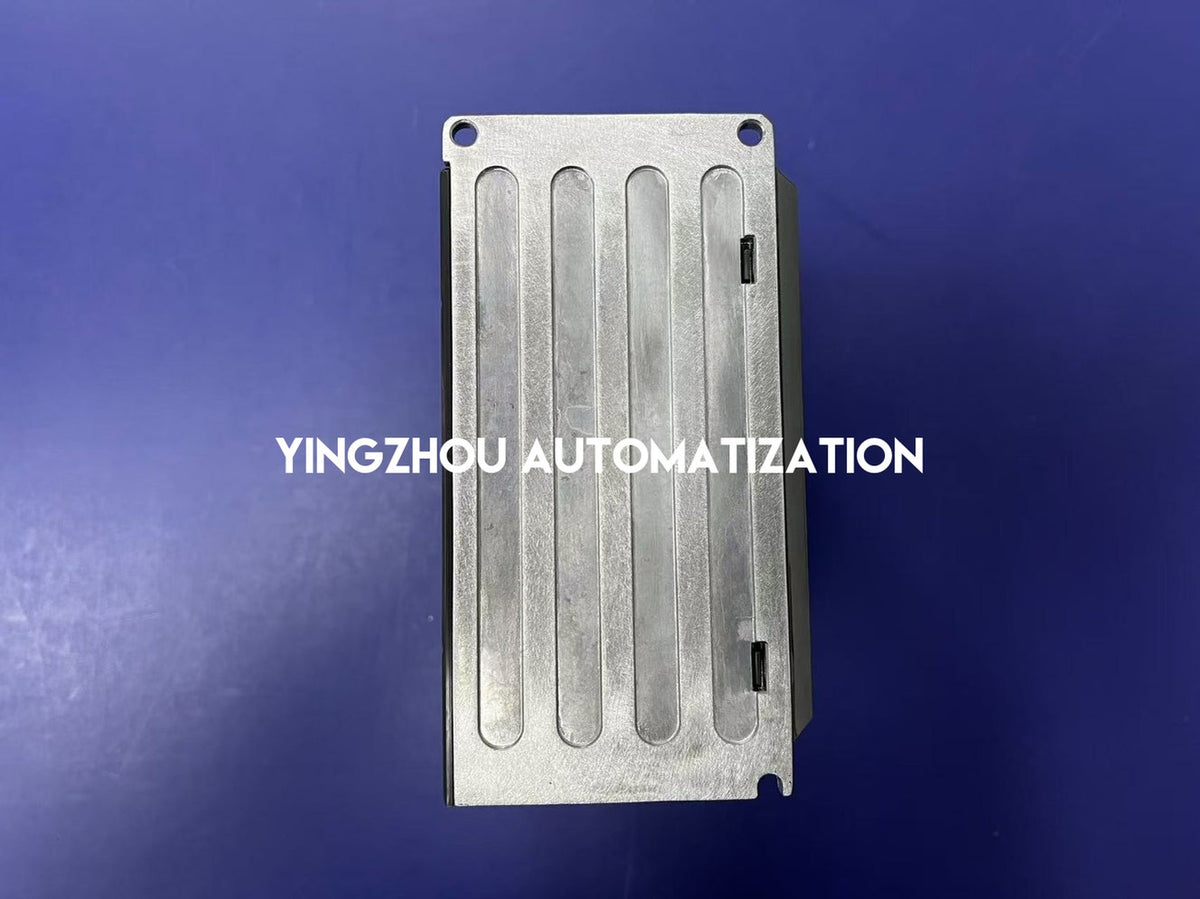

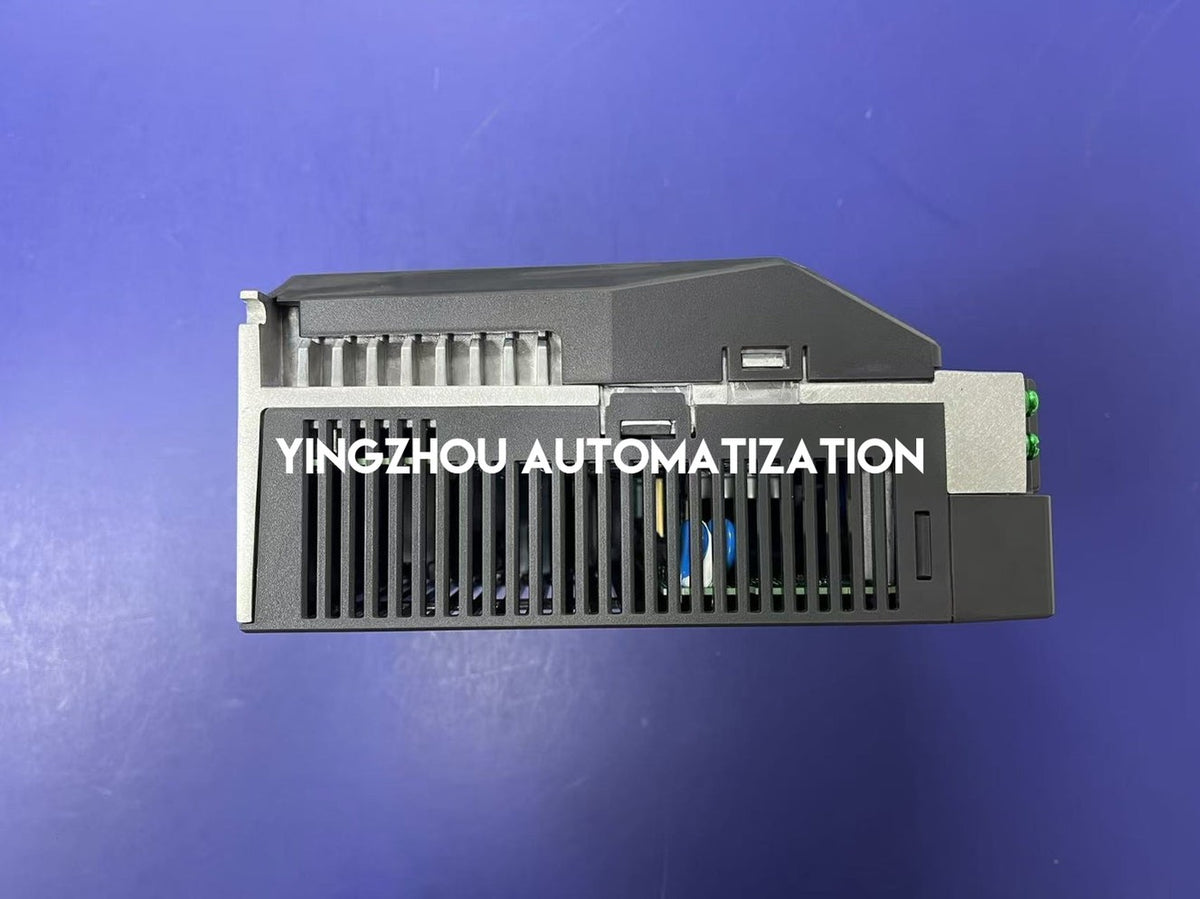

Actual product photos
✓

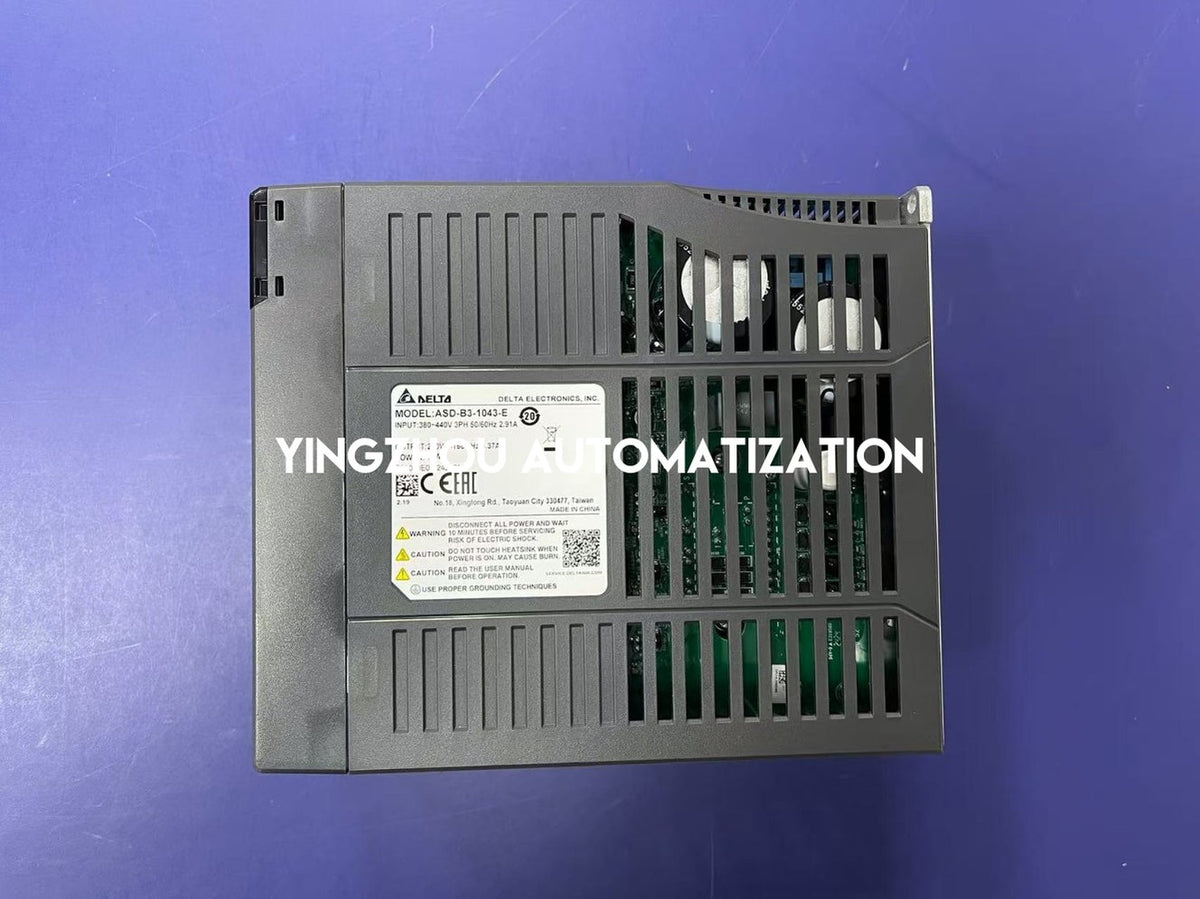

Model/nameplate visible
✓
Packaging shown
✓
Device and carton labels match exact model
ASD-B3-1043-E
✓
Actual nameplate confirms 1 kW,
380-440 VAC three-phase input,
2.91 A input and 3.37 A output
✓
Verify exact model before ordering
