Aventics R412022866 ST6 Reed Sensor 10-230V AC/DC 3m Cable

Aventics R412022866 ST6 Reed Sensor 10-230V AC/DC 3m Cable

$25.99 USD
$25.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

Aventics R412022866 ST6 Magnetic Reed Sensor

10–230V AC/DC | 3m Cable | 6mm T-Slot | NO Reed Contact
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer Emerson / AVENTICS
Catalog Number R412022866
Product Family Series ST6
Product Type Magnetic Proximity Sensor
Sensor Technology Reed Contact
Operating Voltage DC 10–230 V DC
Operating Voltage AC 10–230 V AC
Switching Logic Normally Open (NO)
Maximum Switching Current 0.13 A AC/DC
Maximum Switching Capacity 10 W (Reed, 2-pin)
Maximum Switching Frequency 400 Hz
Slot Width 6 mm T-slot
Cable Length 3 m
Electrical Connection 2-pin, Open Cable Ends
LED Status Display Yellow
Protection Class IP65 / IP67 / IP69K
Ambient Temperature -30°C to +80°C
Switching Point Precision ±0.1 mT
Hysteresis ≥0.2 mT
Voltage Drop at Imax ≤3.5 V
Housing Material Polyamide
Cable Sheath Material Polyurethane
Locking Screw Material Stainless Steel
Country of Manufacture Hungary (packaging marking)

Product Overview

The Aventics R412022866 is a Series ST6 magnetic proximity sensor from Emerson / AVENTICS, designed for detecting piston positions in compatible industrial pneumatic cylinders. It features a normally open reed contact and supports an operating voltage range of 10–230V AC/DC. The sensor is designed for a standardized 6mm T-slot and features a 3-meter cable with 2-pin open cable ends. Its maximum switching current is 130mA, with a maximum switching capacity of 10W. The manufacturer specifies IP65, IP67 and IP69K protection classes and an operating temperature range from -30°C to +80°C. The supplied actual packaging photograph identifies R412022866, the ST6 product series and the corresponding electrical ratings. Confirm the required cylinder mounting arrangement, wiring and electrical load before ordering.

Key Product Features

  • AVENTICS ST6 Magnetic Sensor — Reed-contact position sensing for compatible pneumatic cylinders.
  • 10–230V AC/DC Operating Range — Supports specified AC and DC control circuits.
  • 3m Integrated Cable — Two-wire electrical connection with open cable ends.
  • 6mm T-Slot Mounting — Compact installation in standardized pneumatic cylinder slots.
  • Normally Open Reed Contact — Maximum switching current of 0.13A AC/DC.
  • Maximum 10W Switching Capacity — Electrical loads must remain within manufacturer ratings.
  • IP65 / IP67 / IP69K Protection — Designed for industrial environmental conditions within specified limits.

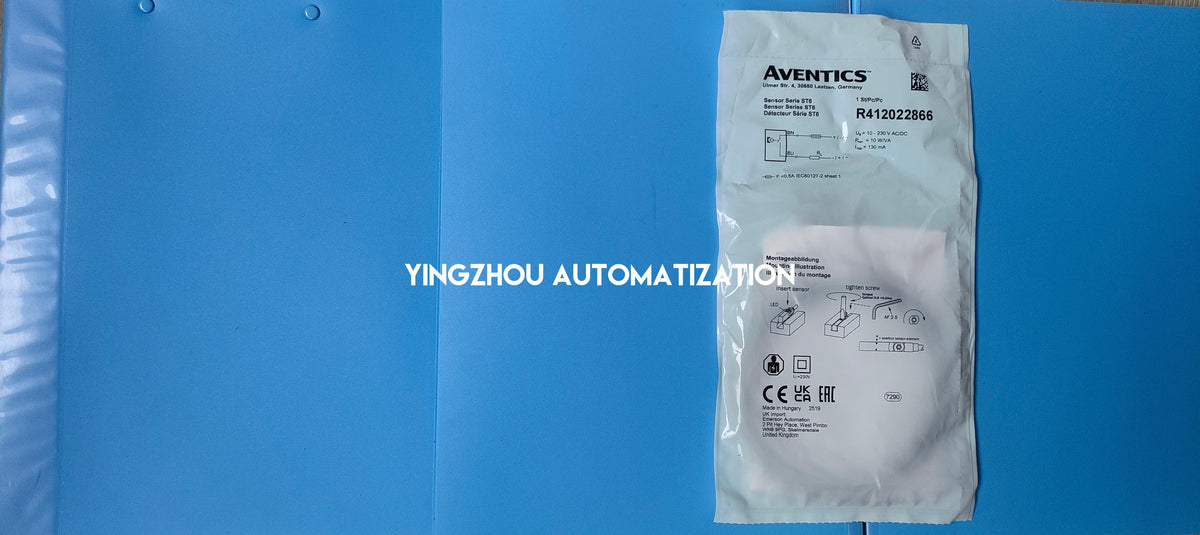

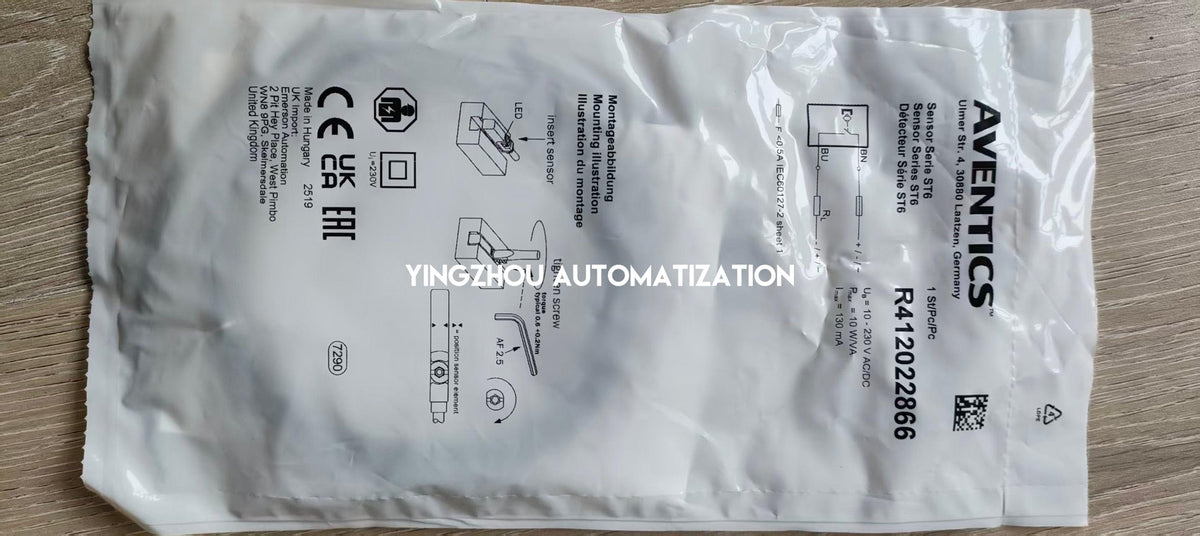

Actual Product Verification

✓ Actual product packaging photograph supplied
✓ Packaging brand marking: AVENTICS
✓ Packaging part number: R412022866
✓ Packaging product series: Sensor Series ST6
✓ Packaging voltage rating: 10–230V AC/DC
✓ Packaging switching capacity: 10 W/VA
✓ Packaging maximum current: 130mA
✓ Packaging origin marking: Made in Hungary
✓ Packaging model and electrical ratings match manufacturer documentation
✓ Sensor-body nameplate not shown in the supplied photograph
✓ Confirm mounting compatibility and electrical load before ordering

In Stock & Available to Order

Aventics R412022866 is marked in stock based on the supplied inventory information. Actual packaging photography is available for part number confirmation. This ST6 magnetic reed proximity sensor is offered for industrial pneumatic cylinder maintenance, replacement and automation sourcing. The model features 10–230V AC/DC operation, a 3m cable and a 6mm T-slot mounting design. Please confirm the exact sensor model, compatible cylinder, installation method, switching load and quantity before completing an order.

IN STOCK

Aventics R412022866

Contact us for exact-model confirmation, multiple units and industrial pneumatic sensor sourcing. Please confirm the 10–230V AC/DC operating range, 3m cable length, mounting requirements and switching load before ordering.
