Aventics 1825503143 ISO 1 Pneumatic Valve Single Subbase G1/4 Side Port

Aventics 1825503143 ISO 1 Pneumatic Valve Single Subbase G1/4 Side Port

$23.99 USD
$23.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

Aventics 1825503143 ISO 1 Pneumatic Valve Single Subbase

ISO 5599-1 | G1/4 Side Ports | G1/8 Pilot Ports | Max. 16 Bar
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Brand Aventics
Manufacturer Emerson
Part Number 1825503143
Product Type Pneumatic Valve Single Subbase
Design Side-Ported Connection Plate
Standard ISO 5599-1
Frame Size ISO 1
Valve Positions 1
Air Input Port (1) G1/4, Side
Air Output Ports (2, 4) G1/4, Side
Exhaust Ports (3, 5) G1/4, Side
Pilot Port (12) G1/8, Side
Pilot Port (14) G1/8, Side
Exhaust Configuration Separate Exhaust Ports 3/5
Minimum Working Pressure -0.95 bar
Maximum Working Pressure 16 bar
Ambient Temperature -25°C to +70°C
Medium Temperature -25°C to +70°C
Operating Medium Compressed Air
Grid Dimension 48 mm
Weight 0.17 kg
Country of Origin Turkey (actual packaging label)
Availability IN STOCK

Product Overview

The Aventics 1825503143 is an ISO 5599-1 Size 1 pneumatic valve single subbase from Emerson's Aventics industrial pneumatic product range. Designed as a connection plate for compatible directional control valves, the unit features G1/4 side-mounted pneumatic connections for the main air supply, working ports and exhaust ports, together with G1/8 pilot connections. The manufacturer specifies a working pressure range of -0.95 to 16 bar and an ambient temperature range of -25°C to +70°C. This single-station valve base supports standardized pneumatic valve mounting with separate exhaust connections at ports 3 and 5. Its ISO 1 configuration and 48 mm grid dimension make it suitable for replacement and maintenance of compatible industrial pneumatic valve assemblies. The supplied actual product photograph shows the connection plate with its packaging label identifying part number 1825503143.

Key Product Features

  • ISO 5599-1 Single Subbase — Standardized pneumatic valve connection plate.
  • Exact Part Number 1825503143 — Manufacturer identification matches the actual packaging label.
  • ISO 1 Frame Size — Designed for compatible ISO Size 1 directional control valves.
  • G1/4 Side Ports — Threaded main air inlet, outlet and exhaust connections.
  • G1/8 Pilot Connections — Side connections for pilot ports 12 and 14.
  • 16 Bar Maximum Working Pressure — Manufacturer-specified operating pressure limit.
  • -25°C to +70°C Ambient Range — Specified operating temperature limits.
  • Single Valve Position — One-station subbase configuration.
  • Separate Exhaust Arrangement — Individual exhaust ports 3 and 5.
  • 48 mm Grid Dimension — Manufacturer-listed mounting grid dimension.
  • Actual Product Photography — Physical connection plate and part-number label are shown.
  • In Stock — Available for industrial pneumatic spare-parts procurement.

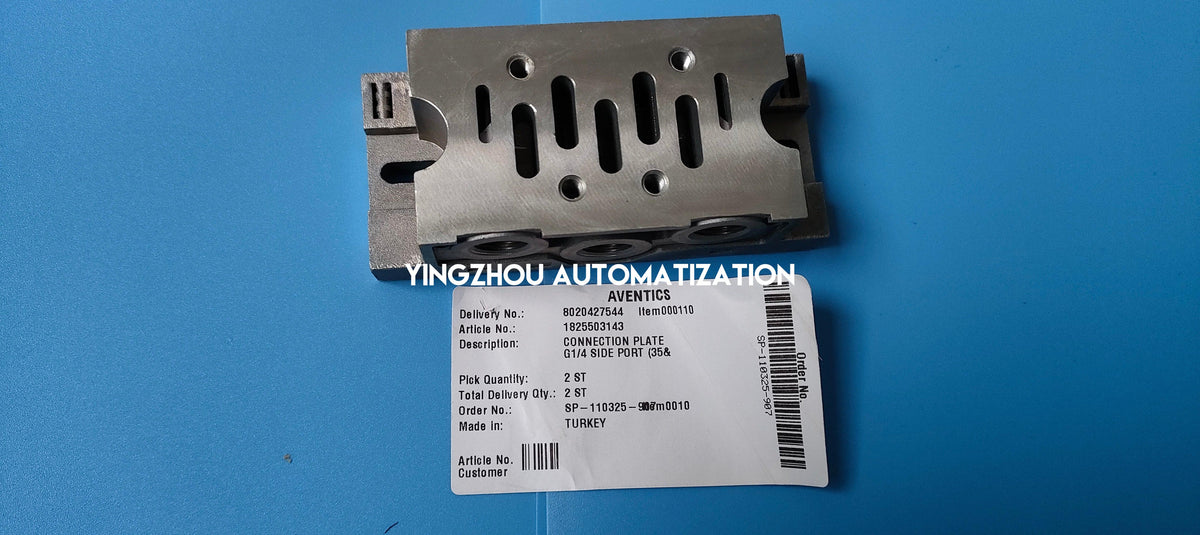

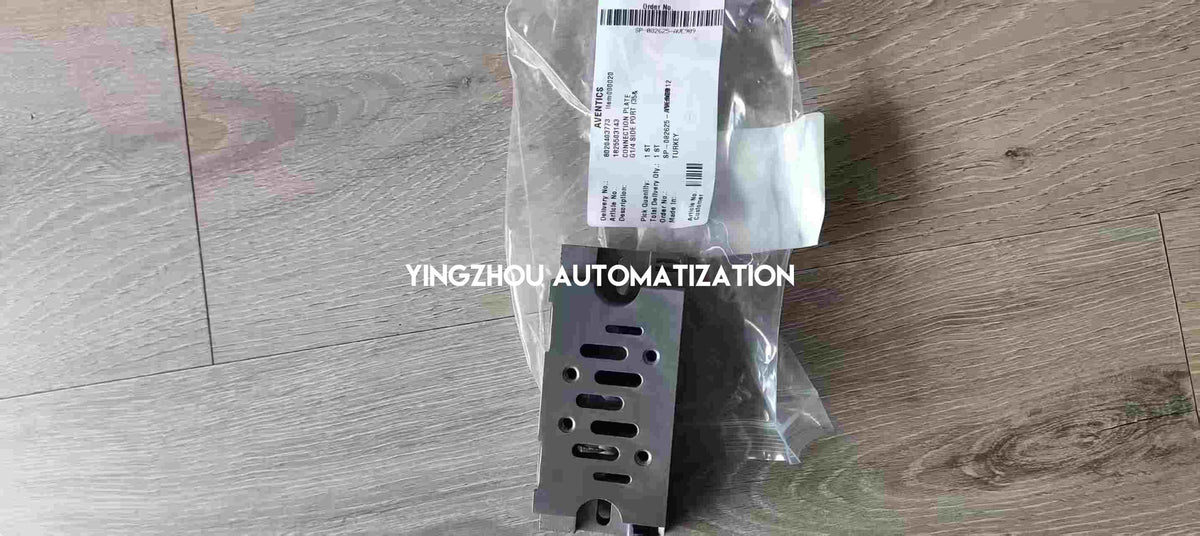

Actual Product Verification

✓ Actual product and packaging label photograph supplied
✓ Manufacturer shown on label: AVENTICS
✓ Article number: 1825503143
✓ Product description: CONNECTION PLATE G1/4 SIDE PORT
✓ Manufacturer model identification matches the supplied part number
✓ Physical metal subbase and threaded side ports visible
✓ Country of origin label: MADE IN TURKEY
✓ Packing document shows a delivery quantity of two pieces; supplied quantity per order must be confirmed separately
✓ Exact-model product identification is supported by the actual packaging label
✓ Functional pressure and leakage testing has not been independently verified

In Stock & Available to Order

The Aventics 1825503143 ISO 1 Pneumatic Valve Single Subbase is listed as IN STOCK based on the supplied inventory information. Actual product photos are available for reference and the exact part number is visible on the accompanying label. For a replacement or new pneumatic installation, please confirm the ISO 5599-1 Size 1 mounting interface, G1/4 side connections, G1/8 pilot connections and pressure requirements before ordering. Contact our team for exact-model confirmation, multiple-unit requests and international shipment arrangements.

IN STOCK

Aventics 1825503143 ISO 1 Single Subbase

Need this G1/4 side-ported pneumatic valve connection plate? Contact us for exact-model verification, bulk quantities and industrial pneumatic spare-parts sourcing.
