Allen-Bradley 1794-IE8XOE4 FLEX I/O 8AI 4AO Analog Module

Allen-Bradley 1794-IE8XOE4 FLEX I/O 8AI 4AO Analog Module

$857.99 USD
$857.99 USD
Aanbieding Uitverkocht
Model Number
YingZhou Industrial Automation | Product Information

Allen-Bradley 1794-IE8XOE4 FLEX I/O Analog Module

8 Analog Inputs | 4 Analog Outputs | 16-Bit | 24V DC
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Unit Verification Required
Specification Verified Product Data
Manufacturer Allen-Bradley / Rockwell Automation
Catalog Number 1794-IE8XOE4
Product Family FLEX I/O / Bulletin 1794
Product Type Analog Combination I/O Module
Number of Inputs 8 Single-Ended, Non-Isolated
Number of Outputs 4 Single-Ended, Non-Isolated
Analog Voltage Input ±10V, Configurable
Analog Current Input 0–20mA / 4–20mA, Configurable
Analog Voltage Output ±10V, Configurable
Analog Current Output 0–20mA / 4–20mA, Configurable
Input Resolution 16 Bits
Output Resolution 16 Bits
Voltage Resolution 320µV/count
Current Resolution 0.641µA/count
Input Conversion Type Successive Approximation
Output Conversion Type Digital-to-Analog Converter
Input Conversion Rate 8ms, All Channels
Data Format 16-Bit, Left-Justified
Analog Accuracy 0.1% Full Scale @ 25°C
Voltage Input Impedance >1MΩ
Current Input Impedance <100Ω
Maximum Voltage Input Overload 30V, Single Channel Continuous
Nominal Field Power 24V DC
Field Power Voltage Range 10.0–31.2V DC
Field Supply Current 140mA @ 24V DC
FLEXBus Current 80mA @ 5V DC
Maximum Power Dissipation 3.4W @ 24V DC
Field-to-System Isolation 50V Continuous
Interchannel Isolation None
Recommended Terminal Base 1794-TB3G / 1794-TB3GS
Dimensions (H × W × D) 46 × 94 × 53mm
Approximate Weight 102g
Operating Temperature -20 to +60°C
Enclosure Type Open Style
Manufacturer Lifecycle Active Mature

Product Overview

The Allen-Bradley 1794-IE8XOE4 is a FLEX I/O analog combination module manufactured by Rockwell Automation. It provides 8 single-ended analog inputs and 4 single-ended analog outputs for compatible distributed industrial automation systems.

The module supports configurable analog voltage and current signals, including ±10V voltage and 0–20mA / 4–20mA current configurations. Both the input and output sections feature 16-bit resolution.

The input section uses successive-approximation conversion with a specified conversion rate of 8ms for all channels, while the output section uses a digital-to-analog converter. Rockwell Automation specifies 0.1% full-scale accuracy at 25°C for voltage and current signals.

The 1794-IE8XOE4 requires a 24V DC nominal field power supply, with a supported supply range of 10.0–31.2V DC. It draws approximately 140mA at 24V DC from the field supply and 80mA at 5V DC from the FLEXBus.

The module is designed for use with recommended 1794-TB3G or 1794-TB3GS terminal bases. Its compact open-style construction is suitable for installation in an appropriately protected industrial control enclosure. The specified operating temperature range is -20 to +60°C.

Rockwell Automation lists the 1794-IE8XOE4 with an Active Mature lifecycle status. It is distinct from the 1794-IE8XOE4K conformal-coated configuration.

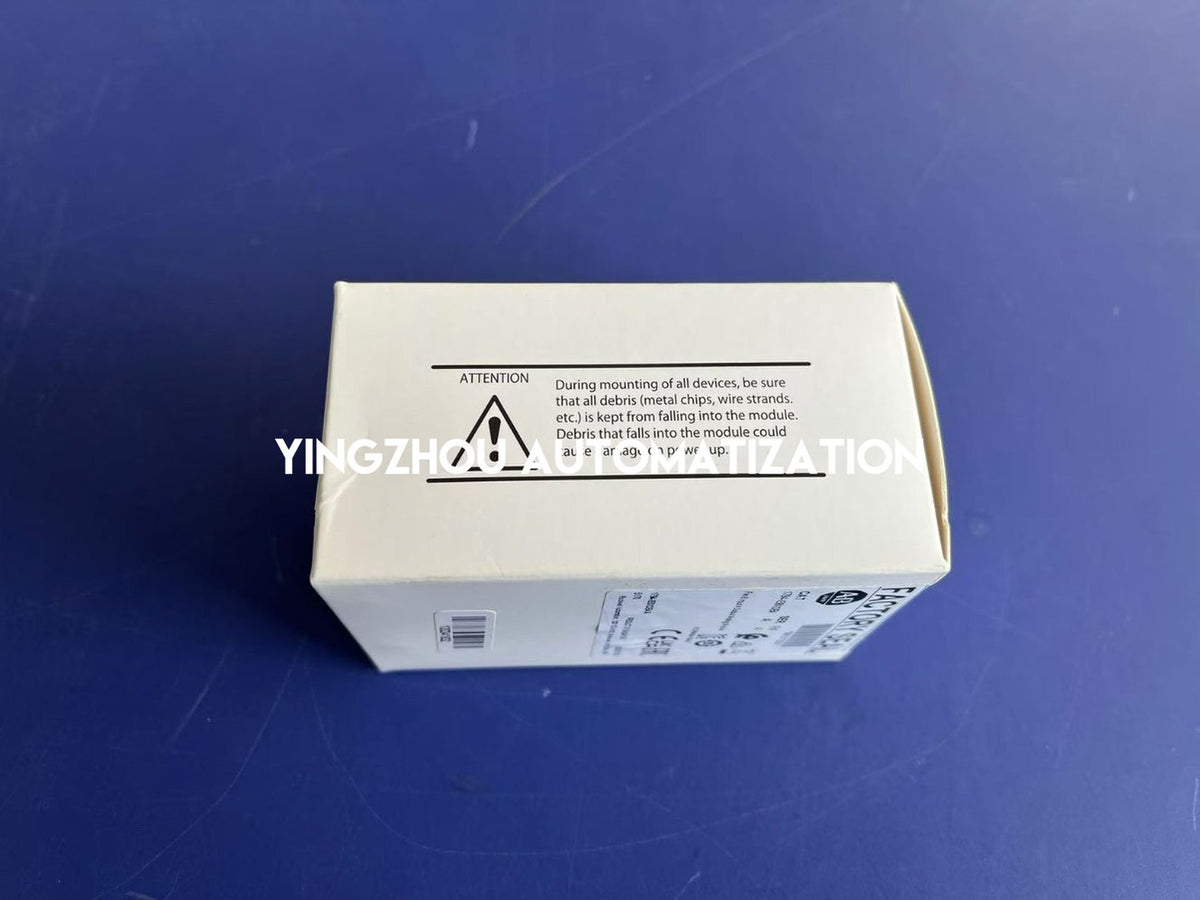

The seller has supplied photographs of packaging labeled 1794-IE8XOE4, Series A, with a visible factory seal and a date marking of 2023/11/30. The internal module has not been separately photographed or electrically tested for this listing. Buyers should confirm the exact physical unit, configuration, terminal base and installation requirements before ordering.

Key Product Features

  • FLEX I/O Analog Combination Module — Allen-Bradley Bulletin 1794 distributed analog I/O.
  • 8 Analog Inputs — Eight single-ended, non-isolated input channels.
  • 4 Analog Outputs — Four single-ended, non-isolated output channels.
  • 16-Bit Signal Resolution — Manufacturer-specified resolution for analog input and output conversion.
  • Configurable Voltage and Current Signals — Supports compatible voltage and current signal configurations.
  • 24V DC Field Power — Nominal field supply voltage with a 10.0–31.2V DC operating range.
  • Compact FLEX I/O Construction — Designed for compatible terminal bases and distributed control installations.

Actual Product Verification

✓ Actual packaging photographs supplied
✓ Packaging catalog number: 1794-IE8XOE4
✓ Requested model and photographed packaging label match
✓ Packaging identifies Series A
✓ Packaging carries an FW A marking
✓ Packaging date marking: 2023/11/30
✓ Packaging country-of-origin marking: Singapore
✓ Factory seal is visible in the supplied photographs
Physical module nameplate and functional operation have not been independently verified.
Confirm the exact physical module and included accessories before ordering.

In Stock & Available to Order

Allen-Bradley 1794-IE8XOE4 is marked in stock based on the supplied inventory information. This FLEX I/O analog combination module provides 8 inputs and 4 outputs with configurable voltage and current signal ranges.

Actual packaging photographs are available for model and label reference. The exact physical module, included terminal base and functional condition should be confirmed before completing an order. Contact our team for quantity confirmation, quotation and shipping arrangements.

IN STOCK

Allen-Bradley 1794-IE8XOE4

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 24V DC field power, analog signal requirements, compatible FLEX I/O terminal base and installation requirements before ordering.
