Allen-Bradley 1769-PA4 Compact I/O 120/240V AC Power Supply
Allen-Bradley 1769-PA4 Compact I/O 120/240V AC Power Supply
Kan beschikbaarheid voor afhalen niet laden
Allen-Bradley 1769-PA4 Compact I/O AC Power Supply
| Specification | Verified Product Data |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1769-PA4 |
| Product Family | Compact I/O / Bulletin 1769 |
| Product Type | AC Input Expansion Power Supply |
| Nominal Input Voltage | 120/240V AC Class |
| Selectable Input Voltage Ranges | 85–265V AC / 170–265V AC |
| Input Frequency | 47–63Hz |
| Input Power Consumption @ 120V | 200VA |
| Input Power Consumption @ 240V | 240VA |
| Backplane Current Capacity @ 5V DC | 4.0A |
| Backplane Current Capacity @ 24V DC | 2.0A |
| Power Dissipation @ 60°C | 18W |
| Isolation Voltage | 265V Continuous, Reinforced Insulation |
| Isolation Routine Test | 2596V DC for 1 Second |
| Power Supply Distance Rating | 8 Modules |
| I/O Module Placement | Up to 8 per Side, Subject to System Limits |
| Dimensions (H x W x D) | 118 x 70 x 87mm |
| Approximate Weight | 630g |
| Mounting | DIN Rail or Panel |
| Mounting Screw Torque | 1.16 N.m |
| Input Power Wire | 14 AWG Solid Copper, 90°C Minimum |
| Operating Temperature | 0–60°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 5–95%, Non-Condensing |
| Enclosure Type | Open Style |
| Manufacturer Lifecycle | Active Mature |
| Country of Origin | Malaysia |
| Photographed Packaging Series | Series A |
| Packaging Firmware Field | N/A |
| Photographed Date | 2024/11/05 |
| Photographed Country Marking | PRODUCT OF MALAYSIA |
Product Overview
The Allen-Bradley 1769-PA4 is a Compact I/O AC input power supply manufactured by Rockwell Automation for supported CompactLogix and Bulletin 1769 I/O systems. It provides electrical power to compatible modules through the system backplane. The power supply is designed for a 120/240V AC input class and provides switch-selectable operating voltage ranges of 85–265V AC or 170–265V AC, with an input frequency of 47–63Hz. The correct voltage selection and input wiring must be confirmed before energizing the equipment. The 1769-PA4 delivers a manufacturer-specified backplane current capacity of 4.0A at 5V DC and 2.0A at 24V DC. These ratings describe the available I/O system bus current and must not be confused with independent general-purpose field power outputs. The unit supports the installation of compatible 1769 Compact I/O modules to either side of the power supply. Rockwell Automation allows up to eight modules per side, subject to the controller's overall I/O module capacity, individual module power supply distance ratings and available power budget. The device features a compact open-style enclosure with DIN rail or panel mounting. Its approximate dimensions are 118 x 70 x 87mm, and its approximate weight is 630g. The manufacturer specifies 18W power dissipation at 60°C and an operating temperature range of 0–60°C. Rockwell Automation currently classifies catalog number 1769-PA4 as Active Mature. The supplied actual photograph shows an Allen-Bradley carton marked 1769-PA4, Series A, and POWER SUPPLY 120/240VAC INPUT. The packaging carries a date of 2024/11/05, the marking PRODUCT OF MALAYSIA, and a visible FACTORY SEAL label. The photograph confirms the catalog number printed on the carton. The power supply module's physical nameplate, internal condition, and electrical operating performance have not been independently verified. Please confirm the exact module, input supply, system power requirements and included accessories before ordering.
Key Product Features
- Compact I/O Power Supply — Allen-Bradley Bulletin 1769 power supply for compatible industrial automation systems.
- 120/240V AC Input — Selectable input voltage ranges for supported AC power systems.
- 4A at 5V DC Backplane Capacity — Manufacturer-confirmed bus current rating.
- 2A at 24V DC Backplane Capacity — Additional current capacity for compatible 1769 system modules.
- Compact I/O Module Expansion — Supports compatible I/O modules on either side, subject to system limitations.
- DIN Rail or Panel Mounting — Designed for installation inside an appropriate industrial control enclosure.
- Industrial Operating Temperature — Manufacturer-specified operation from 0°C to 60°C.
Actual Product Verification
In Stock & Available to Order

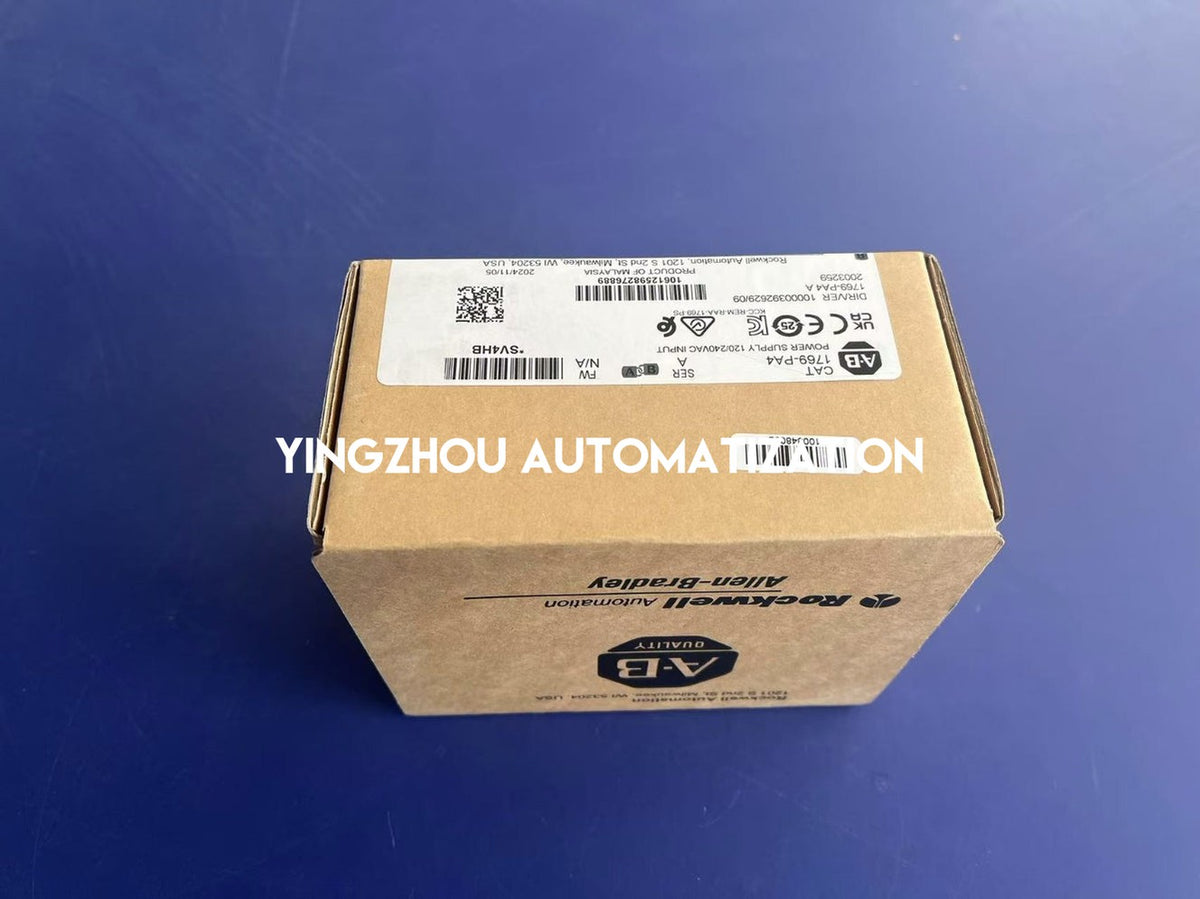

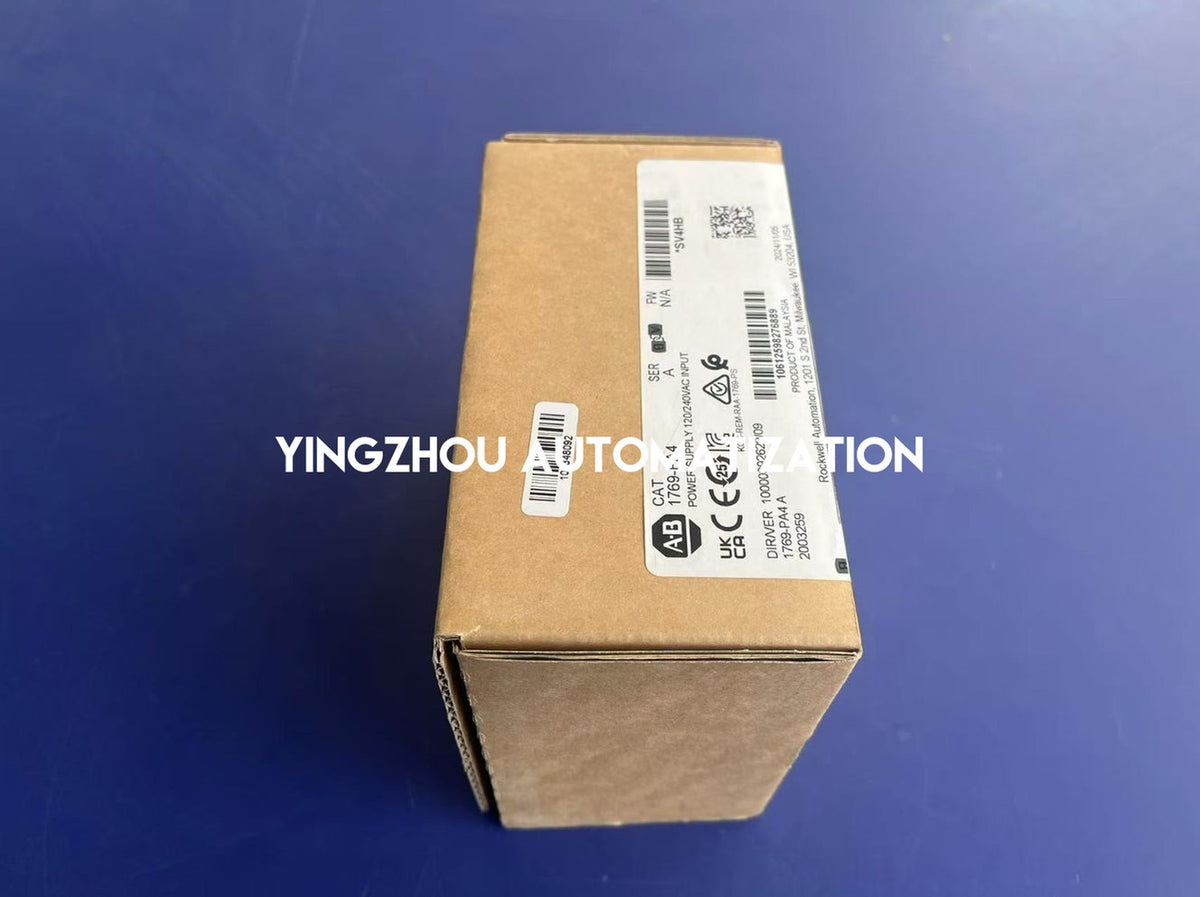

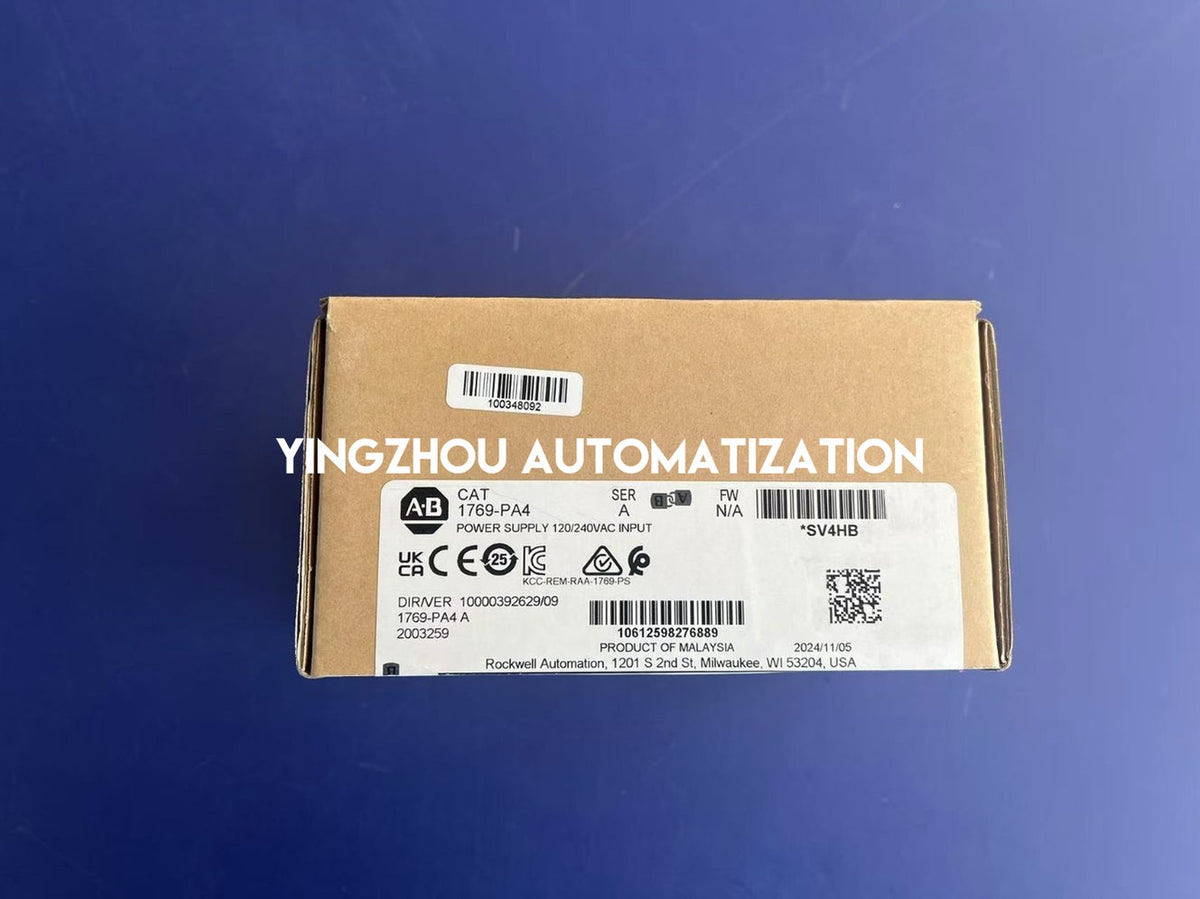

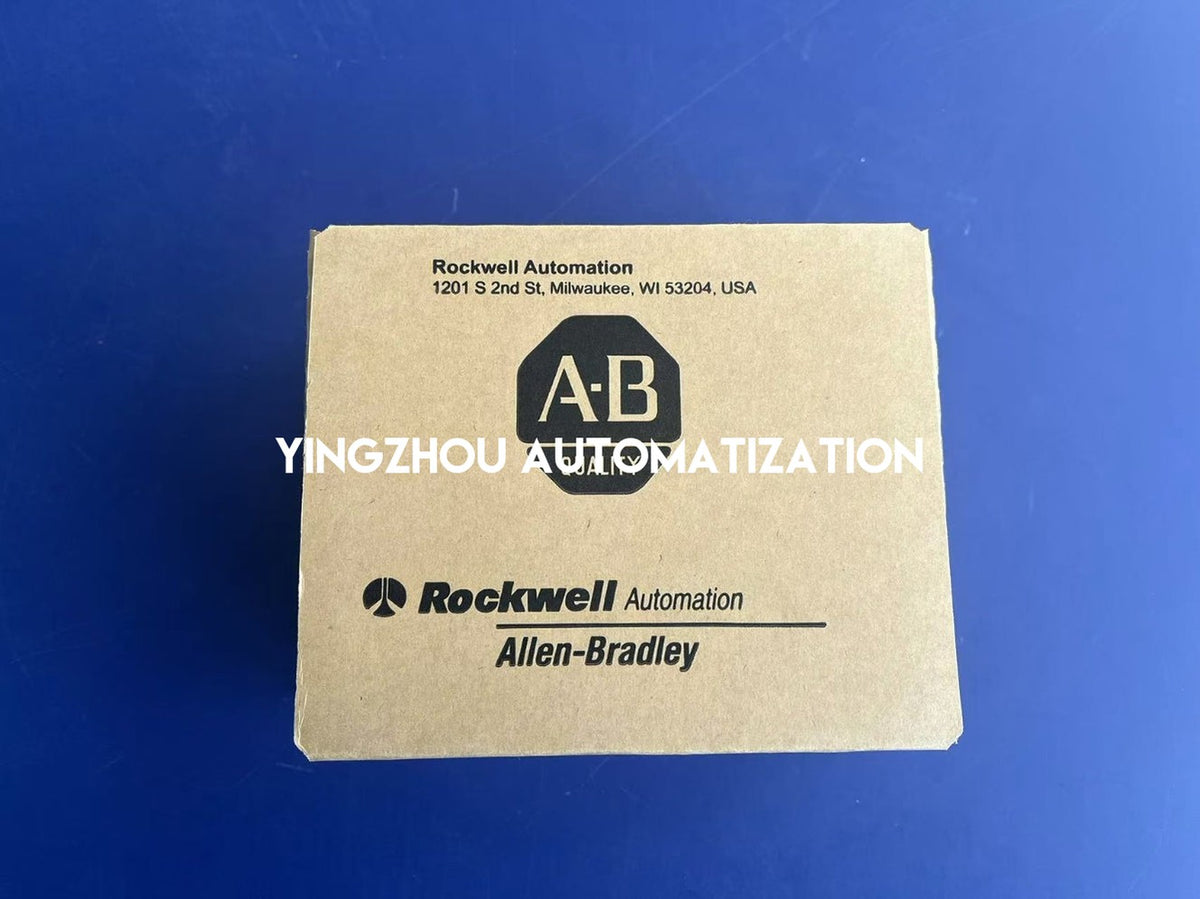

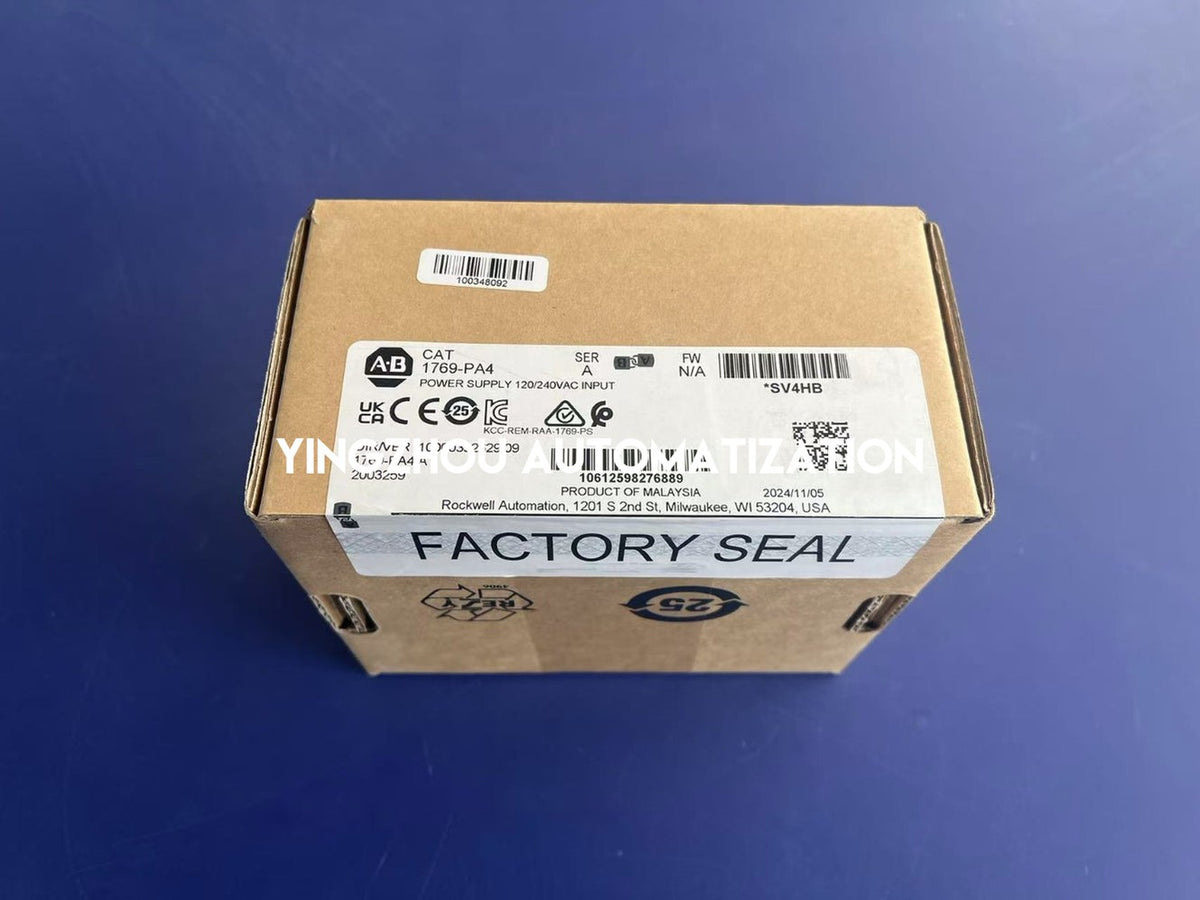

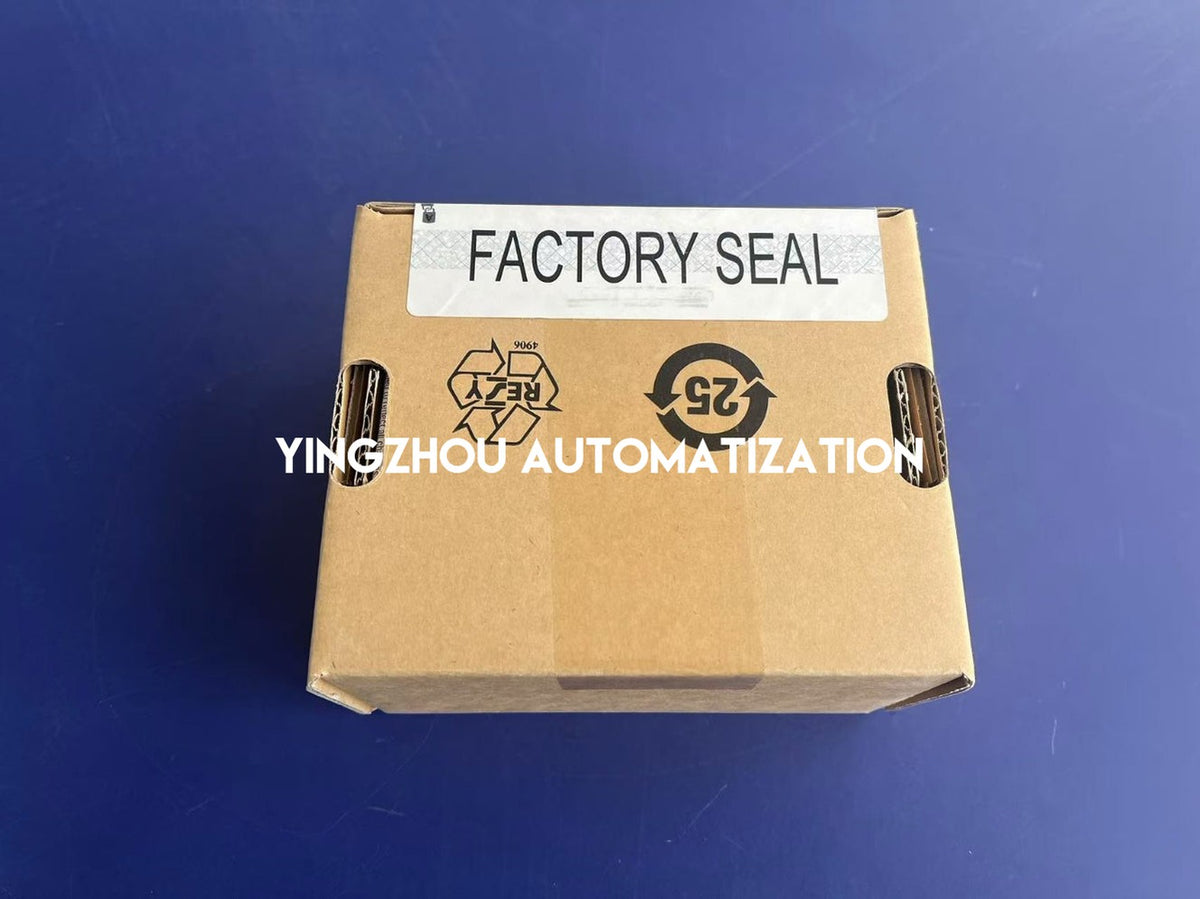

Allen-Bradley 1769-PA4 is marked in stock based on the supplied inventory information. This Compact I/O power supply features a 120/240V AC input class and provides 4A at 5V DC and 2A at 24V DC for compatible backplane modules. The actual factory-seal-labeled carton photograph identifies model 1769-PA4, Series A, date 2024/11/05, and Malaysia origin. The physical module nameplate and functional condition have not been independently verified. Please confirm the required input voltage selection, Compact I/O power budget, exact module, order quantity and shipping arrangements before completing an order.
Allen-Bradley 1769-PA4
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 120/240V AC input selection, 5V and 24V backplane current requirements, I/O expansion limits and installation conditions before ordering.
