Allen-Bradley 1489-M2C200 Miniature Circuit Breaker
2 Pole | 20A | C Curve | 480Y/277V AC UL/CSA | Bulletin 1489-M
| Specification |
Verified Product Data |
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Catalog Number |
1489-M2C200 |
| Product Family |
Bulletin 1489-M |
| Product Type |
Thermal-Magnetic Miniature Circuit Breaker |
| Number of Poles |
2 |
| Rated Current (In) |
20 A |
| Trip Characteristic |
C Curve |
| Magnetic Trip Band |
5–10 × In |
| UL/CSA Maximum AC Voltage |
480Y/277V AC |
| DC Rating |
96V DC, two poles in series |
| IEC/EN Rated Operational Voltage |
400V AC |
| Rated Frequency |
50/60 Hz |
| UL 489 Interrupting Capacity |
10 kA |
| IEC/EN Ultimate Breaking Capacity (Icu) |
15 kA |
| IEC/EN Service Breaking Capacity (Ics) |
11.25 kA |
| Rated Insulation Voltage — Phase to Ground |
250V AC |
| Rated Insulation Voltage — Phase to Phase |
440V AC |
| Rated Impulse Withstand Voltage |
4 kV |
| Overvoltage Category |
III |
| Pollution Degree |
3 |
| Protection Rating |
IP20 |
| Mounting Method |
35mm DIN Rail |
| Terminal Type |
Dual Terminal |
| Tightening Torque — IEC |
2.8 N·m |
| Operating Ambient Temperature |
−25 to +55°C |
| Storage Temperature |
−40 to +70°C |
| Approximate Dimensions (H × D × W) |
111 × 69 × 35mm |
| Standards |
UL 489 / IEC 60947-2 |
| Manufacturer Lifecycle |
Active |
Product Overview
The Allen-Bradley 1489-M2C200 is a Bulletin 1489-M thermal-magnetic miniature circuit breaker manufactured by Rockwell Automation. Designed for branch circuit protection in compatible industrial electrical installations, it has a 2-pole configuration, 20A rated current and C-curve tripping characteristic.
The Type C characteristic has a manufacturer-specified magnetic trip band of 5–10 times rated current under applicable conditions.
The manufacturer specifies 480Y/277V AC as the maximum UL/CSA voltage rating and 400V AC as the IEC/EN rated operational voltage. The separate 96V DC rating requires a two-pole series configuration and applicable manufacturer installation requirements.
Short-circuit ratings include 10kA interrupting capacity under UL 489 and 15kA ultimate breaking capacity (Icu) with 11.25kA service breaking capacity (Ics) under IEC/EN 60947-2. Ratings from different standards must not be treated as interchangeable.
This compact protective device has an IP20 protection rating, dual terminals and 35mm DIN rail mounting. The stated operating ambient temperature range is −25°C to +55°C, subject to the applicable manufacturer derating guidance.
Rockwell Automation identifies model 1489-M2C200 as an Active product.

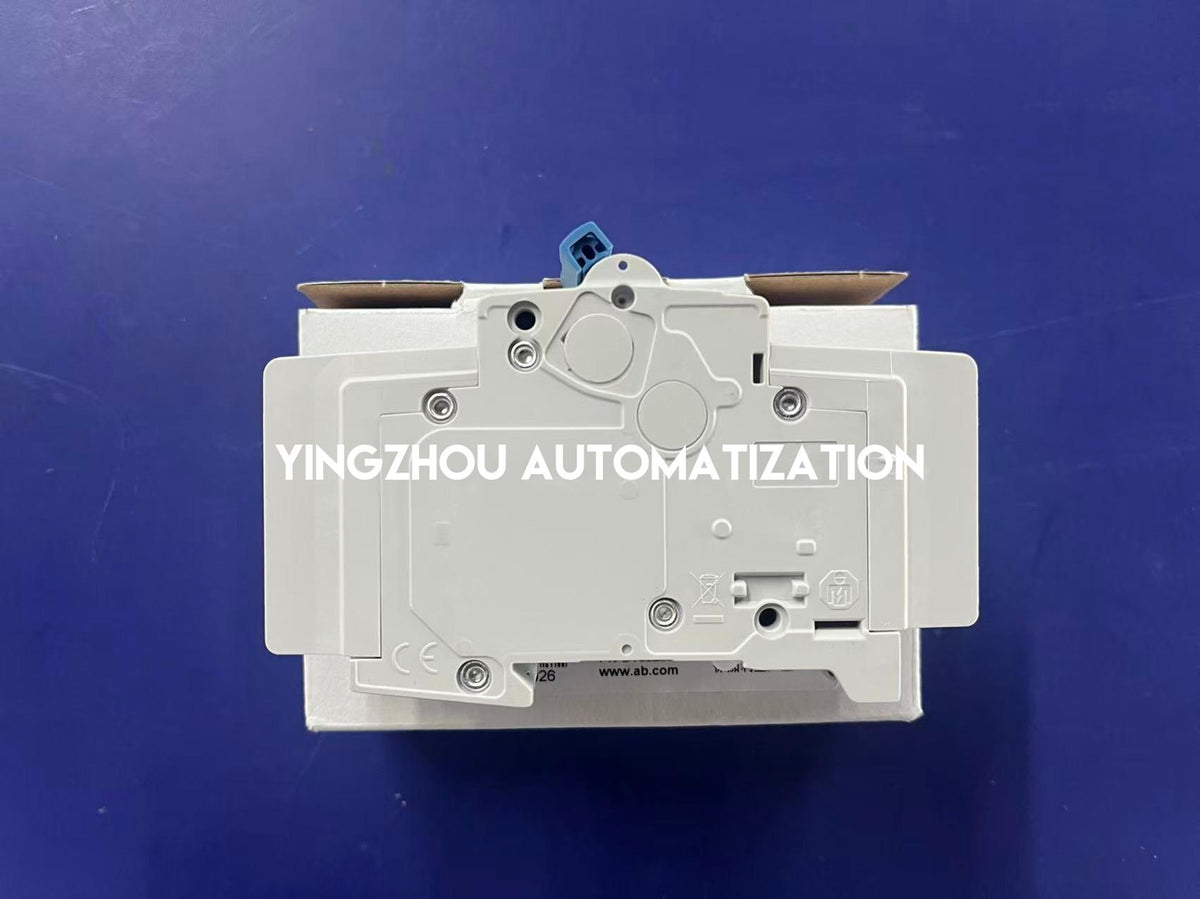

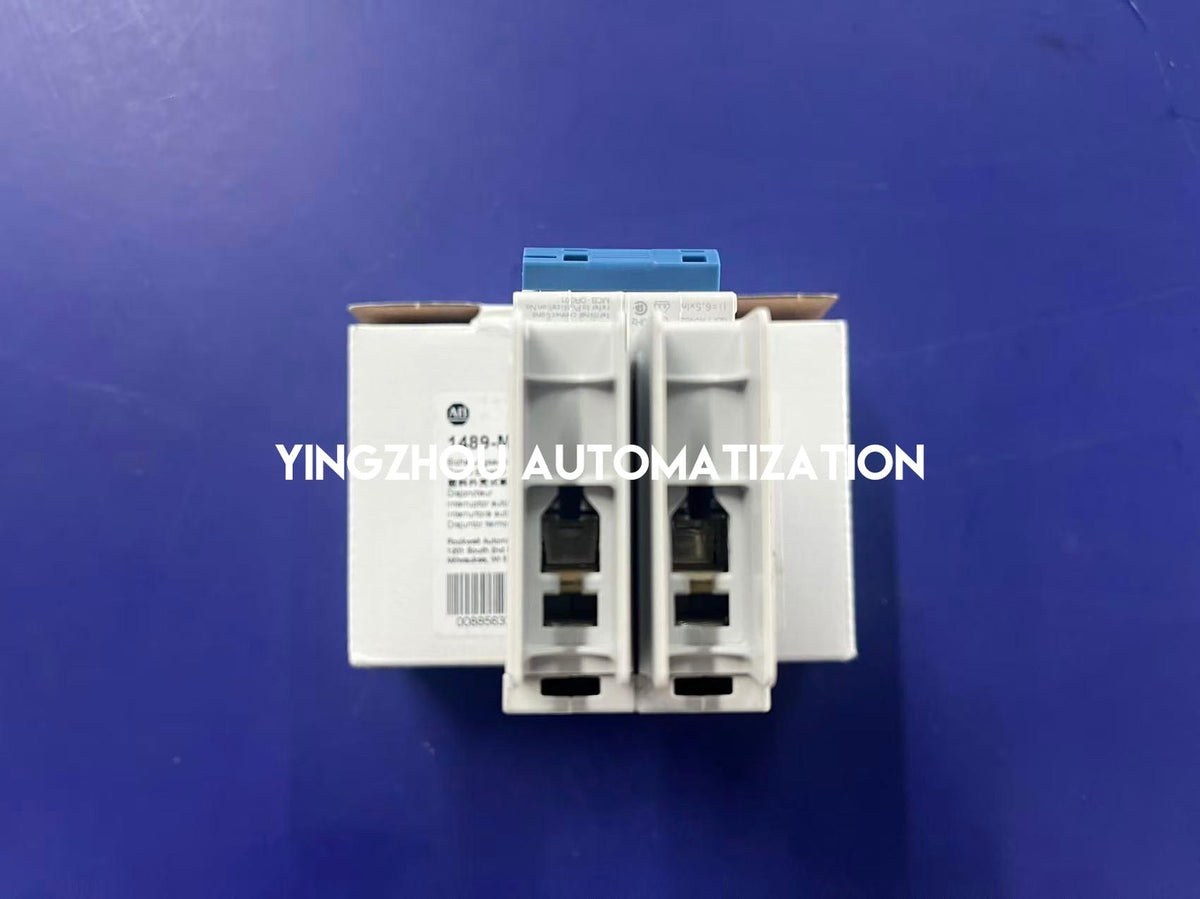

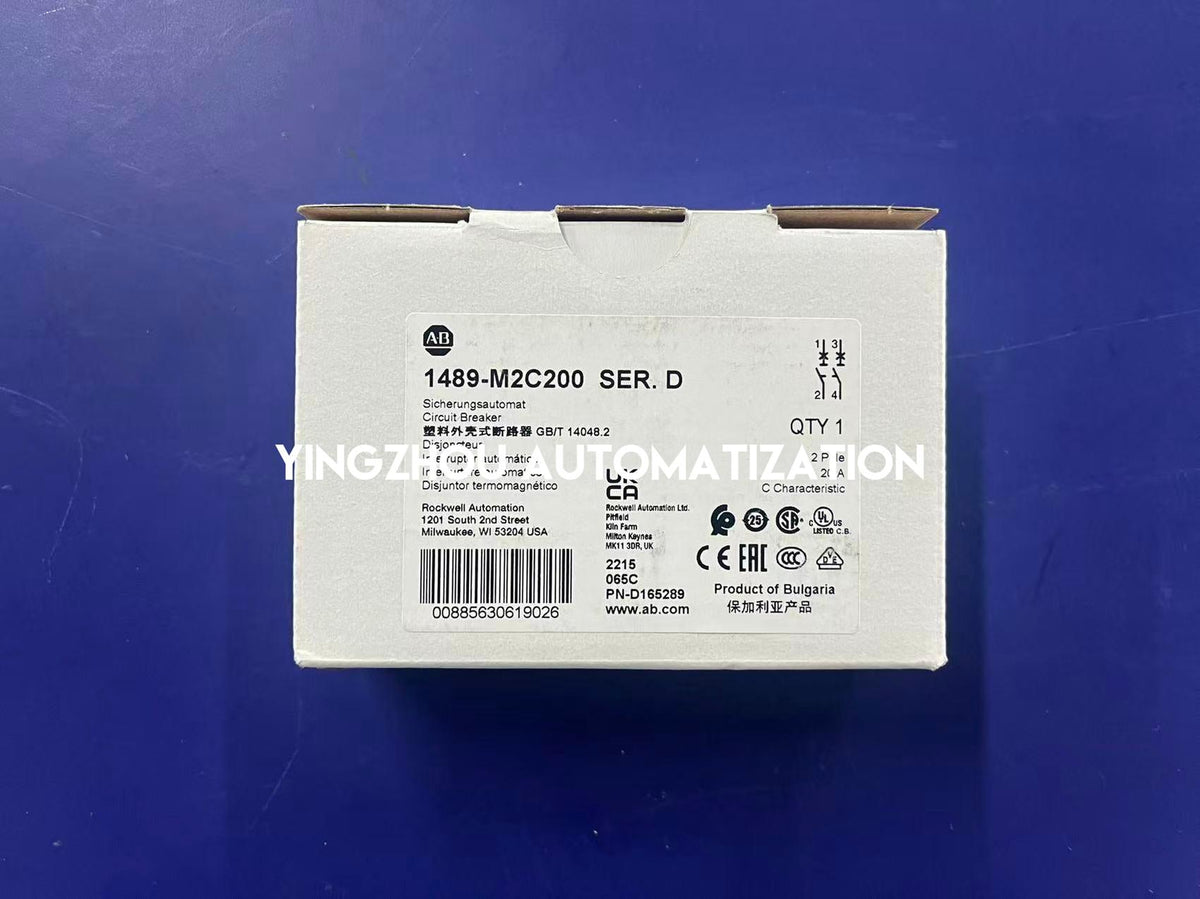

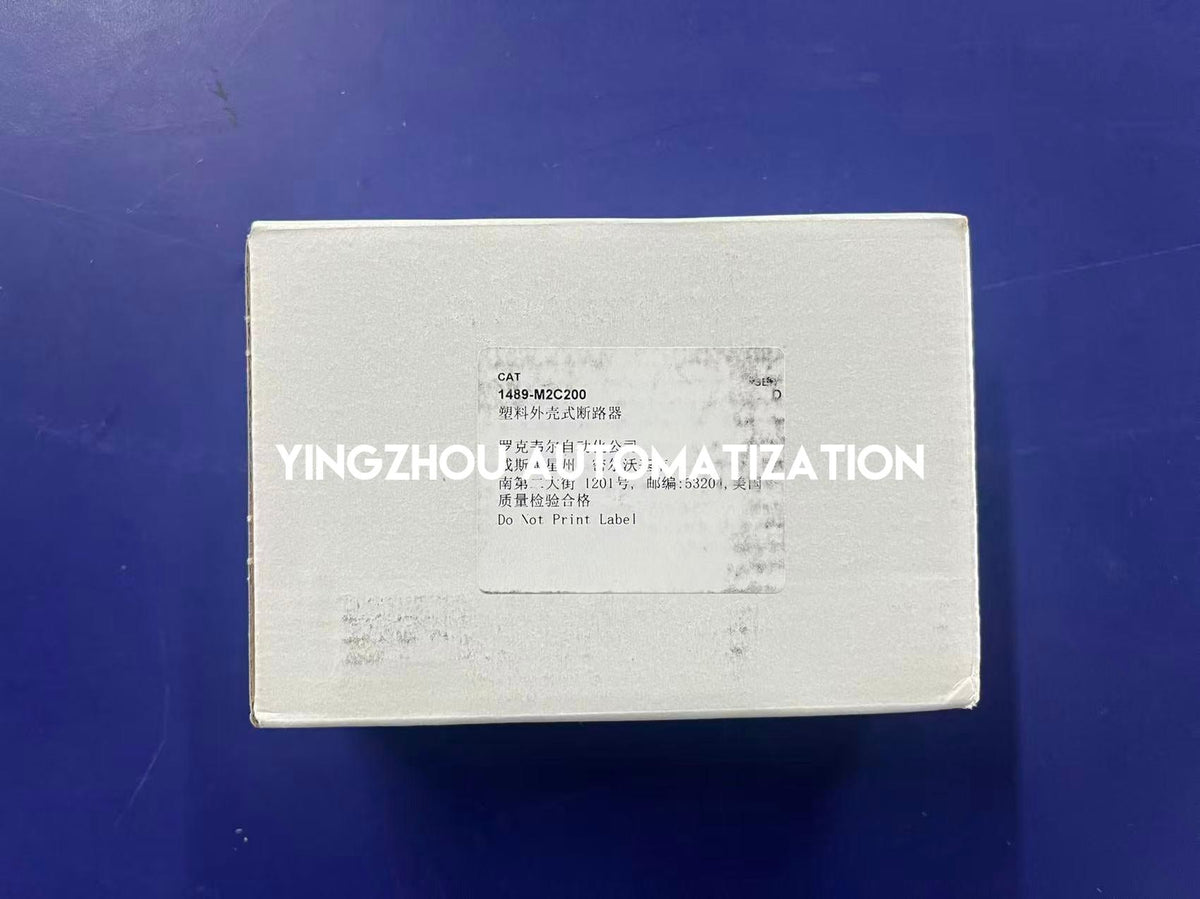

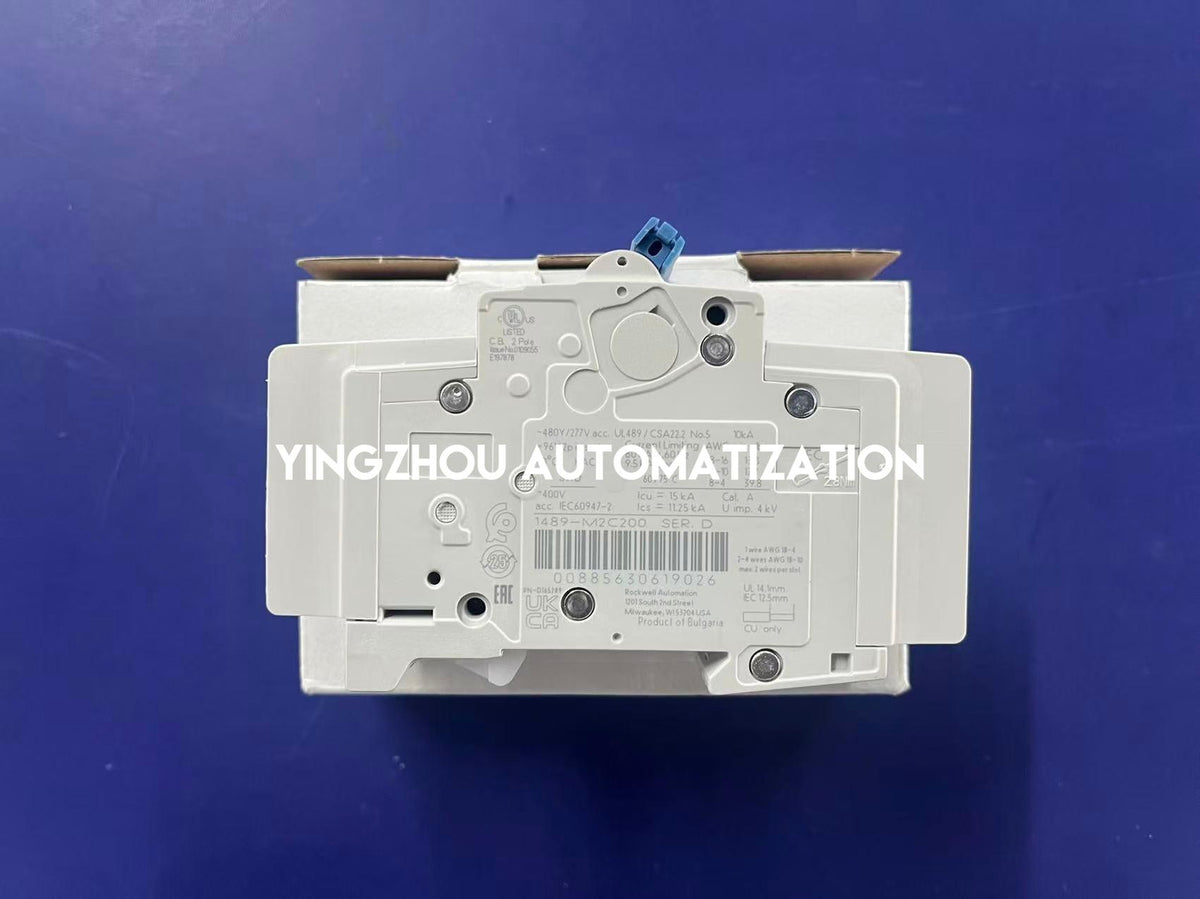

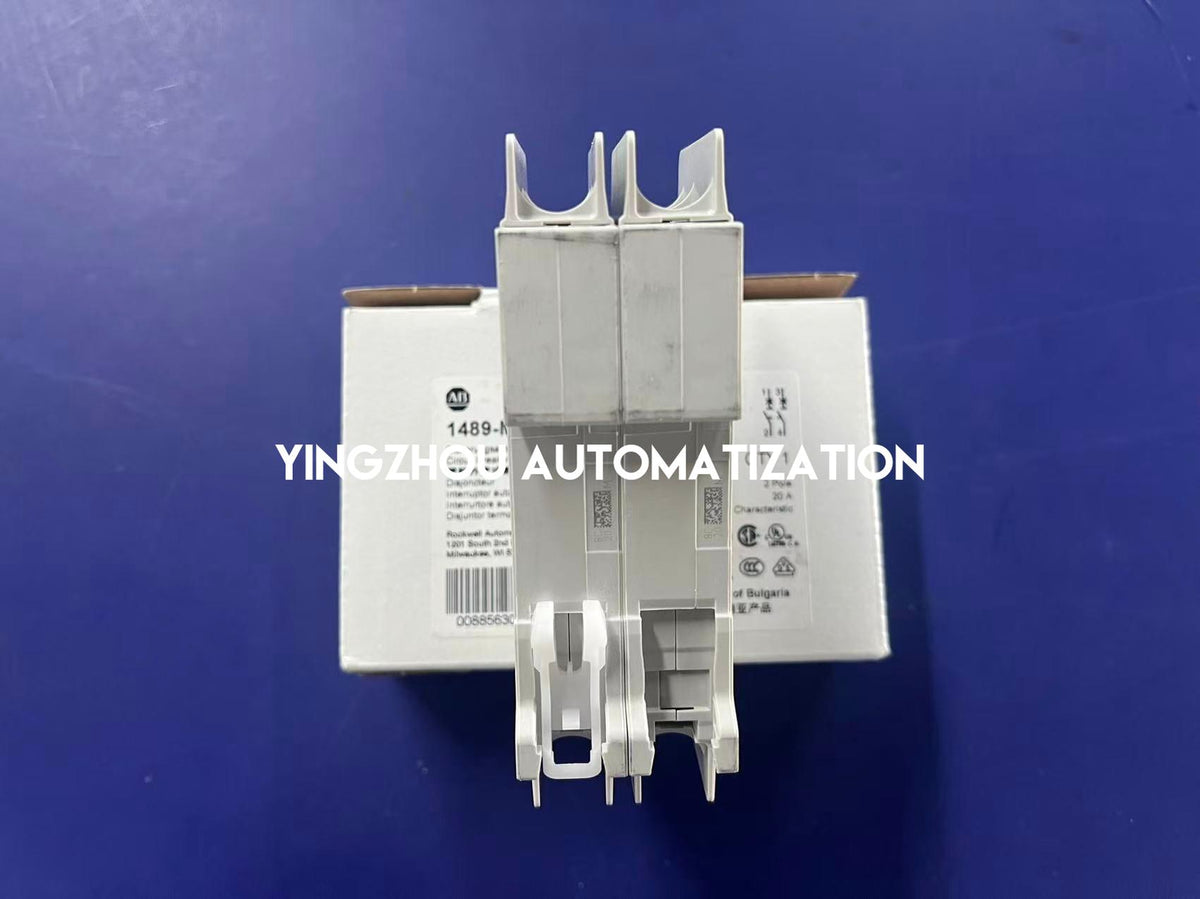

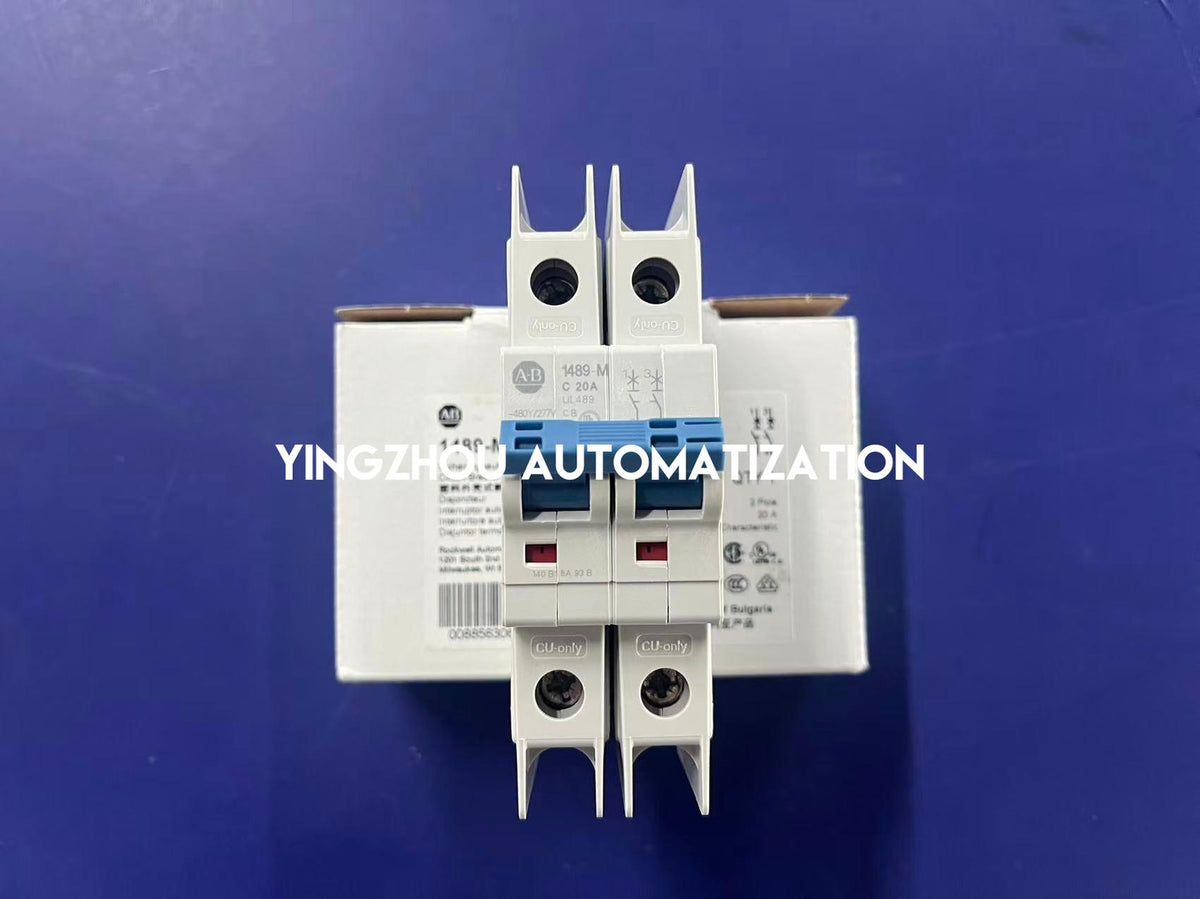

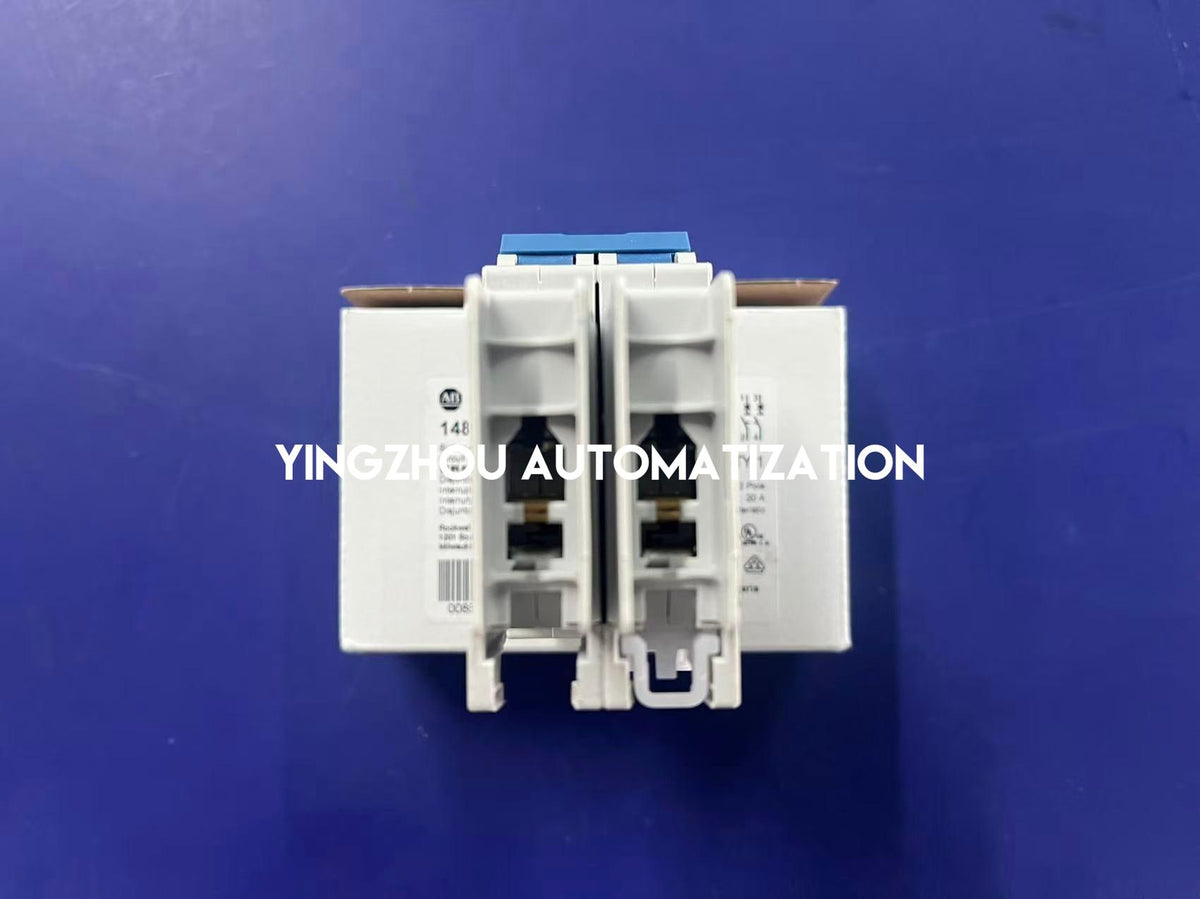

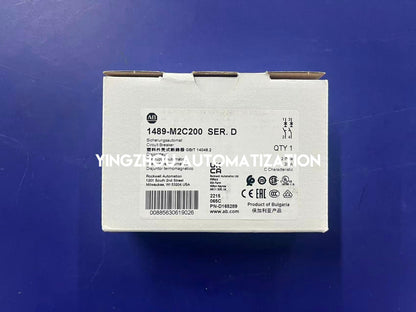

The supplied actual photographs show a carton labeled 1489-M2C200, Series D, with 2 Pole, 20 A and C Characteristic. Its origin marking states Product of Bulgaria. The physical circuit breaker rear label also reads 1489-M2C200, Series D, confirming an exact catalog-number match between the photographed packaging and device.
The manufacturer's published UPC 885630619026 corresponds to the packaging barcode. Physical model verification through these photographs does not constitute independent product authenticity authentication or electrical performance testing. Confirm the distribution system, protection requirements, installation conditions and supplied unit condition before ordering.
Key Product Features
-
Bulletin 1489-M Circuit Breaker — Allen-Bradley thermal-magnetic miniature circuit breaker for branch circuit protection.
-
2-Pole Configuration — Two-pole protective switching arrangement for compatible electrical systems.
-
20A Rated Current — Manufacturer-confirmed nominal current rating.
-
C-Curve Tripping Characteristic — Magnetic trip band of 5–10 times rated current under specified conditions.
-
480Y/277V AC UL/CSA Rating — Separate 400V AC IEC/EN rated operational voltage.
-
10kA UL 489 Interrupting Capacity — Short-circuit interrupting capacity under applicable UL conditions.
-
DIN Rail Mounting — Compact modular construction with dual terminals for industrial control panels.
Actual Product Verification
✓ Actual carton label and circuit breaker rear-view photographs supplied
✓ Packaging catalog number: 1489-M2C200
✓ Physical circuit breaker marking: 1489-M2C200
✓ Packaging and body both indicate Series D
✓ Packaging rated current: 20 A
✓ Packaging indicates 2 Pole, C Characteristic
✓ Packaging UPC 885630619026 matches manufacturer data
✓ Packaging origin marking: Product of Bulgaria
✓ Body marking shows UL 489 10kA and IEC Icu 15kA / Ics 11.25kA
✓ Exact model identity matches across supplied photographs; independent authenticity and functional testing have not been performed
In Stock & Available to Order
Allen-Bradley 1489-M2C200 is marked in stock based on the supplied inventory information. This Bulletin 1489-M circuit breaker features a 2-pole, 20A, C-curve configuration for branch circuit protection in compatible electrical systems.
The actual carton and device photographs both identify 1489-M2C200, Series D. The manufacturer also identifies this catalog number as an active product.
For industrial purchasing, confirm the exact required model, system voltage, available short-circuit current, electrical code requirements, order quantity and installation arrangements before completing an order.
IN STOCK
Allen-Bradley 1489-M2C200
Contact us for exact-model confirmation, multiple units and project sourcing. Please verify the 2-pole 20A C-curve configuration, applicable voltage and interrupting ratings, and DIN rail installation requirements before ordering.
Request Bulk Pricing
