SMC CRA1BS80TF-180Z CRA1 Series Rotary Actuator
80mm Size | 180° Rotation | Rack & Pinion | Single Shaft | G Thread
Product Overview
The SMC CRA1BS80TF-180Z is a CRA1 Series pneumatic rack-and-pinion rotary actuator designed for controlled angular movement. This configuration features an 80mm size, 180° rotation angle, basic mounting style and single shaft. The product marking identifies a G-thread port and a maximum pressure of 1.0 MPa. According to SMC series specifications, the actuator operates with non-lubricated air at a pressure range of 0.1 to 1.0 MPa and an ambient and fluid temperature range of 0 to 60°C (no freezing). The specified output torque for size 80 is 32 N·m at 0.5 MPa. Please verify operating pressure, rotational load, shaft coupling and mounting requirements before ordering.
Key Product Features
-
CRA1 Series Rotary Actuator — SMC rack-and-pinion pneumatic rotary actuator.
-
80mm Size Configuration — Manufacturer-specified size 80 design.
-
180° Rotation Angle — Designed for 180-degree rotational movement.
-
Single Shaft Design — Basic mounting configuration with a single shaft.
-
G Thread Port Connection — G-thread port marking visible on the supplied product.
-
1.0 MPa Maximum Operating Pressure — Operates within the specified 0.1–1.0 MPa pressure range.
-
32 N·m Output Torque — Manufacturer-specified output torque at 0.5 MPa for size 80.
Actual Product Verification

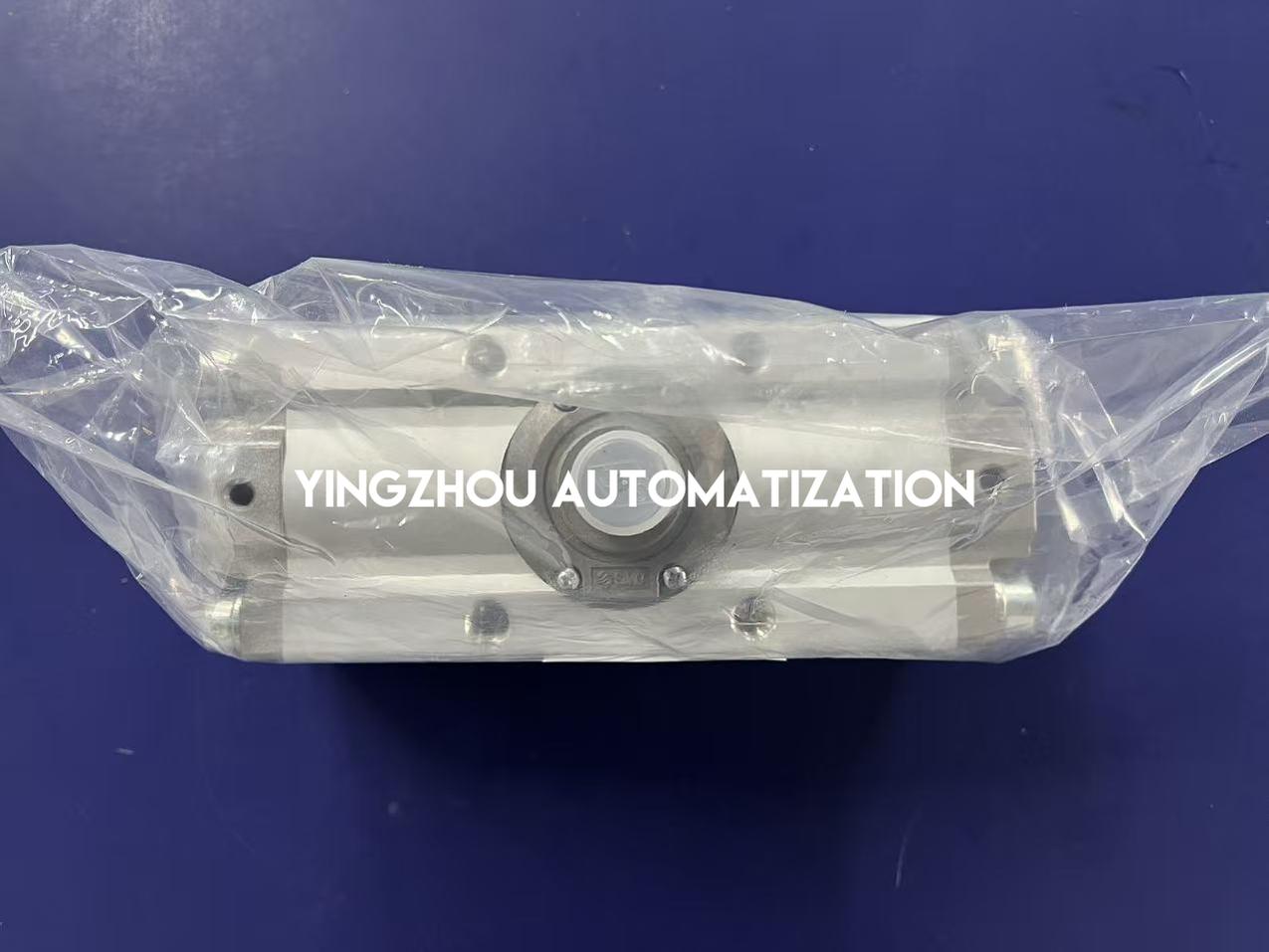

✓ Actual product photograph supplied

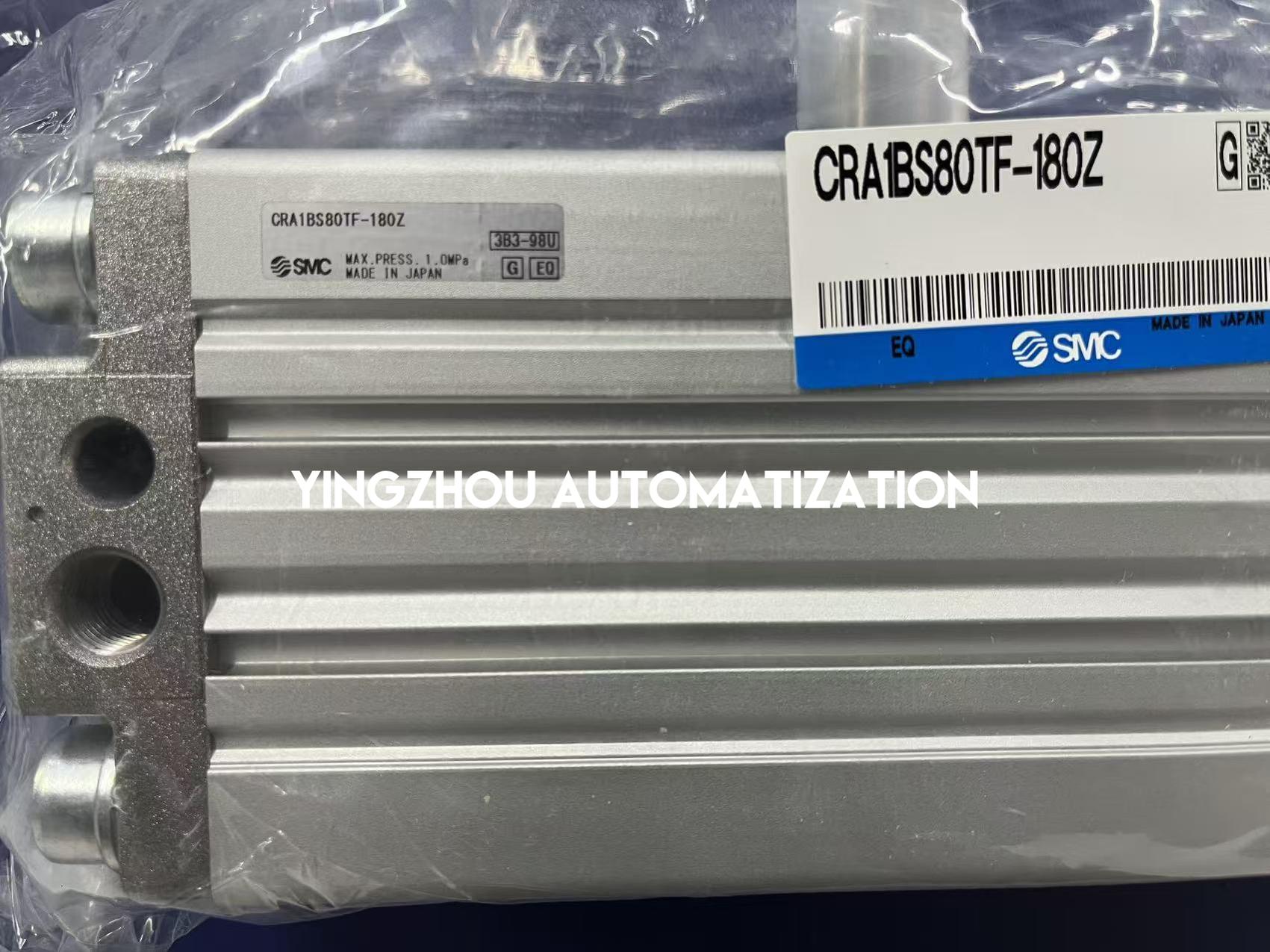

✓ Exact model marking CRA1BS80TF-180Z visible on the actuator
✓ SMC manufacturer logo visible
✓ Maximum pressure marking 1.0 MPa visible
✓ G port marking visible
✓ Product label indicates Made in Japan
Available to Order — Estimated Delivery 3–4 Weeks
The SMC CRA1BS80TF-180Z pneumatic rotary actuator is available to order with an estimated delivery lead time of 3–4 weeks, based on the supplied commercial information. Contact YingZhou for quantity requirements, project sourcing and consolidated purchasing of SMC pneumatic components.
AVAILABLE TO ORDER · 3–4 WEEKS
SMC CRA1BS80TF-180Z
Contact us for exact-model confirmation, bulk purchasing and multi-brand industrial automation sourcing.
Request Bulk Pricing
