Siemens 3RT6025-1AG20 SIRIUS 17A 110V AC Contactor 3-Pole

Siemens 3RT6025-1AG20 SIRIUS 17A 110V AC Contactor 3-Pole

$21.99 USD
$21.99 USD
할인 품절
Model Number
YingZhou Industrial Automation | Product Information

Siemens 3RT6025-1AG20 SIRIUS AC Power Contactor

17A AC-3 | 7.5kW at 400V | 110V AC Coil | 3-Pole | 1NO + 1NC
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Product and Packaging
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 3RT6025-1AG20
Product Family SIRIUS 3RT6
Product Designation Power Contactor
Product Type AC Electromagnetic Contactor
Number of Main Poles 3
Main Contact Configuration 3 Normally Open Contacts
Rated Operational Current - AC-3 at 400V 17 A
Rated Motor Power - AC-3 at 400V 7.5 kW
Rated Control Coil Voltage 110V AC
Coil Frequency 50/60 Hz
Auxiliary Contacts 1 NO + 1 NC
NO Auxiliary Terminals 13-14
NC Auxiliary Terminals 21-22
Control Coil Terminals A1 / A2
Main Input Terminals 1/L1, 3/L2, 5/L3
Main Output Terminals 2/T1, 4/T2, 6/T3
Terminal Connection Screw Terminals
Frame Size S0
Utilization Category AC-3
Country of Origin Made in China
Packaging Quantity 1 Piece

Product Overview

The Siemens 3RT6025-1AG20 is a SIRIUS three-pole AC power contactor designed for industrial motor switching and electrical control applications. It provides a 17A AC-3 rated operational current at 400V and supports a rated three-phase motor power of 7.5kW at 400V. The contactor operates with a 110V AC control coil at 50/60Hz and features three normally open main contacts together with one normally open and one normally closed auxiliary contact. Its S0-size housing includes screw terminals for main circuit and control wiring. The 110V AC coil voltage refers to the control circuit and must not be confused with the voltage of the switched main power circuit. Actual Siemens product photographs show the exact catalog number 3RT6025-1AG20 on the contactor front and side nameplate, matching the original packaging label. Buyers should verify coil voltage, load category, rated current, motor power and auxiliary-contact configuration before ordering.

Key Product Features

  • SIRIUS 3RT6 Power Contactor — Siemens electromagnetic contactor for industrial motor and electrical control circuits.
  • 17A AC-3 at 400V — Rated operational current for the specified motor-switching duty.
  • 7.5kW Motor Rating — Rated motor power at 400V under AC-3 conditions.
  • 110V AC Control Coil — Electromagnetic coil designed for 50/60Hz AC supply.
  • Three Main Poles — Three normally open contacts for three-phase power switching.
  • 1NO + 1NC Auxiliary Contacts — Integrated contacts for control and status signaling.
  • S0 Size with Screw Terminals — Siemens SIRIUS contactor construction for industrial electrical control panels.

Actual Product Verification

✓ Actual Siemens contactor front, side and packaging photographs supplied

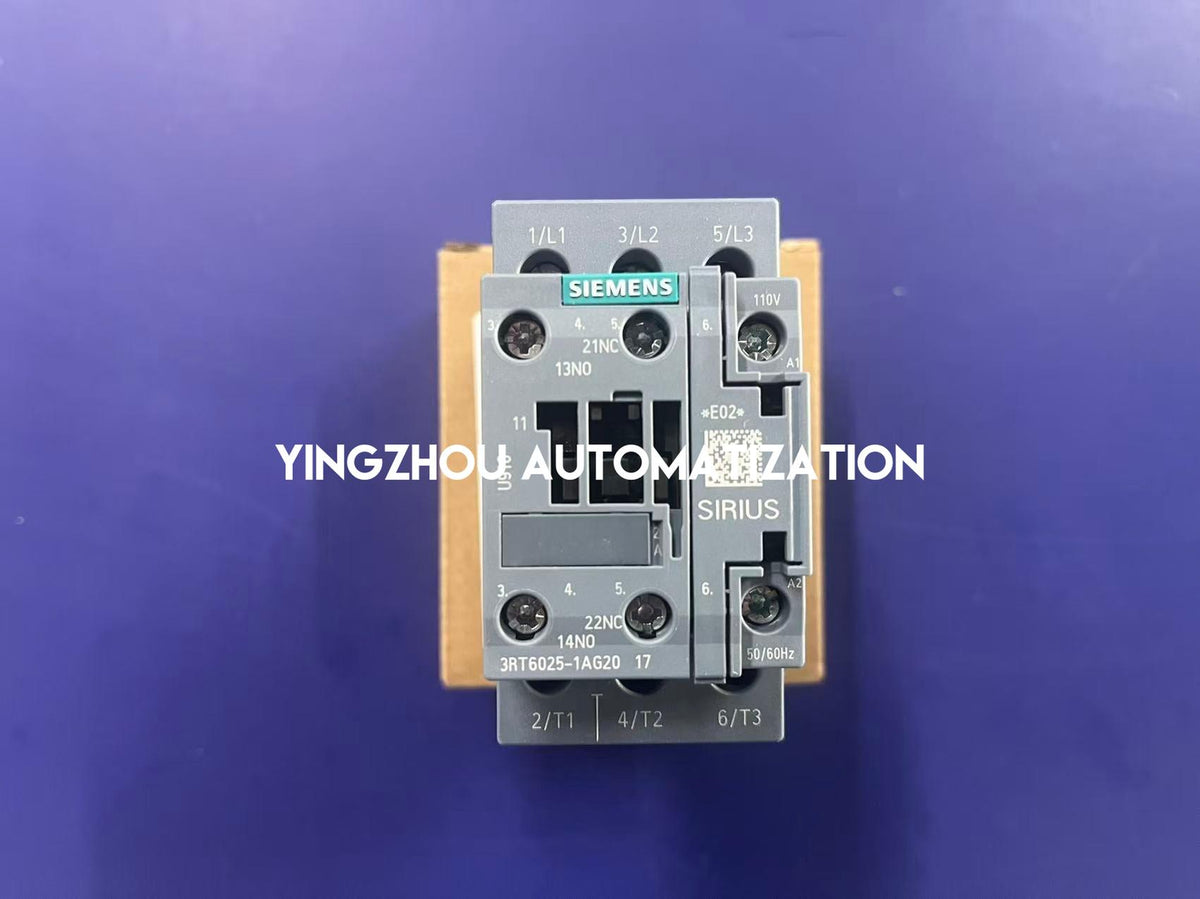

✓ Front catalog number: 3RT6025-1AG20

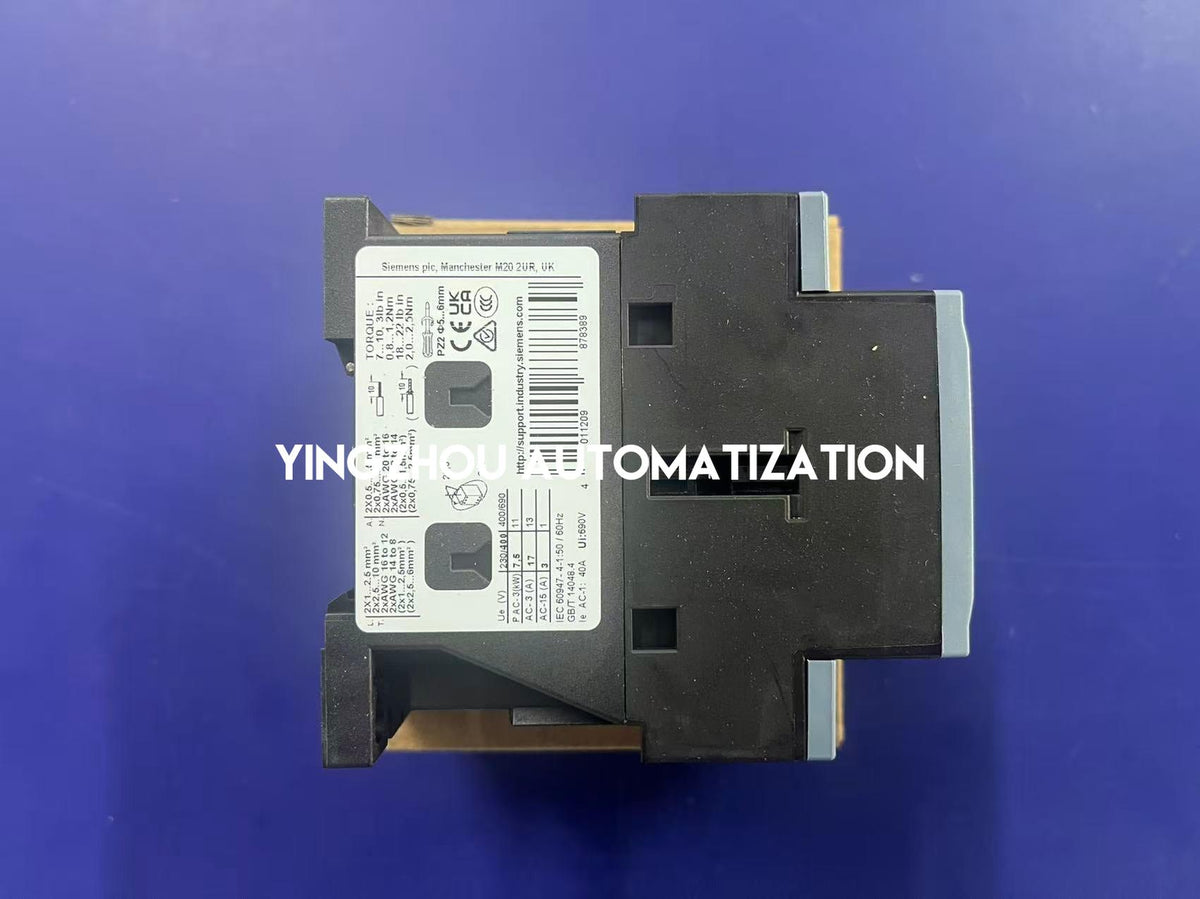

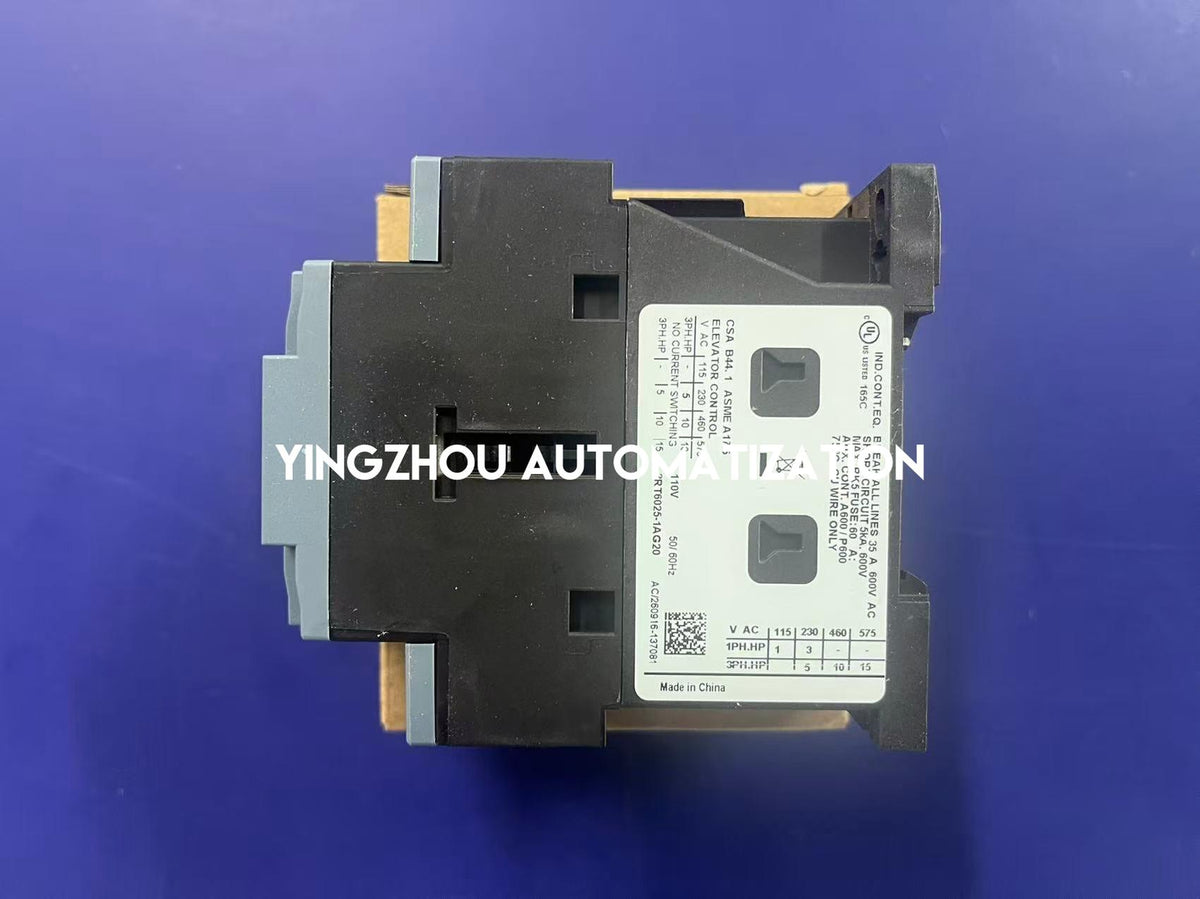

✓ Side nameplate catalog number: 3RT6025-1AG20

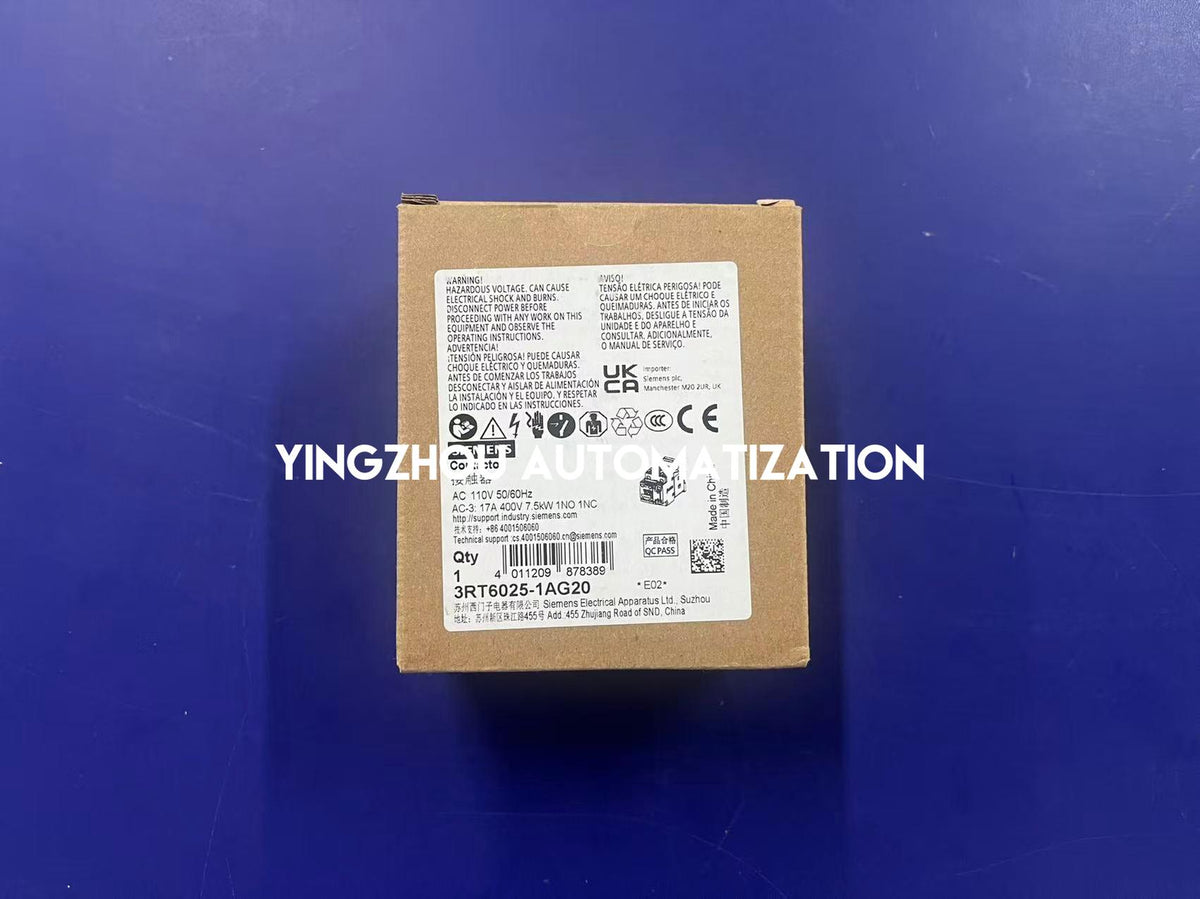

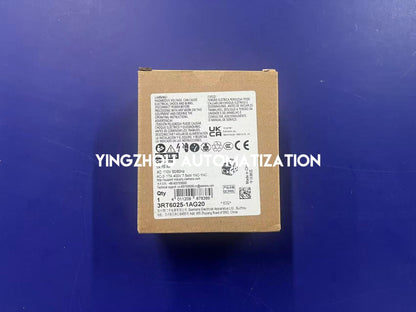

✓ Packaging catalog number: 3RT6025-1AG20
✓ Control coil marking: 110V AC, 50/60Hz
✓ Rated AC-3 current: 17A at 400V
✓ Rated motor power: 7.5kW at 400V
✓ Auxiliary contacts: 1NO + 1NC
✓ Product marking: Made in China
✓ Exact product and packaging model numbers match
✓ Confirm electrical suitability and installation requirements before ordering

In Stock & Available to Order

Siemens 3RT6025-1AG20 is marked in stock based on the supplied inventory information. Actual Siemens contactor and packaging photographs confirm the exact catalog number. This SIRIUS AC power contactor is available for industrial electrical maintenance, motor control panel assembly and automation procurement. Please confirm the required quantity, 110V AC control coil, 17A AC-3 current at 400V, 7.5kW motor rating and 1NO + 1NC auxiliary-contact configuration before ordering. Final electrical selection and installation should follow the applicable Siemens technical instructions and local electrical requirements.

IN STOCK

Siemens 3RT6025-1AG20

Contact us for exact-model verification, multiple units and industrial electrical sourcing. Please confirm the 110V AC coil, 17A AC-3 rating, 7.5kW motor application and auxiliary contacts before ordering.
