Schneider ATV340U07N4E Altivar Machine ATV340 Variable Speed Drive
1.1 kW / 1.5 HP (ND) | 380–480 VAC 3-Phase | 2.8 A (ND) | IP20
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATV340U07N4E |
| Series |
Altivar Machine ATV340 |
| Product Type |
Variable Speed Drive |
| Motor Power (Normal Duty) |
1.1 kW / 1.5 HP |
| Motor Power (Heavy Duty) |
0.75 kW / 1 HP |
| Rated Supply Voltage |
3-Phase 380–480 VAC |
| Supply Frequency |
50/60 Hz |
| Continuous Output Current (ND) |
2.8 A at 4 kHz |
| Continuous Output Current (HD) |
2.2 A at 4 kHz |
| Input Current (ND) |
2.6 A at 380 V / 2.1 A at 480 V |
| Input Current (HD) |
3.4 A at 380 V / 2.6 A at 480 V |
| Maximum Transient Current |
3.1 A ND / 3.3 A HD for 60 s |
| Maximum Output Frequency |
599 Hz |
| Nominal Switching Frequency |
4 kHz |
| Communication Protocols |
Modbus TCP / Modbus Serial / EtherNet/IP |
| Safety Functions |
STO / SS1 / SLS |
| Braking Chopper |
Integrated |
| EMC Filter |
Integrated, Category C3 |
| Protection Rating |
IP20 |
| Cooling |
Forced Convection |
| Dimensions |
85 × 270 × 232.5 mm (W × H × D) |
| Product Net Weight |
1.7 kg |
Product Overview
The Schneider Electric ATV340U07N4E is a
variable speed drive from the
Altivar Machine ATV340 Series.
Designed for three-phase 380–480 VAC
industrial power systems, it supports
1.1 kW / 1.5 HP in Normal Duty
and 0.75 kW / 1 HP in Heavy Duty.
The drive provides 2.8 A Normal Duty
and 2.2 A Heavy Duty continuous output
current at 4 kHz. It features integrated Ethernet
communication, an integrated braking chopper
and a standard IP20 protection rating
for industrial machine control applications.
Key Product Features
-
1.1 kW / 1.5 HP Normal Duty motor rating
-
0.75 kW / 1 HP Heavy Duty motor rating
-
Three-phase 380–480 VAC rated supply voltage
-
2.8 A ND / 2.2 A HD continuous output at 4 kHz
-
Modbus TCP / Modbus Serial / EtherNet/IP connectivity
-
Integrated braking chopper for suitable braking resistor configurations
-
IP20 standard with integrated EMC filter and forced-convection cooling
Actual Product Verification
✓

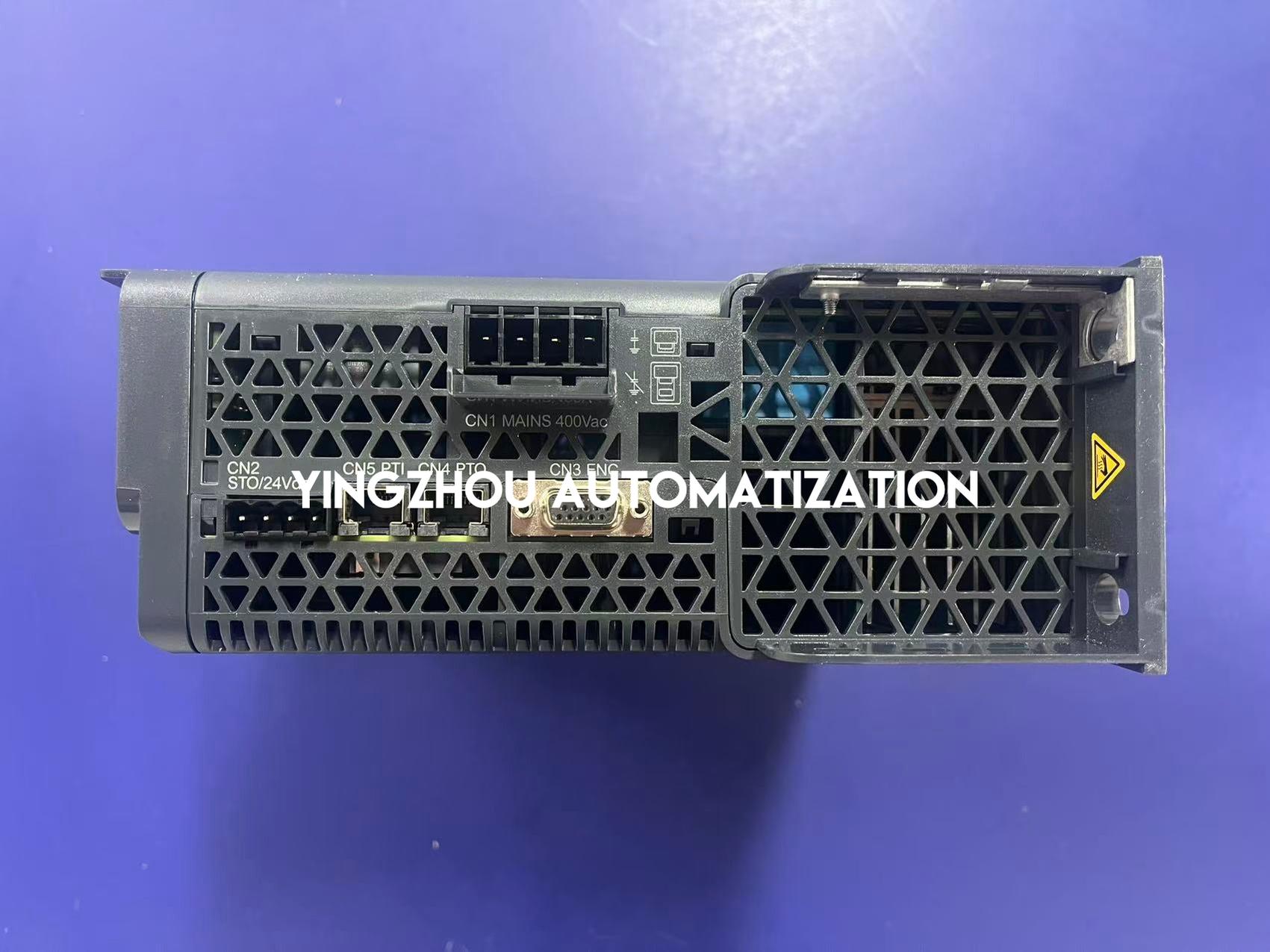

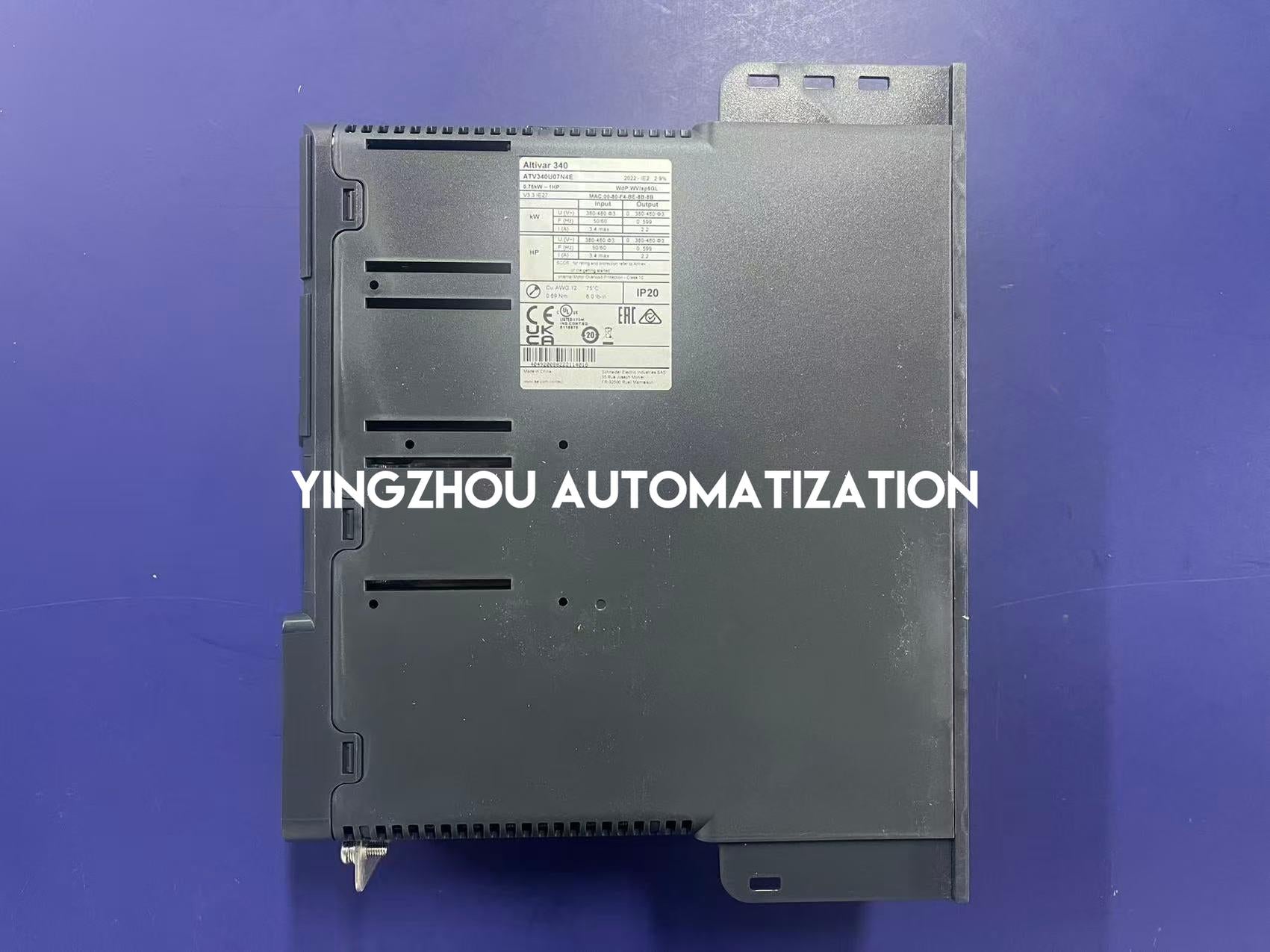

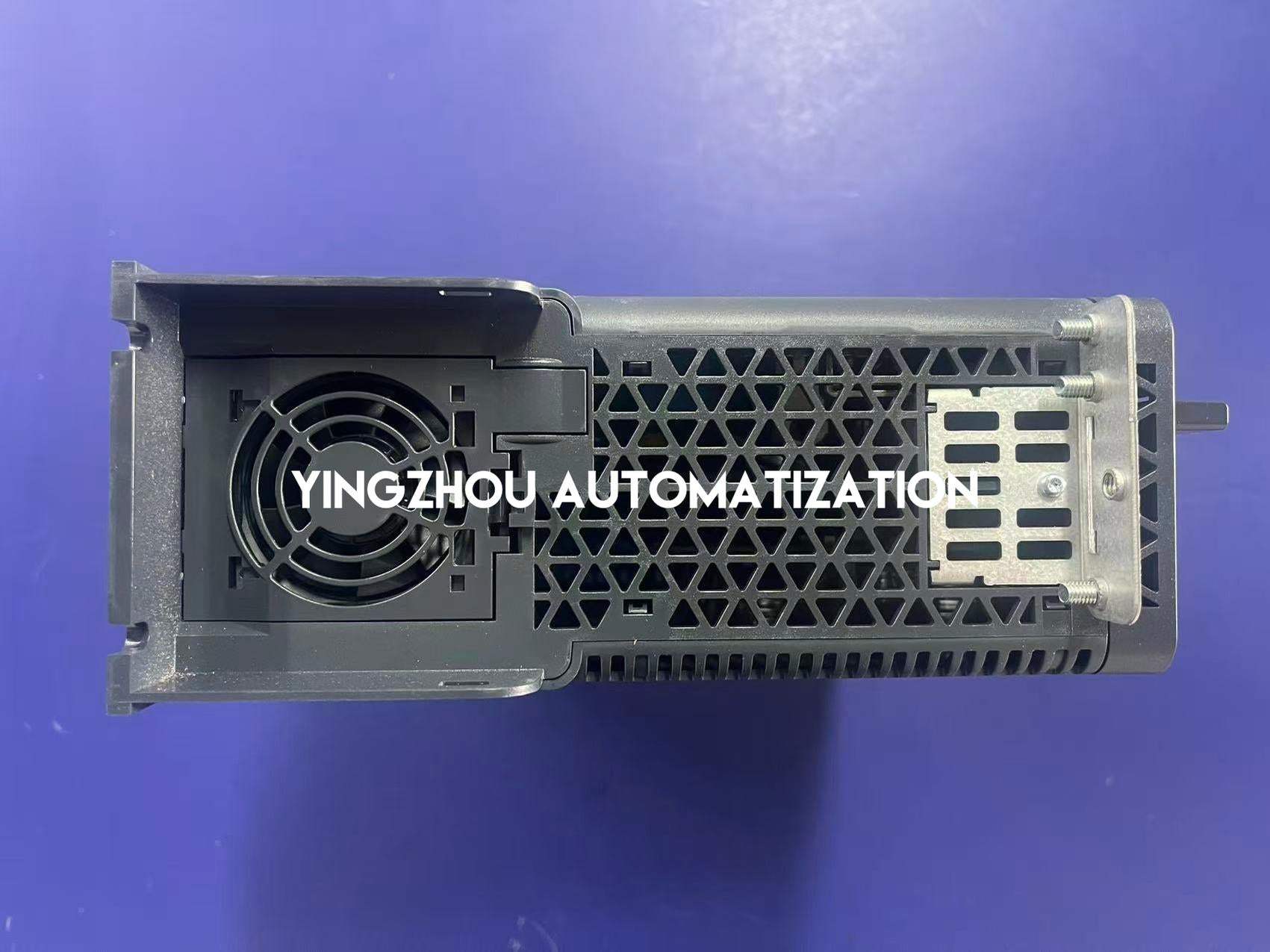

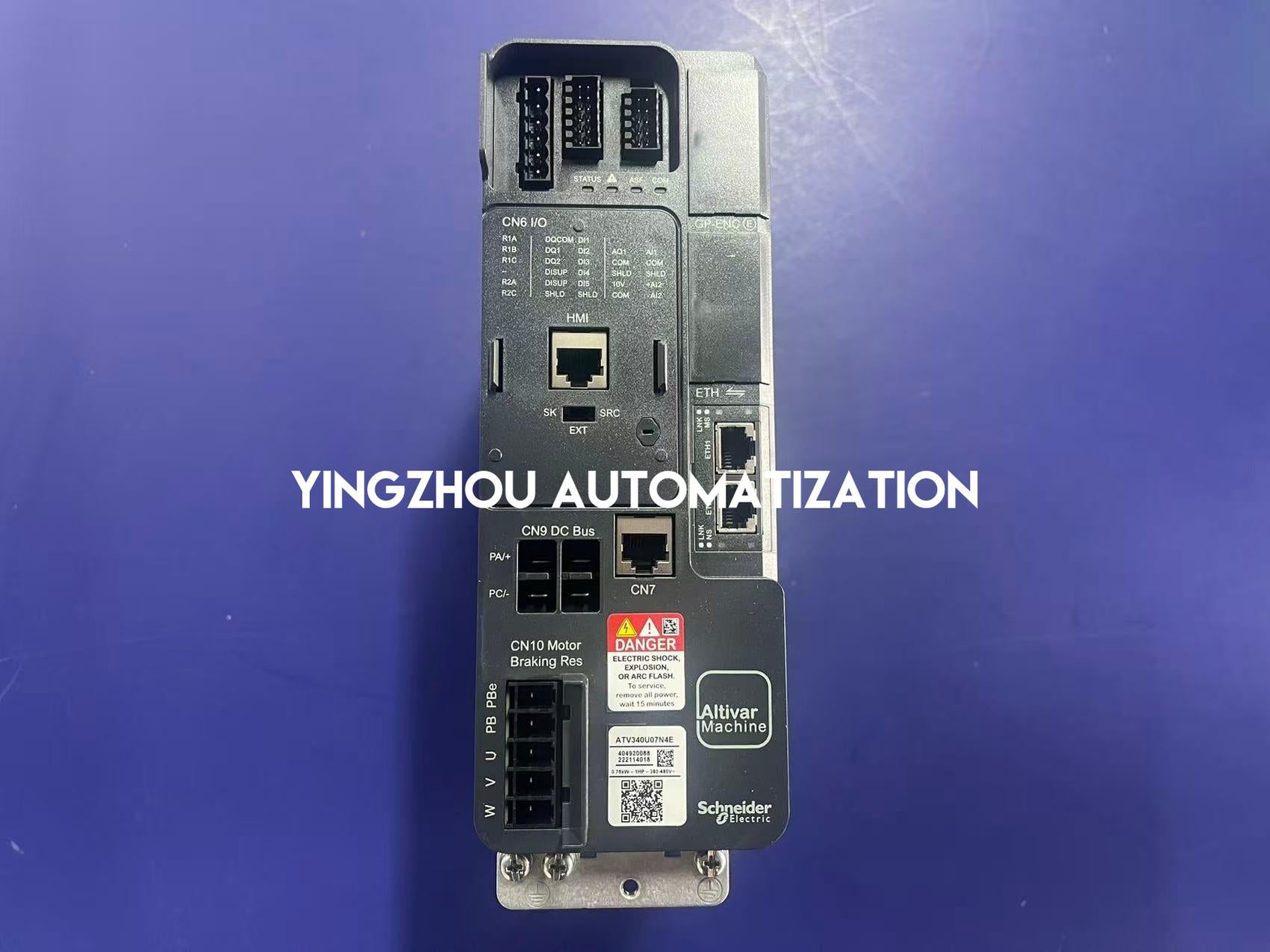

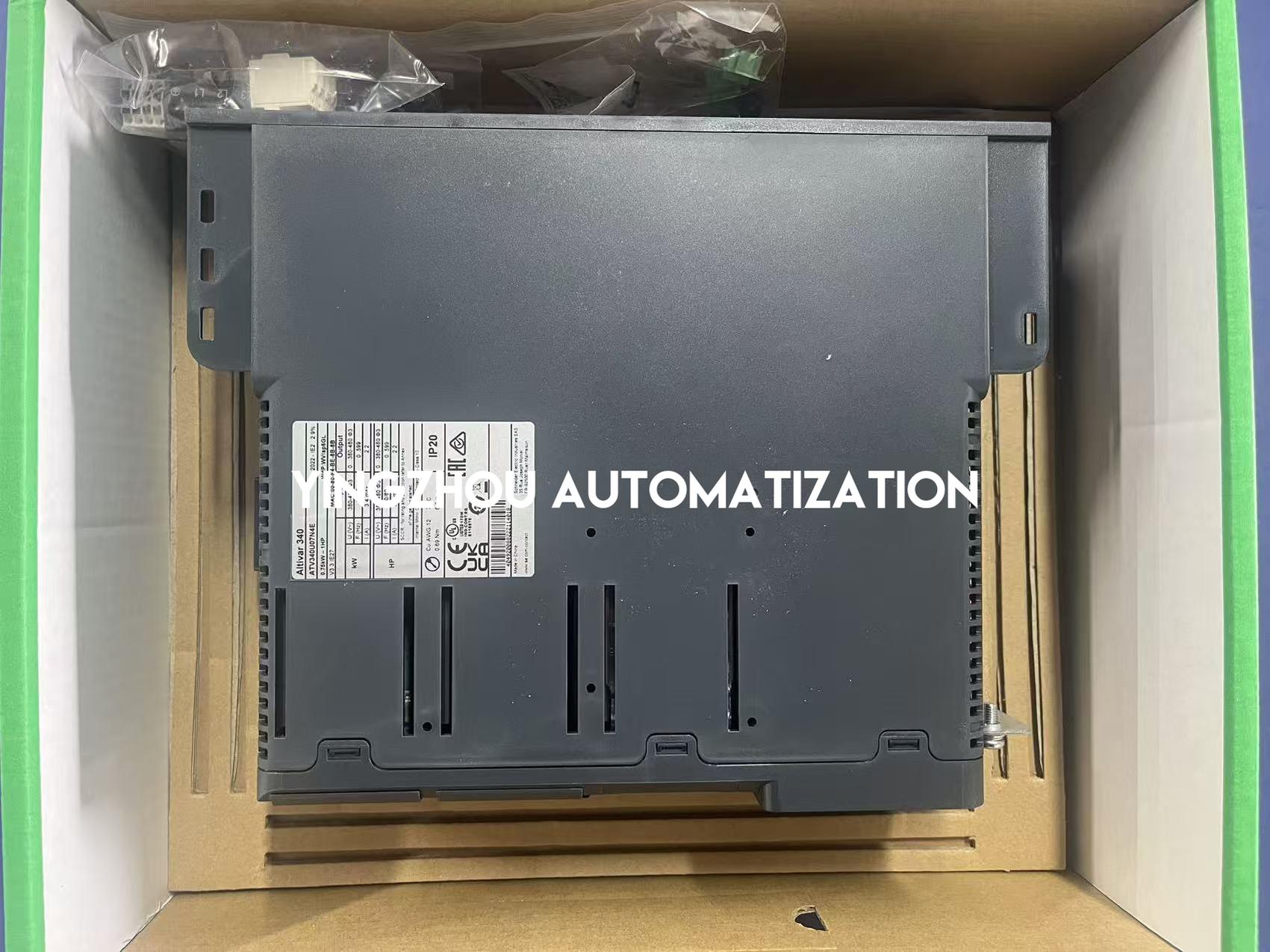

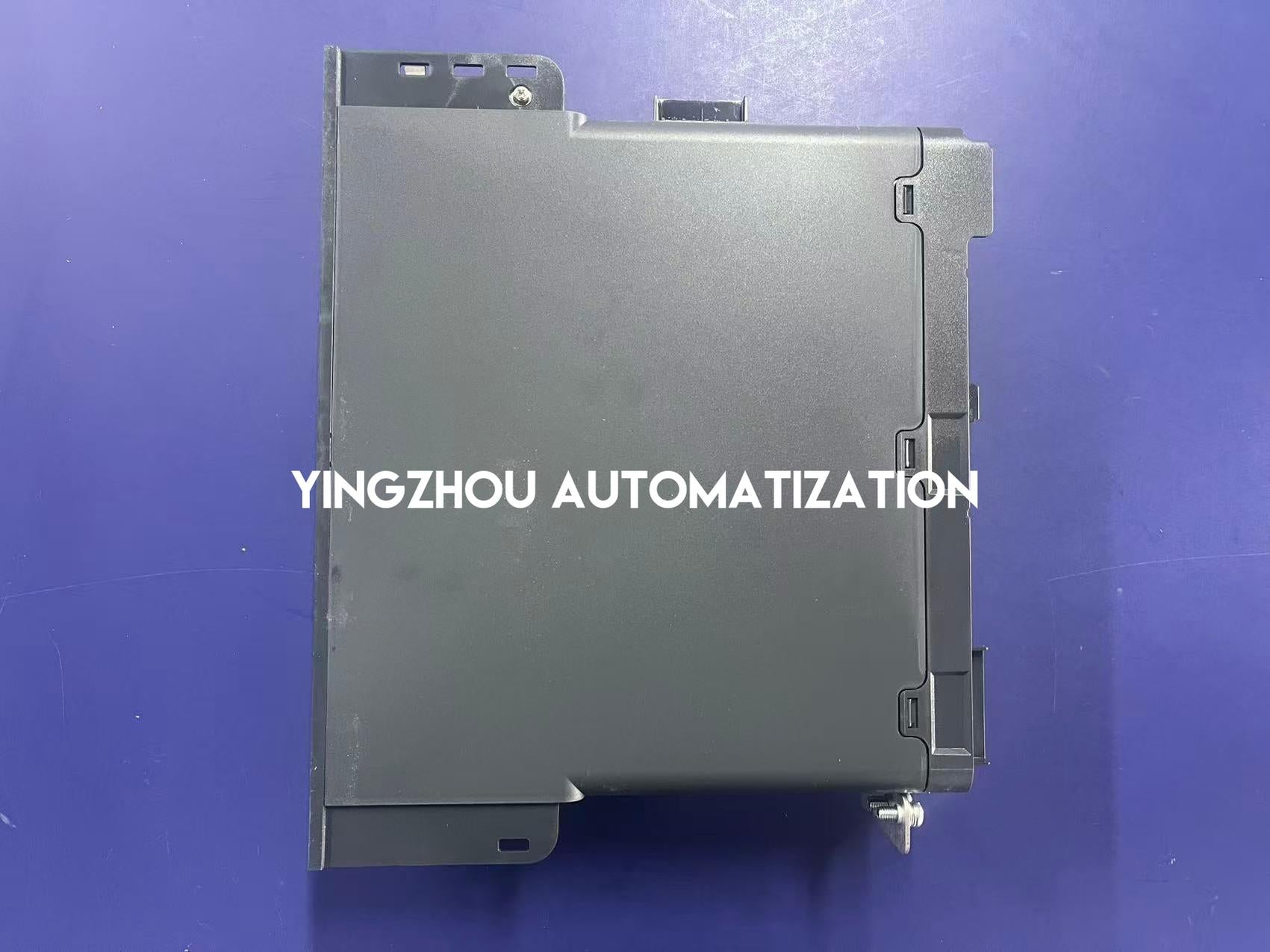

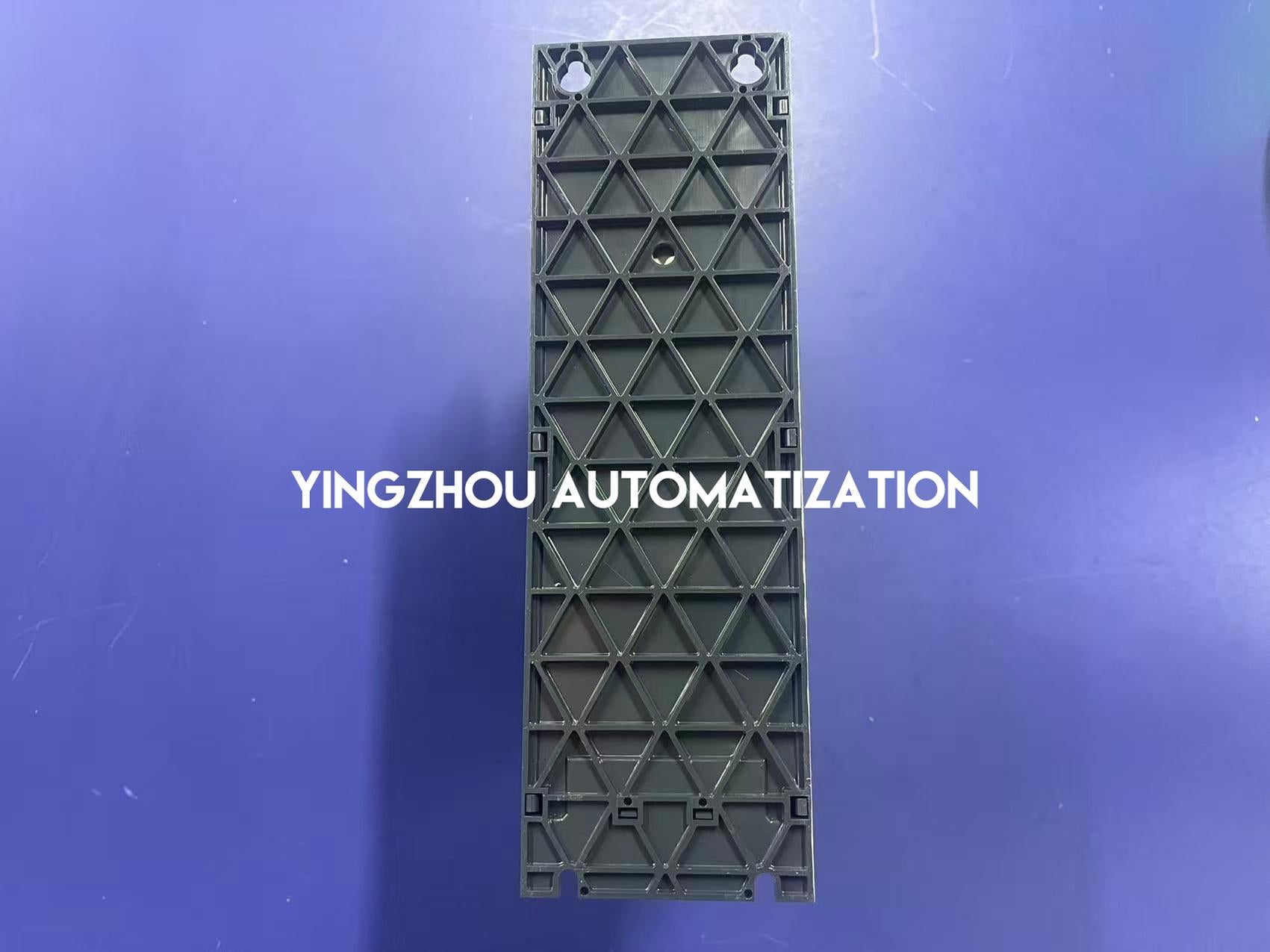

Actual product photos
✓

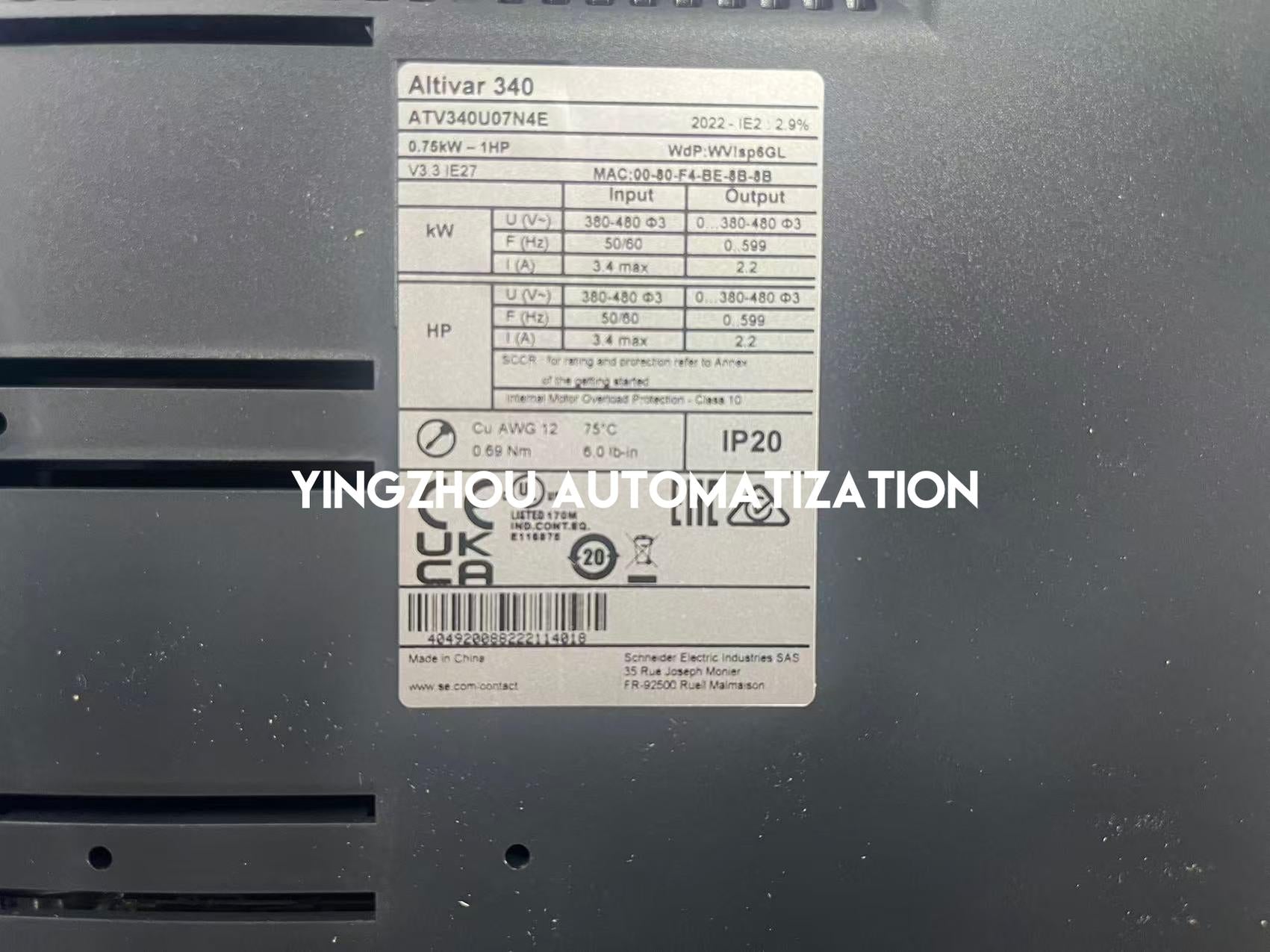

Model/nameplate visible
✓

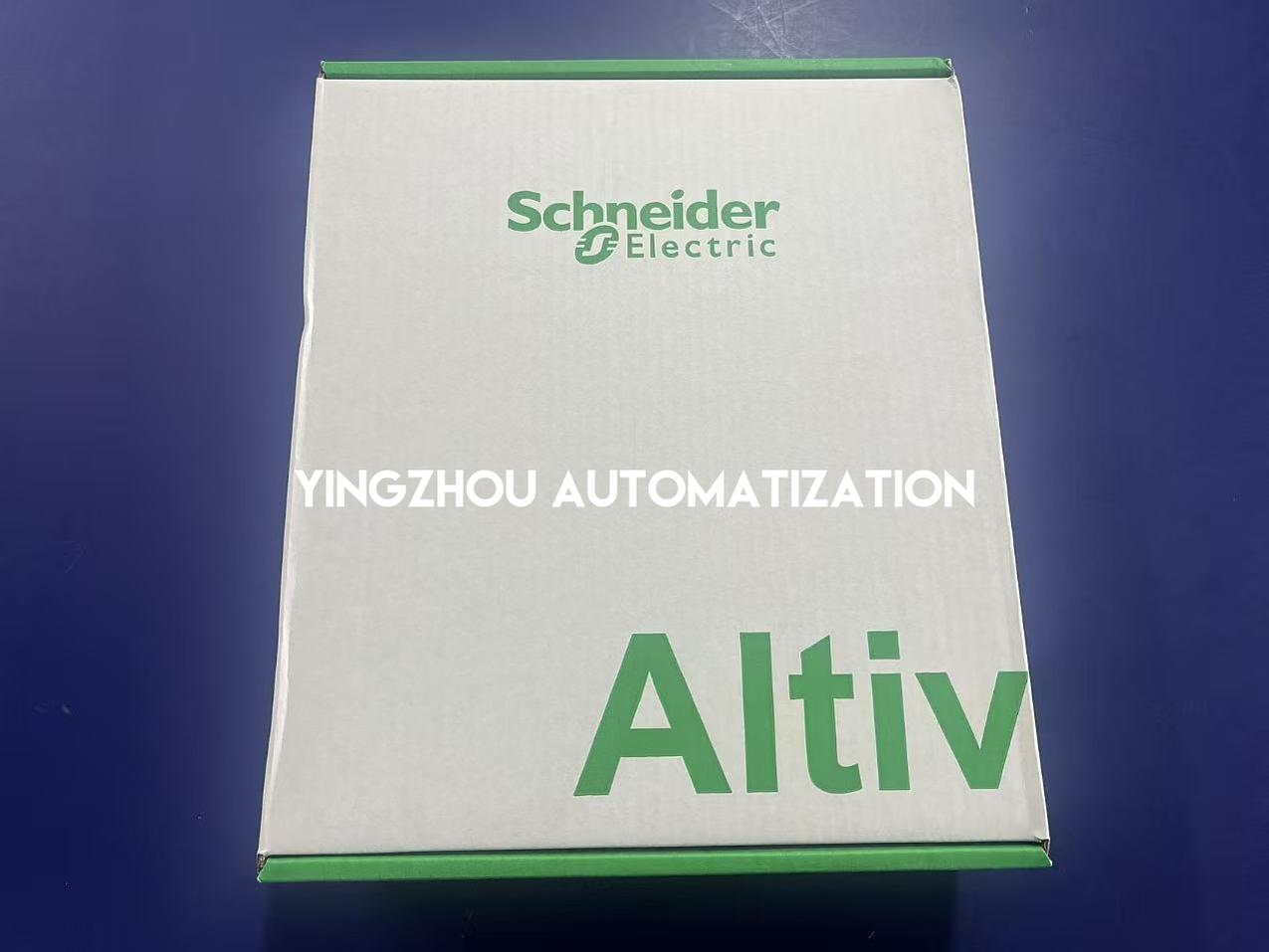

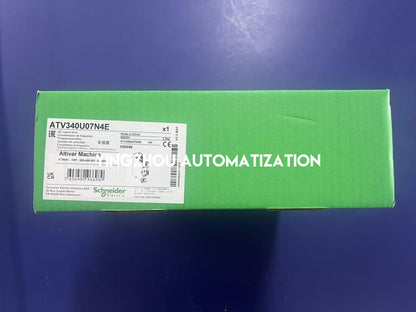

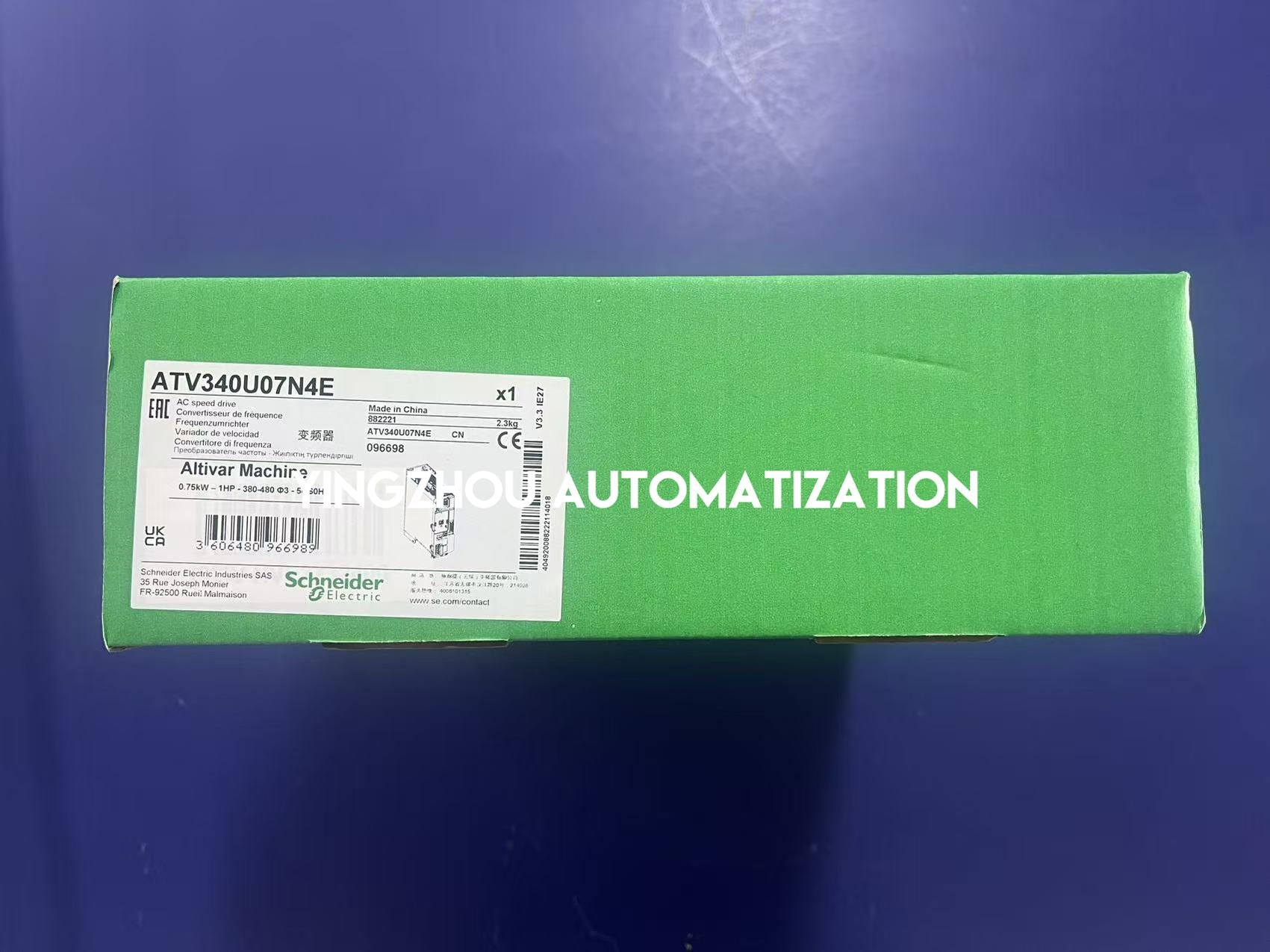

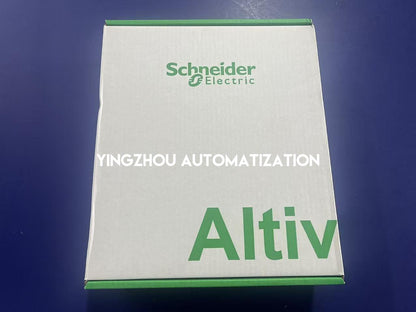

Packaging shown with matching model label
✓
Verify exact model ATV340U07N4E before ordering
In Stock & Ready to Order
Schneider Electric ATV340U07N4E is currently
in stock. Actual product nameplate and matching packaging
label photos are provided for buyer verification.
IN STOCK
Schneider ATV340U07N4E
Order online or contact us for project and quantity pricing.
Request Project Pricing
