FESTO QSMLL-G1/8-6 186271 Long Push-In L-Fitting
G1/8 Male Thread | 6mm Tube OD | Long L-Shaped | QSM Mini Series
| Specification |
Verified Product Data |
| Manufacturer |
Festo SE & Co. KG |
| Model |
QSMLL-G1/8-6 |
| Part Number |
186271 |
| Product Family |
QSM Mini |
| Product Type |
Push-in L-fitting, Long |
| Design |
Long L-Shaped, Push-Pull Principle |
| Pneumatic Connection 1 |
G1/8 Male Thread |
| Pneumatic Connection 2 |
6 mm Tubing Outside Diameter |
| Nominal Size |
3.1 mm |
| Tubing Insertion Depth |
11.9 mm |
| Screw Plug Seal |
Sealing Ring |
| Mounting Position |
Any |
| Operating Pressure, Full Temperature Range |
−0.95 to 6 bar |
| Temperature-dependent Operating Pressure |
−0.95 to 14 bar |
| Operating Medium |
Compressed Air, ISO 8573-1:2010 [7:-:-] |
| Lubricated Operation |
Possible |
| Ambient Temperature |
−10°C to +80°C |
| Nominal Tightening Torque |
5.4 Nm ±20% |
| Product Weight |
23 g |
| Mounting Method |
External Hexagon, AF 13 mm |
| Release Ring Color |
Blue |
| Screw Plug Material |
Nickel-plated Brass |
| Housing Material |
PBT |
| Release Ring Material |
POM |
| Tubing Seal Material |
NBR |
| Tubing Clamp Material |
High-alloy Stainless Steel |
| Corrosion Resistance |
CRC 1 — Low Corrosion Stress |
| PWIS Conformity |
VDMA 24364-B1/B2-L |
| RoHS |
Compliant |
| Manufacturer Pack Size |
10 pieces (manufacturer catalog specification) |
Product Overview
The FESTO QSMLL-G1/8-6, part number 186271, is a long L-shaped pneumatic push-in fitting from the QSM Mini family. It connects a G1/8 male-threaded pneumatic port to tubing with a 6 mm outside diameter. The fitting features a 3.1 mm nominal size, 11.9 mm tubing insertion depth, nickel-plated brass screw plug, PBT housing, POM release ring and NBR tubing seal. It is designed for compatible compressed-air pneumatic systems with an ambient operating temperature range of −10°C to +80°C. The manufacturer specifies an operating pressure of −0.95 to 6 bar across the full temperature range, with a temperature-dependent pressure range extending to 14 bar under applicable conditions. Please confirm the G1/8 thread, 6 mm tubing requirement, operating conditions and selling quantity before ordering.
Key Product Features
-
Long L-Shaped Fitting — FESTO QSMLL design for pneumatic tube connections.
-
G1/8 Male Thread — Threaded connection for compatible G1/8 ports.
-
6 mm Push-In Tubing Port — For pneumatic tubing with a 6 mm outside diameter.
-
QSM Mini Series — Pneumatic connection design with a 3.1 mm nominal size.
-
Push-Pull Principle — Push-in tubing connection with a release ring.
-
Industrial Materials — Nickel-plated brass screw plug, PBT housing, POM release ring and NBR tubing seal.
-
Compressed-Air Operation — Designed for use within manufacturer-specified pressure and temperature limits.
Actual Product Verification

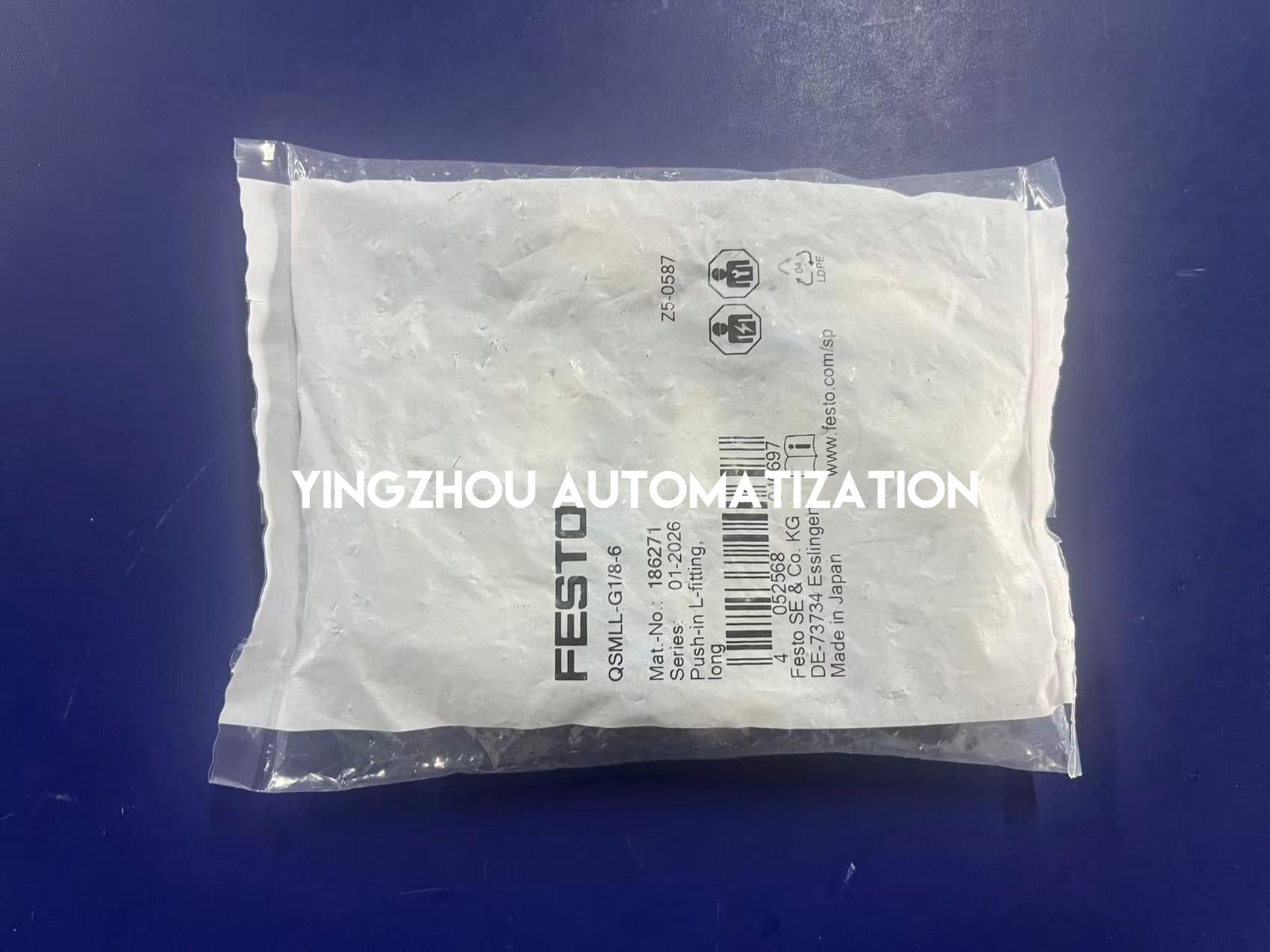

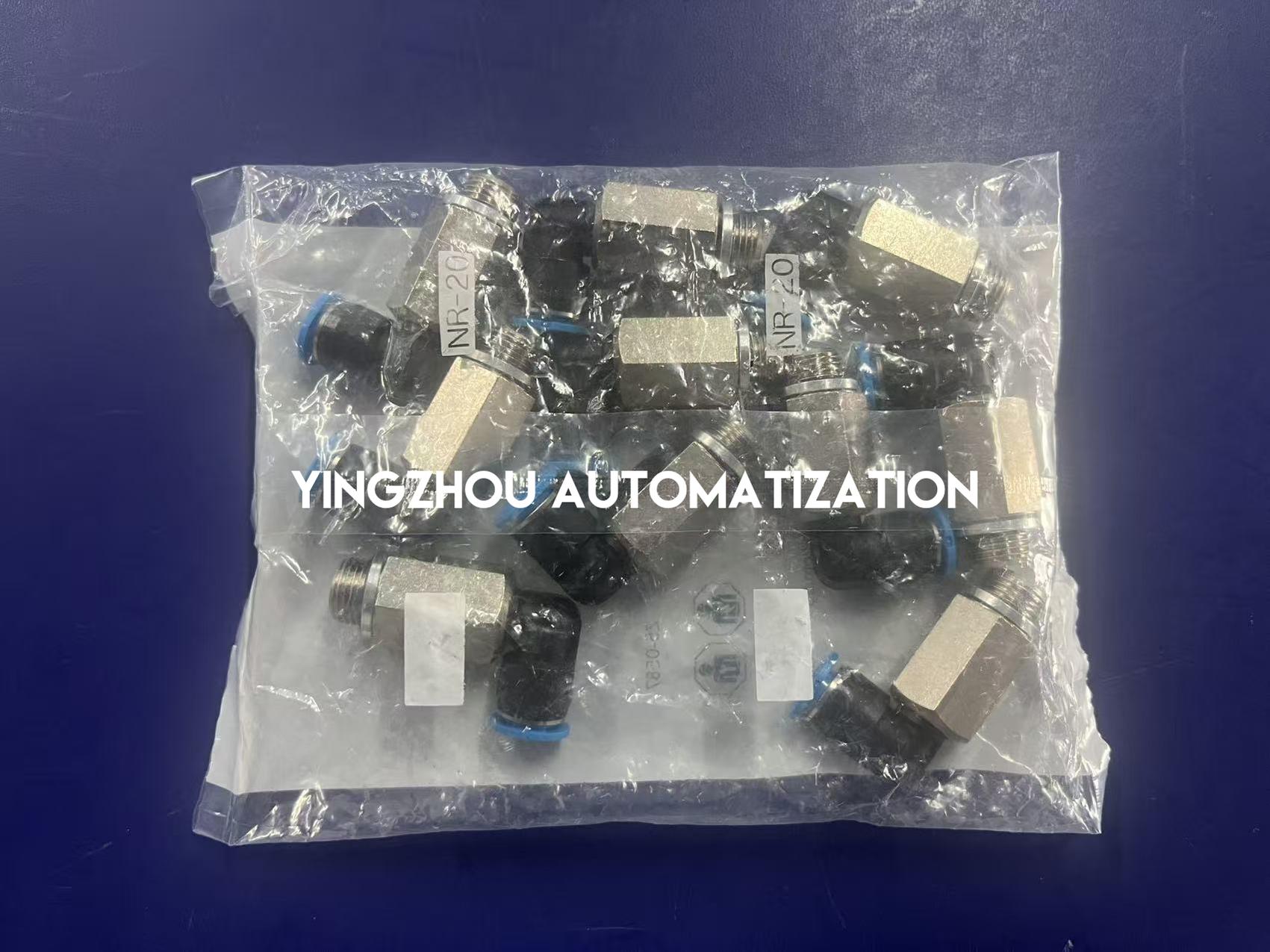

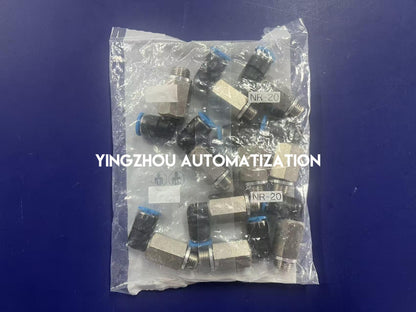

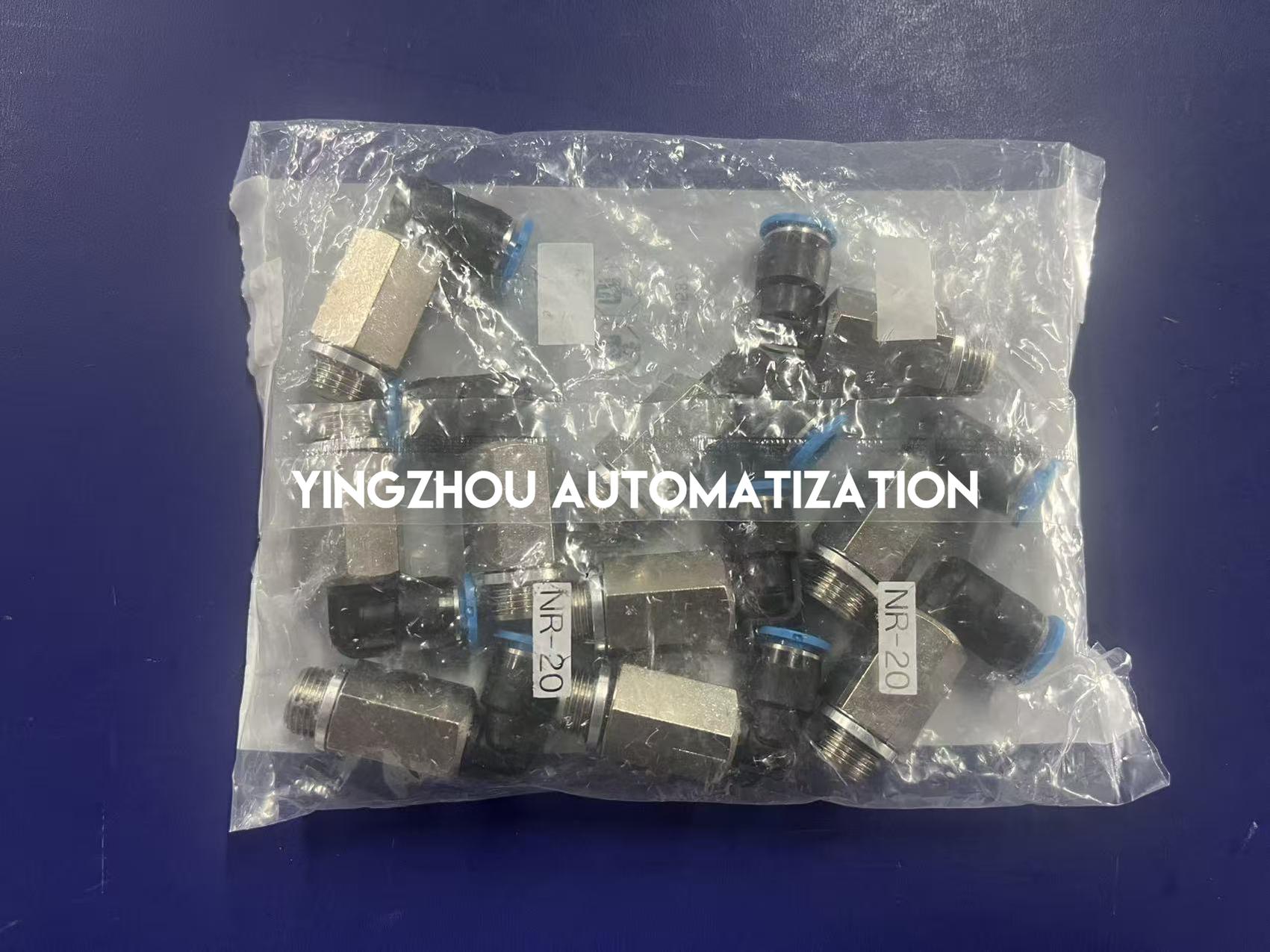

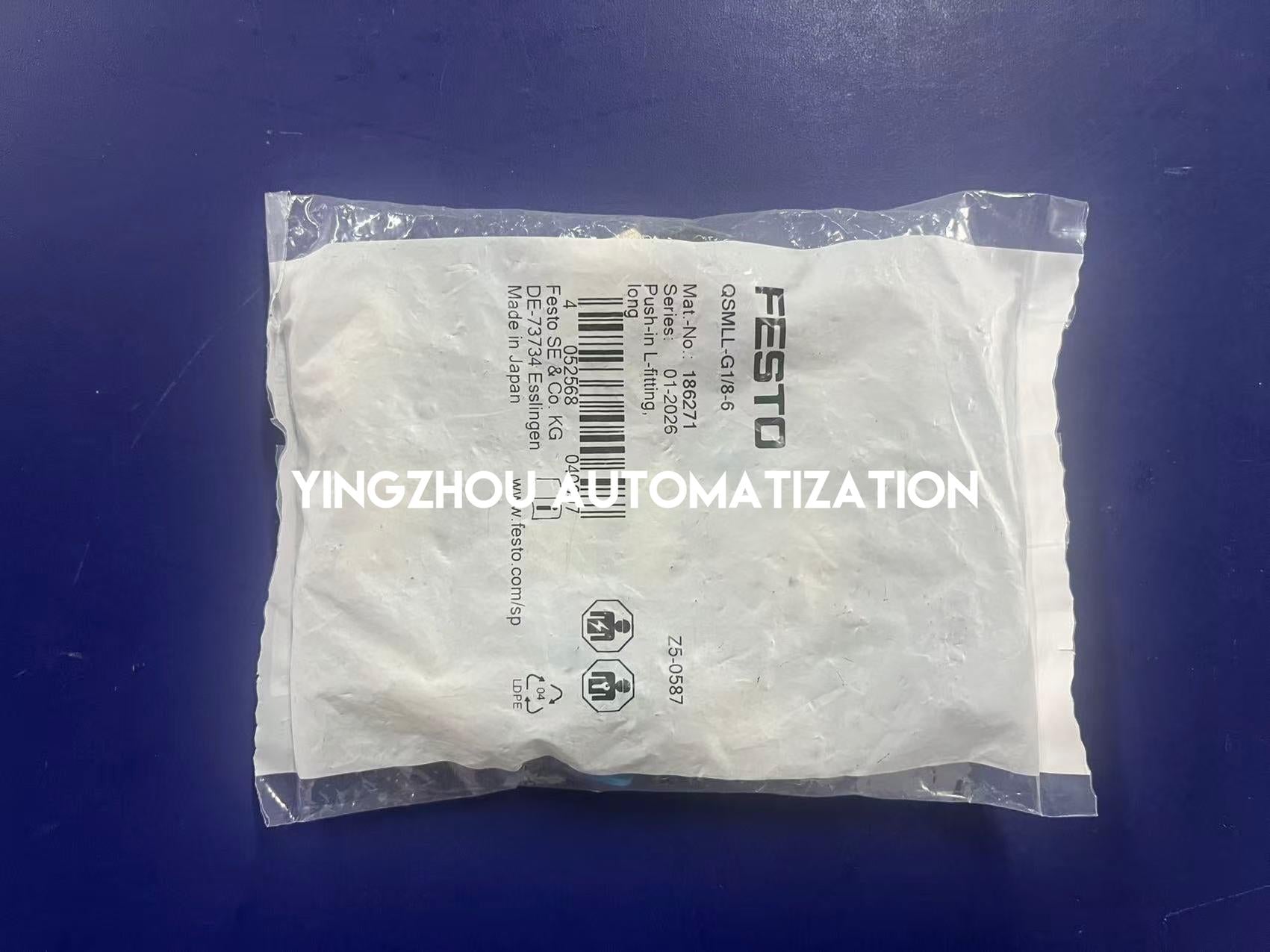

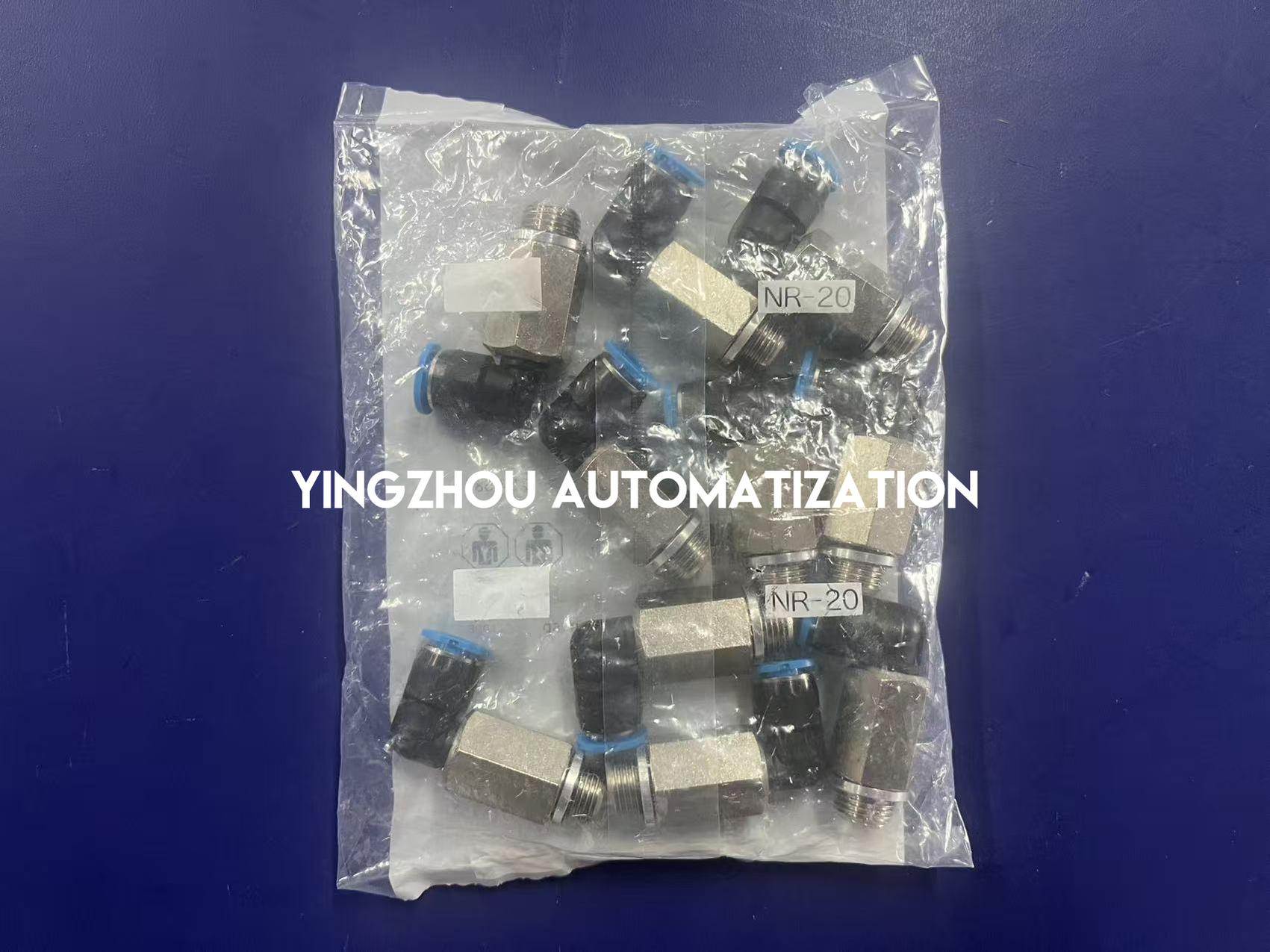

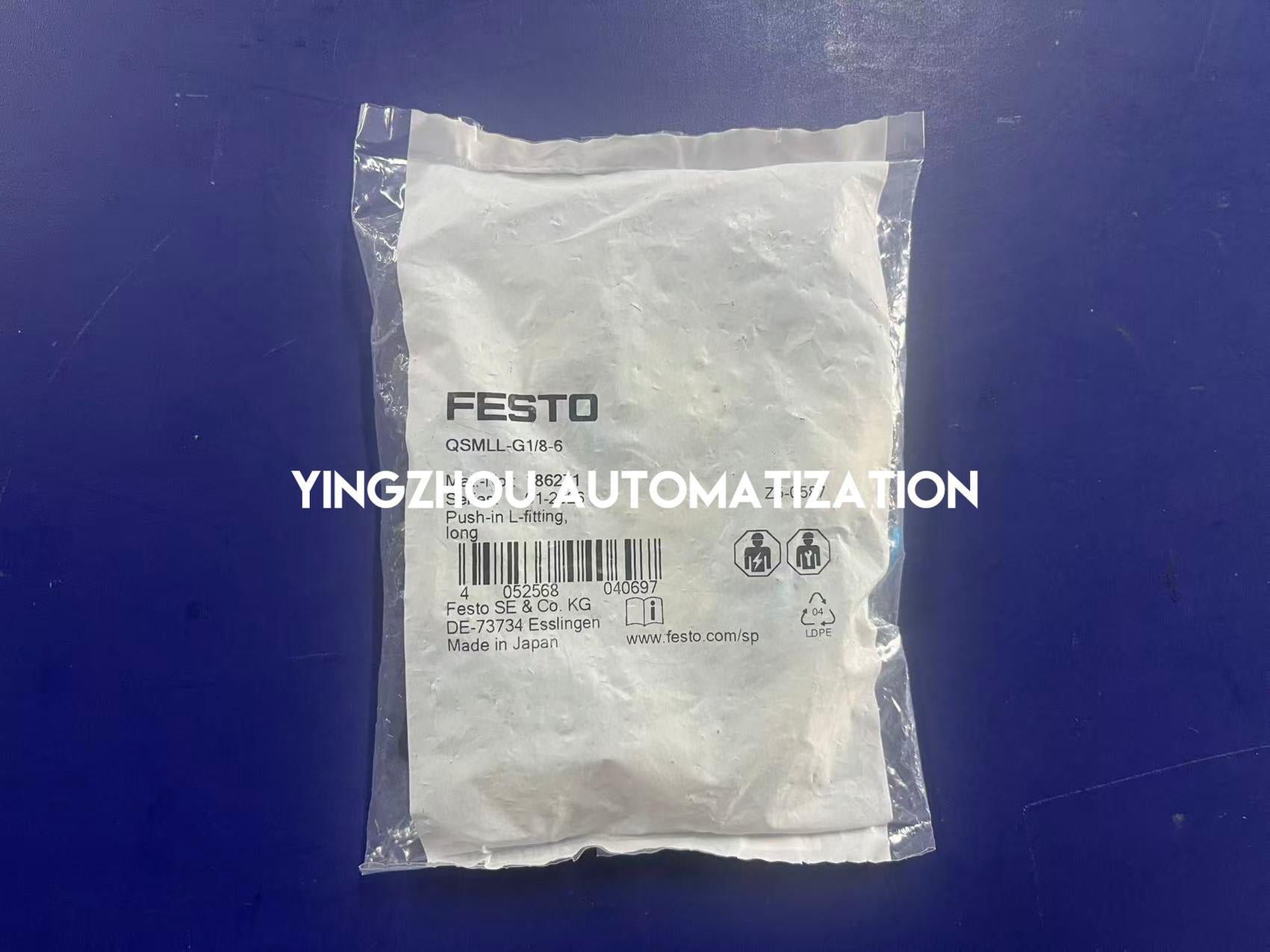

✓ Actual FESTO product packaging photograph supplied
✓ Packaging model: QSMLL-G1/8-6
✓ Packaging part number: 186271
✓ Packaging description: Push-in L-fitting, long
✓ Packaging label states Made in Japan
✓ Packaging model and requested product model match
✓ Individual fitting appearance and package quantity require separate confirmation
In Stock & Available to Order
FESTO QSMLL-G1/8-6, part number 186271, is marked in stock based on the supplied inventory information. This long L-shaped push-in fitting is available for exact-model industrial procurement. Please confirm the quantity, selling unit, G1/8 male thread, 6 mm tube size and delivery requirements before ordering.
IN STOCK
FESTO QSMLL-G1/8-6 186271
Contact us for quantity quotations and project sourcing. Please confirm the G1/8 male thread, 6 mm tubing connection and required order quantity before purchasing.
Request Bulk Pricing
