Delta ECMA-C11010RS ECMA Series 1kW 220V 3000rpm 20-bit Incremental Low-Inertia AC Servo Motor

Delta ECMA-C11010RS ECMA Series 1kW 220V 3000rpm 20-bit Incremental Low-Inertia AC Servo Motor

정가 $245.99 USD
정가 할인가 $245.99 USD
할인 품절
Model Number
YingZhou Industrial Automation | Product Information

Delta ECMA-C11010RS ECMA Series AC Servo Motor

1kW | 220V Class | 3000rpm Rated | 20-bit Incremental Encoder
✓ IN STOCK & READY TO ORDER  |  Actual Product Photos  |  Model and Packaging Labels Visible
Specification Product Data
Brand Delta Electronics
Exact Model ECMA-C11010RS
Series ECMA Series
Product Type AC Servo Motor
Inertia Type Low Inertia
Voltage Class 220 V
Motor Nameplate Input 110 VAC (Actual Nameplate)
Rated Power 1.0 kW (1000 W)
Rated Speed 3000 rpm
Rated Torque 3.18 Nm
Maximum Torque 9.54 Nm
Rated Current 7.30 Arms
Maximum Instantaneous Current 21.90 Arms
Encoder Type 20-bit Incremental Encoder
Motor Frame Size 100 mm
Shaft Diameter 22 mm
Shaft Configuration Keyway with Fixing Screw Hole
Shaft Diameter Type Standard
Motor Brake Without Brake
Oil Seal Equipped
Rotor Inertia (Without Brake) 2.65 x 10^-4 kg.m2
Weight (Without Brake) 4.3 kg
Maximum Radial Load 490 N
Maximum Axial Load 98 N
Protection Rating IP65 with Suitable Waterproof Connector and Shaft Seal
Operating Temperature 0 to 40 degrees C
Storage Temperature -10 to 80 degrees C

Product Overview

The Delta ECMA-C11010RS is a 1.0 kW AC servo motor from Delta's ECMA Series. This low-inertia motor belongs to the 220V class and provides 3000 rpm rated speed with 3.18 Nm rated torque. It features a 20-bit incremental encoder, a 100 mm motor frame, and a 22 mm keyed shaft with oil seal, without holding brake.

Key Product Features

  • 1.0 kW (1000 W) rated motor output
  • Low-inertia ECMA motor configuration
  • 3000 rpm rated rotational speed
  • 3.18 Nm rated torque
  • 20-bit incremental encoder for position feedback
  • 100 mm frame with standard 22 mm shaft diameter
  • Keyed shaft with oil seal, without holding brake

Actual Product Verification

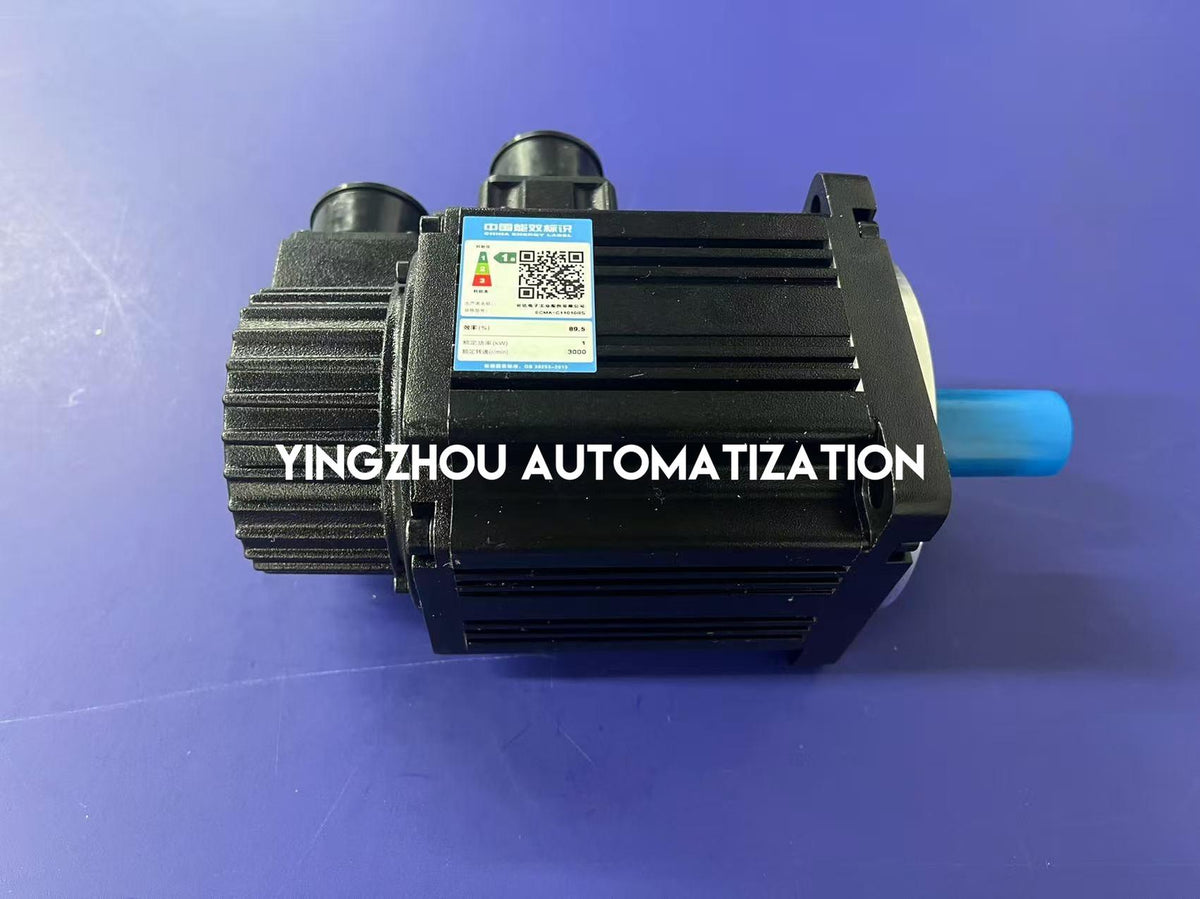

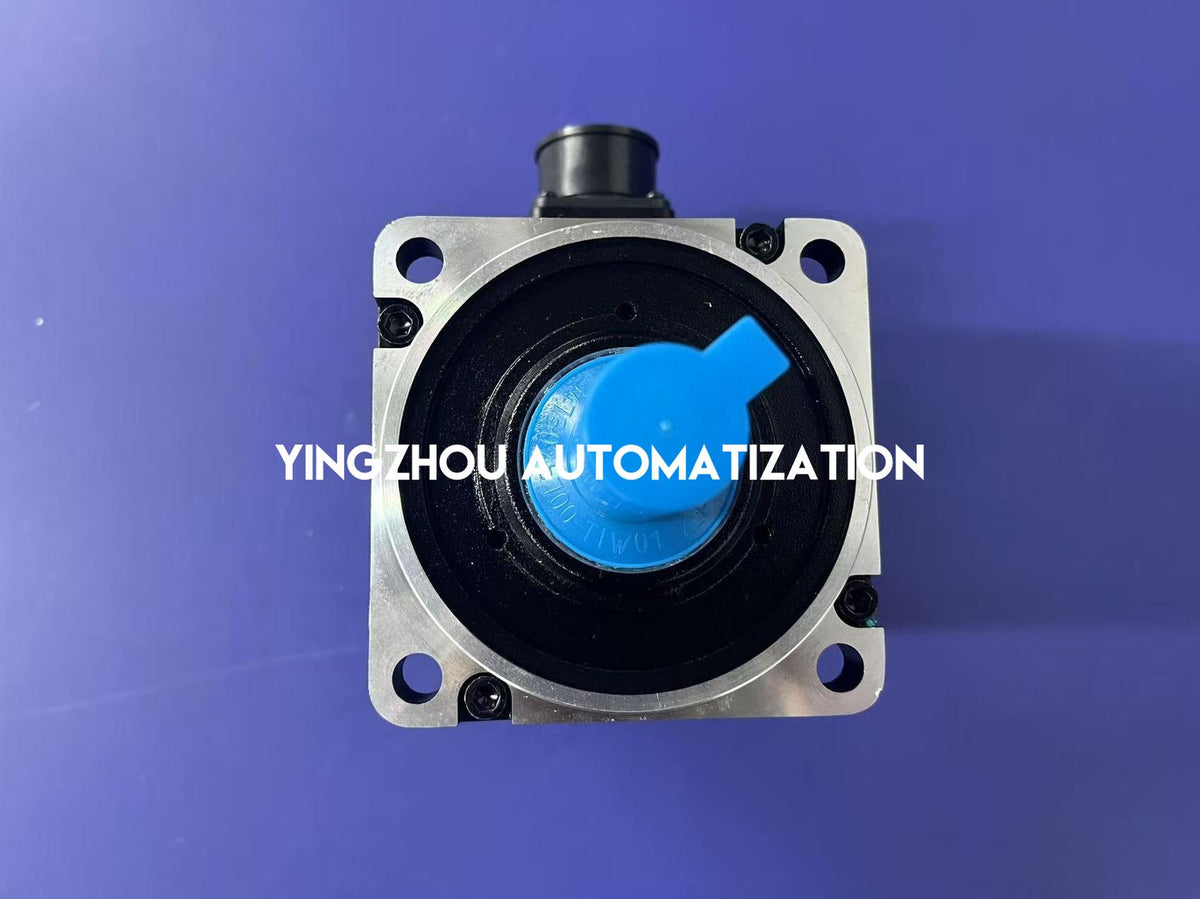

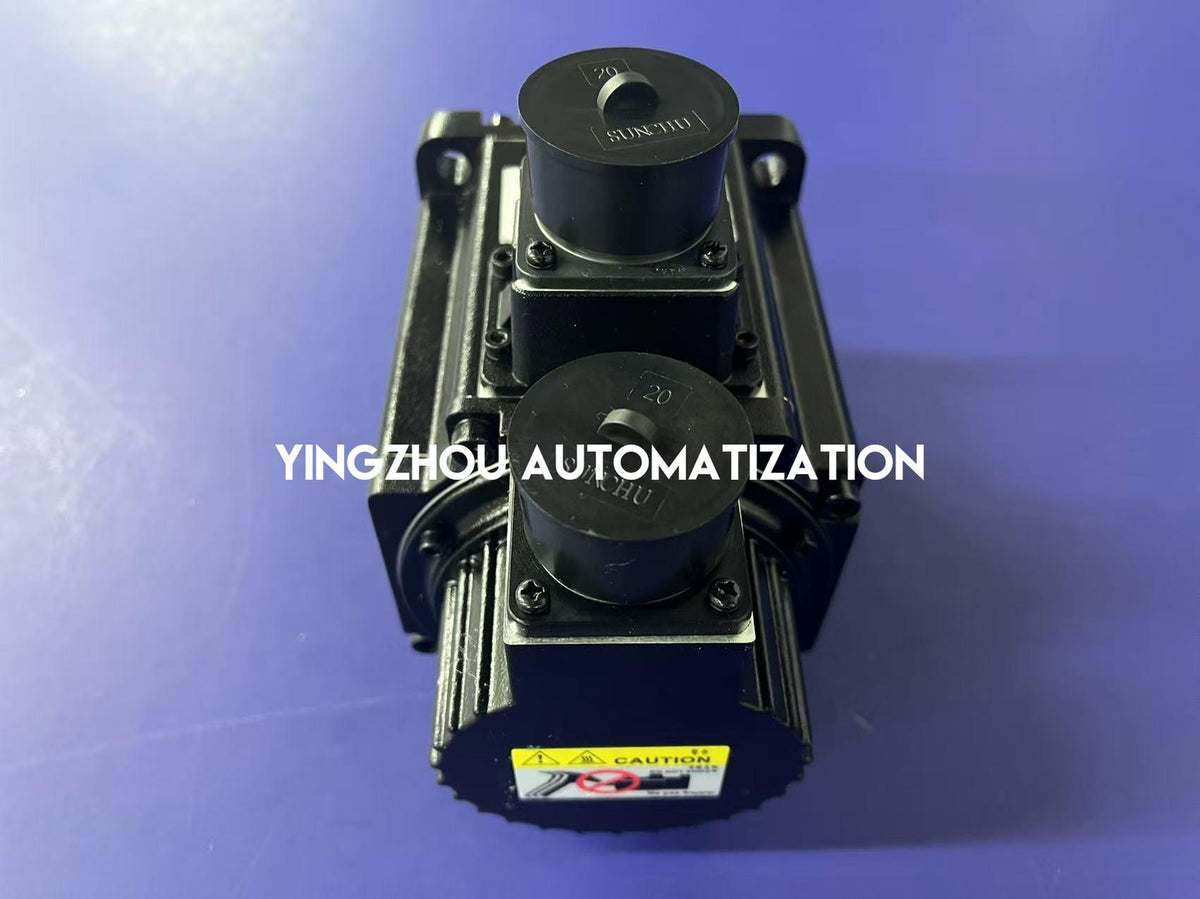

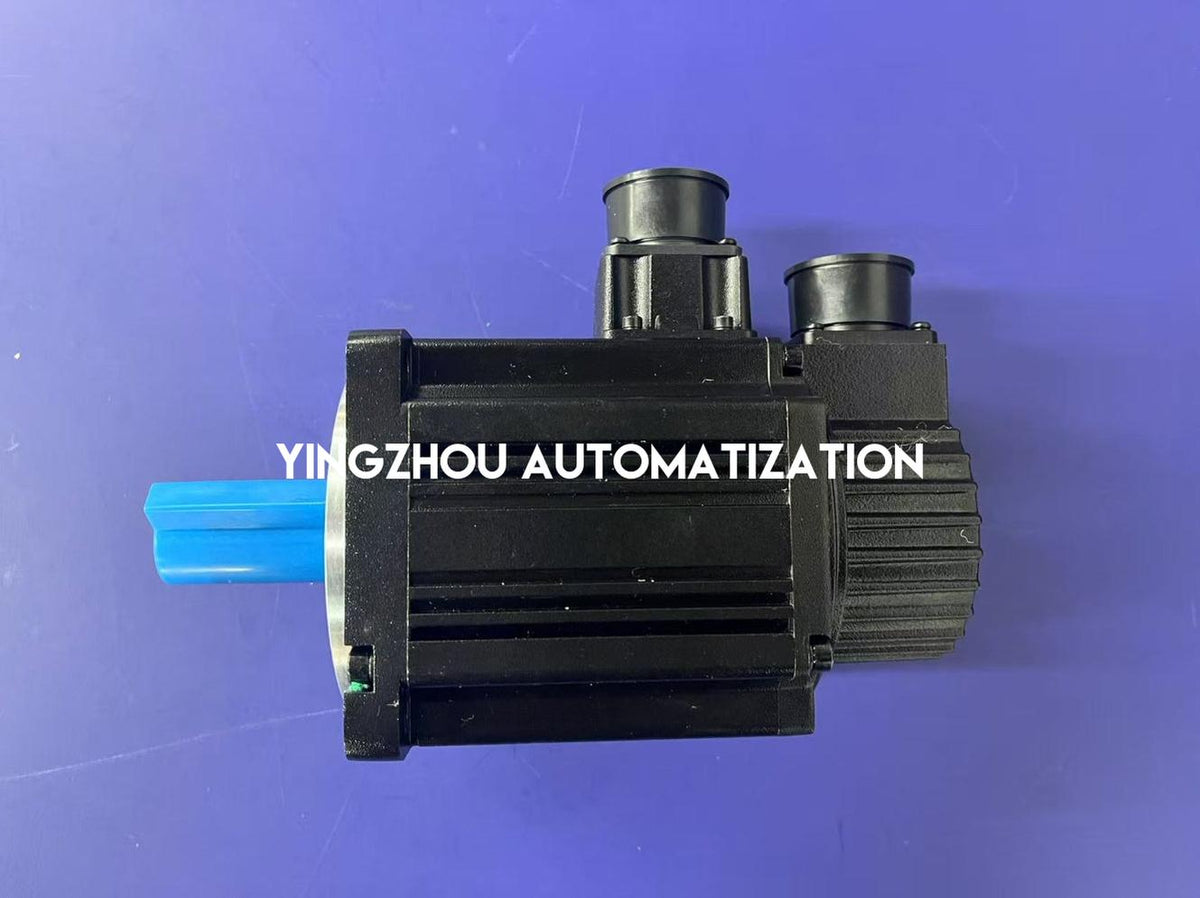

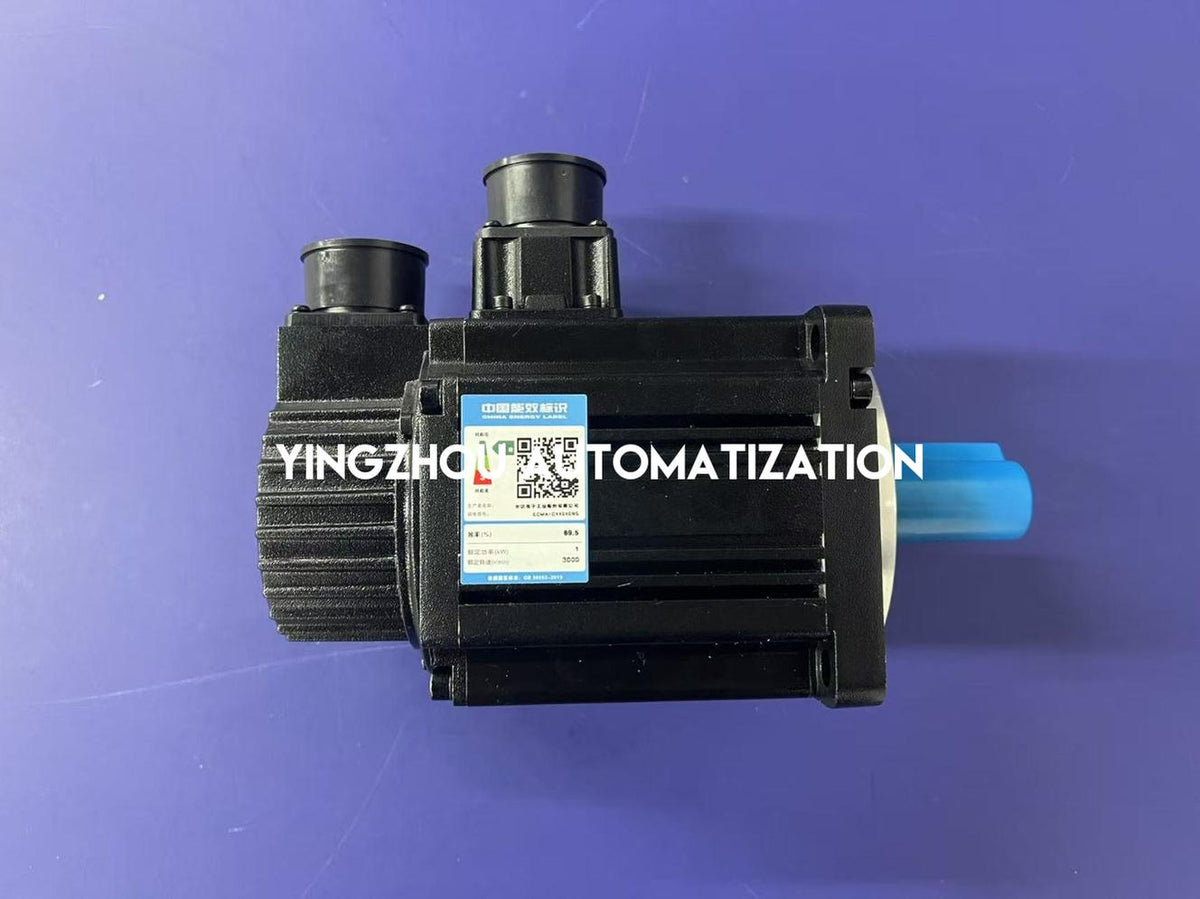

✓ Actual product photos

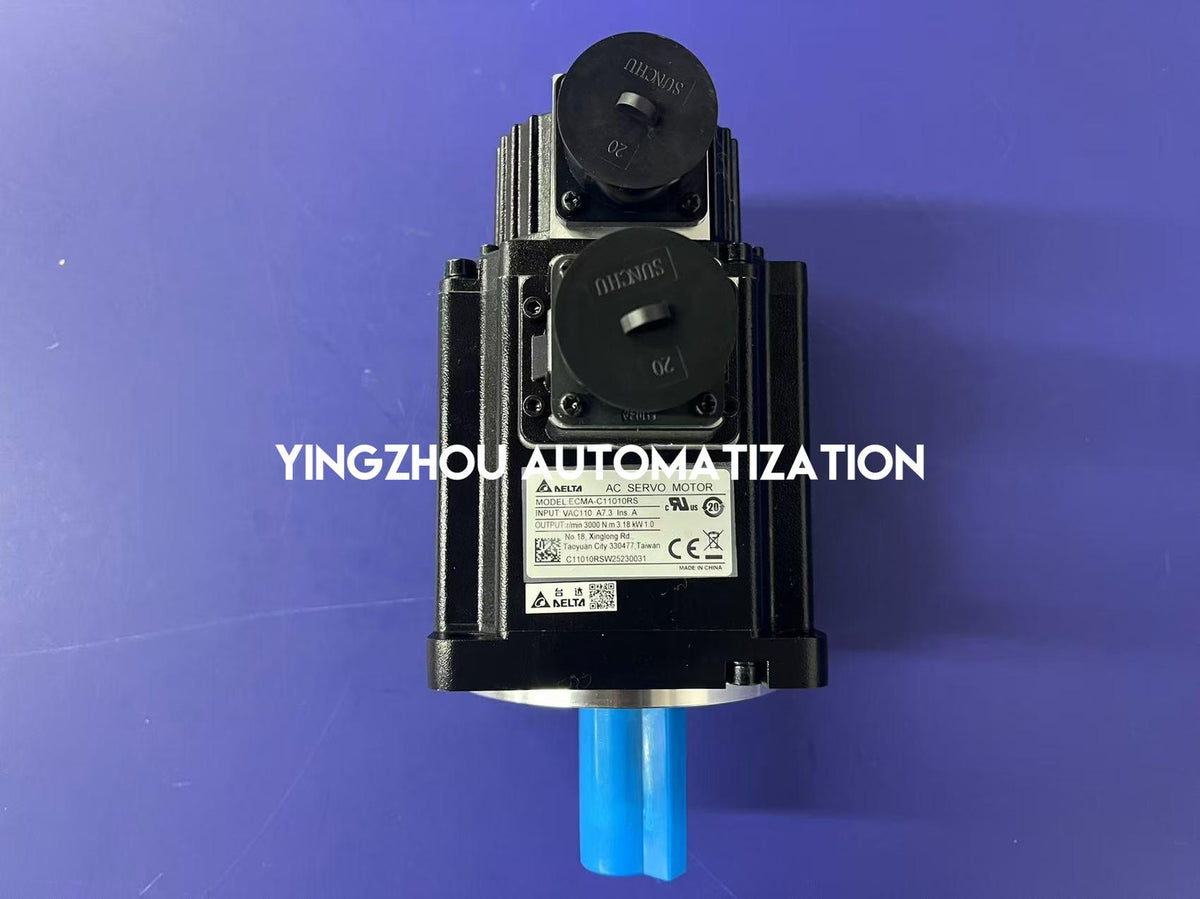

✓ Model/nameplate visible

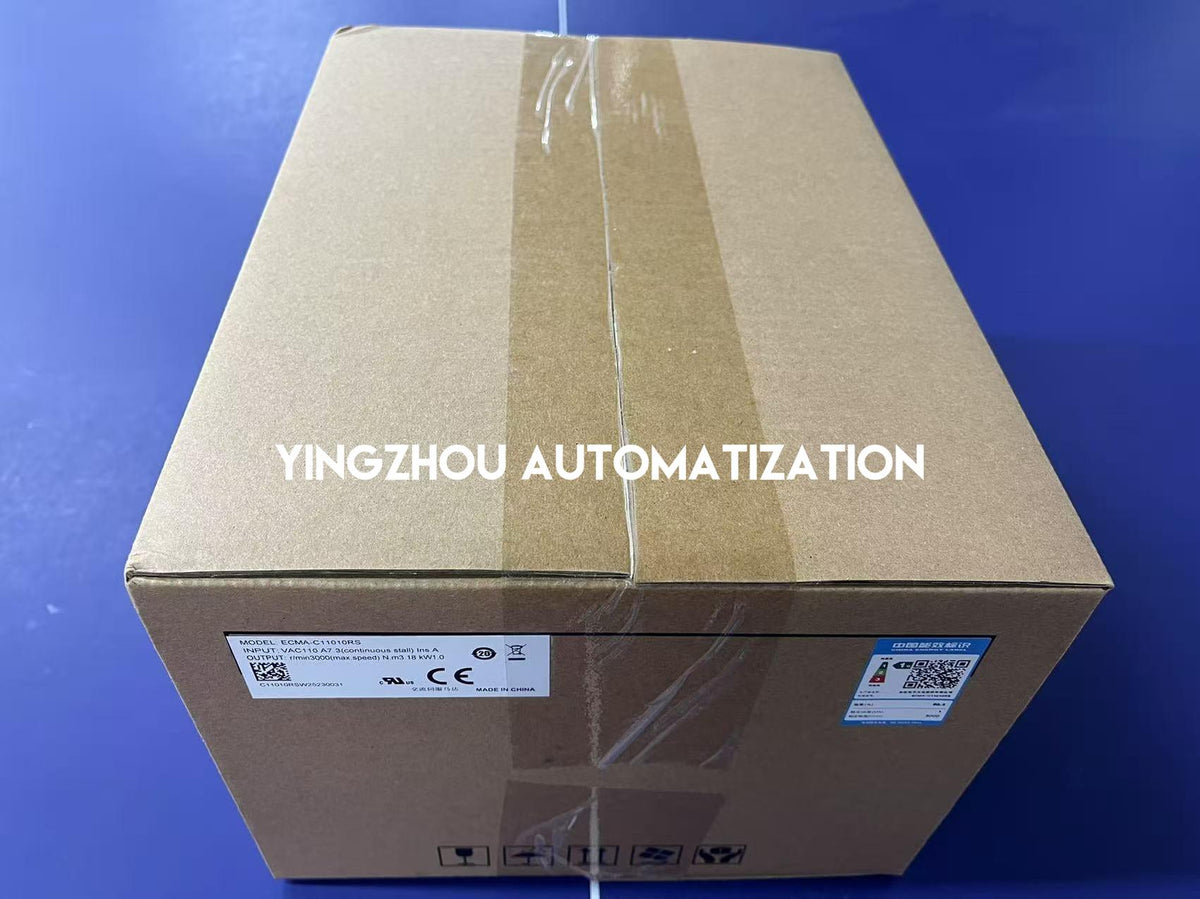

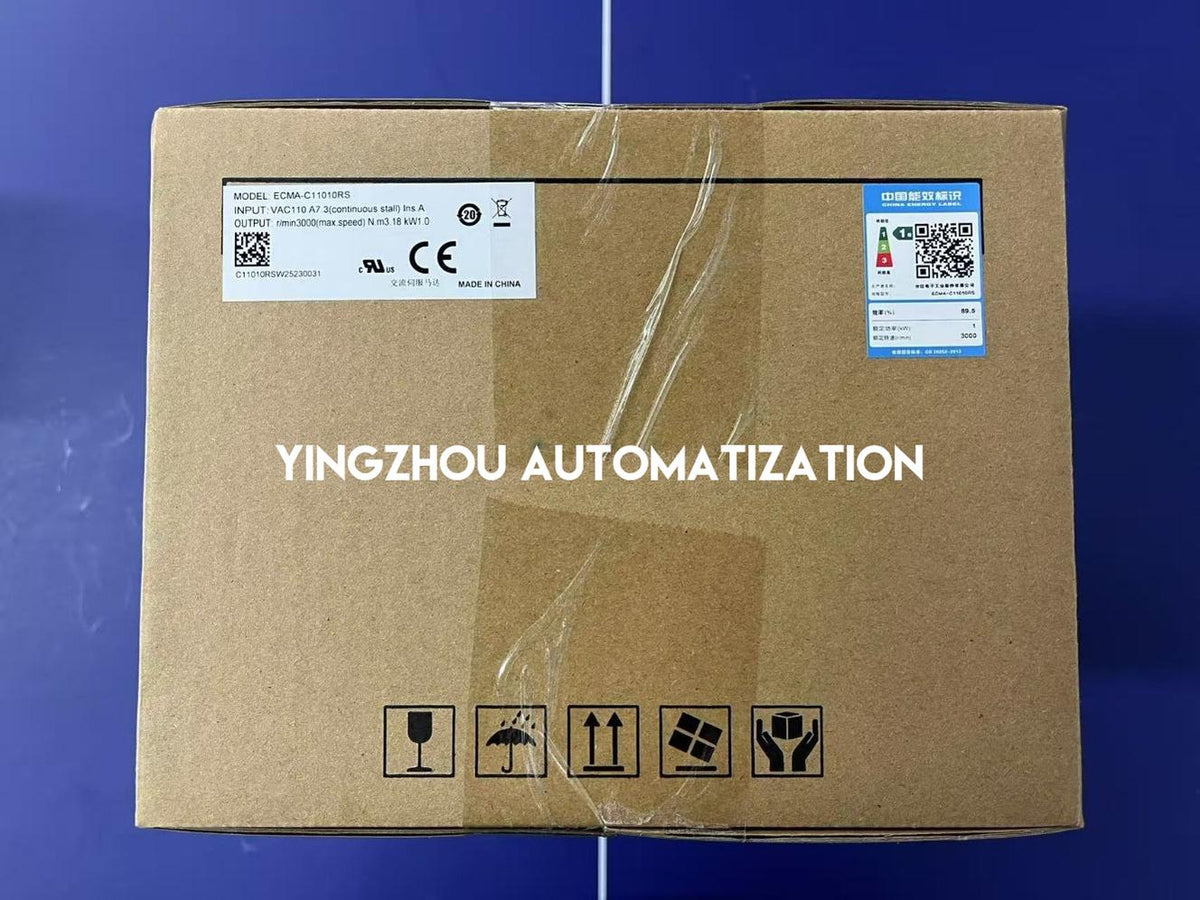

✓ Packaging and matching model label shown
✓ Verify exact model ECMA-C11010RS before ordering

In Stock & Ready to Order

Delta ECMA-C11010RS is currently in stock. Actual product and matching packaging photos are provided for buyer verification. Order online or contact us for project and quantity-based purchasing assistance.

IN STOCK

Delta ECMA-C11010RS

Order online or contact us for project and quantity pricing.
