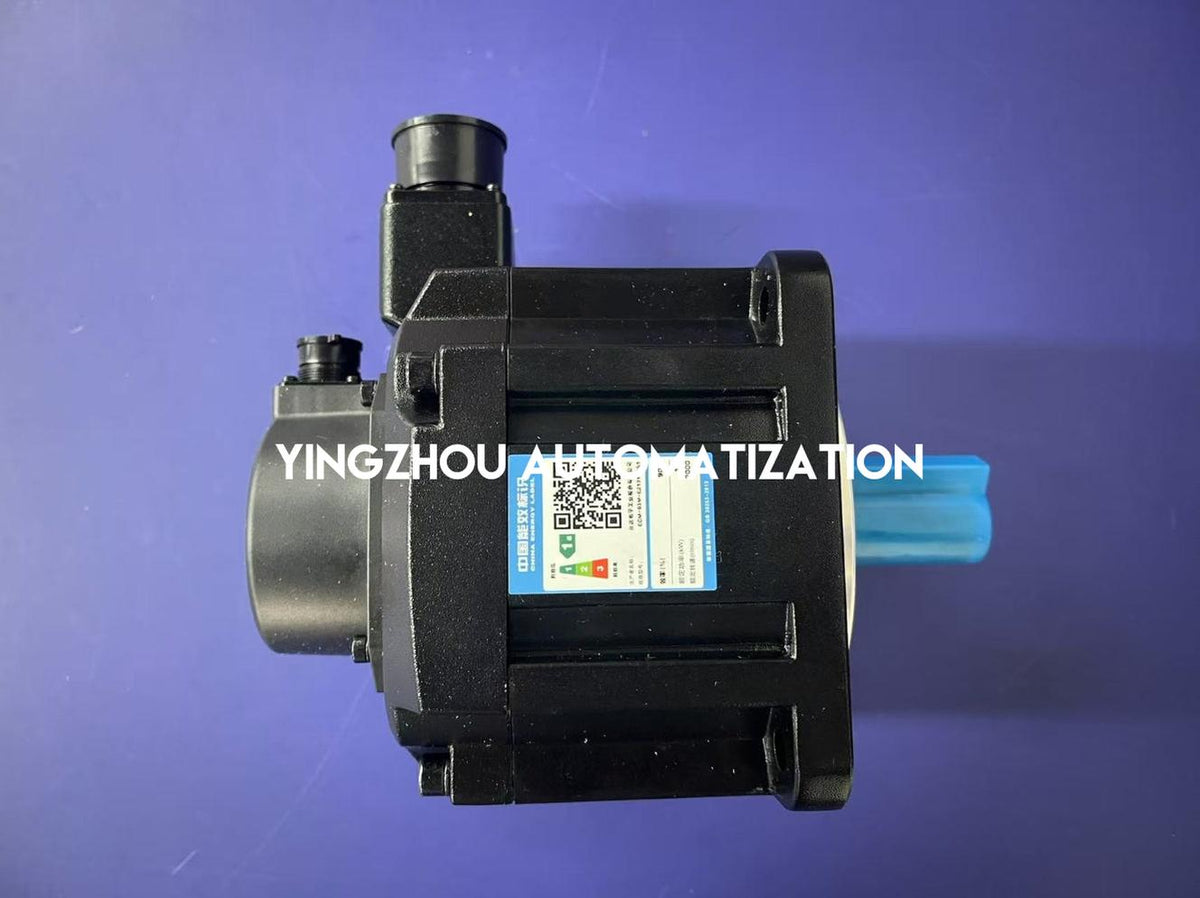

Delta ECM-B3M-E21315RS1 ECM-B3M Series 1.5kW 220V 2000rpm 24-bit Incremental Optical Encoder Medium-Inertia AC Servo Motor without Brake

Delta ECM-B3M-E21315RS1 ECM-B3M Series 1.5kW 220V 2000rpm 24-bit Incremental Optical Encoder Medium-Inertia AC Servo Motor without Brake

정가 $251.99 USD
정가 할인가 $251.99 USD
할인 품절
Model Number
YingZhou Industrial Automation | Product Information

Delta ECM-B3M-E21315RS1 ECM-B3M Series AC Servo Motor

1.5kW | 220V Class | 2000rpm Rated | 24-bit Incremental Optical Encoder | Without Brake
✓ IN STOCK & READY TO ORDER  |  Brand New Original  |  1-Year Seller Warranty
Specification Product Data
Brand Delta Electronics
Exact Model ECM-B3M-E21315RS1
Motor Series ECM-B3M Series
Servo System Family ASDA-B3
Product Type AC Servo Motor
Inertia Type Medium Inertia
Voltage Class 220 V
Motor Nameplate Input 110 VAC, 8.17 A (Actual Nameplate)
Rated Power 1.5 kW (1500 W)
Rated Speed 2000 rpm
Rated Torque 7.16 Nm
Maximum Torque 21.48 Nm
Rated Current 8.17 Arms
Maximum Instantaneous Current 26.82 Arms
Encoder Type 24-bit Incremental Optical Encoder
Motor Frame Size 130 mm
Shaft Diameter 22 mm
Mounting Hole PCD 145 mm
Shaft Configuration Keyway with Fixing Screw Hole
Shaft / Connector Type Standard
Motor Brake Without Brake
Oil Seal Equipped
Rotor Inertia (Without Brake) 11.22 x 10^-4 kg.m2
Weight (Without Brake) 6.7 kg
Rated Power Rate 45.69 kW/s
Mechanical Time Constant 1.10 ms
Maximum Radial Load 686 N
Maximum Axial Load 343 N
Torque Constant 0.88 Nm/A
Voltage Constant 31.69 mV/rpm
Armature Resistance 0.26 ohm
Armature Inductance 2.81 mH
Electrical Time Constant 10.81 ms
Insulation Class Class A (UL), Class B (CE)
Insulation Resistance 100 Mohm Minimum at 500 VDC
Insulation Strength 2.3 kVAC for 1 Second
Protection Rating IP67 under Applicable Manufacturer Sealing Conditions
Operating Temperature -20 to 60 degrees C (Derating Above 40 degrees C)
Storage Temperature -20 to 80 degrees C
Operating / Storage Humidity 20 to 90% RH, Non-condensing

Product Overview

The Delta ECM-B3M-E21315RS1 is a 1.5 kW AC servo motor from Delta's ECM-B3M Series for compatible ASDA-B3 servo systems. This medium-inertia motor belongs to the 220V class and provides 2000 rpm rated speed with 7.16 Nm rated torque. It features a 24-bit incremental optical encoder, a 130 mm motor frame, and a 22 mm keyed shaft with oil seal, without holding brake.

Key Product Features

  • 1.5 kW (1500 W) rated motor output
  • Medium-inertia ECM-B3M motor design
  • 2000 rpm rated rotational speed
  • 7.16 Nm rated torque
  • 24-bit incremental optical encoder for position feedback
  • 130 mm frame with standard 22 mm shaft diameter
  • Keyed shaft with oil seal, without holding brake

Actual Product Verification

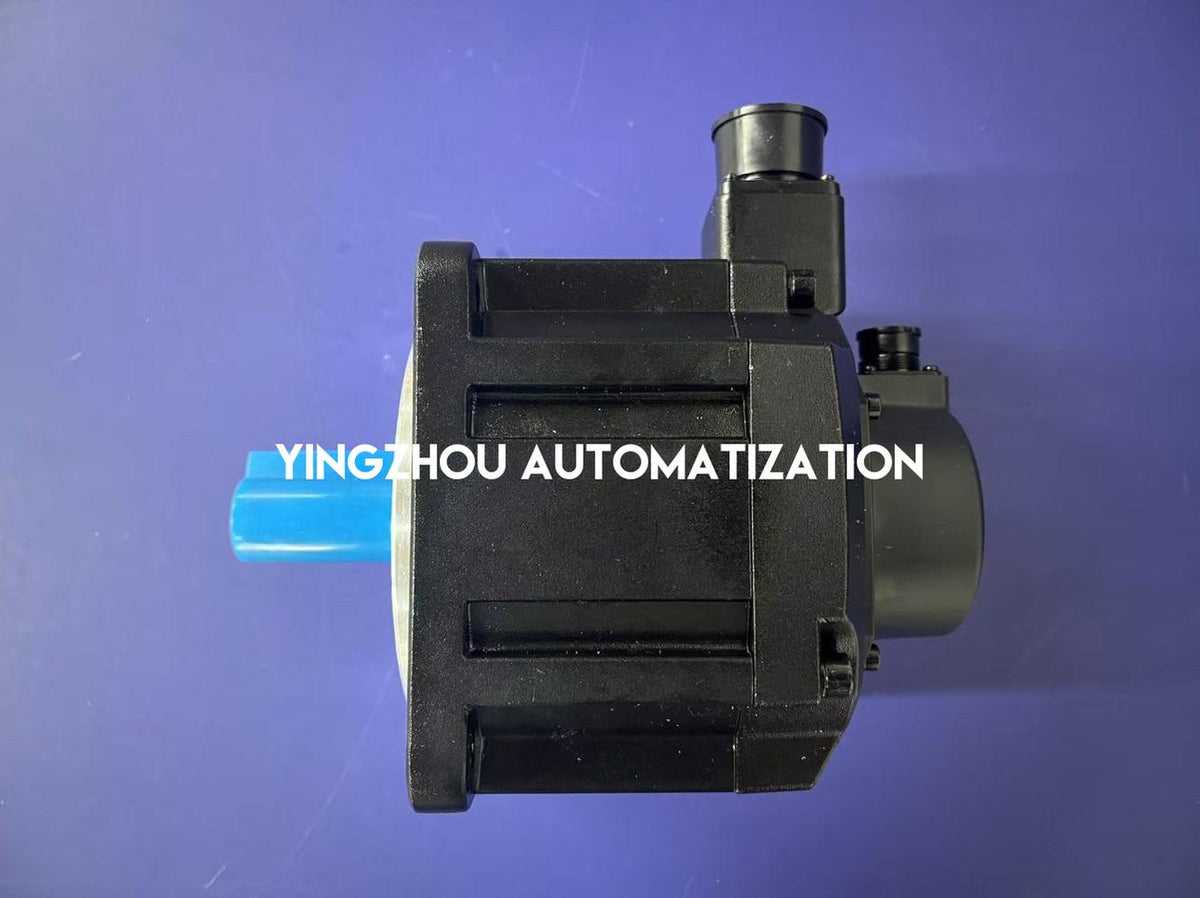

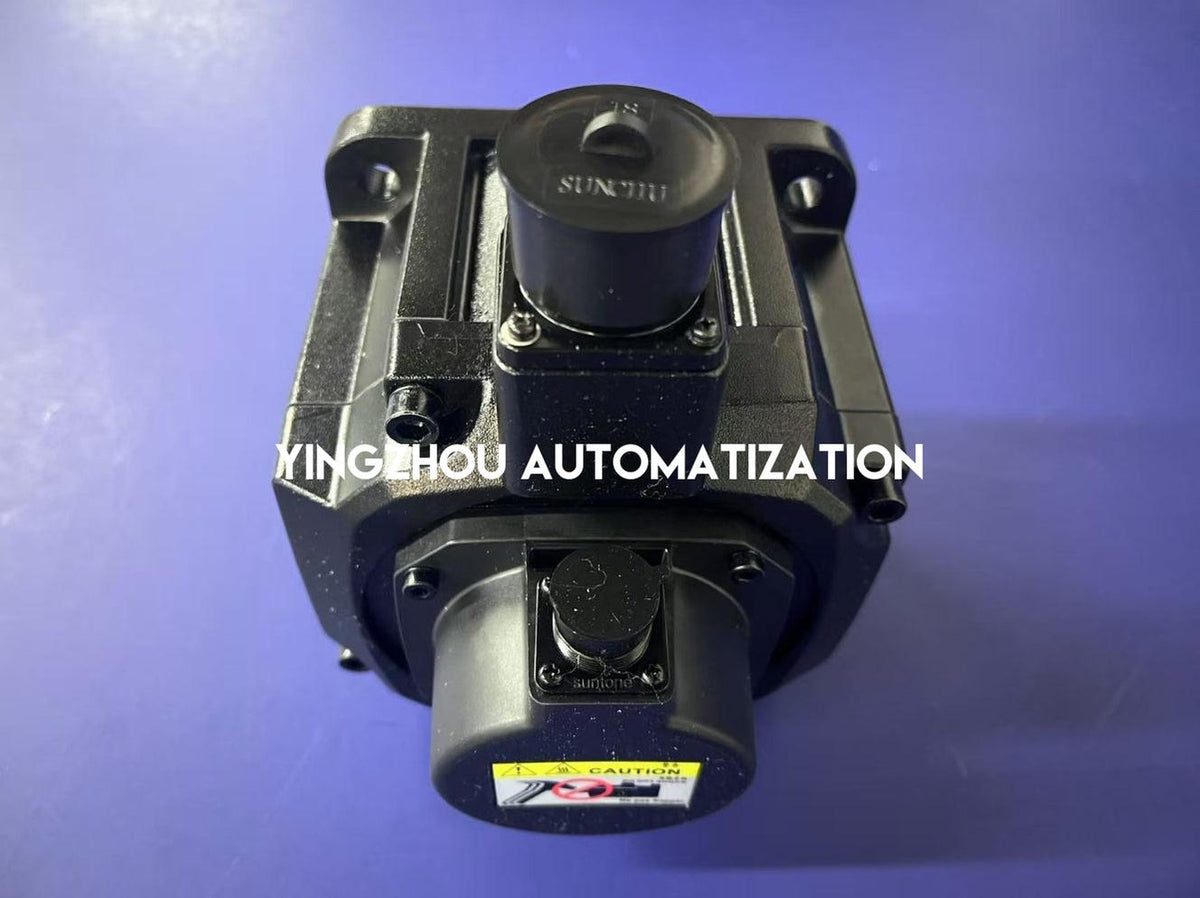

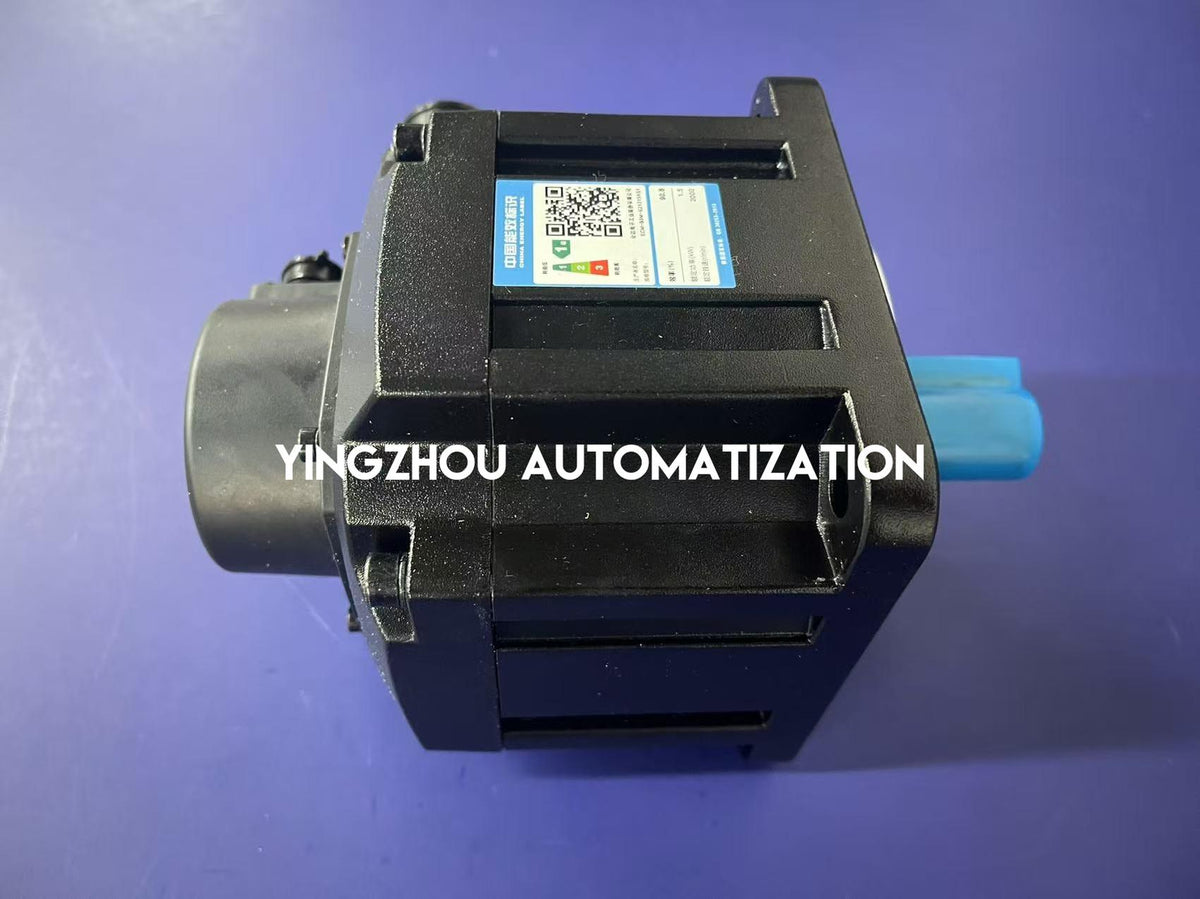

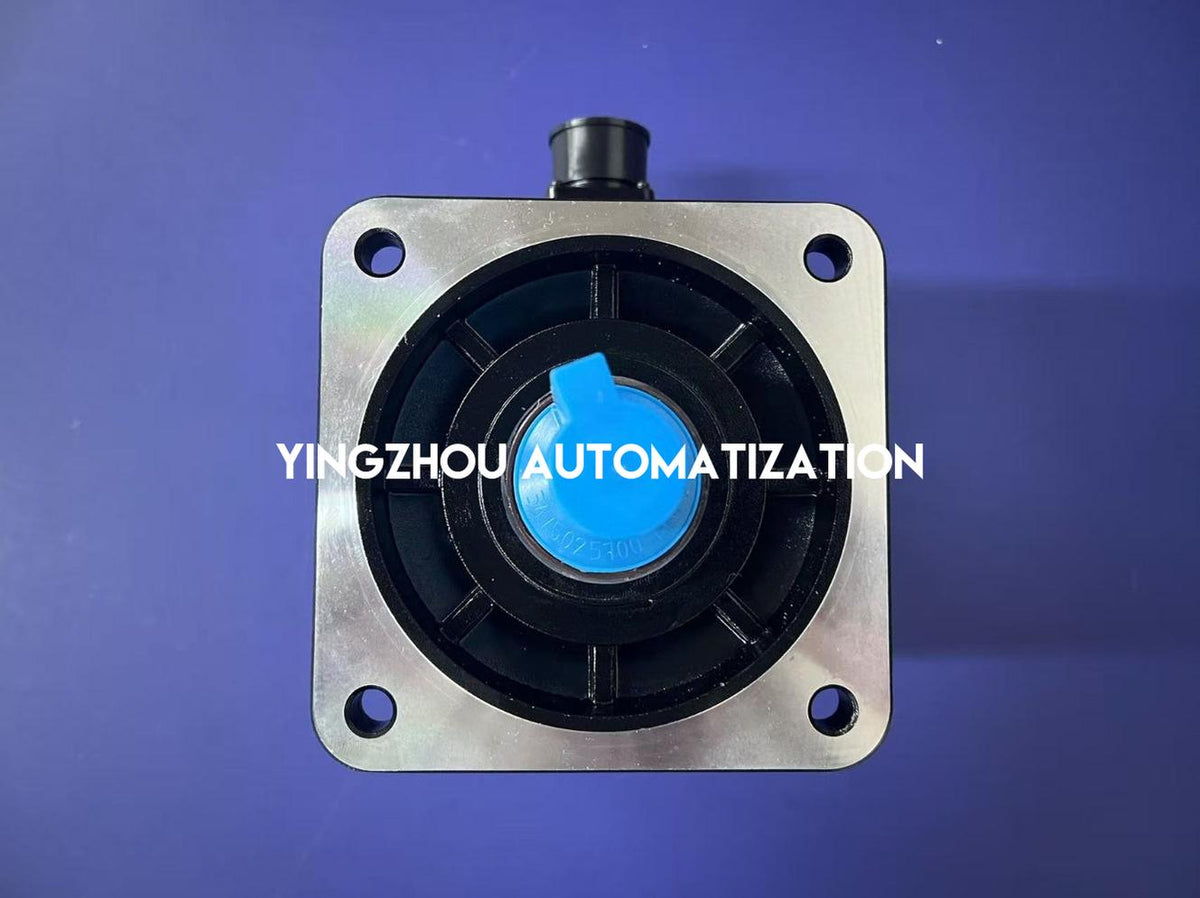

✓ Actual product photos

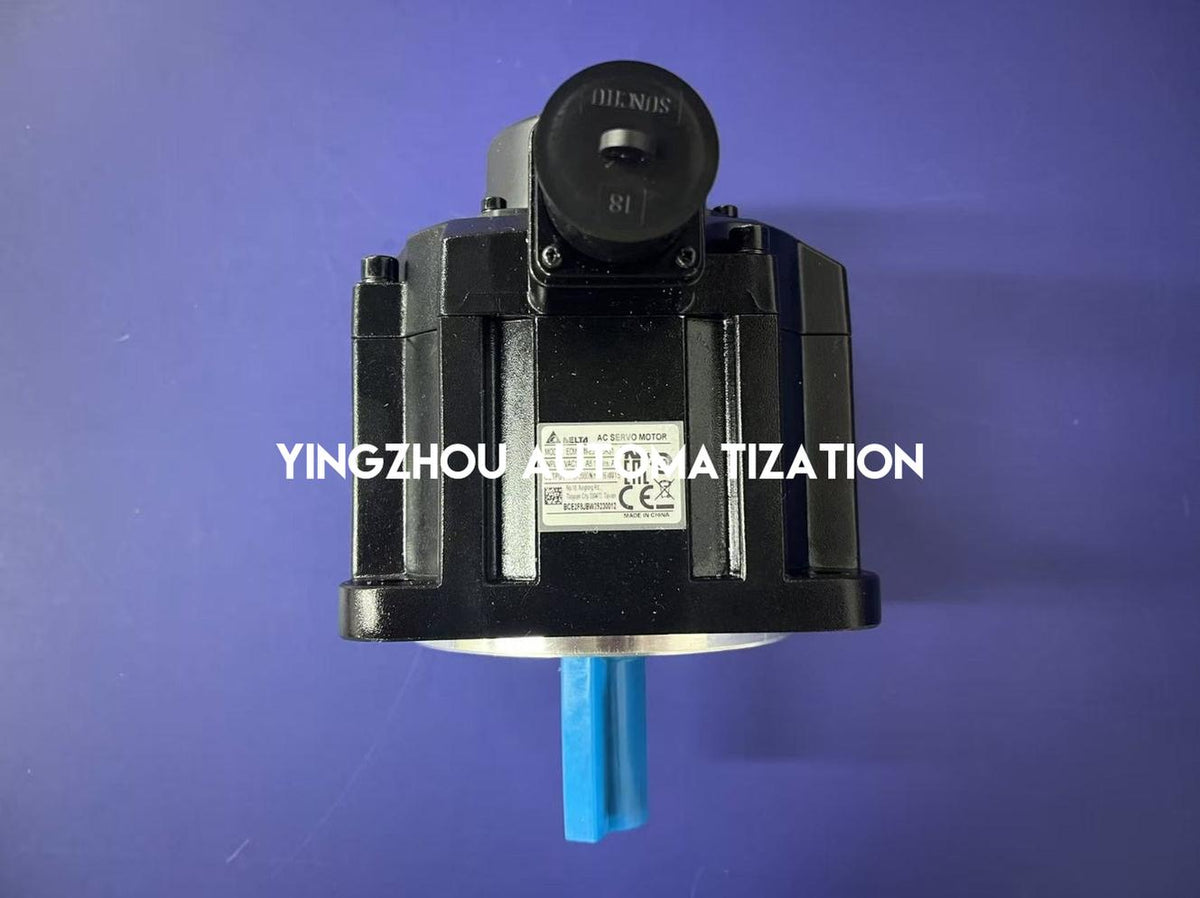

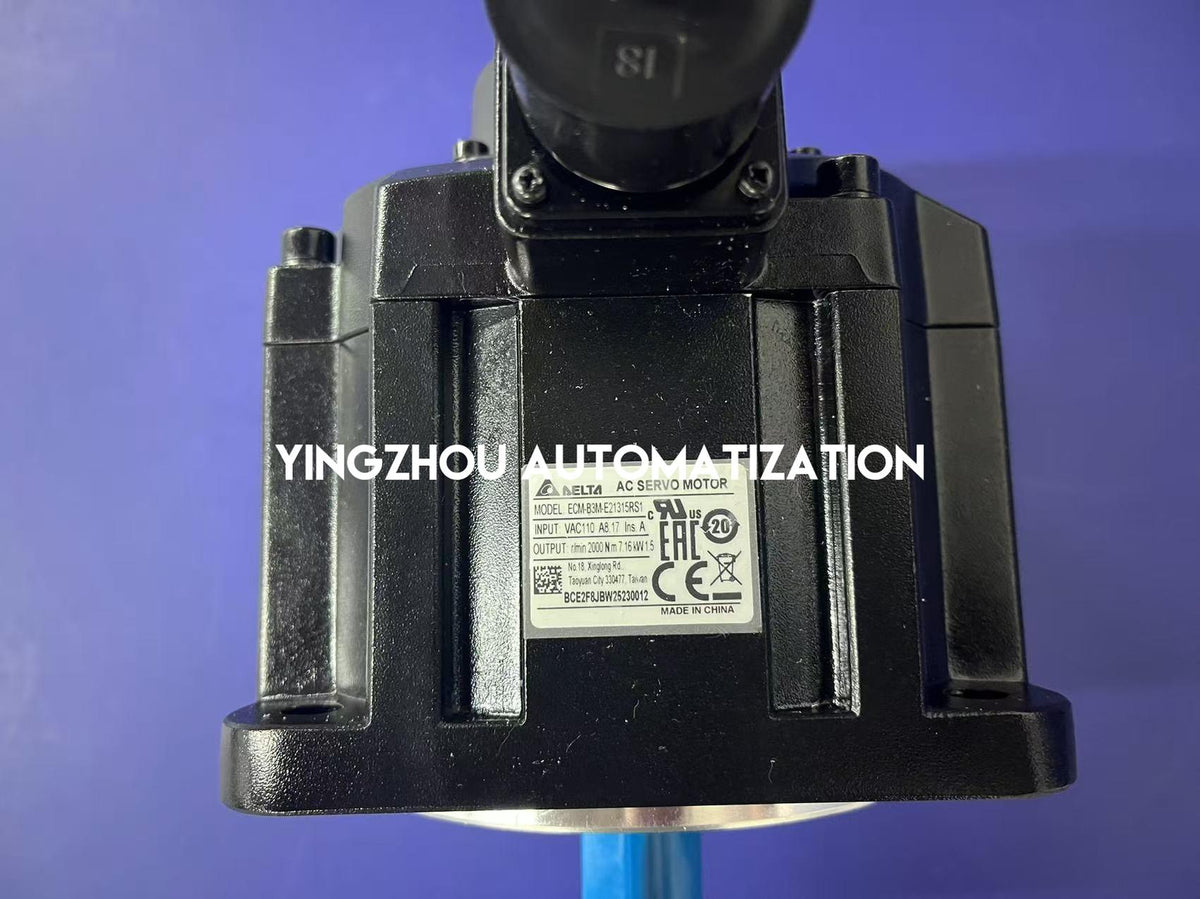

✓ Model/nameplate visible

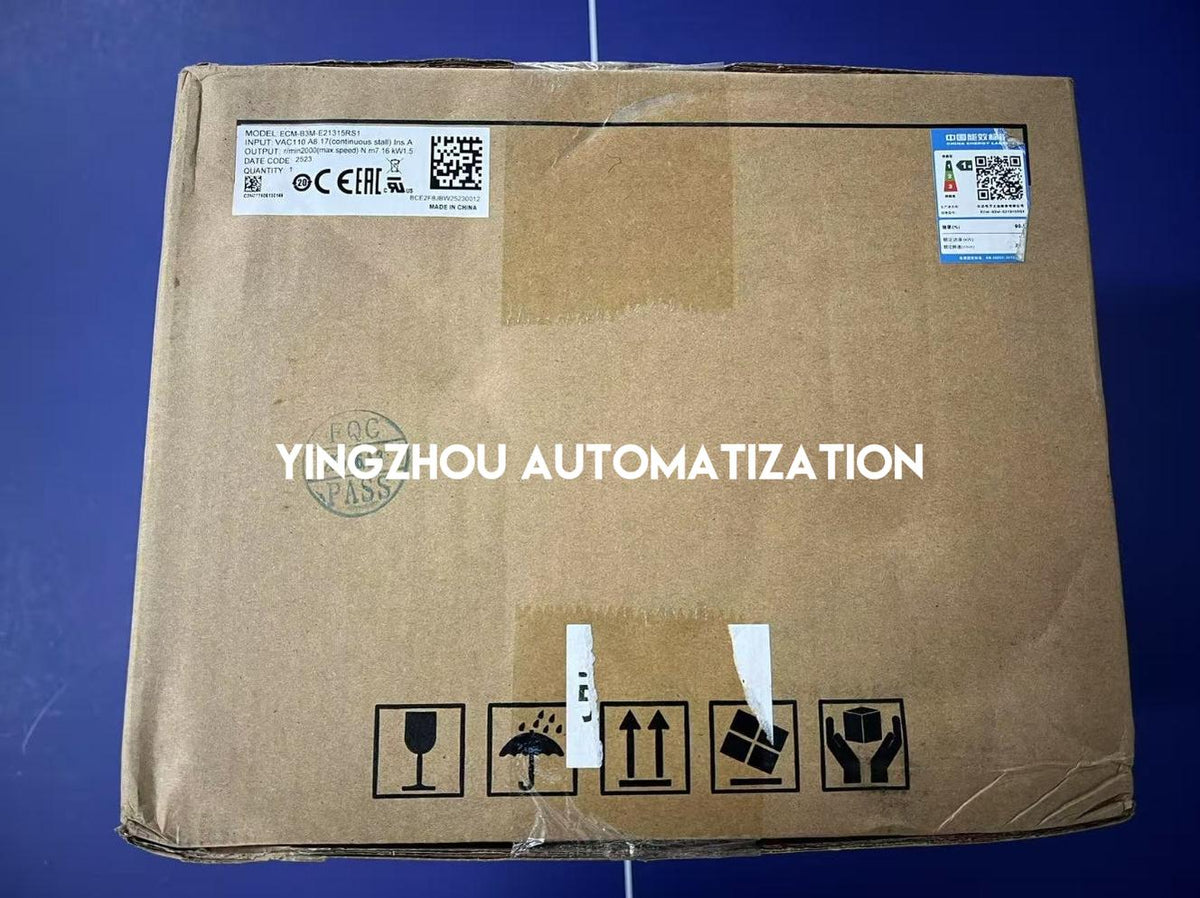

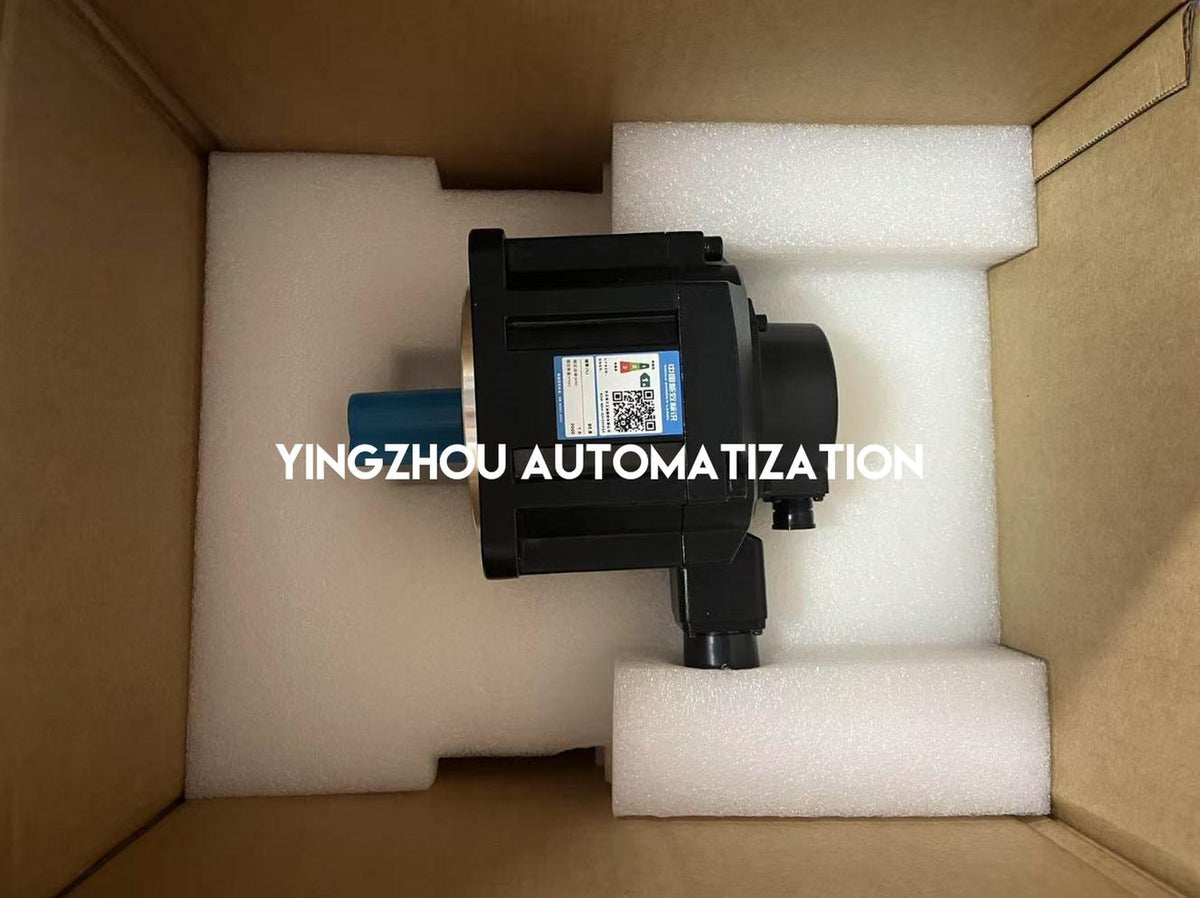

✓ Packaging and matching model label shown
✓ Verify exact model ECM-B3M-E21315RS1 before ordering

In Stock & Ready to Order

Delta ECM-B3M-E21315RS1 is currently in stock. Actual product and matching packaging photos are provided for buyer verification. Order online or contact us for project and quantity-based purchasing assistance.

IN STOCK

Delta ECM-B3M-E21315RS1

Order online or contact us for project and quantity pricing.
