Delta DPM-C530E DPM-C Series Multifunction Power Meter
96 × 96mm | Class 0.5S | Dual Ethernet Modbus TCP | 31st-Order Harmonics
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DPM-C530E |
| Series |
DPM-C530 Series |
| Product Type |
Multifunction Digital Power Meter |
| Front Panel Size |
96 × 96 mm |
| Panel Cutout |
92 × 92 mm |
| Overall Dimensions |
96 × 96 × 127.5 mm (2023 Catalogue) |
| Approximate Weight |
450 g (2023 Catalogue) |
| Installation |
Panel Mount |
| Display Type |
Dot-Matrix LCD with White LED Backlight |
| Display Languages |
Chinese / English / Japanese |
| Supported Wiring Systems |
1P2W / 1P3W / 3P3W / 3P4W |
| Line Voltage Measurement |
35-690 VAC (L-L) |
| Phase Voltage Measurement |
20-400 VAC (L-N) |
| Rated Current Input |
1A / 5A |
| Measurement Frequency Range |
45-70 Hz |
| Current Measurement Accuracy |
±0.5% |
| Voltage Measurement Accuracy |
±0.5% |
| Active Power Accuracy |
±0.5% |
| Reactive Power Accuracy |
±1% |
| Apparent Power Accuracy |
±2% |
| Active Energy Accuracy |
IEC 62053-22 Class 0.5S |
| Reactive Energy Accuracy |
±1% |
| Apparent Energy Accuracy |
±2% |
| Power Factor Accuracy |
±0.5% |
| Frequency Accuracy |
±0.5% |
| Electrical Measurements |
Voltage / Current / Frequency / Power Factor |
| Power Measurements |
Active / Reactive / Apparent Power |
| Energy Measurements |
Active / Reactive / Apparent Energy |
| Current and Power Demand |
Supported |
| Demand Calculation Modes |
Sliding / Fixed Block |
| Voltage / Current Unbalance |
Supported |
| Total Harmonic Distortion |
Voltage THD / Current THD |
| Individual Harmonic Analysis |
Up to 31st Order |
| Maximum / Minimum Value History |
Supported with Timestamps |
| Alarm Conditions |
29 Types |
| Historical Alarm Records |
Up to 500 |
| Built-in Data Logging |
Supported |
| Recorded Parameters |
Up to 17 |
| Data Logging Capacity Example |
17 Parameters at 1-Minute Intervals for Approximately 30 Days |
| Custom Modbus Parameter Addresses |
35 |
| Monthly Energy Reading |
Supported |
| Multi-Tariff Energy Periods |
8 |
| Auxiliary Power Supply |
AC 100-240V, 50/60Hz (Actual Unit Nameplate) |
| Maximum Power Consumption |
4.6W |
| Communication Interface |
Dual Ethernet Ports |
| Ethernet Data Rate |
10/100 Mbps |
| Communication Protocol |
Modbus TCP |
| Ethernet Connection Architecture |
Daisy Chain Supported; Ring Topology Not Supported |
| Web-Based Meter Configuration |
Supported |
| RS-485 / Modbus RTU |
Not Included in DPM-C530E |
| BACnet MS/TP |
Not Included in DPM-C530E |
| Built-in Digital I/O |
Not Listed for DPM-C530E |
| Front Panel Protection |
IP52 |
| Meter Body Protection |
IP20 |
| Operating Temperature |
-20°C to +60°C (2023 Catalogue) |
| Storage Temperature |
-30°C to +70°C (2023 Catalogue) |
| Relative Humidity |
Up to 95% RH |
| Maximum Operating Altitude |
Below 2000 m |
| Safety Certifications |
UL / CE |
Product Overview
The Delta DPM-C530E is an advanced
multifunction digital power meter
from Delta's DPM-C530 Series.
It features a 96 × 96 mm front panel,
a 92 × 92 mm mounting cutout,
and a dot-matrix LCD with white LED backlight.
The meter supports single-phase and three-phase
voltage, current, power, energy, demand,
power factor and frequency measurements.
Active energy accuracy meets
IEC 62053-22 Class 0.5S.
It also supports current and voltage unbalance,
total harmonic distortion and
individual harmonics up to the 31st order.
Advanced energy-management functions include
built-in data logging, up to 500 alarm records,
29 alarm conditions, monthly energy readings
and eight multi-tariff periods.
The exact DPM-C530E model provides
two Ethernet ports with Modbus TCP
for compatible industrial monitoring networks.
Its actual nameplate specifies
AC 100-240V, 50/60Hz
auxiliary supply and 4.6W maximum consumption.
Key Product Features
-
96 × 96 mm LCD power meter
with 92 × 92 mm panel cutout
-
IEC 62053-22 Class 0.5S
active energy measurement accuracy
-
Dual 10/100Mbps Ethernet ports
supporting Modbus TCP communication
-
31st-order harmonic analysis
with voltage/current THD and unbalance monitoring
-
Built-in data logging
for up to 17 selected measurement parameters
-
29 alarm conditions and 500 alarm records
with maximum/minimum measurement history
-
Eight multi-tariff energy periods,
monthly energy readings and multilingual LCD interface
Actual Product Verification
✓

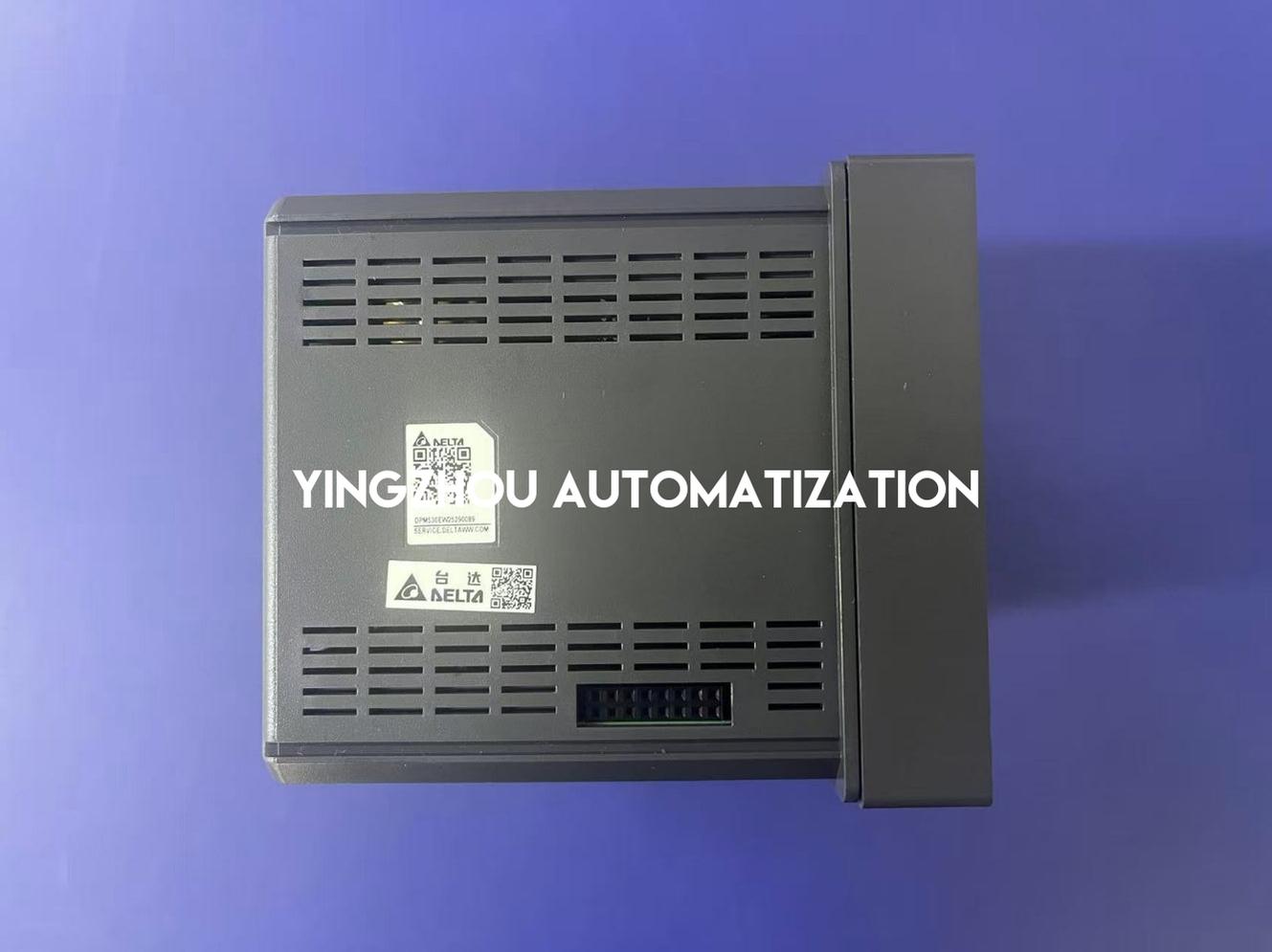

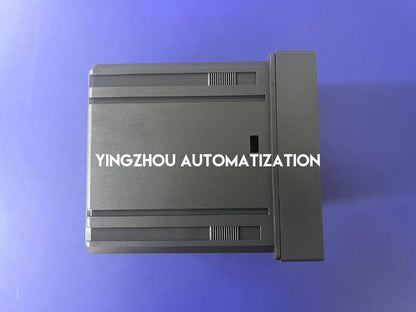

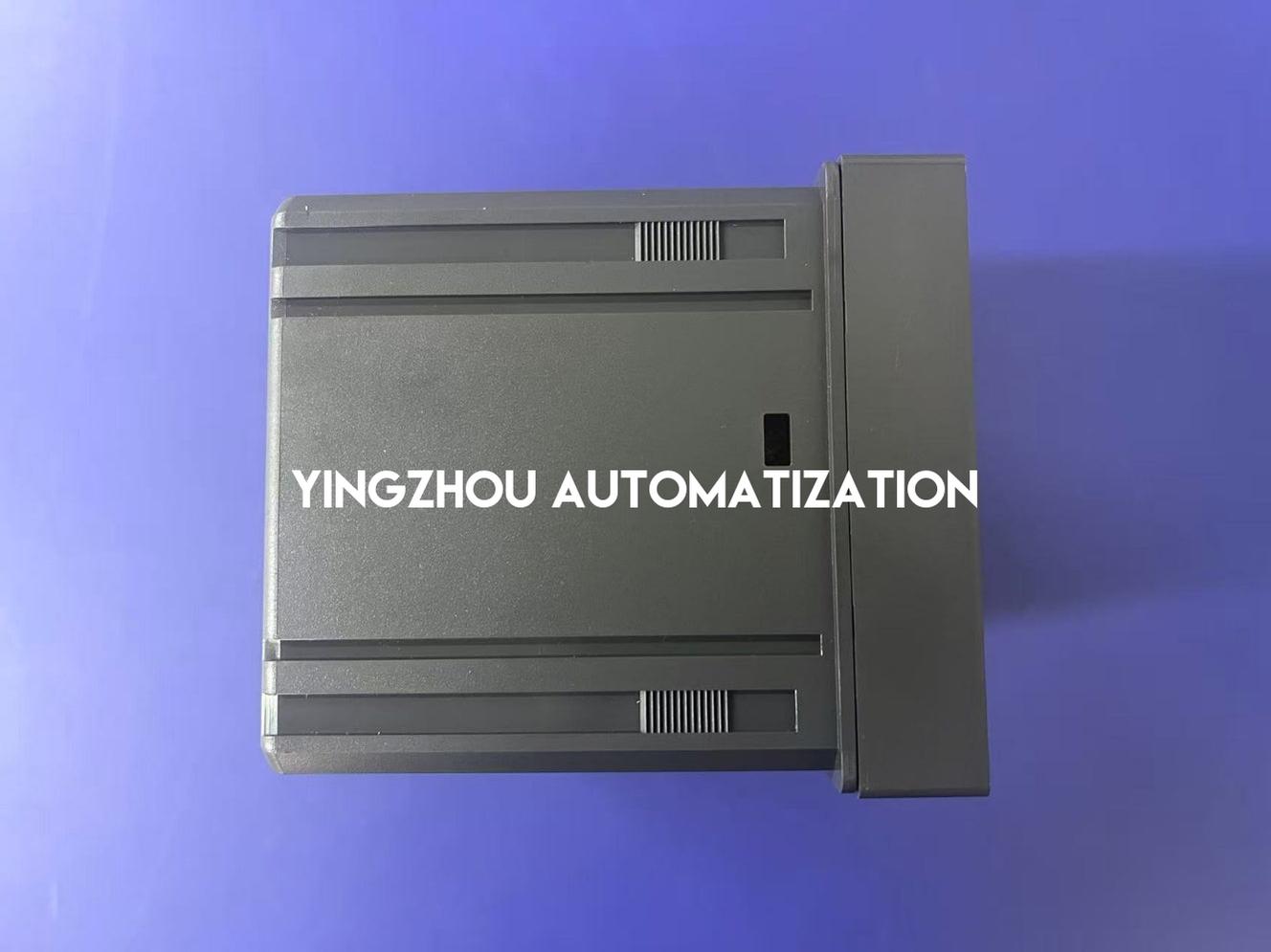

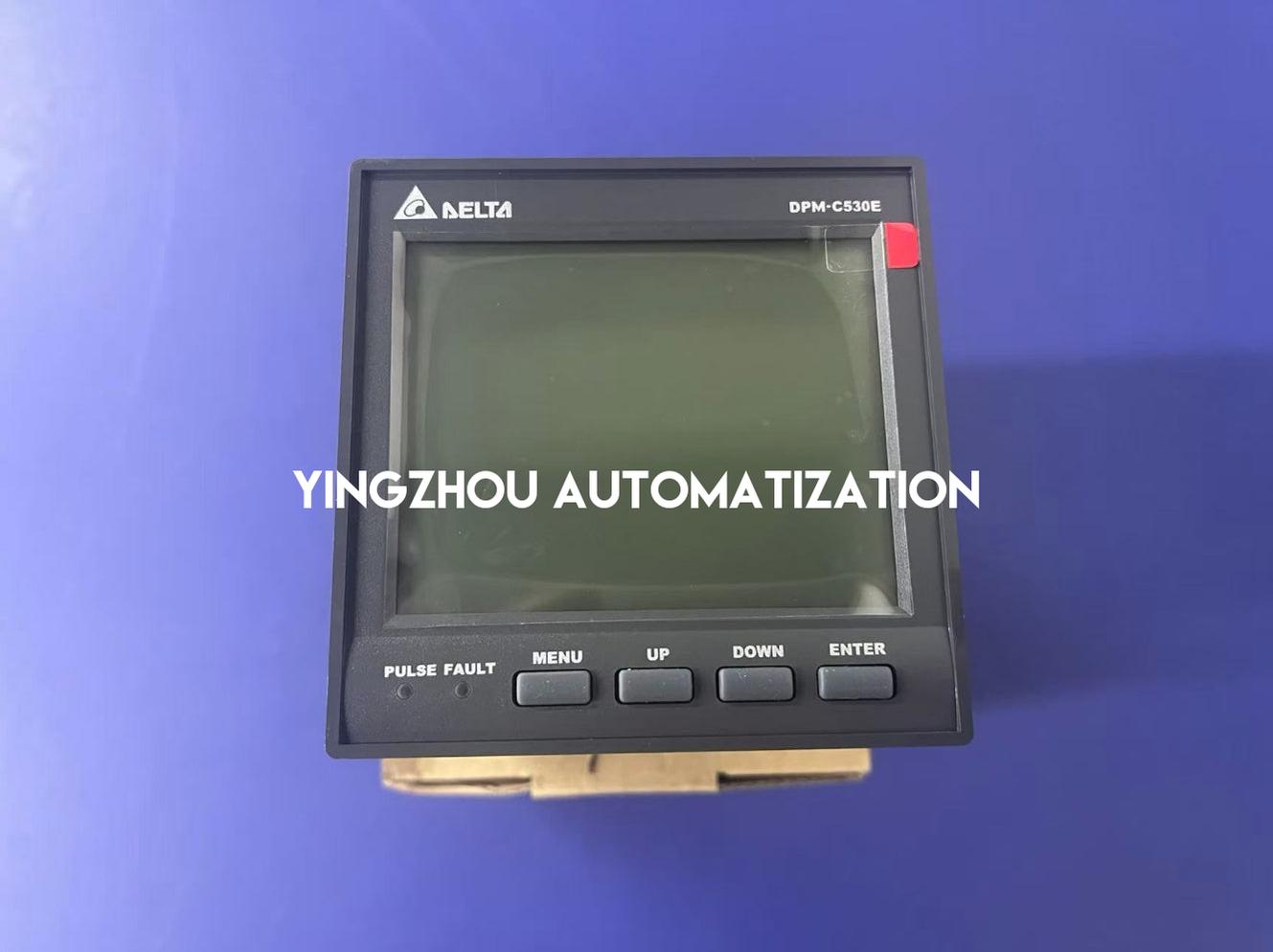

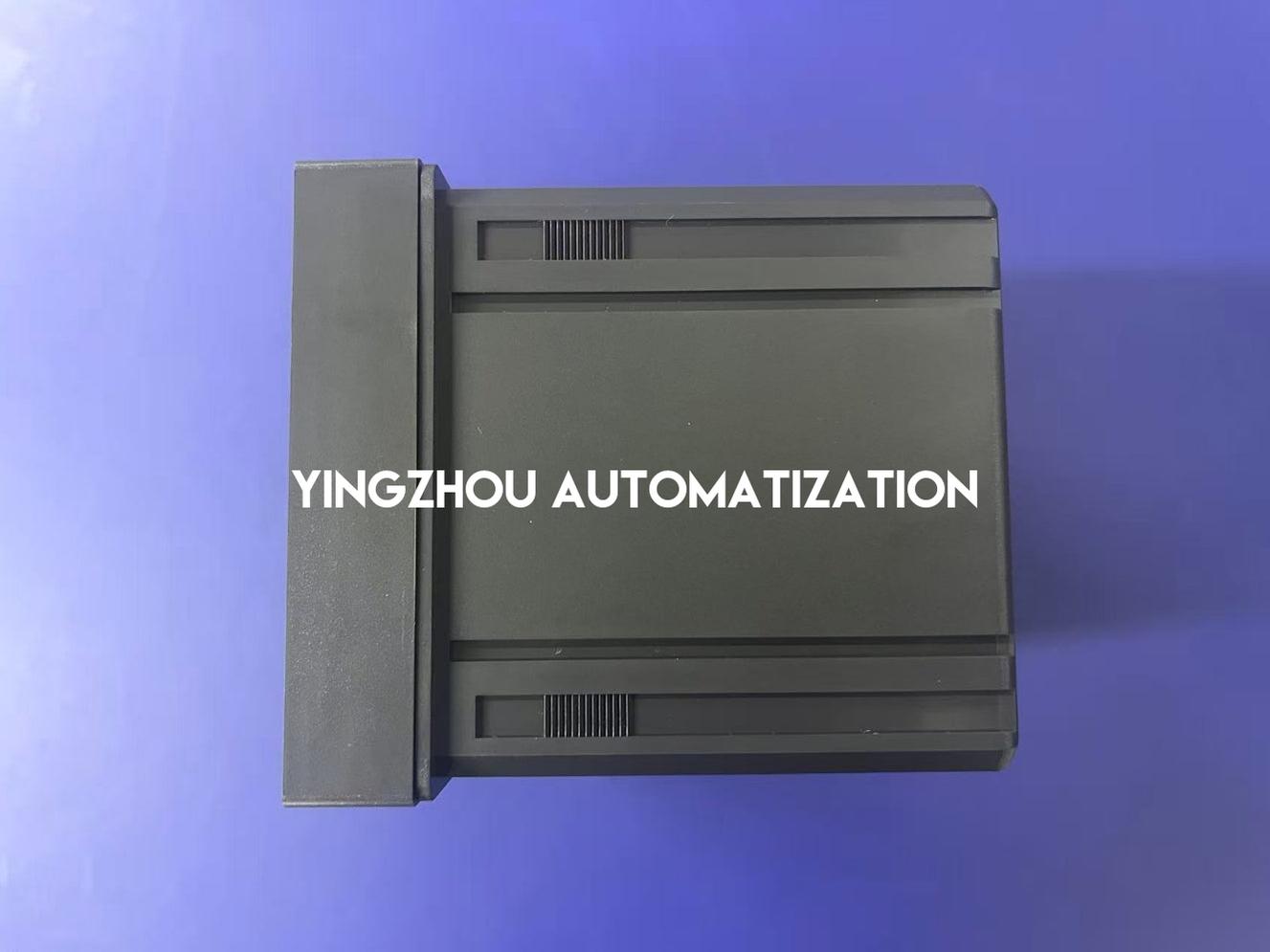

Actual product photos
✓
Model/nameplate visible:
DPM-C530E
✓
Packaging label shown with matching model
✓

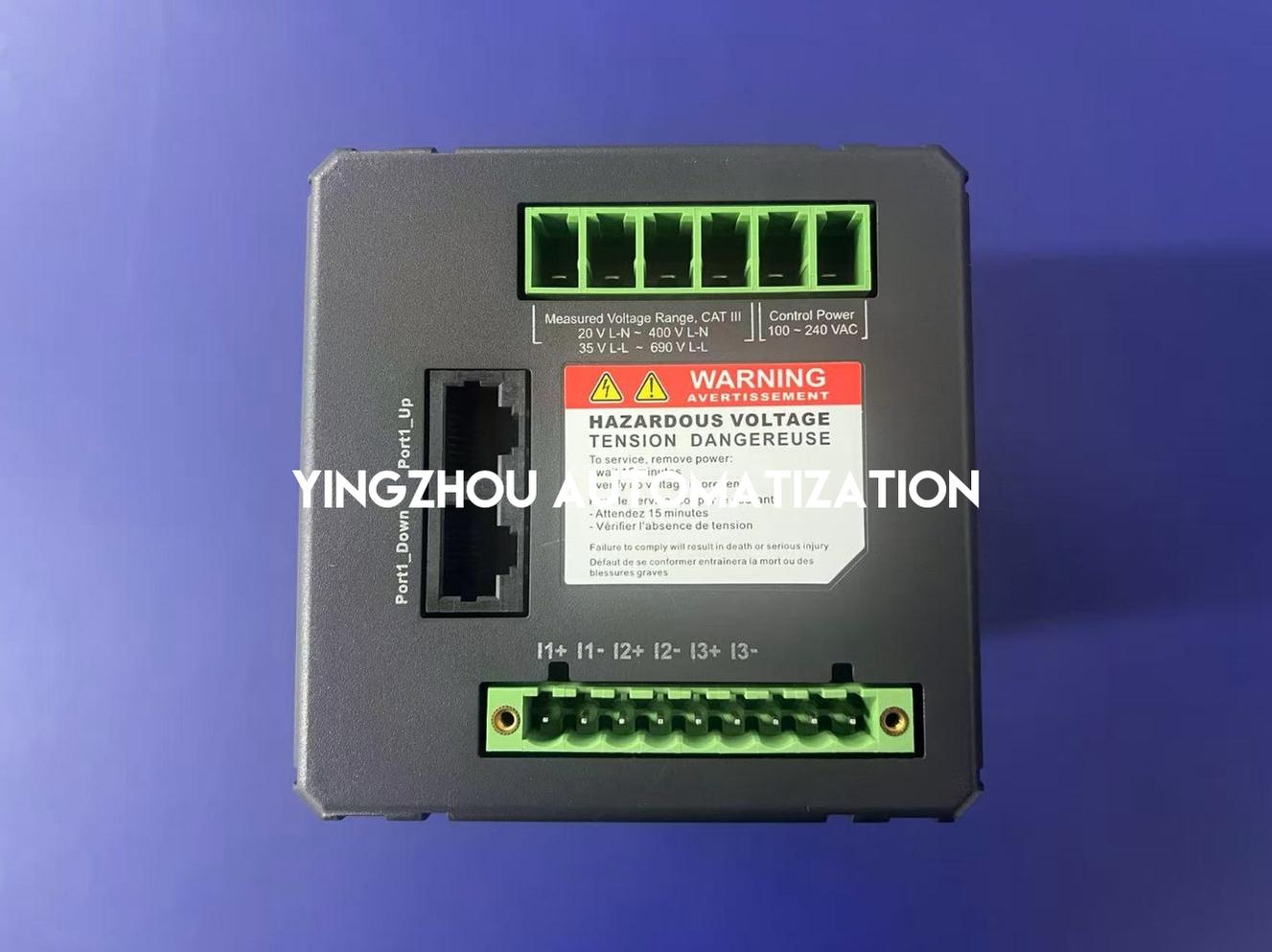

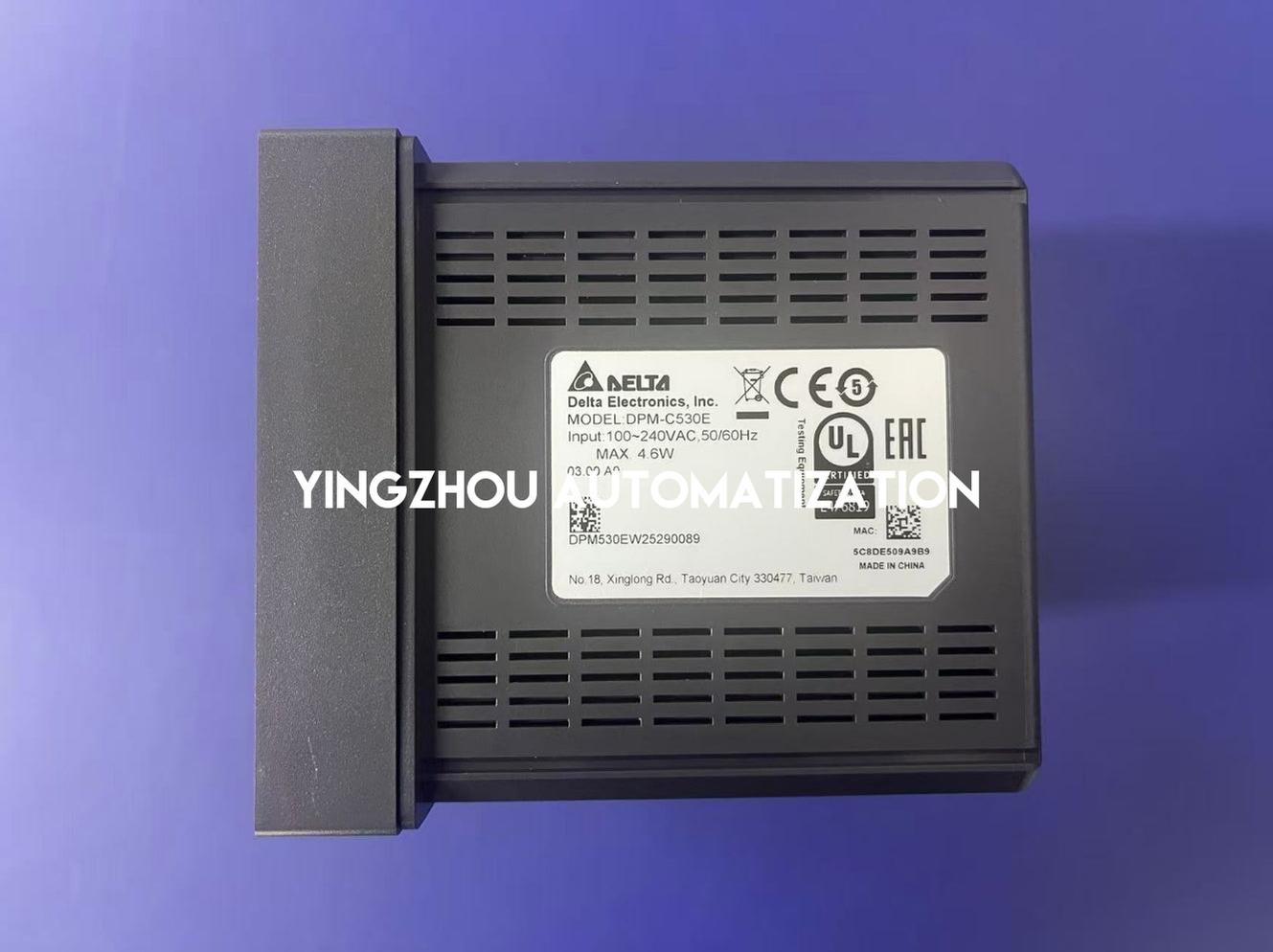

Actual nameplate:
AC 100-240V, 50/60Hz, 4.6W Max.
✓
Product and packaging version markings:
03.00 A0
✓
Verify exact model, communication interface,
CT rating and electrical configuration before ordering
In Stock & Ready to Order
Delta DPM-C530E is currently in stock.
Actual product nameplate and packaging photos
are available for buyer reference.
Please confirm the exact model,
dual Ethernet Modbus TCP communication,
current transformer secondary rating,
measurement voltage configuration,
92 × 92 mm panel cutout,
and installation requirements before ordering.
Current transformers and external monitoring accessories
should be selected according to the intended system.
