Delta DPM-C510E DPM Series Multifunction Digital Power Meter
96 × 96mm | Class 0.5S Active Energy | Ethernet Modbus TCP | LED Display
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DPM-C510E |
| Series |
DPM-C Series |
| Product Type |
Multifunction Digital Power Meter |
| Front Panel Dimensions |
96 × 96 mm |
| Panel Cutout |
92 × 92 mm |
| Maximum Panel Thickness |
4.0 mm |
| Overall Dimensions |
96 × 96 × 98.1 mm (2023 Catalogue) |
| Approximate Weight |
350 g |
| Mounting Method |
Panel Mount with Fixing Brackets |
| Display Type |
LED Numerical Display |
| Front Panel Controls |
BACK / UP / DOWN / NEXT |
| Supported Wiring Systems |
1P2W / 1P3W / 3P3W / 3P4W |
| Line Voltage Measurement |
80-690 VAC (L-L) |
| Phase Voltage Measurement |
50-400 VAC (L-N) |
| Rated Current Measurement Input |
1A / 5A |
| Measurement Frequency |
50 / 60 Hz |
| Voltage Measurement Accuracy |
±0.5% |
| Current Measurement Accuracy |
±0.5% |
| Active Power Accuracy |
±0.5% |
| Reactive Power Accuracy |
±2% |
| Apparent Power Accuracy |
±2% |
| Active Energy Accuracy |
IEC 62053-22 Class 0.5S |
| Reactive Energy Accuracy |
±2% |
| Apparent Energy Accuracy |
±2% |
| Power Factor Accuracy |
±0.5% |
| Frequency Accuracy |
±1% |
| Voltage / Current Measurement |
Supported |
| Active / Reactive / Apparent Power |
Supported (kW / kVAR / kVA) |
| Active / Reactive / Apparent Energy |
Supported (kWh / kVARh / kVAh) |
| Power Factor Measurement |
Supported (PF) |
| Frequency Measurement |
Supported (Hz) |
| Auxiliary Power Supply |
AC 100-240V, 50/60Hz |
| Maximum Power Consumption |
4.6W |
| Communication Interface |
Built-in Ethernet |
| Ethernet Connector |
RJ-45 |
| Communication Protocol |
Modbus TCP |
| Ethernet Speed |
10 / 100 Mbps |
| DHCP |
Supported |
| RS-485 / Modbus RTU |
Not Included in DPM-C510E |
| Built-in Harmonic Analysis |
Not Listed for This Model |
| Built-in Data Logging |
Not Listed for This Model |
| Front Panel Protection |
IP52 |
| Meter Body Protection |
IP20 |
| Operating Temperature |
-20°C to +60°C (2023 Catalogue) |
| Storage Temperature |
-30°C to +70°C (2023 Catalogue) |
| Relative Humidity |
Up to 95% RH |
| Maximum Operating Altitude |
Below 2000 m |
| Safety Certification |
UL / CE |
Product Overview
The Delta DPM-C510E is a
multifunction digital power meter
from Delta's DPM-C Series, designed for panel-mounted
electrical monitoring applications.
It features a 96 × 96 mm front panel,
a 92 × 92 mm mounting cutout,
and an LED numerical display.
The meter measures voltage, current,
active/reactive/apparent power, energy,
power factor and frequency.
Active energy metering accuracy meets
IEC 62053-22 Class 0.5S.
This exact DPM-C510E configuration
provides built-in Ethernet with Modbus TCP
for integration with compatible PLC, SCADA and
energy management systems.
It supports 1A / 5A rated current inputs
and operates with an
AC 100-240V, 50/60Hz auxiliary power supply.

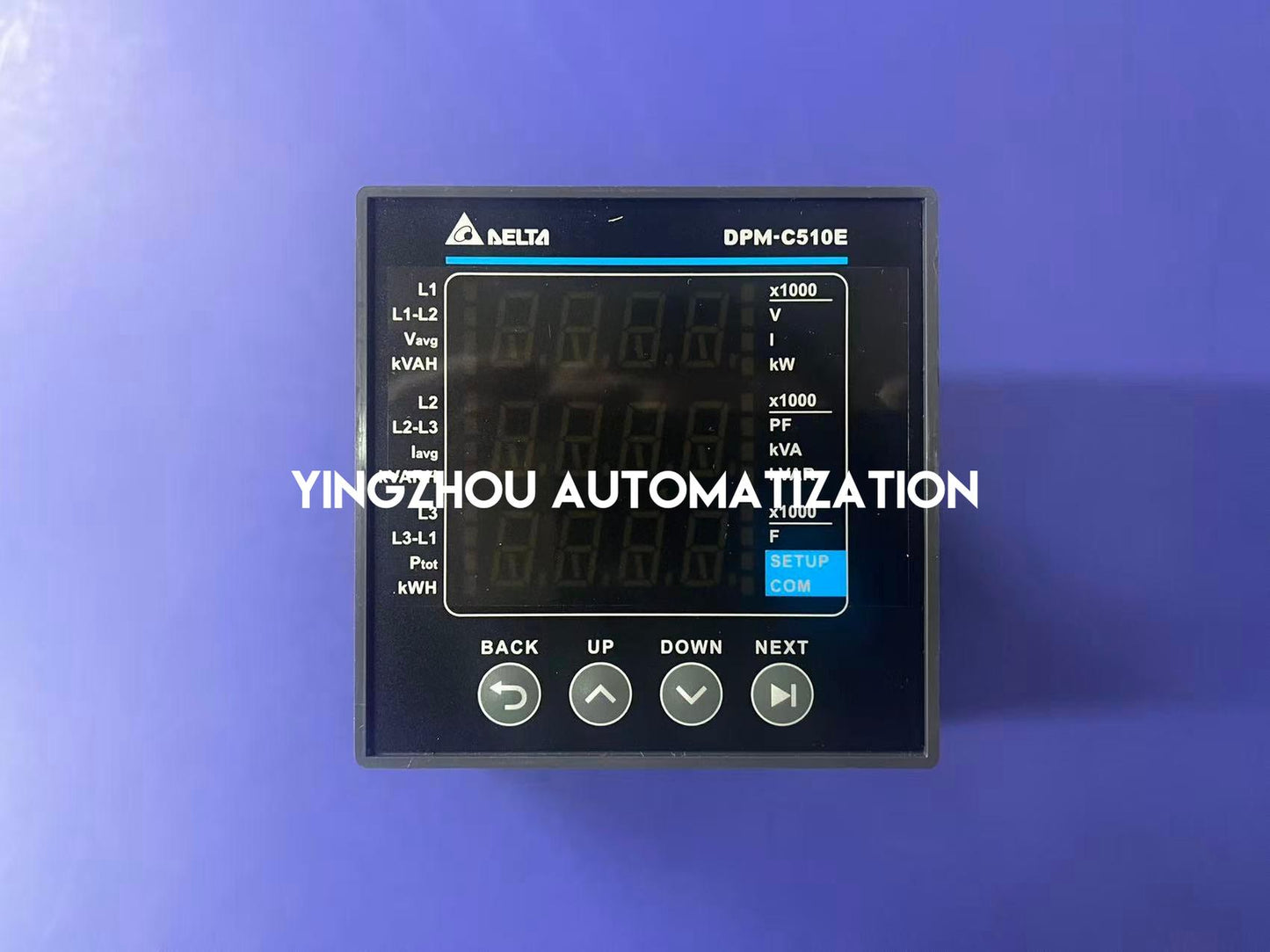

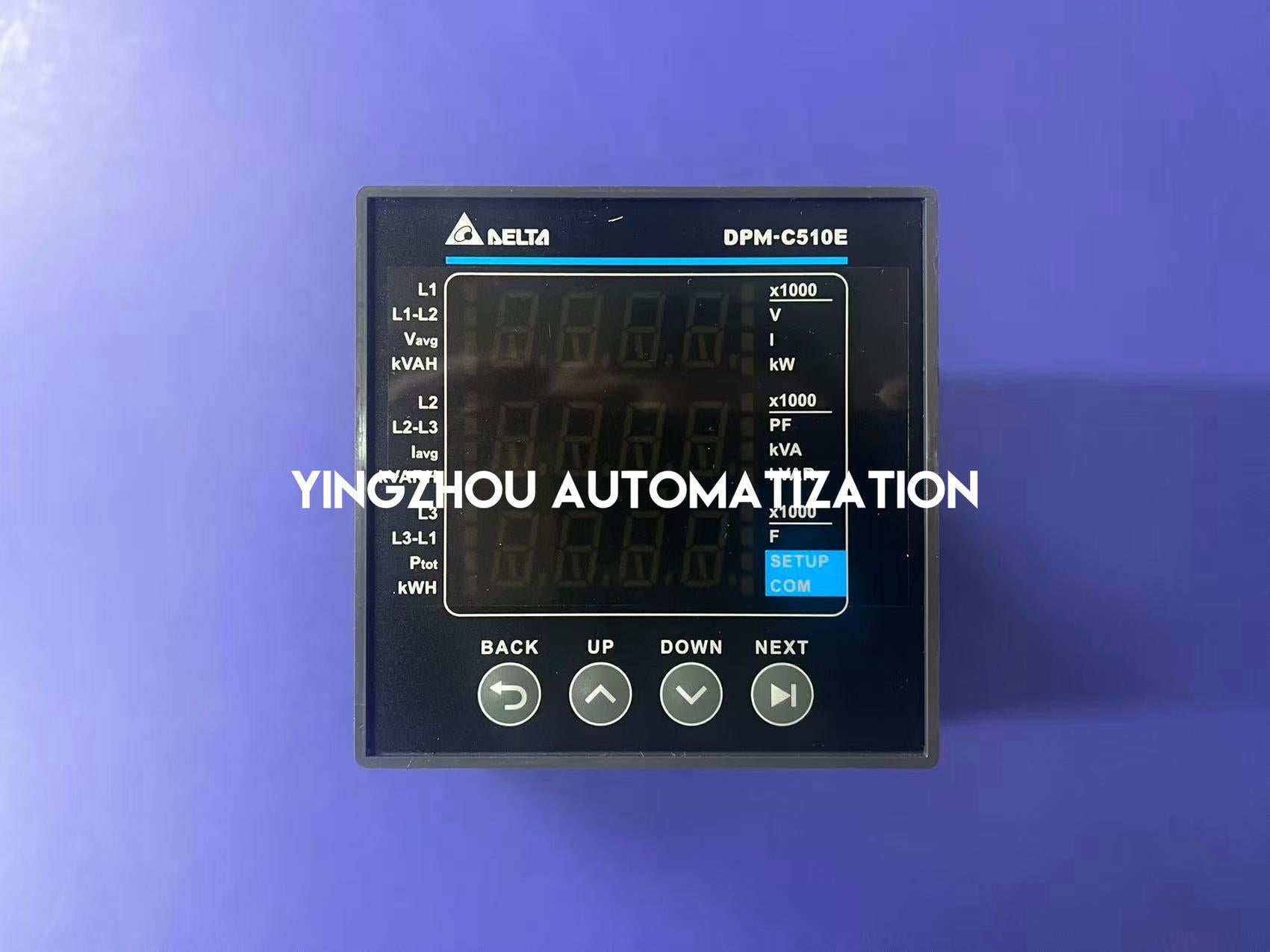

Key Product Features
-
96 × 96 mm multifunction
digital power meter with 92 × 92 mm panel cutout
-
LED numerical display for
local electrical parameter monitoring
-
IEC 62053-22 Class 0.5S
active energy measurement accuracy
-
Built-in Ethernet Modbus TCP
with 10/100Mbps communication and DHCP support
-
Voltage, current, power, energy,
power factor and frequency measurement
-
1P2W / 1P3W / 3P3W / 3P4W
supported measurement configurations
-
AC 100-240V auxiliary supply,
maximum 4.6W consumption,
IP52 front panel and IP20 meter body
Actual Product Verification
✓

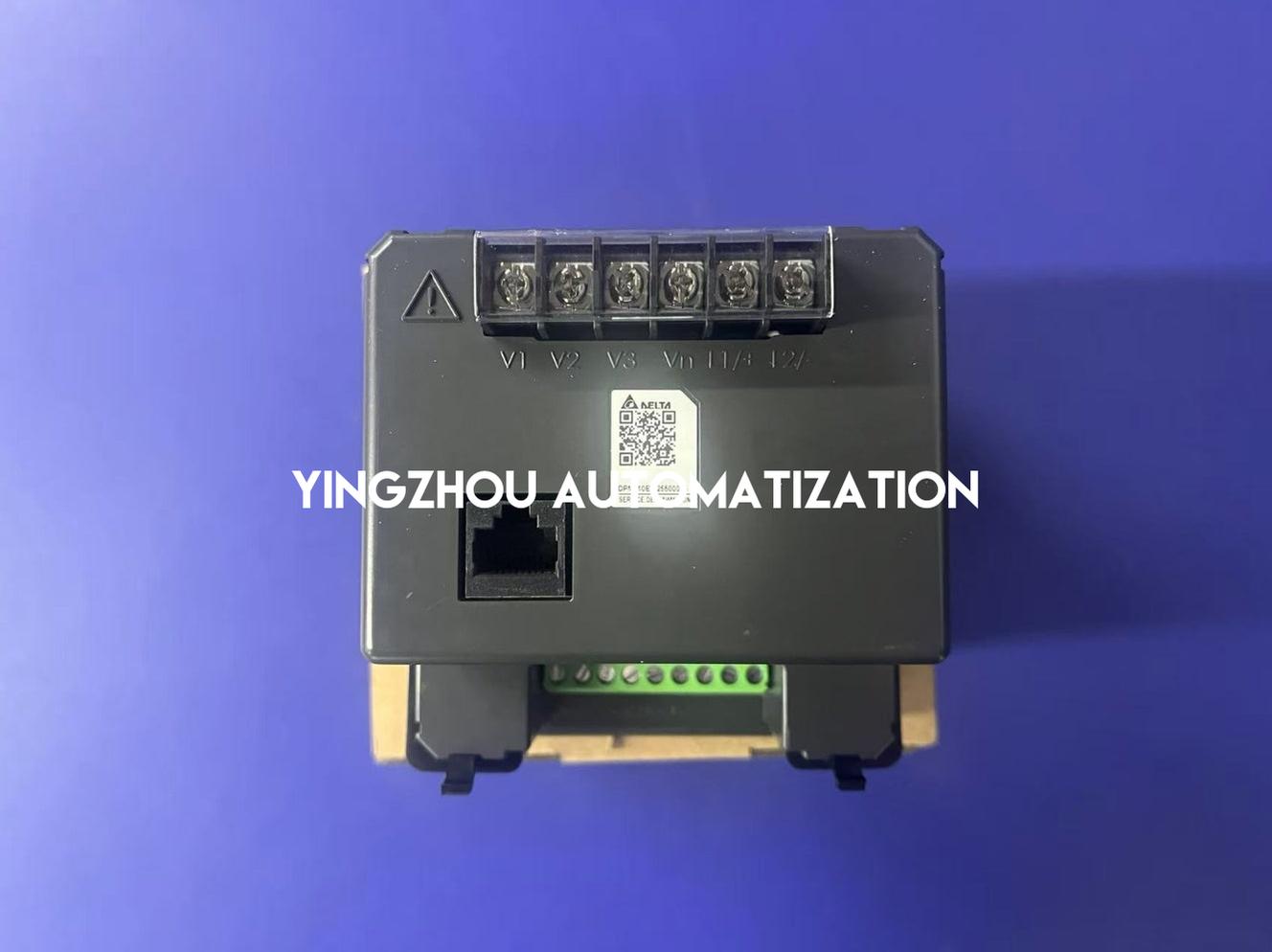

Actual product photos
✓

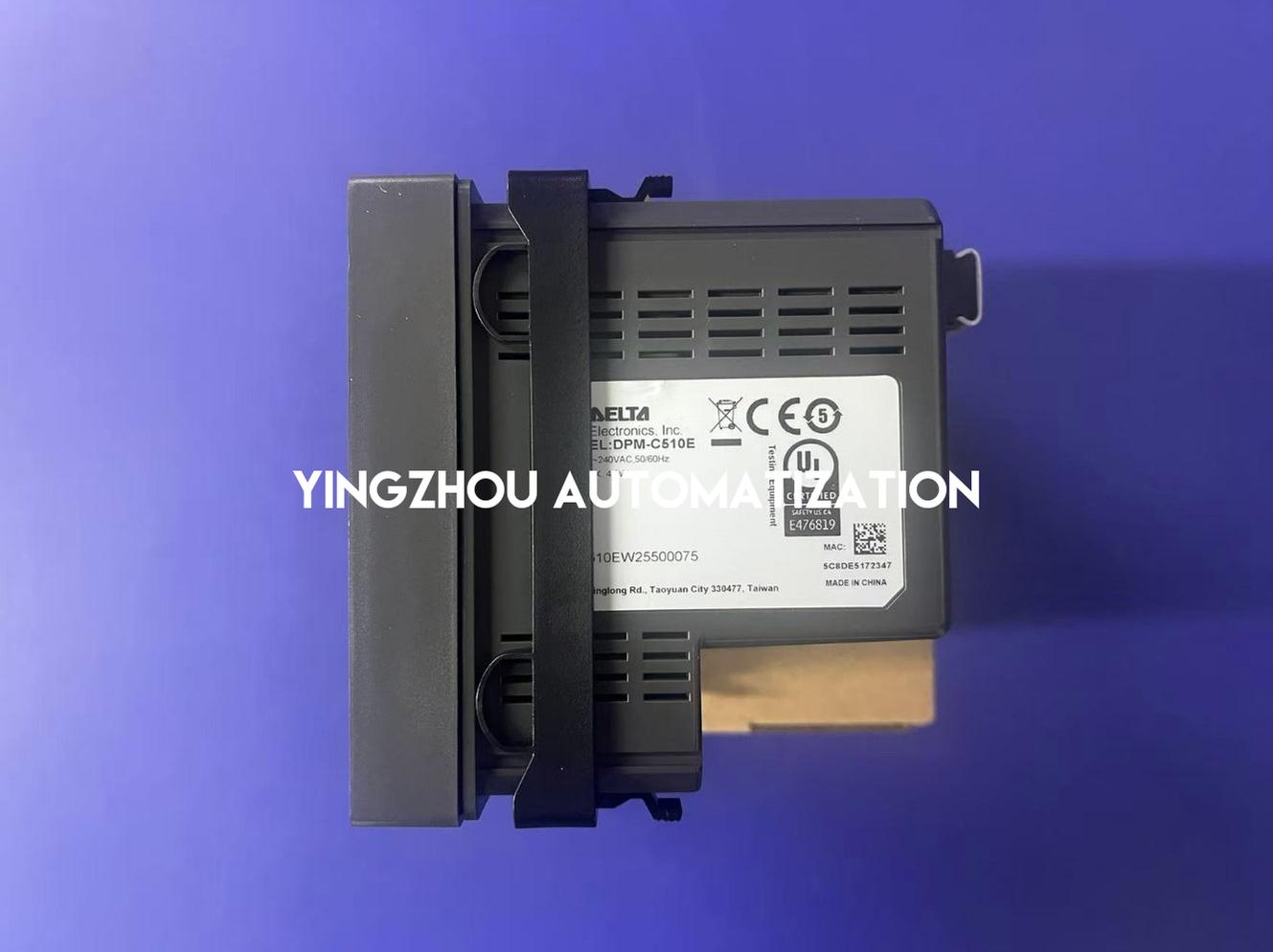

Model/nameplate visible:
DPM-C510E
✓

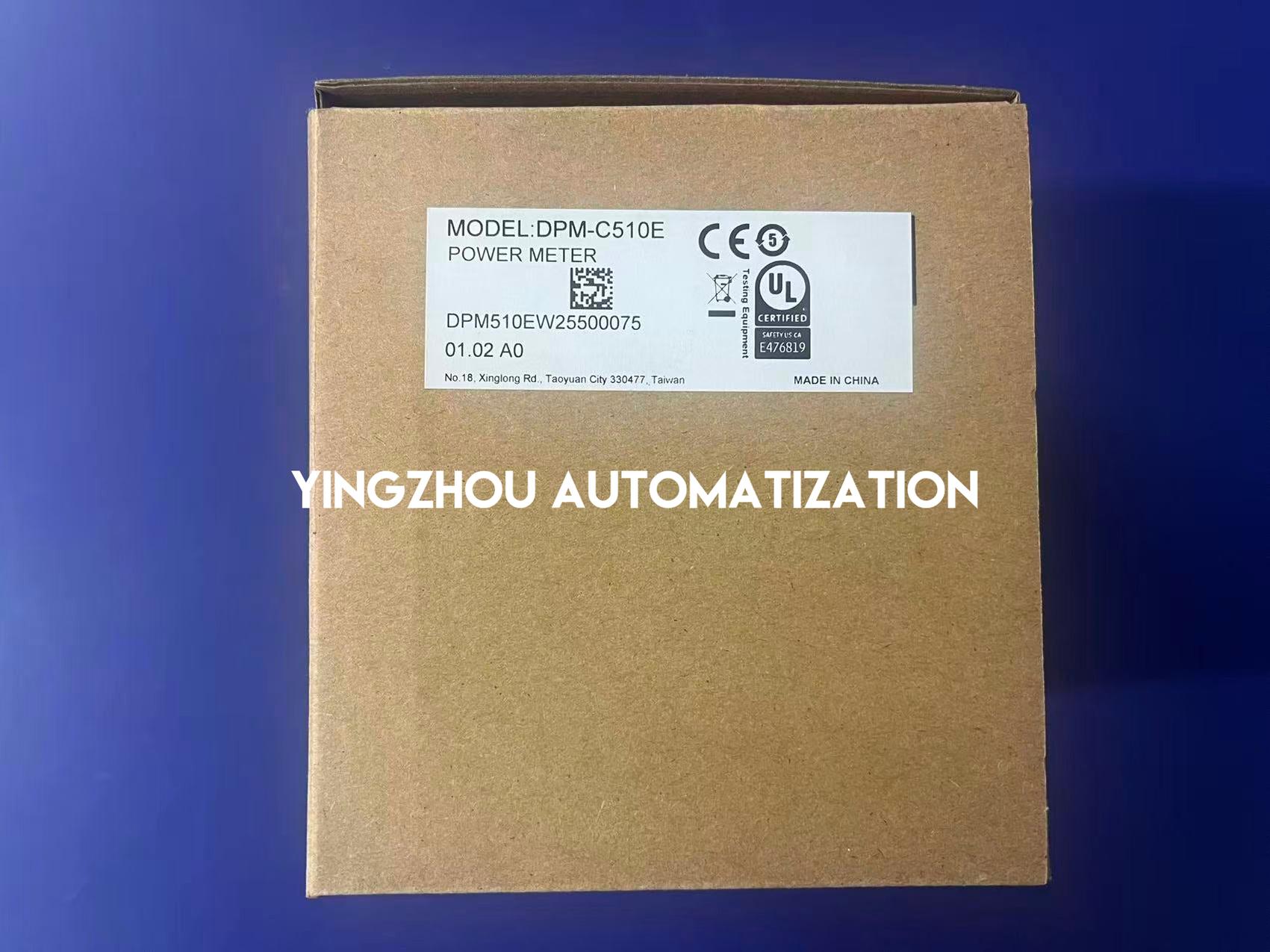

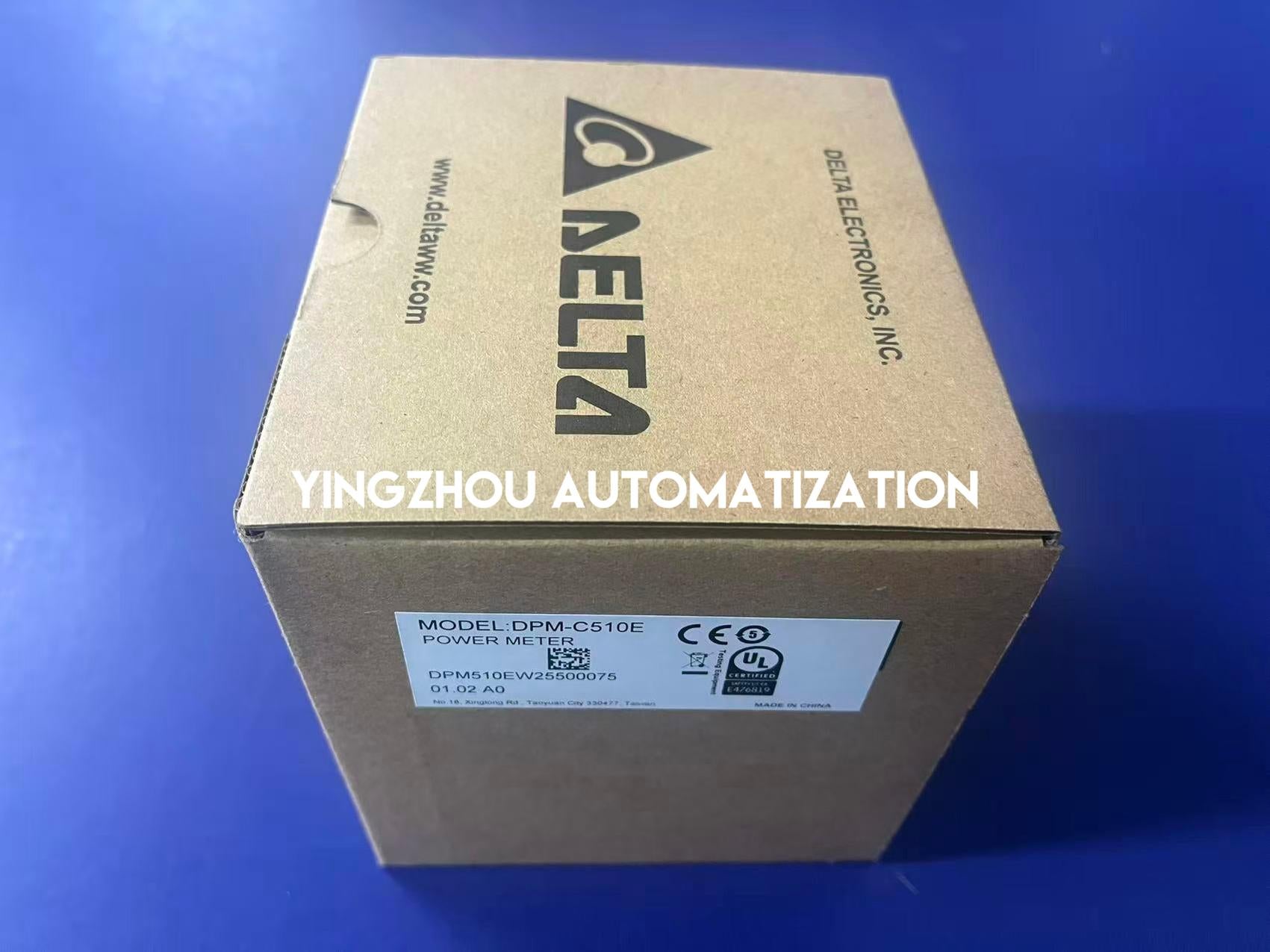

Packaging model label shown:
DPM-C510E
✓

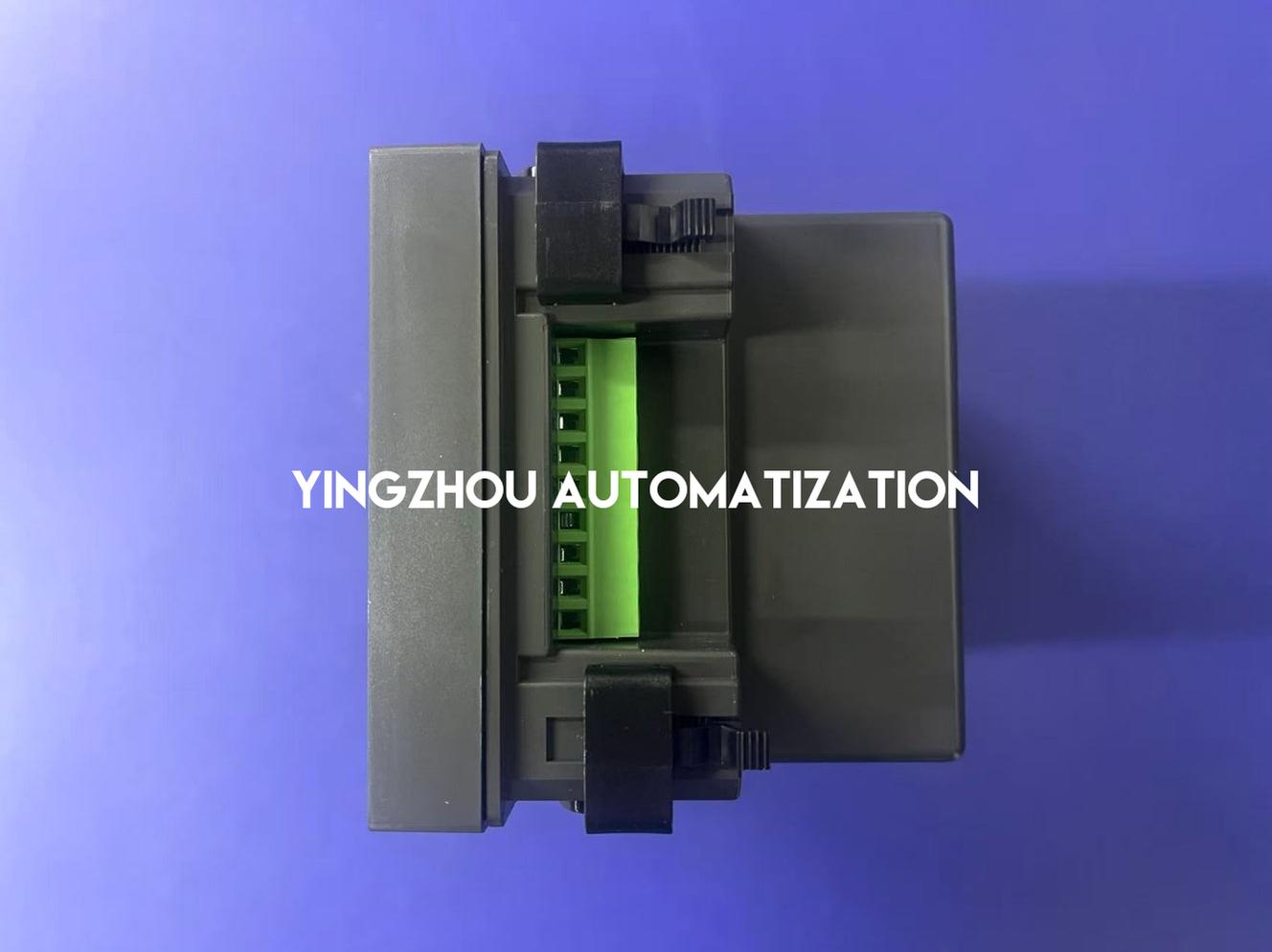

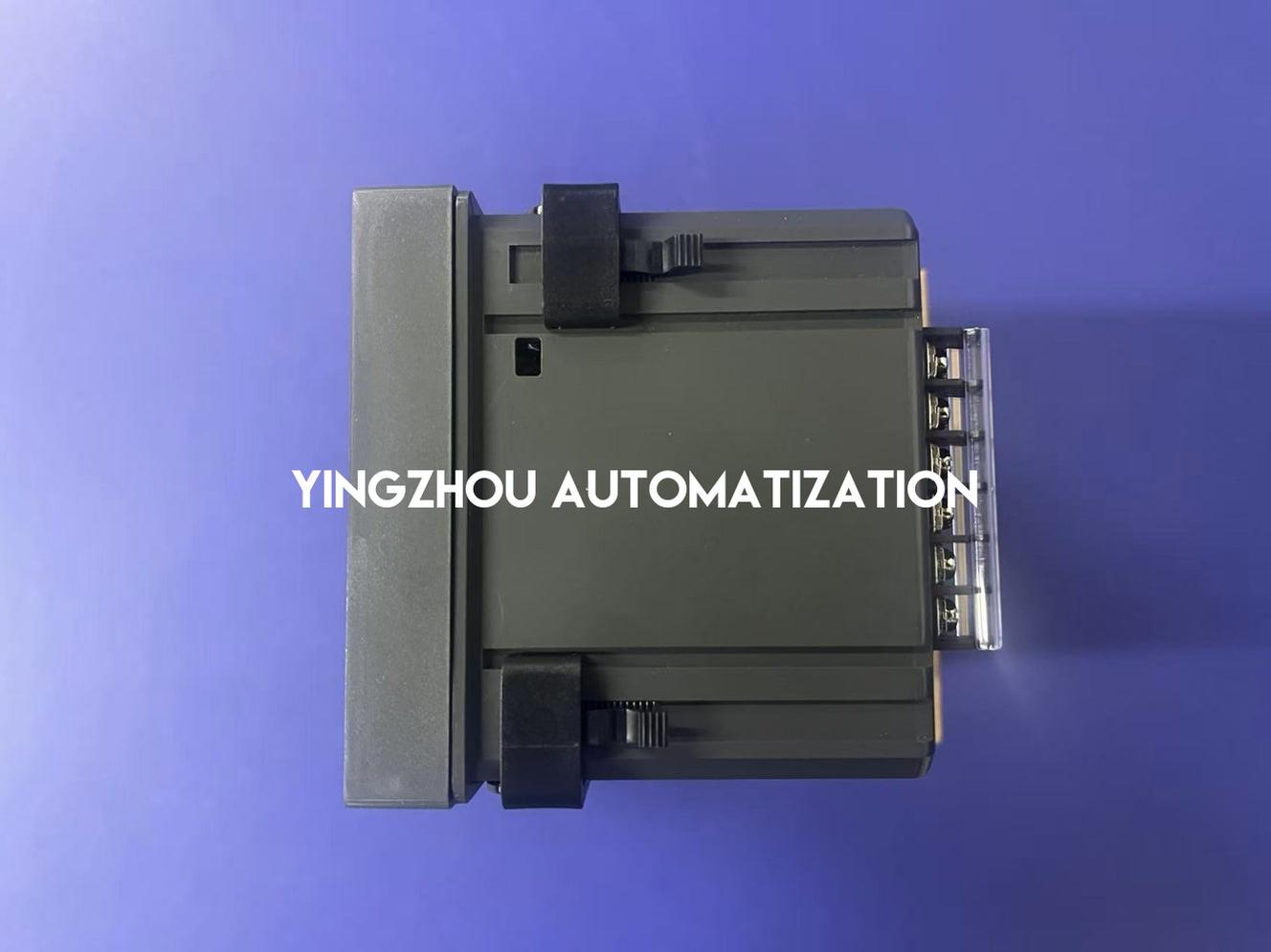

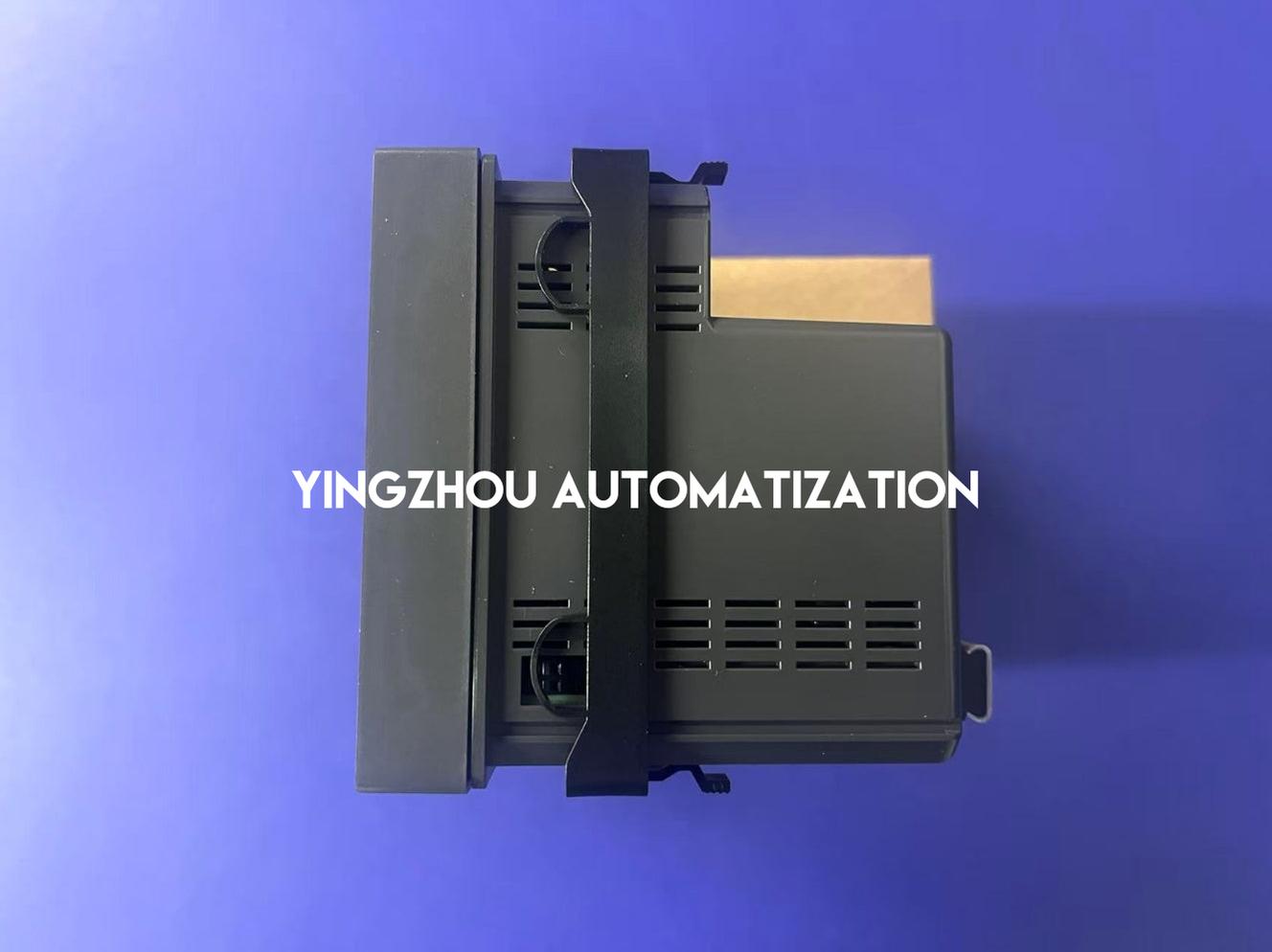

Product side and mounting bracket visible
✓
Auxiliary power identification:
AC 100-240V, 50/60Hz, 4.6W Max.
✓
Verify exact model
DPM-C510E before ordering
In Stock & Ready to Order
Delta DPM-C510E is currently in stock.
Actual product nameplate and packaging photos
are available for buyer reference.
Please confirm the exact model,
Ethernet Modbus TCP communication,
current transformer secondary rating,
voltage measurement requirements,
and 92 × 92 mm panel cutout
before ordering.
