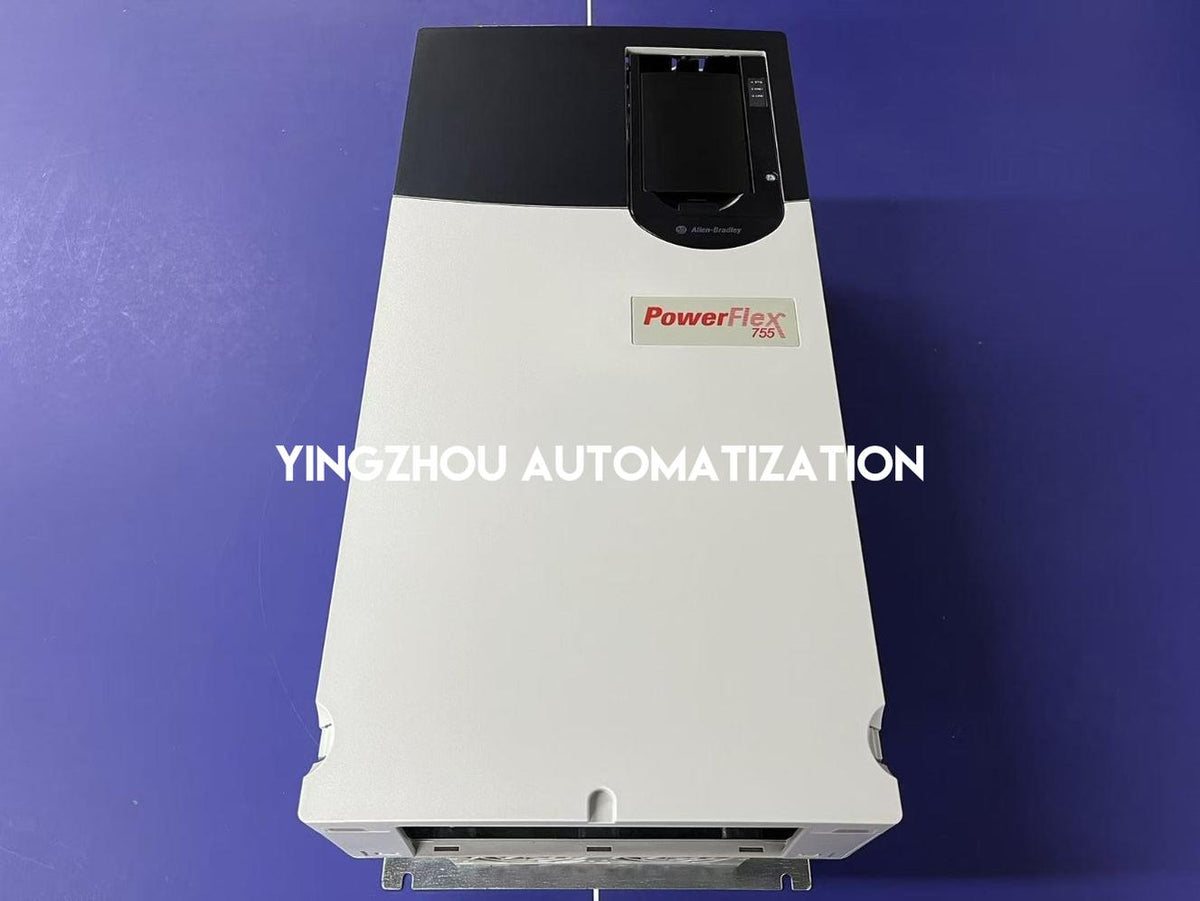

Allen-Bradley 20G11ND096AA0NNNNN PowerFlex 755 75HP 480V 96A AC Drive

Allen-Bradley 20G11ND096AA0NNNNN PowerFlex 755 75HP 480V 96A AC Drive

$3,999.99 USD
$3,999.99 USD
할인 품절
Model Number
YingZhou Industrial Automation | Product Information

Allen-Bradley 20G11ND096AA0NNNNN PowerFlex 755 AC Drive

55kW @ 400V | 75HP @ 480V | 96A | EtherNet/IP | Frame 5
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Firmware and Configuration Verification Required
Specification Verified Product Data
Manufacturer Allen-Bradley / Rockwell Automation
Catalog Number 20G11ND096AA0NNNNN
Product Family PowerFlex 755
Product Type AC Variable Frequency Drive
Normal Duty Power @ 400V 55 kW
Heavy Duty Power @ 400V 45 kW
Normal Duty Power @ 480V 75 HP
Heavy Duty Power @ 480V 60 HP
Nominal Input Voltage 400/480V AC, 3-Phase
Input Voltage Range @ 400V 342–440V AC (nameplate)
Input Voltage Range @ 480V 432–528V AC (nameplate)
Input Frequency 47–63 Hz (nameplate)
Input Current @ 400V — ND / HD 101.9 A / 83.3 A
Input Current @ 480V — ND / HD 90.1 A / 72.3 A
Continuous Output @ 400V — ND / HD 104 A / 85 A
Continuous Output @ 480V — ND / HD 96 A / 77 A
60-Second Overload @ 400V — ND / HD 114.4 A / 127.5 A
60-Second Overload @ 480V — ND / HD 105.6 A / 115.5 A
3-Second Overload @ 400V — ND / HD 156 A / 156 A
3-Second Overload @ 480V — ND / HD 144 A / 144 A
Output Voltage @ 400V 0–400V AC, 3-Phase
Output Voltage @ 480V 0–460V AC, 3-Phase
Output Frequency 0–590 Hz (nameplate)
Frame Size 5
Enclosure Rating IP20 / UL Open Type; Type 1 requires specified additional installation components
Embedded Communication EtherNet/IP
Dynamic Braking DB Transistor
Filtering Configuration EMC Filter
Input Configuration AC Input with Precharge
Photographed Unit Series Series A (label marking)
Original Firmware Marking 20.003 — Control Board Compatibility Requires Verification
Photographed Unit Origin USA
Photographed Unit Date 2024/12/23 — Production History Requires Verification
Manufacturer Lifecycle Discontinued June 30, 2024
Official Direct Replacement 20G11ND096JA0NNNNN — Verify System Requirements

Product Overview

The Allen-Bradley 20G11ND096AA0NNNNN is a PowerFlex 755 adjustable-frequency AC drive manufactured by Rockwell Automation. At the 480V operating class, it is rated for 75 HP normal duty and 60 HP heavy duty, with 96 A normal-duty and 77 A heavy-duty continuous output current. At the 400V operating class, it provides 55 kW normal-duty and 45 kW heavy-duty ratings. This Frame 5 drive features an IP20 / UL Open Type enclosure in its base configuration. UL Type 1 protection requires the additional components and installation conditions specified by the manufacturer. The PowerFlex 755 platform provides embedded EtherNet/IP communication, and the exact catalog configuration includes an EMC filter and dynamic-braking transistor. The original nameplate specifies 400/480V AC three-phase input, an output frequency range up to 590 Hz and different current ratings for normal-duty and heavy-duty operation. Rockwell Automation lists the exact 20G11ND096AA0NNNNN model as discontinued on June 30, 2024. The supplied actual product and packaging photographs both identify Series A, original firmware 20.003 and date 2024/12/23. The compatibility between the marked firmware and the installed control board, together with the product's manufacturing history, requires manufacturer confirmation before the exact unit can be cleared for shipment.

Key Product Features

  • PowerFlex 755 AC Drive — Allen-Bradley Bulletin 20G adjustable-frequency drive.
  • 75 HP Normal Duty @ 480V — Rated for 75 HP normal duty and 60 HP heavy duty.
  • 55 kW Normal Duty @ 400V — Rated for 55 kW normal duty and 45 kW heavy duty.
  • 96 A Continuous Output @ 480V — With 105.6 A one-minute and 144 A three-second normal-duty overload ratings.
  • Frame 5 IP20 Enclosure — UL Open Type construction; Type 1 protection subject to additional installation requirements.
  • Embedded EtherNet/IP Communication — Industrial Ethernet capability for supported automation networks.
  • EMC Filter and DB Transistor — Manufacturer-confirmed filtering and dynamic-braking configuration.

Actual Product Verification

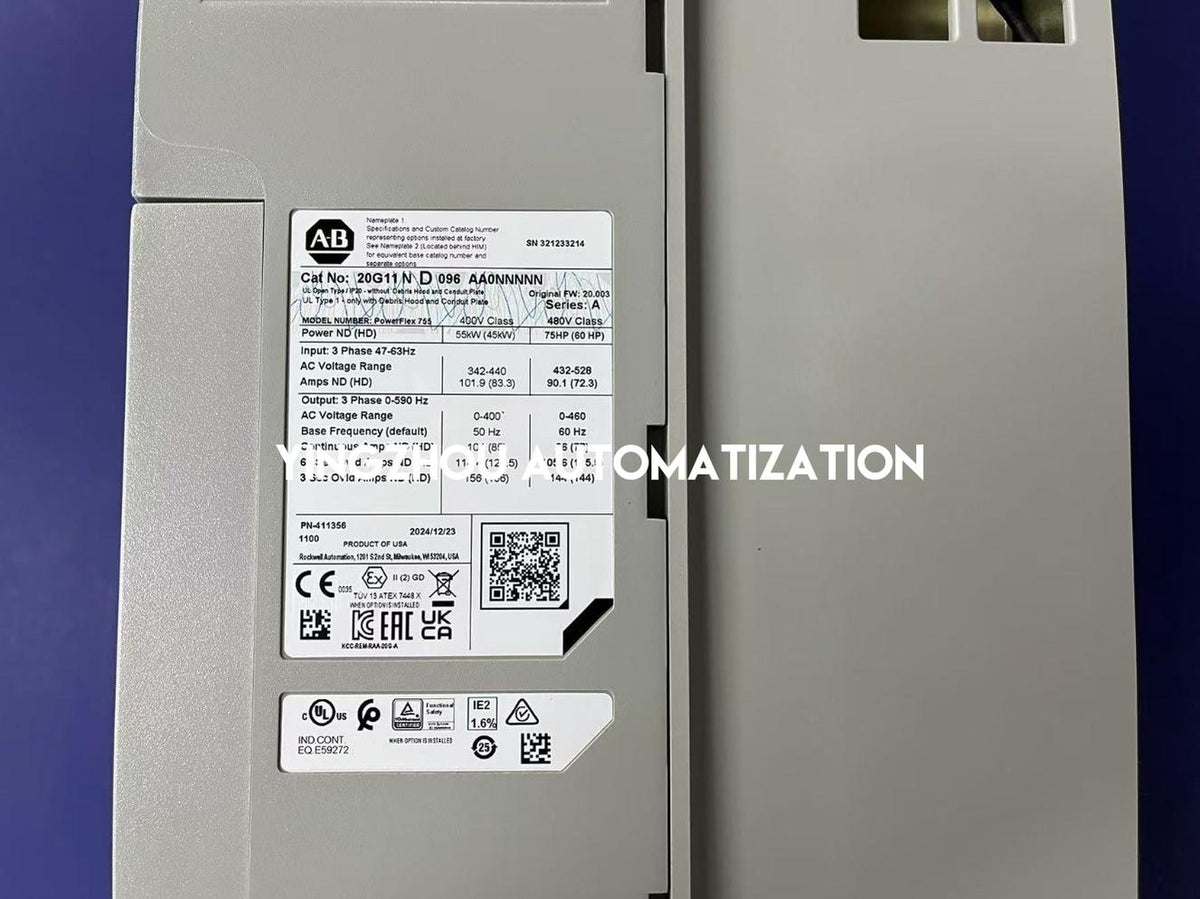

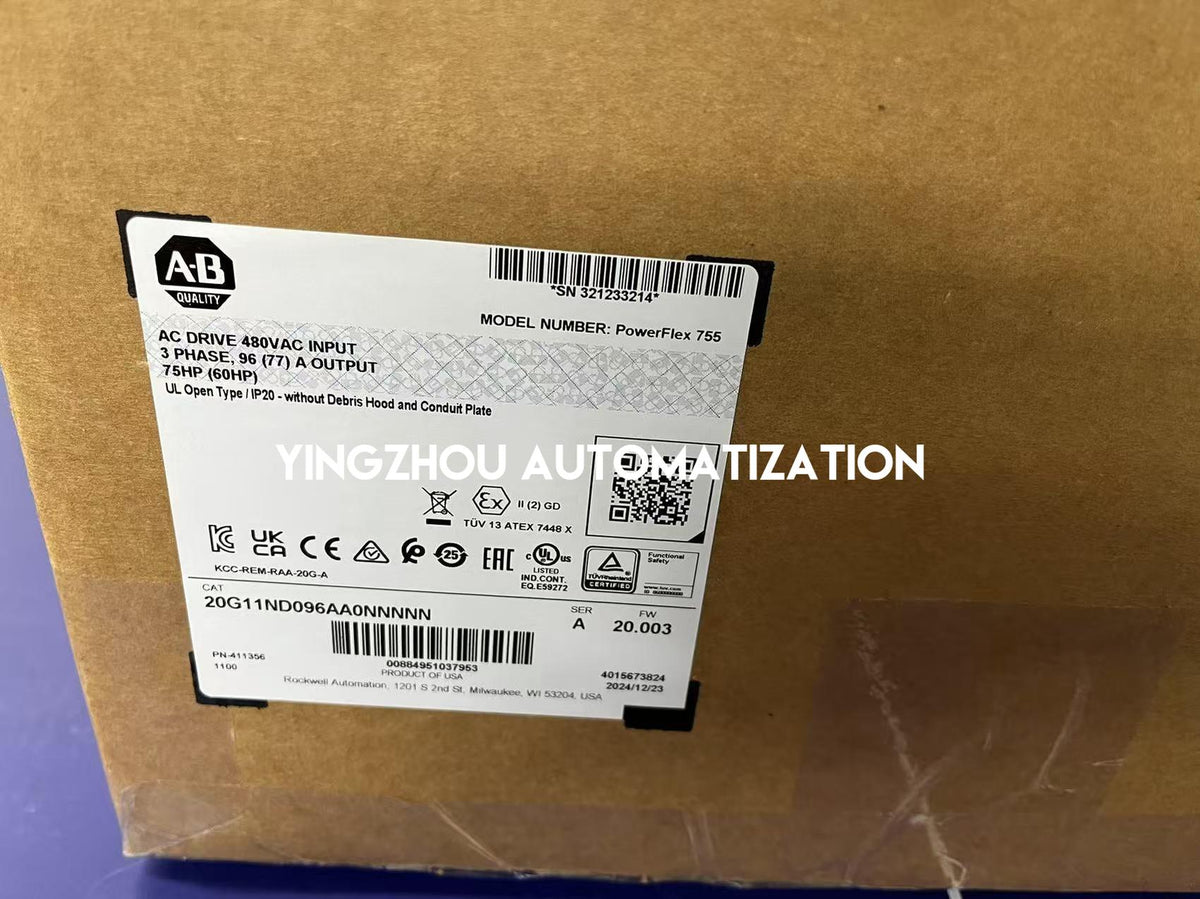

✓ Actual drive nameplate and packaging photographs supplied
✓ Catalog number 20G11ND096AA0NNNNN visible on both labels
✓ Matching serial number 321233214 visible on carton and drive nameplate
✓ Both labels identify Series A and firmware marking 20.003
✓ Normal-duty rating 75 HP / 96 A at 480V and heavy-duty rating 60 HP / 77 A confirmed
✓ Date marking 2024/12/23 visible on both labels
✓ Product and packaging labels marked PRODUCT OF USA
✓ Rockwell Automation lists the exact model as discontinued on June 30, 2024
✓ Marked Series A / firmware 20.003 combination requires confirmation of the installed control board
✓ Production history, optional equipment and operational testing have not been independently verified
✓ Confirm the exact model, control board, firmware, enclosure accessories and system requirements before ordering

In Stock & Available to Order

Allen-Bradley 20G11ND096AA0NNNNN is marked in stock based on the supplied inventory information. The product and packaging photographs show matching catalog and serial numbers for the PowerFlex 755 drive. However, the manufacturer lists this catalog number as discontinued, and the photographed firmware and production-date markings require further confirmation. Please obtain verification of the installed control board, firmware compatibility, unit provenance, available accessories and dispatch arrangements before completing an order.

IN STOCK

Allen-Bradley 20G11ND096AA0NNNNN

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 480V input, 75HP motor rating, Series and firmware compatibility, control board configuration and installation requirements before ordering.
