SMC CDQ2B32-60DZ CQ2 Series 32mm Bore 60mm Stroke Compact Air Cylinder

Name: SMC CDQ2B32-60DZ CQ2 Series 32mm Bore 60mm Stroke Compact Air Cylinder
Brand: SMC
SKU: CDQ2B32-60DZ
Price: 29.99 USD
Availability: InStock

SMC CDQ2B32-60DZ CQ2 Series 32mm Bore 60mm Stroke Compact Air Cylinder

$29.99 USD

セール売り切れ

Model Number CDQ2B32-60DZ

商品バリエーション

数量

YingZhou Industrial Automation | Product Information

SMC CDQ2B32-60DZ CQ2 Series Compact Air Cylinder

32mm Bore | 60mm Stroke | Double Acting | Single Rod | 1.0 MPa

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Exact Model Verified

Specification	Verified Product Data
Manufacturer	SMC Corporation
Catalog Number	CDQ2B32-60DZ
Product Family	CQ2 / CDQ2 Series
Product Type	Compact Pneumatic Cylinder
Cylinder Type	Standard
Action	Double Acting, Single Rod
Bore Diameter	32 mm
Stroke Length	60 mm
Mounting Type	Through-hole (Standard)
Built-in Auto Switch Magnet	Yes
Auto Switch Mounting Groove	Z Type, 4 Sides
Auto Switch	Not Included in Base Model Number
Rod End Thread	Standard Female Thread
Working Fluid	Air
Proof Pressure	1.5 MPa
Maximum Operating Pressure	1.0 MPa
Minimum Operating Pressure	0.05 MPa
Operating Temperature	-10 to +60°C (With Auto Switch Magnet, No Freezing)
Piston Speed	50–500 mm/s
Lubrication	Not Required (Non-Lube)

Product Overview

The SMC CDQ2B32-60DZ is a CQ2 Series compact pneumatic cylinder featuring a standard double-acting, single-rod configuration. It has a 32 mm bore diameter and 60 mm stroke length, with a through-hole mounting design. The cylinder incorporates a built-in auto switch magnet and four-side auto switch mounting grooves for compatible sensor installation. Its specified maximum operating pressure is 1.0 MPa, with a minimum operating pressure of 0.05 MPa. The cylinder operates with compressed air and does not require lubrication. Compatible auto switches and mounting accessories should be selected according to the installation requirements before ordering.

Key Product Features

SMC CQ2 Series Compact Cylinder — Standard double-acting, single-rod pneumatic cylinder.
32 mm Bore Diameter — Manufacturer-specified cylinder bore size.
60 mm Stroke Length — Exact model configuration for controlled linear movement.
Double-Acting Operation — Pneumatic actuation in both extension and retraction directions.
Built-in Auto Switch Magnet — Supports compatible magnetic auto-switch detection.
Four-Side Auto Switch Mounting — Provides mounting grooves for compatible sensors.
1.0 MPa Maximum Operating Pressure — Confirmed by SMC series specifications and actual product marking.

Actual Product Verification

✓ Actual product photographs supplied

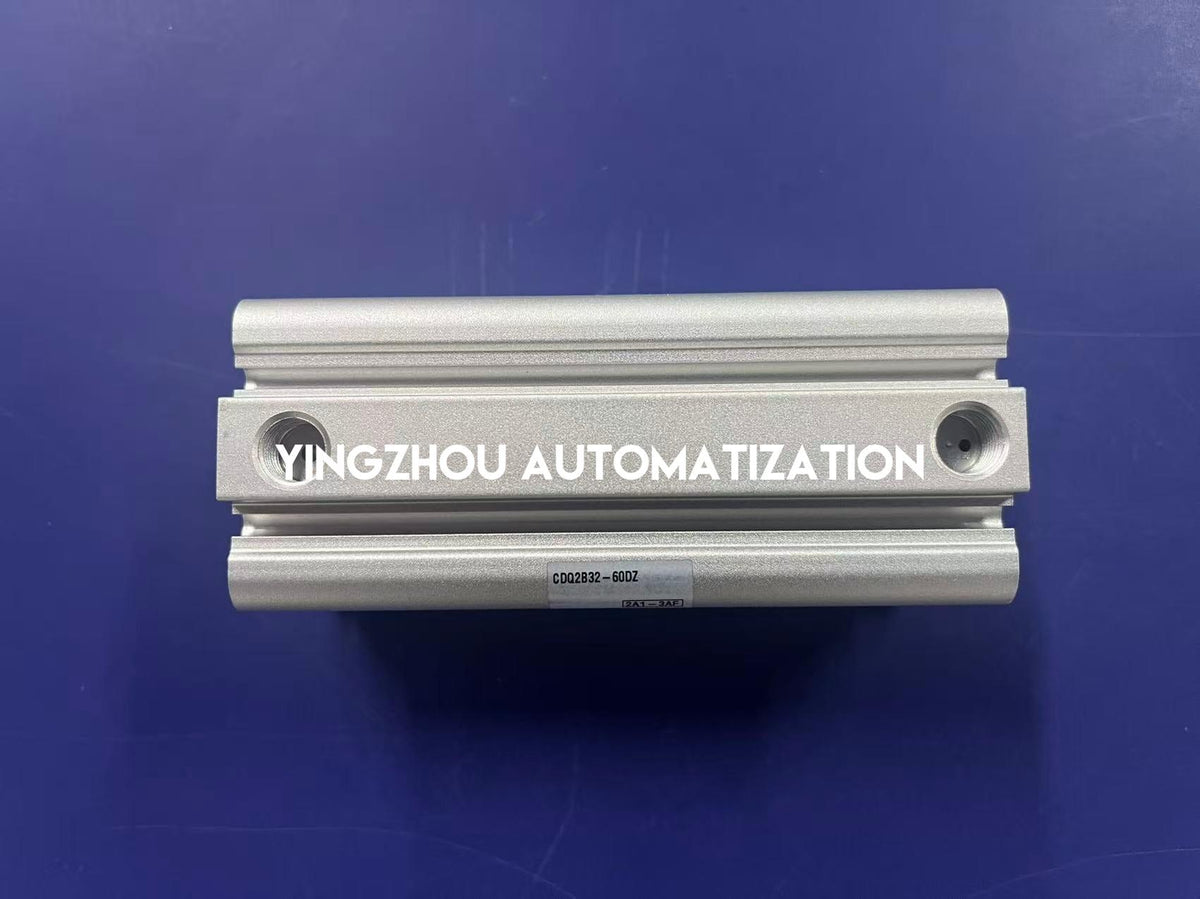

✓ Product model marking visible: CDQ2B32-60DZ

✓ SMC manufacturer marking visible

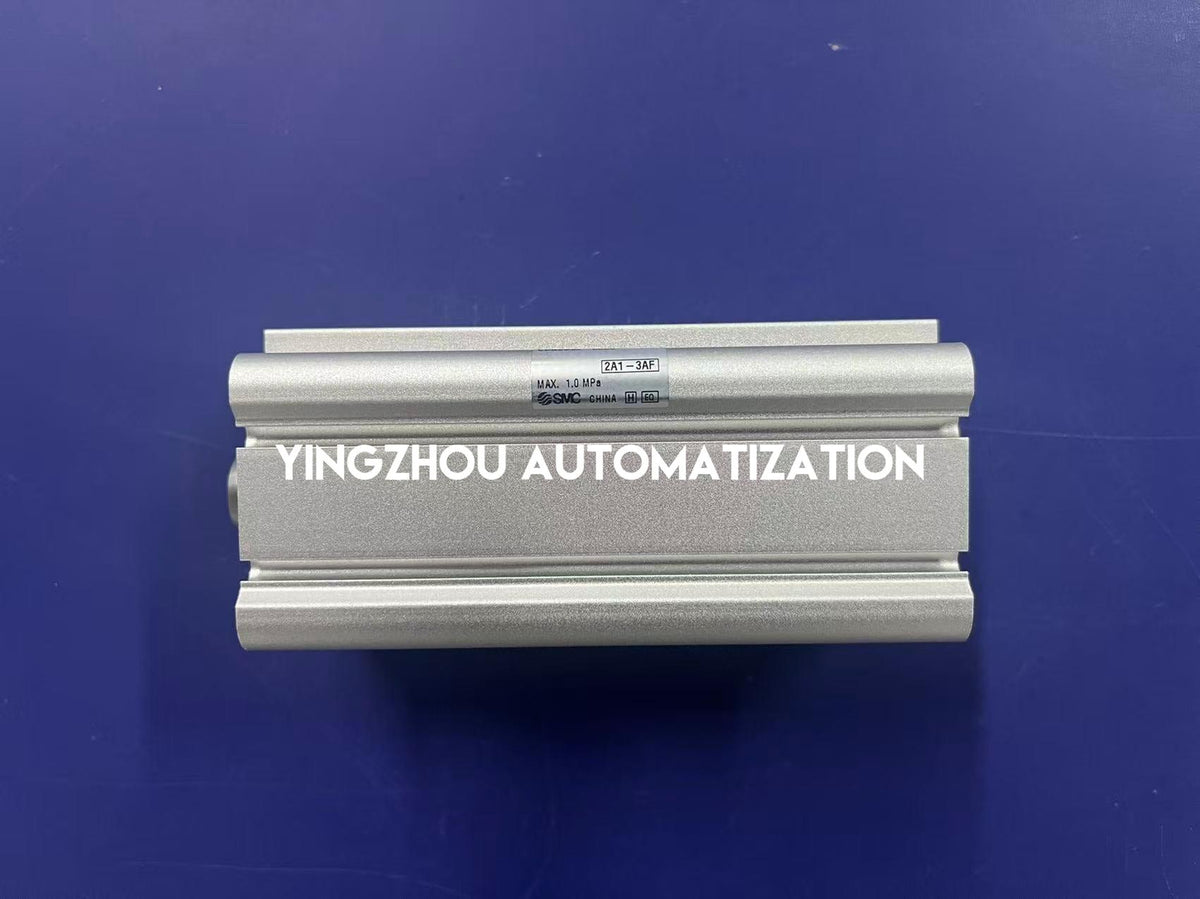

✓ Product label displays MAX. 1.0 MPa

✓ Product body and model identification match the requested model

✓ Two product views supplied for visual verification

✓ Confirm compatible auto switch and mounting accessories if required

In Stock & Available to Order

SMC CDQ2B32-60DZ is marked in stock based on the supplied inventory information. This compact pneumatic cylinder features a 32 mm bore, 60 mm stroke and double-acting single-rod design. Contact YingZhou for multiple units, compatible auto switches, mounting accessories and consolidated industrial automation sourcing.

IN STOCK

SMC CDQ2B32-60DZ

Contact us for bulk purchasing, compatible auto switches and pneumatic cylinder sourcing. Please confirm installation dimensions and accessory requirements before ordering.
