Delta DPM-C530 DPM-C Series Multifunction Power Meter
96 × 96mm | Class 0.5S | RS-485 Modbus / BACnet | 31st-Order Harmonics
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
DPM-C530 |
| Series |
DPM-C530 Series |
| Product Type |
Advanced Multifunction Digital Power Meter |
| Front Panel Size |
96 × 96 mm |
| Panel Cutout |
92 × 92 mm |
| Overall Dimensions |
96 × 96 × 95.4 mm |
| Approximate Weight |
400 g |
| Installation |
Panel Mount |
| Display Type |
Dot-Matrix LCD |
| Display Backlight |
LED Backlight |
| Display Languages |
Chinese / English / Japanese |
| Supported Wiring Systems |
1P2W / 1P3W / 3P3W / 3P4W |
| Line Voltage Measurement |
35-690 VAC (L-L) |
| Phase Voltage Measurement |
20-400 VAC (L-N) |
| Rated Current Input |
1A / 5A |
| Measurement Frequency Range |
45-70 Hz |
| Current Measurement Accuracy |
±0.5% |
| Voltage Measurement Accuracy |
±0.5% |
| Active Power Accuracy |
±0.5% |
| Reactive Power Accuracy |
±1% |
| Apparent Power Accuracy |
±2% |
| Active Energy Accuracy |
IEC 62053-22 Class 0.5S |
| Reactive Energy Accuracy |
±1% |
| Apparent Energy Accuracy |
±2% |
| Power Factor Accuracy |
±0.5% |
| Frequency Accuracy |
±0.5% |
| Electrical Measurements |
Voltage / Current / Frequency / Power Factor |
| Power Measurements |
Active / Reactive / Apparent Power |
| Energy Measurements |
Active / Reactive / Apparent Energy |
| Current and Power Demand |
Supported |
| Demand Calculation Mode |
Fixed Block |
| Voltage / Current Unbalance |
Supported |
| Total Harmonic Distortion |
Voltage THD / Current THD |
| Individual Harmonic Analysis |
Up to 31st Order |
| Maximum / Minimum Values |
Supported with Timestamps |
| Alarm Conditions |
29 Types |
| Historical Alarm Records |
Up to 500 |
| Built-in Data Logging |
Supported |
| Recorded Parameters |
Up to 17 |
| Data Logging Retention |
Depends on Logging Interval and Parameter Count |
| User-Defined Modbus Addresses |
35 |
| Monthly Energy Reading |
Supported |
| Multi-Tariff Periods |
8 |
| Auxiliary Power Supply |
AC 100-240V, 50/60Hz (Actual Unit Nameplate) |
| Maximum Power Consumption |
4.6W |
| Communication Interface |
Built-in RS-485 |
| Modbus Protocols |
Modbus RTU / ASCII |
| BACnet Protocol |
BACnet MS/TP (RS-485) |
| Built-in Ethernet |
Not Included in DPM-C530 |
| Modbus TCP |
Not Included in DPM-C530 |
| Built-in Digital I/O |
Not Listed for DPM-C530 |
| Front Panel Protection |
IP52 |
| Meter Body Protection |
IP20 |
| Operating Temperature |
-20°C to +60°C (2023 Catalogue) |
| Storage Temperature |
-30°C to +70°C (2023 Catalogue) |
| Relative Humidity |
Up to 95% RH |
| Maximum Operating Altitude |
Below 2000m |
Product Overview
The Delta DPM-C530 is an advanced
multifunction digital power meter
from Delta's DPM-C530 Series.
It features a 96 × 96 mm front panel,
a 92 × 92 mm mounting cutout,
and a dot-matrix LCD.
The meter supports single-phase and three-phase
voltage, current, power, energy, demand,
power factor and frequency monitoring.
Active energy accuracy meets
IEC 62053-22 Class 0.5S.
Advanced electrical monitoring functions include
voltage and current unbalance,
total harmonic distortion,
and individual harmonics up to the 31st order.
Additional features include
29 alarm conditions,
up to 500 historical alarm records,
built-in data logging,
and eight multi-tariff energy periods.
The exact DPM-C530 configuration
provides built-in RS-485 communication
supporting Modbus RTU / ASCII
and BACnet MS/TP.
Its actual product nameplate specifies
AC 100-240V, 50/60Hz
auxiliary supply and
4.6W maximum power consumption.
Key Product Features
-
96 × 96 mm LCD power meter
with 92 × 92 mm mounting cutout
-
IEC 62053-22 Class 0.5S
active energy measurement accuracy
-
Built-in RS-485
with Modbus RTU / ASCII and BACnet MS/TP
-
31st-order harmonic analysis
with voltage/current THD and unbalance monitoring
-
Built-in data logging
for up to 17 selected measurement parameters
-
29 alarm conditions and 500 alarm records
with maximum/minimum measurement history
-
Fixed-block demand monitoring,
monthly energy readings and eight multi-tariff periods
Actual Product Verification
✓

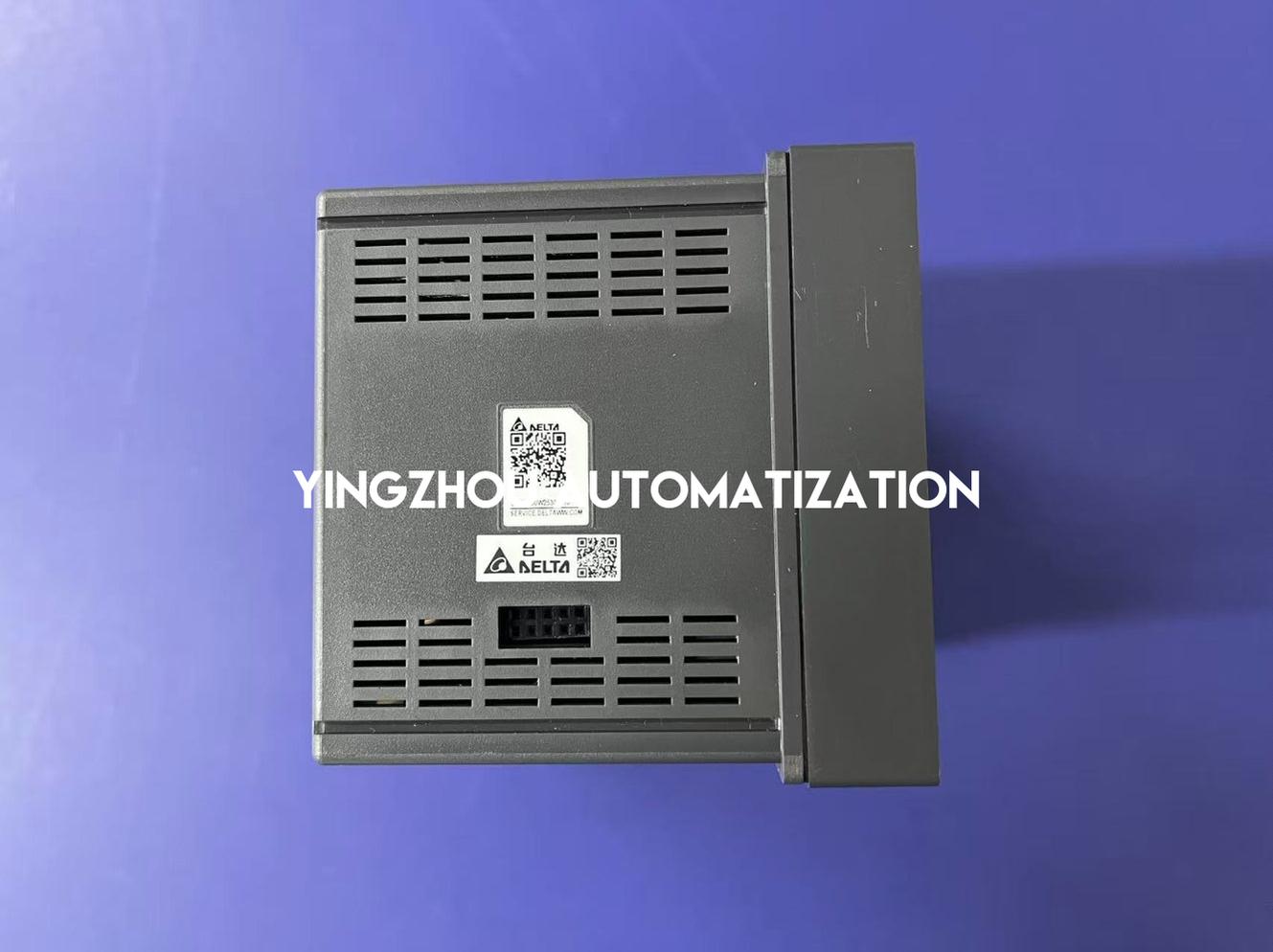

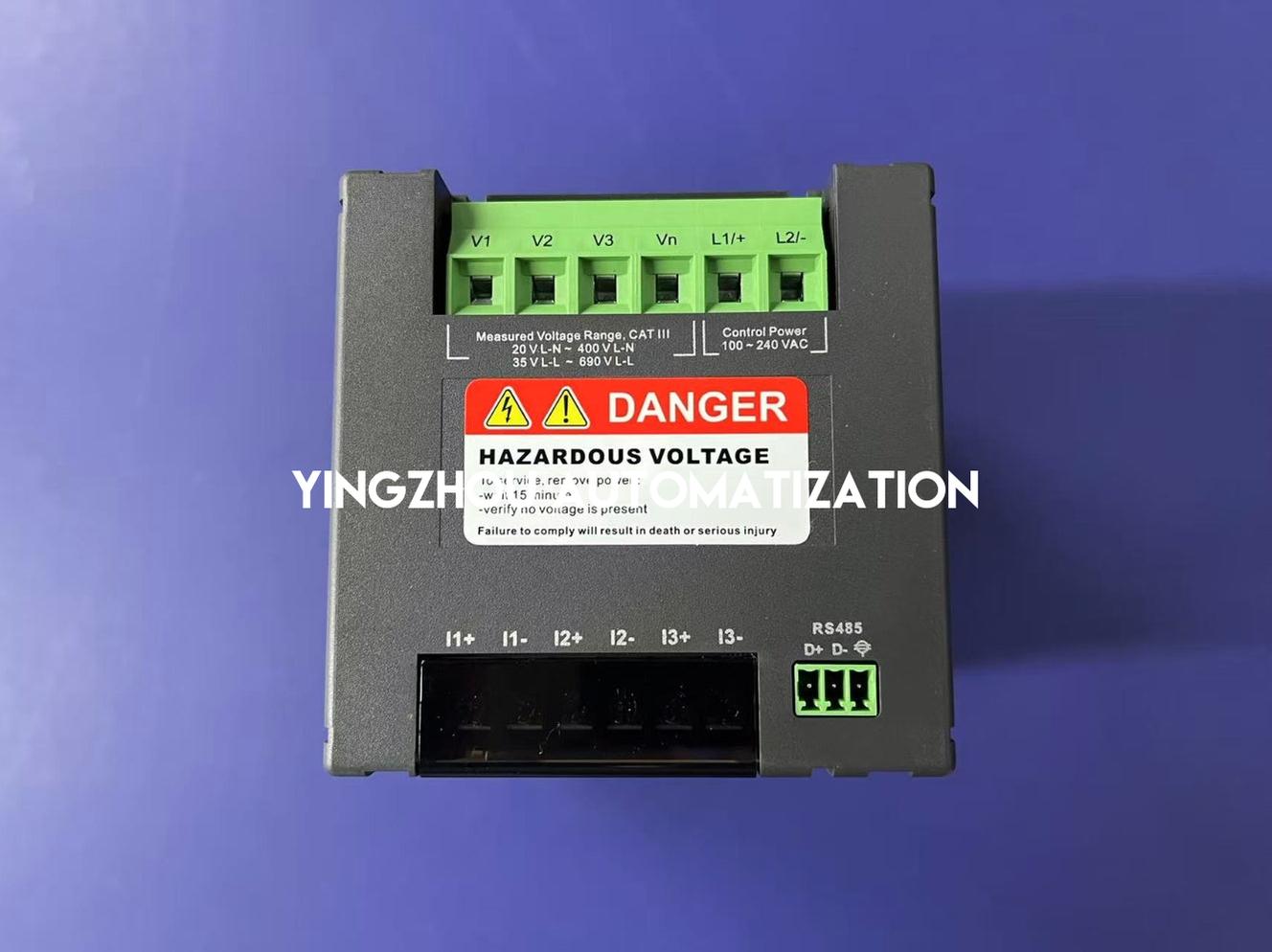

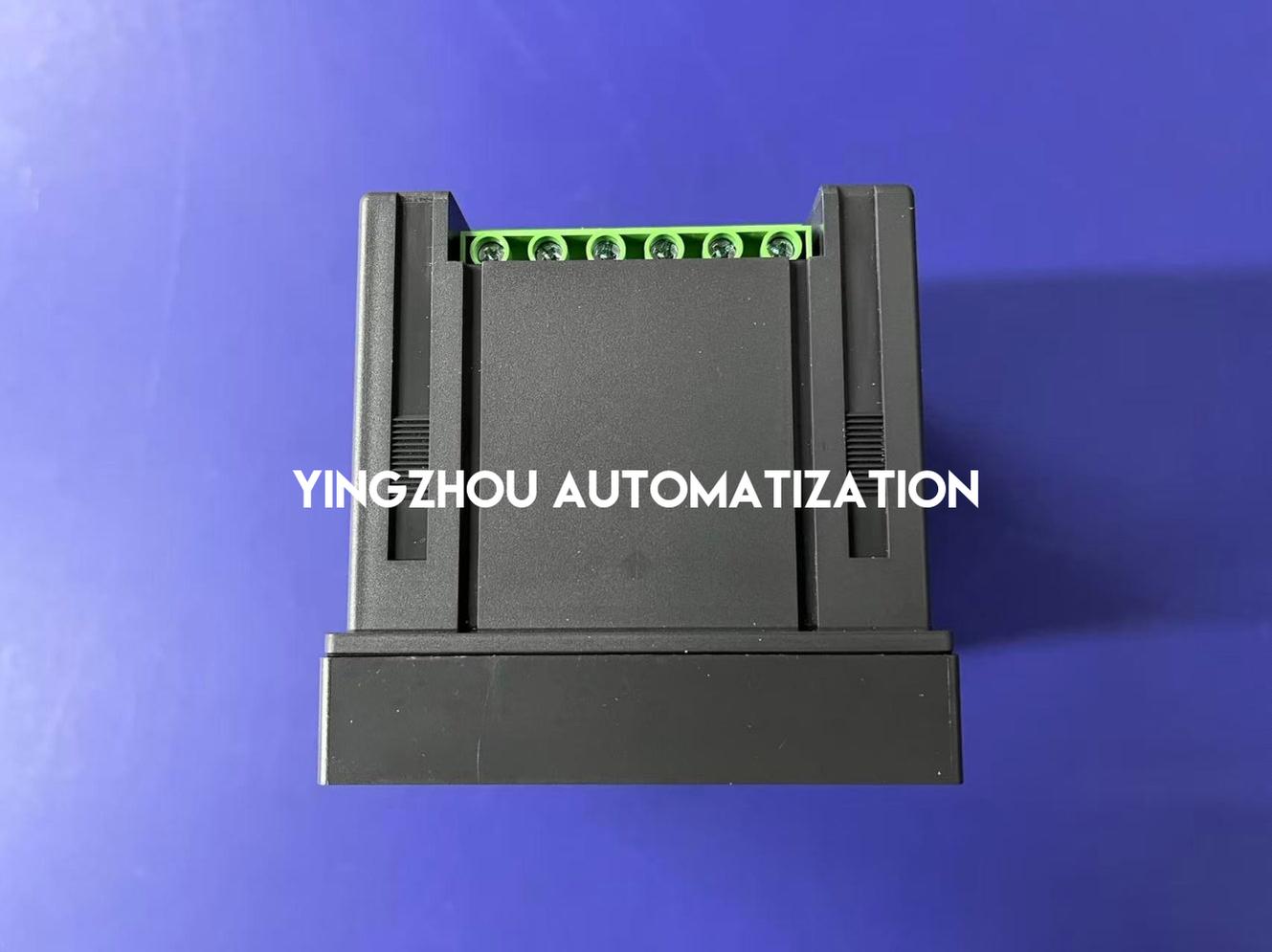

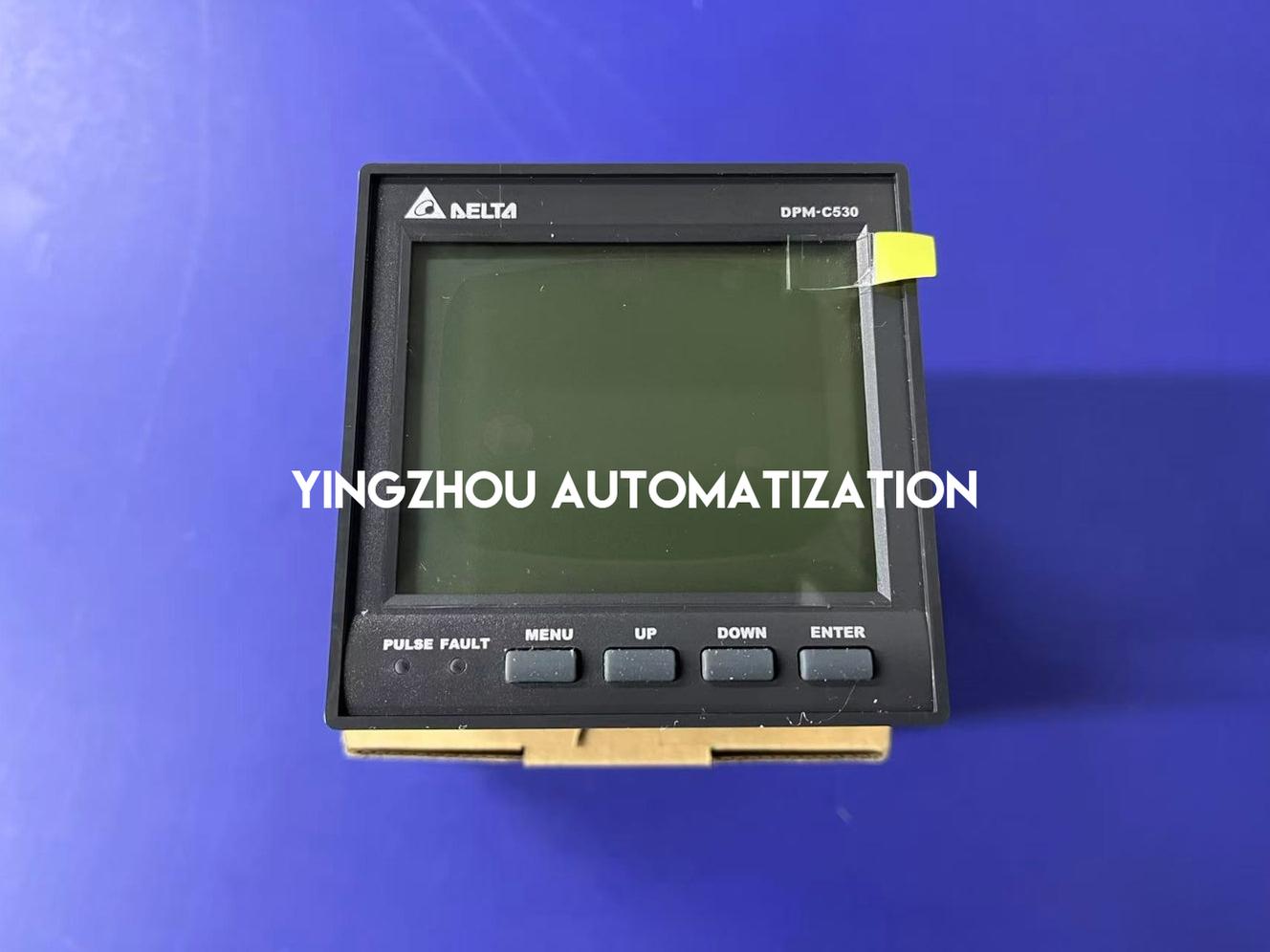

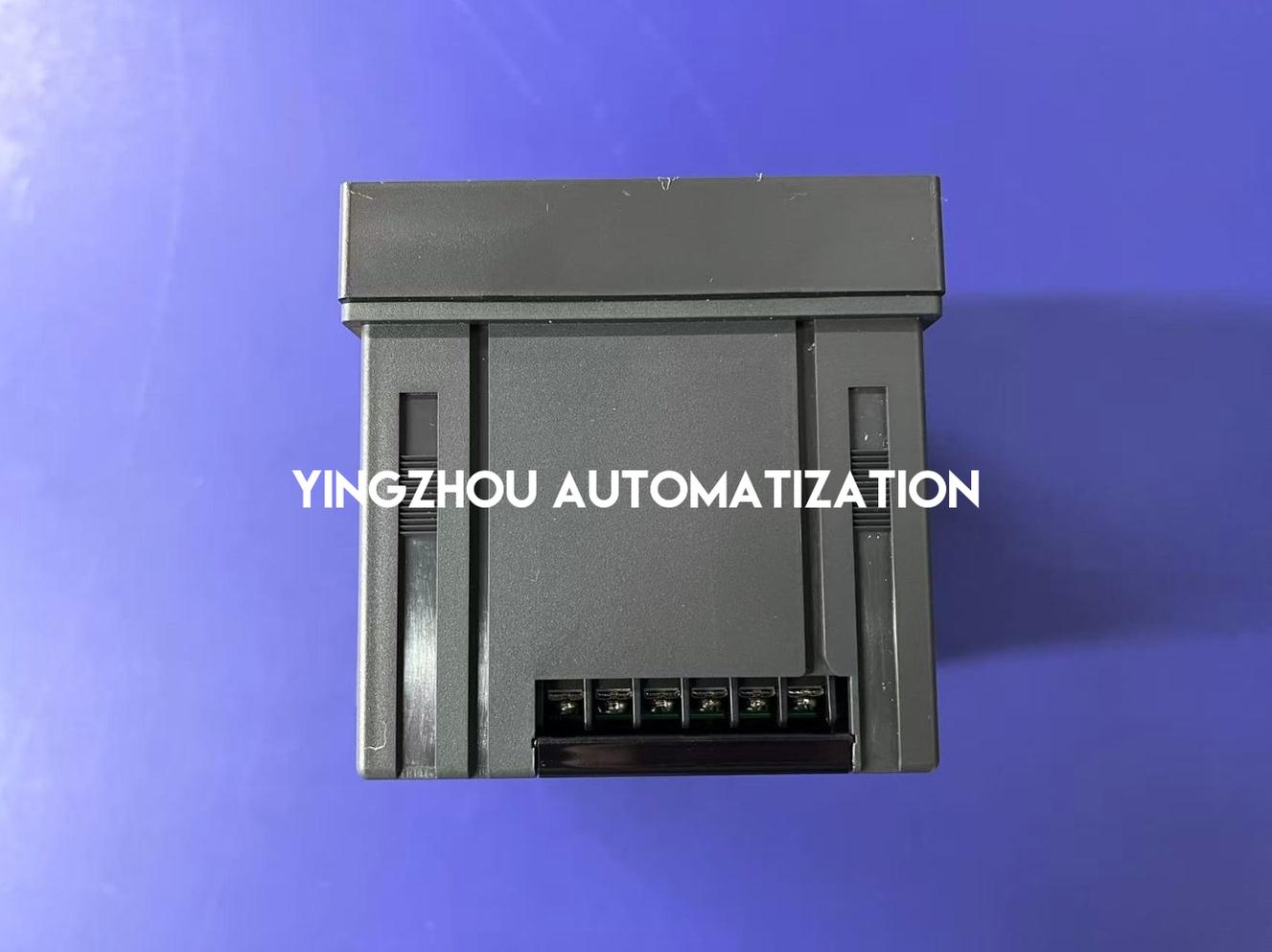

Actual product photos
✓
Model/nameplate visible:
DPM-C530
✓

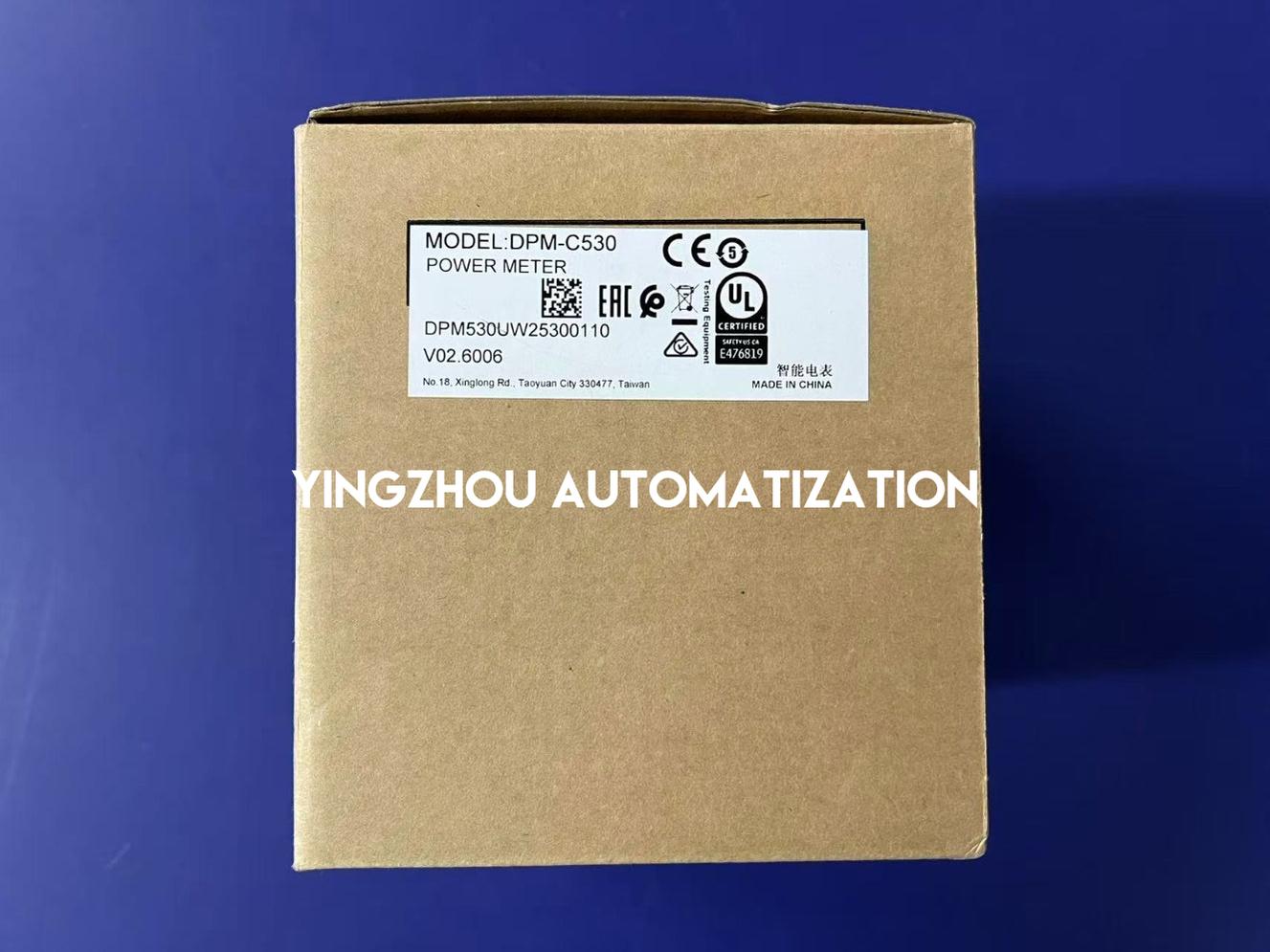

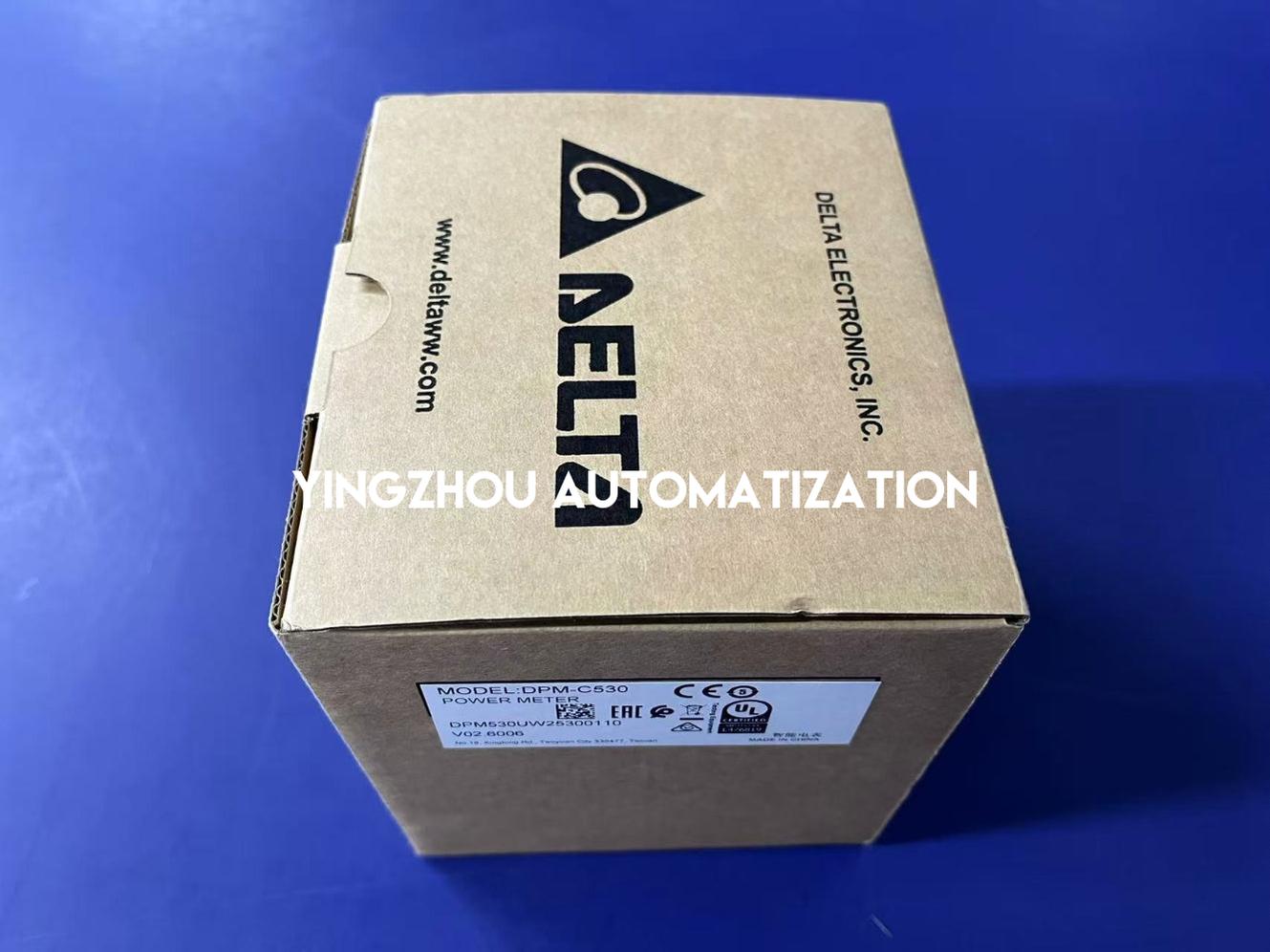

Packaging label shown with matching model
✓

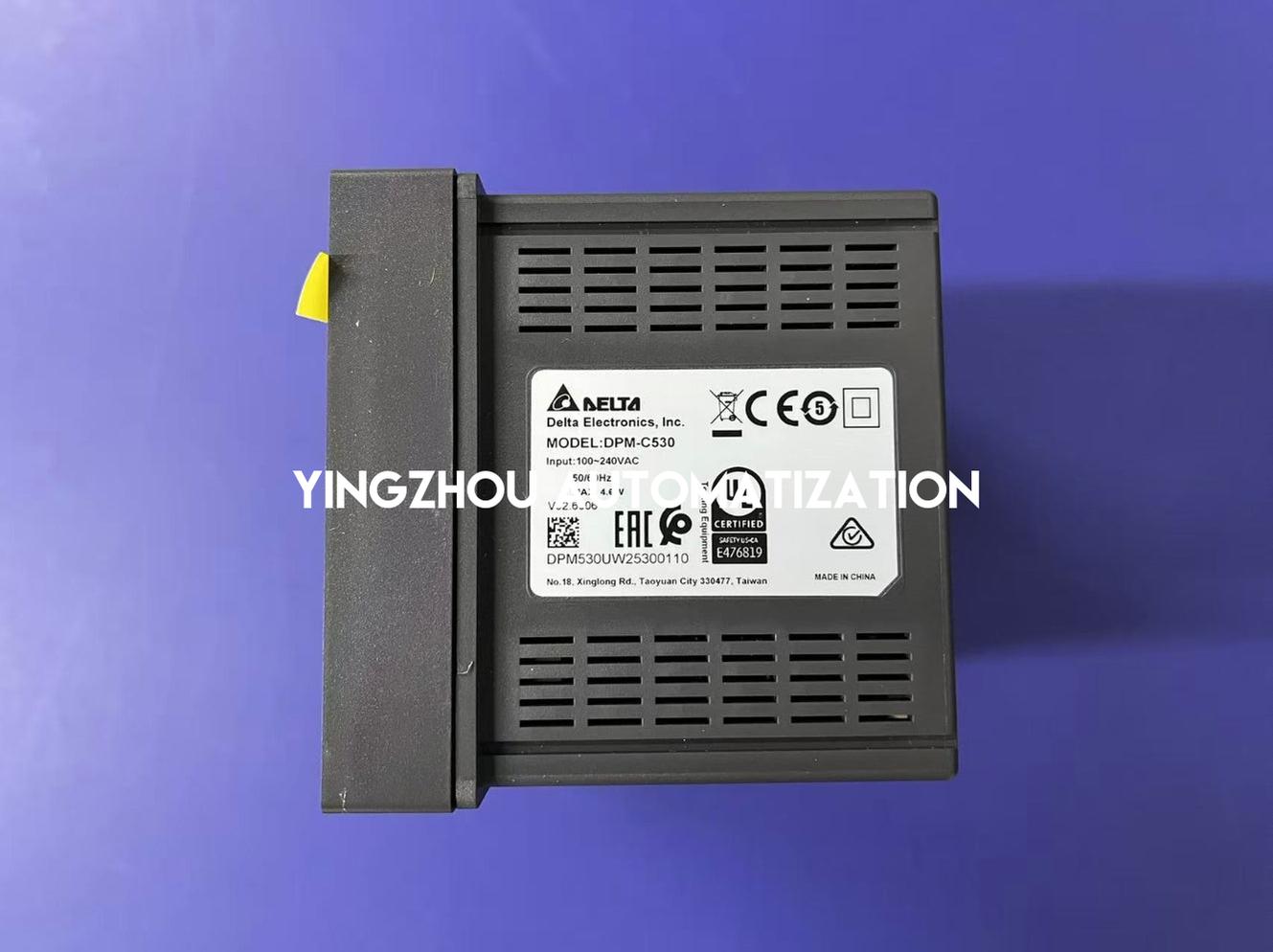

Actual nameplate:
AC 100-240V, 50/60Hz, 4.6W Max.
✓
Product and packaging version markings:
V02.6006
✓
Verify exact model, RS-485 protocol,
CT rating and electrical configuration before ordering
