SMC ITV2090-31F2BN5 Electronic Vacuum Regulator
-1.3 to -80 kPa | 0–10 VDC Input | 1–5 VDC Monitor Output | G1/4
| Specification |
Verified Product Data |
| Manufacturer |
SMC Corporation |
| Catalog Number |
ITV2090-31F2BN5 |
| Product Series |
ITV2090 |
| Product Type |
Electronic Vacuum Regulator |
| Control Method |
Stepless Vacuum Pressure Control |
| Set Pressure Range |
-1.3 to -80 kPa |
| Minimum Supply Vacuum Pressure |
Set Pressure - 13.3 kPa |
| Maximum Supply Vacuum Pressure |
-101 kPa |
| Power Supply |
24 VDC ±10% |
| Current Consumption |
0.12 A or less |
| Input Signal |
0–10 VDC |
| Input Impedance |
Approx. 6.5 kΩ |
| Monitor Output |
Analog 1–5 VDC |
| Output Impedance |
Approx. 1 kΩ |
| Output Accuracy |
±6% F.S. or less |
| Linearity |
±1% F.S. or less |
| Hysteresis |
0.5% F.S. or less |
| Repeatability |
±0.5% F.S. or less |
| Sensitivity |
0.2% F.S. or less |
| Temperature Characteristics |
±0.12% F.S./°C or less |
| Pressure Display |
Digital Display, kPa |
| Minimum Display Resolution |
1 kPa |
| Display Accuracy |
±2% F.S. ±1 Digit or less |
| Port Size |
1/4 (G1/4) |
| Port Configuration |
VAC / OUT / ATM |
| Maximum Flow Rate |
132 L/min (ANR), at -39 kPa inlet vacuum pressure |
| Mounting Plate |
Included |
| Cable Connector |
Not Included |
| Ambient / Fluid Temperature |
0–50°C, No Condensation |
| Enclosure Rating |
IP65 |
Product Overview
The SMC ITV2090-31F2BN5 is an electronic vacuum regulator from the SMC ITV2090 series, designed for stepless control of vacuum pressure in proportion to an electrical input signal. This exact configuration features a 0–10 VDC voltage input, an analog 1–5 VDC monitor output and a vacuum set pressure range of -1.3 to -80 kPa. It operates on a 24 VDC ±10% power supply and uses G1/4 threaded VAC, OUT and ATM ports. The specified configuration includes a mounting plate and a digital pressure display in kPa, while the cable connector is not included. The manufacturer specifies a maximum flow rate of 132 L/min (ANR) at an inlet vacuum pressure of -39 kPa. Actual product and packaging photographs supplied by YINGZHOU show the exact catalog number ITV2090-31F2BN5. Please confirm the required control signal, power supply, vacuum range, port connections and cable requirements before ordering.
Key Product Features
-
SMC ITV2090 Electronic Vacuum Regulator — Provides stepless vacuum pressure control proportional to an electrical signal.
-
-1.3 to -80 kPa Vacuum Range — Manufacturer-specified adjustable vacuum pressure range.
-
0–10 VDC Voltage Input — Accepts an analog voltage control signal.
-
1–5 VDC Analog Monitor Output — Provides an analog monitoring signal for pressure feedback.
-
24 VDC Power Supply — Requires 24 VDC ±10% with current consumption of 0.12 A or less.
-

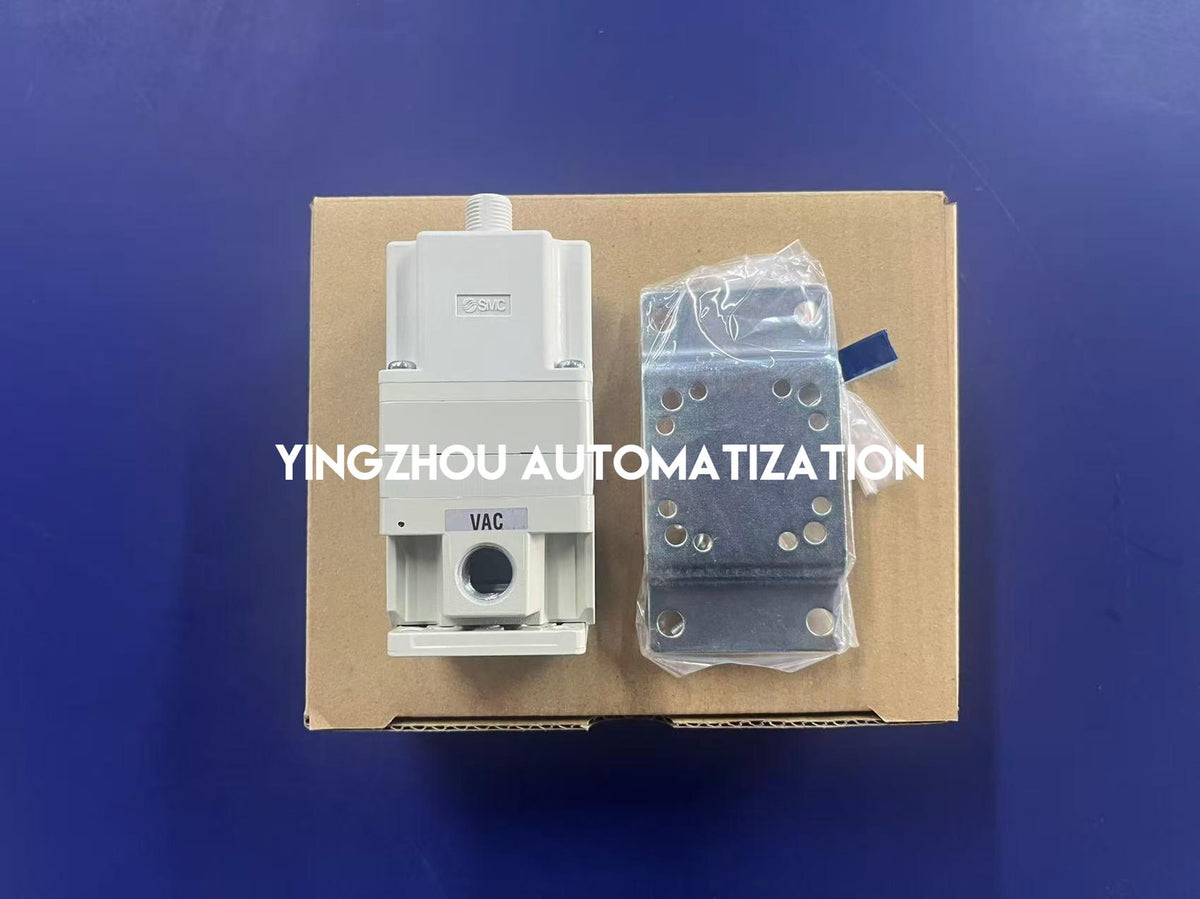

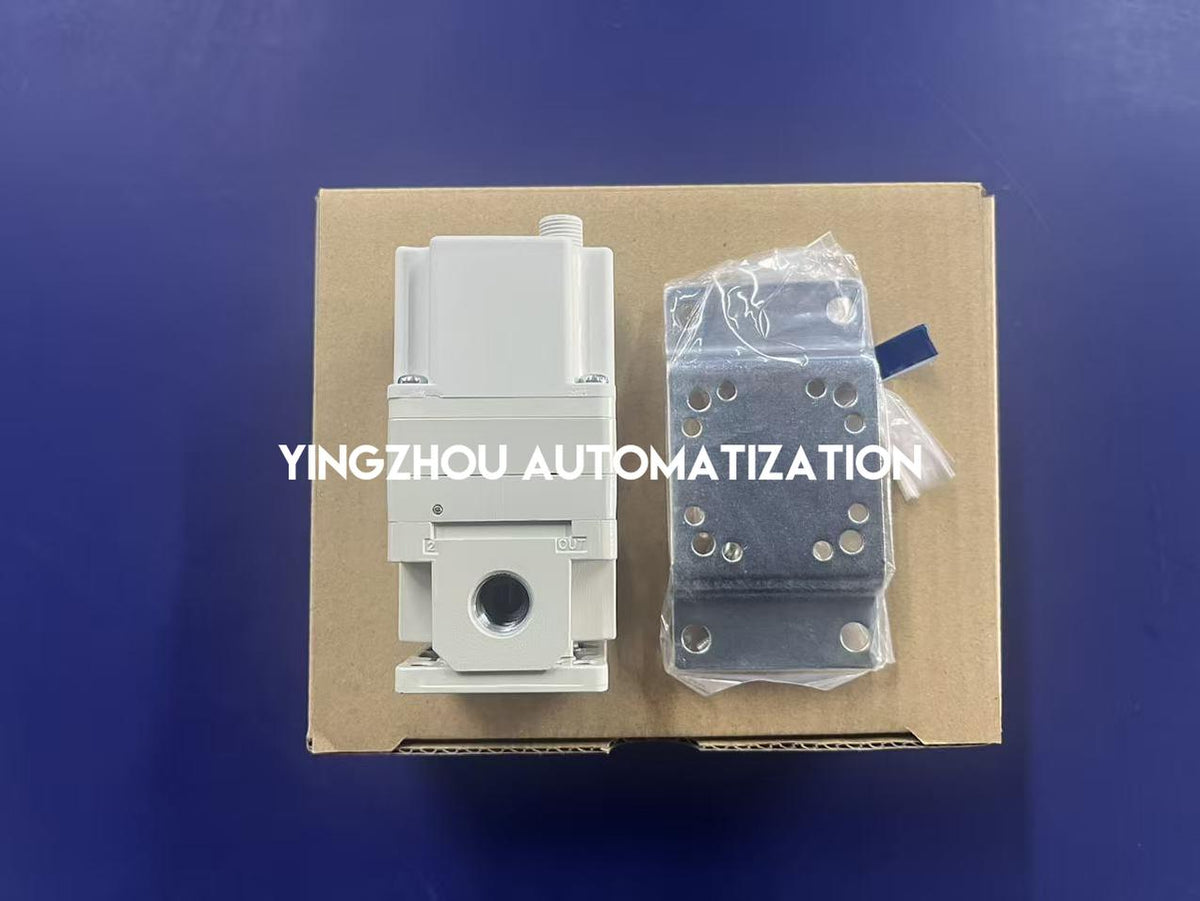

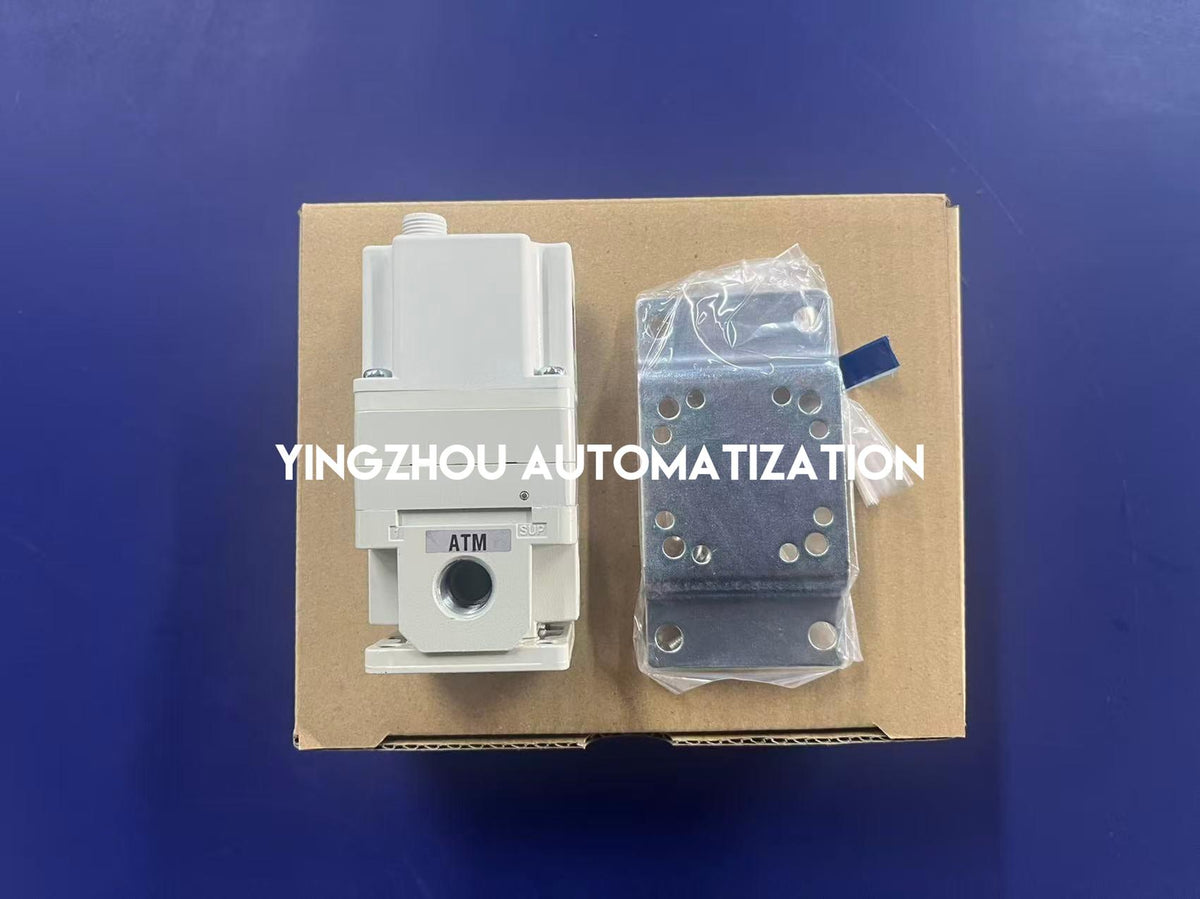

G1/4 Threaded Ports — VAC, OUT and ATM port configuration.
-
Mounting Plate Included — Supplied configuration includes a mounting plate; cable connector is not included.
Actual Product Verification
✓ Actual product photographs supplied

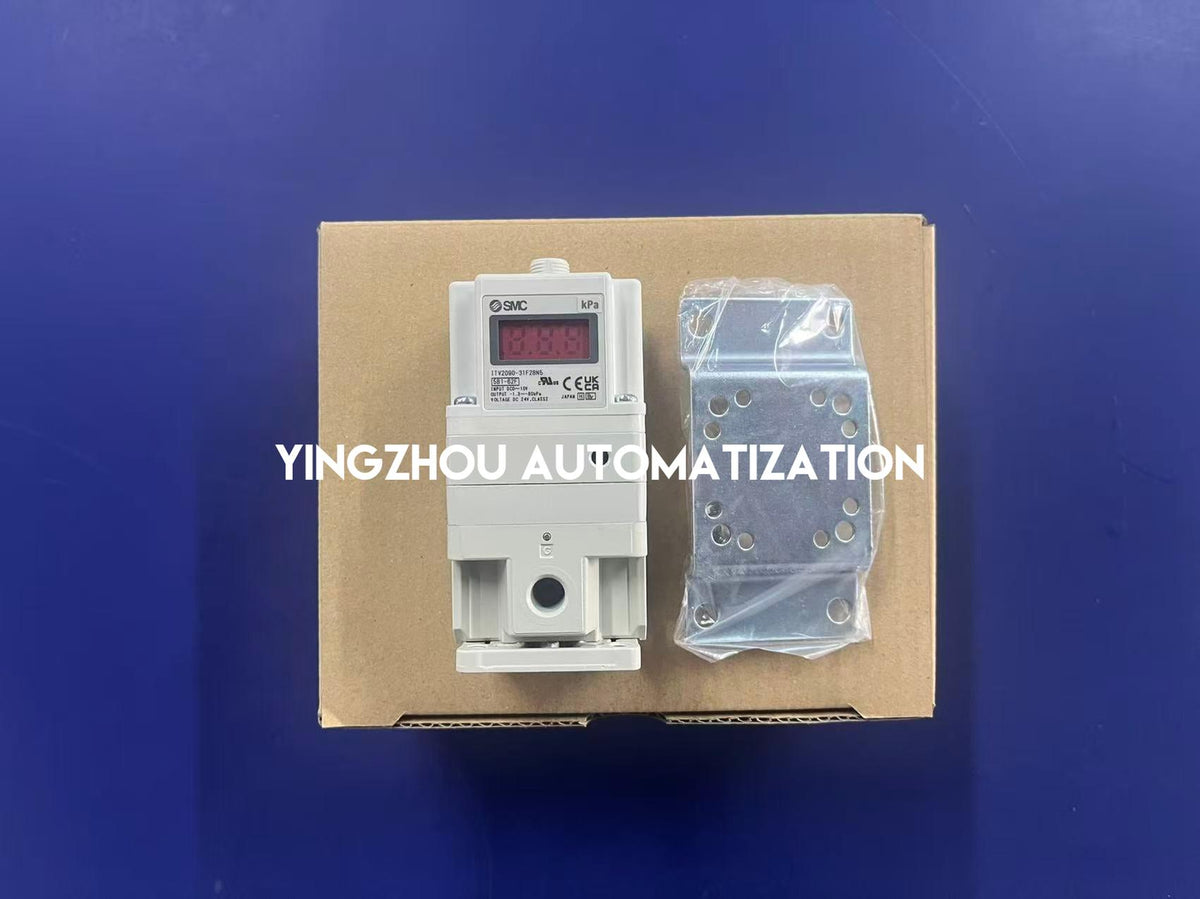

✓ Product nameplate visibly identifies ITV2090-31F2BN5

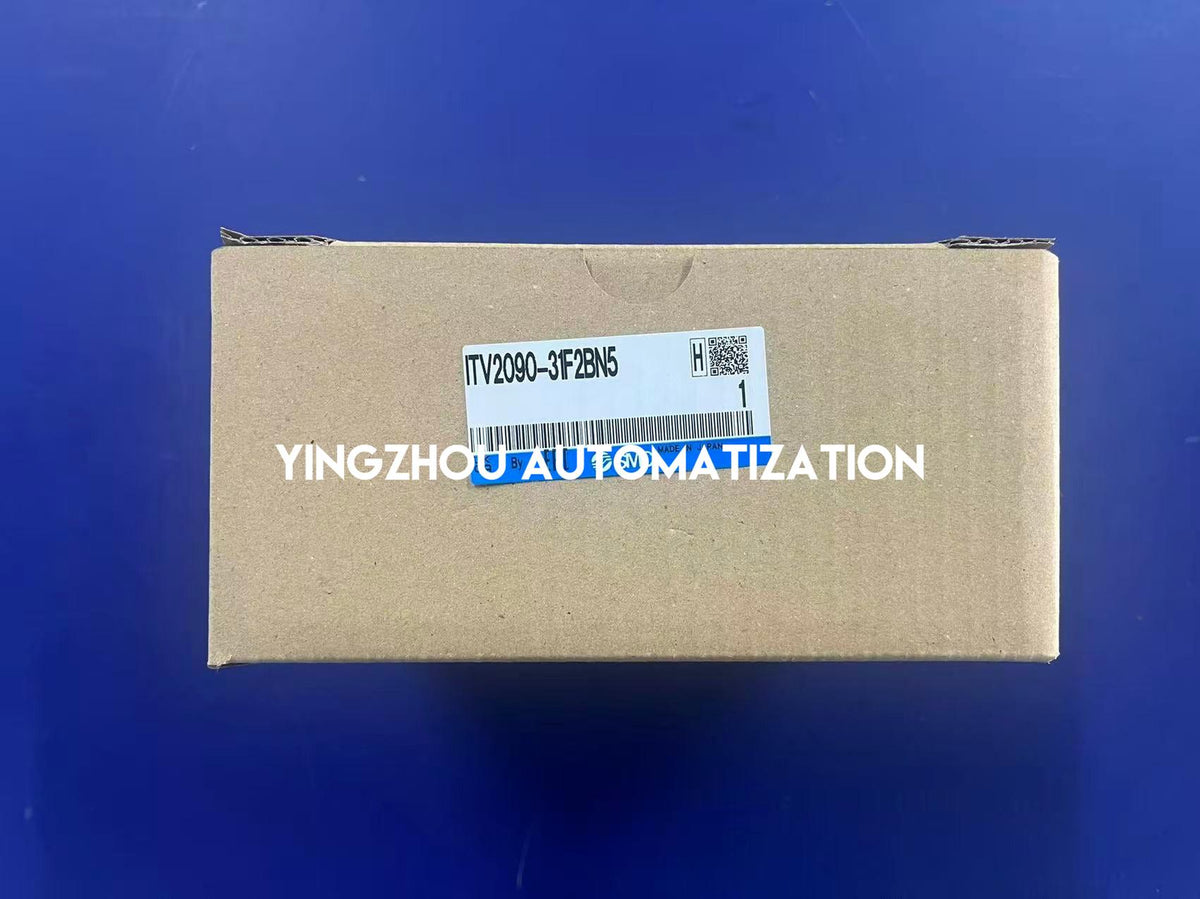

✓ Packaging label shows the same exact catalog number

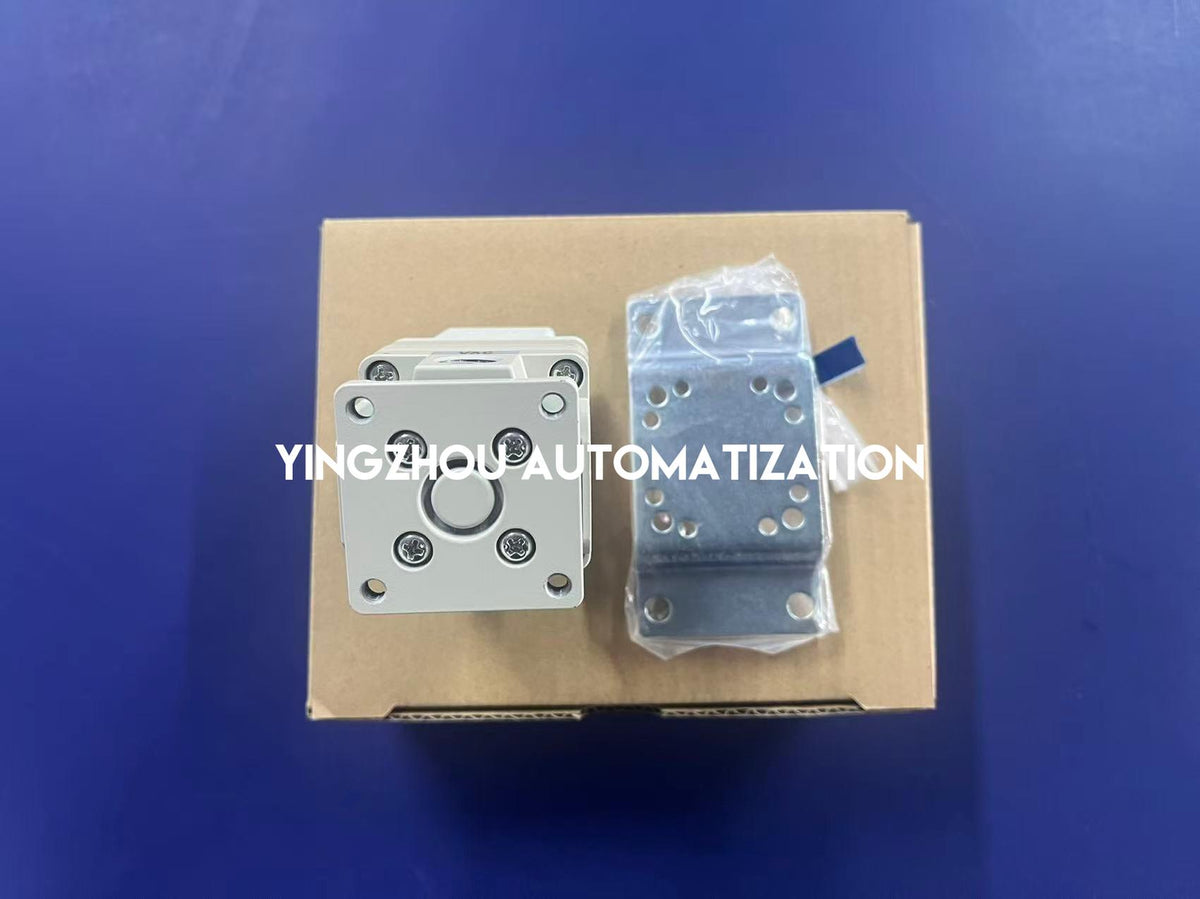

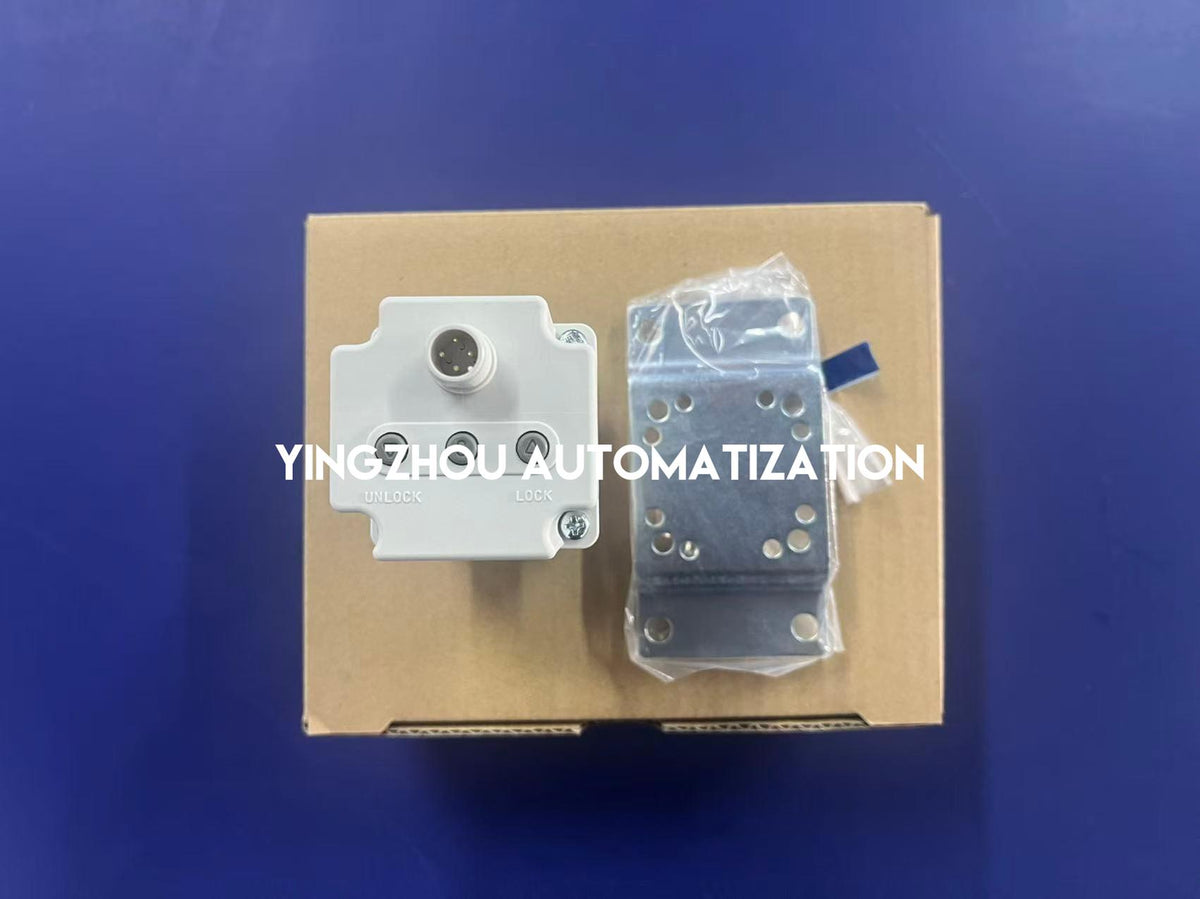

✓ Mounting plate shown separately in the supplied photographs
✓ Manufacturer configuration confirms 0–10 VDC input and 1–5 VDC analog monitor output
✓ Mounting plate included; cable connector not included
✓ Verify power supply, control signal and vacuum piping requirements before ordering
In Stock & Available to Order
SMC ITV2090-31F2BN5 is marked IN STOCK based on the supplied inventory information. Actual product and packaging photographs are available for exact model identification. This configuration includes a mounting plate but does not include a cable connector. Please confirm your 24 VDC power supply, 0–10 VDC control signal, vacuum pressure requirements and G1/4 piping connections before completing your order.
IN STOCK
SMC ITV2090-31F2BN5 Electronic Vacuum Regulator
Contact us for exact-model confirmation, multiple quantities and project sourcing. Please confirm your input signal, power supply, vacuum range and cable requirements.
