SMC ASV510F-03-10S ASV Series R3/8 10mm Speed Exhaust Controller

Name: SMC ASV510F-03-10S ASV Series R3/8 10mm Speed Exhaust Controller
Brand: SMC
SKU: ASV510F-03-10S
Price: 11.99 USD
Availability: InStock

SMC ASV510F-03-10S ASV Series R3/8 10mm Speed Exhaust Controller

$11.99 USD

In offerta Esaurito

Model Number ASV510F-03-10S

Varianti di prodotto

Quantità

YingZhou Industrial Automation | Product Information

SMC ASV510F-03-10S ASV Series Speed Exhaust Controller

R3/8 Port | 10mm Tube | Tee Type | Quick Exhaust | 3/8 Standard

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Exact Model Verified

Specification	Verified Product Data
Manufacturer	SMC Corporation
Catalog Number	ASV510F-03-10S
Product Series	ASV Series
Product Type	Speed Exhaust Controller
Body Size	3/8 Standard
Valve Configuration	Tee Type
Fitting Type	One-touch Fitting
Port Size	R3/8
Applicable Tubing O.D.	10 mm
Seal	With Seal
Lock Nut	Hexagon Lock Nut (Standard)
Option	None
Working Fluid	Air
Proof Pressure	1.5 MPa
Maximum Operating Pressure	1.0 MPa
Minimum Operating Pressure	0.1 MPa
Ambient / Fluid Temperature	-5 to 60°C (No Freezing)
Applicable Tubing Material	Nylon / Soft Nylon / Polyurethane
Silencer	Installed
Body Material	PBT
Flame Resistance	UL Standard V-0
Brass Parts	Electroless Nickel Plated

Product Overview

The SMC ASV510F-03-10S is an ASV Series Speed Exhaust Controller designed for pneumatic cylinder speed control. It integrates a quick exhaust valve and an exhaust restrictor into one component, supporting high-speed cylinder operation. This model features a 3/8 standard body, R3/8 threaded port and 10mm one-touch tubing connection. Its tee-type configuration provides integrated pneumatic exhaust control. The controller operates with compressed air and has a specified maximum operating pressure of 1.0 MPa, a proof pressure of 1.5 MPa and an operating temperature range of -5 to 60°C without freezing. The ASV510F series features a flame-resistant resin body, an installed silencer and electroless nickel-plated brass parts.

Key Product Features

Integrated Quick Exhaust Design — Combines a quick exhaust valve and an exhaust restrictor.
3/8 Standard Body — SMC ASV510F configuration with an R3/8 threaded port.
10mm One-touch Tubing Connection — Designed for 10mm outside-diameter pneumatic tubing.
Tee-Type Configuration — Manufacturer-specified pneumatic connection arrangement.
1.0 MPa Maximum Operating Pressure — With a 1.5 MPa proof pressure.
High-Speed Cylinder Operation — Integrated exhaust control supports faster pneumatic cylinder operation.
Flame-Resistant PBT Body — ASV510F series flame-resistant resin body conforming to UL V-0.

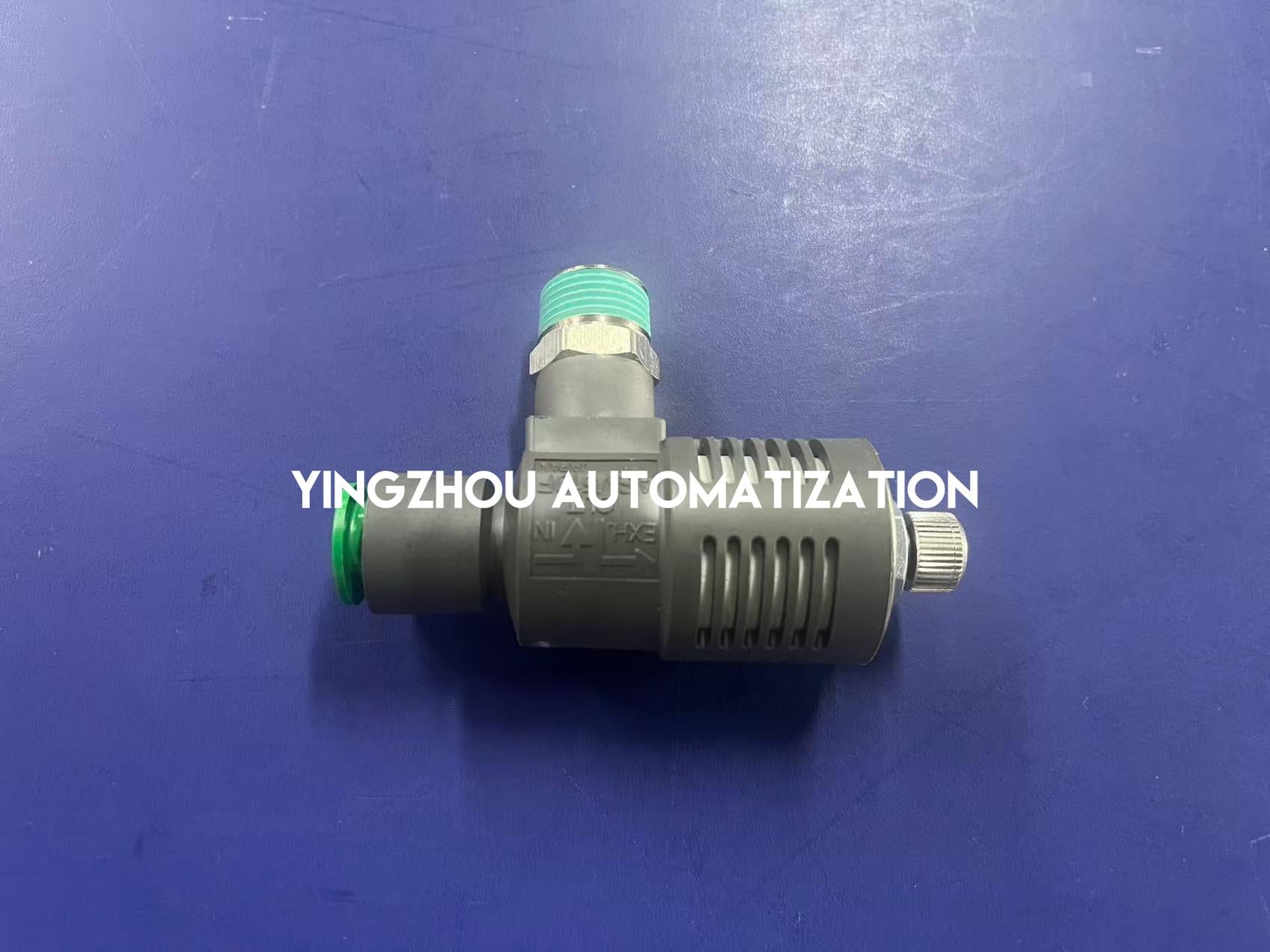

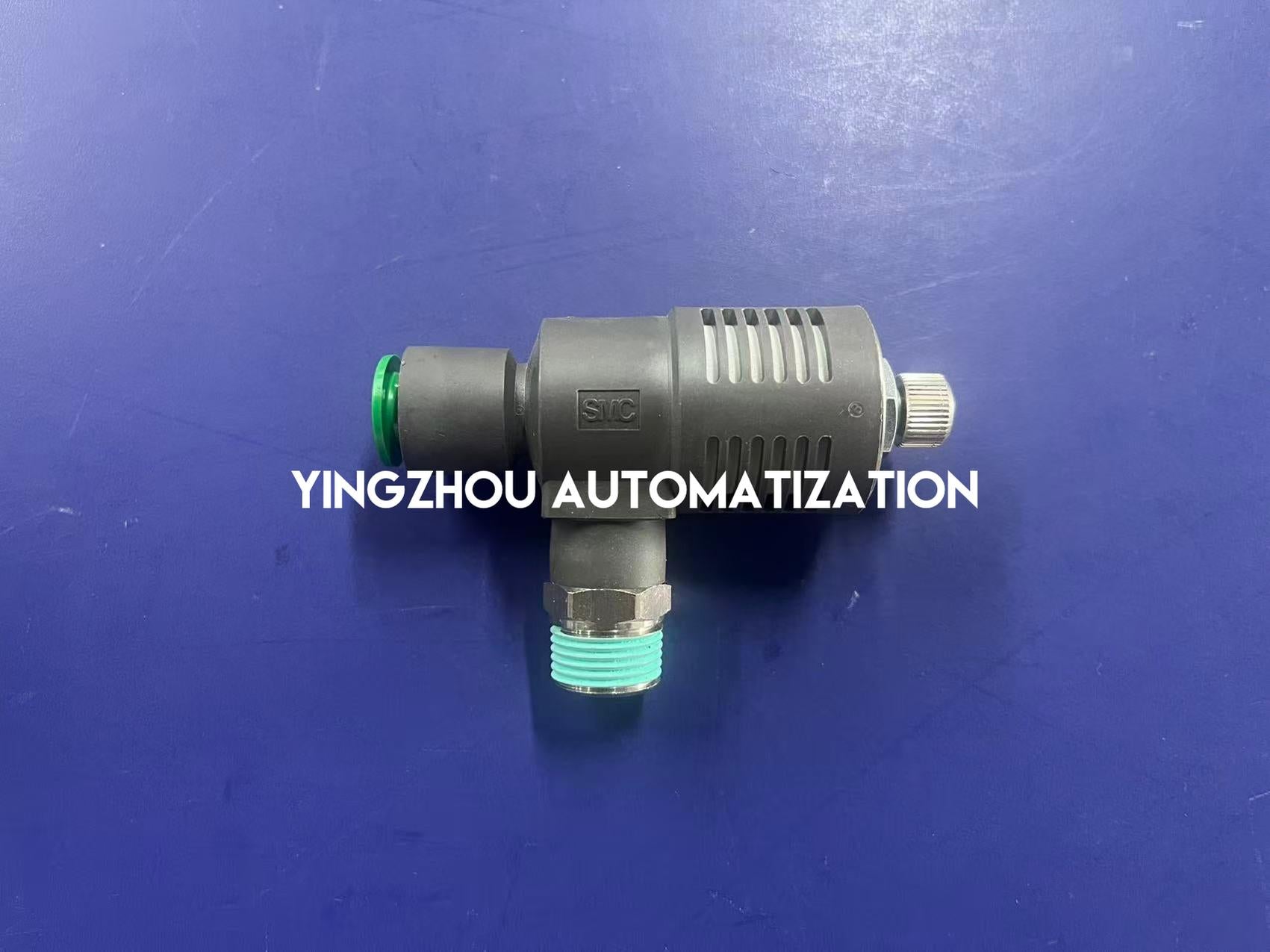

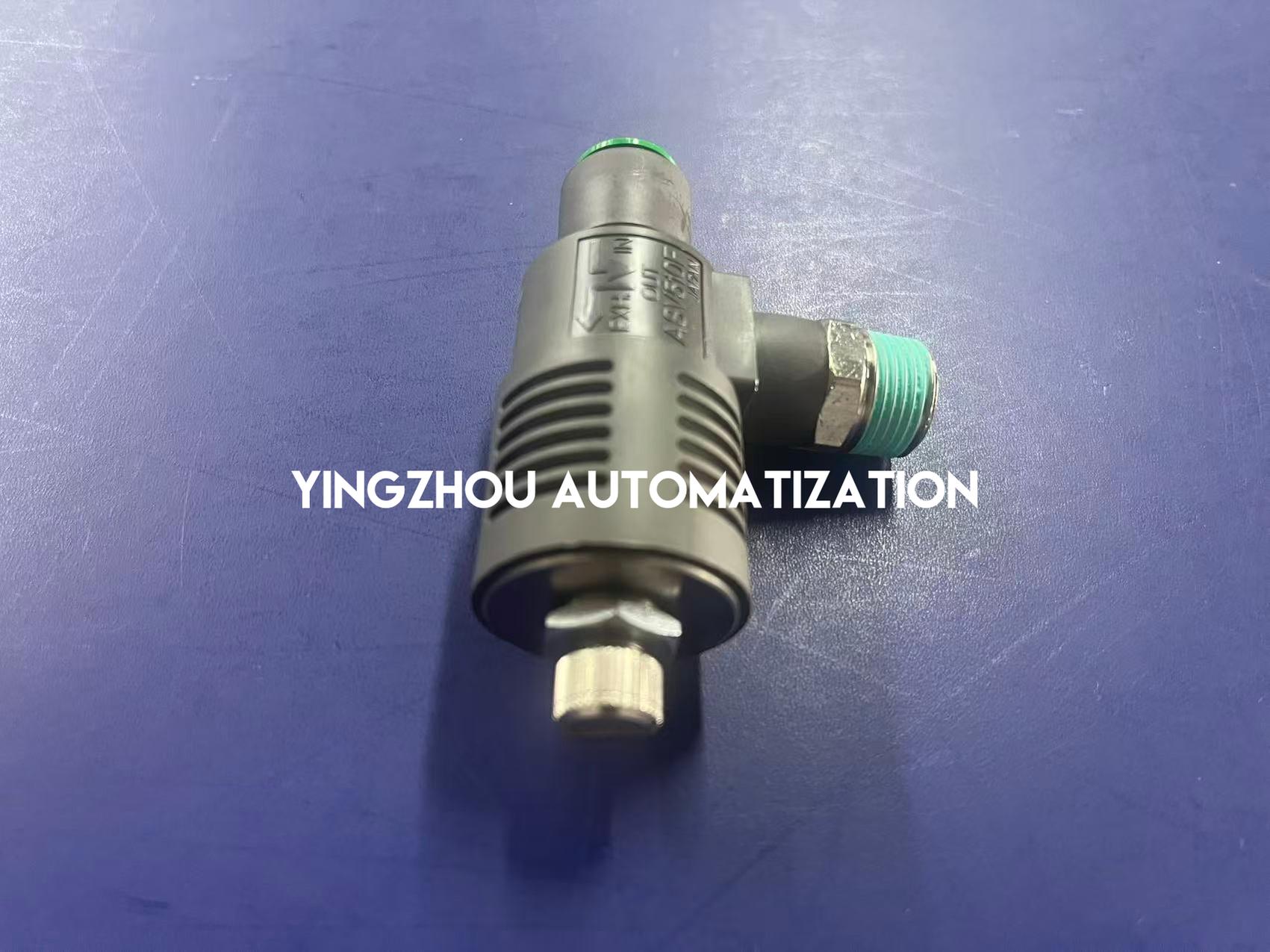

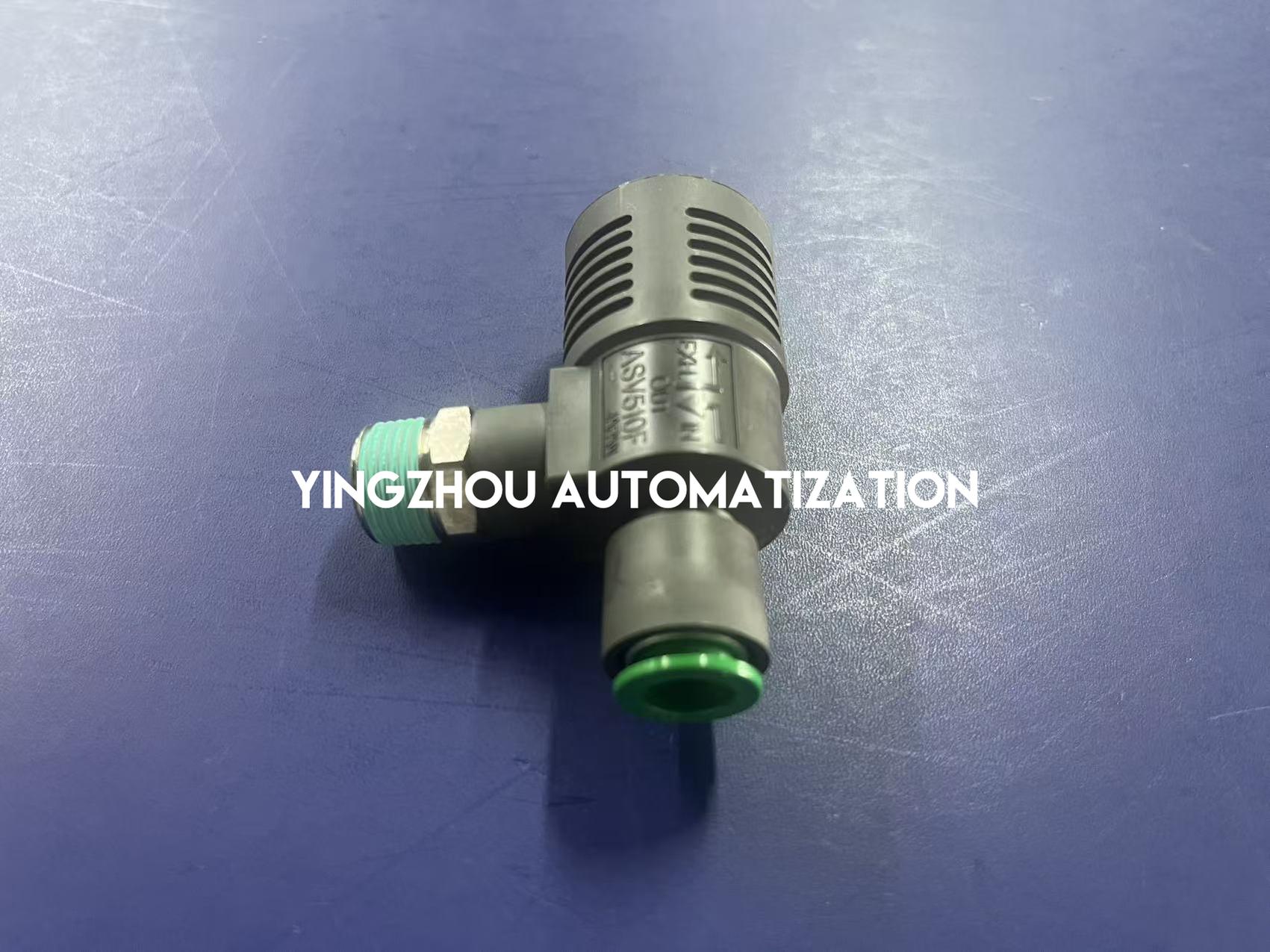

Actual Product Verification

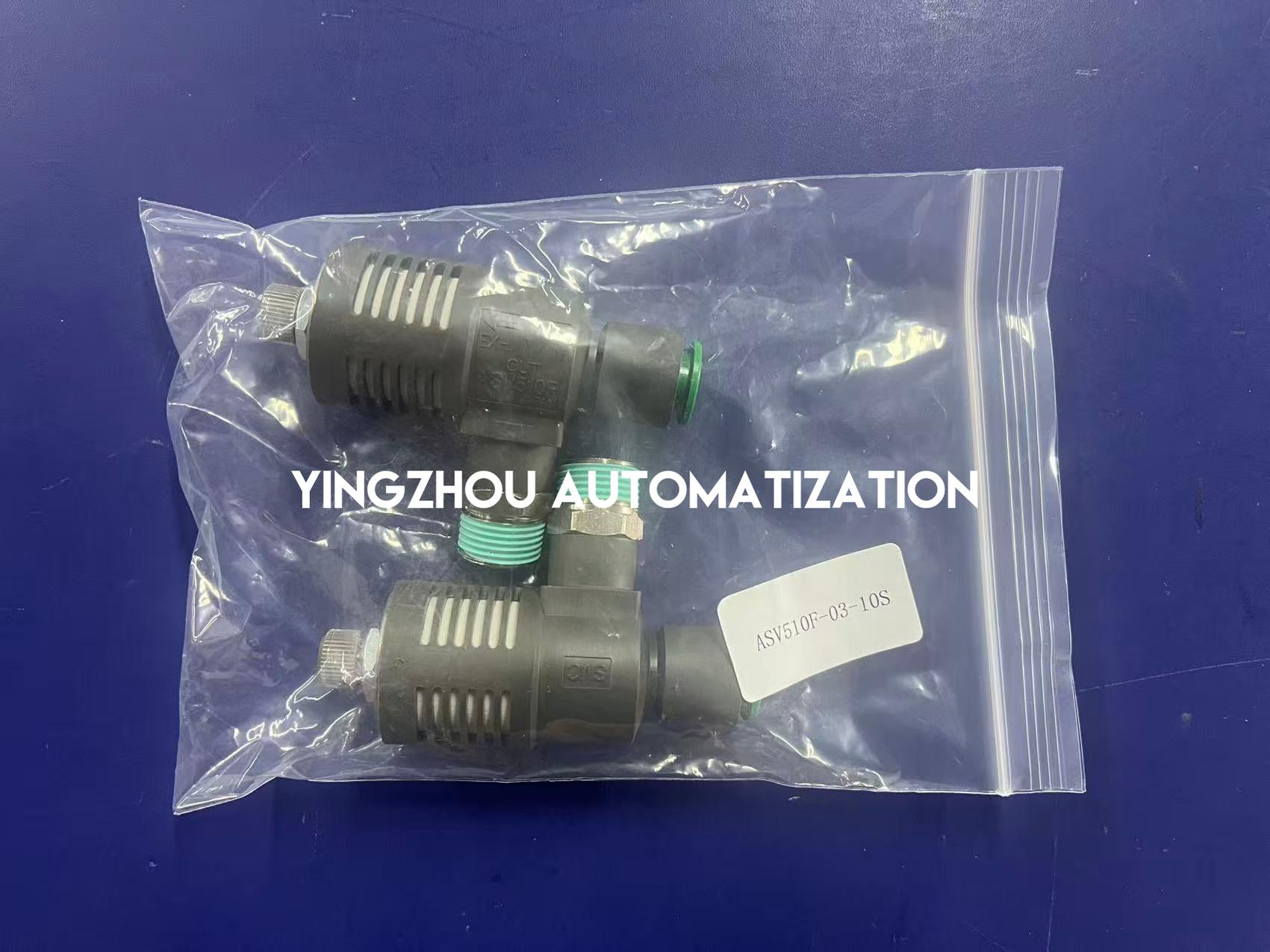

✓ Actual product and packaging-bag photographs supplied

✓ Packaging label identifies ASV510F-03-10S

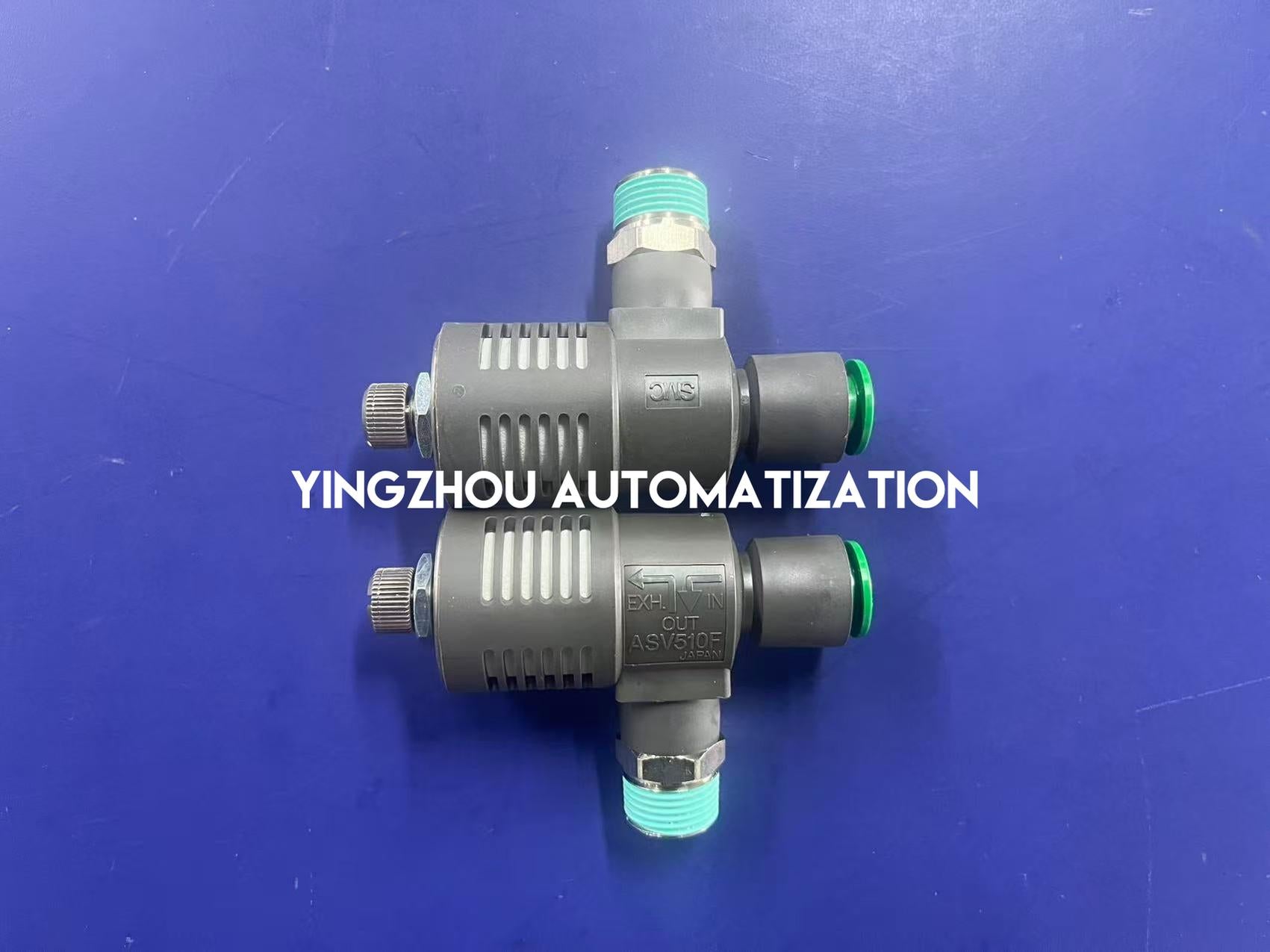

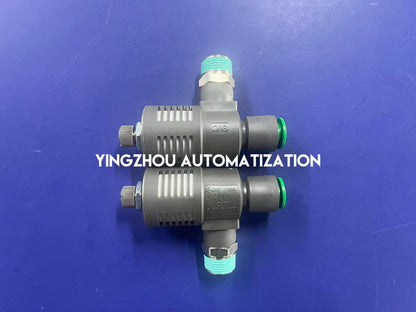

✓ Two physical units visible in the supplied photograph

✓ Product appearance shown for buyer verification

✓ Model label matches the requested catalog number

✓ Product nameplate is not separately visible in the supplied photograph

✓ Inventory quantity: 8 units, based on supplied inventory information

In Stock & Available to Order

SMC ASV510F-03-10S is marked in stock with 8 units available based on the supplied inventory information. This ASV Series speed exhaust controller features an R3/8 port, a 10mm tubing connection and an integrated quick exhaust and exhaust throttling design. Actual product and packaging-bag photographs are available for model identification. Contact YingZhou for quantity requirements, bulk purchasing and multi-brand industrial automation sourcing.
