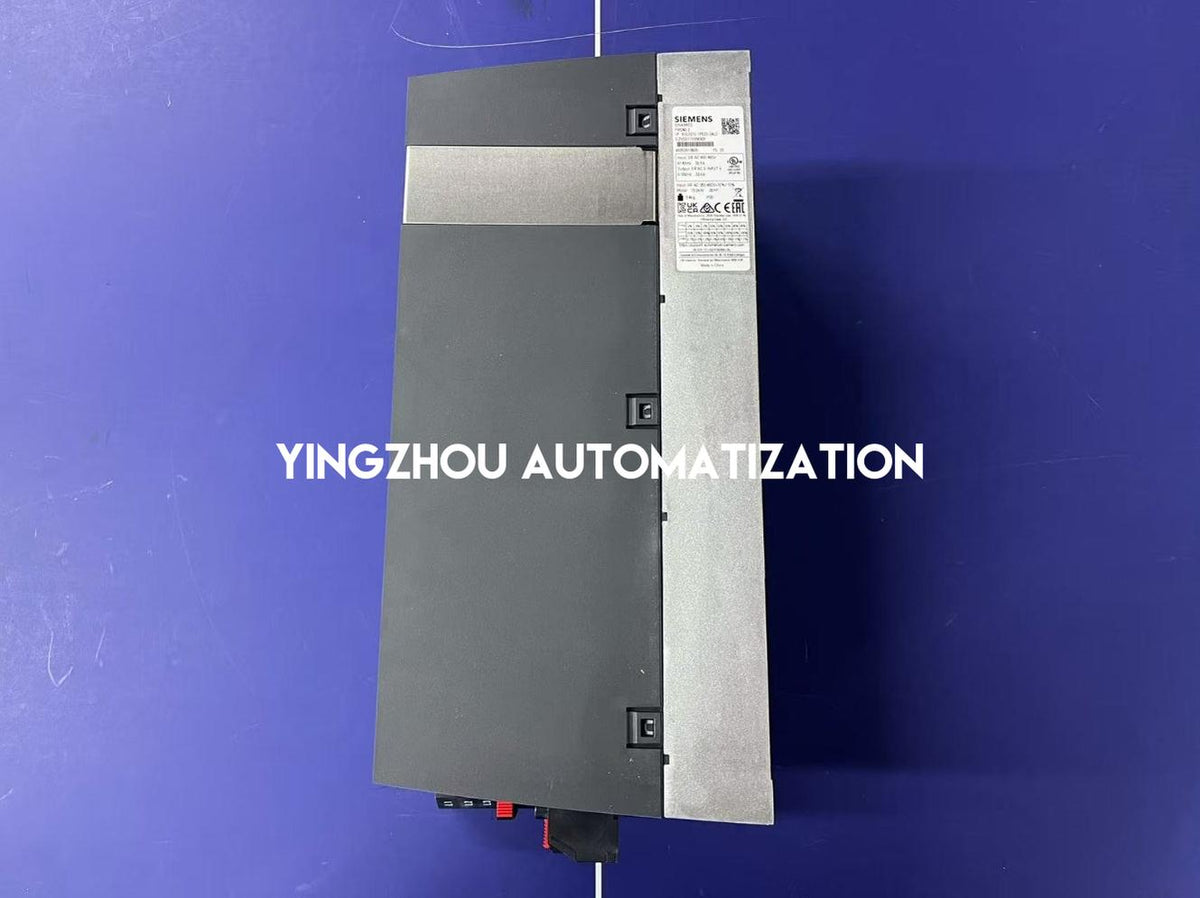

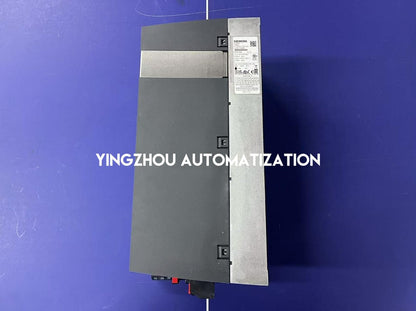

Siemens 6SL3210-1PE23-3AL0 SINAMICS PM240-2 15kW Power Module

Siemens 6SL3210-1PE23-3AL0 SINAMICS PM240-2 15kW Power Module

$1,014.99 USD
$1,014.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6SL3210-1PE23-3AL0 SINAMICS PM240-2 Power Module

15kW / 20HP | 3-Phase 380-480V AC | 32A | Class A Filter
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Nameplate Model Verified
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 6SL3210-1PE23-3AL0
Product Family SINAMICS G120
Product Designation SINAMICS PM240-2
Product Type AC Drive Power Module
Rated Input Phases 3-Phase AC
Rated Input Voltage 380-480V AC ±10%
Input Frequency 47-63 Hz
Rated Input Current - LO 39.9 A
Rated Input Current - HO 36 A
Motor Power - Low Overload 15 kW / 20 HP
Motor Power - High Overload 11 kW
Output Current - LO 32 A
Output Current - HO 26 A
Output Frequency (Nameplate) 0-550 Hz
Low Overload Profile 150% for 3 s, 110% for 57 s
High Overload Profile 200% for 3 s, 150% for 57 s
Integrated Line Filter Class A
Braking Chopper Integrated
Frame Size FSC
Degree of Protection IP20
Operating Temperature - LO -10 to +40°C
Operating Temperature - HO -10 to +50°C
Cooling Method Internal Air Cooling
Dimensions (H x W x D) 355 x 140 x 165 mm
Manufacturer Net Weight 5.4 kg
Efficiency Class IE2
Control Unit Included No
Operator Panel Included No
Country of Origin (Actual Unit) Made in China
Manufacturer Lifecycle PM300 - Active Product

Product Overview

The Siemens 6SL3210-1PE23-3AL0 is a SINAMICS PM240-2 power module for compatible SINAMICS G120 variable frequency drive configurations. Designed for three-phase 380-480V AC power supplies, it provides a rated motor power of 15 kW / 20 HP under low-overload duty and 11 kW under high-overload duty. Rated output current is 32 A for low-overload operation and 26 A for high-overload operation. The module features a built-in Class A line filter and an integrated braking chopper. Its FSC frame has IP20 protection and internal air cooling. The manufacturer specifies an operating temperature range of -10°C to +40°C for low-overload duty and -10°C to +50°C for high-overload duty. This product is a power module only; the control unit and operator panel are not included. Actual Siemens product nameplate and packaging photographs both show the catalog number 6SL3210-1PE23-3AL0. Customers should verify motor ratings, overload requirements, compatible control units and accessories before ordering.

Key Product Features

  • SINAMICS PM240-2 Power Module — Siemens power module for compatible SINAMICS G120 drive systems.
  • 15kW / 20HP Low-Overload Rating — Rated motor power under the specified low-overload duty profile.
  • 11kW High-Overload Rating — Separate high-overload motor power rating for applicable load conditions.
  • 3-Phase 380-480V AC — Three-phase supply with ±10% voltage tolerance.
  • 32A Output Current — Low-overload current rating, with 26A in high-overload duty.
  • Integrated Class A Filter — Built-in line filter for the specified power module configuration.
  • Integrated Braking Chopper — Supports compatible external braking-resistor arrangements.
  • FSC Frame with IP20 Protection — Internal air cooling; control unit and operator panel sold separately.

Actual Product Verification

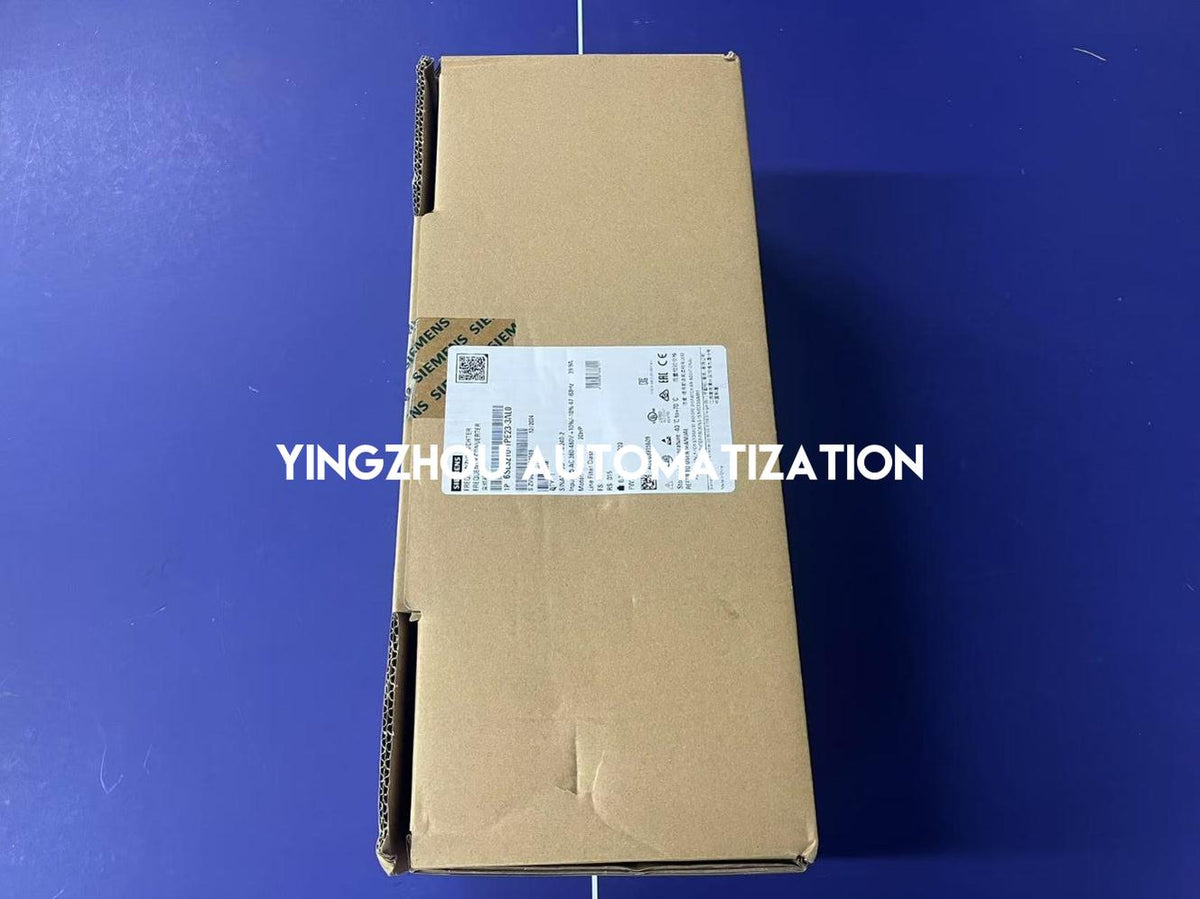

✓ Actual Siemens Power Module nameplate and carton photographs supplied

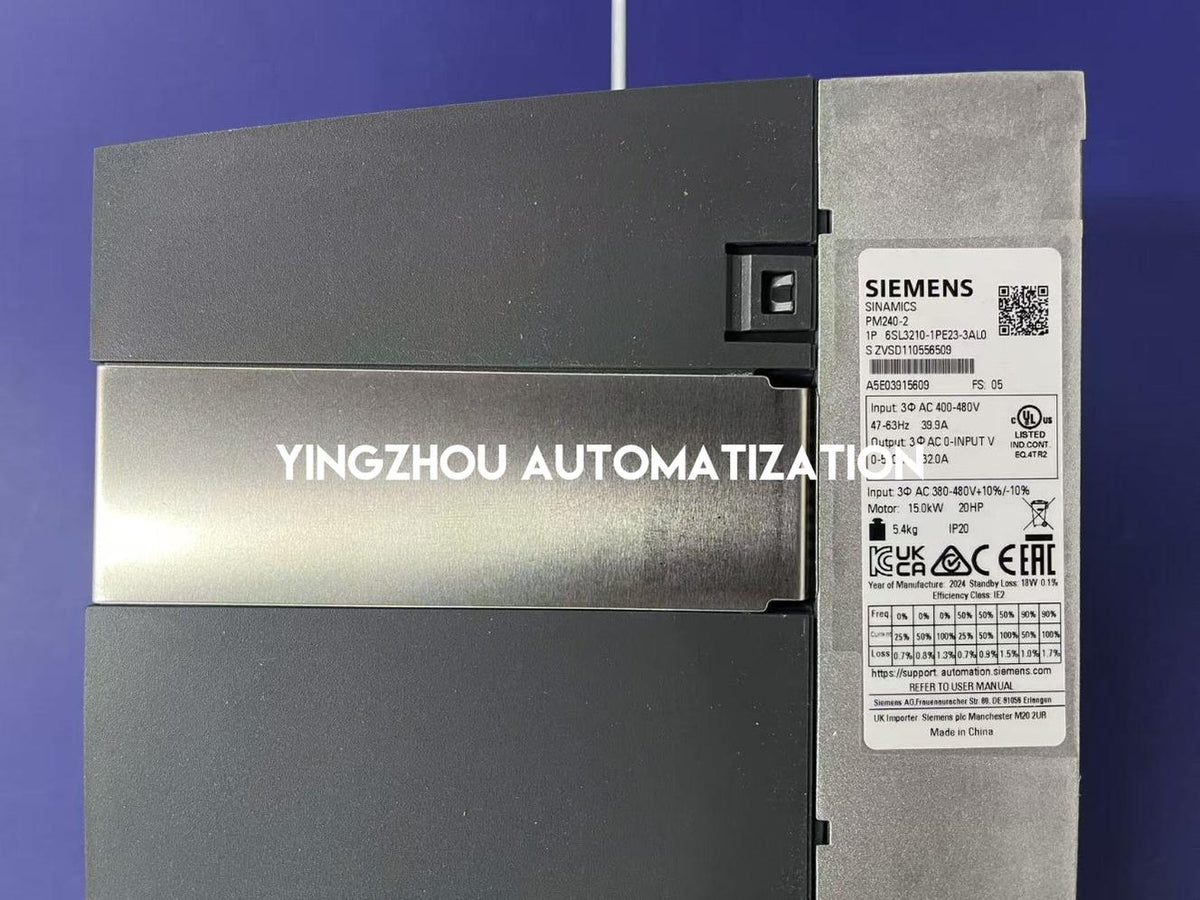

✓ Module nameplate catalog number: 6SL3210-1PE23-3AL0

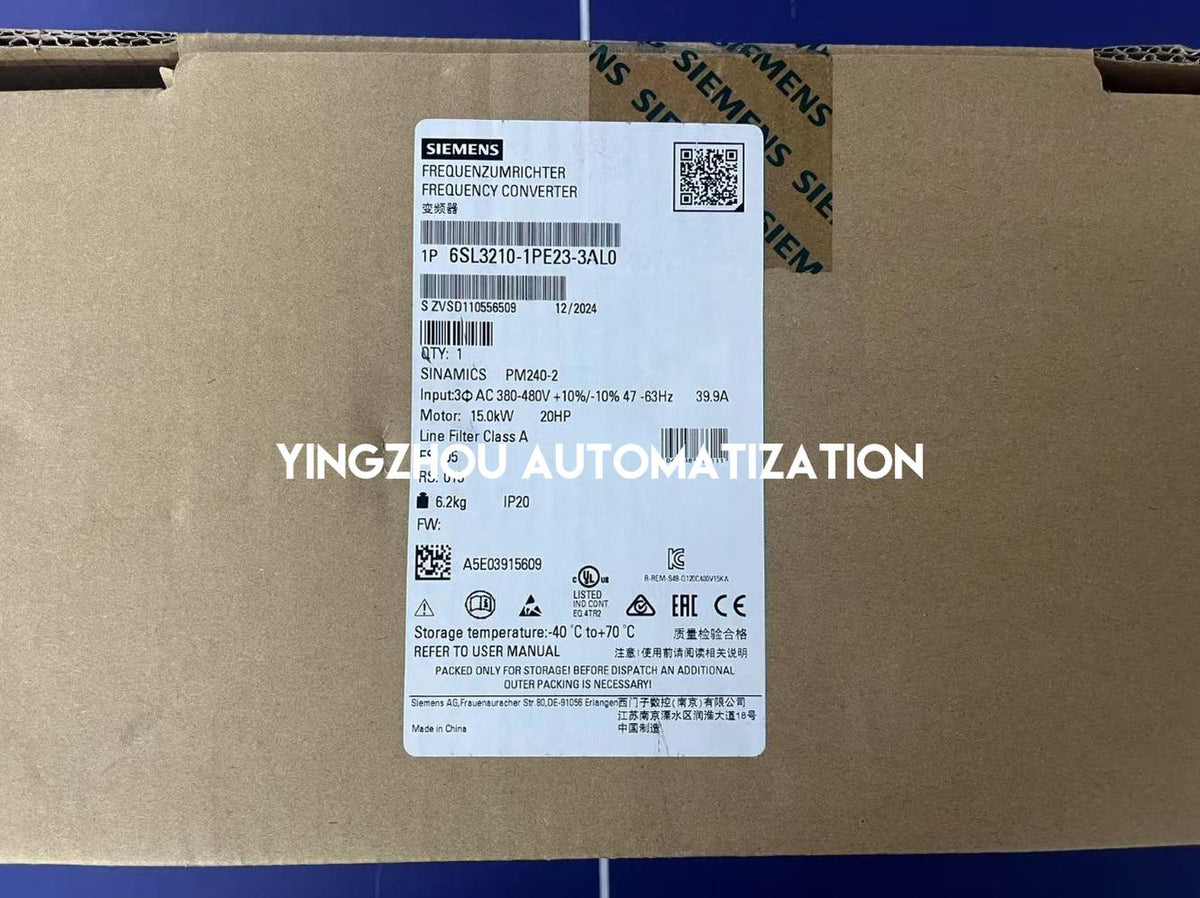

✓ Packaging catalog number: 6SL3210-1PE23-3AL0
✓ Both labels identify SINAMICS PM240-2
✓ Input confirmed: 3 AC 380-480V ±10%, 47-63Hz
✓ Motor rating shown: 15.0kW / 20HP
✓ Rated output current shown: 32.0A
✓ Hardware functional status: FS 05
✓ Actual unit marked Made in China and IP20
✓ Confirm compatible control unit, operator panel and braking accessories before ordering

In Stock & Available to Order

Siemens 6SL3210-1PE23-3AL0 is marked in stock based on the supplied inventory information. Actual Siemens module and carton photographs show a matching catalog number and the SINAMICS PM240-2 designation. This power module is available for industrial maintenance, machine drive replacement and automation procurement. Please confirm the required quantity, three-phase 380-480V supply, 15kW low-overload or 11kW high-overload duty rating, compatible control unit and dispatch arrangements before completing an order. The control unit, operator panel and optional accessories are not included in the manufacturer-specified power module configuration.

IN STOCK

Siemens 6SL3210-1PE23-3AL0

Contact us for exact-model verification, multiple units and industrial drive sourcing. Please confirm your 380-480V three-phase power supply, motor rating, overload duty, control unit and installation requirements before ordering.
