Siemens 6SL3130-7TE23-6AA3 SINAMICS S120 36kW Active Line Module 380-480V

Siemens 6SL3130-7TE23-6AA3 SINAMICS S120 36kW Active Line Module 380-480V

$2,785.99 USD
$2,785.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6SL3130-7TE23-6AA3 SINAMICS S120 Active Line Module

36kW Rated Infeed | 3AC 380–480V | 600V DC / 60A | Booksize
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Packaging
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 6SL3130-7TE23-6AA3
Product Series SINAMICS S120
Product Type Active Line Module
Construction Booksize
Cooling Method Internal Air Cooling
Input Phases 3-Phase AC
Nominal Input Voltage 380–480V AC
Operating Line Voltage 342–528V AC
Input Frequency 47–63Hz
Rated Infeed Power 36kW
S6 Infeed Power 47kW
Maximum Infeed Power 70kW
Rated Regenerative Feedback Power 36kW
Maximum Regenerative Feedback Power 70kW
DC Link Voltage (380–400V Input) 600V DC, factory setting
DC Link Voltage (400–415V Input) 625V DC, factory setting
Rated DC Link Current 60A
S6 DC Link Current 79A
Maximum DC Link Current 117A
Input Current at 380V 58A
Input Current at 400V 55A
Input Current at 480V 46A
Electronics Supply 24V DC
Maximum Electronics Supply Current 1.5A
Short-Circuit Strength 65kA, subject to specified protection conditions
Overvoltage Category Class III
Line-Side Connection M6 Bolt (X1)
Conductor Cross-Section 2.5–50mm²
PE Connection M6 Screw

Product Overview

The Siemens 6SL3130-7TE23-6AA3 is a SINAMICS S120 Active Line Module designed for regenerative infeed operation in a SINAMICS S120 drive system. The module provides 36kW rated infeed power and 36kW rated regenerative feedback power. It operates with a three-phase 380–480V AC nominal line supply and provides a 60A rated DC link current. For a 380–400V AC line supply, the specified factory DC link voltage setting is 600V DC. The module features Siemens Booksize construction with internal air cooling and a separate 24V DC electronics supply. It is a regenerative line-side supply component and is not a standalone motor inverter. The supplied actual product photographs show the physical module and its Siemens packaging, with the catalog number 6SL3130-7TE23-6AA3 clearly identified on the carton. Please confirm the required Active Interface Module, system configuration, installation requirements and accessories before ordering.

Key Product Features

  • SINAMICS S120 Active Line Module — Regenerative infeed component for the Siemens S120 drive system.
  • 36kW Rated Infeed Power — Manufacturer-confirmed continuous infeed rating.
  • Regenerative Feedback Capability — 36kW rated regenerative feedback power.
  • Three-Phase 380–480V Input — Nominal line supply voltage for industrial applications.
  • 600V DC Link Factory Setting — Specified for 380–400V AC input conditions.
  • 60A Rated DC Link Current — Supports the manufacturer-specified S120 DC link ratings.
  • Booksize Construction — Siemens SINAMICS S120 mechanical design.
  • Internal Air Cooling — Manufacturer-specified cooling architecture.
  • 24V DC Electronics Supply — Separate control electronics supply.

Actual Product Verification

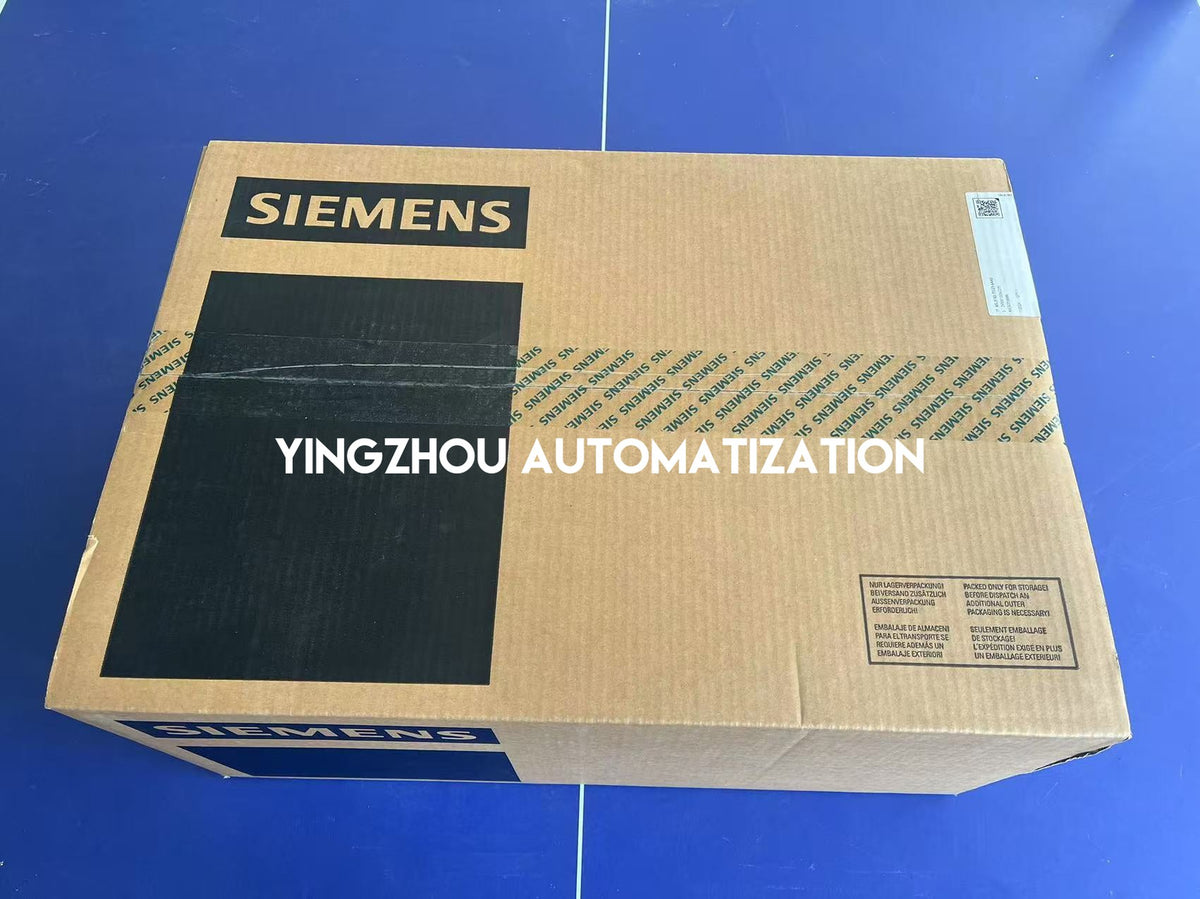

✓ Actual module and packaging photographs supplied

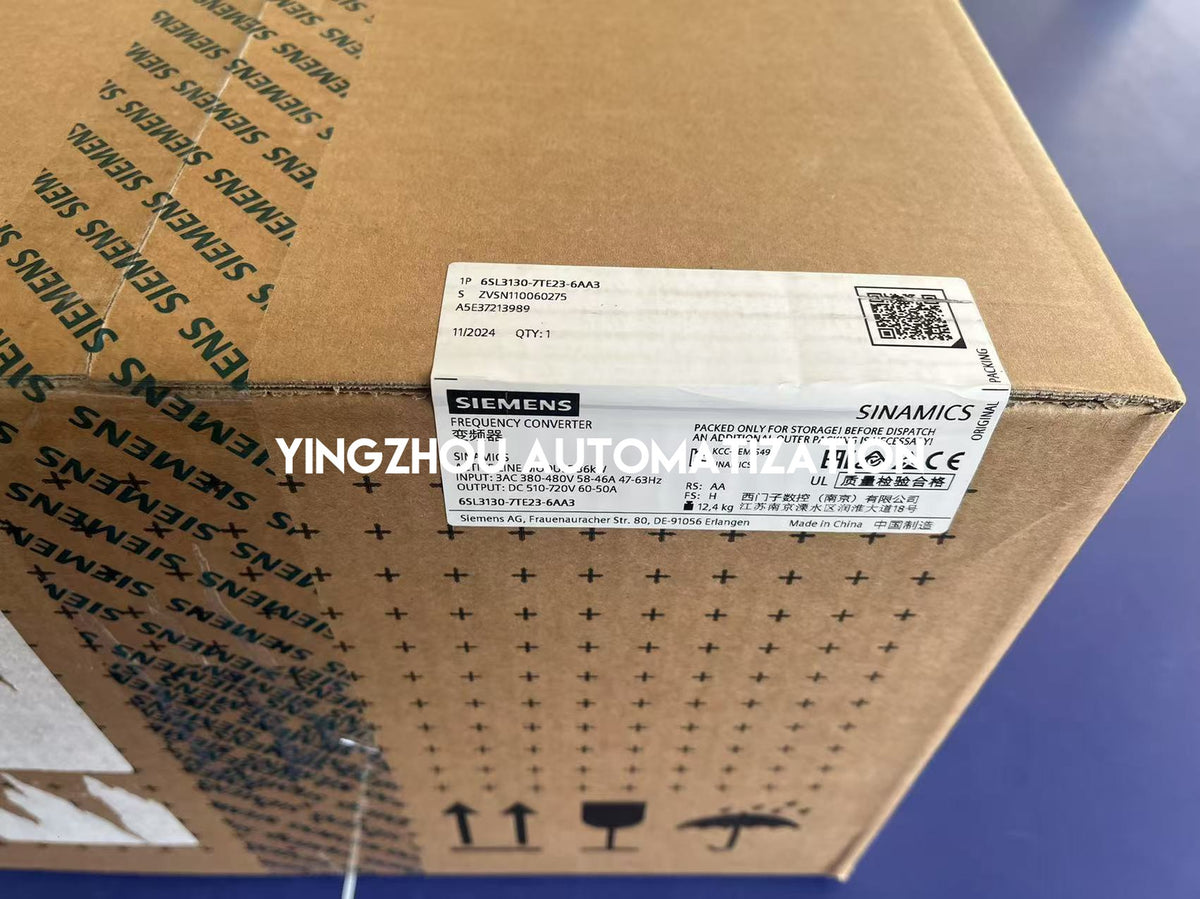

✓ Packaging catalog number: 6SL3130-7TE23-6AA3
✓ Packaging designation: SINAMICS Active Line Module 36kW
✓ Packaging input marking: 3AC 380–480V, 58–46A, 47–63Hz
✓ Packaging output marking: DC 510–720V, 60–50A
✓ Packaging functional status: FS H
✓ Packaging origin marking: Made in China
✓ Siemens carton model matches the ordered catalog number

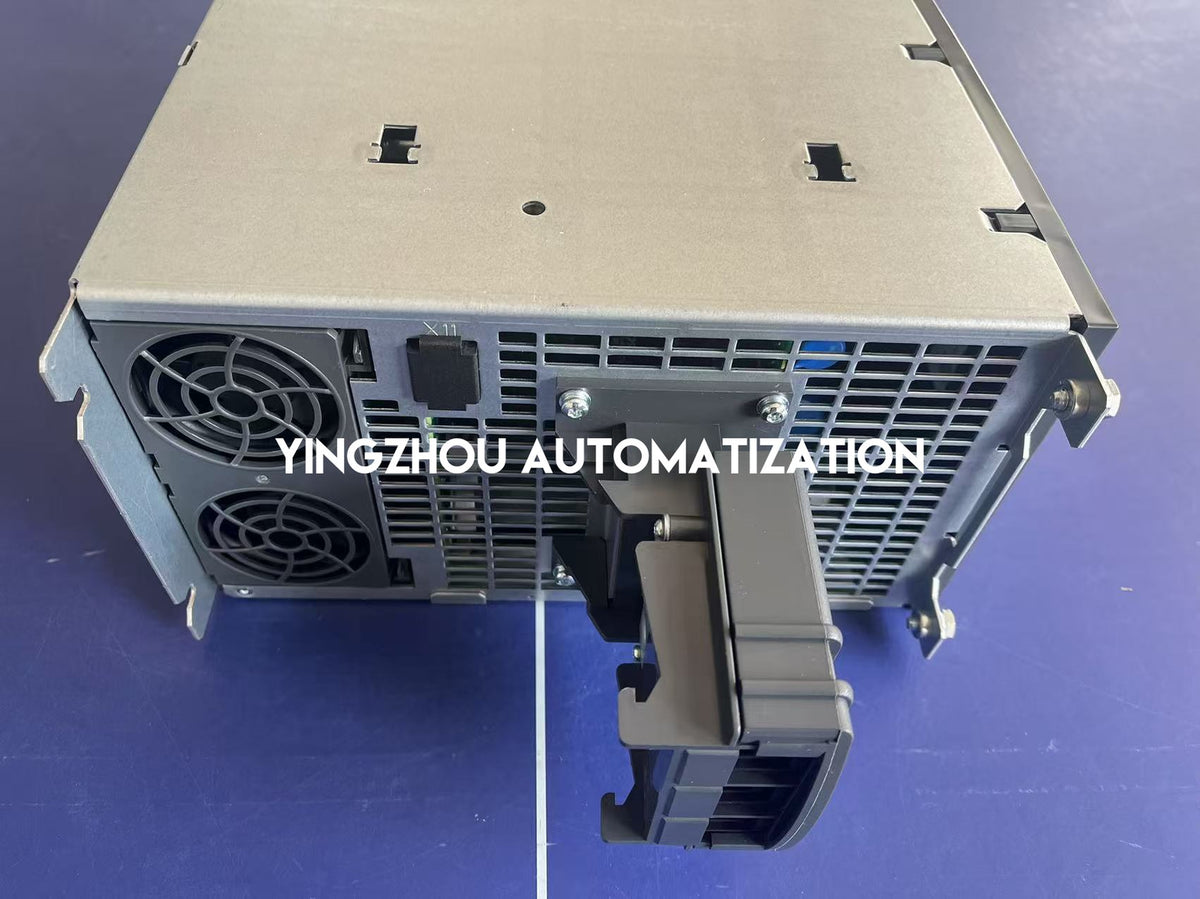

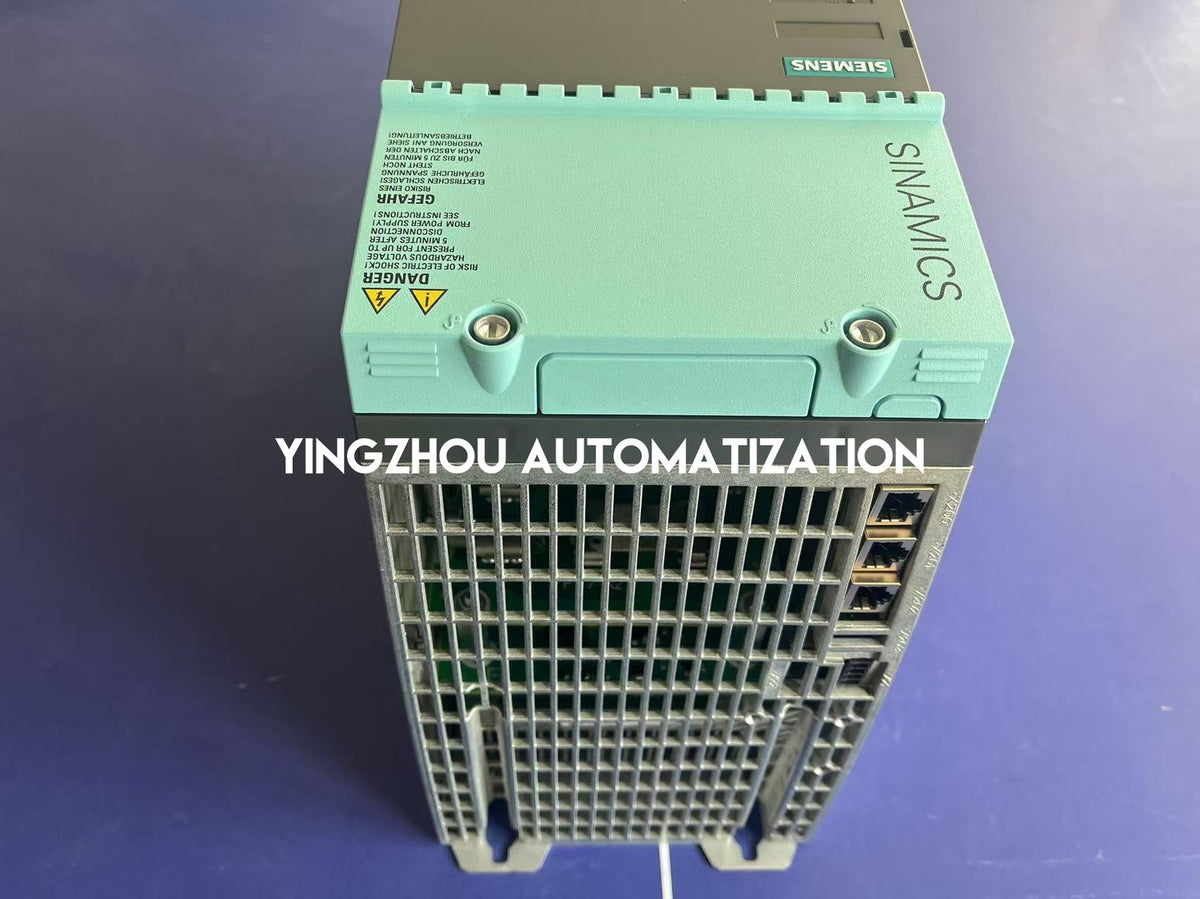

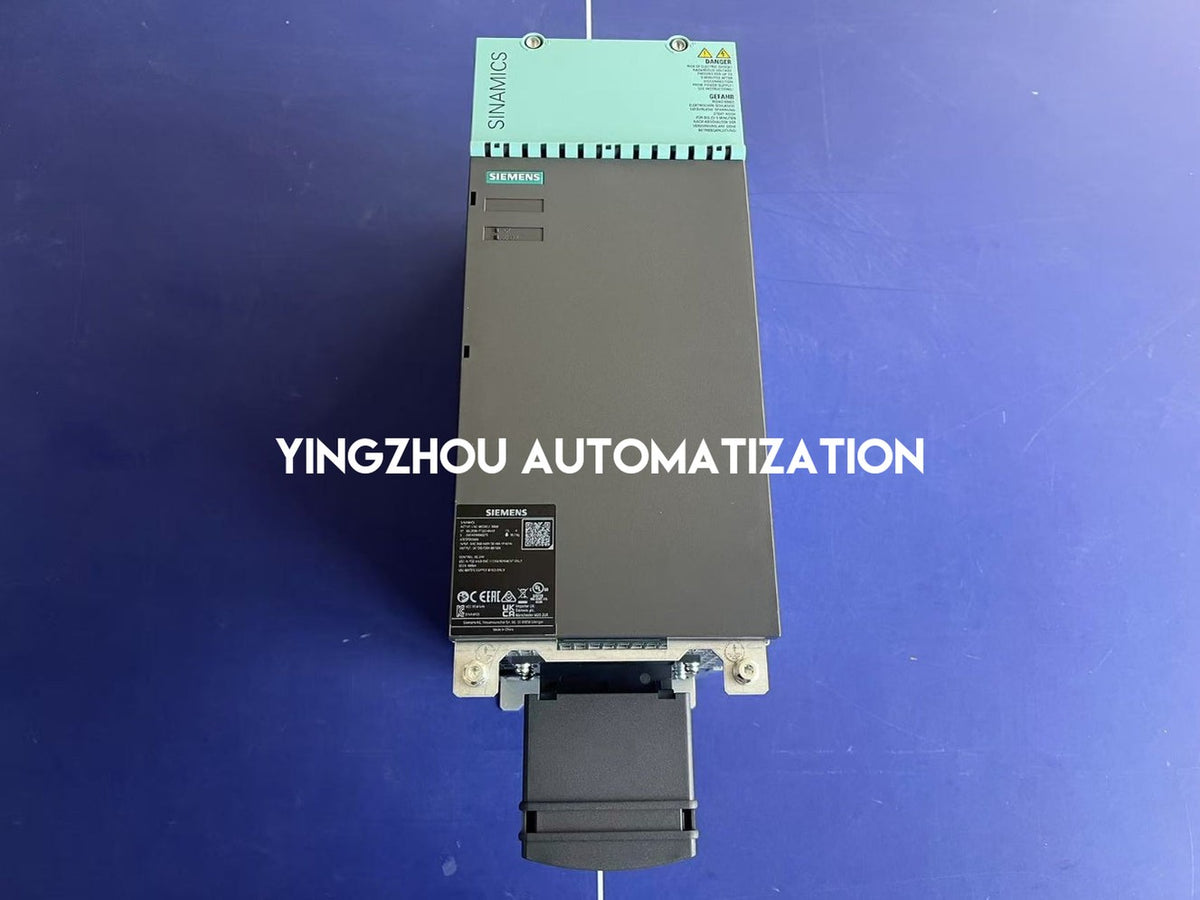

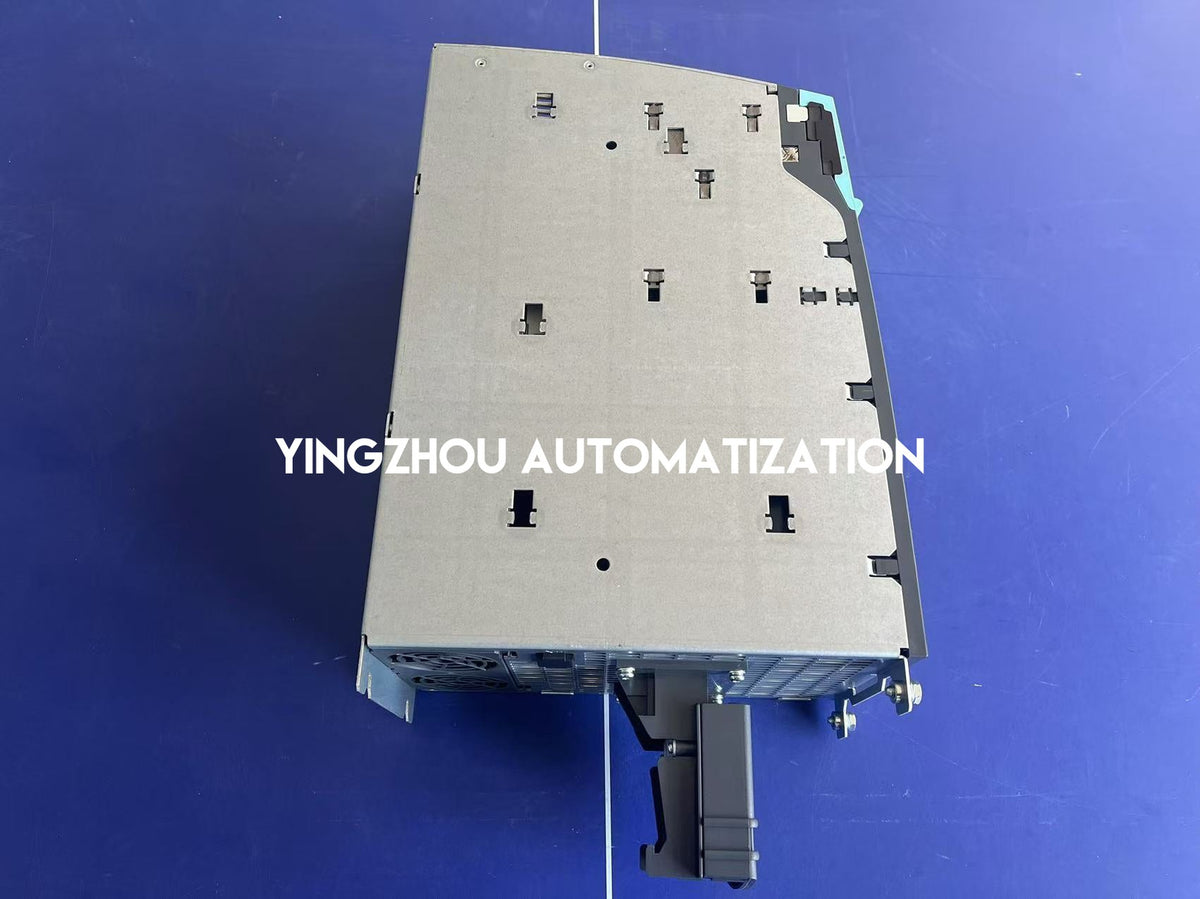

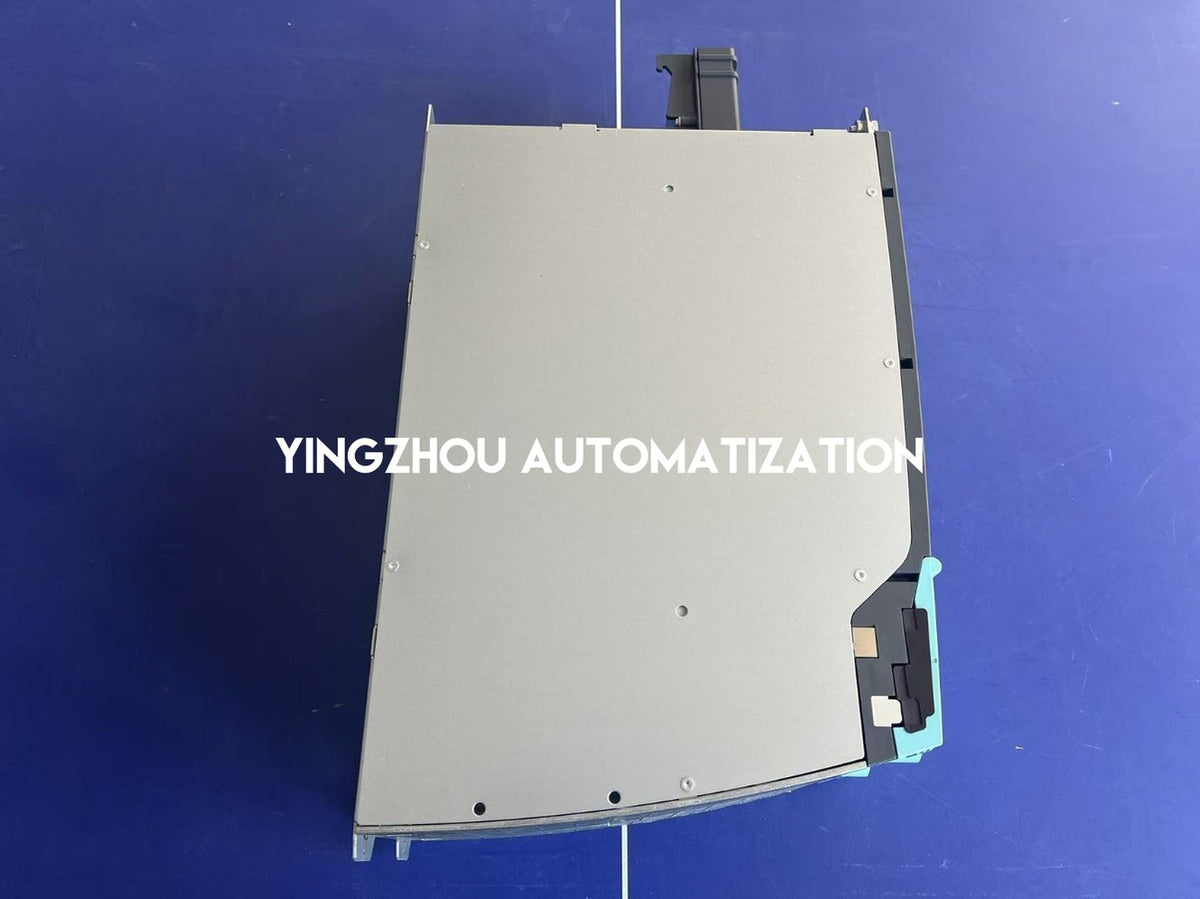

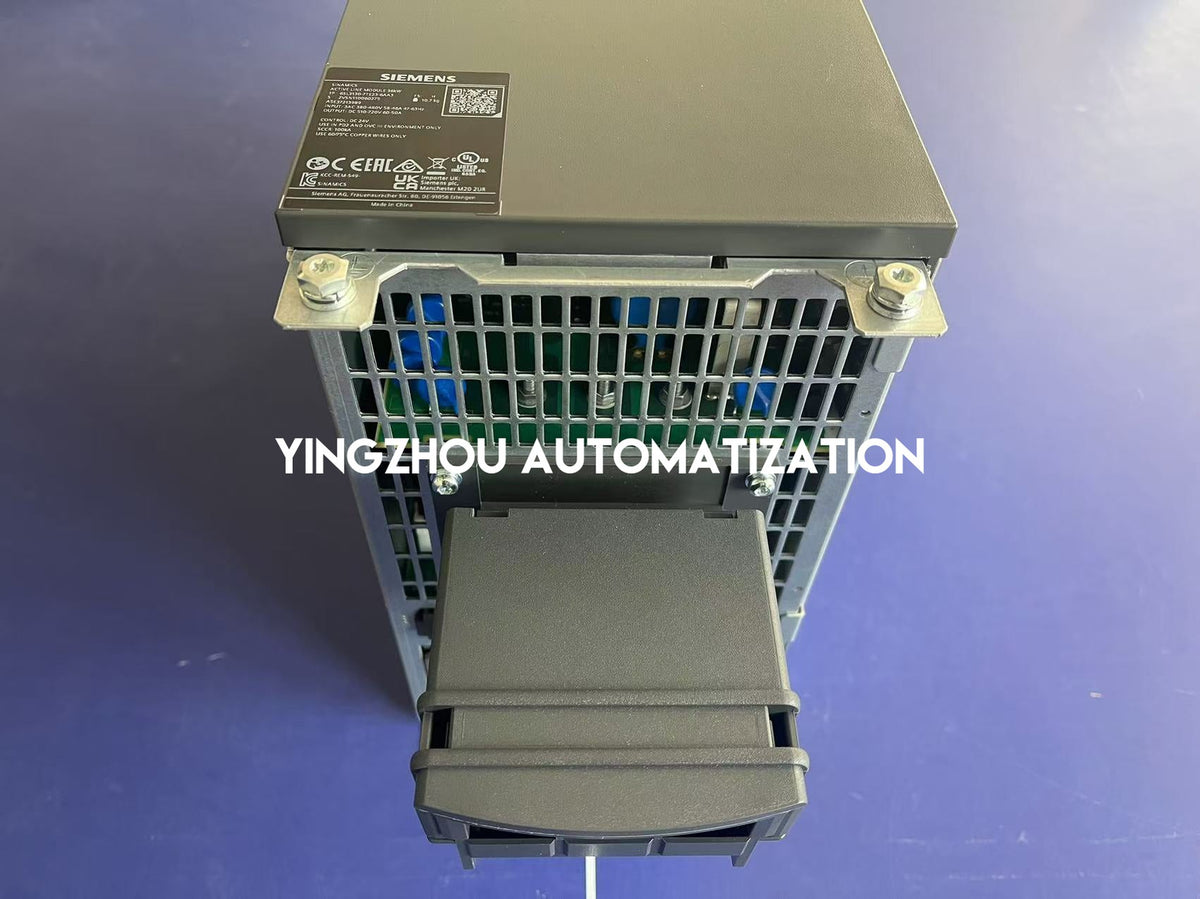

✓ Physical module shown in actual product photography
✓ Equipment nameplate and required accessories should be reconfirmed before dispatch

In Stock & Available to Order

Siemens 6SL3130-7TE23-6AA3 SINAMICS S120 36kW Active Line Module is marked in stock according to YINGZHOU inventory information. Actual product and packaging photographs are available for reference. The module is designed for three-phase 380–480V AC nominal input, with 36kW rated regenerative infeed capability and a 60A rated DC link current. Please confirm the required Active Interface Module, control supply, system compatibility, installation configuration, quantities and accessories before placing an order.

IN STOCK

Siemens 6SL3130-7TE23-6AA3

Contact YINGZHOU for exact-model quotations, multiple units, and SINAMICS S120 drive system sourcing. Please confirm your Active Line Module configuration, AC supply voltage, Active Interface Module requirements and related accessories before ordering.
