Siemens 6SL3100-0BE23-6AB0 SINAMICS S120 36kW Active Interface Module 380-480V

Siemens 6SL3100-0BE23-6AB0 SINAMICS S120 36kW Active Interface Module 380-480V

$1,499.99 USD
$1,499.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6SL3100-0BE23-6AB0 SINAMICS S120 Active Interface Module

36kW Active Line Module Class | 3AC 380–480V | 58A | Booksize
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Packaging and Nameplate
Specification Verified Product Data
Manufacturer Siemens AG
Catalog Number 6SL3100-0BE23-6AB0
Product Series SINAMICS S120
Product Type Active Interface Module
Active Line Module Power Class 36kW (40hp class)
Input Phases 3-Phase AC
Line Voltage 380–480V AC
Input Frequency (Nameplate) 47–63Hz
Rated Input Current 58A
Nameplate Input Current Range 58–46A over specified AC input range
Control Supply 24V DC
Maximum Control Supply Current 0.49A
Power Loss 0.340kW
Cooling Method Internal Air Cooling
Cooling Air Requirement 0.040m³/s
Sound Pressure Level 60dB at 1m
Protection Degree IP20 / UL Open Type
Construction Booksize
Line-Side Terminals Screw-Type Terminal
Line Conductor Cross-Section 50mm² (AWG 1)
PE Conductor Connection M6 Screw
Width 150mm
Height 380mm
Depth 270mm
Technical Datasheet Weight 19.0kg (Siemens technical datasheet; Siemens catalog lists 18.0kg)
Product Lifecycle PM300 — Active Product
Country of Origin Germany
EAN 4042948662946

Product Overview

The Siemens 6SL3100-0BE23-6AB0 is a SINAMICS S120 Active Interface Module designed for integration with the 36kW Active Line Module power class in the Siemens SINAMICS S120 drive system. The module is specified for three-phase 380–480V AC input with a 58A rated input current and a separate 24V DC electronics supply. It features a Booksize construction, internal air cooling and an IP20 / UL open-type enclosure. Siemens specifies 0.340kW power loss and a 0.040m³/s cooling airflow requirement. This unit is an Active Interface Module, not a standalone variable frequency drive or motor inverter. The supplied actual photographs show the carton and equipment nameplate with the matching full catalog number 6SL3100-0BE23-6AB0. Please verify system configuration, related Active Line Module, installation requirements and included accessories before ordering.

Key Product Features

  • SINAMICS S120 Interface Module — Siemens Active Interface Module for the SINAMICS S120 drive platform.
  • 36kW Active Line Module Class — Designed for the specified 36kW Active Line Module power class.
  • Three-Phase 380–480V Input — Manufacturer-verified three-phase line voltage range.
  • 58A Rated Input Current — Electrical rating verified in Siemens technical documentation.
  • Booksize Construction — Siemens booksize mechanical format for S120 system integration.
  • Internal Air Cooling — 0.040m³/s cooling airflow requirement.
  • IP20 / UL Open Type — Suitable for installation under applicable enclosure and environmental conditions.
  • 24V DC Control Supply — Separate supply for module electronics.
  • Active Product Lifecycle — Siemens PM300 product classification.

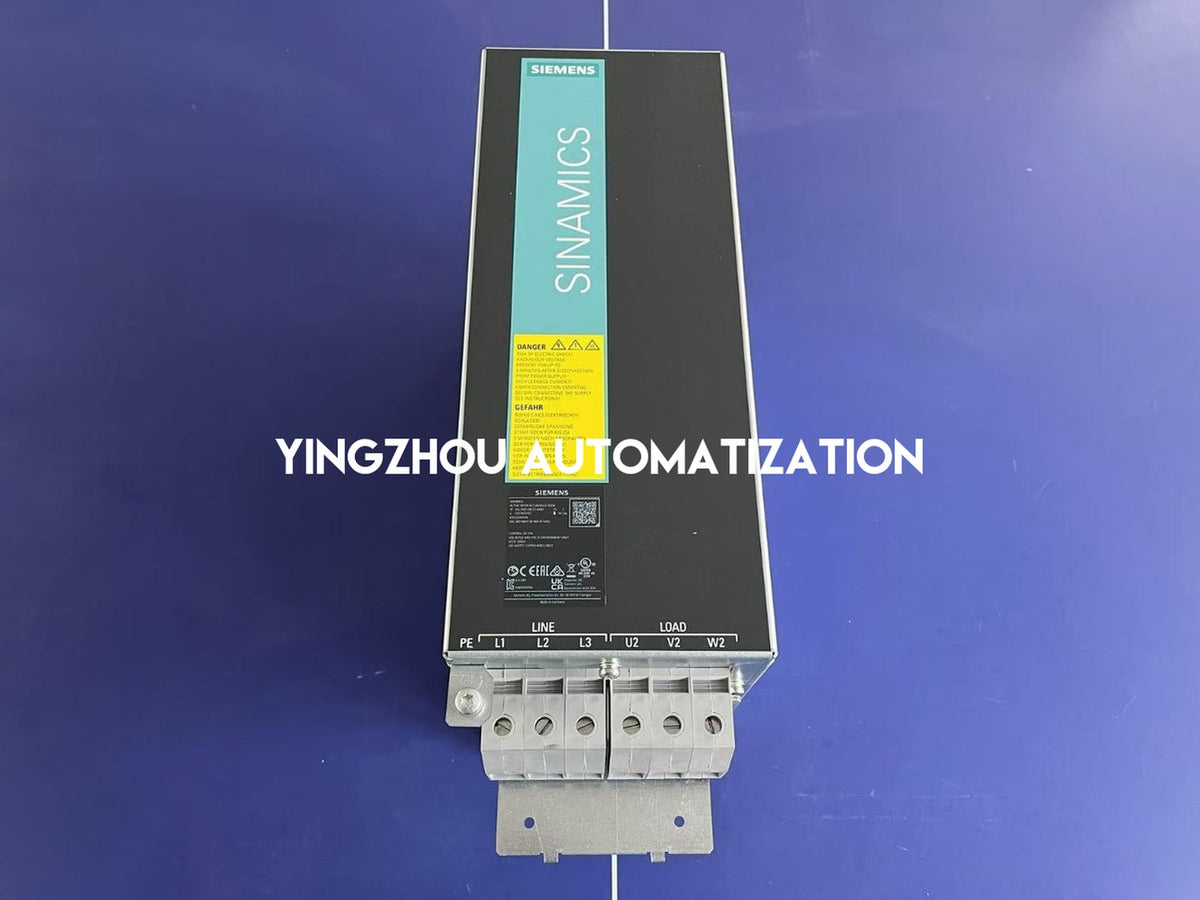

Actual Product Verification

✓ Actual product and carton photographs supplied

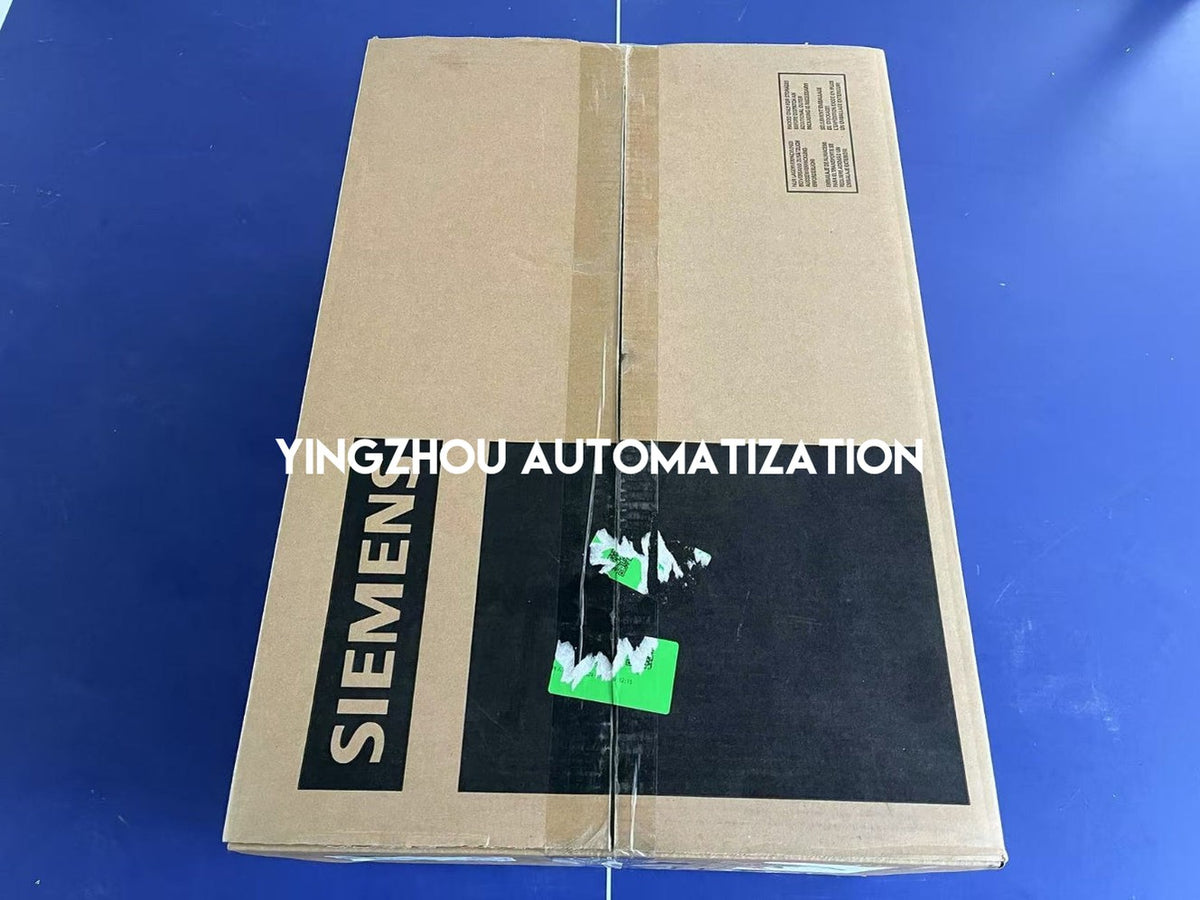

✓ Packaging catalog number: 6SL3100-0BE23-6AB0

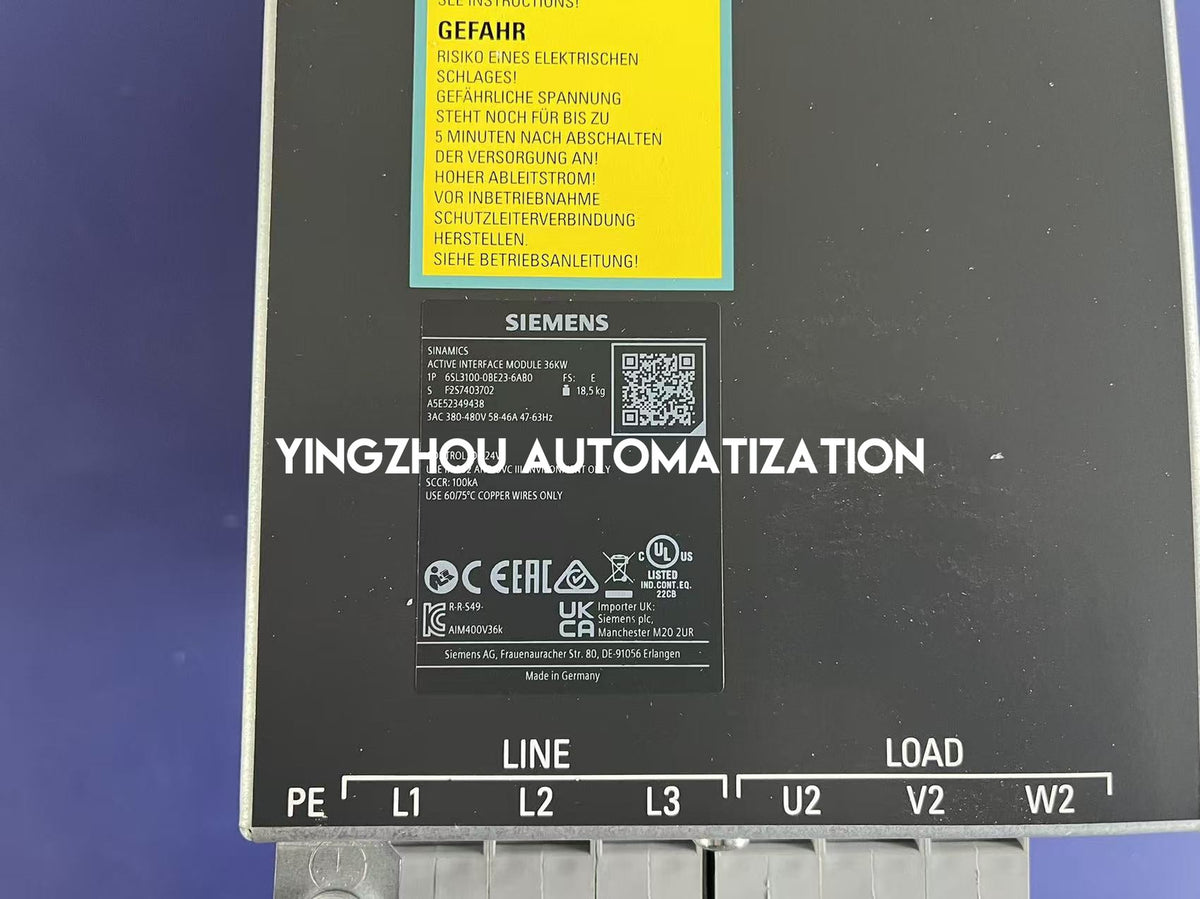

✓ Equipment nameplate catalog number: 6SL3100-0BE23-6AB0
✓ Product designation: SINAMICS Active Interface Module 36kW
✓ Equipment input marking: 3AC 380–480V, 58–46A, 47–63Hz
✓ Control voltage marking: DC 24V
✓ Functional status marking: FS E
✓ Origin marking: Made in Germany
✓ Packaging and equipment catalog numbers match
✓ Confirm complete accessories and installation configuration before ordering

In Stock & Available to Order

Siemens 6SL3100-0BE23-6AB0 SINAMICS S120 Active Interface Module is marked in stock according to YINGZHOU inventory information. Actual product and carton photographs show the matching catalog number. This interface module is designed for the 36kW SINAMICS S120 Active Line Module power class, with a three-phase 380–480V AC input and 58A rated input current. Please verify the required system configuration, associated Active Line Module, installation requirements, quantity and accessories before ordering.

IN STOCK

Siemens 6SL3100-0BE23-6AB0

Contact YINGZHOU for exact-model verification, multiple units and project sourcing. Confirm your SINAMICS S120 Active Line Module configuration, 380–480V input supply, electrical installation requirements and required accessories before ordering.

Request Bulk Pricing
