Siemens 6ES7233-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1233 4AI/4AO 14-Bit Analog I/O Module

Name: Siemens 6ES7233-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1233 4AI/4AO 14-Bit Analog I/O Module
Brand: SIEMENS
SKU: 6ES7233-4HF50-0XB0
Price: 344.99 USD
Availability: InStock

Siemens 6ES7233-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1233 4AI/4AO 14-Bit Analog I/O Module

$344.99 USD

In offerta Esaurito

Model Number 6ES7233-4HF50-0XB0

Varianti di prodotto

Quantità

YingZhou Industrial Automation | Product Information

Siemens 6ES7233-4HF50-0XB0 SIMATIC S7-1200 G2 Analog I/O Module

SM 1233 | 4 Analog Inputs | 4 Analog Outputs | 24 V DC

✓ IN STOCK & READY TO ORDER | Actual Packaging Photos | Model Label Verified

Specification	Product Data
Brand	Siemens
Exact Model	6ES7233-4HF50-0XB0
Product Family	SIMATIC S7-1200 G2
Module Designation	SM 1233 AI 4x14bit / AQ 4x14bit
Product Type	Analog Input / Output Module
Number of Analog Inputs	4 Channels
Number of Analog Outputs	4 Channels
Analog Input Type	Differential Voltage or Current
Analog Input Voltage Ranges	±10 V / ±5 V / ±2.5 V
Analog Input Current Ranges	0-20 mA / 4-20 mA
Analog Input Resolution	13 Bits + Sign Bit
Analog Output Type	Voltage or Current
Analog Output Voltage Range	-10 V to +10 V
Analog Output Current Ranges	0-20 mA / 4-20 mA
Voltage Output Resolution	14 Bits
Current Output Resolution	13 Bits
Rated Supply Voltage	24 V DC
Supply Voltage Range	20.4-28.8 V DC
24 V DC Current Consumption	40 mA
Bus Current Consumption	80 mA Max. at 5 V DC
Power Dissipation	4.7 W
Input Accuracy at 25°C	±0.1% of Full Scale
Input Accuracy over -20°C to +60°C	±0.2% of Full Scale
Output Accuracy at 25°C	±0.3% of Full Scale
Output Accuracy over -20°C to +60°C	±0.6% of Full Scale
Voltage Input Impedance	≥1 MΩ
Current Input Impedance	270-290 Ω (Exclusive Limits)
Voltage Output Load Impedance	≥1,000 Ω
Current Output Load Impedance	≤600 Ω
Field-to-Logic Isolation	None
Maximum Cable Length	100 m, Twisted and Shielded
Dimensions (W x H x D)	30 x 125 x 100 mm
Product Weight	174 g

Product Overview

The Siemens 6ES7233-4HF50-0XB0 is an SM 1233 analog input/output module designed for the SIMATIC S7-1200 G2 automation platform. It provides 4 analog input channels and 4 analog output channels for industrial analog signal processing. The analog inputs support voltage ranges of ±10 V, ±5 V and ±2.5 V, as well as 0-20 mA and 4-20 mA current signals. The analog outputs support ±10 V voltage signals and 0-20 mA / 4-20 mA current outputs. The module provides 13-bit input resolution plus sign bit, 14-bit voltage output resolution, and 13-bit current output resolution. It operates with a 24 V DC rated supply and is designed for compatible S7-1200 G2 PLC configurations.

Key Product Features

4 analog input channels for voltage and current signal acquisition
4 analog output channels for industrial analog signal control
±10 V / ±5 V / ±2.5 V analog input voltage ranges
0-20 mA / 4-20 mA current input and output configurations
14-bit voltage output resolution and 13-bit current output resolution
24 V DC rated supply with 20.4-28.8 V DC operating range
SIMATIC S7-1200 G2 analog signal module with exact Siemens article number

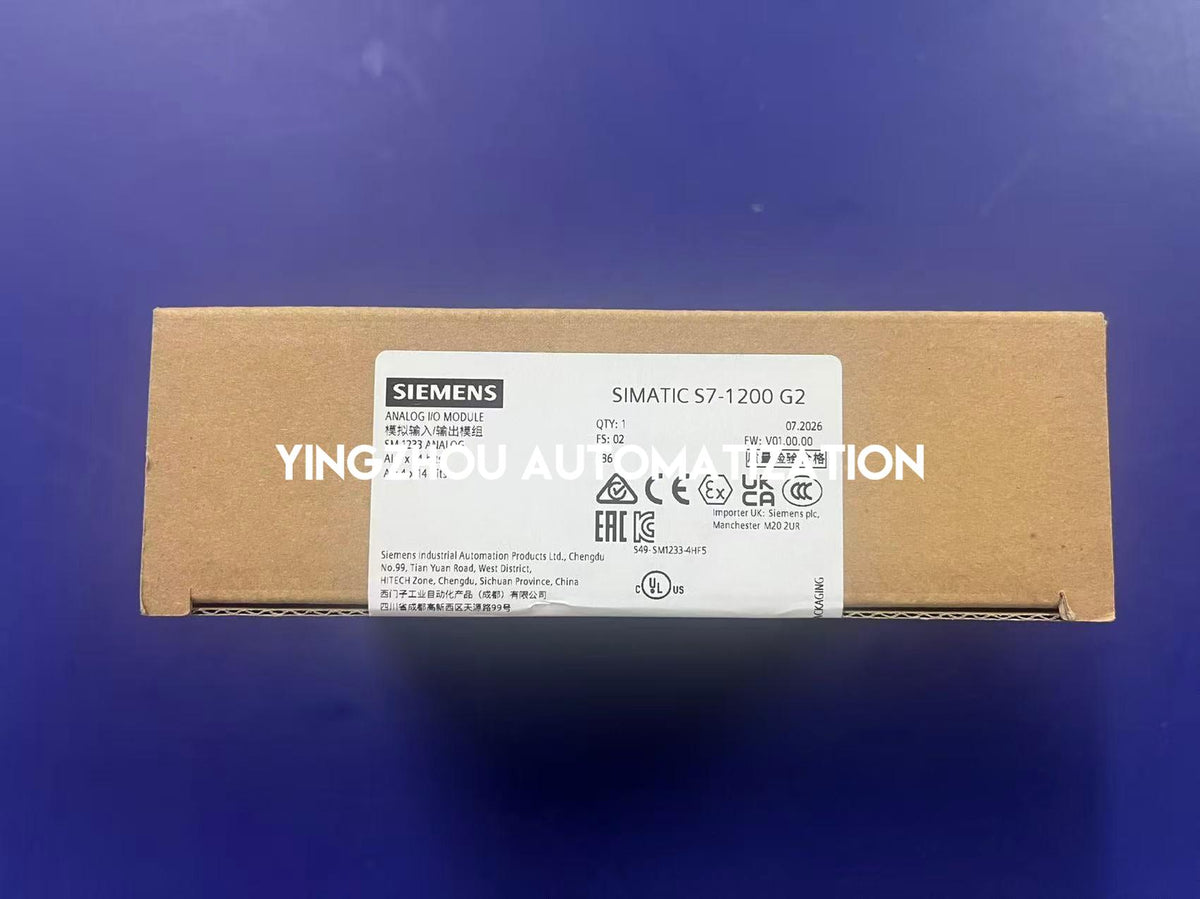

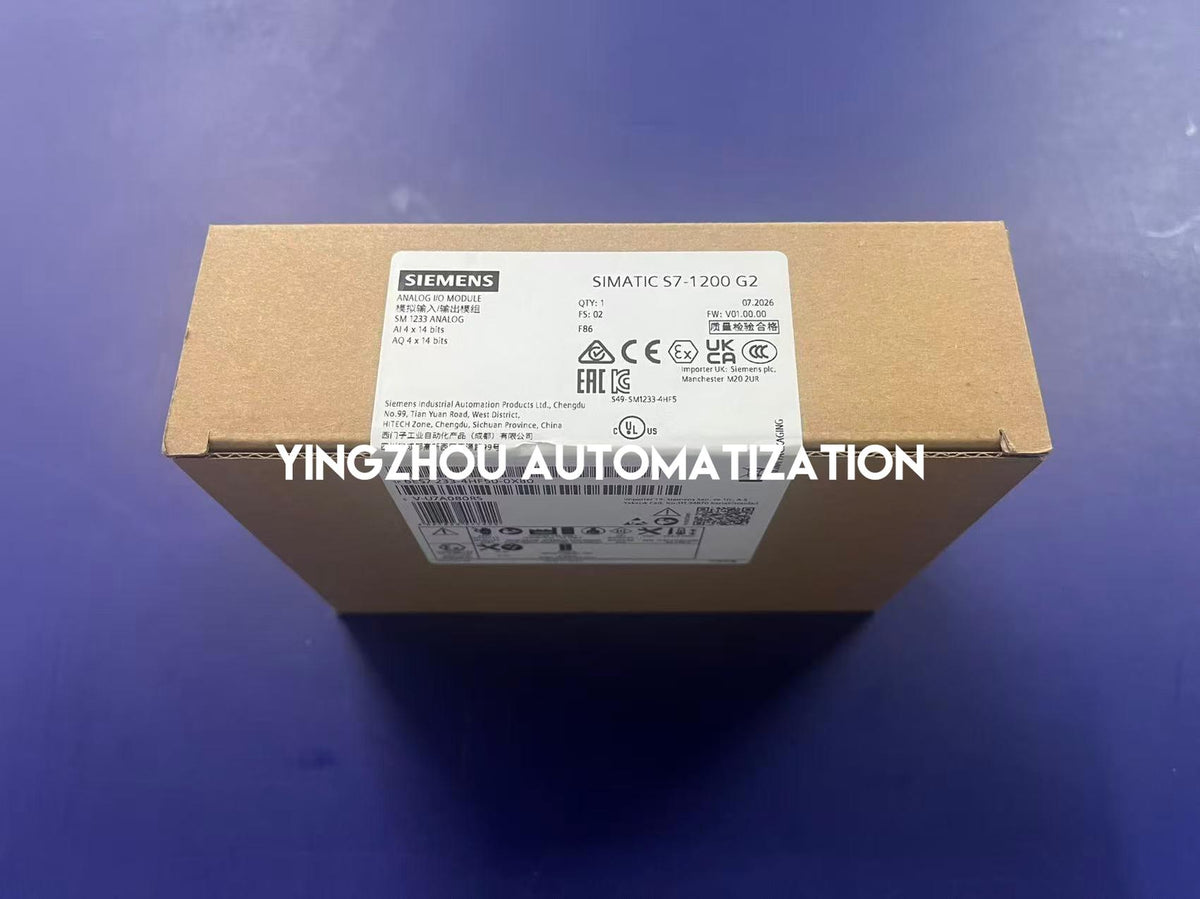

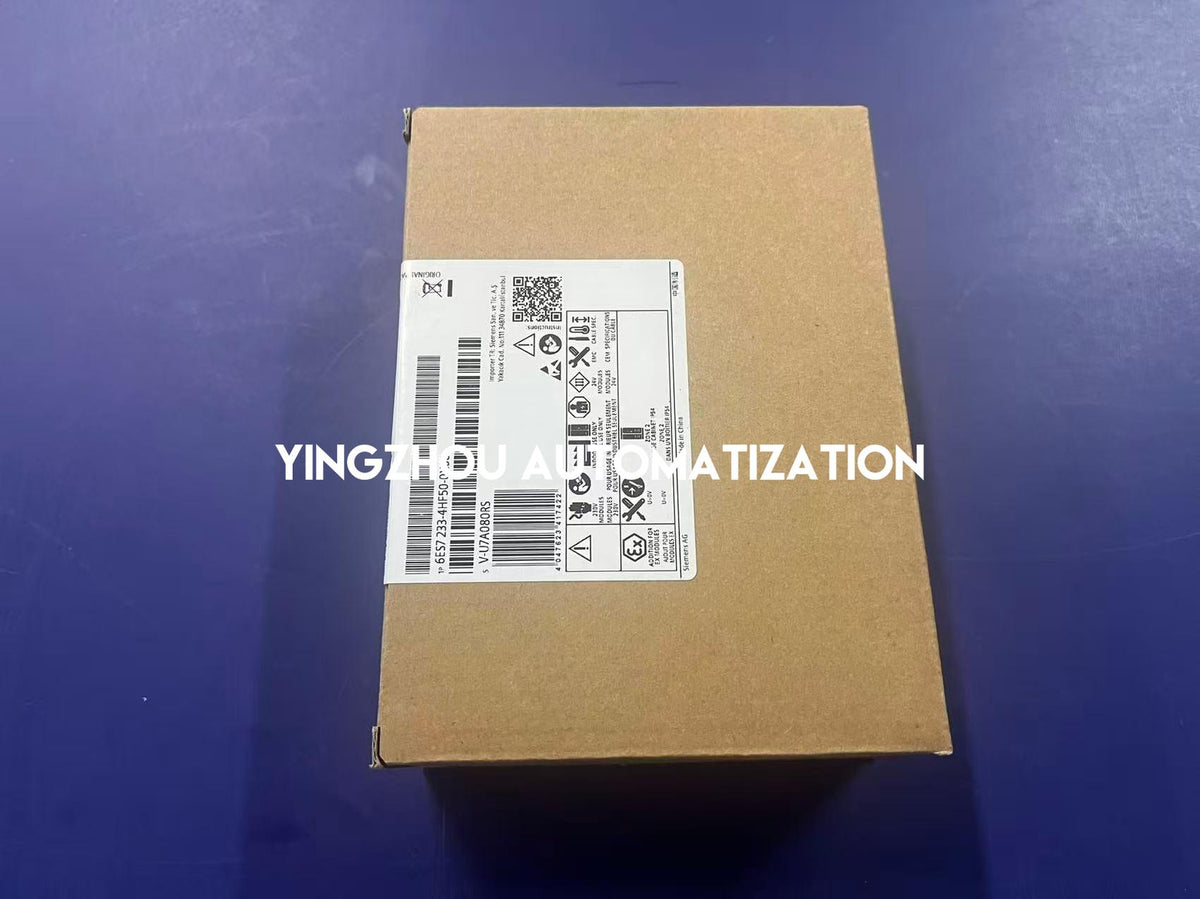

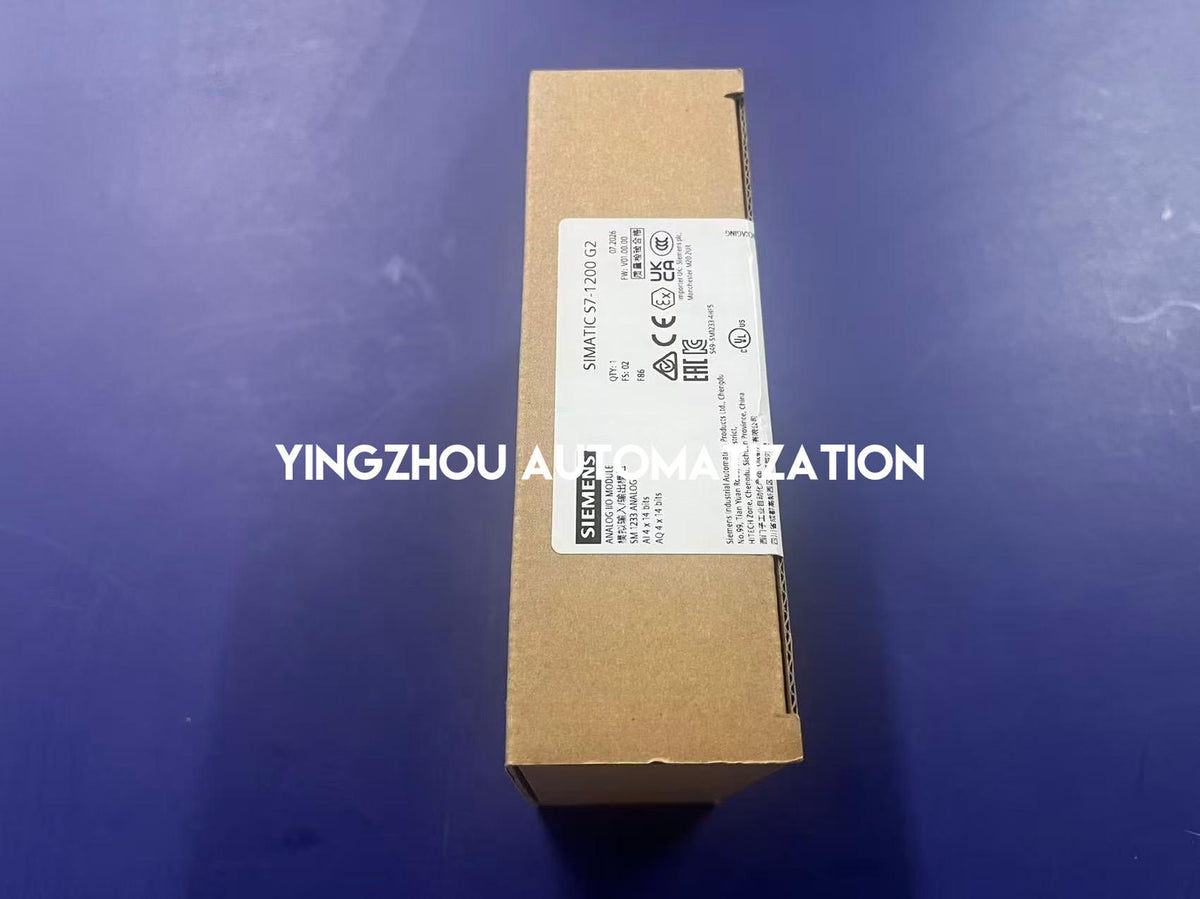

Actual Product Verification

✓ Actual Siemens packaging photographs

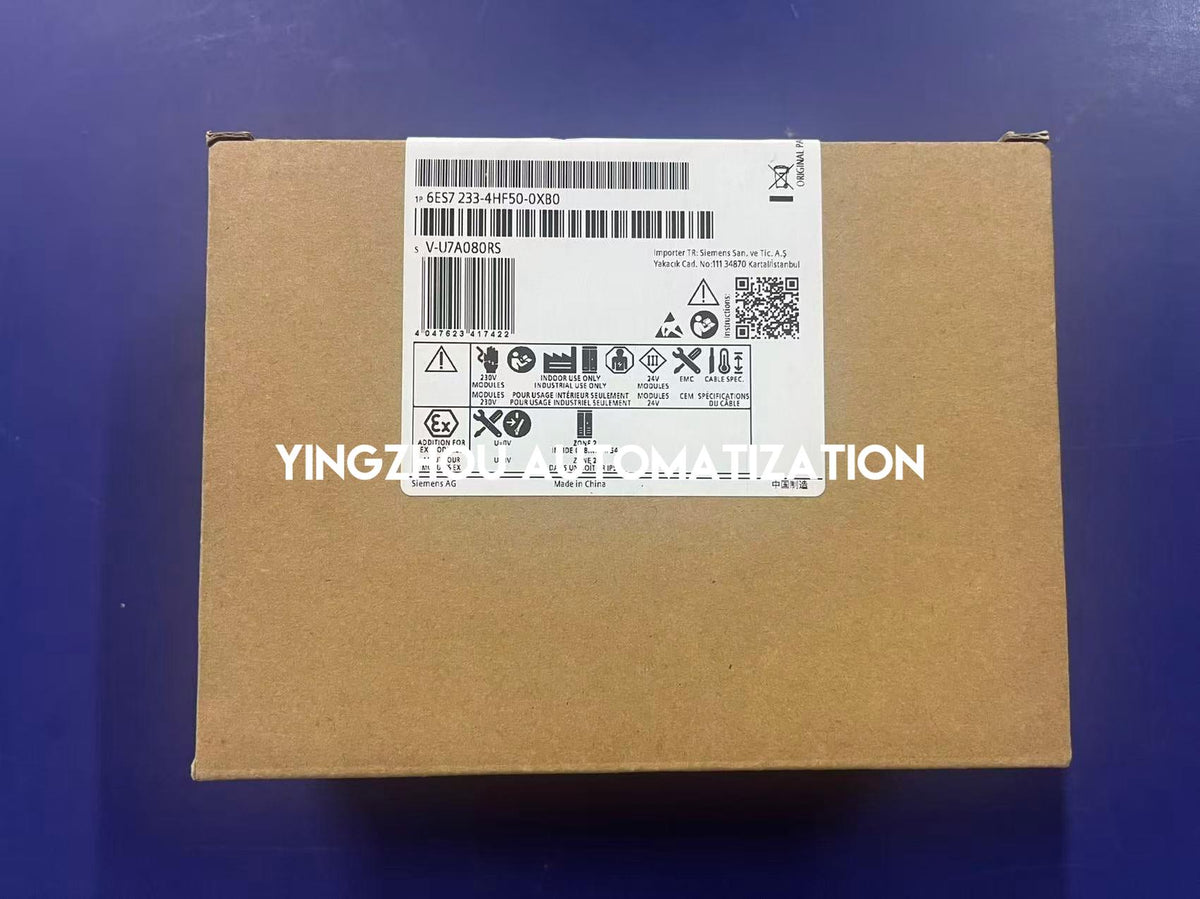

✓ Exact order number 6ES7233-4HF50-0XB0 visible on packaging

✓ SIMATIC S7-1200 G2 and SM 1233 ANALOG identification visible

✓ Packaging label identifies AI 4 x 14 bits and AQ 4 x 14 bits

✓ Verify the exact model, signal requirements and system compatibility before ordering

In Stock & Ready to Order

Siemens 6ES7233-4HF50-0XB0 is currently in stock. Order online or contact YINGZHOU for quantity-based quotations and industrial procurement support. Please confirm the exact article number, analog input/output signal requirements, and SIMATIC S7-1200 G2 system compatibility before purchasing.
