Siemens 6ES7231-4HF32-0XB0 S7-1200 SM1231 8AI Analog Input Module

Siemens 6ES7231-4HF32-0XB0 S7-1200 SM1231 8AI Analog Input Module

$435.99 USD
$435.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 SM1231 Module

8 Analog Inputs | 13-Bit ADC | Voltage / Current | 24V DC
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Device Nameplate Verification Pending
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 6ES7231-4HF32-0XB0
Product Family SIMATIC S7-1200
Product Series SM 1231
Product Type Analog Input Signal Module
Module Designation SM 1231 AI 8 x 13 bit
Analog Inputs 8 Channels
Input Signal Type Differential Voltage / Current
Voltage Input Ranges ±10 V / ±5 V / ±2.5 V
Current Input Ranges 0-20 mA / 4-20 mA
Analog Resolution 12-bit + Sign (13-bit ADC)
Rated Supply Voltage 24 V DC
Backplane Bus Consumption 60 mA typical at 5 V DC
Maximum Cycle Time 625 µs, all channels
Maximum Permissible Voltage Input 35 V
Maximum Permissible Current Input 40 mA
Product Net Weight 0.187 kg
Packaging Dimensions 8.90 x 10.60 x 5.70 cm
Packaging Quantity 1 Piece
Country of Origin Germany
Current Manufacturer Lifecycle PM300 - Active Product
Announced Phase-out Date November 1, 2026

Product Overview

The Siemens 6ES7231-4HF32-0XB0 is a SIMATIC S7-1200 SM 1231 analog input signal module designed for analog signal acquisition in Siemens S7-1200 PLC systems. This module provides 8 differential analog input channels with a 12-bit plus sign-bit (13-bit ADC) resolution. It supports selectable voltage input ranges of ±10 V, ±5 V and ±2.5 V and industrial current input ranges of 0-20 mA and 4-20 mA. The module has a rated 24 V DC supply voltage and allows connection of compatible voltage and current analog field signals for processing within a SIMATIC S7-1200 system. The combined eight-channel design supports applications that require analog measurement and PLC-based process monitoring. The manufacturer's catalog currently lists this module as an active product, with a scheduled phase-out date of November 1, 2026. Supplied packaging photographs show the exact Siemens catalog number 6ES7231-4HF32-0XB0. The physical module nameplate has not yet been photographed. Confirm the input signal range, module hardware version, wiring method, power supply and S7-1200 system compatibility before installation.

Key Product Features

  • SIMATIC S7-1200 Expansion Module — Siemens SM 1231 analog input signal module.
  • 8 Analog Input Channels — Eight differential voltage/current analog inputs.
  • 13-Bit ADC Resolution — 12-bit plus sign-bit analog conversion.
  • Selectable Voltage Ranges — Supports ±10 V, ±5 V and ±2.5 V.
  • Industrial Current Inputs — Supports 0-20 mA and 4-20 mA signals.
  • 24 V DC Supply — Rated DC module power supply.
  • Analog Signal Acquisition — Processes compatible analog field signals for S7-1200 controllers.
  • Siemens SM 1231 Series — Part of the SIMATIC S7-1200 analog I/O portfolio.
  • Actual Packaging Photography — Supplied carton photos show the exact Siemens catalog number.
  • In Stock — Available according to the supplied inventory information.

Actual Product Verification

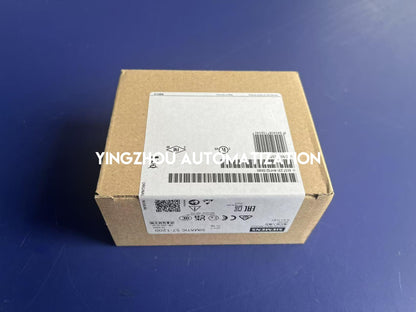

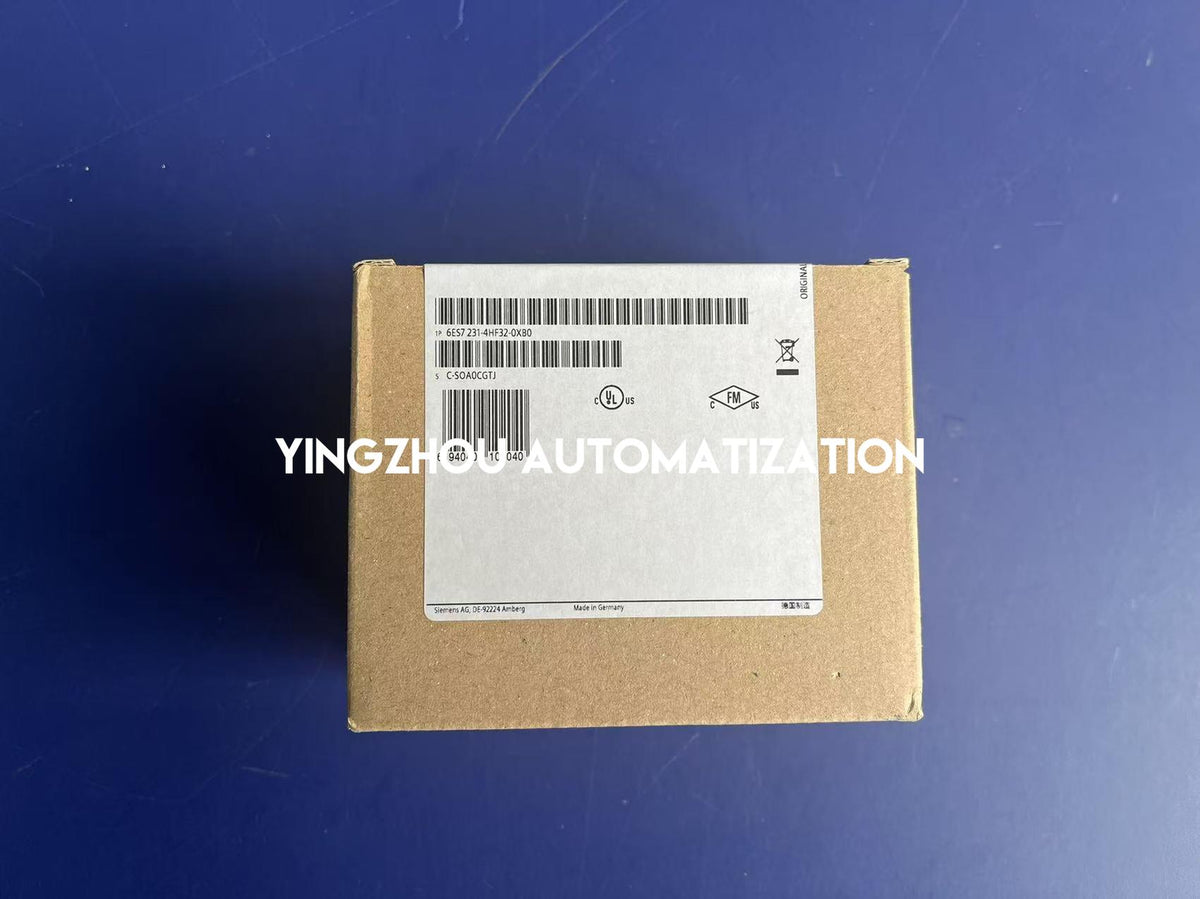

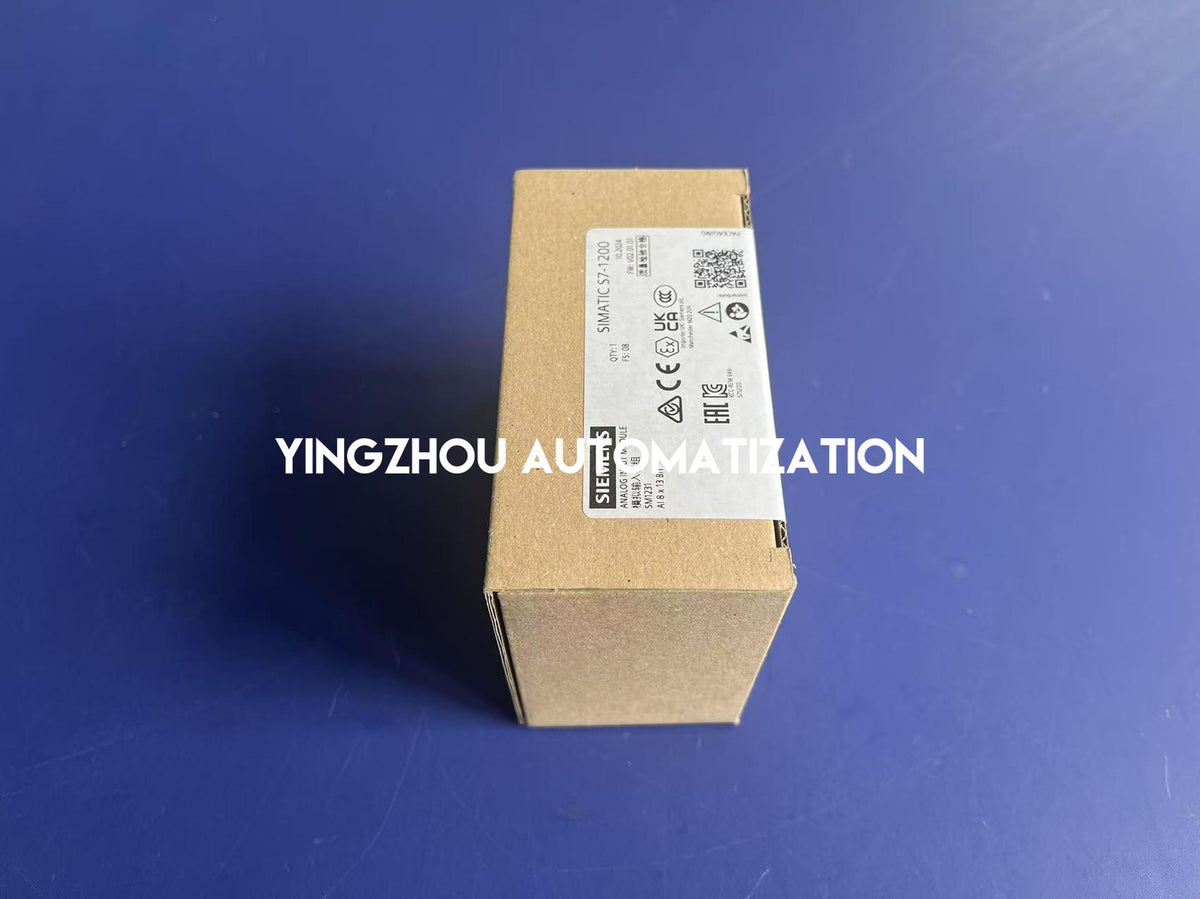

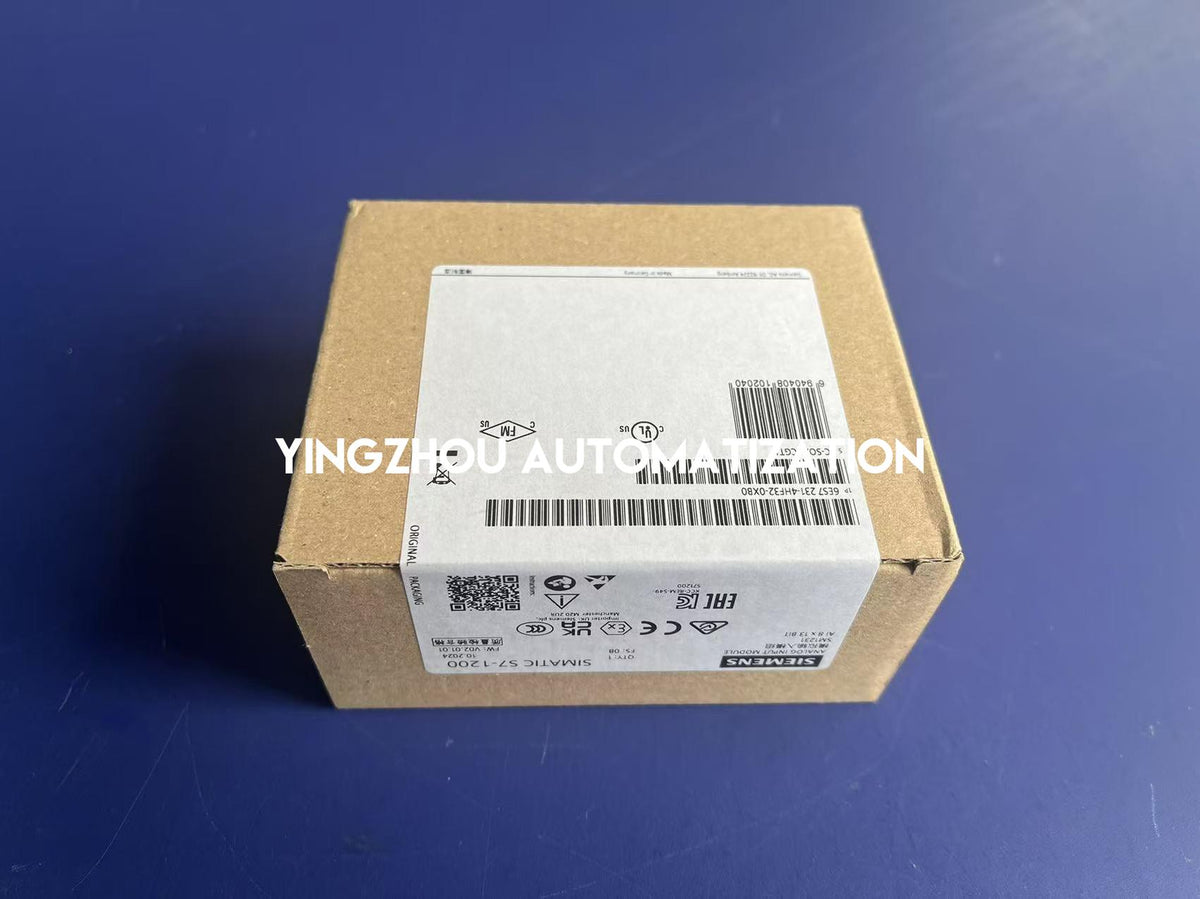

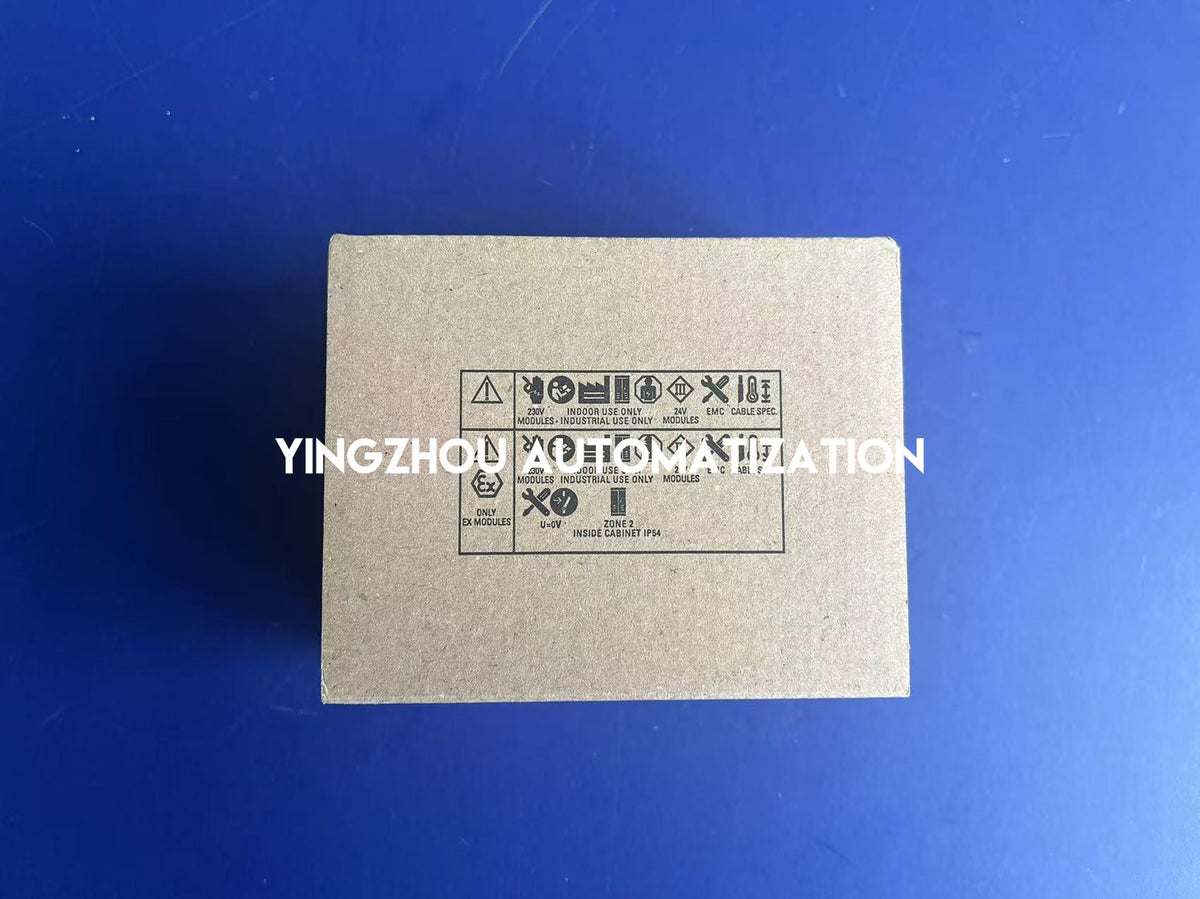

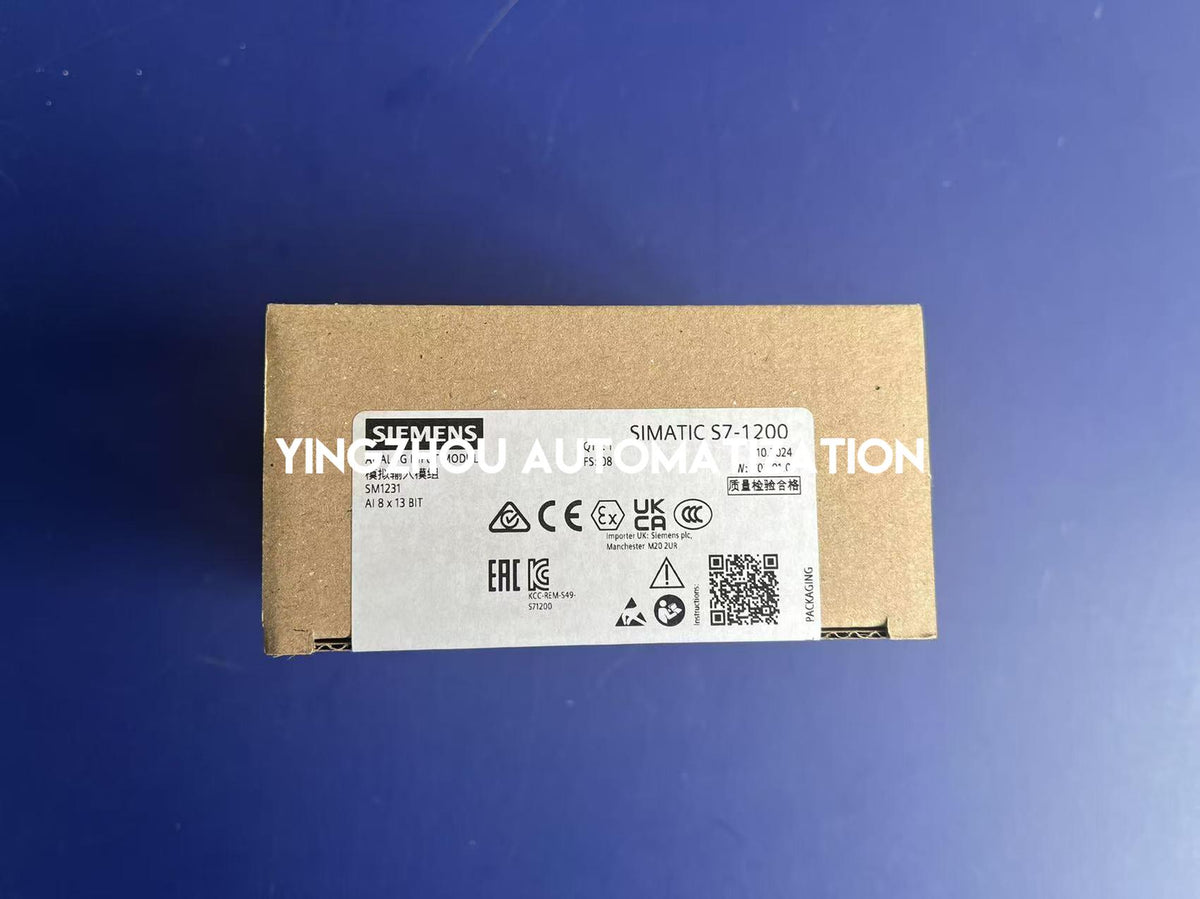

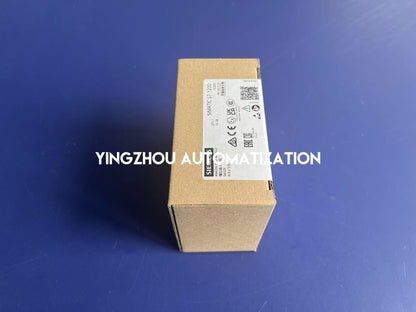

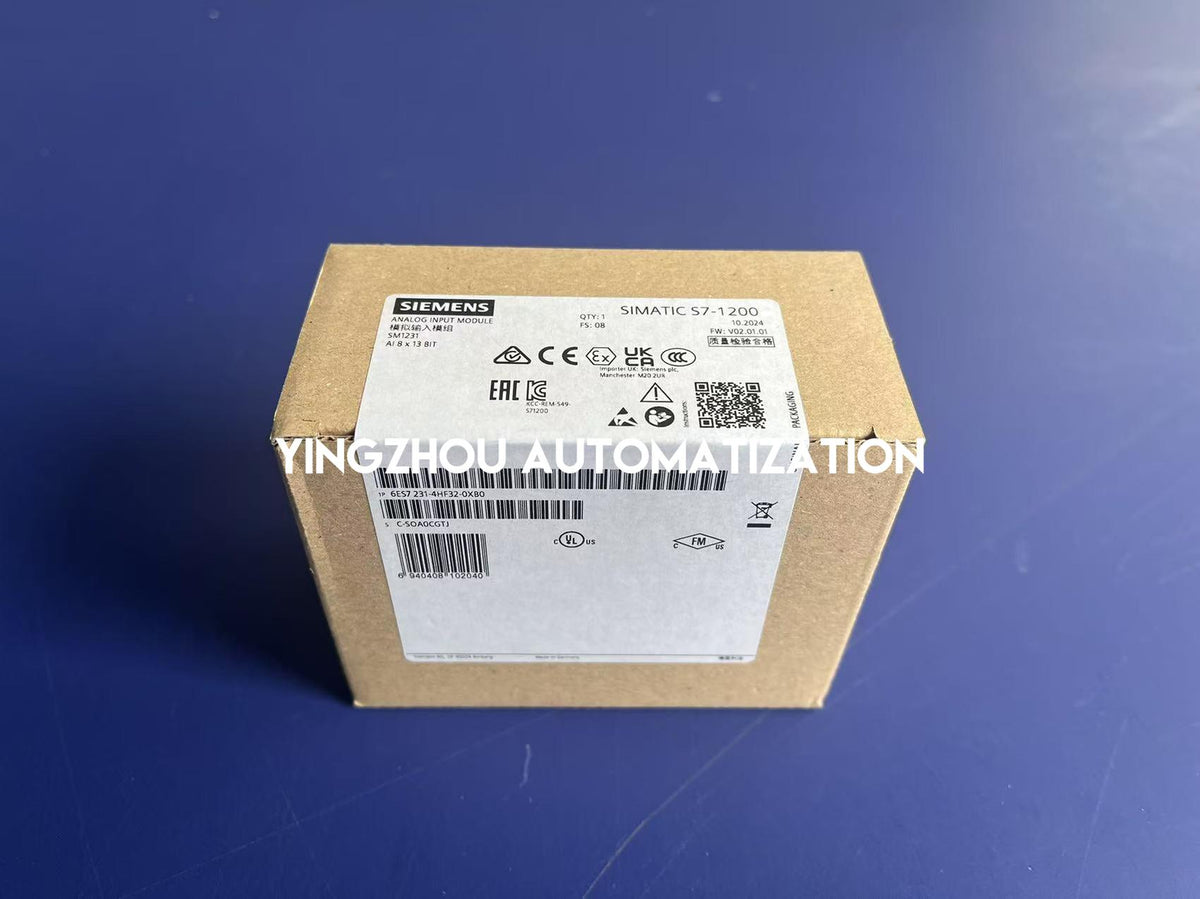

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7231-4HF32-0XB0
✓ Packaging product family: SIMATIC S7-1200
✓ Packaging module designation: SM1231
✓ Packaging analog input channels: AI 8 x 13 BIT
✓ Packaging hardware marking: FS: 08
✓ Packaging firmware marking: FW: V02.01.01
✓ Packaging date marking: 10.2024
✓ Packaging origin marking: Made in Germany
✓ Physical module nameplate has not been photographed
✓ Confirm actual module identity, selected input ranges and PLC compatibility before ordering

In Stock & Available to Order

Siemens 6ES7231-4HF32-0XB0 is in stock according to the supplied inventory information. This SIMATIC S7-1200 SM1231 analog input module provides 8 analog input channels with 13-bit ADC resolution and supports multiple industrial voltage and current input ranges. Actual packaging photographs are available for catalog-number checking. Please confirm the exact module, required quantity, compatible input signals, available stock and dispatch arrangements before placing an order. For long-term projects, review the manufacturer's announced phase-out date of November 1, 2026. Contact YINGZHOU for multiple units, replacement sourcing and mixed-brand industrial automation purchasing requirements.

IN STOCK

Siemens 6ES7231-4HF32-0XB0

Contact us for exact-model verification, available quantities and bulk pricing. Please confirm the S7-1200 system, 8 analog input channels, voltage/current signal ranges and 24 V DC supply before ordering.
