Siemens 6ES7136-6BA01-0CA0 ET 200SP F-DI 8x24VDC HF Safety Input Module

Siemens 6ES7136-6BA01-0CA0 ET 200SP F-DI 8x24VDC HF Safety Input Module

$264.99 USD
$264.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7136-6BA01-0CA0 ET 200SP Safety Input Module

F-DI 8x24VDC HF | 8 Inputs | 24V DC | PROFIsafe | SIL 3
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Physical Unit Verification Required
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 6ES7136-6BA01-0CA0
Product Family SIMATIC ET 200SP
Product Type Fail-Safe Digital Input Module
Module Designation F-DI 8x24VDC HF
Safety Communication PROFIsafe
Digital Input Channels 8
Safety Input Arrangement 8 single-channel or 4 paired inputs, depending on safety configuration
Rated Supply Voltage 24 V DC
Permissible Supply Range 19.2–28.8 V DC
Signal 0 Voltage Range -30 to +5 V
Signal 1 Voltage Range +15 to +30 V
Typical Input Current (Signal 1) 3.7 mA
Maximum Current Consumption 40 mA, without load
Input Delay Parameterizable, 0.4–20 ms
Sensor Supply Outputs 8; for sensor supply, not load control
Maximum Sensor Supply per Channel 300 mA
Total Maximum Sensor Supply 800 mA
Short-Circuit Protection Yes, electronic
Usable BaseUnit BU Type A0
Maximum Achievable Safety Integrity SIL 3
Maximum Achievable Performance Level PL e / Category 4
Width 15 mm
Height 73 mm
Depth 58 mm
Horizontal Operating Temperature 0 to +60°C
Vertical Operating Temperature 0 to +50°C
Module Weight Approx. 29 g
Firmware on Supplied Packaging V2.0.0
Functional Status on Packaging FS:02
Manufacturer Lifecycle PM300 — Active Product
Country of Origin Germany

Product Overview

The Siemens 6ES7136-6BA01-0CA0 is a SIMATIC ET 200SP F-DI 8x24VDC HF fail-safe digital input module designed for safety-related signal processing in compatible industrial automation systems. This module provides eight 24V DC digital inputs, supports PROFIsafe communication, and can achieve SIL 3 according to IEC 61508 and PL e according to ISO 13849-1 when configured with the required safety architecture. It operates with a rated 24V DC supply, supports parameterizable input delays from 0.4ms to 20ms, and uses a compact 15mm-wide design. The module is designed for a BU Type A0 BaseUnit and provides dedicated short-circuit-protected sensor supply outputs. Safety ratings depend on the approved wiring, sensors and safety configuration. The supplied photographs show Siemens packaging bearing the matching catalog number, functional status FS:02 and firmware V2.0.0. The physical module itself has not been separately photographed.

Key Product Features

  • SIMATIC ET 200SP Safety Module — Siemens high-feature fail-safe digital input module.
  • 8 Digital Safety Inputs — Supports single-channel and paired-channel safety sensor configurations.
  • 24V DC Supply — Rated supply voltage of 24V DC, with a permissible range of 19.2–28.8V DC.
  • PROFIsafe Communication — Safety-related communication within compatible SIMATIC systems.
  • Up to SIL 3 / PL e — Maximum safety classification subject to approved system design and wiring.
  • Configurable Input Delay — Input delay can be parameterized from 0.4ms to 20ms.
  • Compact 15mm Design — Space-efficient module design for ET 200SP installations.

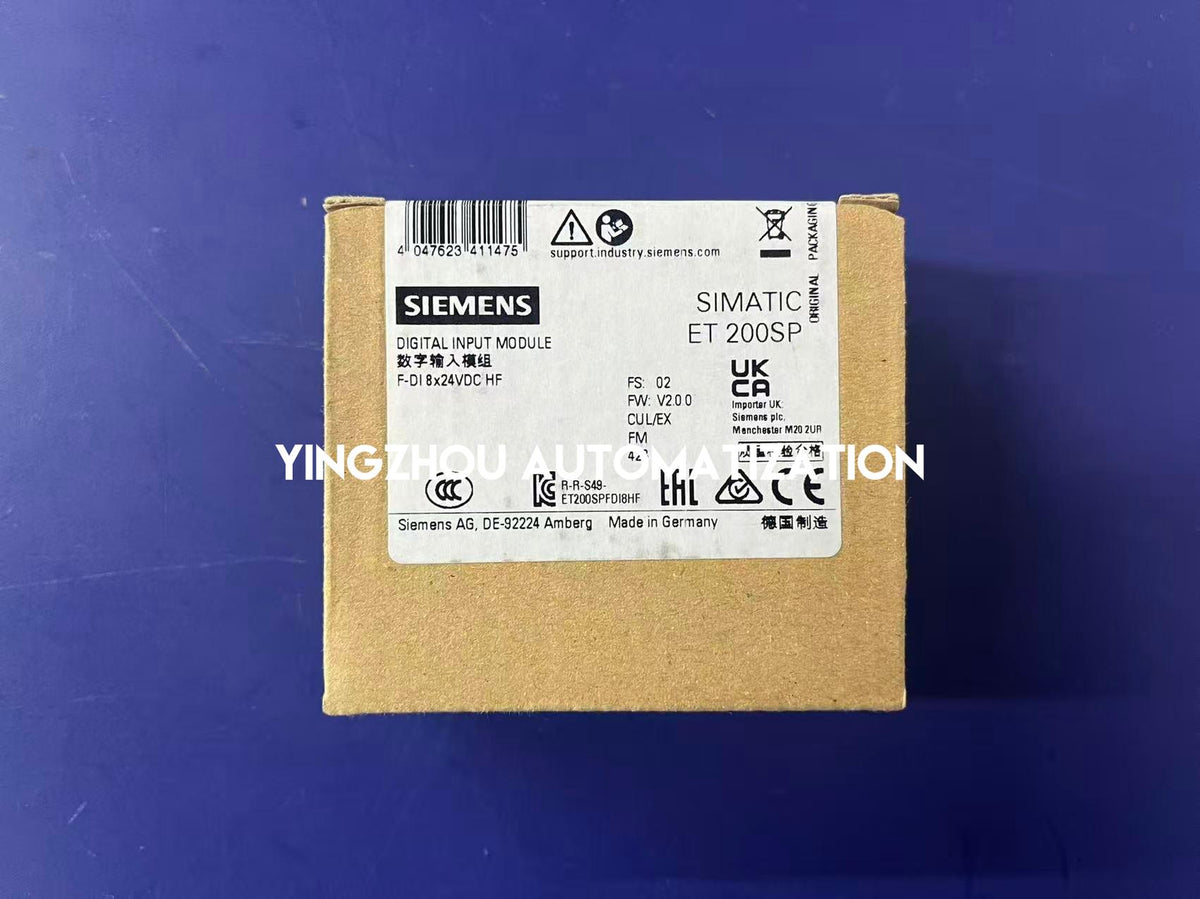

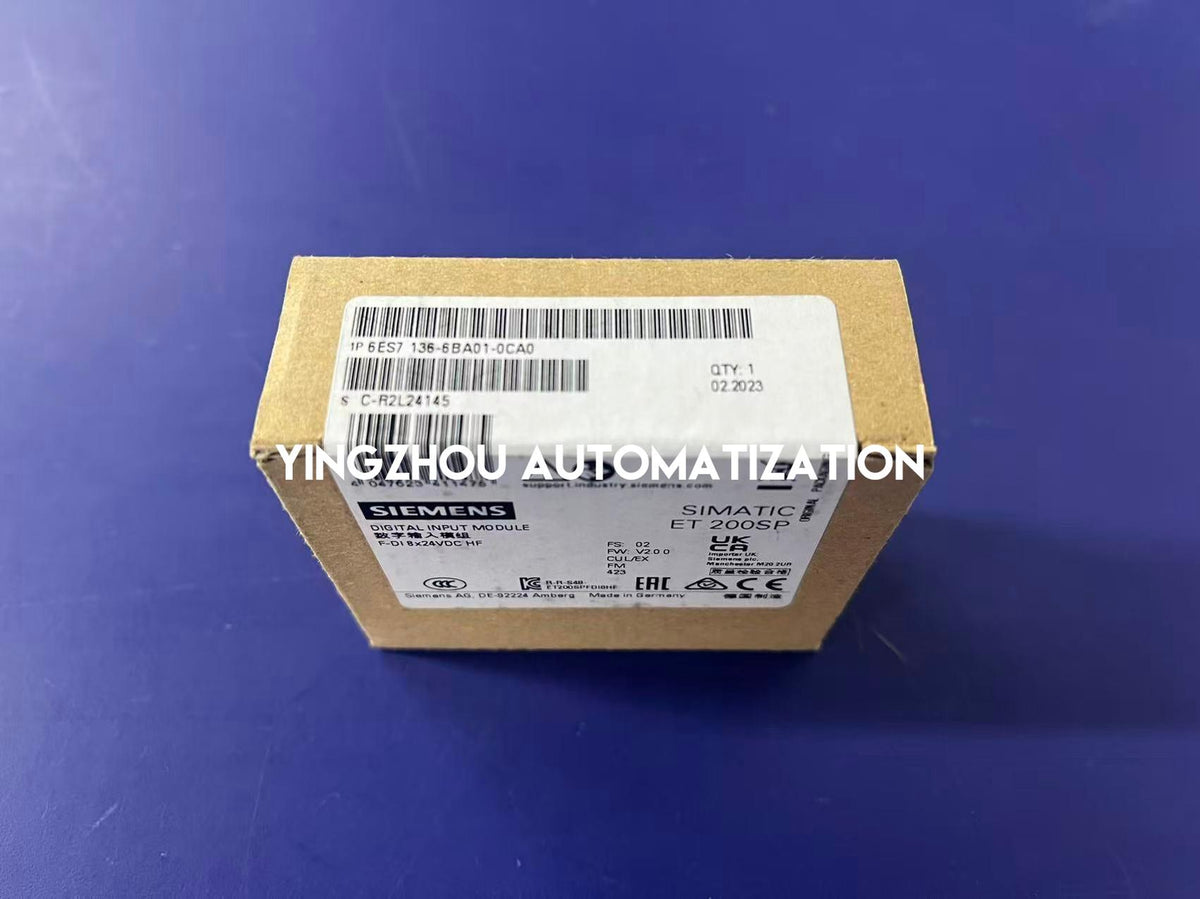

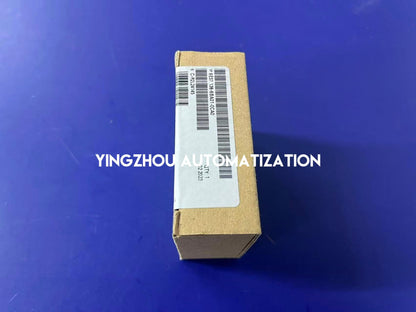

Actual Product Verification

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7136-6BA01-0CA0
✓ Module designation: F-DI 8x24VDC HF
✓ Product family: SIMATIC ET 200SP
✓ Functional status on packaging: FS:02
✓ Firmware on packaging: V2.0.0
✓ Country of origin shown on packaging: Germany
Physical module identification, installed firmware and condition have not been independently verified. Confirm the exact unit and project compatibility before dispatch.

In Stock & Available to Order

Siemens 6ES7136-6BA01-0CA0 is marked in stock based on the supplied inventory information. This SIMATIC ET 200SP F-DI high-feature safety input module is available for exact-model industrial spare-parts procurement. Please confirm the catalog number, required firmware version, BU Type A0 installation, PROFIsafe configuration and safety engineering requirements before ordering. Physical module identity, available quantity and dispatch arrangements should be reconfirmed before shipment.

IN STOCK

Siemens 6ES7136-6BA01-0CA0

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 24V DC supply, safety configuration, firmware requirements and ET 200SP compatibility before ordering.

Request Bulk Pricing
