Siemens 3RU6116-1EB0 SIRIUS 2.8-4A Class 10 Thermal Overload Relay

Siemens 3RU6116-1EB0 SIRIUS 2.8-4A Class 10 Thermal Overload Relay

$14.99 USD
$14.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Siemens 3RU6116-1EB0 SIRIUS Thermal Overload Relay

2.8–4.0A | CLASS 10 | S00 | 3-Pole | Manual / Automatic Reset
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 3RU6116-1EB0
Product Family SIRIUS
Product Series 3RU6
Product Type Thermal Overload Relay
Adjustable Current Range 2.8–4.0 A
Rated Operational Current 4 A
Trip Class CLASS 10
Frame Size S00
Main Circuit Poles 3
Rated Operational Voltage 690 V AC
Operating Frequency 50/60 Hz
Rated Insulation Voltage 690 V
Impulse Withstand Voltage 6 kV
Overload Release Type Thermal
Mounting Type Contactor Mounting
Main Circuit Connection Screw Terminals
Auxiliary Circuit Connection Screw Terminals
Reset Method Manual / Automatic
Auxiliary Contacts 1 NO + 1 NC
AC-15 Auxiliary Contact at 230V 2 A
DC-13 Auxiliary Contact at 24V 2 A
Operating Ambient Temperature −40 to +70°C
Front Protection Rating IP20
Dimensions (H × W × D) 76 × 45 × 70 mm
Country of Manufacture China (Actual Packaging Label)
EAN / GTIN 4011209869615 (Actual Label)

Product Overview

The Siemens 3RU6116-1EB0 is a SIRIUS 3RU6 thermal overload relay designed to provide thermal overload protection for industrial motors. It features an adjustable current setting range of 2.8–4.0A, a CLASS 10 tripping characteristic and a compact S00 frame size. The relay is designed for mounting onto suitable contactors as part of a motor starter assembly. It features a three-pole main circuit, screw terminal connections for the main and auxiliary circuits, and selectable manual or automatic reset operation. The auxiliary contacts consist of one normally open (1NO) and one normally closed (1NC) contact, enabling integration into motor control and fault indication circuits. Its thermal overload protection helps respond to sustained motor overcurrent conditions. It does not replace the short-circuit protection required by the electrical system. For proper operation, the current adjustment should be selected according to the motor nameplate and applicable installation requirements. Actual product photographs have been supplied showing a Siemens device and corresponding packaging marked 3RU6116-1EB0. The visible product labels confirm the 2.8–4.0A adjustment range and CLASS 10 designation.

Key Product Features

  • Siemens SIRIUS 3RU6 Series — Thermal overload relay for industrial motor protection.
  • 2.8–4.0A Adjustable Current — Provides an adjustable overload protection current setting.
  • CLASS 10 Protection — Manufacturer-specified thermal overload tripping class.
  • S00 Compact Design — Designed for mounting onto suitable contactors.
  • Three-Pole Main Circuit — Provides thermal overload monitoring for three-phase motor circuits.
  • Manual / Automatic Reset — Selectable reset function for the motor protection circuit.
  • 1NO + 1NC Auxiliary Contacts — Control and trip indication contacts.
  • Screw Terminal Connections — Main and auxiliary circuit screw terminal arrangement.
  • Actual Product Photography — Device and packaging catalog numbers match.

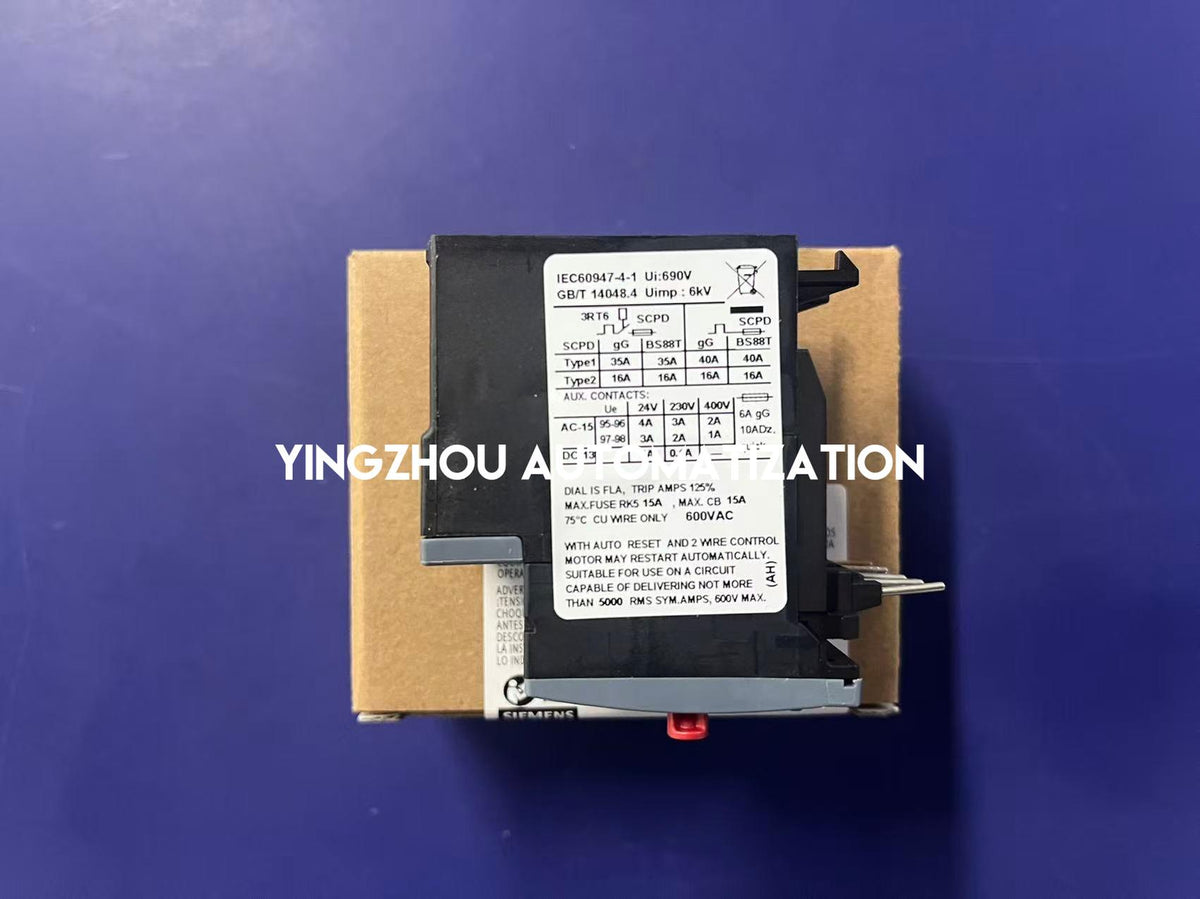

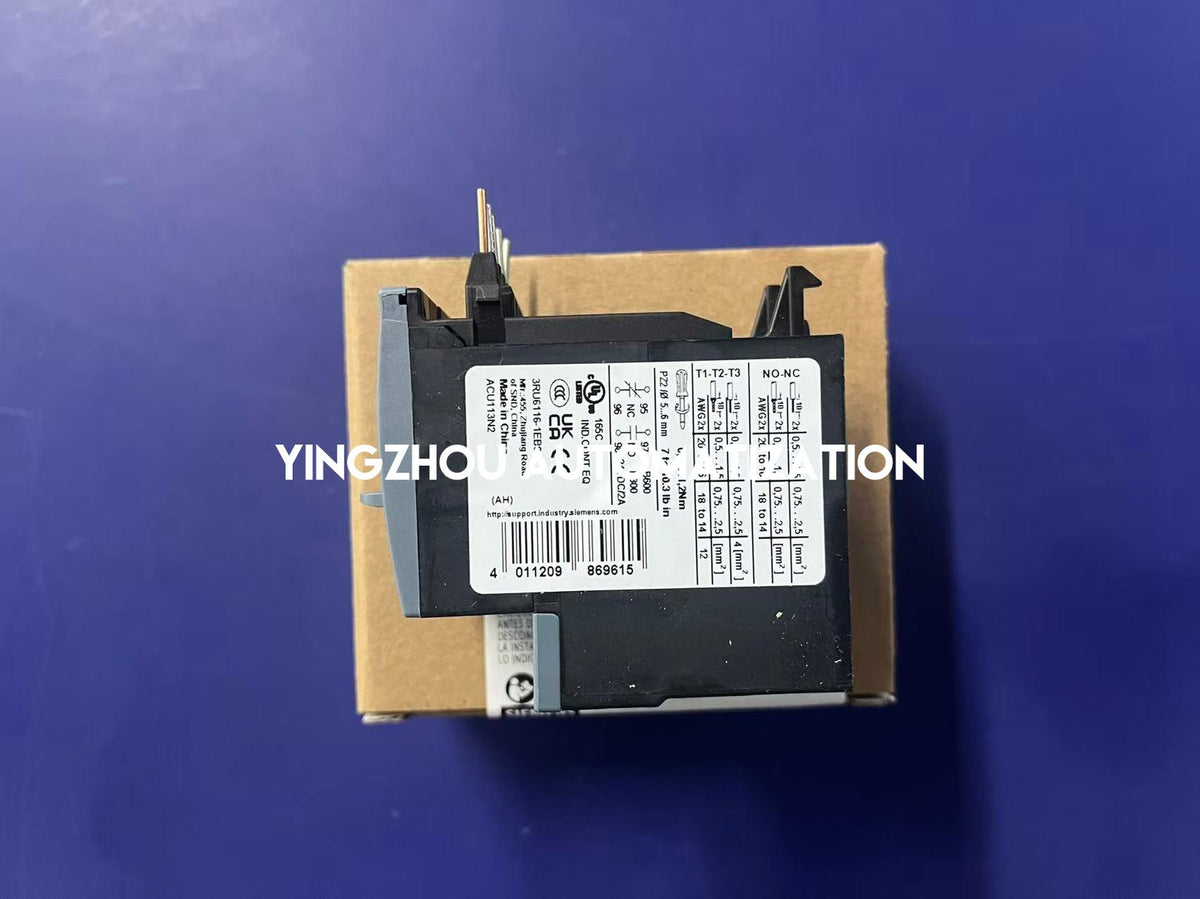

Actual Product Verification

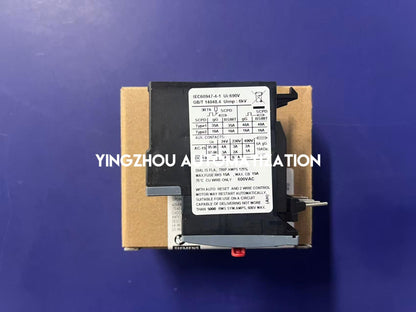

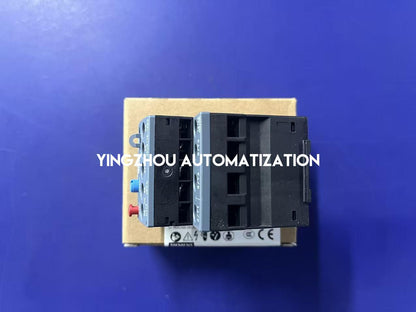

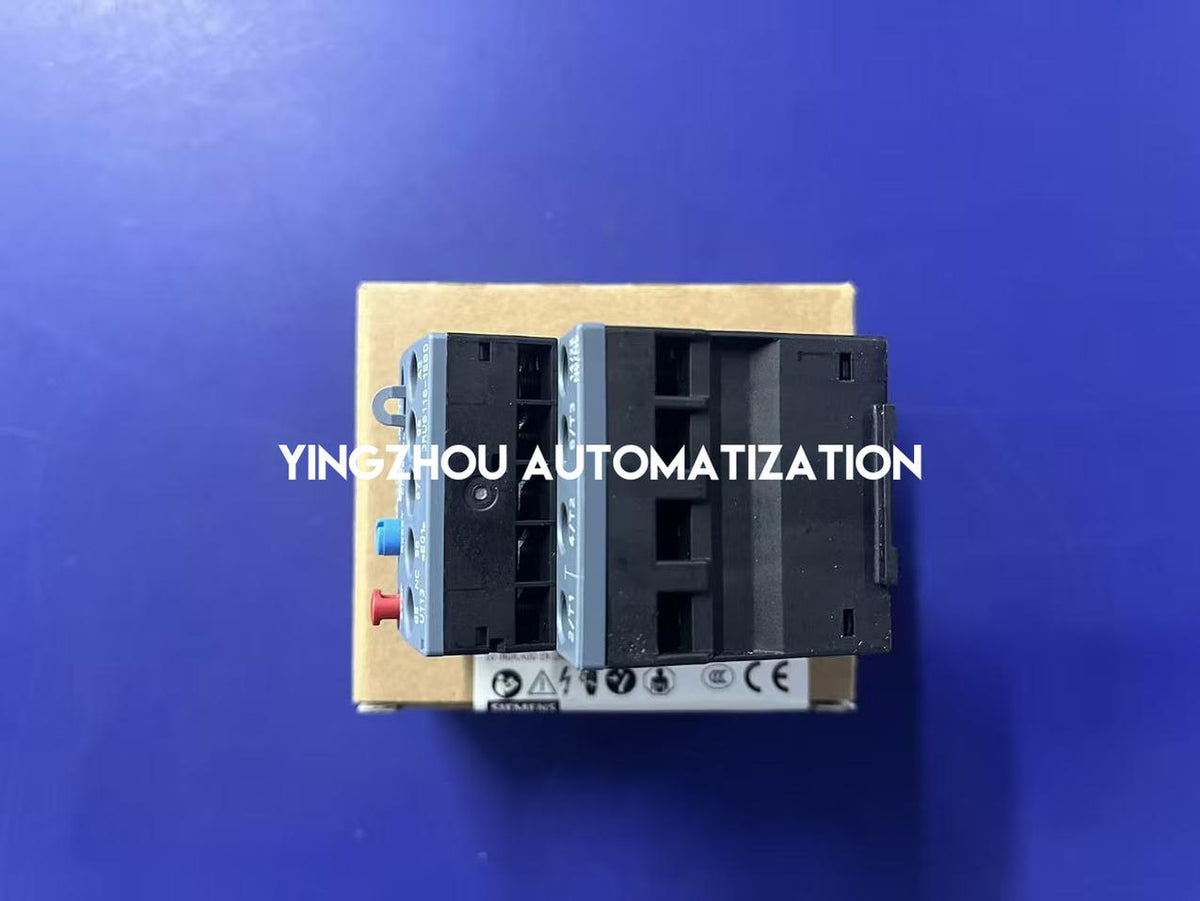

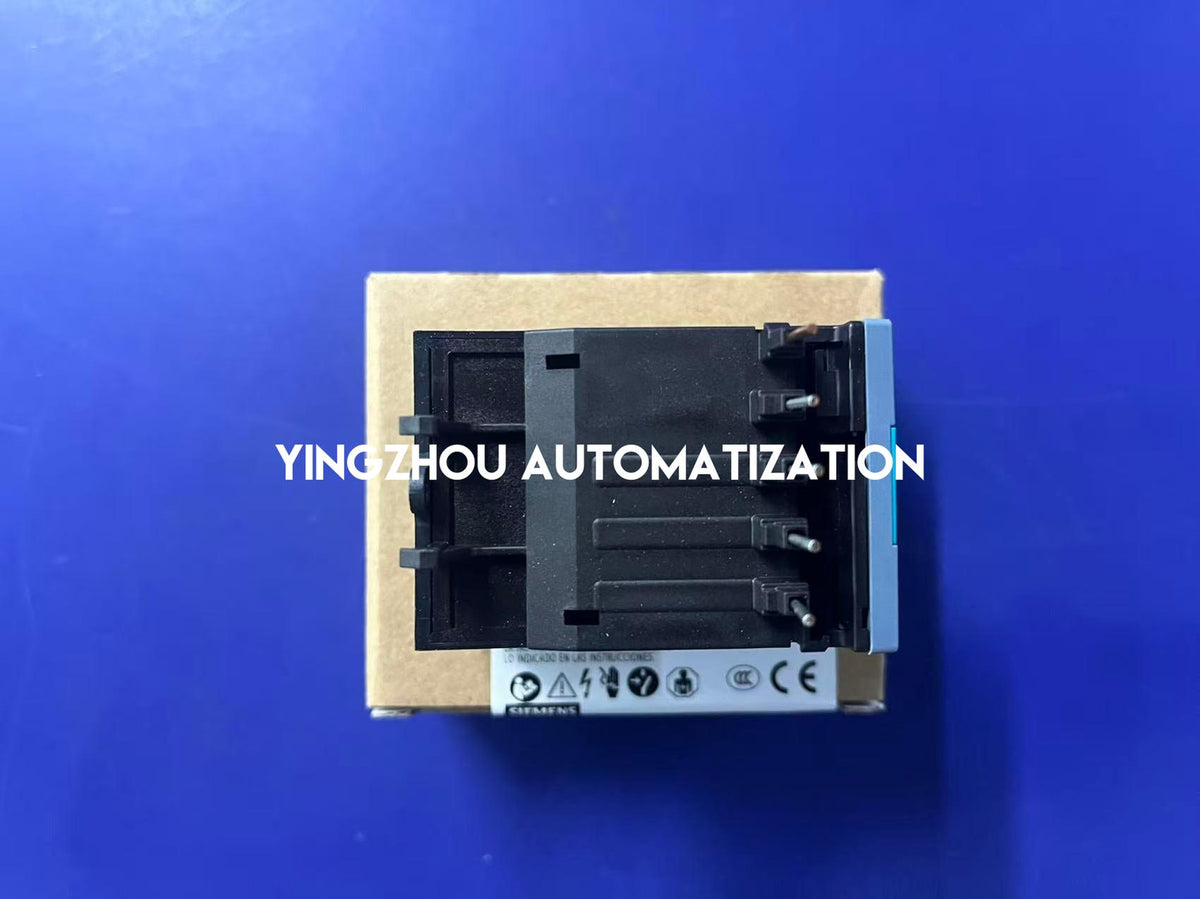

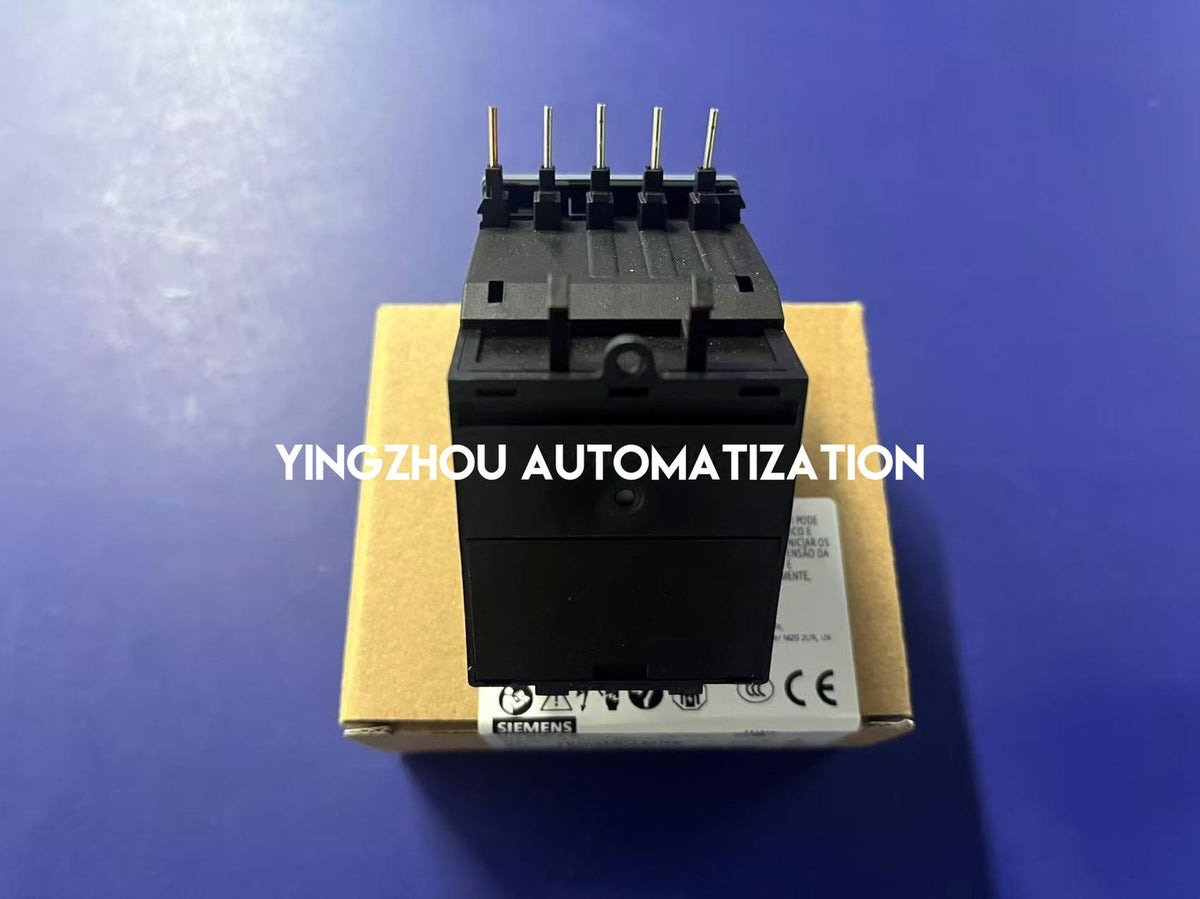

✓ Actual product and packaging photographs supplied

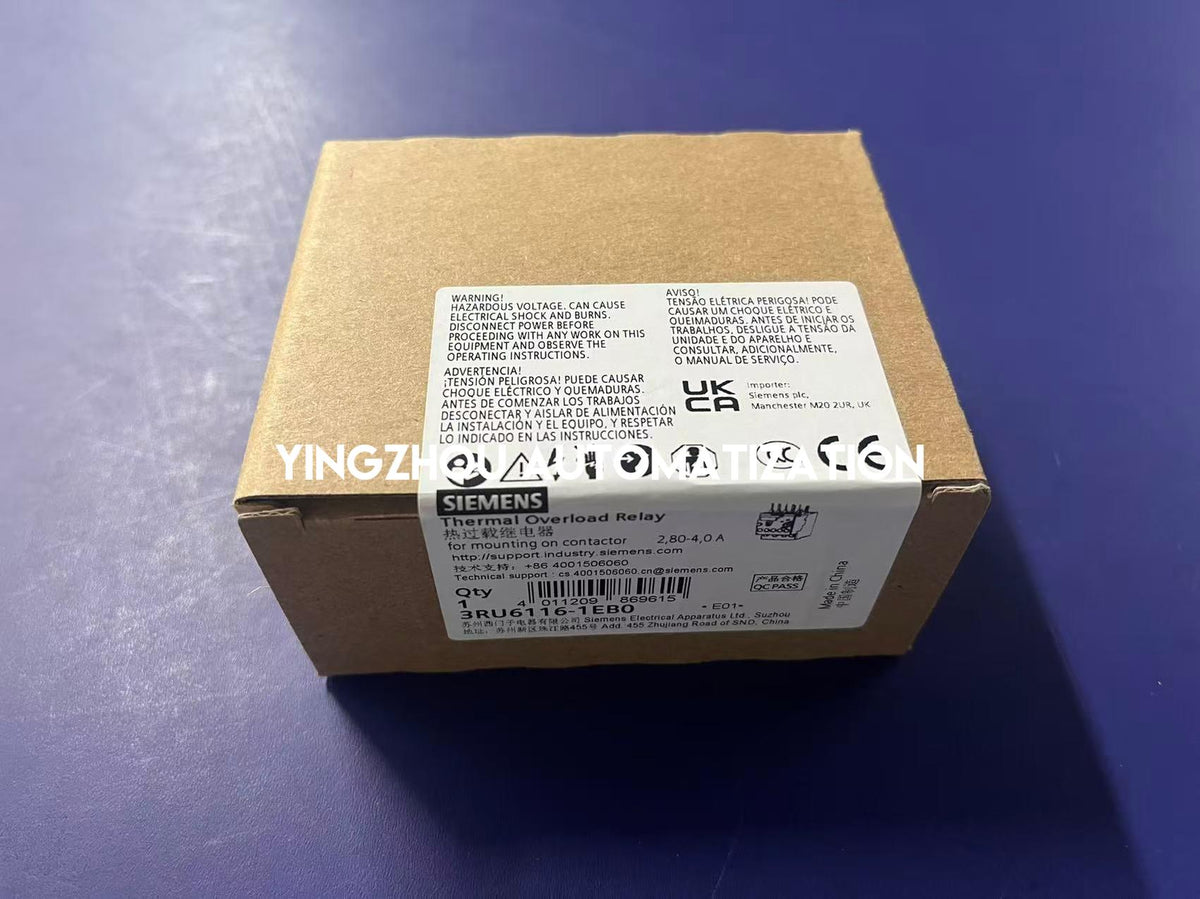

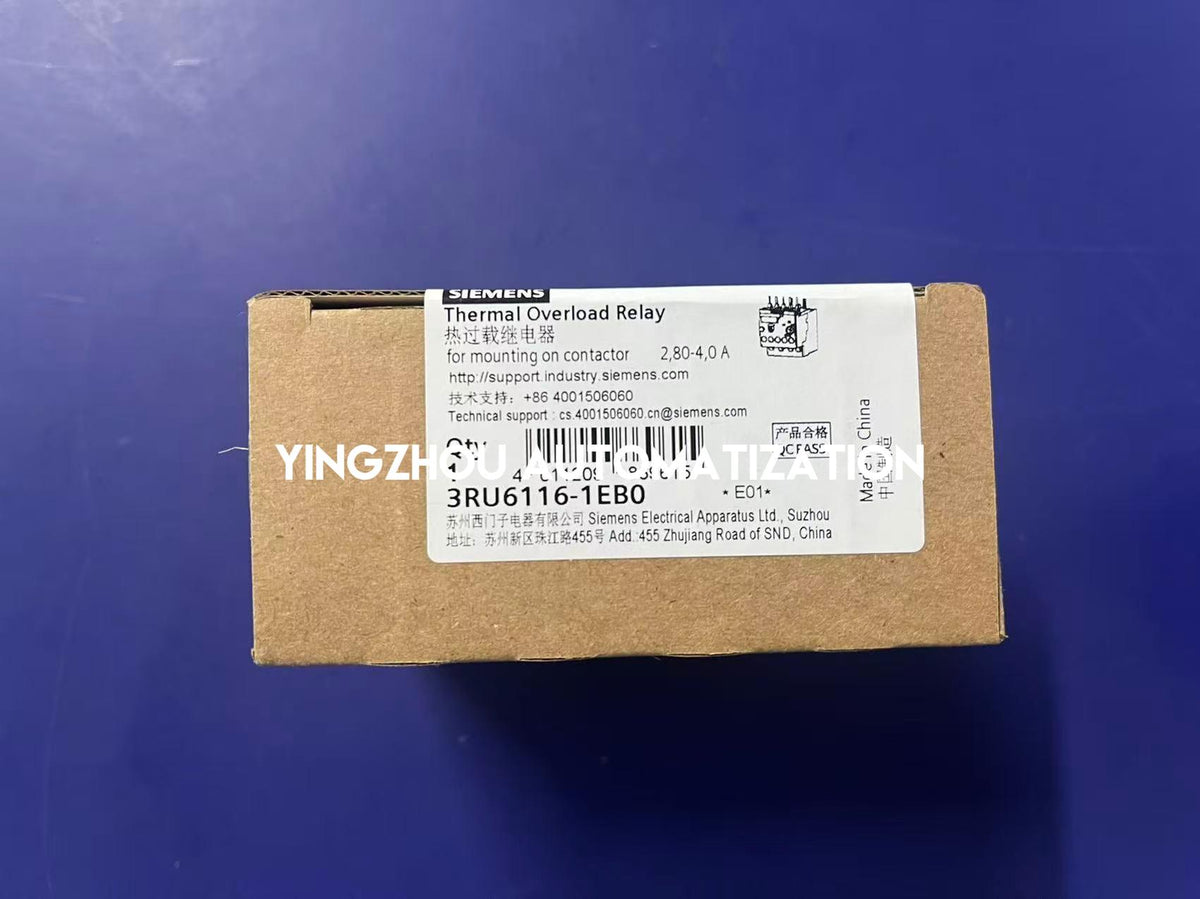

✓ Packaging catalog number: 3RU6116-1EB0

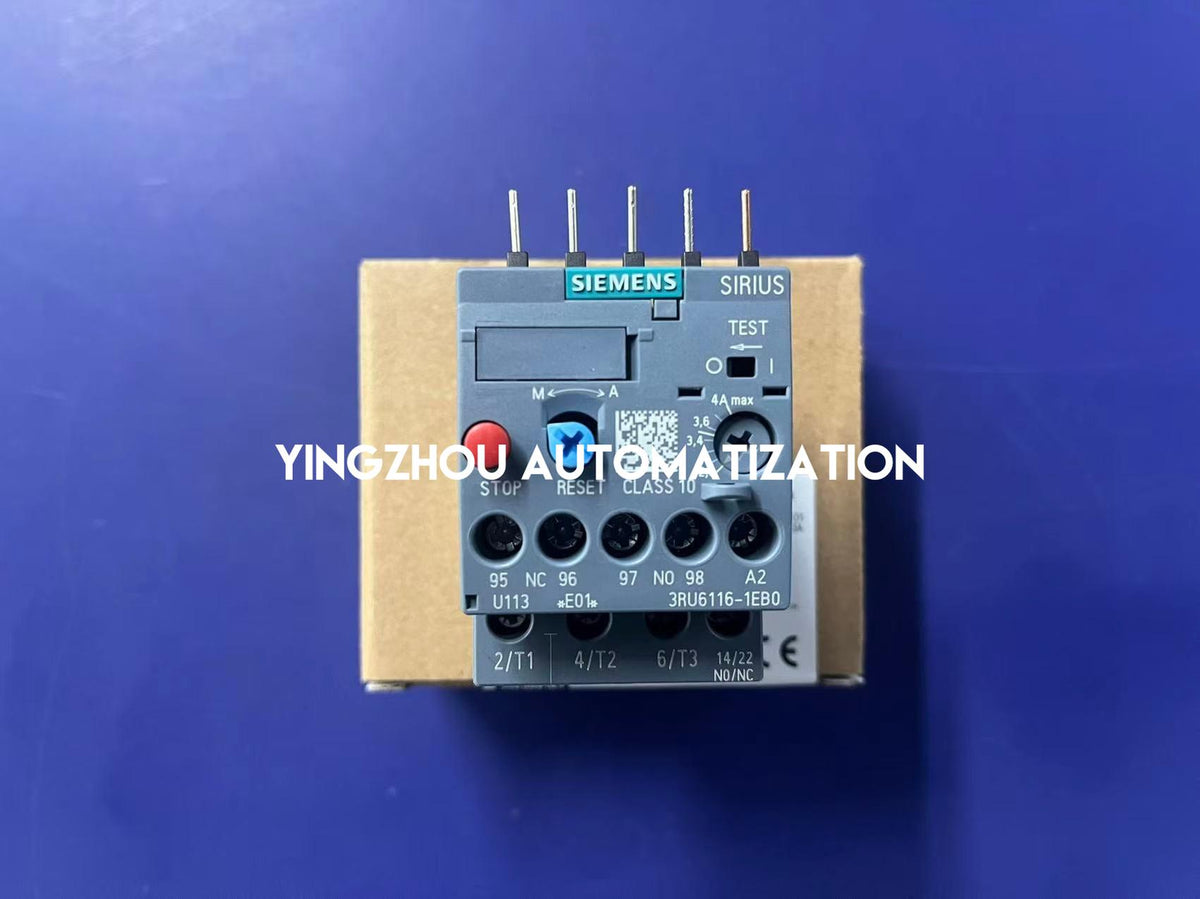

✓ Physical device catalog number: 3RU6116-1EB0
✓ Product family: SIRIUS
✓ Product type: Thermal Overload Relay
✓ Current adjustment range: 2.8–4.0A
✓ Tripping characteristic: CLASS 10
✓ Auxiliary contacts: 1NO + 1NC
✓ Packaging quantity: 1 piece
✓ Packaging EAN: 4011209869615
✓ Packaging country marking: Made in China
✓ Physical product and packaging catalog numbers match
✓ Confirm motor rated current and contactor compatibility before ordering

In Stock & Available to Order

Siemens 3RU6116-1EB0 is marked in stock based on the supplied inventory information. This SIRIUS thermal overload relay has a 2.8–4.0A adjustable current range, CLASS 10 trip characteristic and S00 frame size. Actual photographs of the physical device and corresponding packaging are available for model identification. The provided packaging is marked Qty: 1. Before ordering, please confirm the motor rated current, required overload protection range, suitable contactor arrangement and purchasing quantity.

IN STOCK

Siemens 3RU6116-1EB0

Contact us for exact-model verification, available quantities, bulk procurement and Siemens SIRIUS thermal overload relay sourcing. Please confirm your motor rated current, required 2.8–4.0A adjustment range and compatible contactor arrangement before ordering.
