Schneider TM3AI4 Modicon TM3 Analog Input Expansion Module
4 Analog Inputs | 12-Bit / 11-Bit + Sign | 24V DC | Screw Terminals
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
TM3AI4 |
| Product Range |
Modicon TM3 |
| Product Type |
Analog Input Expansion Module |
| Analog Input Channels |
4 |
| Analog Output Channels |
0 (input-only module) |
| Voltage Input Ranges |
0–10 V DC / −10 to +10 V DC |
| Current Input Ranges |
0–20 mA / 4–20 mA |
| Analog Input Resolution |
12-bit / 11-bit + sign |
| Rated External Supply Voltage |
24 V DC |
| Internal Bus Supply Voltage |
5 V DC (via TM3 bus connector) |
| Internal Bus Current Consumption |
35 mA at 5 V DC (no load); 45 mA at 5 V DC (full load) |
| External Supply Current Consumption |
30 mA at 24 V DC |
| Voltage-Input Impedance |
1 MΩ (manufacturer specification) |
| Permissible Continuous Overload |
13 V (voltage inputs); 40 mA (current inputs) |
| Sampling Duration |
1 ms |
| Conversion Time |
1 ms + 1 ms per channel + controller cycle time |
| Absolute Accuracy |
±0.1% of full scale at 25°C; ±1% of full scale (specified operating conditions) |
| Repeat Accuracy |
±0.5% FS |
| Electrical Connection |
Removable screw terminal block |
| Terminal Block Pitch |
3.81 mm |
| Recommended Signal Cable |
Twisted shielded pairs |
| Compatible Controller Families |
Modicon M221 / M241 / M251 / M262 (configuration-dependent) |
| Mounting |
35 mm DIN rail (TH35-7.5 / TH35-15) or panel with fixing kit |
| Local Signalling |
1 green PWR LED |
| Insulation |
Input-to-supply 1500 V AC; input-to-internal-logic 500 V AC |
| Protection Rating |
IP20 |
| Operating Temperature |
−10 to +55°C (horizontal); −10 to +35°C (vertical) |
| Dimensions (W × H × D) |
23.6 × 90 × 70 mm |
| Net Weight |
0.11 kg |
Product Overview
The Schneider Electric TM3AI4 is a
Modicon TM3 four-channel analog input expansion module
for compatible M221, M241, M251 and M262 logic controllers.
Each analog input supports selectable 0–10 V, −10 to +10 V,
0–20 mA or 4–20 mA signal ranges, with
12-bit or 11-bit + sign resolution depending on the
configured range. The module uses 24 V DC external power
and 5 V DC internal bus power, and has a
removable screw terminal block. It has four analog
inputs and no analog outputs. Verify your controller,
I/O configuration, power supply and terminal requirements before ordering.
Key Product Features
-
Four analog input channels for approved Modicon TM3 expansion configurations
-
Voltage input ranges of 0–10 V DC and −10 to +10 V DC
-
Current input ranges of 0–20 mA and 4–20 mA
-
12-bit / 11-bit + sign resolution as specified by Schneider for the selected signal range
-
24 V DC external and 5 V DC bus supply with 30 mA external and up to 45 mA internal-bus current consumption
-
Removable screw terminals with 3.81 mm pitch; not the spring-terminal TM3AI4G model
-
Compatible TM3 expansion module for supported M221, M241, M251 and M262 configurations
Actual Product Verification
✓
Actual product photos
✓

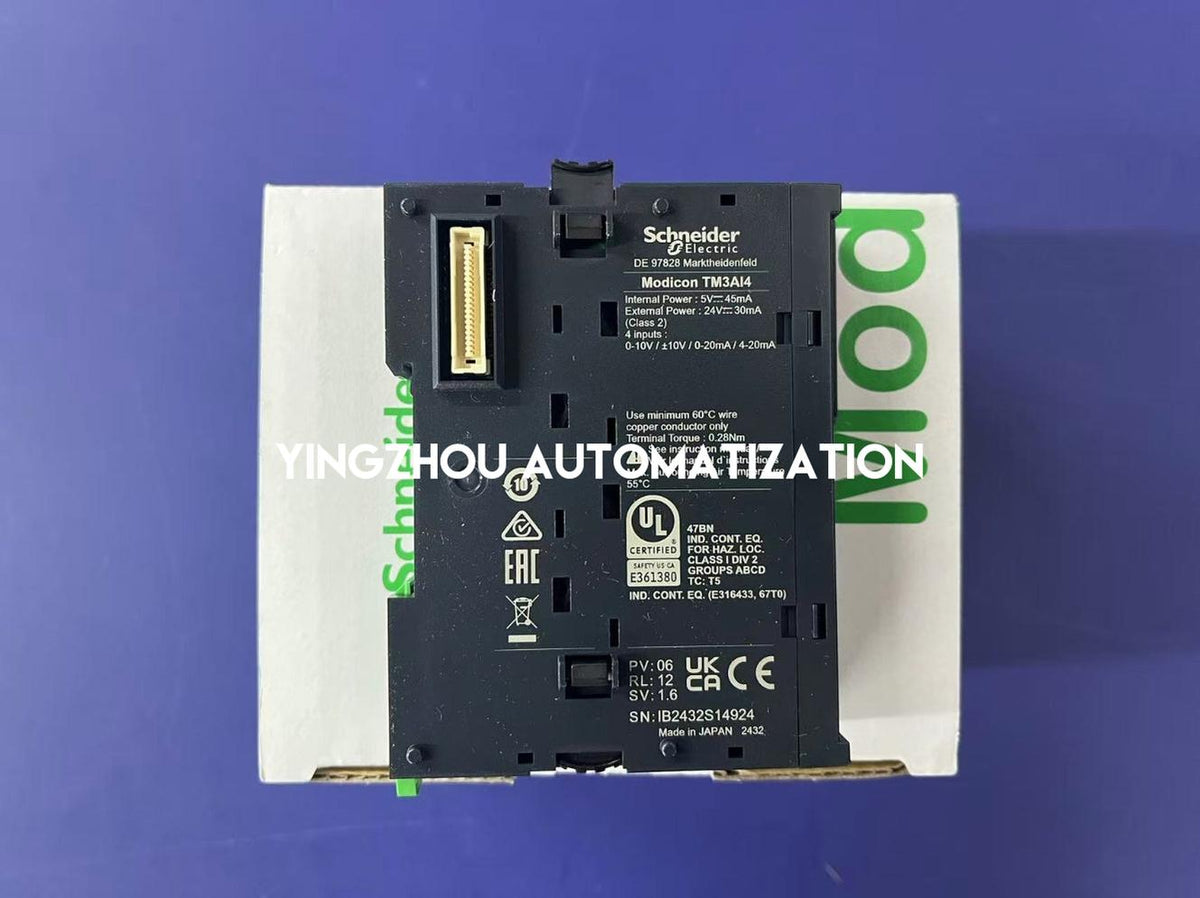

Model/nameplate visible
✓

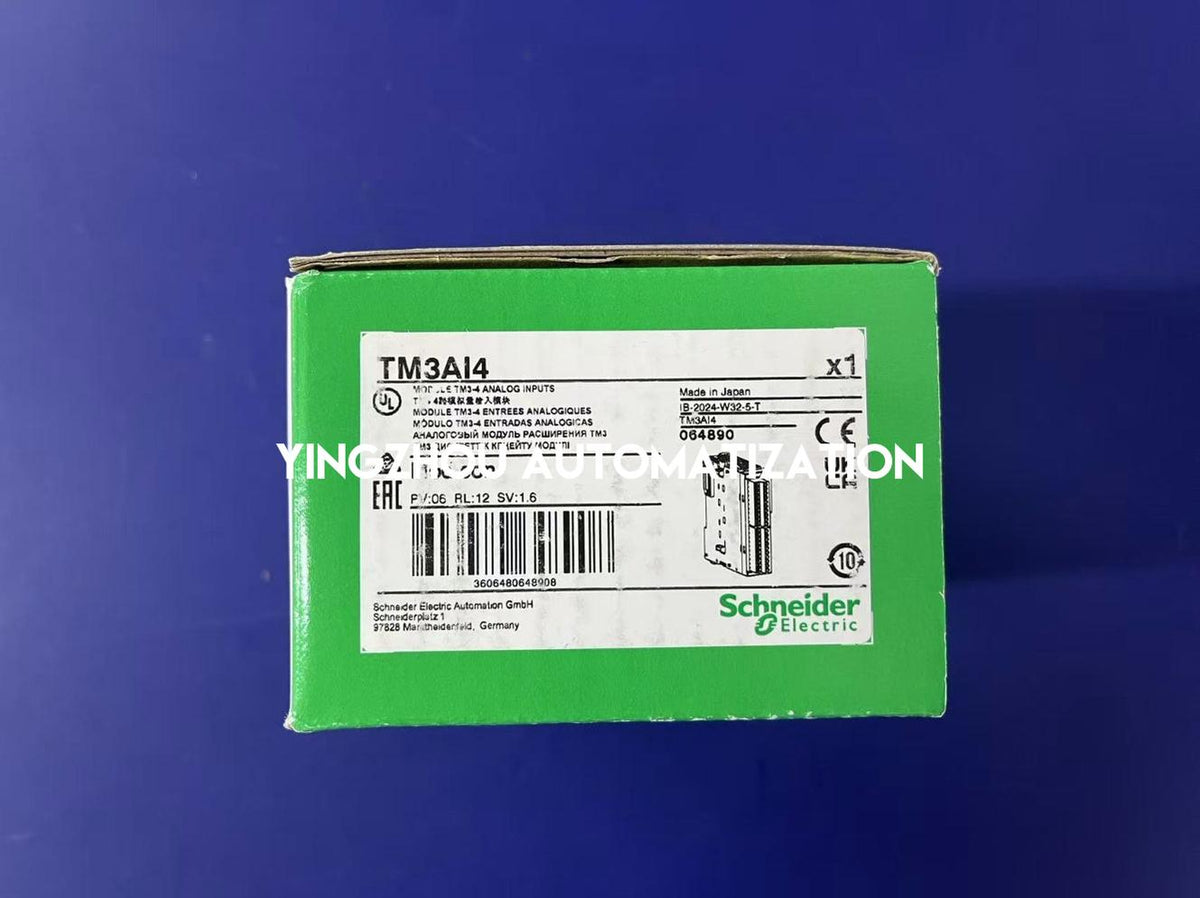

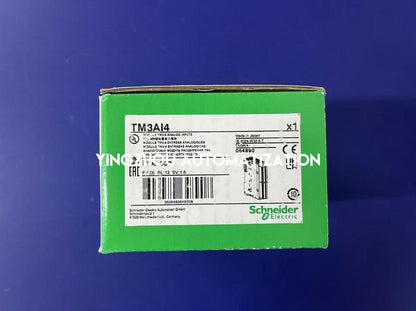

Packaging shown
✓
Verify exact model TM3AI4 before ordering
In Stock & Ready to Order
Schneider Electric TM3AI4 is currently in stock.

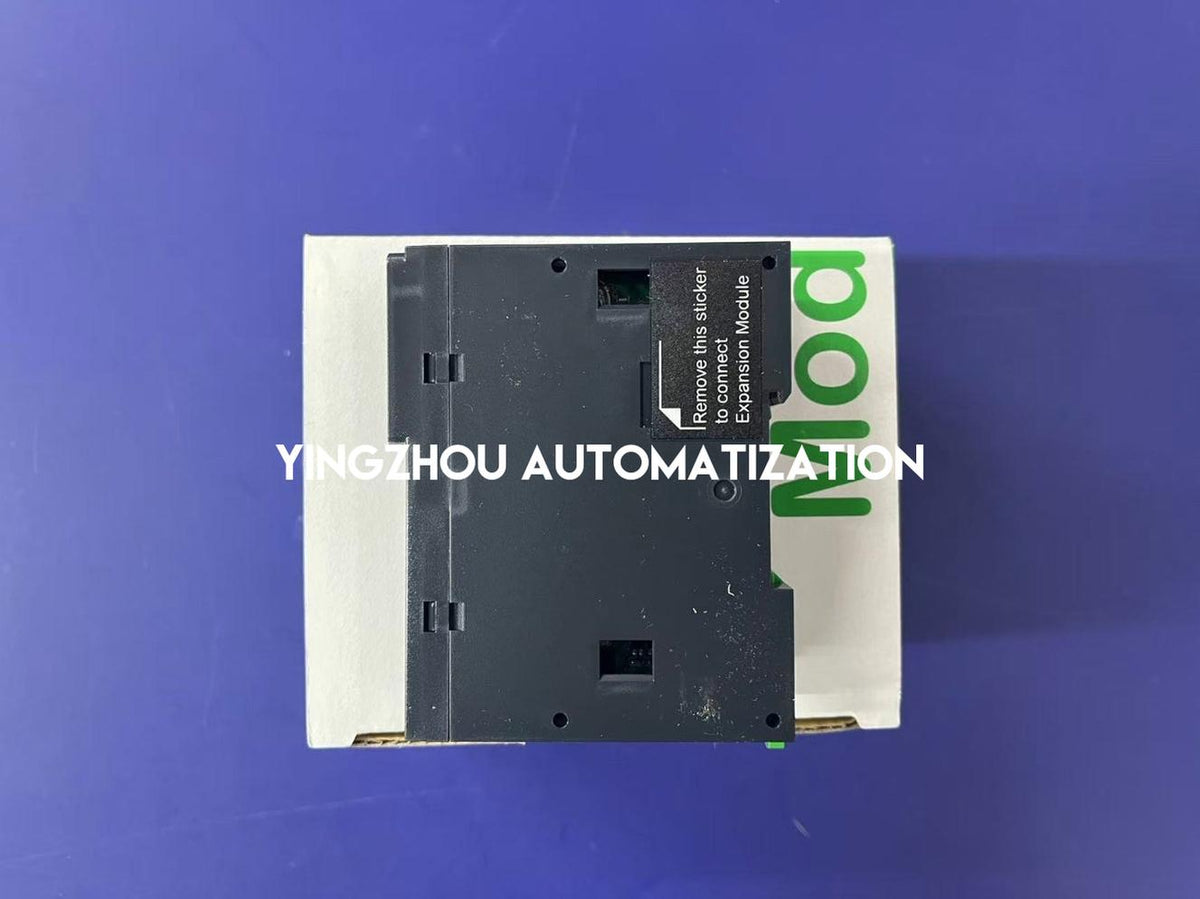

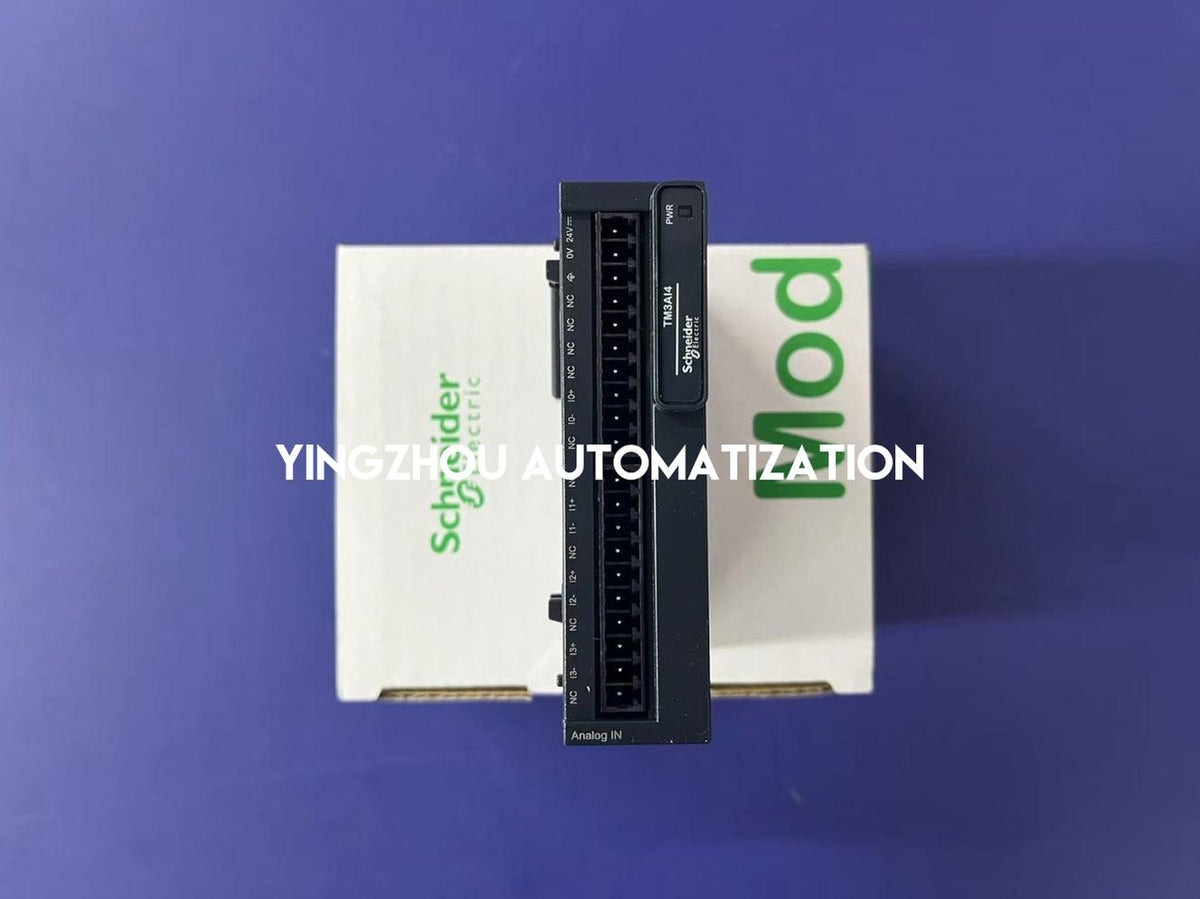

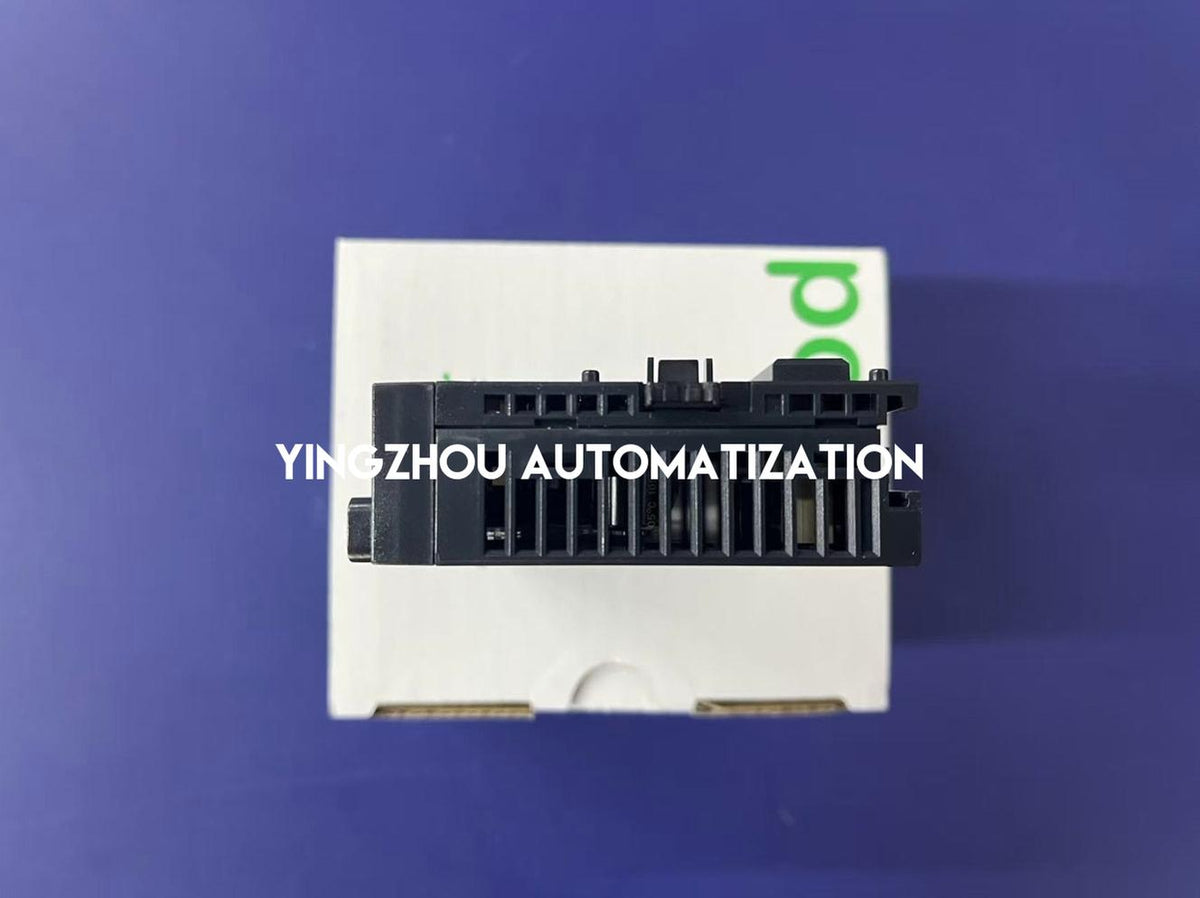

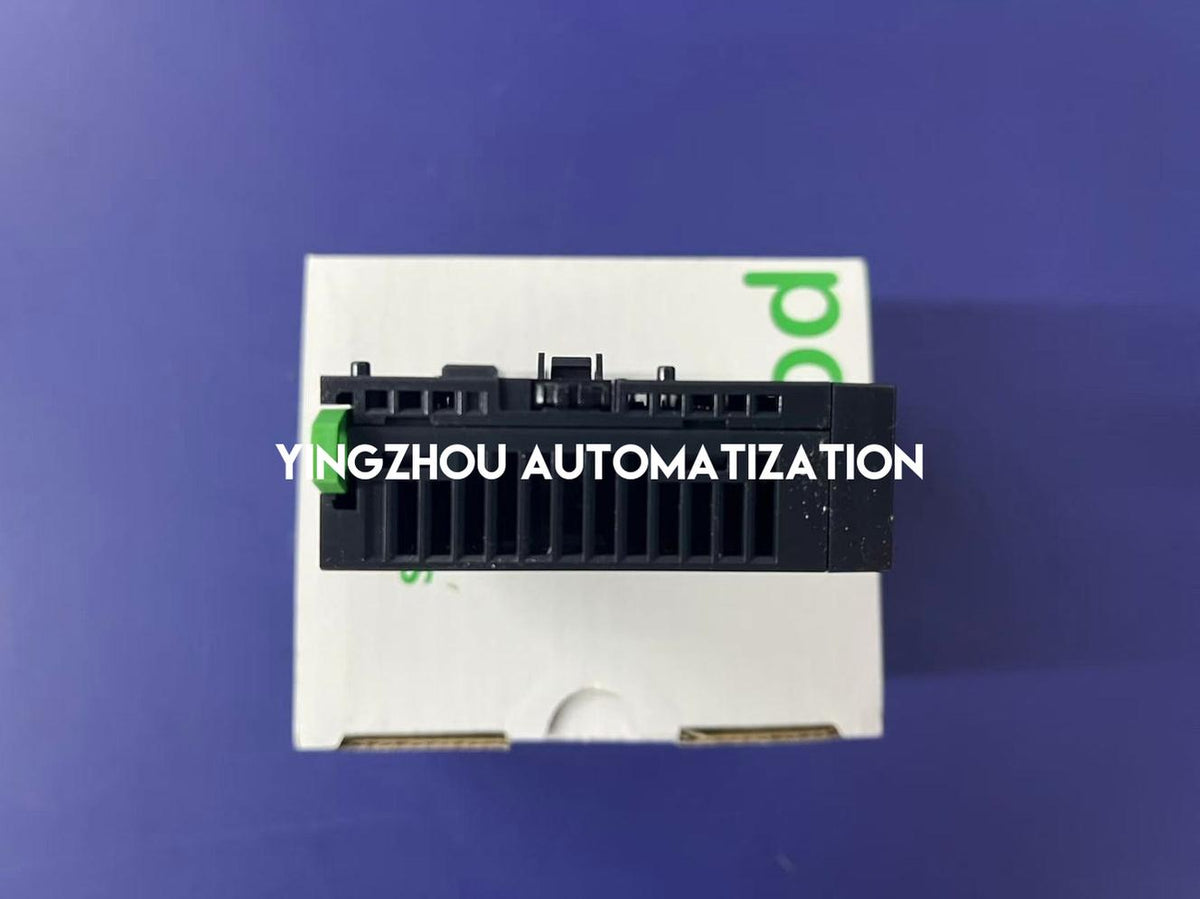

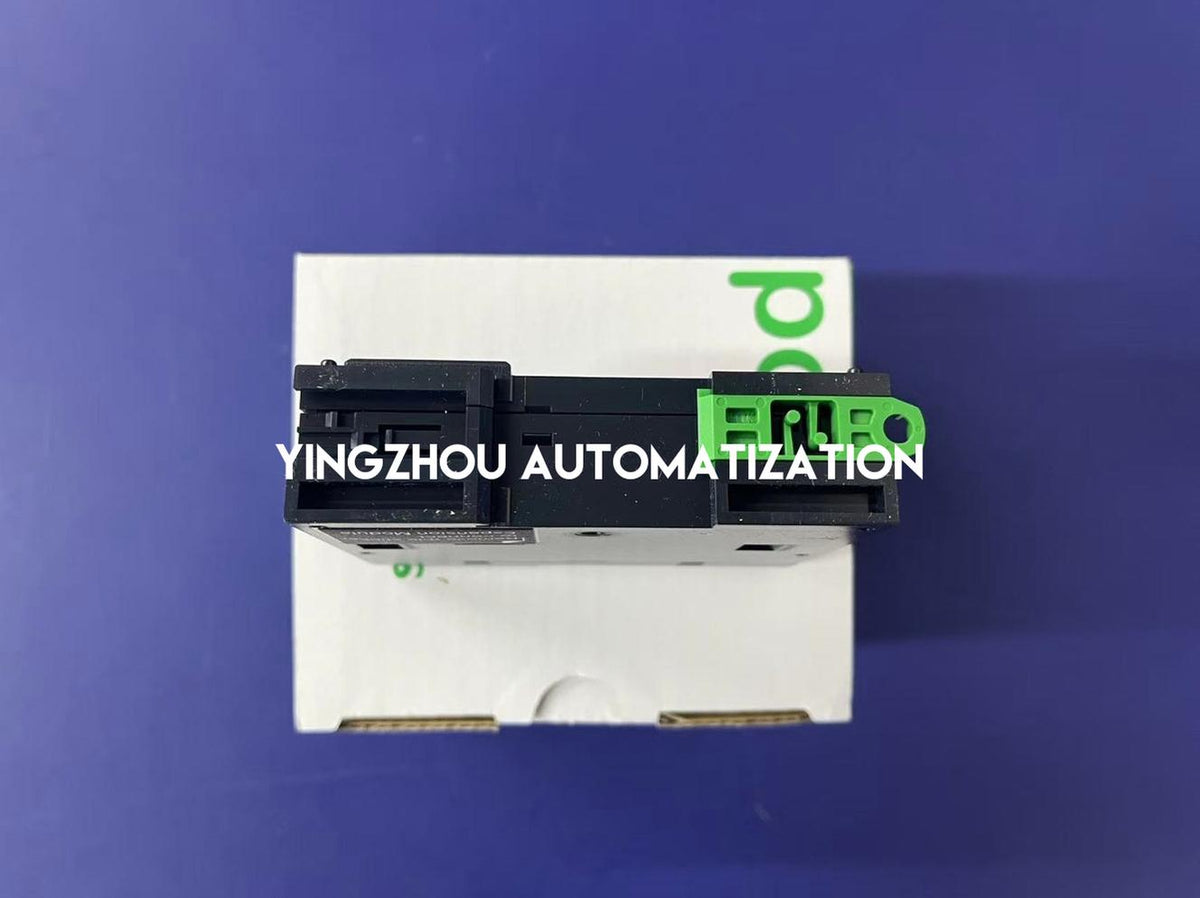

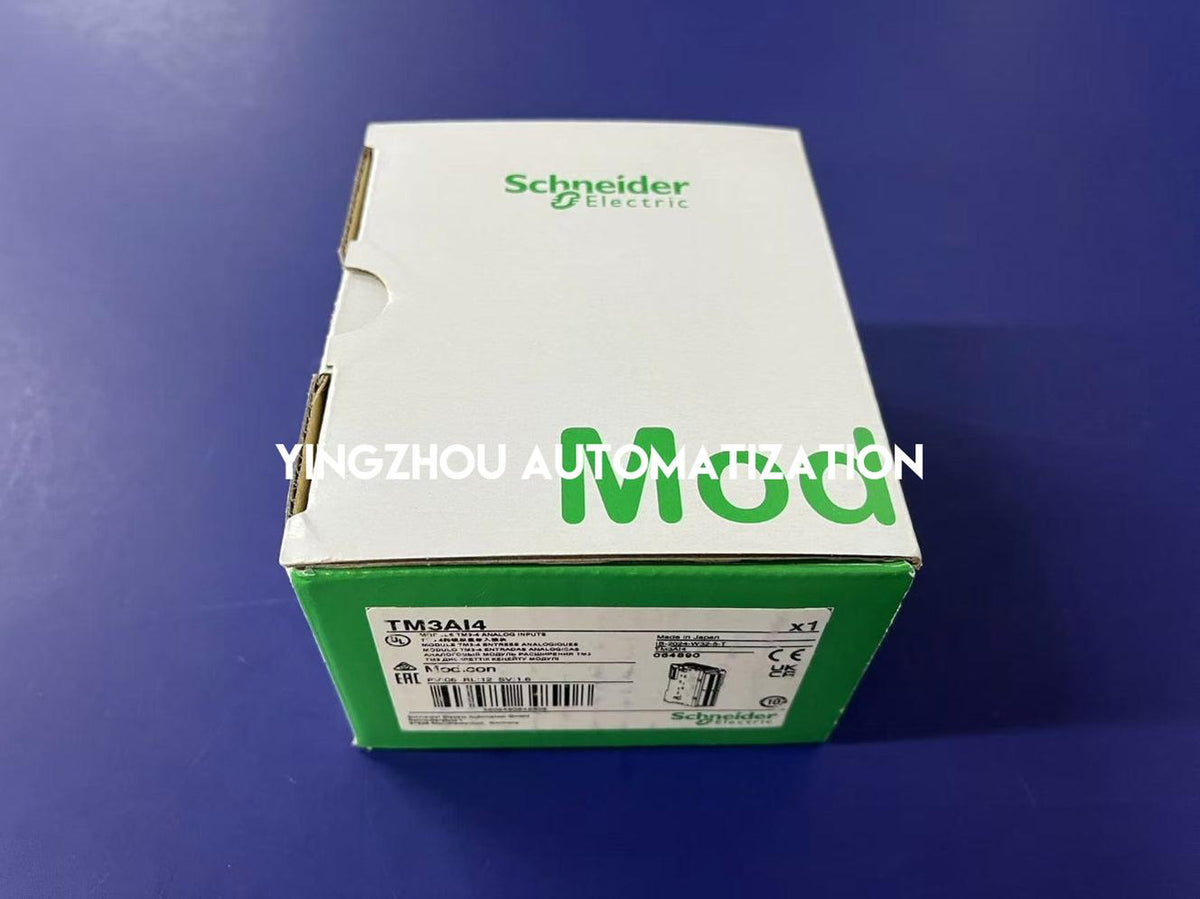

Actual analog input module/nameplate and packaging-label photographs
are provided for exact-model verification before ordering.
