Schneider Electric RXM4AB1JD Harmony RXM Miniature Plug-in Relay
6A | 4 C/O (4PDT) | 12V DC Coil | Lockable Test Button
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
RXM4AB1JD |
| Series |
Harmony RXM |
| Product Type |
Miniature Plug-in Relay |
| Contact Configuration |
4 C/O (4PDT) |
| Conventional Enclosed Thermal Current |
6A at -40°C to +55°C |
| Control Coil Voltage |
12V DC |
| Coil Operating Voltage Range |
9.6–13.2V DC |
| Control Type |
Lockable Test Button |
| Status LED |
Without LED |
| Pin Type |
Flat |
| Contact Material |
Silver-Nickel (AgNi) |
| Rated Operational Current — NO |
6A at 250V AC / 28V DC — IEC |
| Rated Operational Current — NC |
3A at 250V AC / 28V DC — IEC |
| UL Contact Rating — AC |
6A at 277V AC |
| UL Contact Rating — DC |
8A at 30V DC |
| Rated Insulation Voltage (Ui) |
250V — IEC |
| Rated Impulse Withstand Voltage (Uimp) |
2.5kV — 1.2/50µs |
| Maximum Switching Voltage |
250V — IEC |
| Maximum Switching Capacity |
1500VA / 168W |
| Minimum Switching Capacity |
170mW at 10mA, 17V |
| Average Coil Consumption |
0.9W |
| Average Coil Resistance |
160Ω at 20°C ±10% |
| Operating Time |
20ms |
| Release Time |
20ms |
| Mechanical Durability |
10,000,000 Cycles |
| Electrical Durability |
100,000 Cycles — Resistive Load |
| Maximum Operating Rate — Loaded |
1200 Cycles/Hour |
| Protection Rating |
IP40 — IEC 60529 |
| Operating Temperature |
-40°C to +55°C |
| Product Weight |
0.037 kg |
| Applicable Standard |
EN/IEC 61810-1 |
| Country of Manufacture |
China (Actual Product Marking) |
| Outer Carton Quantity |
×10 (Box Label) |
Product Overview
The Schneider Electric RXM4AB1JD
is a miniature plug-in electromechanical relay
from the Harmony RXM range,
designed for switching and control functions
in industrial automation systems.
The relay features
4 changeover contacts (4 C/O / 4PDT),
a 6A conventional enclosed thermal
current rating, and a
12V DC control coil.
The manufacturer specifies a
9.6–13.2V DC coil operating range.
It is equipped with a
lockable test button.
The manufacturer identifies this exact
model as a without-LED
configuration.
The relay uses flat plug-in pins
and requires a compatible socket
for installation.
The manufacturer technical datasheet
identifies a 10-million-cycle
mechanical durability rating
and a 2.5kV impulse withstand
voltage under the stated
test conditions.
Key Product Features
-
6A conventional enclosed thermal current rating
-
4 C/O (4PDT) changeover contact configuration
-
12V DC control coil
-
9.6–13.2V DC coil operating range
-
Lockable test button for controlled testing
-
Without LED according to manufacturer datasheet
-
10 million cycles mechanical durability
-
IP40 protection rating
-
Harmony RXM flat-pin plug-in relay design
Actual Product Verification
✓

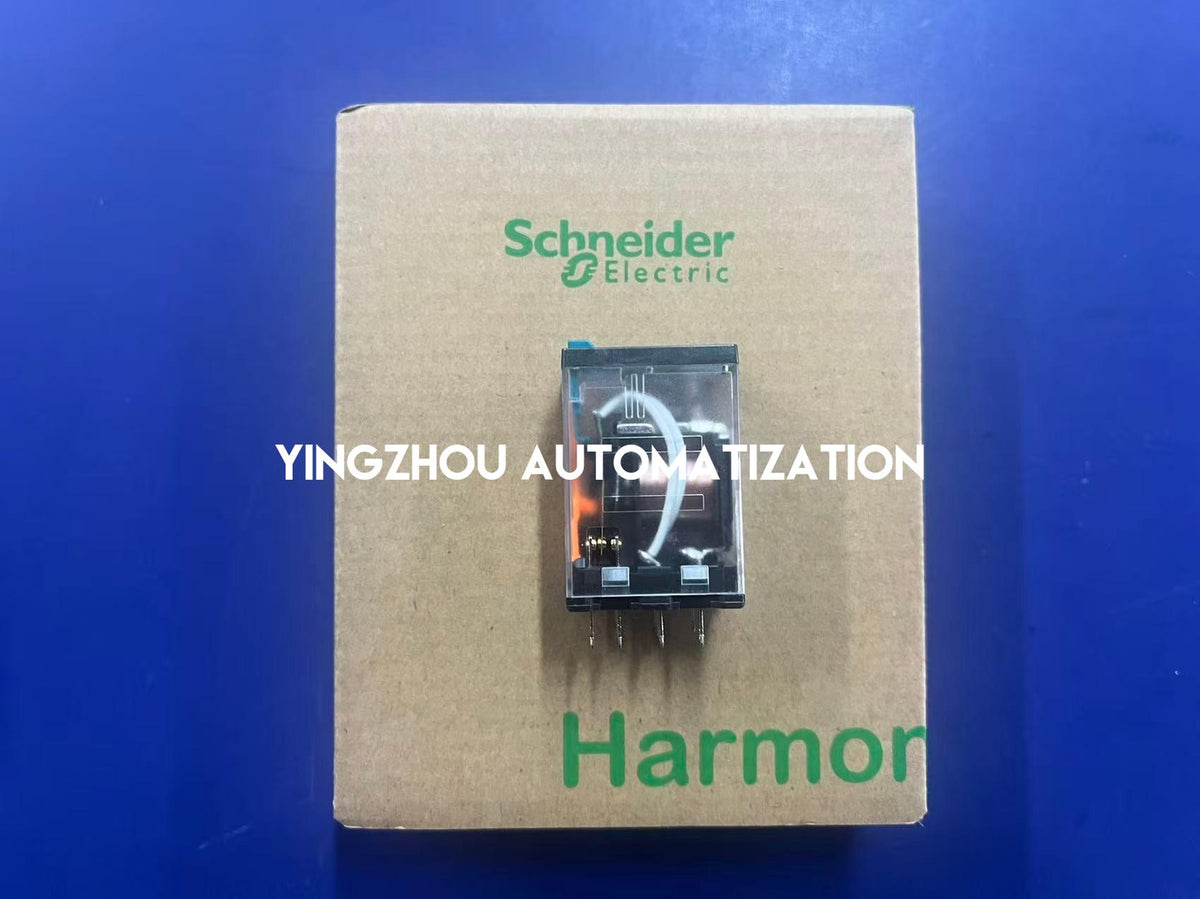

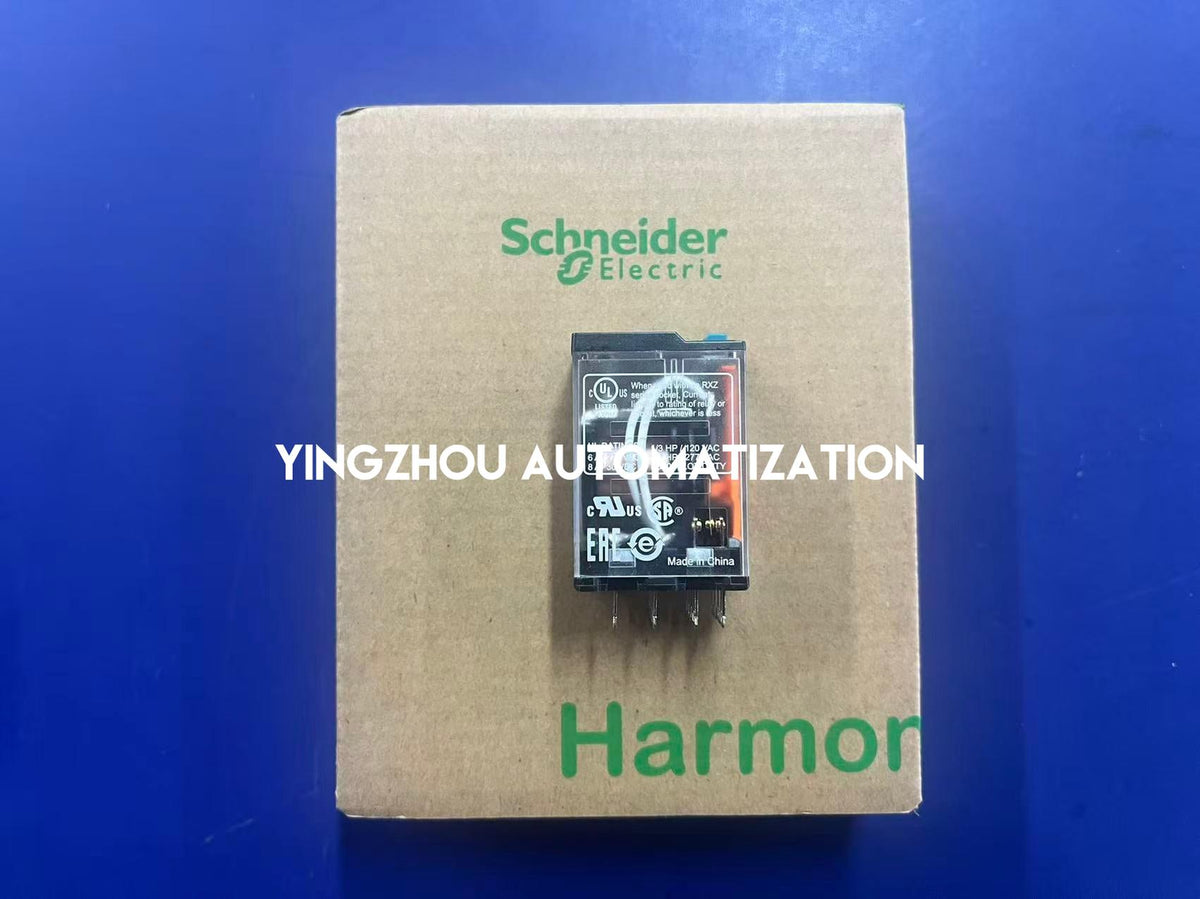

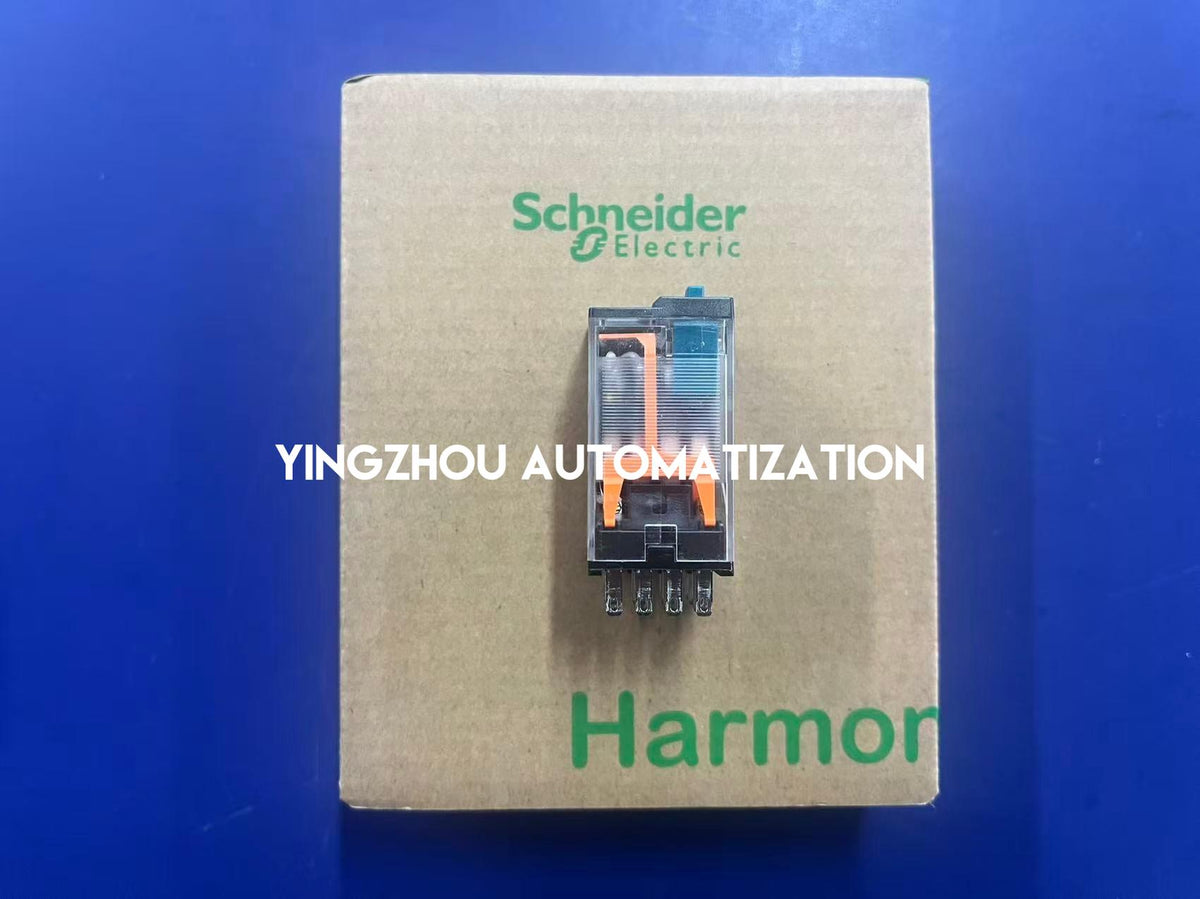

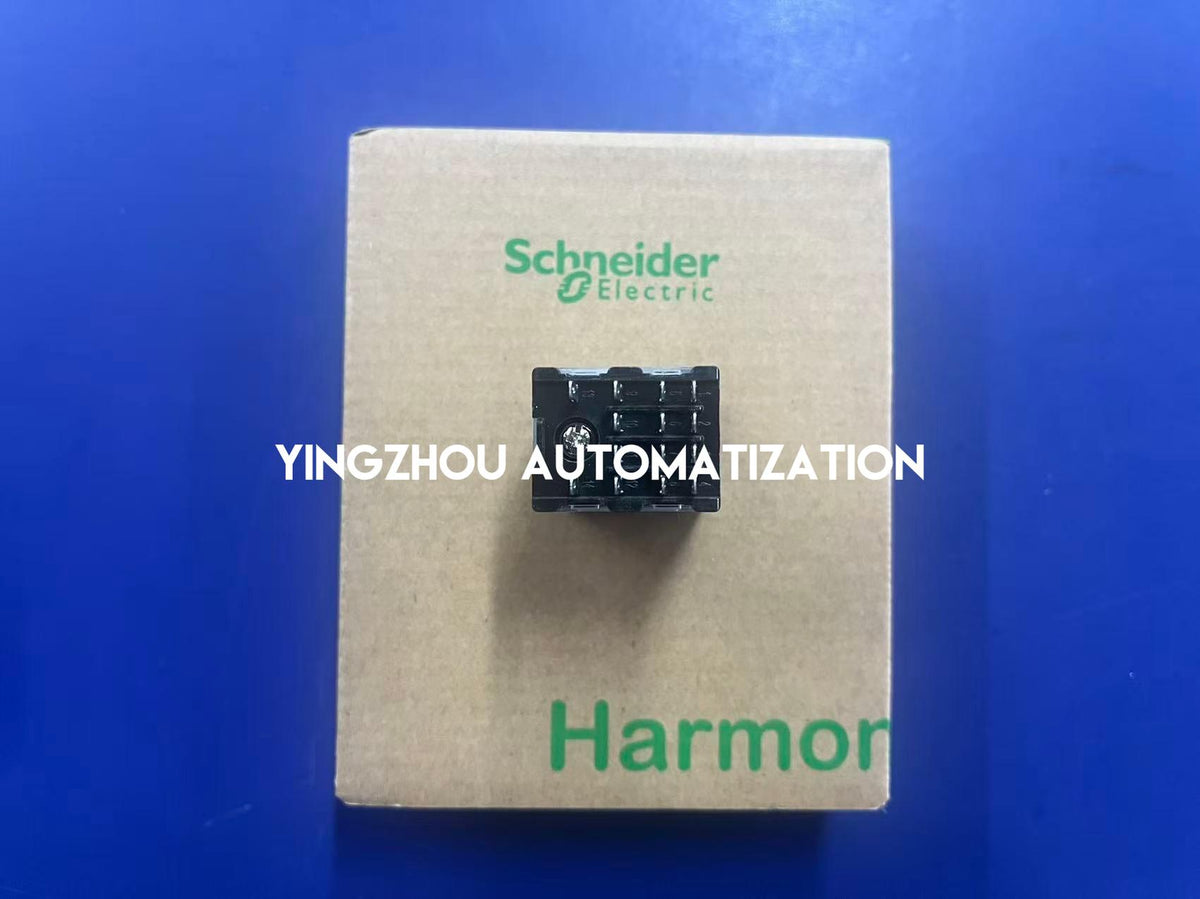

Actual product photos
✓

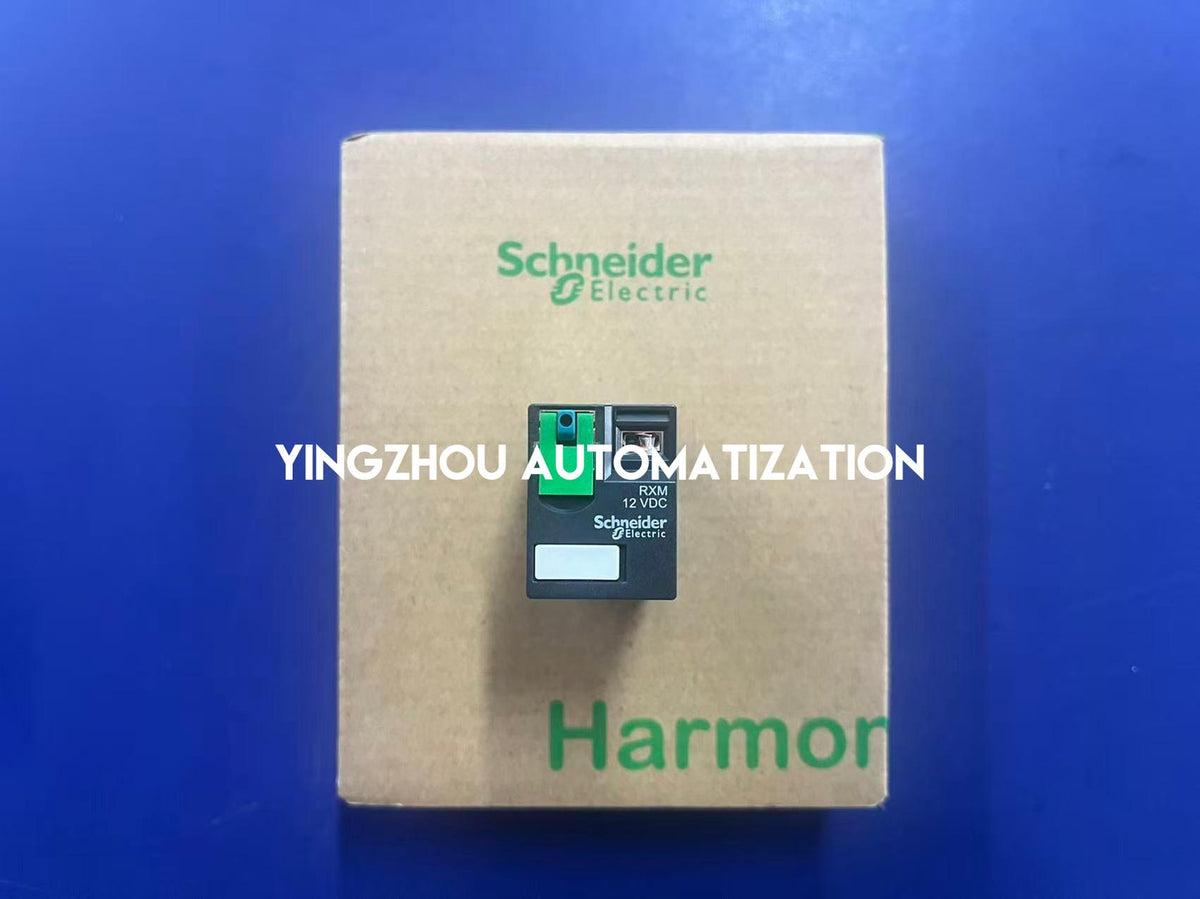

Exact model and 12V DC marking visible
✓
Packaging shown with exact model label
✓
Verify exact model RXM4AB1JD
and order quantity before purchasing
In Stock & Ready to Order
Schneider Electric RXM4AB1JD
is currently in stock according to our
inventory information.
Actual relay and packaging photographs
are provided for buyer verification.
Please confirm the required quantity,
exact model, 12V DC coil voltage,
4 C/O contact configuration and
compatible relay socket before ordering.
The actual outer carton label
indicates 10 pcs.
Please confirm the required purchasing
quantity and selling unit.
IN STOCK
Schneider Electric RXM4AB1JD
Order online or contact us for project and quantity pricing.
Request Project Pricing
