Schneider BMXDDO3202K Modicon X80 Digital Output Module
32 Transistor Outputs | 24V DC | Positive Logic (Source) | 0.1A
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
BMXDDO3202K |
| Series |
Modicon X80 |
| Product Type |
Discrete Output Module |
| Digital Output Channels |
32 |
| Digital Input Channels |
0 |
| Output Technology |
Solid-State Transistor |
| Output Logic |
Positive Logic (Source) |
| Nominal Output Voltage |
24 V DC |
| Output Voltage Range |
19–30 V DC |
| Rated Output Current |
0.1 A per output |
| Maximum Current per Channel |
0.125 A |
| Maximum Current per Module |
3.2 A |
| Maximum Leakage Current |
≤0.1 mA at state 0 |
| Maximum Voltage Drop |
<1.5 V at state 1 |
| Output Response Time |
1.2 ms |
| Output Paralleling |
Up to 3, per manufacturer conditions |
| Maximum Overload Time |
15 ms |
| Minimum Resistive Load Impedance |
220 Ω |
| Maximum Tungsten Lamp Load |
1.2 W |
| Electrical Connection |
1 × 40-way FCN connector |
| Output Grouping |
2 groups × 16 channels |
| External Fuse |
2 A fast-blow per 16-channel group |
| Overload Protection |
Electronic circuit breaker / current limiter |
| Overload Trip Current |
0.125 A < Id < 0.185 A |
| Short-Circuit Protection |
Current limiter plus external group fuse |
| Overvoltage Protection |
Transil diode |
| Reverse Polarity Protection |
Reverse-mounted diode |
| Preactuator Supply Status |
Fault below 14 V DC / OK above 18 V DC |
| Module Power Dissipation |
3.6 W max. |
| Operating Temperature |
0°C to +60°C |
| Protection Rating |
IP20 |
| Net Weight |
0.11 kg |
| Mounting |
Compatible Modicon X80 rack / backplane |
Product Overview
The Schneider Electric BMXDDO3202K is a
32-channel positive-logic transistor output module
from the Modicon X80 range for compatible M340/M580 PLC architectures.
It provides 24 V DC sourcing outputs operating within
the manufacturer's 19–30 V DC supply range and
rated at 0.1 A per output. The module has
1.2 ms output response time, includes output protection
functions, and uses one 40-way FCN connector.
Verify the compatible rack, external 24 V DC preactuator supply,
2 A fast-blow group fuses and field wiring accessories before ordering.
Key Product Features
-
32 transistor outputs for compatible Modicon X80 racks
-
24 V DC positive-logic source outputs for compatible DC loads
-
0.1 A rated output current with 0.125 A per-channel maximum
-
1.2 ms output response under manufacturer-specified conditions
-
One 40-way FCN connector for high-density field wiring
-
2 A fast-blow fuse per 16-channel group for external circuit protection
-
Short-circuit, overload and overvoltage protection with IP20 housing
Actual Product Verification
✓

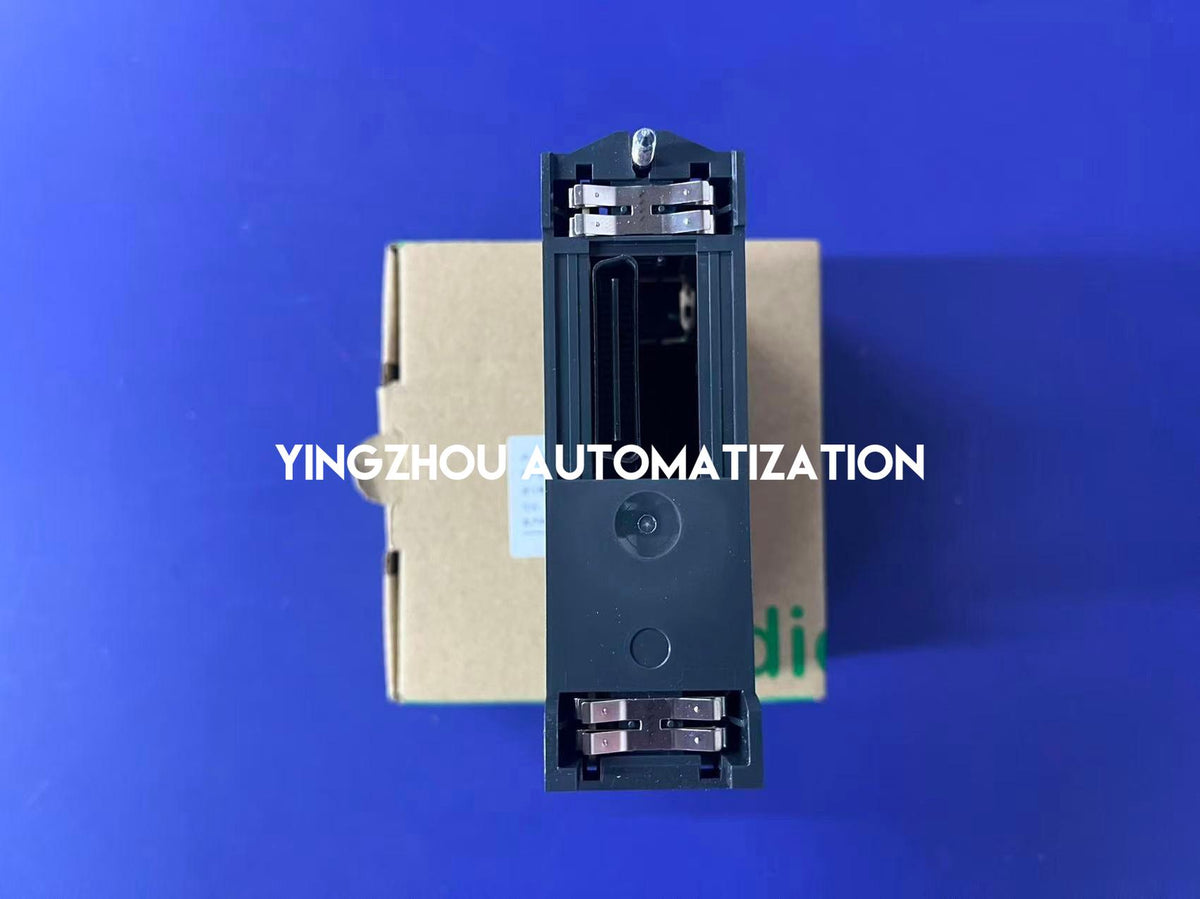

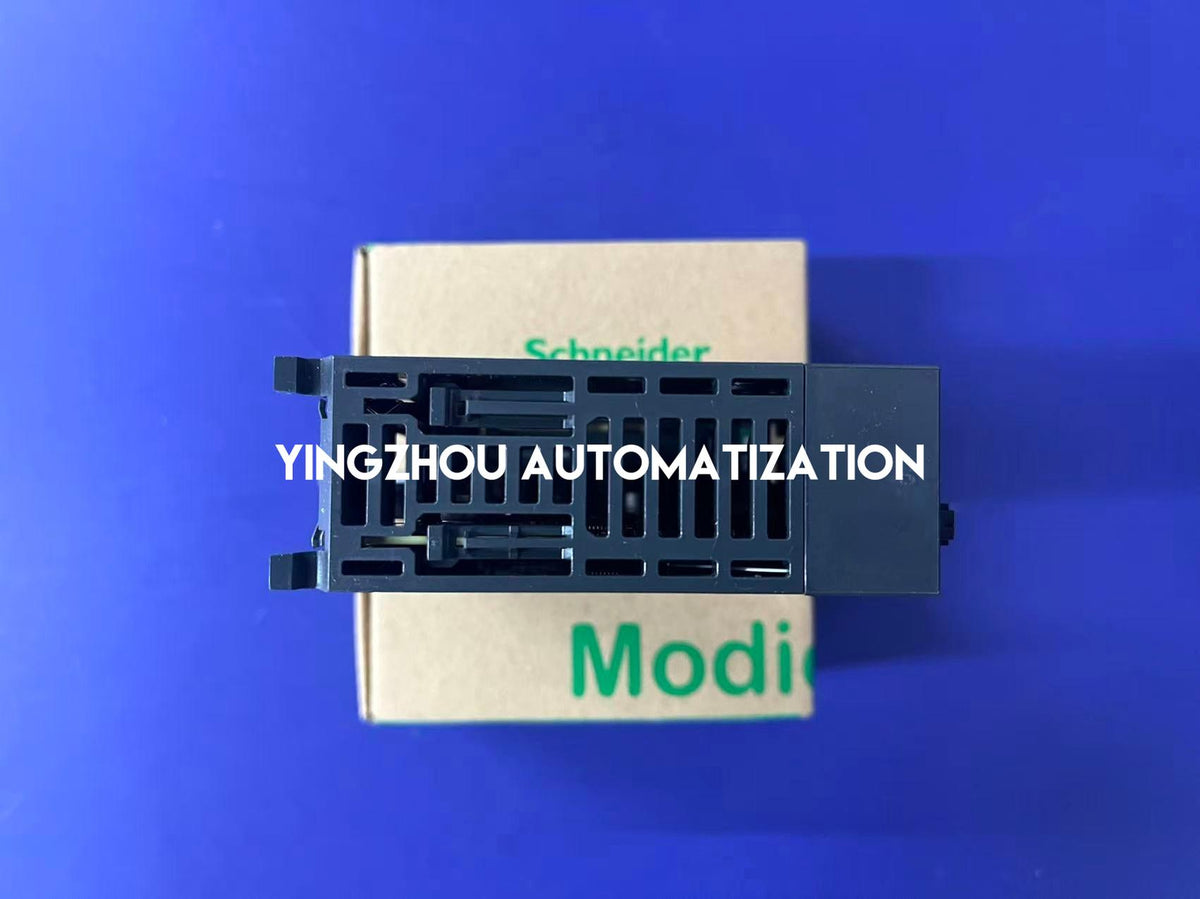

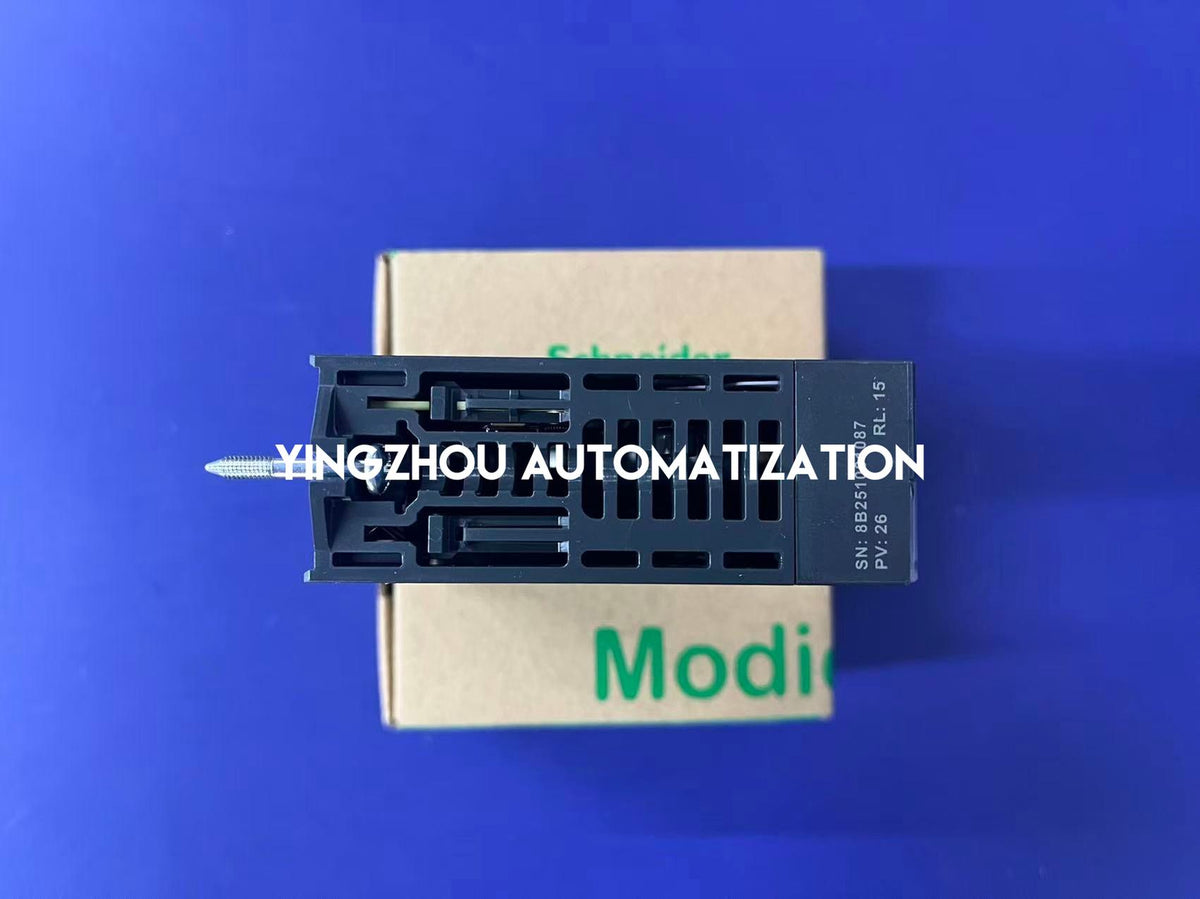

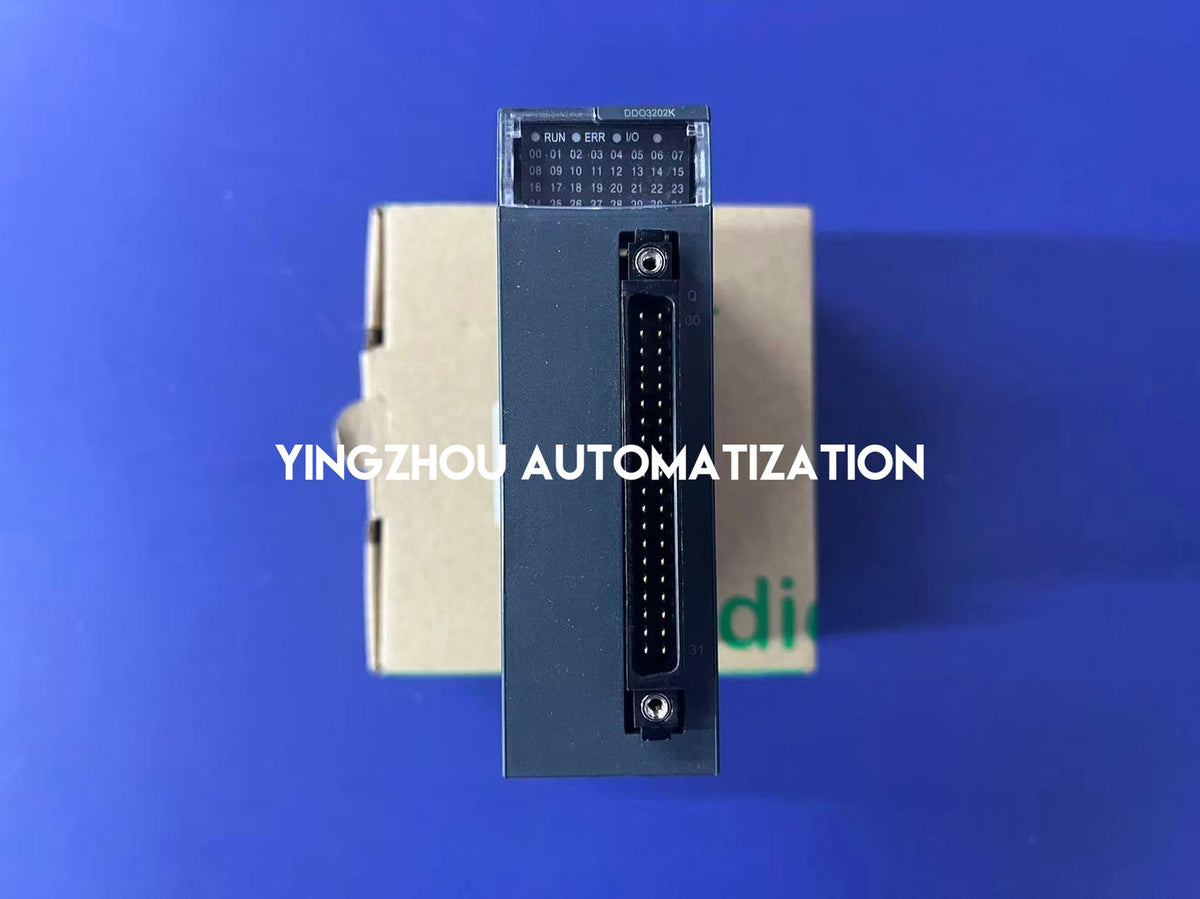

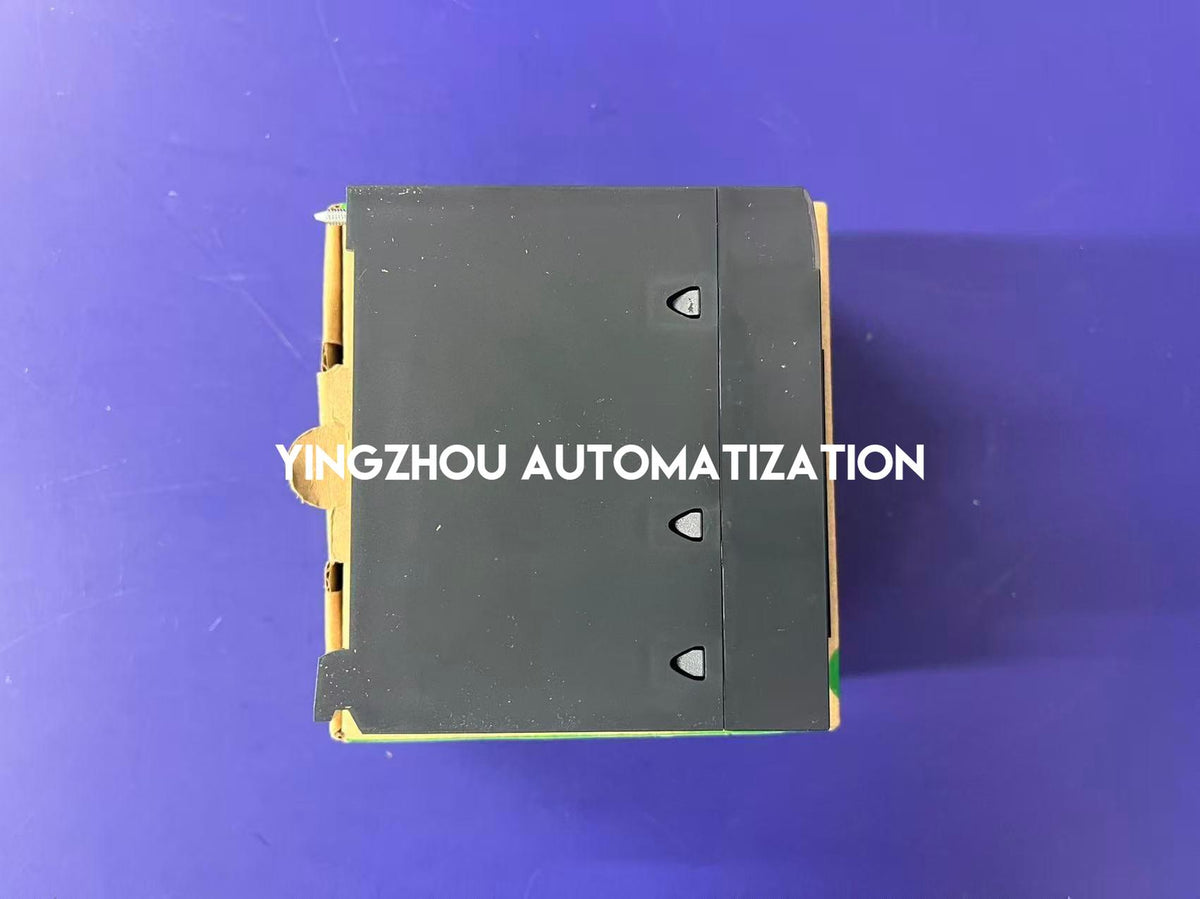

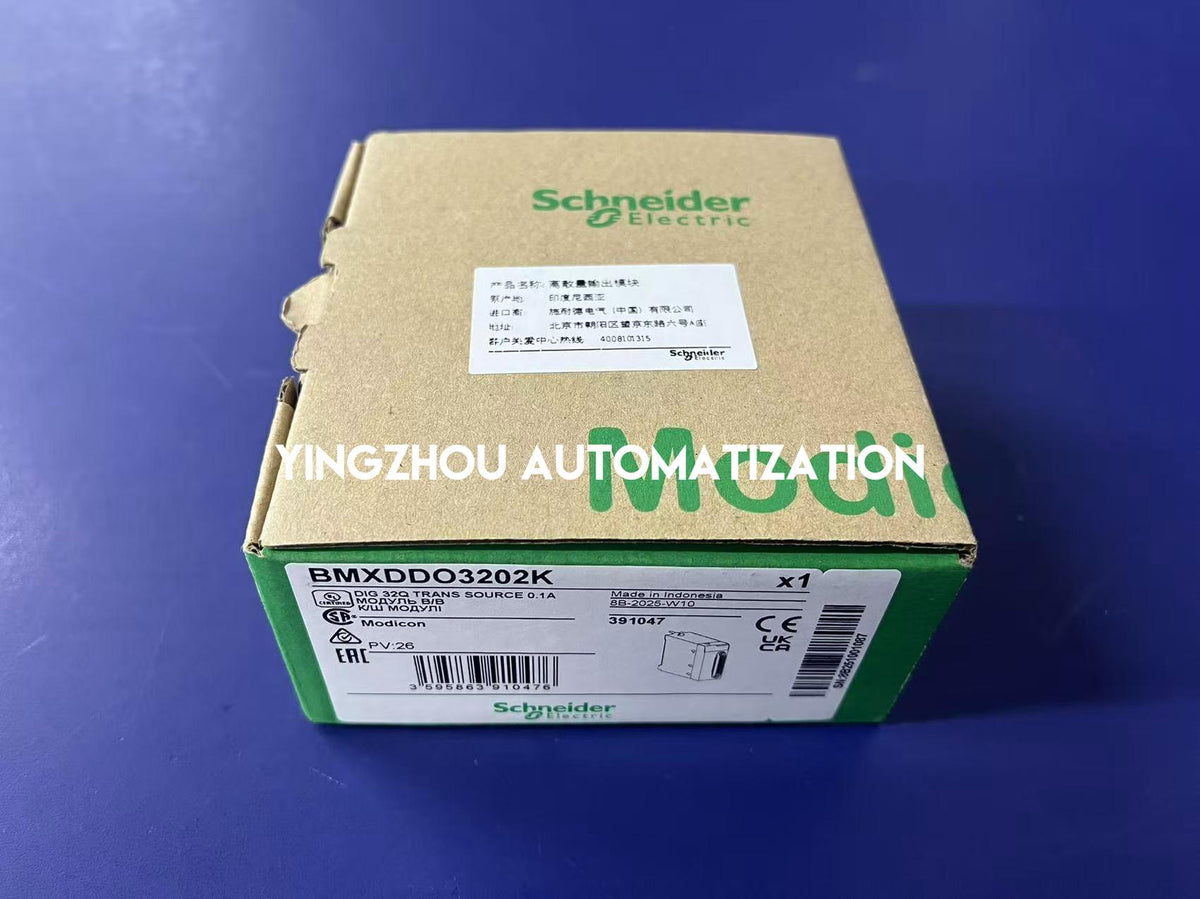

Actual product photos
✓

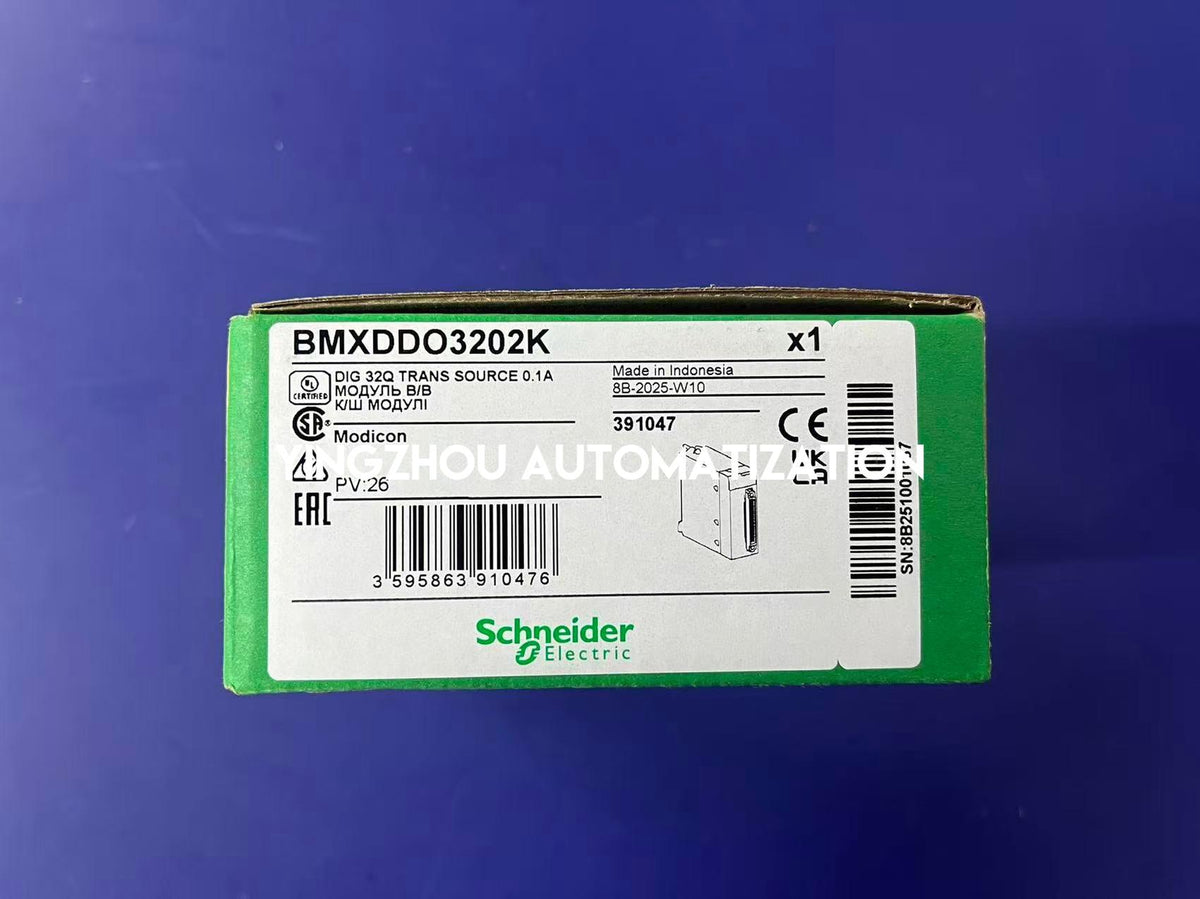

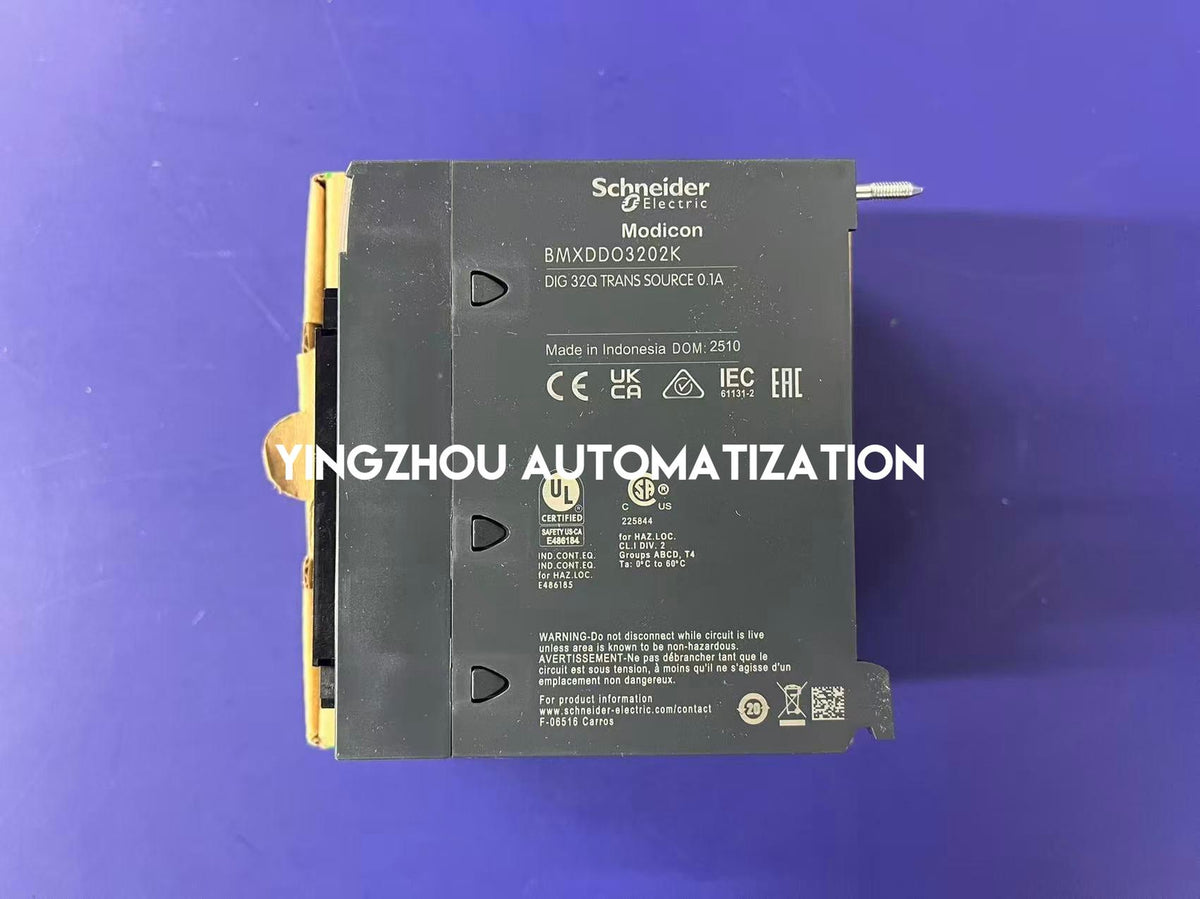

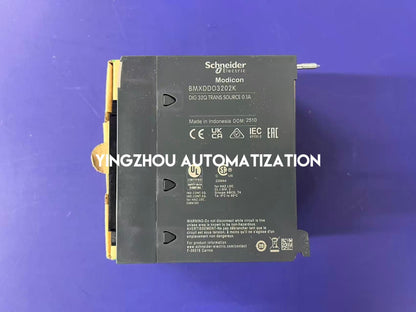

Model/nameplate visible
✓
Packaging shown
✓
Verify exact model BMXDDO3202K before ordering
In Stock & Ready to Order
Schneider Electric BMXDDO3202K is currently in stock.
Actual digital output module and packaging-label photos are provided for
exact-model verification before ordering.
IN STOCK
Schneider BMXDDO3202K
Order online or contact us for project and quantity pricing.
Request Project Pricing
