Schneider BMXAMI0810 Modicon X80 High-Speed Isolated Analog Input Module
8 Isolated Analog Inputs | 0–10V / 4–20mA | 15-bit + Sign | X80
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
BMXAMI0810 |
| Series |
Modicon X80 |
| Product Type |
Isolated High-Level Analog Input Module |
| Analog Input Channels |
8 |
| Input Level |
High Level |
| Isolation Between Channels |
Isolated |
| Supported Input Types |
Voltage / Current |
| Voltage Input Ranges |
±10 V / ±5 V / 0–10 V / 0–5 V / 1–5 V |
| Current Input Ranges |
±20 mA / 0–20 mA / 4–20 mA |
| Analog Input Resolution |
15 bits + sign |
| A/D Conversion |
16 bits |
| Voltage Input Impedance |
10 MΩ |
| Internal Current Conversion Resistor |
250 Ω nominal, with input protective resistance |
| Digital Filtering |
First-order digital filter |
| Fast Acquisition Cycle |
1 ms + 1 ms × active channels |
| Nominal Acquisition Cycle |
9 ms for 8 channels |
| Voltage Measurement Error |
≤0.1% FS (specified ranges, 0–60°C) |
| Current Measurement Error |
≤0.3% FS (specified ranges, 0–60°C) |
| Permitted Input Overload |
±30 V voltage inputs / ±30 mA current inputs |
| Channel Isolation Test Value |
300 V DC (manufacturer stated test value) |
| Channel-to-Bus Isolation Test |
1400 V DC (manufacturer stated test value) |
| Electrical Connection |
1 × 28-way connector |
| Status LEDs |
RUN / ERR / I/O / Channel Diagnostics |
| Rack Supply Consumption |
150 mA at 3.3 V DC; 45 mA at 24 V DC |
| Operating Temperature |
0°C to +60°C |
| Protection Rating |
IP20 |
| Net Weight |
0.165 kg |
| Mounting |
Compatible Modicon X80 rack / backplane |
Product Overview
The Schneider Electric BMXAMI0810 is an
8-channel isolated high-level analog input module in the
Modicon X80 range. It measures compatible industrial
voltage and current signals, including
0–10 V and 4–20 mA, with
15-bit + sign input resolution and 16-bit A/D conversion.
The module supports fast acquisition and channel diagnostics, uses
one 28-way connector, and installs in a compatible X80 rack.
Verify the input ranges, wiring connector and rack configuration before ordering.
Key Product Features
-
8 isolated high-level analog inputs for Modicon X80 signal acquisition
-
Voltage ranges including ±10 V, ±5 V, 0–10 V, 0–5 V and 1–5 V
-
Current ranges including ±20 mA, 0–20 mA and 4–20 mA
-
15-bit + sign input resolution with 16-bit A/D conversion
-
High-speed sampling — 1 ms + 1 ms per active channel
-

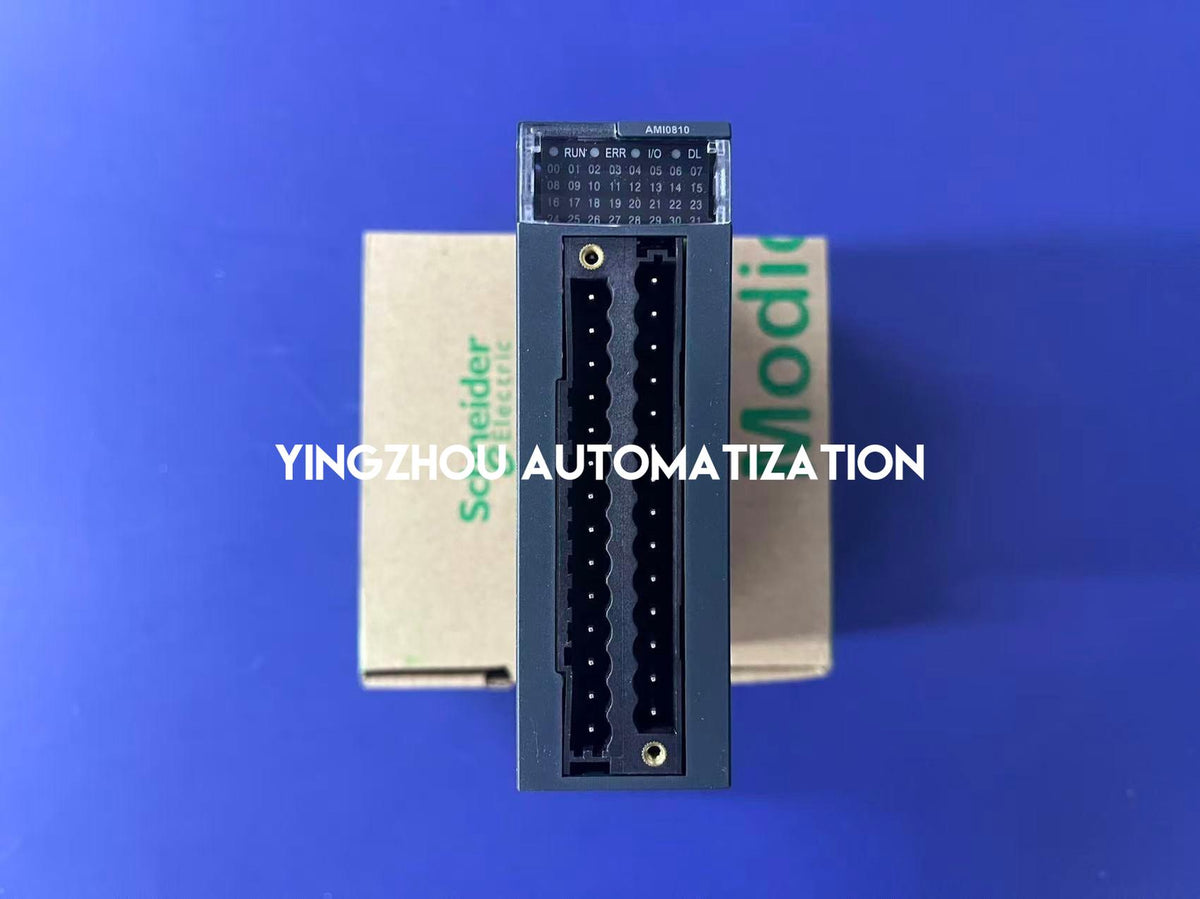

One 28-way electrical connector for supported input wiring
-
Channel isolation and diagnostics with RUN, ERR and I/O status indicators
Actual Product Verification
✓

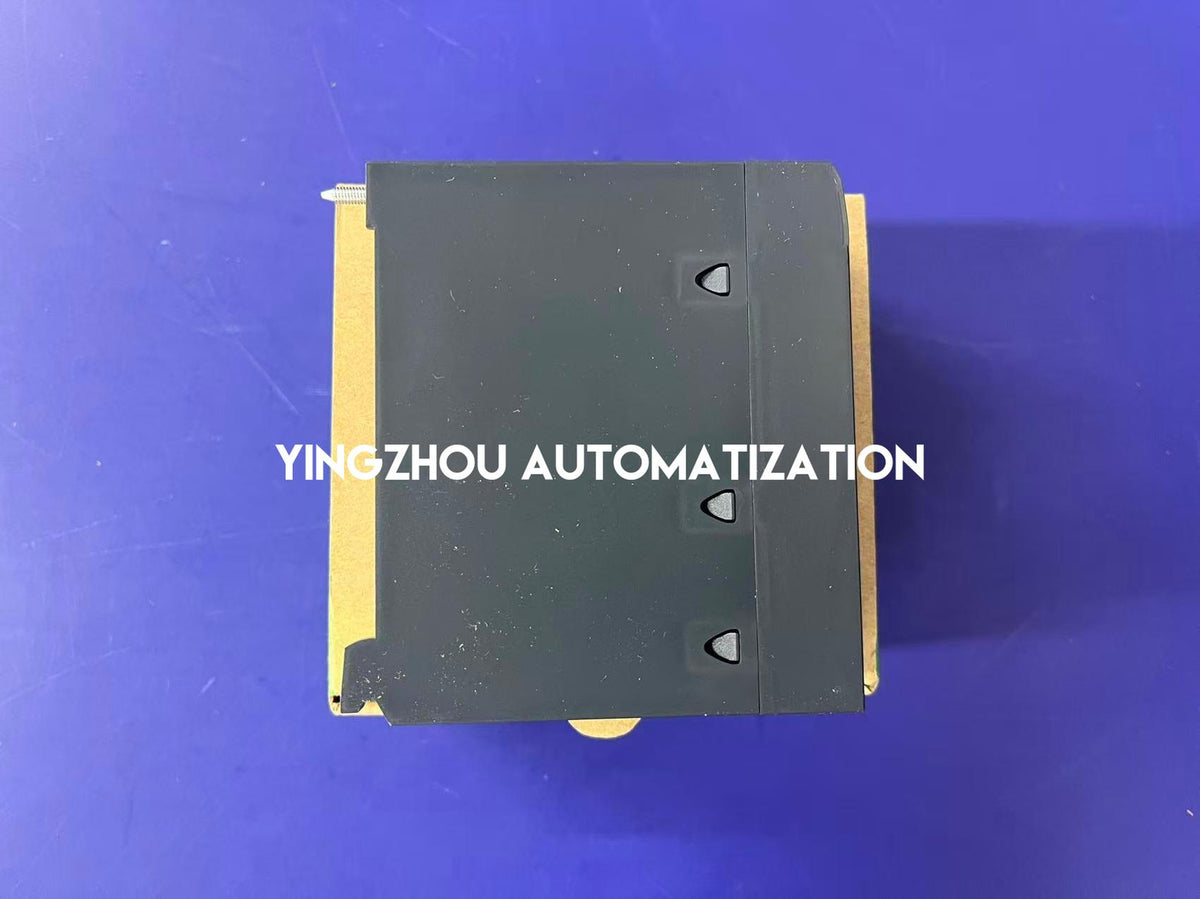

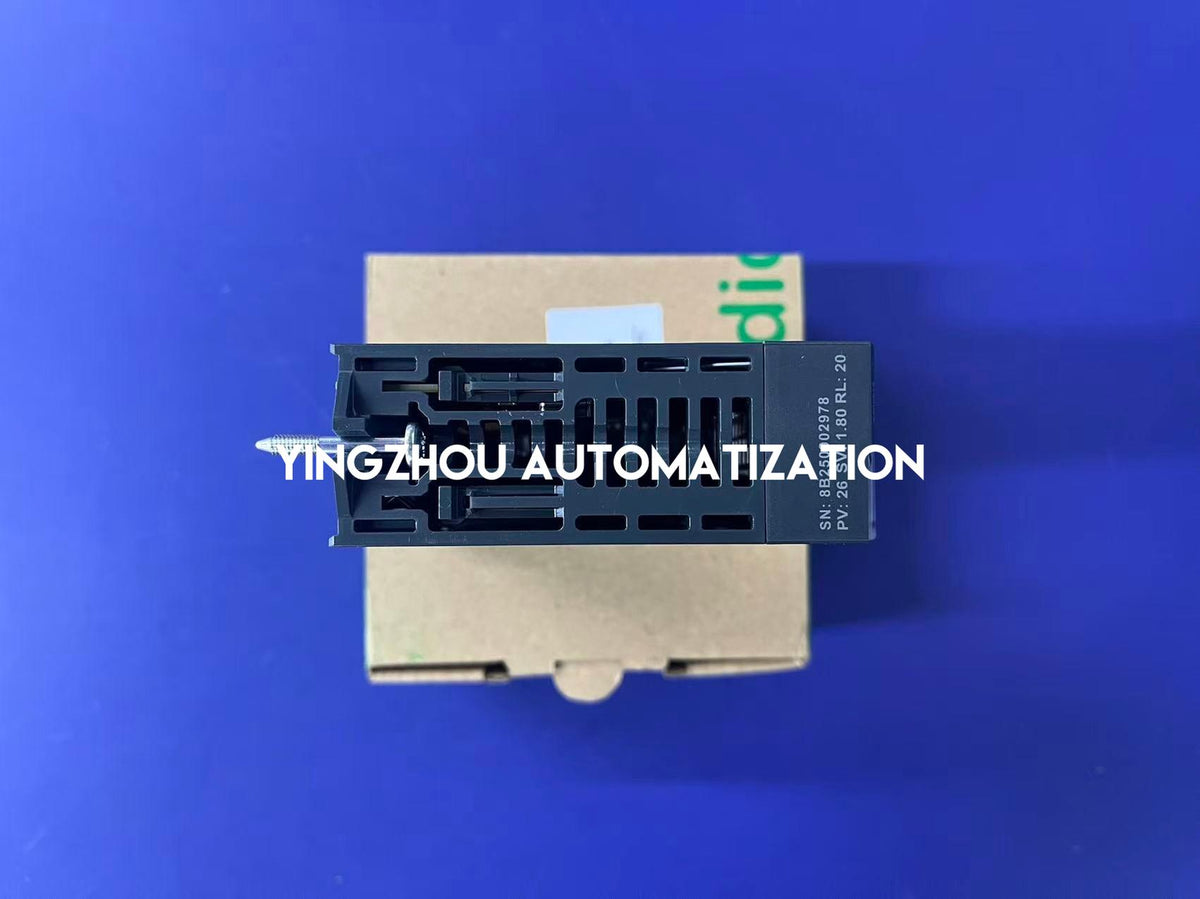

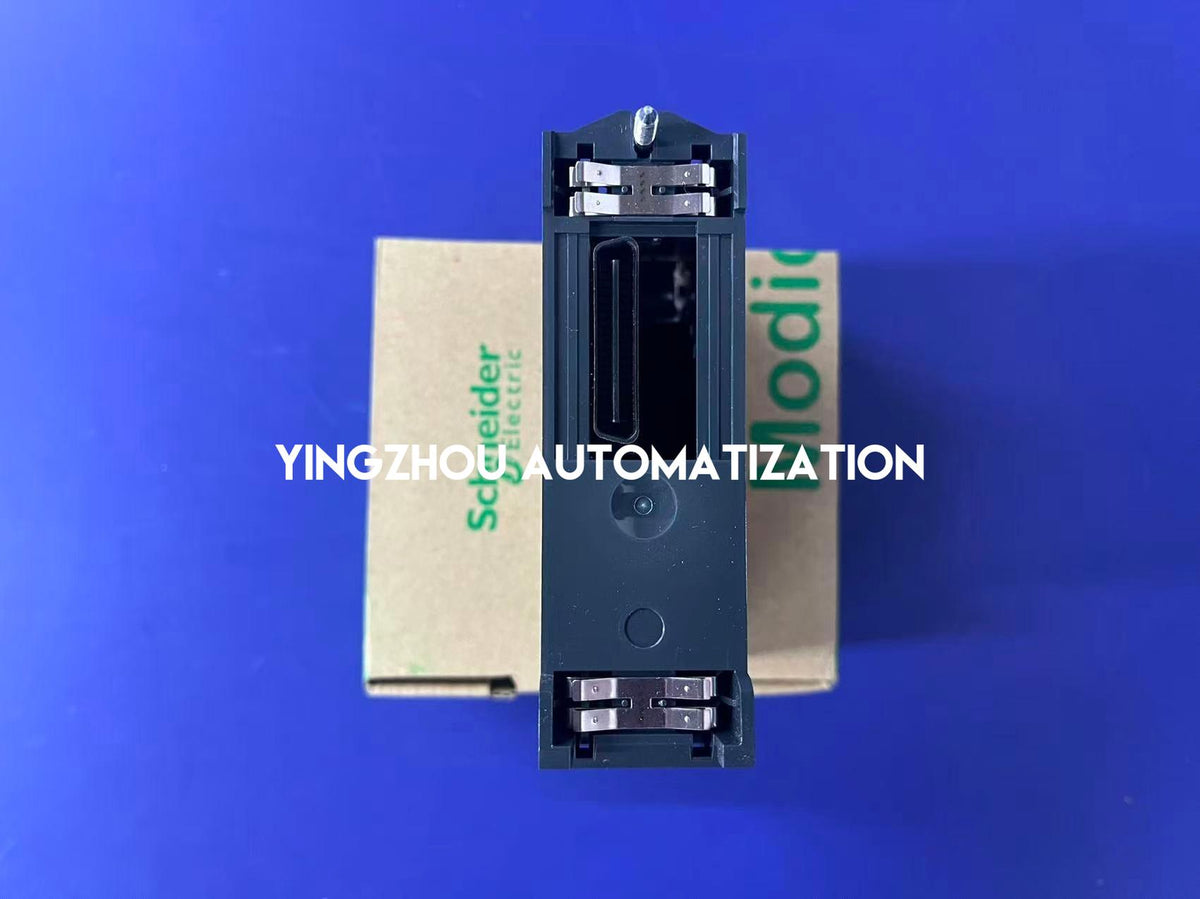

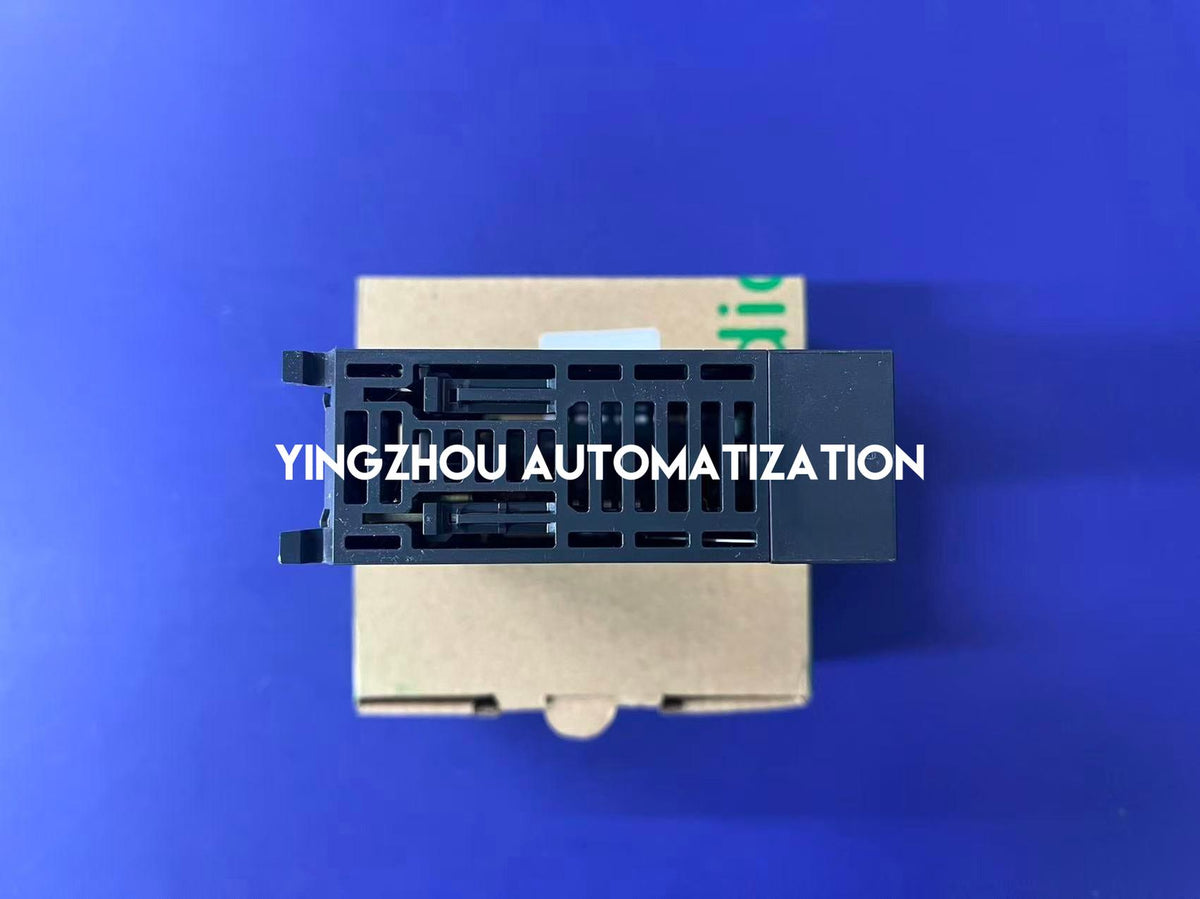

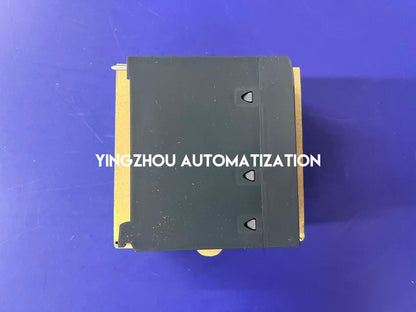

Actual product photos
✓

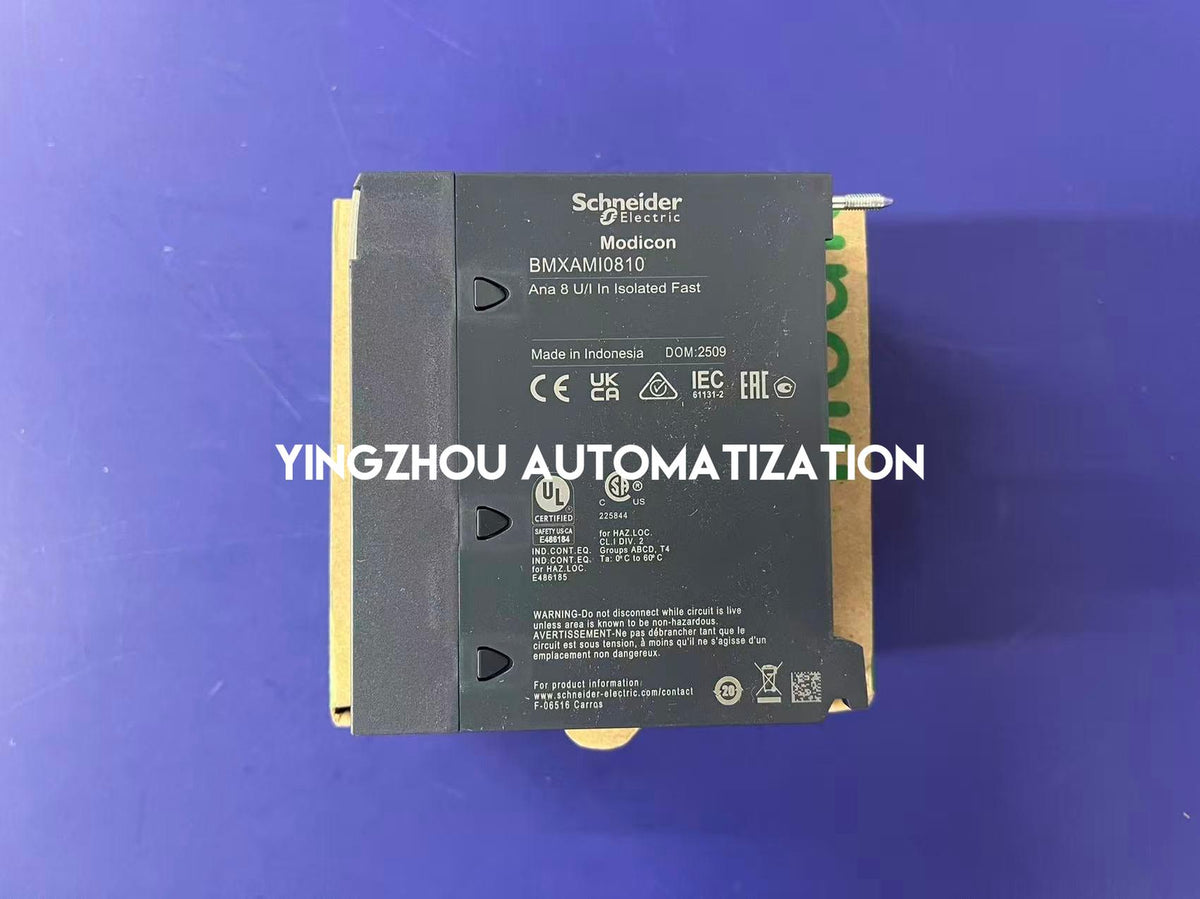

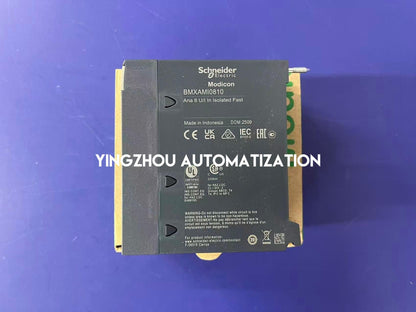

Model/nameplate visible
✓

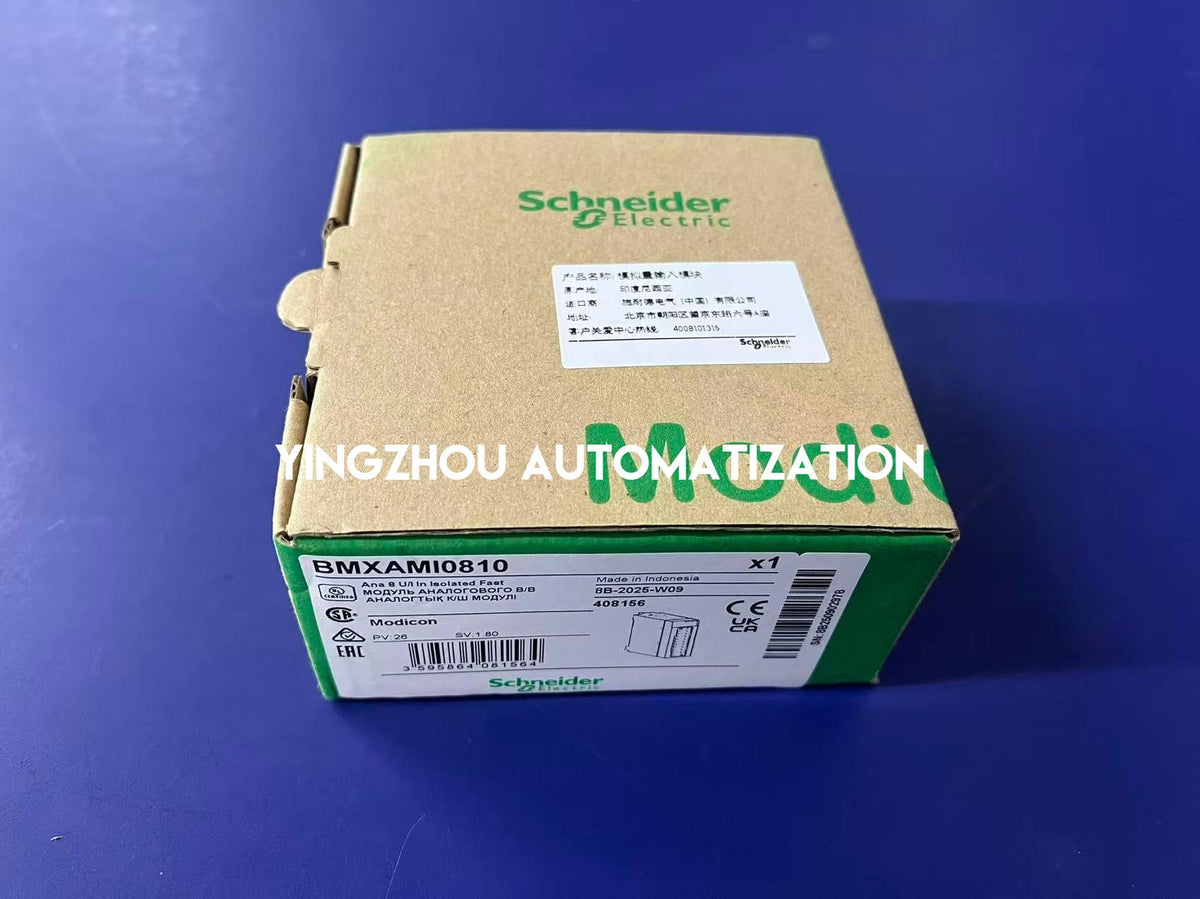

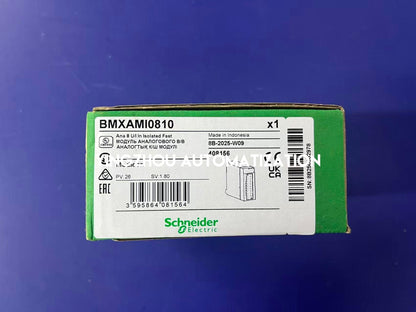

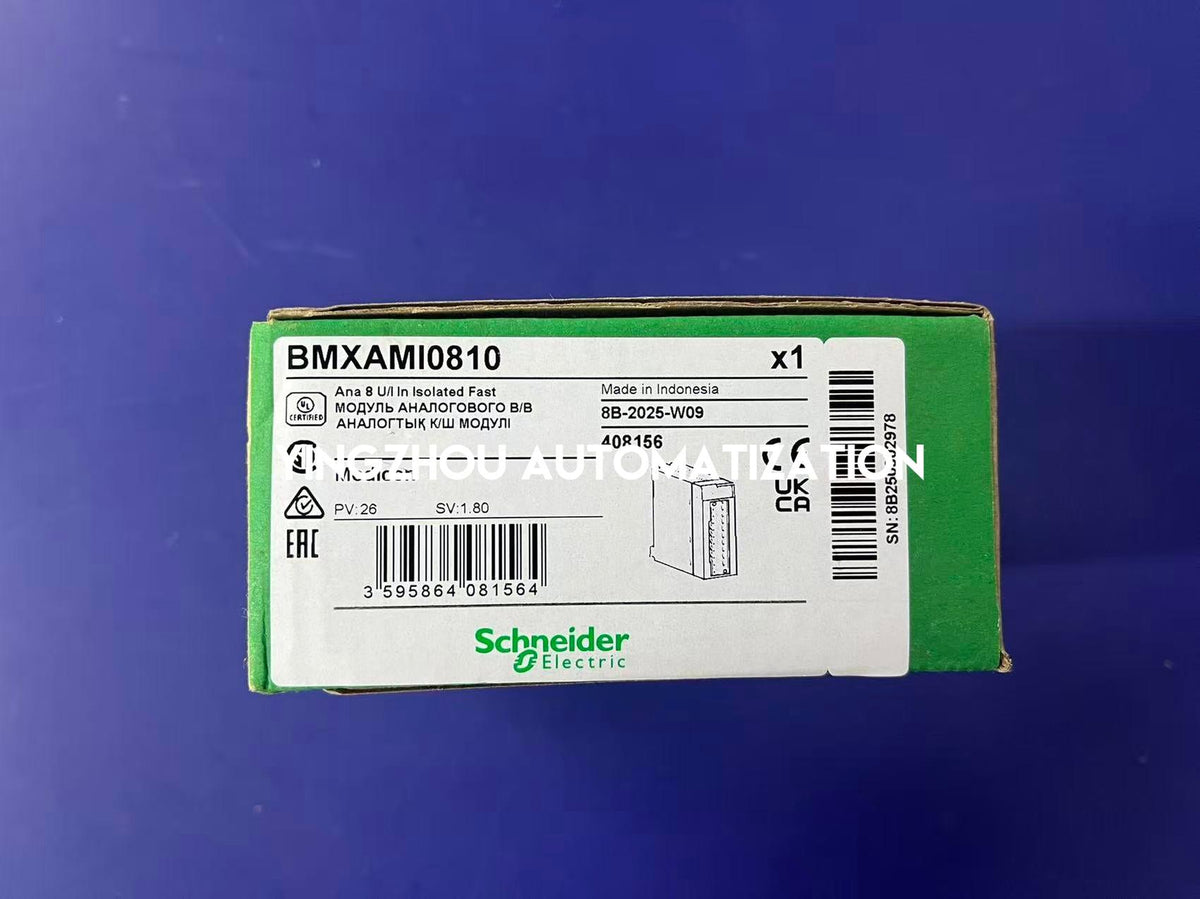

Packaging shown
✓
Verify exact model BMXAMI0810 before ordering
In Stock & Ready to Order
Schneider Electric BMXAMI0810 is currently in stock.
Actual module and packaging-label photos are provided for
exact-model verification before ordering.
