Schneider Electric ATS480D47Y Altivar ATS480 Soft Starter
47A Normal Duty | 208–690V AC | 3-Phase | 22kW at 400V
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATS480D47Y |
| Series |
Altivar Soft Starter ATS480 |
| Product Type |
Industrial Soft Starter |
| Product Destination |
Asynchronous Motors |
| Network Phases |
3-Phase |
| Power Supply Voltage |
208–690V AC, -15% / +10% |
| Control Supply Voltage |
110–230V AC, 50/60Hz |
| Rated Current - Normal Duty |
47A at 40°C |
| Rated Current - Heavy Duty |
38A at 40°C |
| Motor Power @ 400V |
22kW Normal / 18.5kW Heavy, In-Line |
| Motor Power @ 690V |
37kW Normal / 30kW Heavy, In-Line |
| Starting Method |
Torque Control |
| Motor Protection |
Integrated Motor Overload Protection |
| Motor Thermal Protection |
Class 10E |
| Communication Protocol |
Modbus RTU (RS-485) |
| Optional Communication |
Modbus TCP, EtherNet/IP, PROFINET, PROFIBUS DP, CANopen via Options |
| Bypass Function |
External Bypass Control Supported |
| Protection Rating |
IP20 |
| Dimensions (W × H × D) |
160 × 275 × 203 mm |
| Net Weight |
4.9 kg |
| Operating Temperature |
-15°C to +40°C Without Derating |
| Standard |
IEC 60947-4-2 |
Product Overview
The Schneider Electric ATS480D47Y is an
industrial soft starter from the Altivar Soft
Starter ATS480 range, designed for three-phase
asynchronous motors. It provides a
47A normal-duty rating and a
38A heavy-duty rating at 40°C, with a
208–690V AC main supply range.
At 400V, the ATS480D47Y supports
22kW normal-duty or
18.5kW heavy-duty motor applications
with in-line connection. Its torque-control technology,
motor protection functions and built-in Modbus serial
communication support industrial motor-starting
and stopping requirements.
Key Product Features
-
47A normal-duty rated current at 40°C
-
38A heavy-duty rated current at 40°C
-
208–690V AC three-phase power supply
-
22kW at 400V normal-duty motor rating, in-line
-
110–230V AC control power supply
-
Torque Control motor starting technology
-
Built-in Modbus RTU serial communication
- Integrated Motor Overload Protection
-
External Bypass Control supported
Actual Product Verification
✓

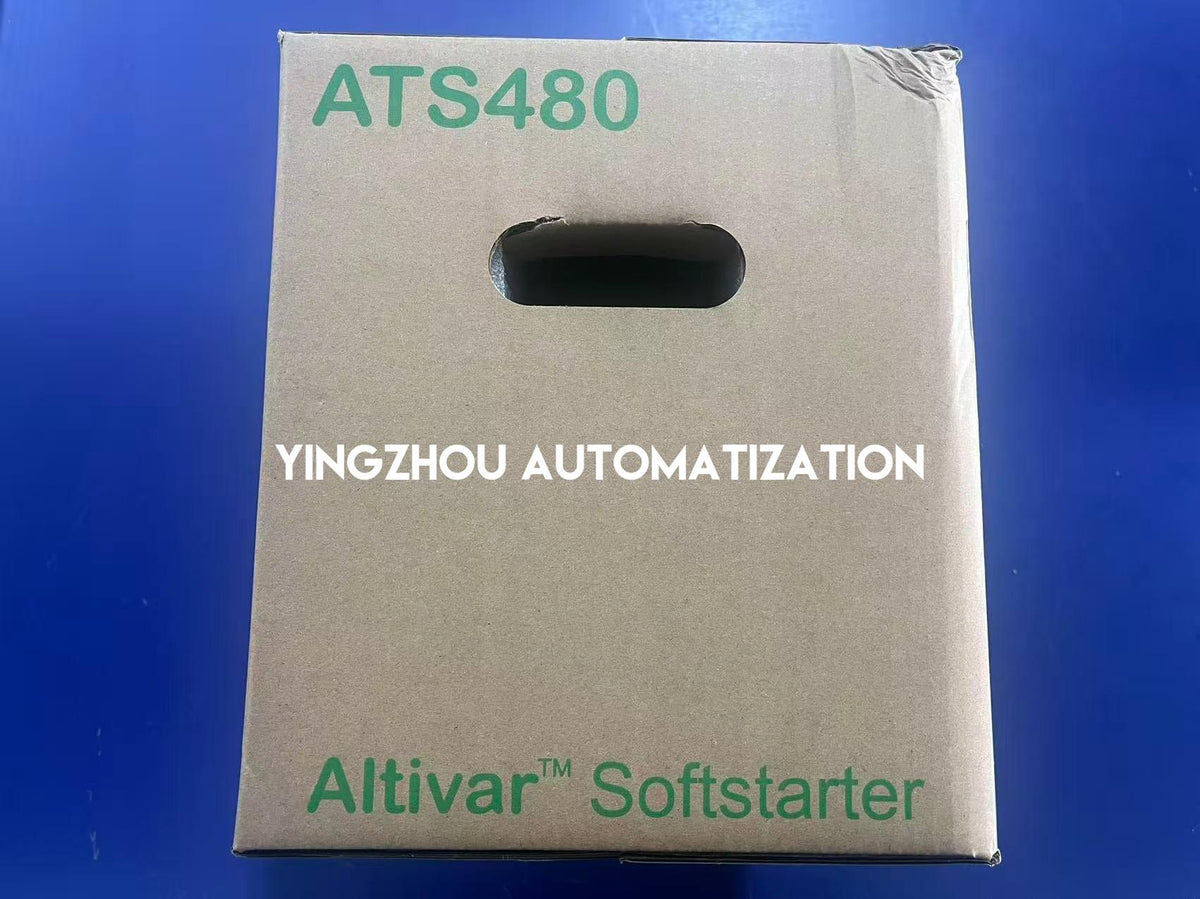

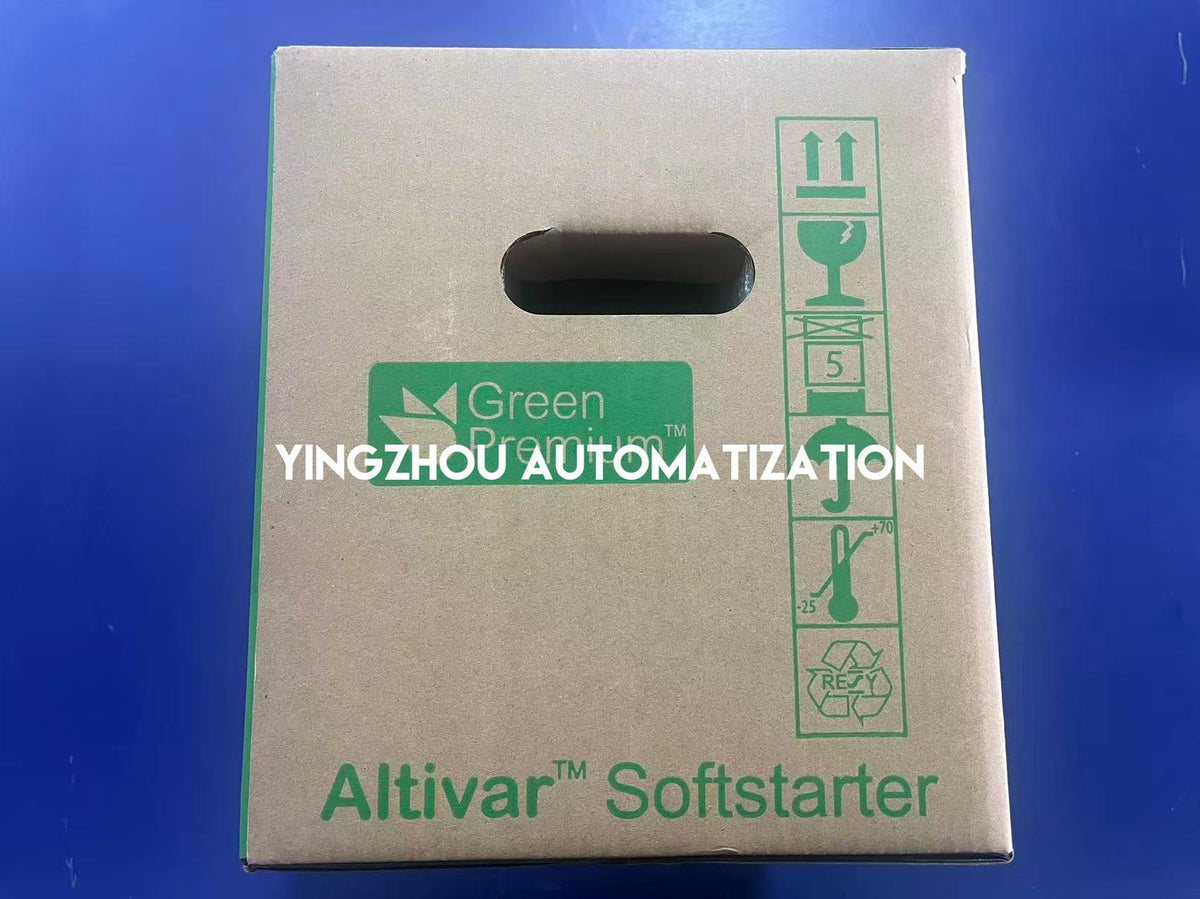

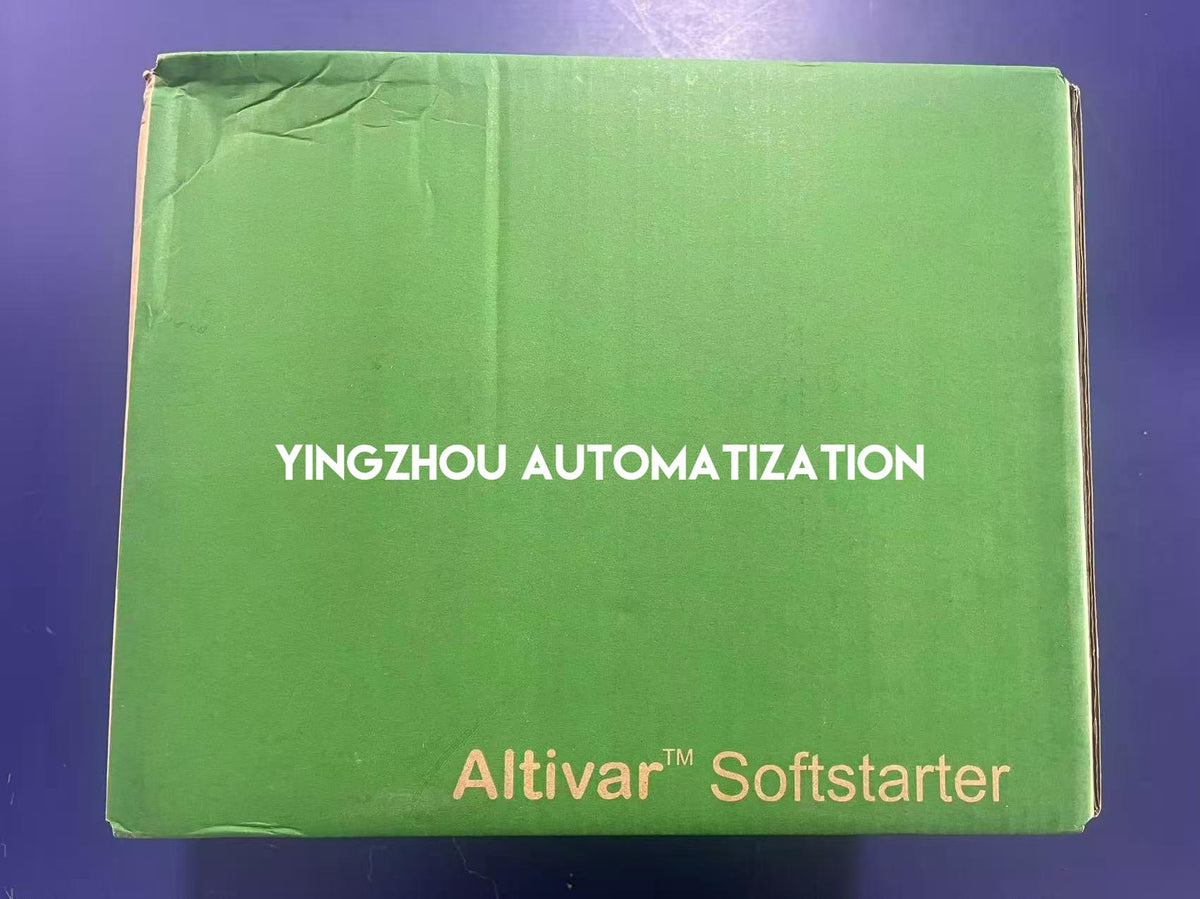

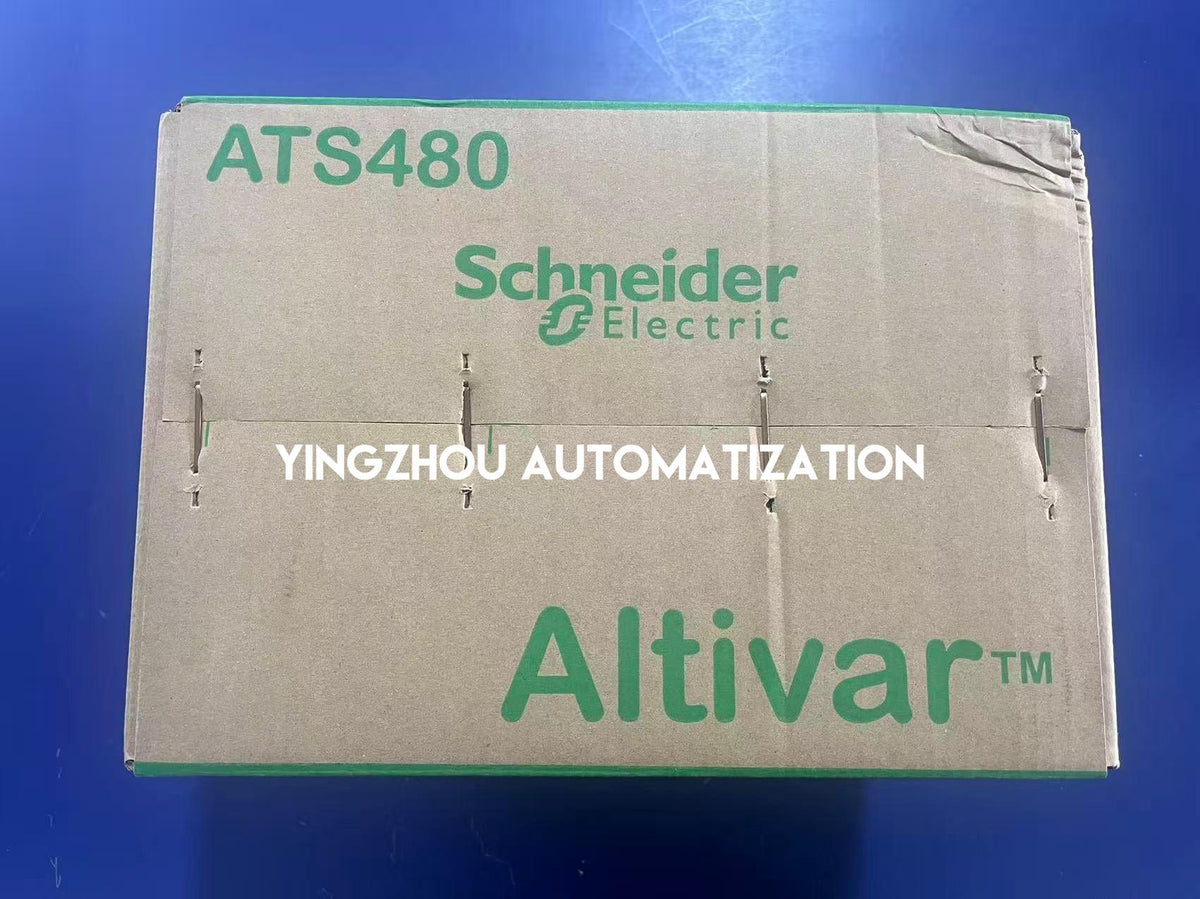

Actual packaging photo
✓

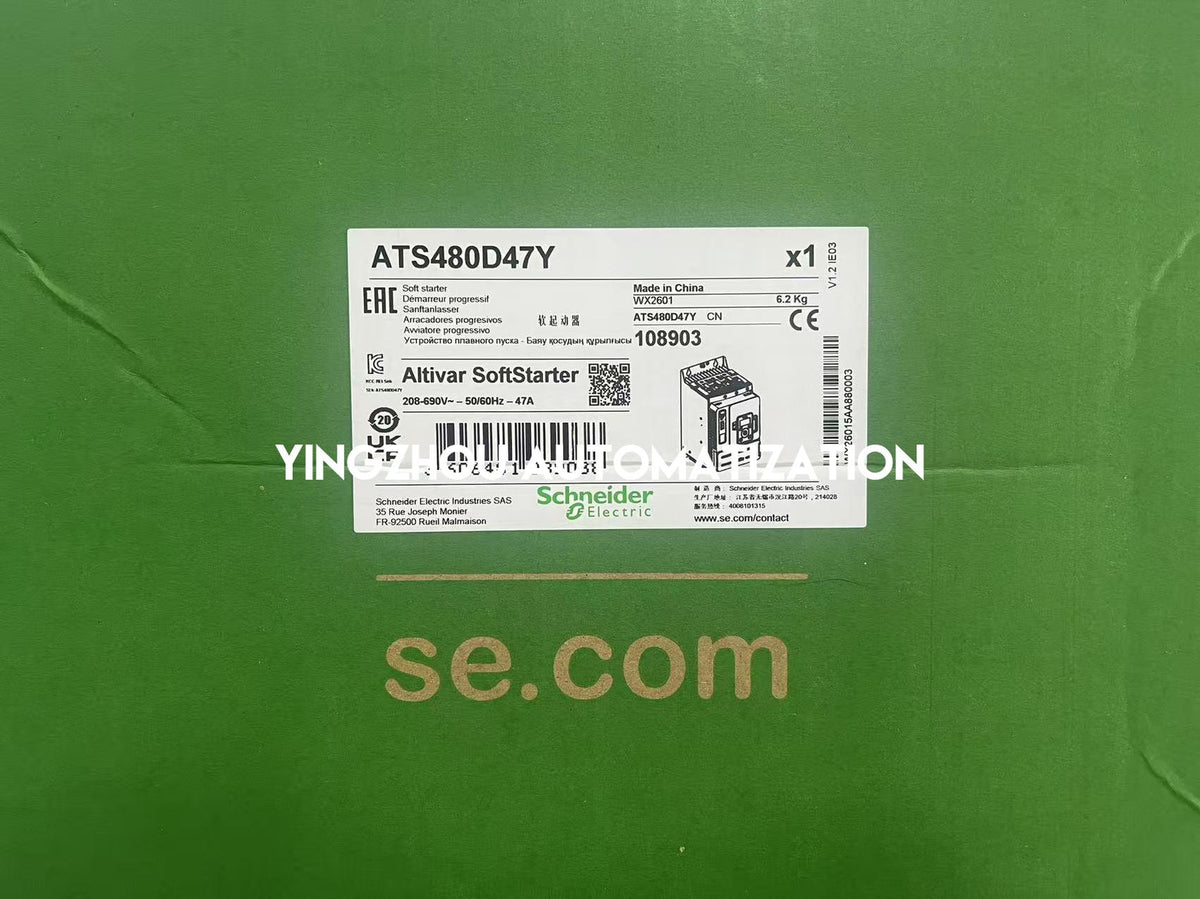

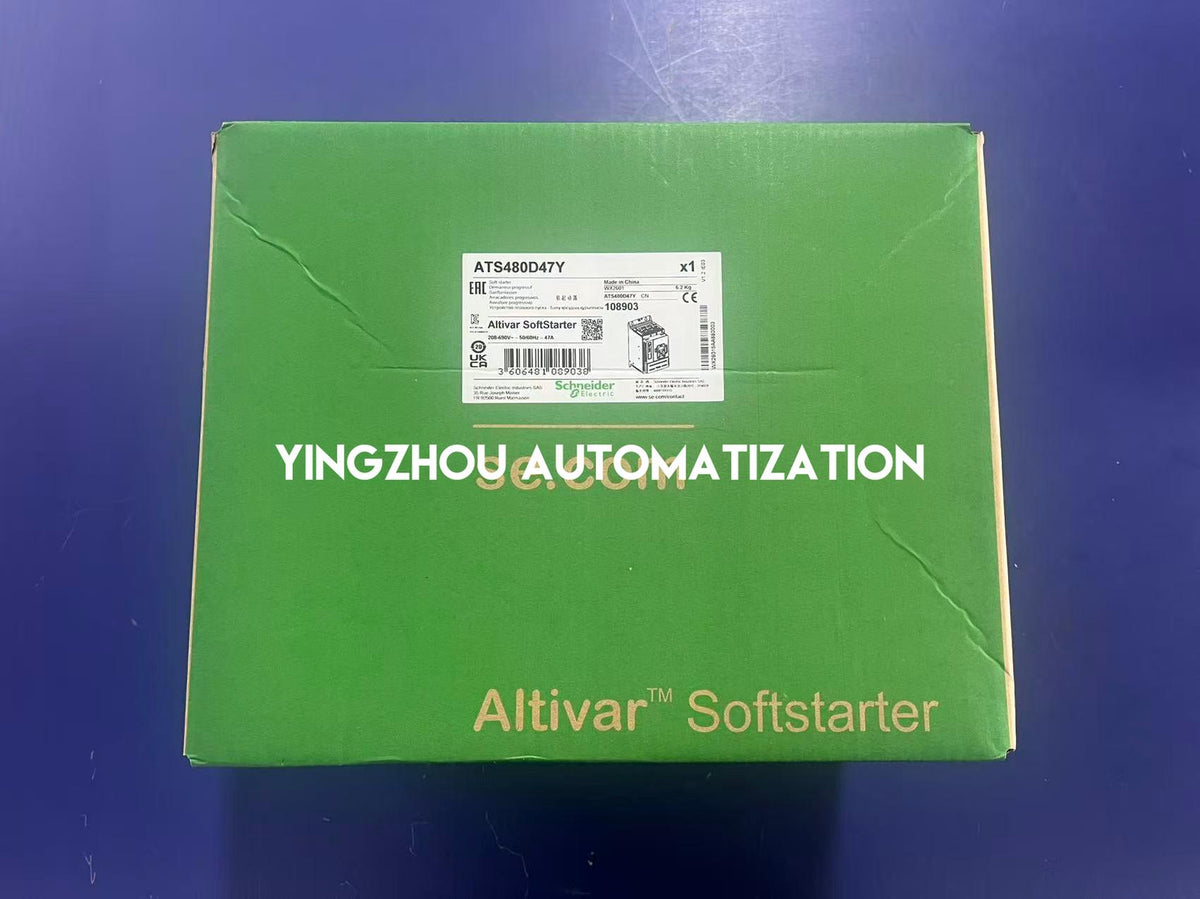

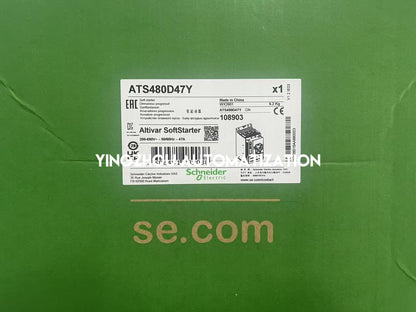

Packaging model label visible
✓
ATS480D47Y and electrical ratings shown
✓
Verify exact unit model/nameplate before ordering
In Stock & Ready to Order
Schneider Electric ATS480D47Y is currently
in stock according to our inventory information.
An actual packaging photograph showing the model
and electrical rating is provided.
Please confirm the required quantity, exact unit
configuration and shipping details before ordering.
IN STOCK
Schneider Electric ATS480D47Y
Order online or contact us for project and quantity pricing.
Request Project Pricing
