Omron R88M-1M75030T-BS2 750W 1S AC Servo Motor with Brake

Omron R88M-1M75030T-BS2 750W 1S AC Servo Motor with Brake

$392.99 USD
$392.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Omron R88M-1M75030T-BS2 750W AC Servo Motor with Brake

1S Series | 750W | 200V 3-Phase | 3000 RPM | Holding Brake
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Motor and Carton Model Match
Specification Verified Product Data
Manufacturer OMRON Corporation
Exact Model R88M-1M75030T-BS2
Product Family OMRON 1S Series
Product Type AC Servo Motor with Holding Brake
Rated Motor Power 750W / 0.75kW
Rated Motor Voltage 200V AC (Nameplate)
Motor Phase Three-phase
Rated Motor Current 4.6A (Nameplate)
Rated Speed 3000 r/min
Rated Torque 2.39 Nm
Peak Torque 8.4 Nm
Electrical Frequency 250Hz (Nameplate)
Encoder Type Batteryless Absolute Encoder
Encoder Resolution 23-bit
Holding Brake Integrated
Shaft Type Keyed Shaft with Tap
Shaft Diameter 19mm
Flange Size 80 × 80mm
Oil Seal Not Included in Model Configuration
Insulation Class Class F (Nameplate)
Nameplate Thermal Class 40°C
Matching Drive Family OMRON R88D-1SN08H-ECT Series
Actual Serial Number 11241503126PGA
Country of Origin Made in the Philippines
Availability IN STOCK

Product Overview

The Omron R88M-1M75030T-BS2 is a 750W OMRON 1S Series AC servo motor with an integrated holding brake, designed for precise industrial motion-control applications. This three-phase servo motor has a 200V AC motor nameplate rating, 3000 r/min rated speed, 2.39 Nm rated torque and 8.4 Nm peak torque. It features a 23-bit batteryless absolute encoder for high-resolution position feedback and a keyed 19mm output shaft with a threaded end. The motor uses an 80 × 80mm mounting flange and belongs to OMRON's 1S motion-control platform. The -BS2 configuration identifies a motor with holding brake and keyed shaft with tap, without the optional oil seal. OMRON documentation lists the R88D-1SN08H-ECT drive family for this motor model. This motor must be operated using a suitable servo amplifier and the required power, feedback and brake connections, rather than directly connected to an AC mains supply. The supplied photographs show the exact model R88M-1M75030T-BS2 on both the physical motor and its carton, with matching serial number 11241503126PGA. Actual product photographs support the model identification, while functional testing and brake operation have not been independently verified.

Key Product Features

  • OMRON 1S Series AC Servo Motor — 750W motor for industrial motion-control systems.
  • 3000 RPM Rated Speed — Delivers 2.39 Nm rated torque.
  • 8.4 Nm Peak Torque — Supports dynamic torque requirements within manufacturer limits.
  • Integrated Holding Brake — Built-in electromagnetic holding brake for the specified motor configuration.
  • 23-bit Absolute Encoder — Batteryless high-resolution position feedback.

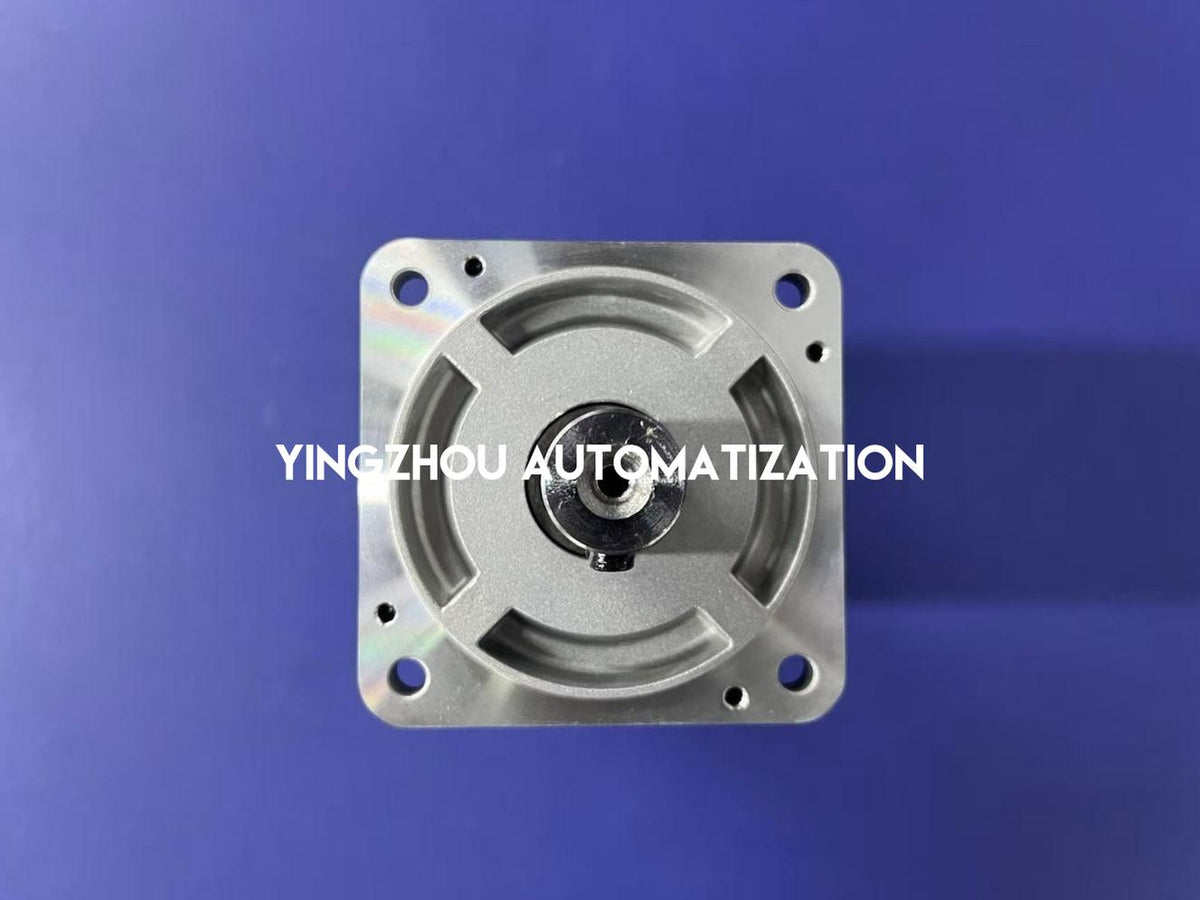

  • Keyed Shaft with Tap — 19mm shaft diameter and 80mm square flange.
  • OMRON 1S System Integration — Manufacturer-listed with the R88D-1SN08H-ECT servo drive family.
  • Actual Product Verification — Motor and carton display the same complete model and serial number.

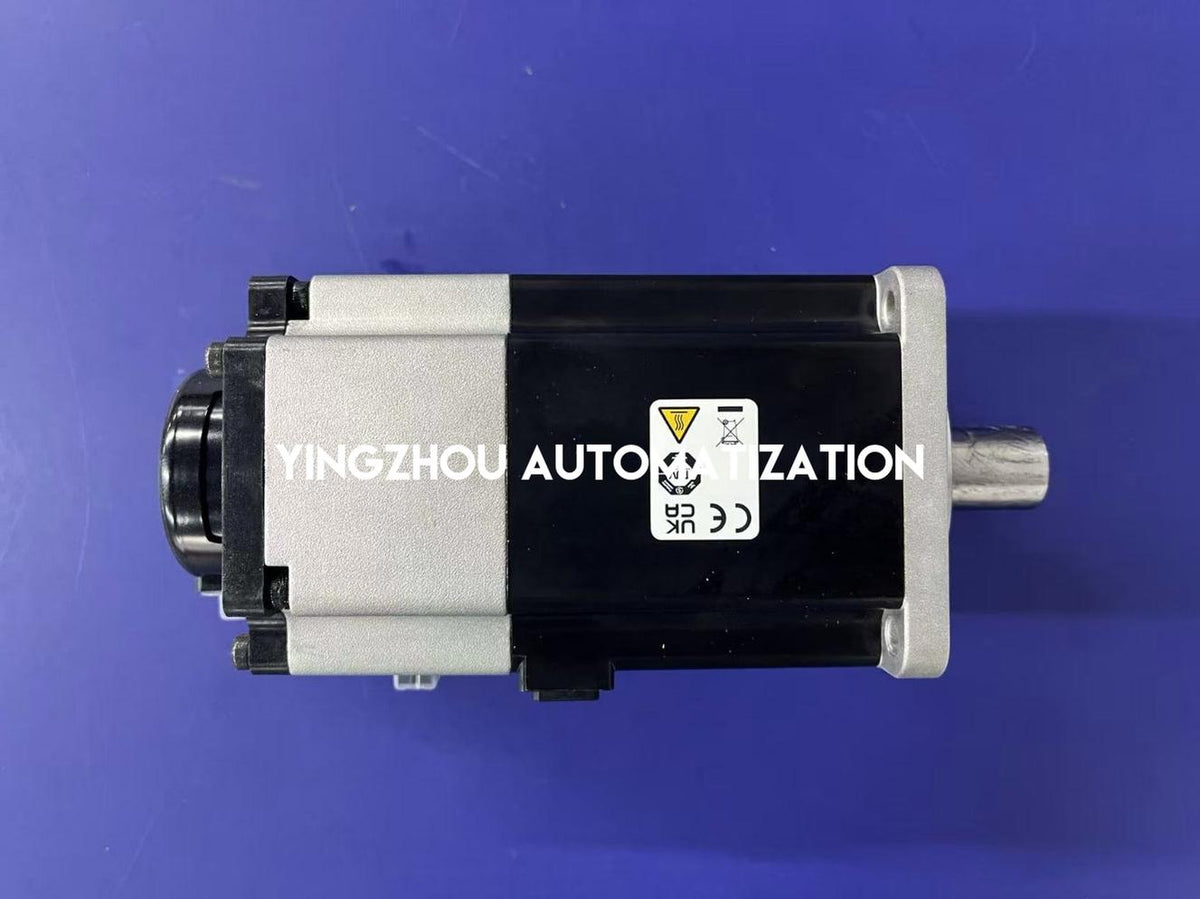

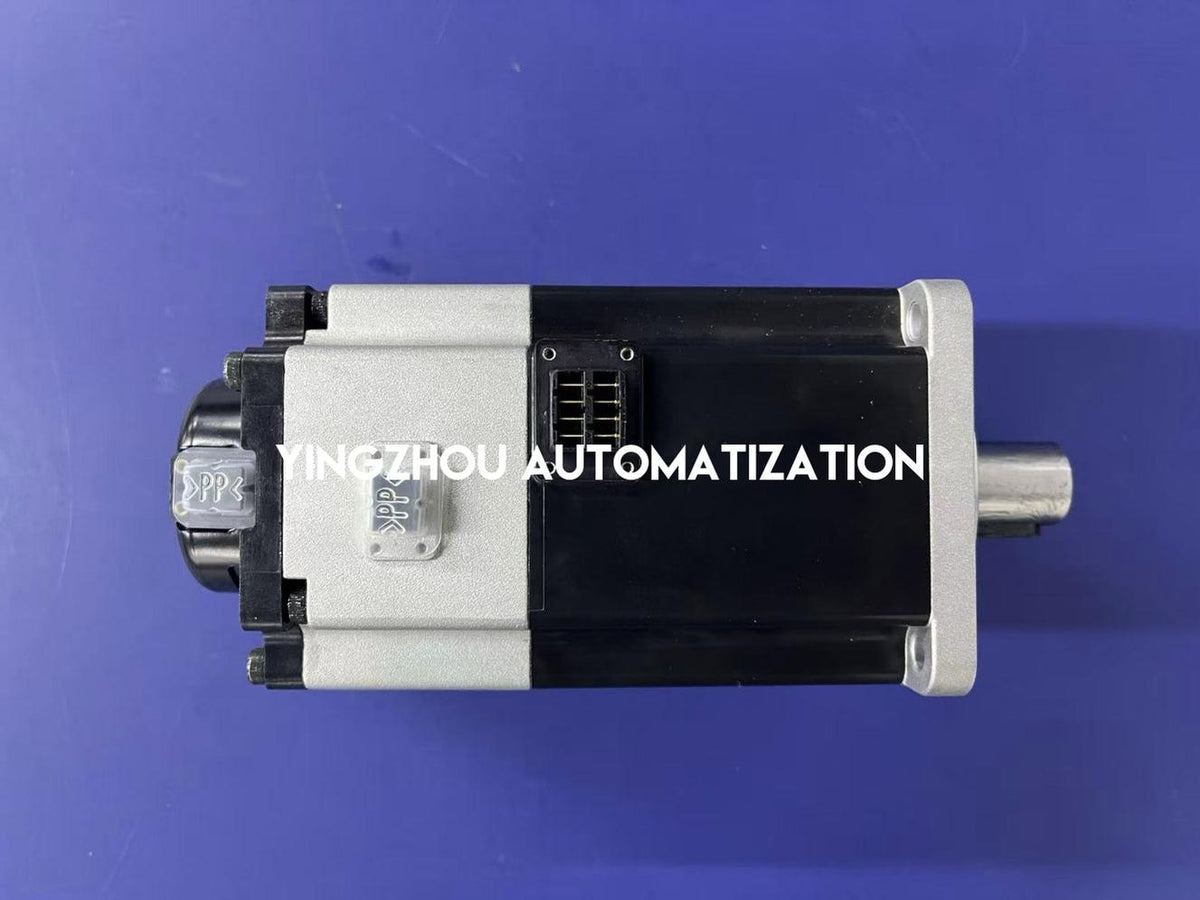

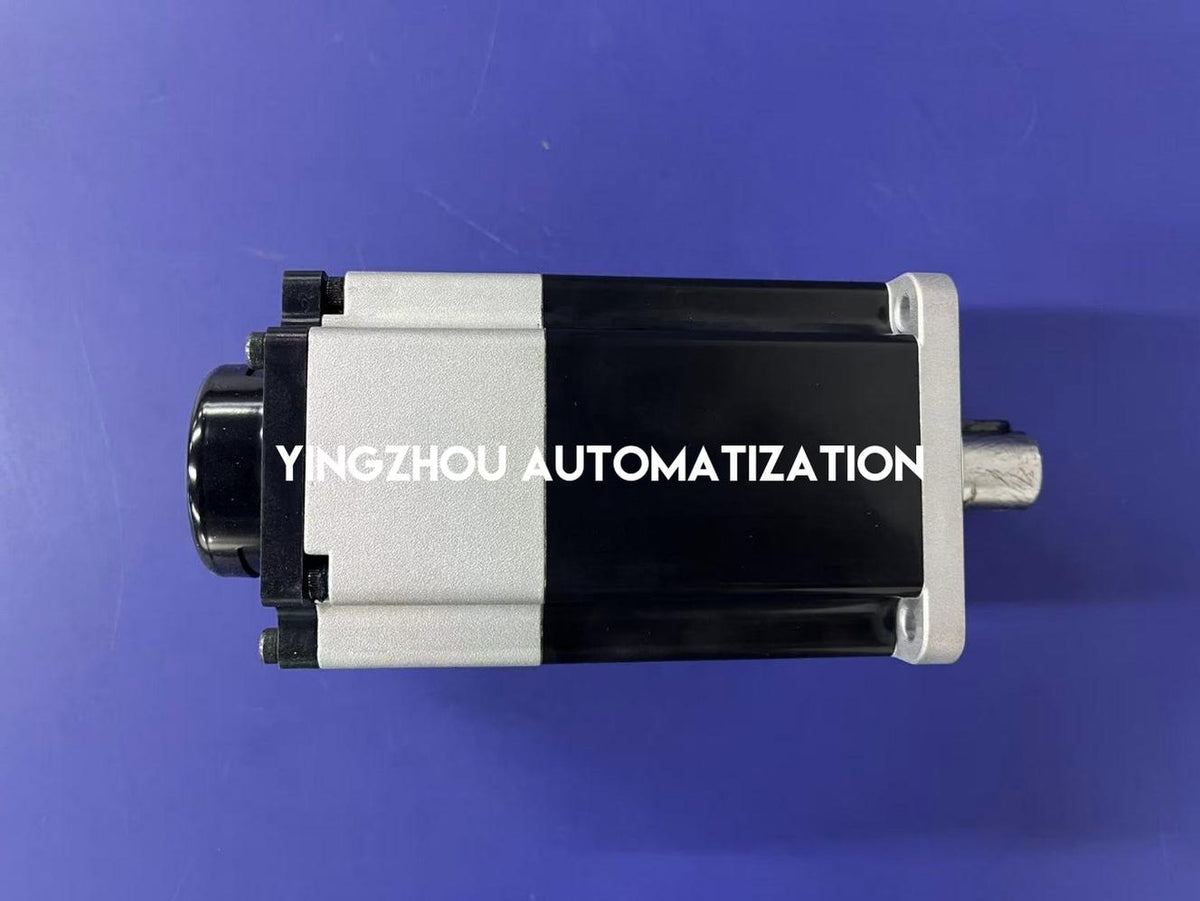

Actual Product Verification

✓ Actual OMRON motor and carton photographs supplied

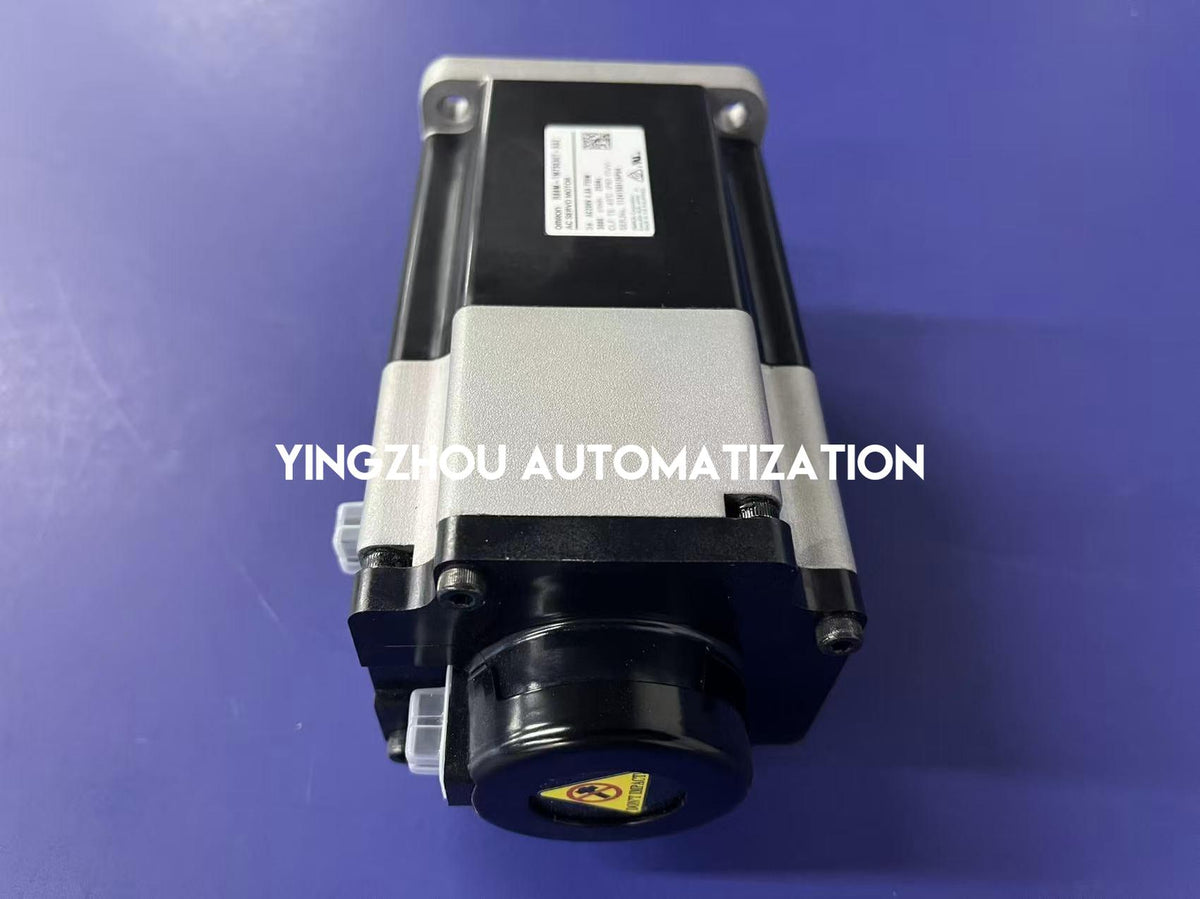

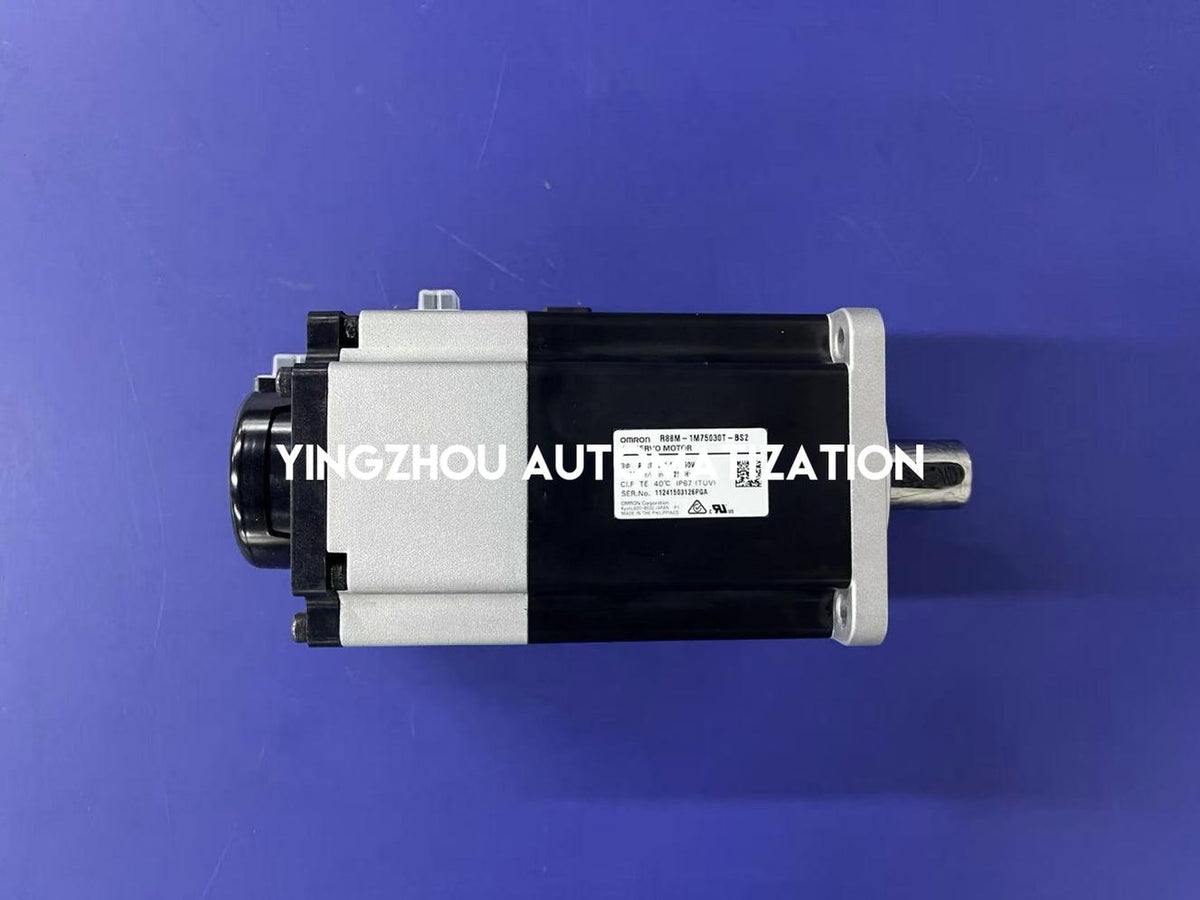

✓ Physical motor model: R88M-1M75030T-BS2

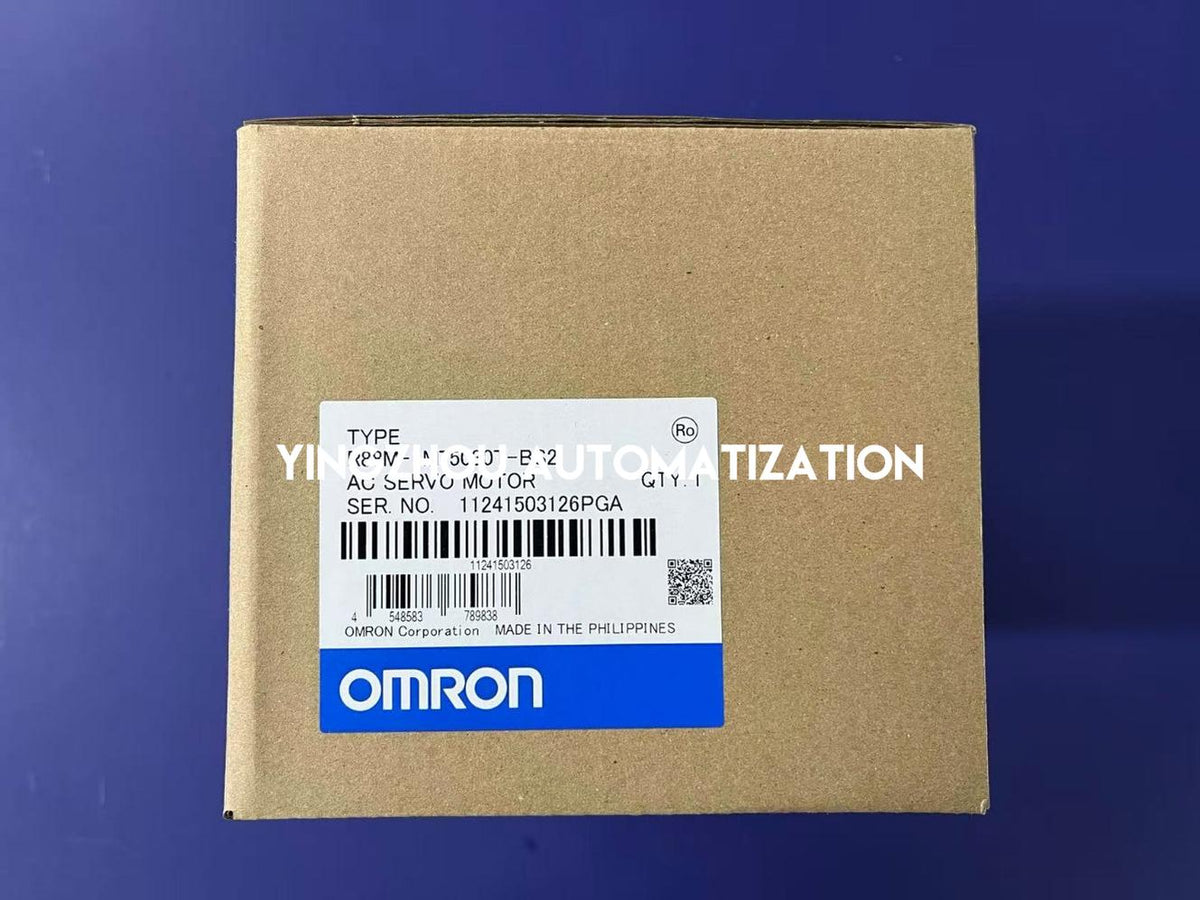

✓ Packaging model: R88M-1M75030T-BS2
✓ Exact model numbers match
✓ Physical motor serial number: 11241503126PGA
✓ Carton serial number: 11241503126PGA
✓ Motor and carton serial numbers match
✓ Actual motor power marking: 750W
✓ Actual motor voltage marking: 3-Phase AC 200V
✓ Actual motor current marking: 4.6A
✓ Actual speed marking: 3000 r/min
✓ Integrated brake configuration confirmed by exact model data
✓ Country of origin: Made in the Philippines
✓ Powered operation and holding-brake testing not independently verified

In Stock & Available to Order

Omron R88M-1M75030T-BS2 is marked in stock based on the supplied inventory information. This 750W OMRON 1S servo motor includes a holding brake, batteryless absolute encoder and keyed shaft with tap. Actual photographs of the motor and carton are available for exact-model verification. Before ordering, please confirm the complete motor suffix, matching servo drive, brake configuration, shaft dimensions, power and feedback cables, installation requirements and shipping arrangements. The inclusion of a servo drive, motor cables, feedback cables and additional accessories has not been confirmed. Please request confirmation of the available unit and included accessories before completing the purchase.

IN STOCK

Omron R88M-1M75030T-BS2

Contact us for exact-model verification, bulk pricing and industrial servo motor sourcing. Please confirm the 750W power rating, holding brake, absolute encoder, matching servo drive and cable requirements before ordering.
