Omron R88M-1M20030T-S2 200W 1S AC Servo Motor

Omron R88M-1M20030T-S2 200W 1S AC Servo Motor

$280.99 USD
$280.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Omron R88M-1M20030T-S2 200W 1S AC Servo Motor

OMRON 1S Series | 200W | 3000 RPM | 0.637 N·m | 23-bit Absolute Encoder
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified on Motor and Packaging
Specification Verified Product Data
Manufacturer OMRON Corporation
Exact Model R88M-1M20030T-S2
Product Family OMRON 1S Series
Product Type AC Servo Motor
Motor Voltage Class 200/230V AC Class
Motor Phase Three-phase
Rated Output Power 200W / 0.2kW
Rated Rotation Speed 3000 r/min
Maximum Rotation Speed 6000 r/min
Rated Torque 0.637 N·m
Momentary Maximum Torque 2.2 N·m
Rated Motor Current 1.5A RMS
Momentary Maximum Current 5.6A RMS
Nameplate Frequency 250Hz
Encoder Type Battery-free Absolute Encoder
Encoder Resolution 23-bit
Holding Brake Not Equipped
Oil Seal Not Equipped
Shaft Configuration Straight Shaft, Key and Tap
Flange Size 60mm Square
Shaft Diameter 11mm
Rotor Inertia 0.2232 × 10^-4 kg·m² (Without Brake)
Torque Constant 0.48 N·m/A RMS
Insulation Class Class F
Nameplate Thermal Marking 40°C
Protection Marking IP67 (TÜV Nameplate Marking)
Compatible Servo Drive R88D-1SN02H-ECT
Manufacturer Specified Weight 1.0kg (Unpacked)
Actual Serial Number 10242401746PGA
Original Carton Quantity 1 Piece
Country of Origin Made in the Philippines
Functional Testing Not Independently Verified

Product Overview

The Omron R88M-1M20030T-S2 is a 200W AC servo motor from the OMRON 1S Series, developed for industrial motion control systems requiring controlled speed, torque and position feedback. The motor belongs to the 200/230V AC servo motor class and features a three-phase motor configuration with a 3000 r/min rated speed and 6000 r/min maximum speed under manufacturer-specified operating conditions. Its rated torque is 0.637 N·m, with a momentary maximum torque of 2.2 N·m. The motor integrates a 23-bit battery-free absolute encoder for high-resolution position feedback in a suitable 1S servo system. This exact -S2 variant features a straight shaft with key and tap, an 11mm shaft diameter and a 60mm square flange. The model is supplied without an integrated holding brake or oil seal. OMRON identifies R88D-1SN02H-ECT as the corresponding 200W EtherCAT servo drive model, subject to the correct motor and drive configuration. The product is an AC servo motor rather than a servo amplifier or a general-purpose induction motor, and it must be operated using a suitable servo drive. Actual motor and carton photographs identify the exact model R88M-1M20030T-S2, serial number 10242401746PGA and Made in the Philippines marking. Motor operation, encoder feedback, winding insulation and full-load performance have not been independently tested.

Key Product Features

  • OMRON 1S Series Servo Motor — 200W AC servo motor for industrial motion control systems.
  • 3000 RPM Rated Speed — Maximum speed of 6000 rpm under specified conditions.
  • 0.637 N·m Rated Torque — Momentary maximum torque of 2.2 N·m.
  • 23-bit Battery-free Absolute Encoder — High-resolution absolute position feedback.
  • Three-phase Servo Motor — Designed for operation using a suitable 200V-class servo amplifier.

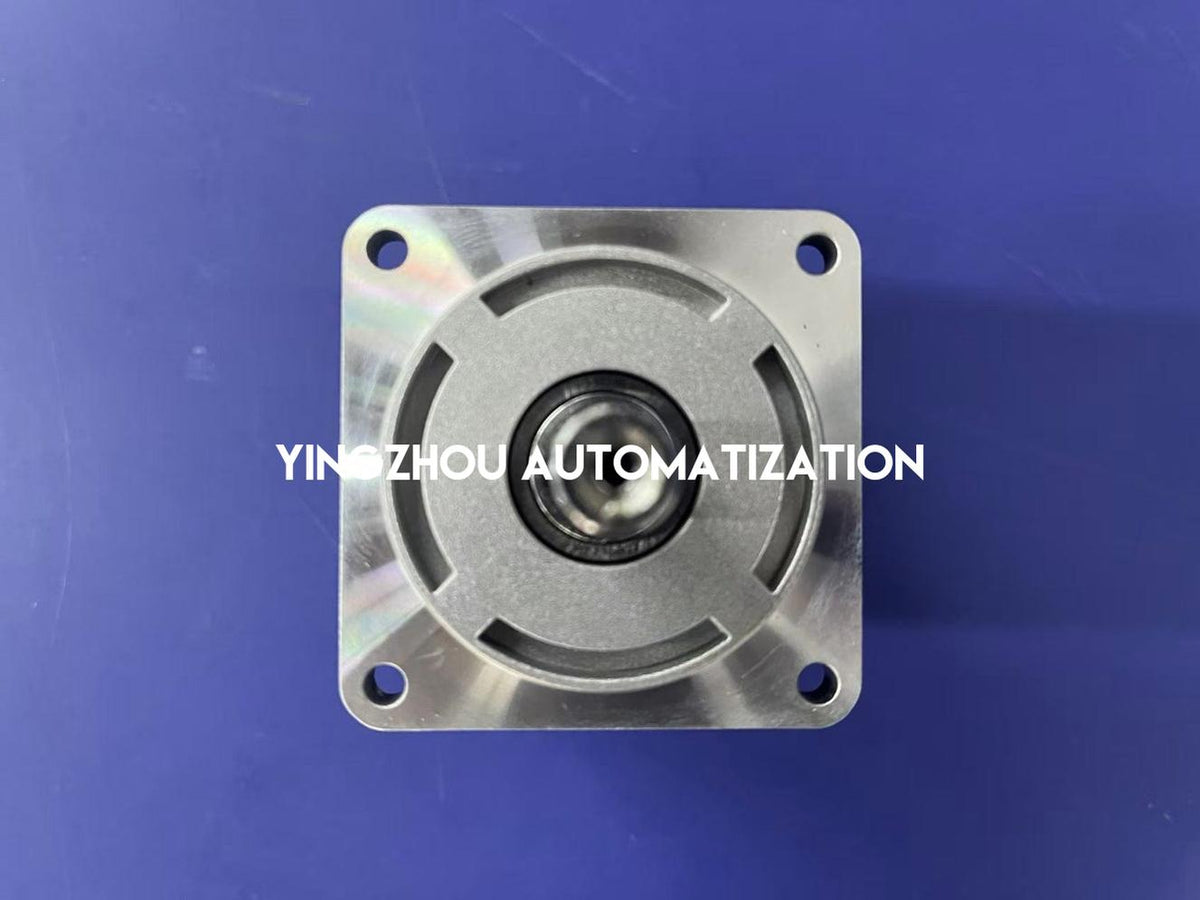

  • Keyed and Tapped Shaft — 11mm shaft diameter with 60mm square mounting flange.
  • Without Holding Brake — Exact non-brake model variant without an oil seal.
  • 1S Servo System Integration — Manufacturer-listed compatible drive R88D-1SN02H-ECT, subject to configuration verification.

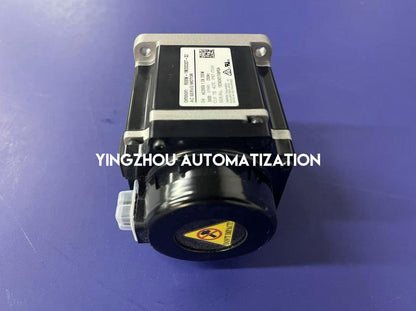

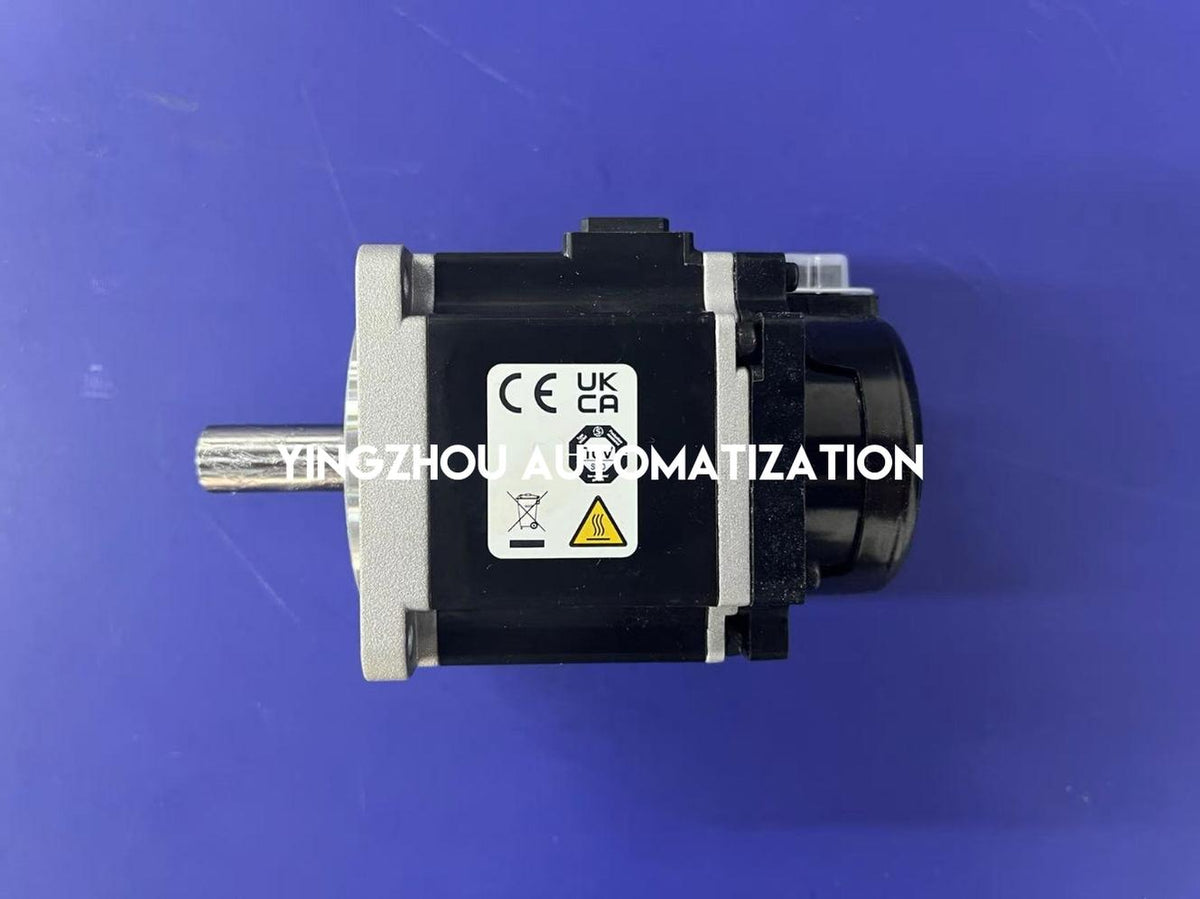

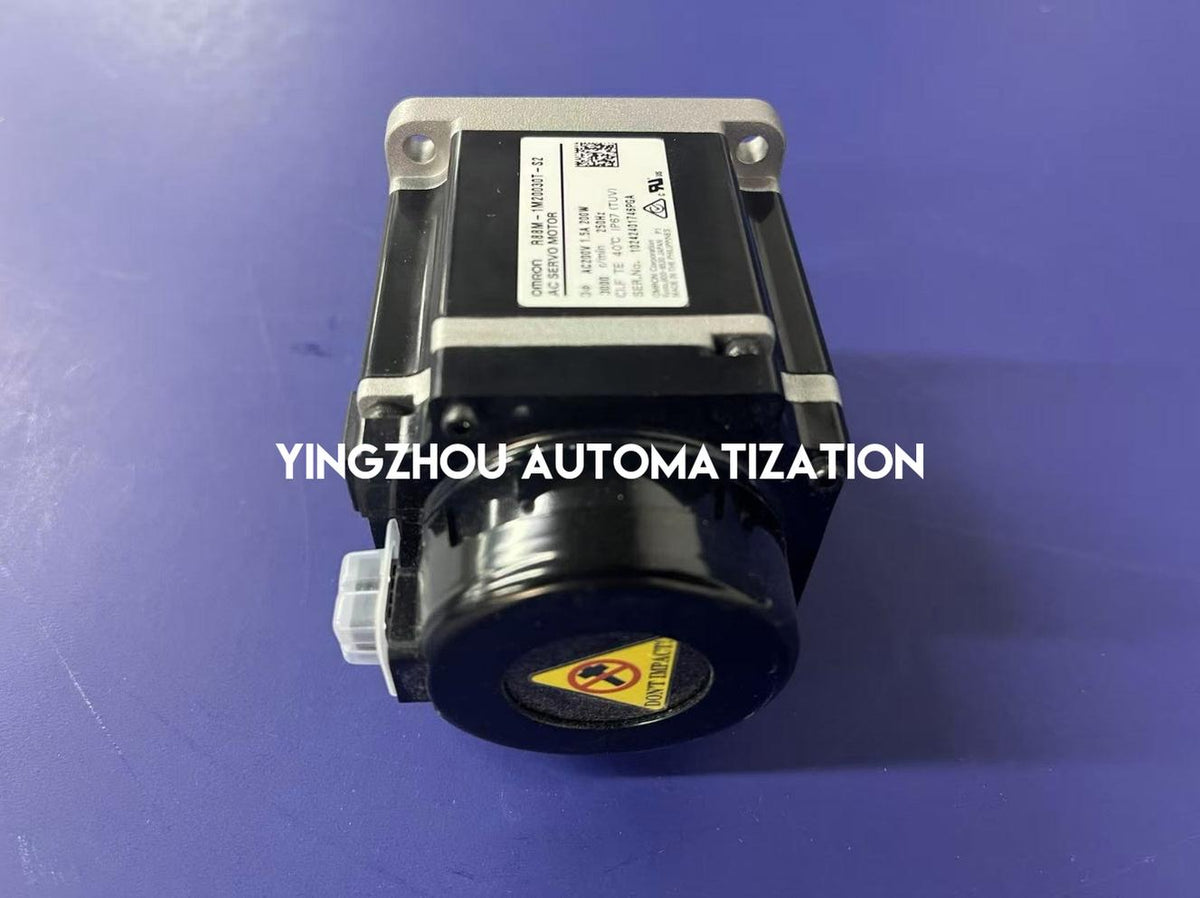

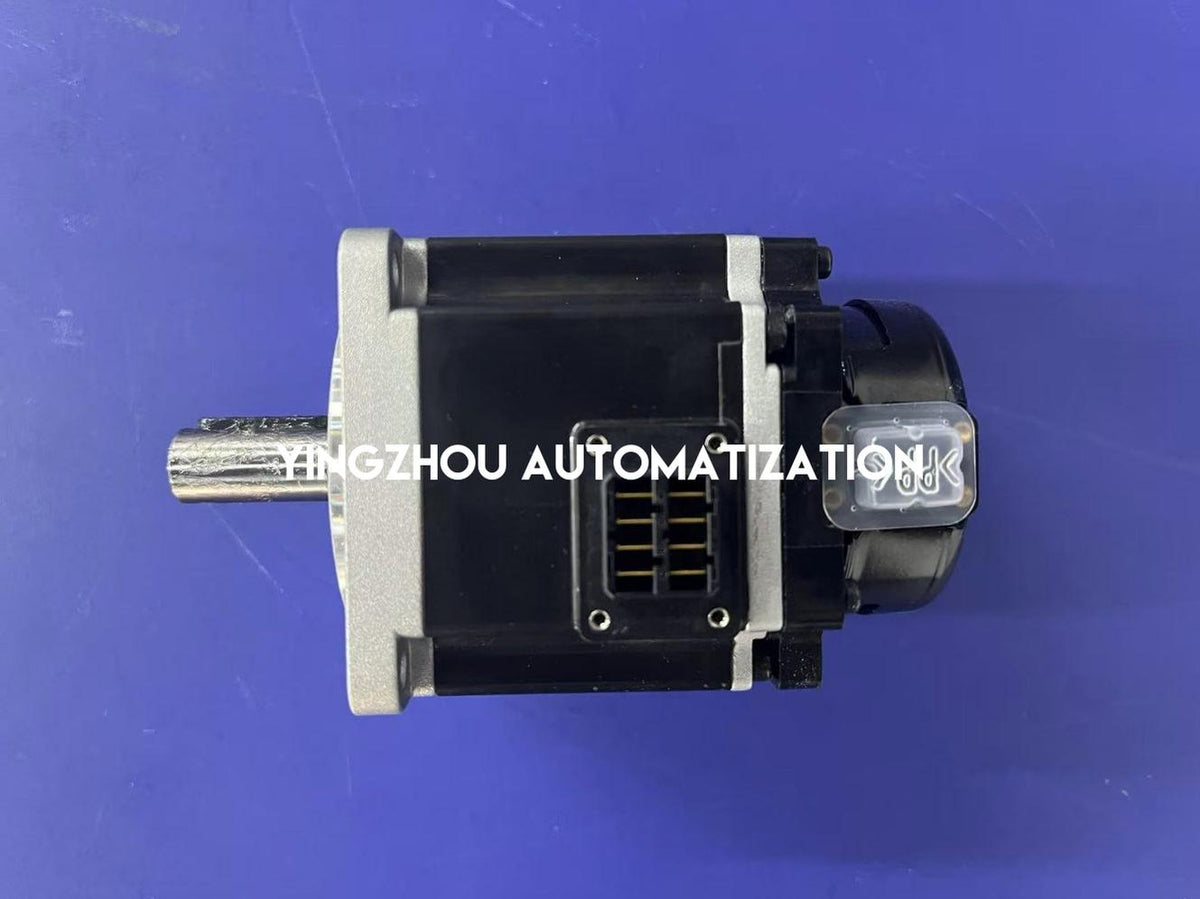

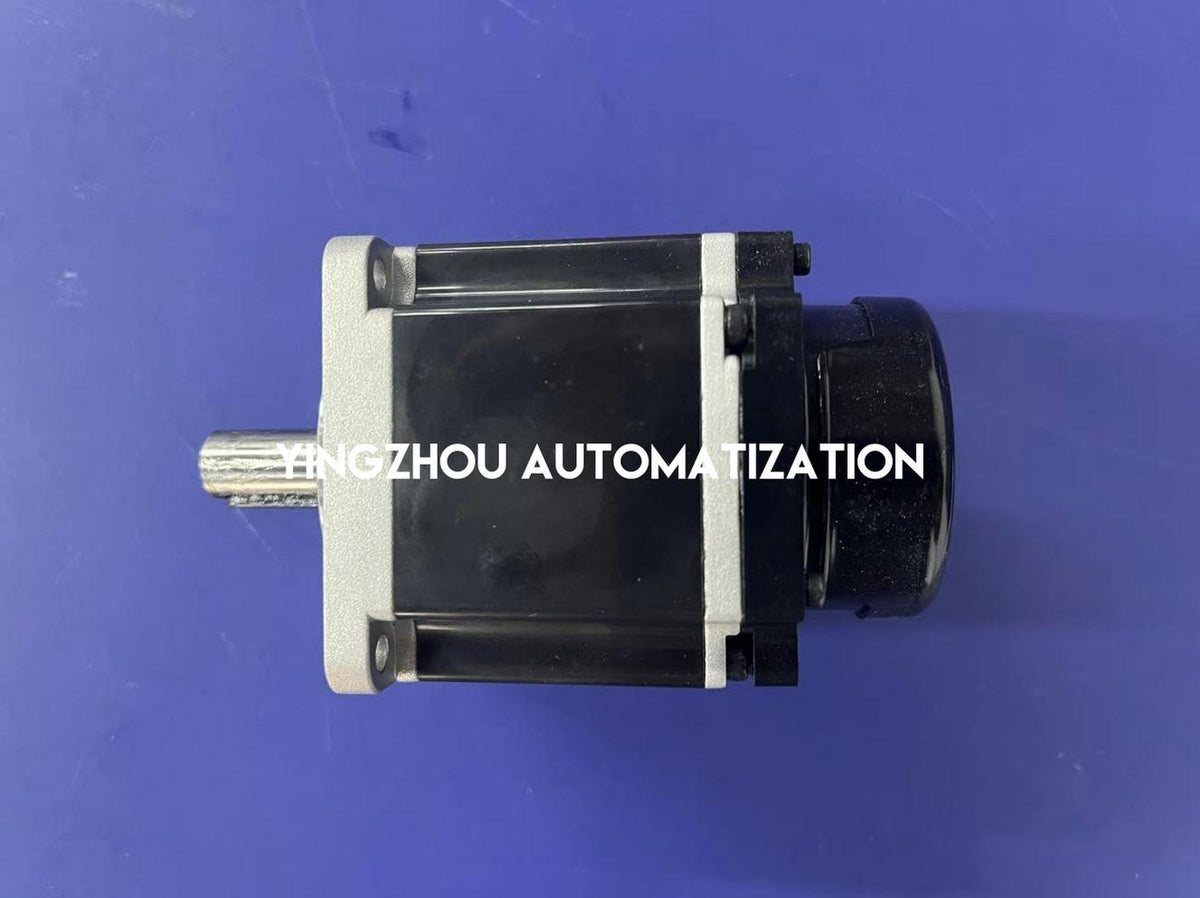

Actual Product Verification

✓ Actual OMRON servo motor and original carton photographs supplied

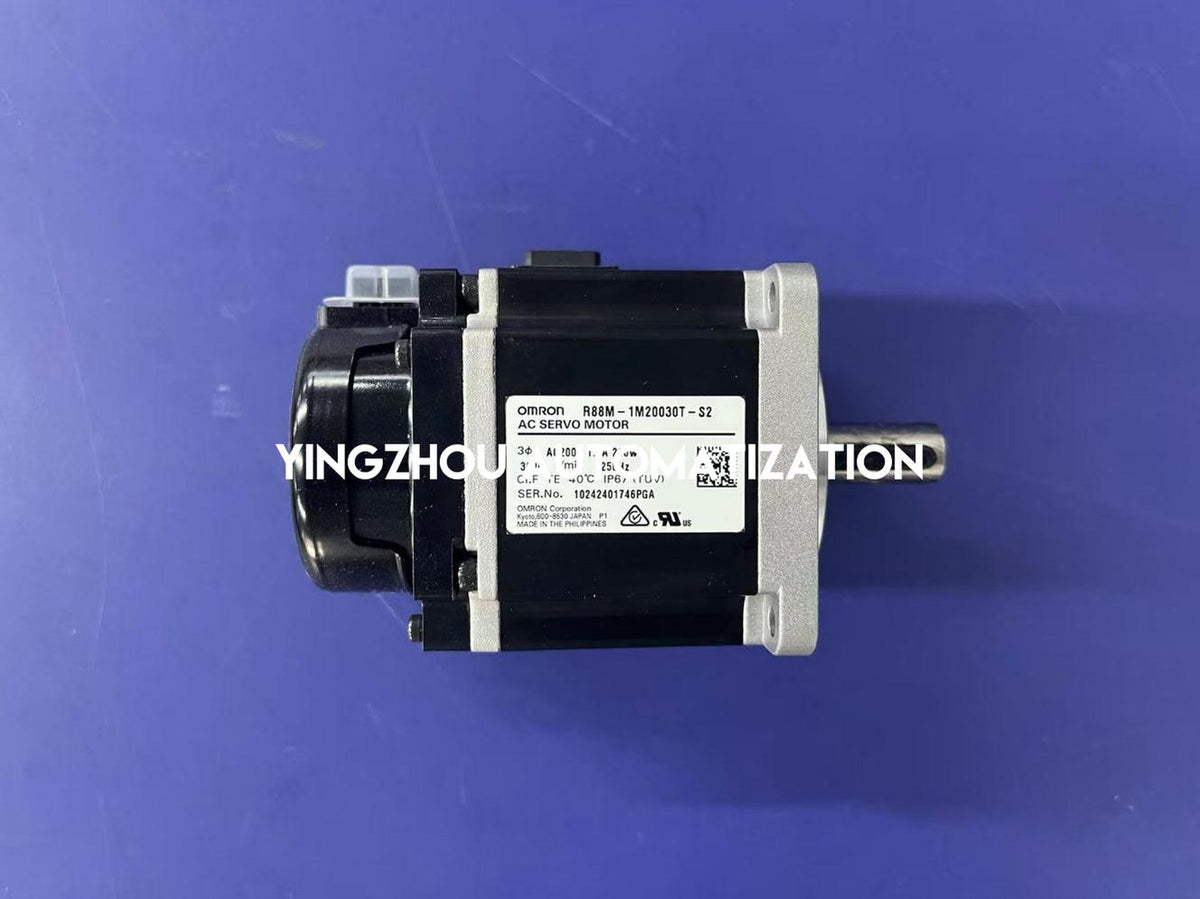

✓ Physical motor model: R88M-1M20030T-S2

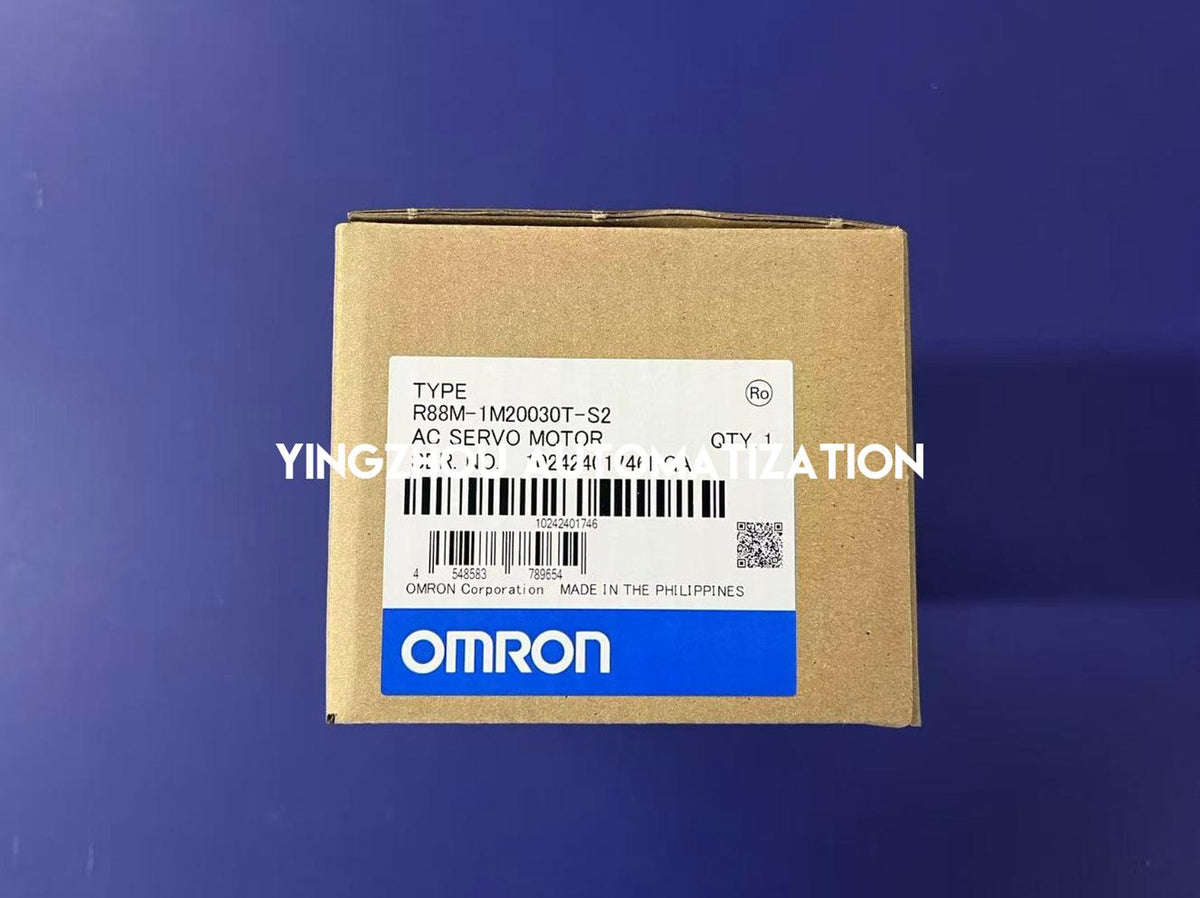

✓ Original carton model: R88M-1M20030T-S2
✓ Product designation: AC SERVO MOTOR
✓ Physical motor serial: 10242401746PGA
✓ Original carton serial: 10242401746PGA
✓ Motor and carton model and serial numbers match
✓ Motor power marking: 200W
✓ Motor voltage marking: Three-phase AC200V
✓ Rated speed marking: 3000 r/min
✓ Rated current marking: 1.5A
✓ Nameplate frequency: 250Hz
✓ Insulation marking: Class F
✓ Shaft configuration: Keyed and Tapped
✓ Brake configuration: Without Holding Brake
✓ Original carton quantity: 1 Piece
✓ Country of origin: Made in the Philippines
✓ Motor operation and encoder feedback not independently verified
✓ Confirm servo drive, shaft dimensions, holding brake requirement and cable selection before ordering

In Stock & Available to Order

Omron R88M-1M20030T-S2 is marked in stock based on the supplied inventory information. Actual motor and carton photographs identify the exact manufacturer model and matching serial number. This 200W, 3000 rpm OMRON 1S AC servo motor is offered for industrial machine maintenance, motion-control equipment servicing and exact-model replacement requirements. Before ordering, please confirm the 200V-class servo system, compatible drive, 60mm mounting flange, 11mm keyed and tapped shaft, battery-free absolute encoder and non-brake motor configuration. OMRON identifies R88D-1SN02H-ECT as the corresponding 200W EtherCAT servo drive model, but installation still requires appropriate configuration and connections. This motor must not be confused with brake-equipped, different-power or different-encoder variants. Servo drives, motor cables, encoder cables and mechanical accessories are not confirmed as included. Please verify final accessory contents, functional testing and shipment arrangements before dispatch.

IN STOCK

Omron R88M-1M20030T-S2

Contact us for exact-model verification, multiple-unit quotations and industrial servo motor sourcing. Confirm your rated power, servo drive, shaft configuration, encoder and brake requirements before ordering.
