Omron R88D-1SN08H-ECT 750W 1S EtherCAT Servo Drive
Omron R88D-1SN08H-ECT 750W 1S EtherCAT Servo Drive
Impossibile caricare la disponibilità di ritiro
Omron R88D-1SN08H-ECT 750W 1S EtherCAT Servo Drive
| Specification | Verified Product Data |
|---|---|
| Manufacturer | OMRON Corporation |
| Exact Model | R88D-1SN08H-ECT |
| Product Family | OMRON 1S Series |
| Product Type | AC Servo Drive |
| Applicable Motor Power | 750W / 0.75kW |
| Main Power Input | 200-240V AC |
| Applicable Input Phases | Single-phase / Three-phase (Official Specification) |
| Actual Nameplate Input | Three-phase 200-240V AC |
| Allowable Main Supply Range | 170-252V AC |
| Main Supply Frequency | 50/60Hz |
| Rated Single-phase Input Current | 7.3A RMS |
| Rated Three-phase Input Current | 4.0A RMS |
| Output Phase | Three-phase |
| Nameplate Output Voltage | 0-240V AC |
| Nameplate Output Frequency | 0-500Hz |
| Rated Output Current | 4.6A RMS |
| Maximum Output Current | 16.9A RMS |
| Control Circuit Supply | 24V DC |
| Control Voltage Range | 21.6-26.4V DC |
| Control Circuit Current | 600mA |
| Communication Protocol | EtherCAT |
| EtherCAT Standard | IEC 61158 Type 12 |
| Drive Communication Profile | CiA 402 |
| EtherCAT Physical Layer | 100BASE-TX |
| EtherCAT Connectors | 2 Shielded RJ45 (ECAT IN / ECAT OUT) |
| Maximum Distance Between Nodes | 100m |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 65°C |
| Maximum Humidity | 90% RH, Non-condensing |
| Maximum Operating Altitude | 1,000m |
| Actual Product Version | Ver. 1.4 |
| Actual Drive Lot | 27824M0046 |
| Actual Carton Lot | 27824M |
| Carton Quantity | 1 Piece |
| Country of Origin | Made in China |
| Functional Testing | Not Independently Verified |
Product Overview
The Omron R88D-1SN08H-ECT is an OMRON 1S Series AC servo drive with built-in EtherCAT communication for industrial motion control applications. The drive is designed for a compatible 750W (0.75kW) servo motor and belongs to the 200-240V AC power class. Manufacturer specifications list both single-phase and three-phase main circuit supply configurations for this exact drive model, while the photographed unit nameplate identifies a three-phase 200-240V AC input. The drive delivers 4.6A RMS rated output current and a maximum output current of 16.9A RMS under specified conditions. Its control circuit requires a separate 24V DC supply with a manufacturer-specified current consumption of 600mA. Integrated EtherCAT communication supports industrial motion networks using the CiA 402 drive profile, a 100BASE-TX physical layer and two shielded RJ45 connectors for ECAT IN and ECAT OUT. The unit offers IP20 protection and is intended for integration into an appropriate protective industrial control cabinet. The R88D-1SN08H-ECT is a dedicated servo amplifier, not a general-purpose variable frequency drive, and correct operation depends on the compatible servo motor, controller, feedback system and drive configuration. Actual product and original carton photographs identify the exact model R88D-1SN08H-ECT, version 1.4, physical drive lot 27824M0046, carton lot 27824M and Made in China marking. Power-on performance, EtherCAT communication, servo output and motor operation have not been independently tested.
Key Product Features
- OMRON 1S Servo Drive — Dedicated 750W AC servo amplifier for compatible 1S motion systems.
- Built-in EtherCAT — Industrial motion network communication with CiA 402 drive profile support.
- 200-240V AC Power Class — Manufacturer-listed single-phase and three-phase main supply configurations.
- 4.6A Rated Output — Maximum output current of 16.9A RMS under specified conditions.
- Separate 24V DC Control Supply — Control power specification of 600mA.

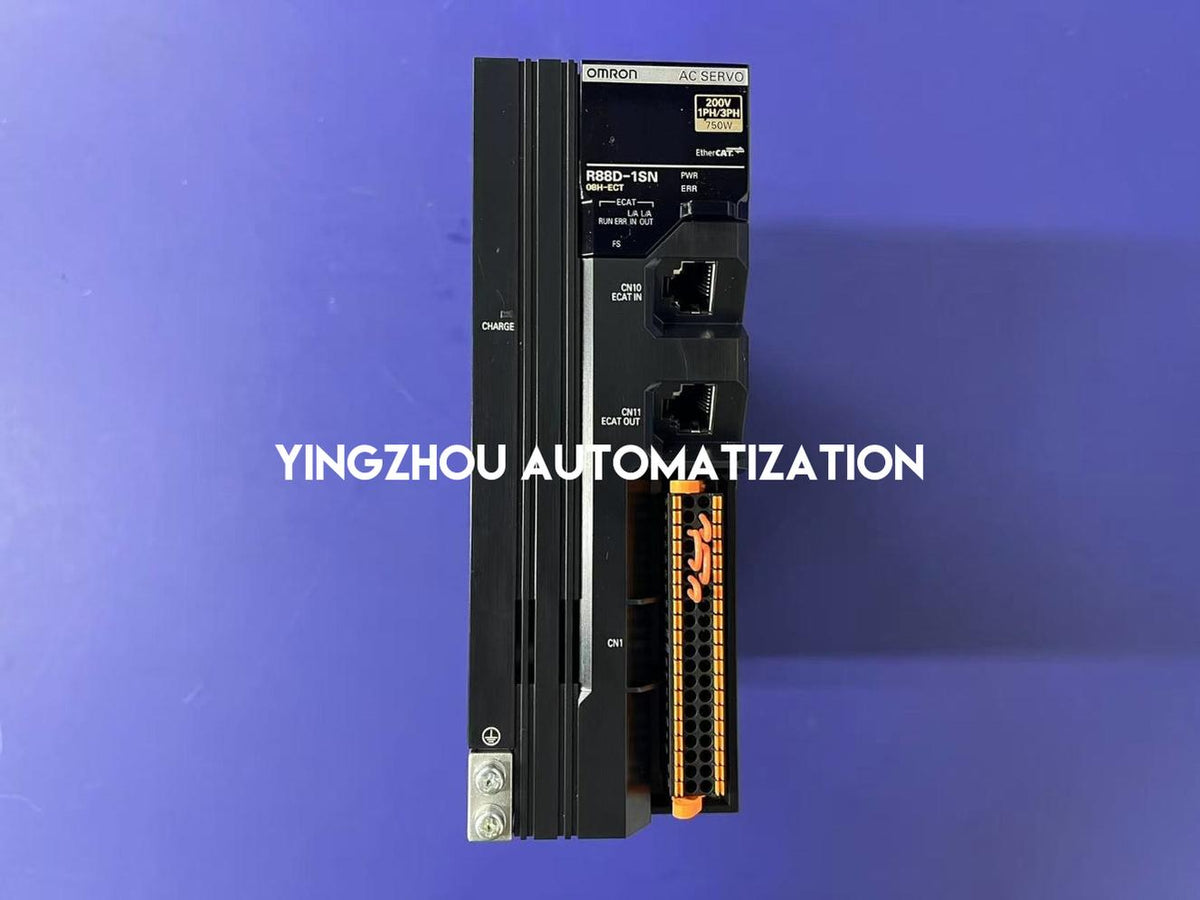

- Dual EtherCAT Connections — Shielded RJ45 input and output ports for supported network topology.
- IP20 Protective Structure — Intended for installation inside an appropriate industrial electrical cabinet.
- Industrial Replacement Support — Appropriate for exact-model drive replacement following motor, controller and configuration verification.
Actual Product Verification
In Stock & Available to Order

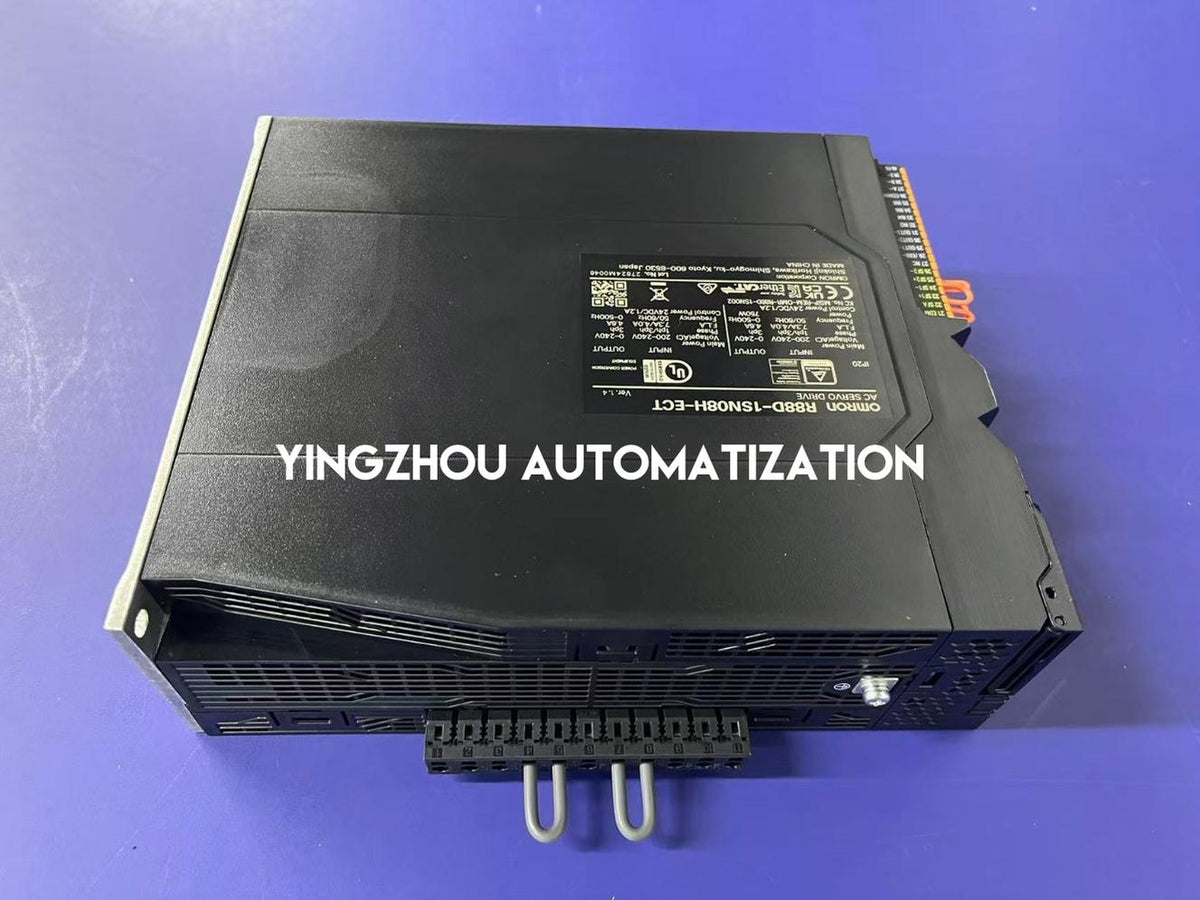

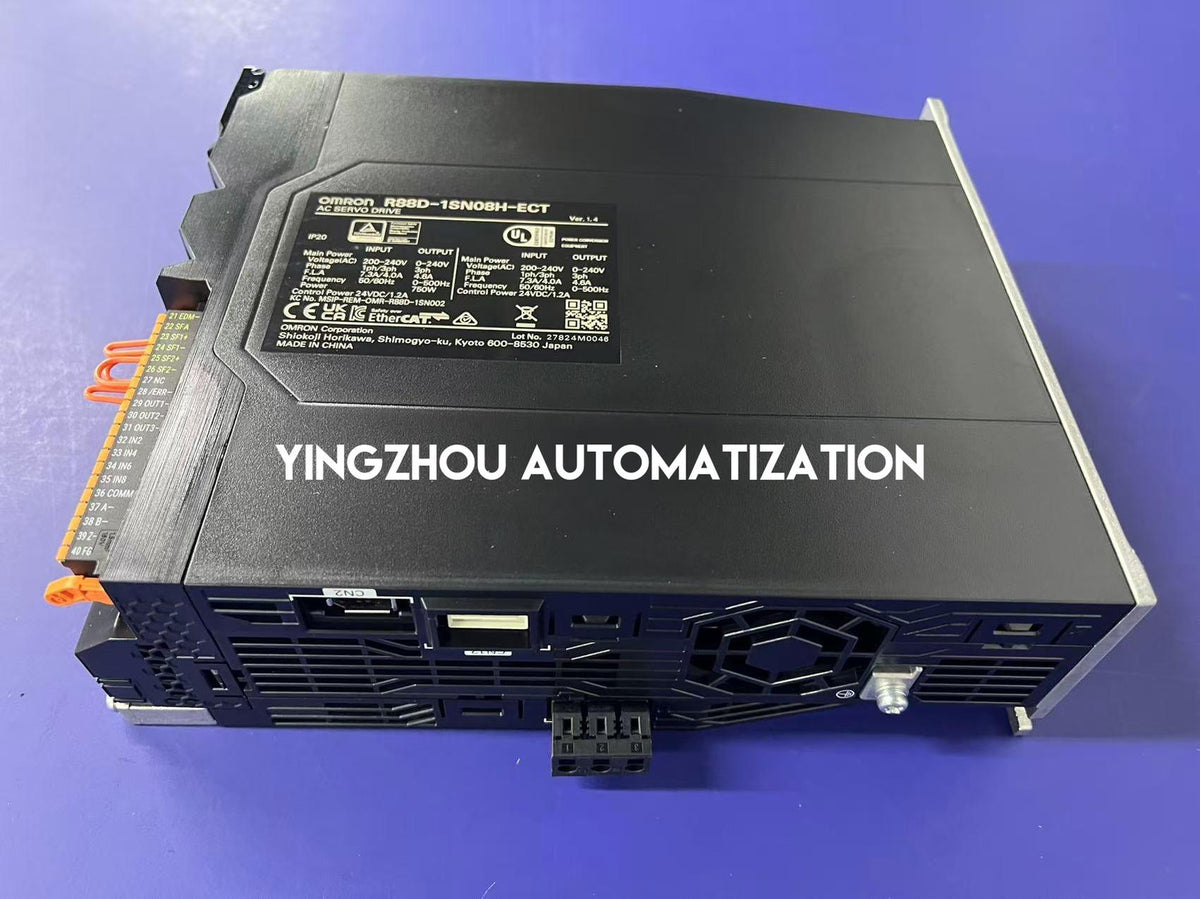

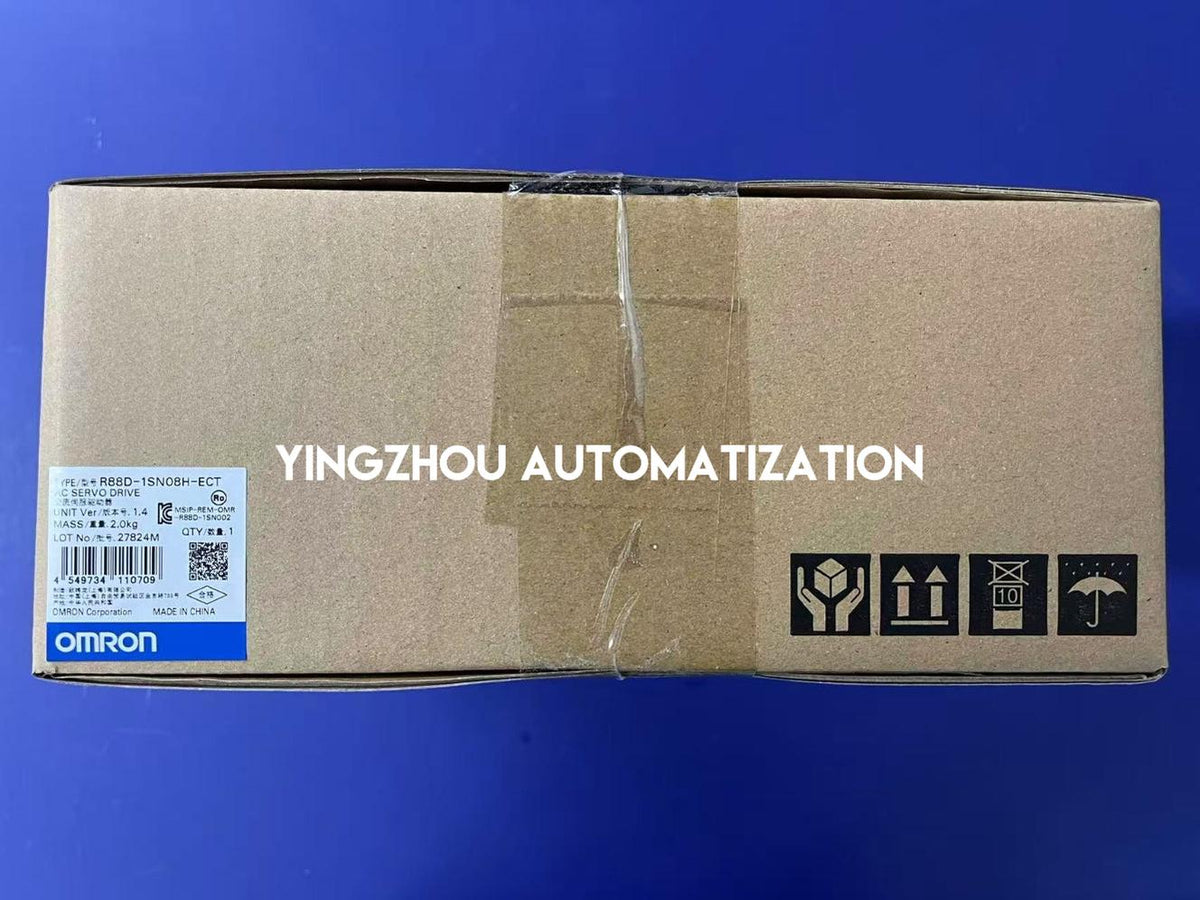

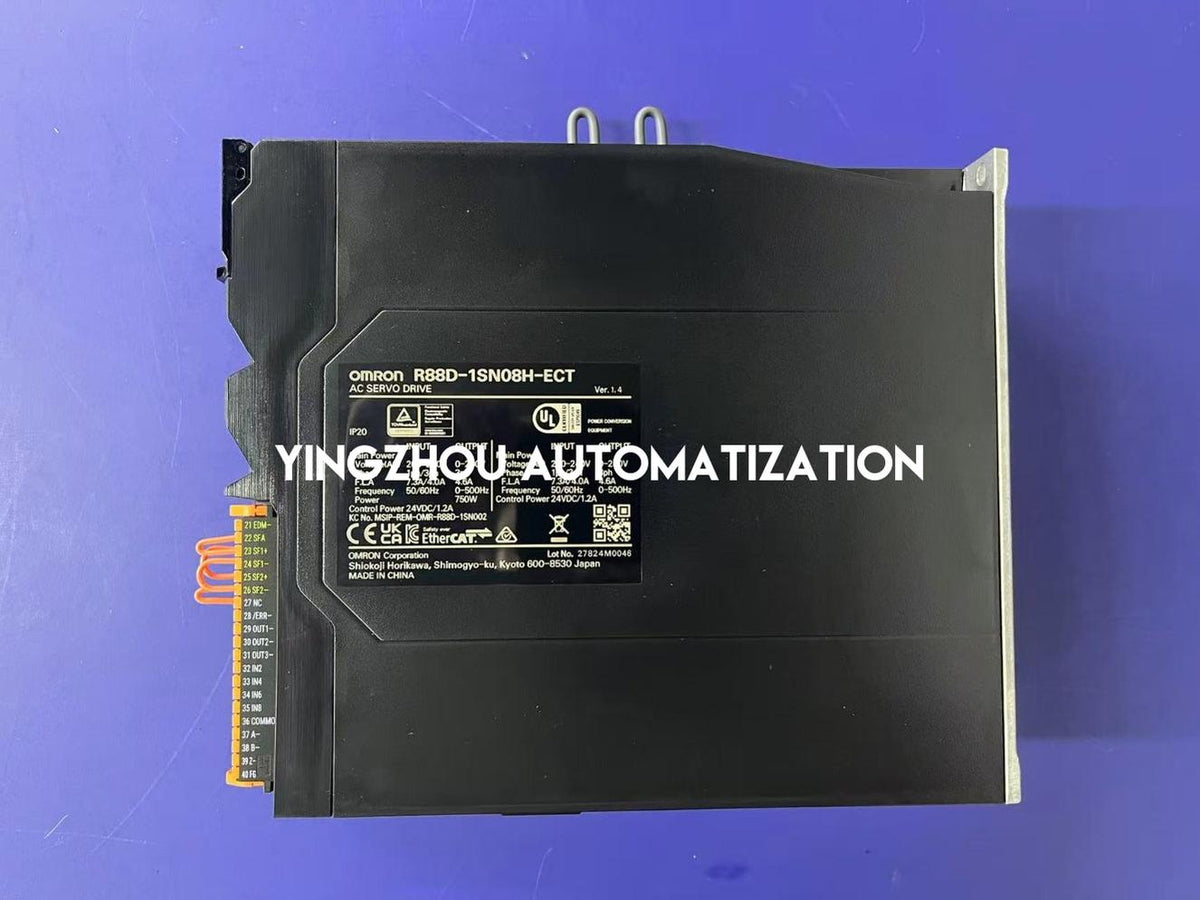

Omron R88D-1SN08H-ECT is marked in stock based on the supplied inventory information. Actual product and original carton photographs identify the exact model, hardware version and manufacturing lot. This 750W OMRON 1S EtherCAT AC servo drive is offered for industrial machine maintenance, motion-control system servicing and verified exact-model replacement. Before ordering, please confirm the servo motor model, 200-240V power supply configuration, 24V DC control supply, EtherCAT master compatibility, drive firmware and necessary motor power and encoder connections. The drive is not interchangeable with different power classes or 400V-class drives solely because they belong to the same 1S family. The motor, controller, cables and any external safety components are not confirmed as included with the photographed drive. PLC programs, servo parameters and machine-specific settings may require backup or reconfiguration. Final accessory contents, shipment testing and delivery arrangements should be confirmed before dispatch.
Omron R88D-1SN08H-ECT
Contact us for exact-model verification, multiple-unit quotations and industrial servo drive sourcing. Confirm your servo motor, power supply, EtherCAT controller and firmware requirements before ordering.
