Omron E3FA-DP12 E3FA 300mm PNP Diffuse Reflective Photoelectric Sensor

Name: Omron E3FA-DP12 E3FA 300mm PNP Diffuse Reflective Photoelectric Sensor
Brand: OMRON
SKU: E3FA-DP12
Price: 15.99 USD
Availability: InStock

Omron E3FA-DP12 E3FA 300mm PNP Diffuse Reflective Photoelectric Sensor

$15.99 USD

In offerta Esaurito

Model Number E3FA-DP12

Varianti di prodotto

Quantità

YingZhou Industrial Automation | Product Information

Omron E3FA-DP12 Photoelectric Sensor

300mm Sensing Distance | PNP Output | 10–30VDC | 2m Cable

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Packaging Label Model Verified

Specification	Verified Product Data
Manufacturer	OMRON Corporation
Catalog Number	E3FA-DP12 2M
Product Family	E3FA
Product Type	Photoelectric Sensor
Sensing Method	Diffuse-reflective
Sensing Distance	300 mm on standard white paper (300 × 300 mm)
Light Source	Red LED, 624 nm
Output Type	PNP open collector
Supply Voltage	10–30 VDC, maximum 10% peak-to-peak ripple
Current Consumption	25 mA max.
Control Output Load Current	100 mA max.
Load Supply Voltage	30 VDC max.
Residual Voltage	3 V max.
Operation Mode	Light-ON / Dark-ON selectable by wiring
Response Time	0.5 ms
Sensitivity Adjustment	One-turn adjuster
Operation Indicator	Orange LED
Stability Indicator	Green LED
Protection Rating	IP67 / IP69K under specified standards
Operating Temperature	−25 to 55°C, without icing or condensation
Storage Temperature	−40 to 70°C, without icing or condensation
Operating Humidity	35–85% RH, without condensation
Cable Configuration	2 m pre-wired cable

Product Overview

The Omron E3FA-DP12 is an E3FA-series diffuse-reflective photoelectric sensor with a nominal 300 mm sensing distance for a standard 300 × 300 mm white-paper target. The manufacturer specifies a red LED light source, PNP open-collector output and 10–30 VDC supply. This configuration uses a 2 m pre-wired cable. Its response time is 0.5 ms, and the series specifications include IP67 and IP69K protection ratings. Confirm the target material, sensing distance, output wiring and operating mode for the intended installation before ordering.

Key Product Features

300 mm Diffuse Sensing — Specified for a standard 300 × 300 mm white-paper target.
Red LED Detection — Uses a 624 nm red LED light source.
PNP Open-Collector Output — For compatible industrial control inputs.
10–30 VDC Supply — Manufacturer-specified DC supply range.
2 m Pre-Wired Cable — Cable-connected sensor configuration.
0.5 ms Response Time — Manufacturer-specified series response time.
IP67 / IP69K Protection — Refer to the manufacturer's stated test conditions and standards.

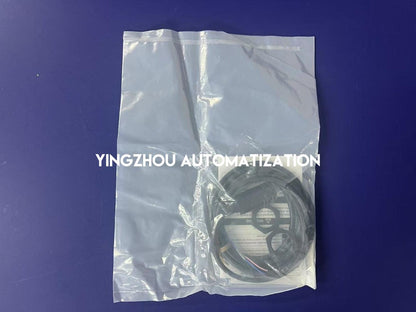

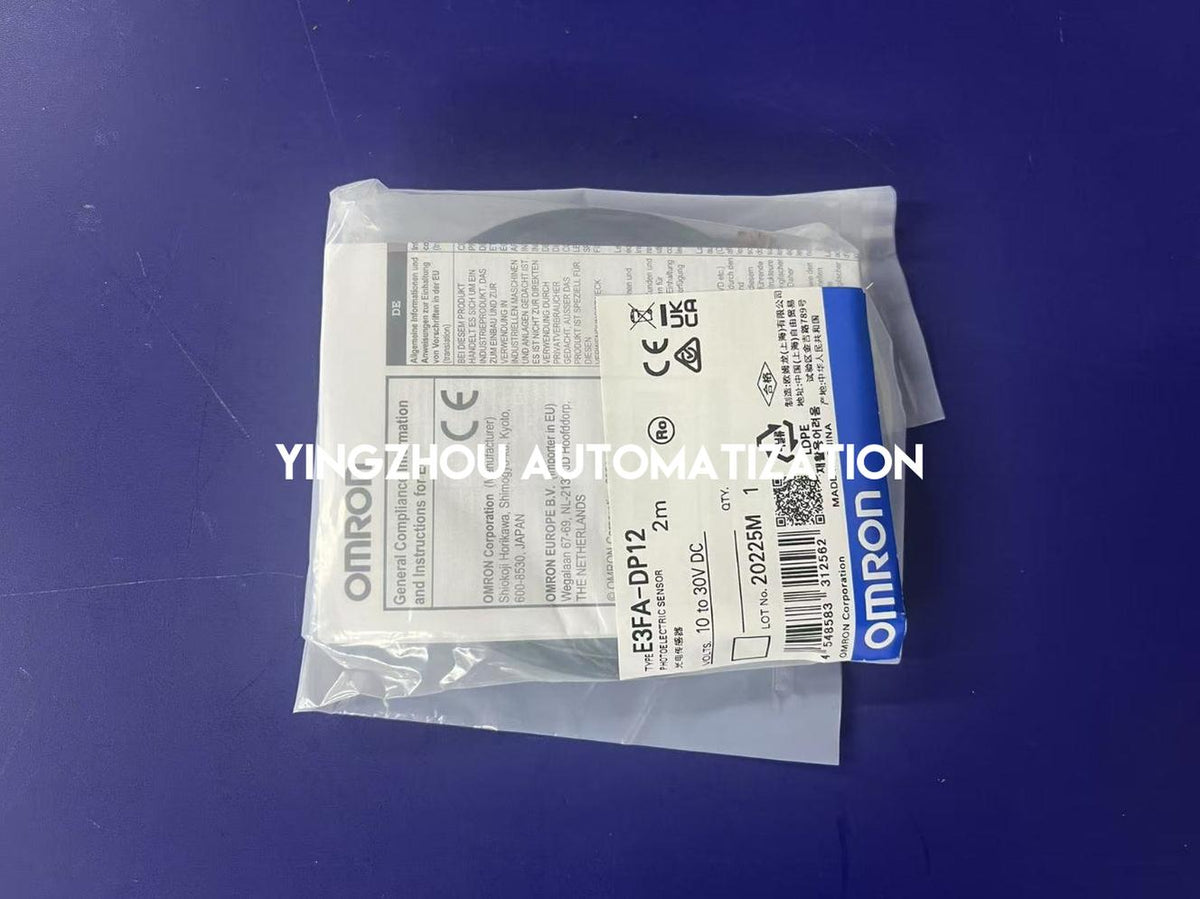

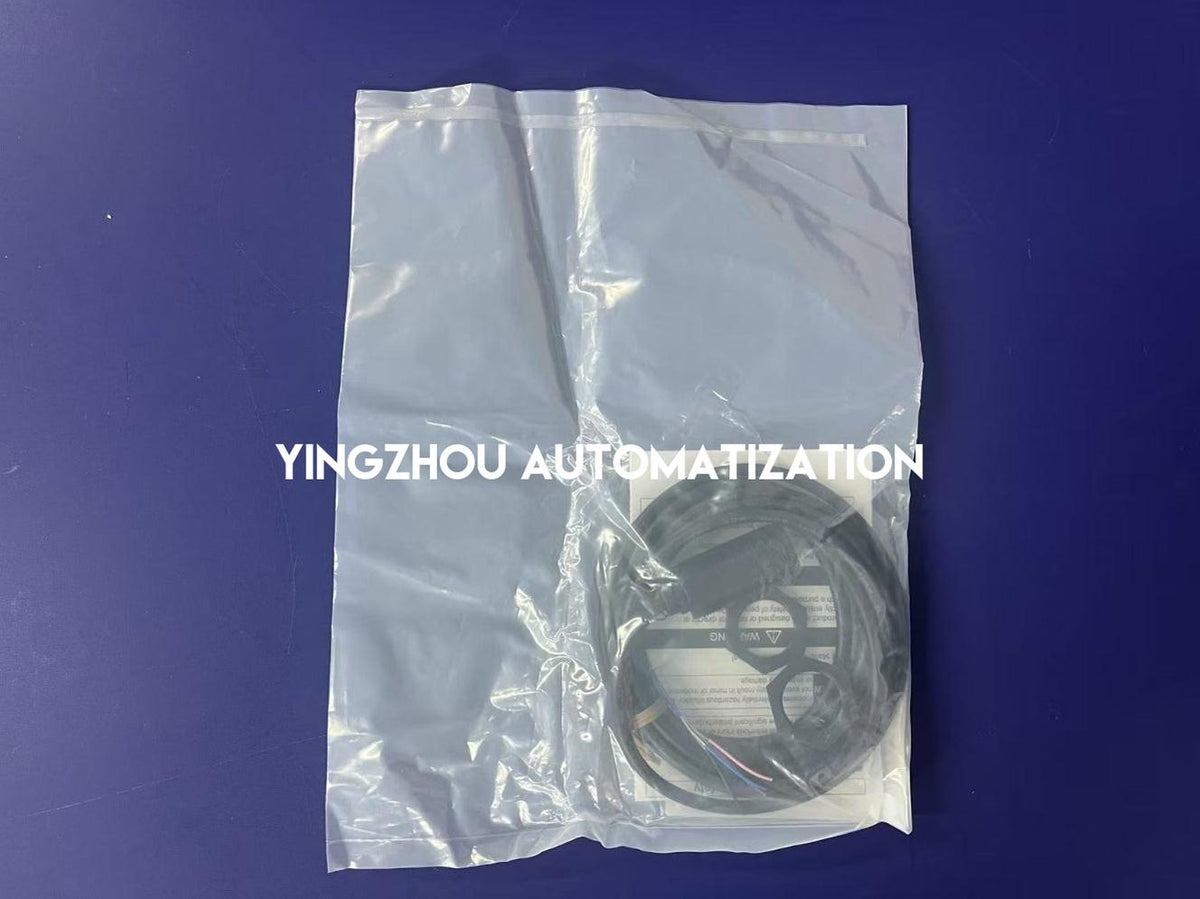

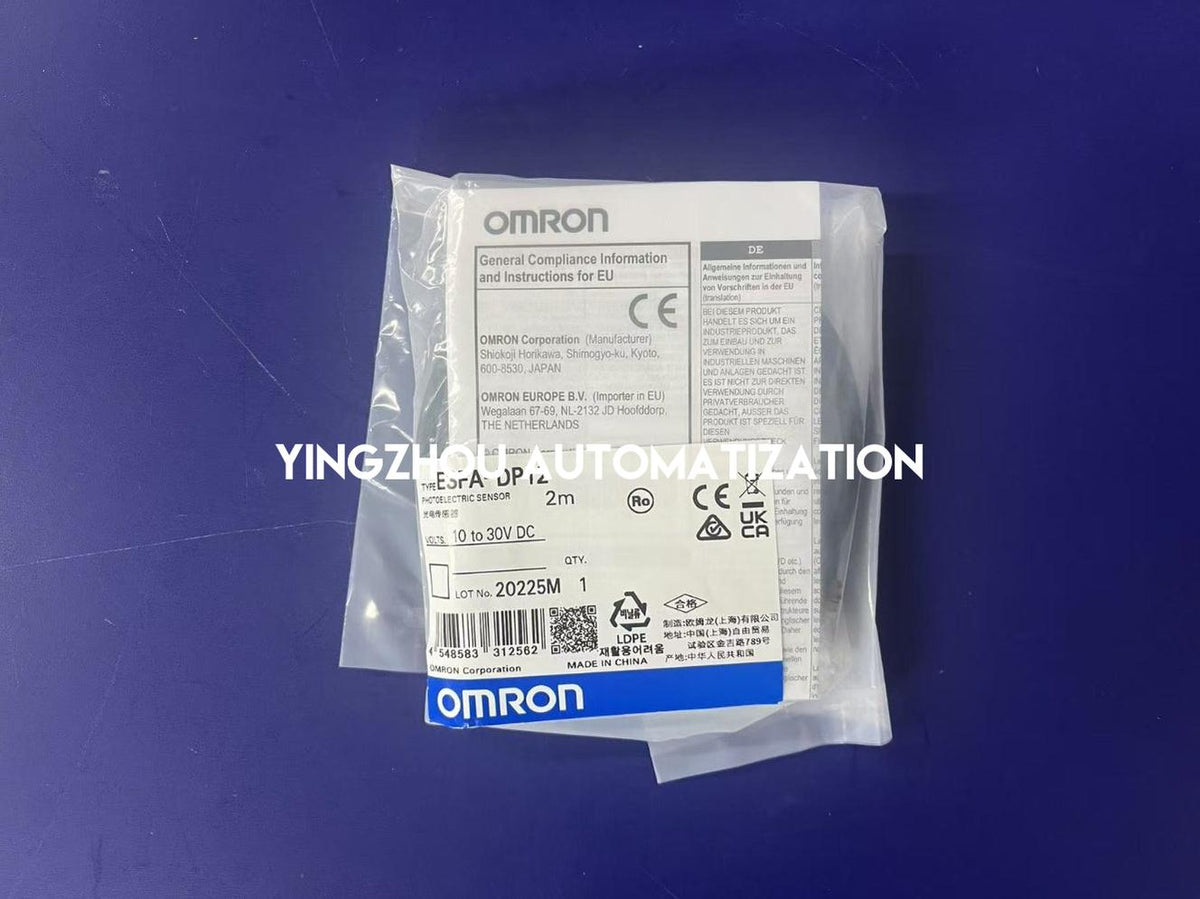

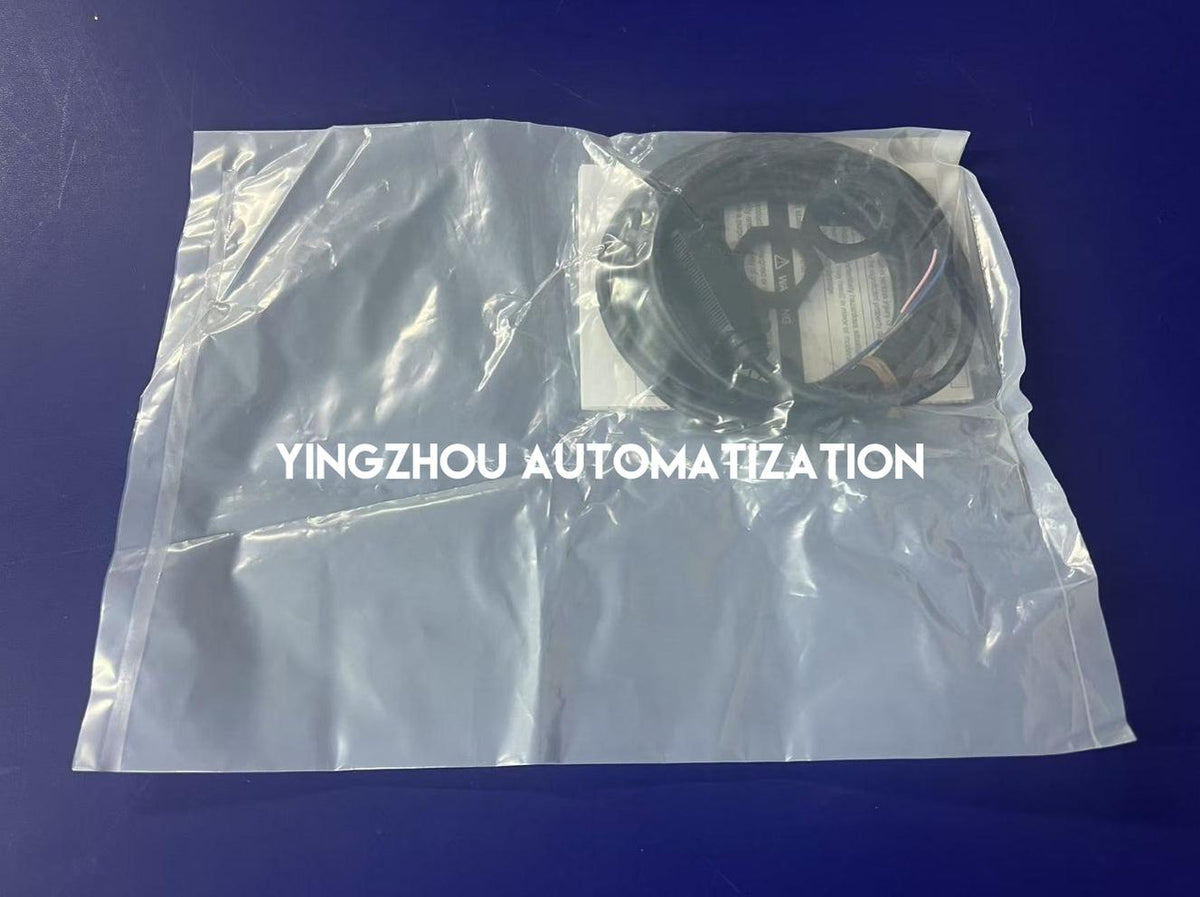

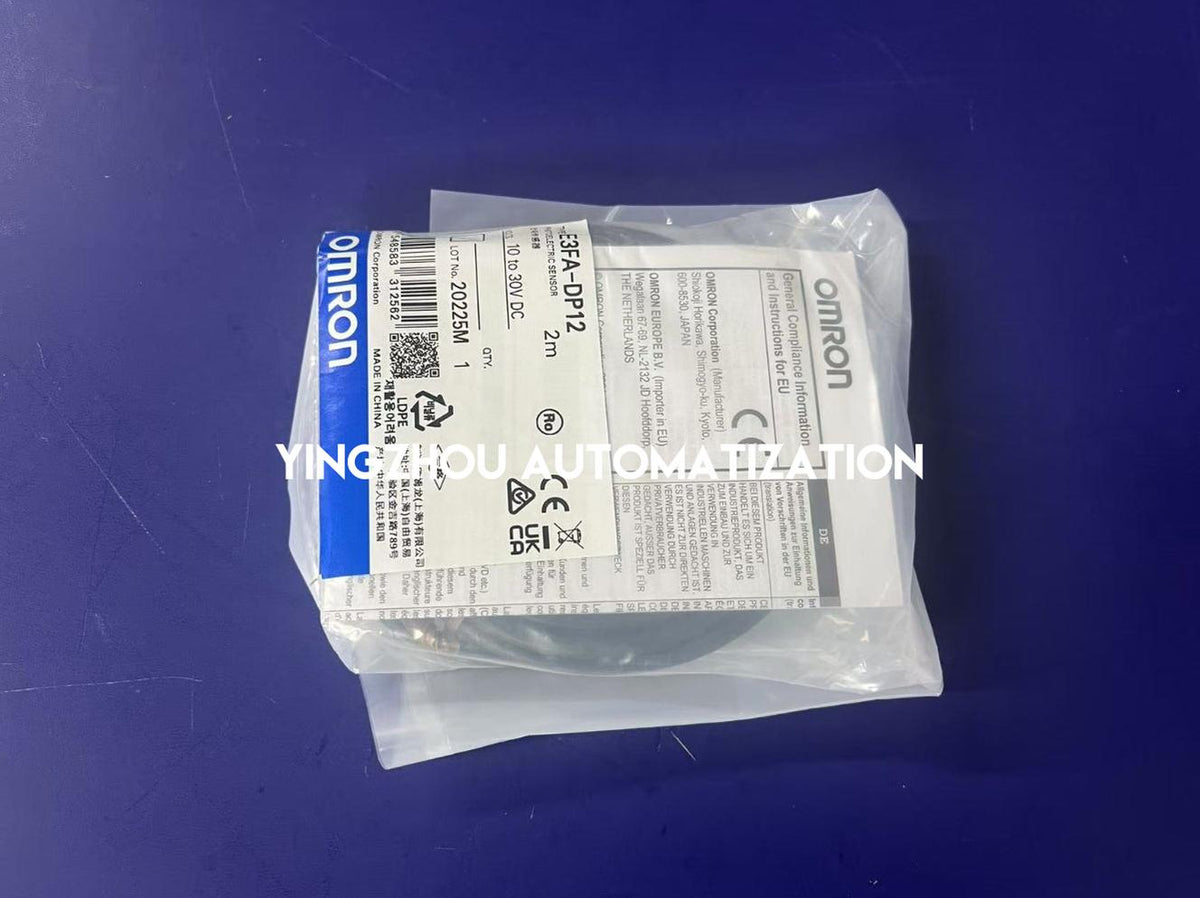

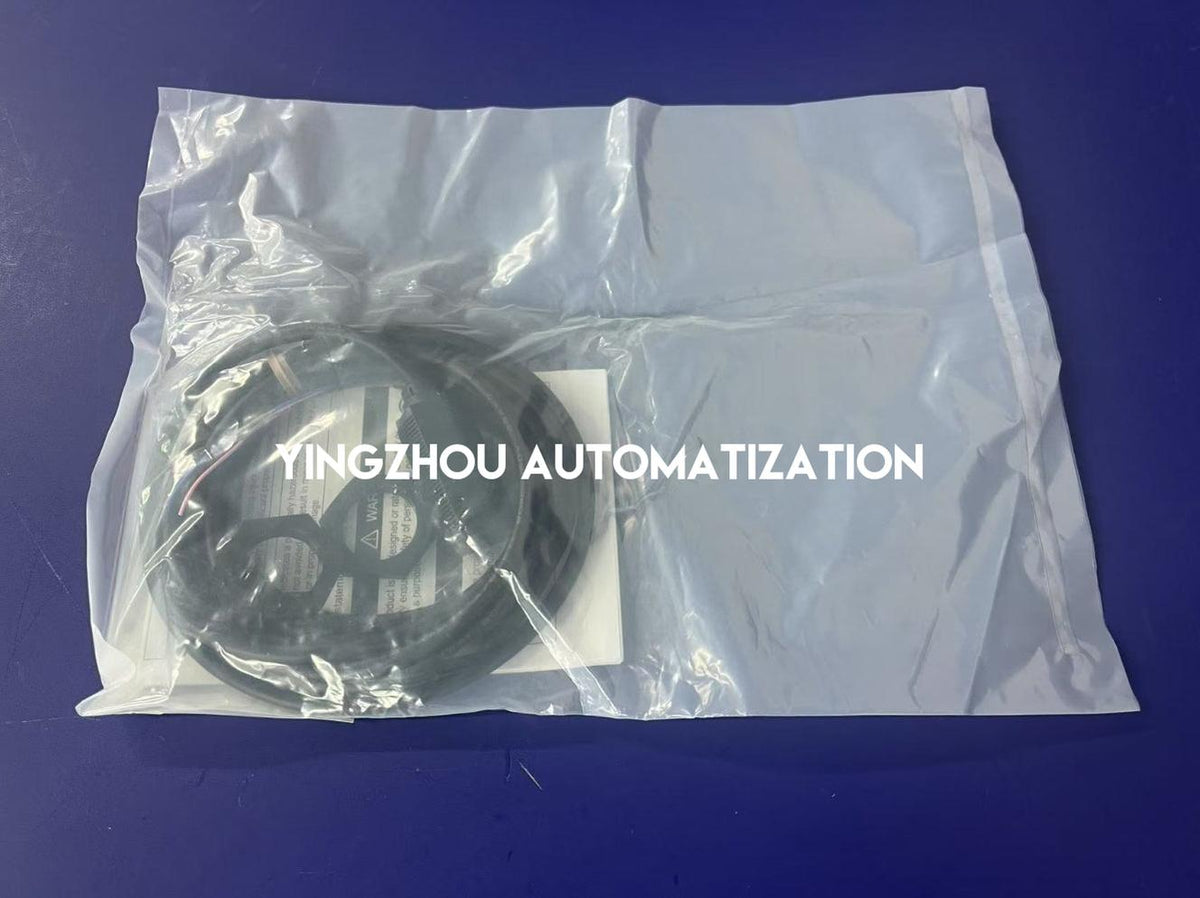

Actual Product Verification

✓ Actual product packaging photograph supplied

✓ Packaging label identifies E3FA-DP12

✓ Label shows 2 m cable configuration

✓ Label shows 10–30 V DC supply rating

✓ Sensor body and its own nameplate are not visible in the supplied photograph

✓ Confirm the sensor body model and cable condition before dispatch

In Stock & Available to Order

Omron E3FA-DP12 is marked in stock based on the supplied inventory information. The packaging label matches the requested model and displays the 2 m cable and 10–30 V DC rating. Please confirm the sensor body, cable condition and required sensing configuration before completing the order.

IN STOCK

Omron E3FA-DP12

Order online or contact us for multiple units and project sourcing. Please confirm the 300 mm sensing requirement, PNP output and 2 m cable configuration.
