FESTO

FESTO MS4-LFR-1/4-D7-ERM-AS 529156 Filter Regulator G1/4 40µm 0.5–12 Bar

FESTO MS4-LFR-1/4-D7-ERM-AS 529156 Filter Regulator G1/4 40µm 0.5–12 Bar

$44.99 USD
$44.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

FESTO MS4-LFR-1/4-D7-ERM-AS 529156 Filter Regulator

G1/4 | 40 Micron | 0.5-12 Bar | 1500 l/min | Manual Drain
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Manufacturer Part Number Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number MS4-LFR-1/4-D7-ERM-AS
Part Number 529156
Product Family MS4-LFR
Product Series MS
Product Type Pneumatic Filter Regulator
Size 4
Pneumatic Connection, Port 1 G1/4
Pneumatic Connection, Port 2 G1/4
Grade of Filtration 40 micrometers
Pore Size 40 micrometers
Condensate Drain Manual, Rotating
Maximum Condensate Volume 19 ml
Structural Design Filter Regulator with Pressure Gauge
Pressure Gauge Integrated - Manufacturer Configuration
Regulator Lock Rotary Knob with Detent, Lockable with Accessories
Controller Function Constant Output Pressure
Secondary Exhausting Yes
Return Flow Function Yes
Operating Pressure 0.8-14 bar
Pressure Regulation Range 0.5-12 bar
Maximum Pressure Hysteresis 0.25 bar
Standard Nominal Flow Rate 1500 l/min
Degree of Condensate Separation 75%
Bowl Guard Plastic Bowl Guard
Mounting Position Vertical +/-5 Degrees
Operating Medium Compressed Air per ISO 8573-1:2010 [-:4:-]; Inert Gases
Air Purity Class at Output ISO 8573-1:2010 [7:4:4]
Ambient Temperature -10°C to +60°C
Medium Temperature -10°C to +60°C
Storage Temperature -10°C to +60°C
Corrosion Resistance Class CRC 2 - Moderate Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Product Weight 275 g
Manufacturer GTIN 4052568084882
Packaging Quantity 1 Piece - Actual Packaging Label
Country of Origin Made in Hungary - Actual Packaging Label

Product Overview

The FESTO MS4-LFR-1/4-D7-ERM-AS, manufacturer part number 529156, is a pneumatic filter regulator from the FESTO MS4-LFR series. It combines compressed-air filtration and pressure regulation in a compact unit featuring G1/4 inlet and outlet connections. The manufacturer specifies a 40 micrometer filtration grade, an adjustable 0.5 to 12 bar pressure regulation range, and an operating pressure range of 0.8 to 14 bar. Its standard nominal flow rate is 1500 l/min. The filter regulator features an integrated pressure gauge, manual rotating condensate drain, 19 ml maximum condensate volume and a protective plastic bowl guard. The regulator maintains a constant outlet pressure and supports secondary exhausting and return flow functionality. The manufacturer specifies a -10°C to +60°C ambient temperature range, CRC 2 corrosion resistance and a product weight of 275 g. The supplied actual packaging photograph confirms FESTO material number 529156 and the corresponding MS4-LFR filter regulator configuration. The unit inside the box has not been independently inspected; confirm the exact contents and installation requirements before ordering.

Key Product Features

  • FESTO MS4 Filter Regulator — Manufacturer model MS4-LFR-1/4-D7-ERM-AS, part number 529156.
  • G1/4 Pneumatic Connections — Matching manufacturer-specified inlet and outlet connections.
  • 40 Micrometer Filtration — Filtration grade for industrial compressed-air preparation.
  • 0.5-12 Bar Pressure Regulation — Adjustable pressure regulation with an operating pressure range of 0.8-14 bar.
  • 1500 l/min Nominal Flow — Standardized manufacturer-rated nominal flow.
  • Integrated Pressure Gauge — Manufacturer-specified pressure indication for the filter regulator.
  • Manual Condensate Drain — Rotary manual drainage with a 19ml maximum condensate volume.

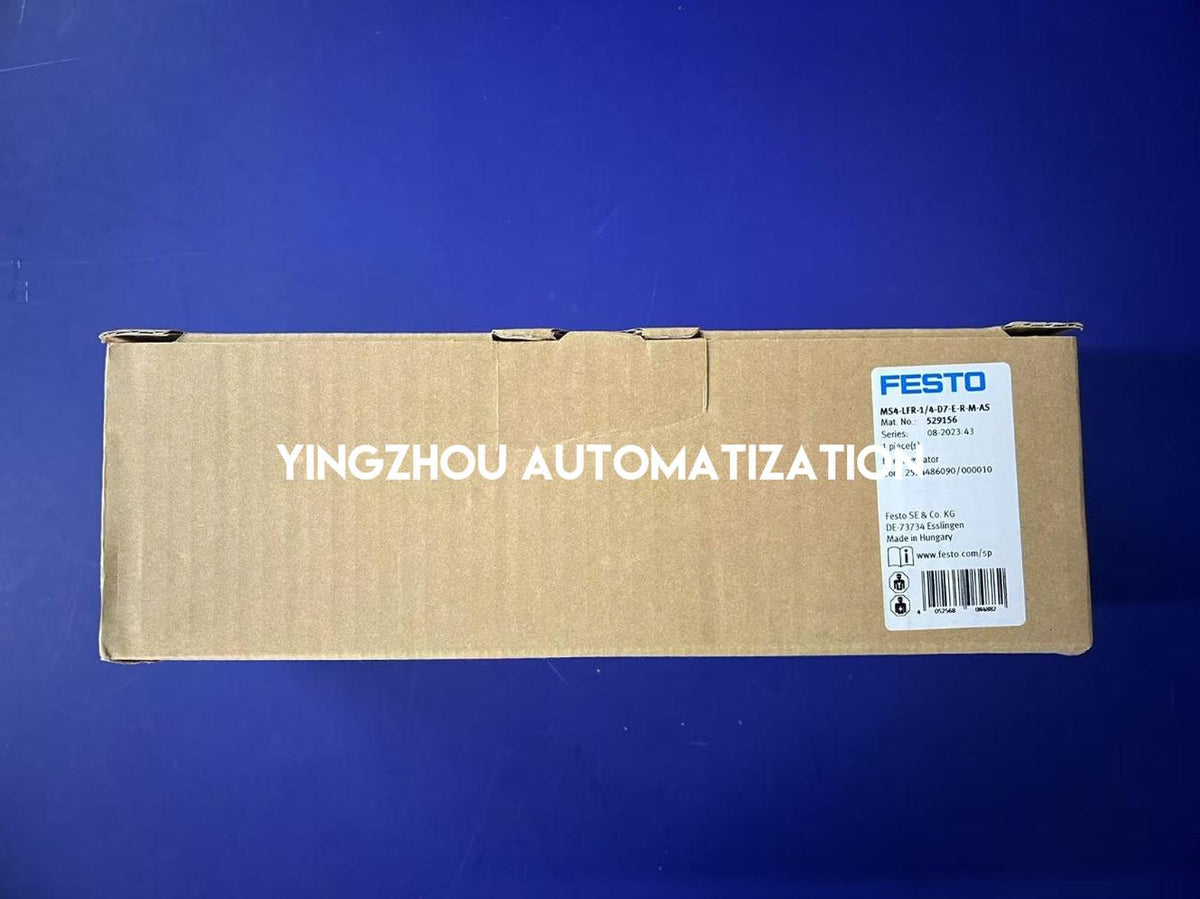

Actual Product Verification

✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging model marking: MS4-LFR-1/4-D7-E-R-M-AS
✓ Manufacturer catalog model: MS4-LFR-1/4-D7-ERM-AS
✓ Packaging material number: 529156
✓ Packaging series marking: 08-2023:43
✓ Packaging description: Filter Regulator
✓ Packaging quantity: 1 Piece
✓ Packaging country-of-origin marking: Made in Hungary
✓ Manufacturer part number matches the requested item
✓ Physical regulator body and accessories require separate verification

In Stock & Available to Order

FESTO MS4-LFR-1/4-D7-ERM-AS 529156 is marked in stock based on the supplied inventory information. This FESTO MS4 pneumatic filter regulator is offered for industrial compressed-air preparation, pneumatic equipment maintenance and exact-model replacement sourcing. The original packaging photograph confirms the manufacturer part number and filter regulator identification. Before ordering, please verify the required quantity, G1/4 inlet and outlet connections, 40 micrometer filtration, manual condensate drainage, pressure adjustment range and any installation accessories. The individual unit inside the photographed carton has not been independently inspected.

IN STOCK

FESTO MS4-LFR-1/4-D7-ERM-AS 529156

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the G1/4 connections, 40 micron filtration, manual drain, pressure regulation range and installation requirements before ordering.
