FESTO VUVG-B14-M52-MZT-F-1P3 574379 Solenoid Valve
5/2-Way Monostable | 24V DC | Spring Return | 14mm Valve | 520-630 l/min
| Specification |
Verified Product Data |
| Manufacturer |
FESTO |
| Catalog Number |
VUVG-B14-M52-MZT-F-1P3 |
| Part Number |
574379 |
| Product Family |
VUVG |
| Product Type |
Pneumatic Solenoid Valve |
| Valve Function |
5/2-way, Monostable |
| Actuation Type |
Electrical |
| Valve Size |
14 mm |
| Nominal Width |
5.6 mm |
| Standard Nominal Flow Rate |
520-630 l/min (DIN 1343) |
| Pneumatic Working Port |
Flange |
| Operating Voltage |
24V DC |
| Operating Pressure |
-0.9 to 8 bar |
| Structural Design |
Piston Gate Valve |
| Reset Method |
Mechanical Spring |
| Sealing Principle |
Soft |
| Type of Control |
Pilot-controlled |
| Pilot Air Supply |
External |
| Pilot Pressure |
3-8 bar |
| Suitability for Vacuum |
Yes |
| Lap |
Positive Overlap |
| Exhaust Air Function |
Adjustable |
| Mounting Position |
Any |
| Manual Override |
Detenting / Non-detenting / Covered |
| Switching Time - ON |
13 ms |
| Switching Time - OFF |
40 ms |
| Duty Cycle |
100% |
| Coil Characteristics |
24V DC, 1.0 W |
| Low-current Phase |
0.3 W |
| High-current Phase |
1.0 W |
| Permissible Voltage Fluctuation |
±10% |
| Protection Rating |
IP40 / IP65 with Plug Socket |
| Electrical Connection |
Via Electrical Sub-base |
| Type of Mounting |
On Terminal Strip |
| Operating Medium |
Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Pilot Medium |
Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Lubricated Operation |
Possible; Continued Lubrication Required Thereafter |
| Ambient Temperature |
-5°C to +60°C |
| Medium Temperature |
-5°C to +60°C |
| Restricted Temperature Without Holding-current Reduction |
-5°C to +50°C |
| Corrosion Resistance Class |
CRC 2 - Moderate Corrosion Stress |
| LABS (PWIS) Conformity |
VDMA24364-B1/B2-L |
| Cleanroom Suitability |
Class 5 according to ISO 14644-1 |
| Product Weight |
70 g |
| Housing Material |
Wrought Aluminum Alloy |
| Seal Materials |
HNBR / NBR |
| Materials Compliance |
RoHS-compliant |
| Packaging Quantity |
1 Piece - Actual Packaging Label |
| Country of Origin |
Made in China - Actual Packaging Label |
Product Overview
The FESTO VUVG-B14-M52-MZT-F-1P3, manufacturer part number 574379, is a 5/2-way monostable pneumatic solenoid valve from the FESTO VUVG series. The valve features 24V DC electrical actuation, mechanical spring return and a compact 14 mm valve size. It provides a manufacturer-specified standard nominal flow rate of 520-630 l/min and operates within a pressure range of -0.9 to 8 bar. The valve uses an external pilot air supply with a specified pilot pressure of 3-8 bar. Its pneumatic working connection is a flange interface, and electrical connection is made through a designated sub-base. Switching times are specified as 13 ms ON and 40 ms OFF. The valve features a wrought aluminum alloy housing and HNBR/NBR seals, with a manufacturer-specified product weight of 70 g. The supplied actual packaging photograph shows a FESTO label marked VUVG-B14-M52-MZT-F-1P3, material number 574379, with one piece indicated on the package. The installed electrical connector and complete valve body remain subject to visual confirmation.
Key Product Features
-
FESTO VUVG Solenoid Valve — Manufacturer catalog model VUVG-B14-M52-MZT-F-1P3, part number 574379.
-
5/2-way Monostable Function — Electrical actuation with mechanical spring return.
-
24V DC Operating Voltage — Manufacturer-specified nominal electrical supply.
-
520-630 l/min Nominal Flow — Standardized manufacturer flow rating according to DIN 1343.
-
-0.9 to 8 bar Operating Pressure — External pilot air supply with a specified pilot pressure of 3-8 bar.
-
Fast Electrical Switching — Manufacturer-specified 13 ms switching time ON and 40 ms OFF.
-
Compact Aluminum Construction — Wrought aluminum alloy housing and HNBR/NBR seals with 70 g product weight.

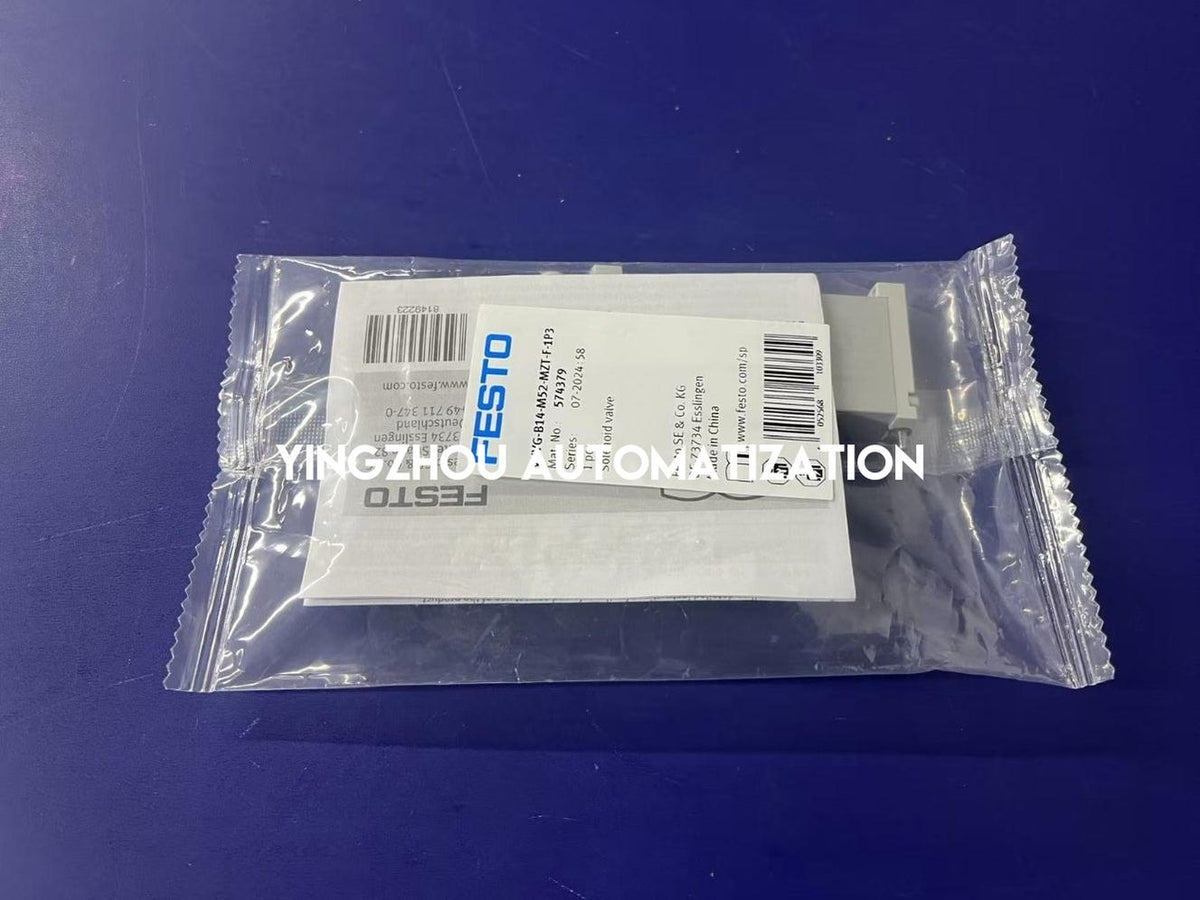

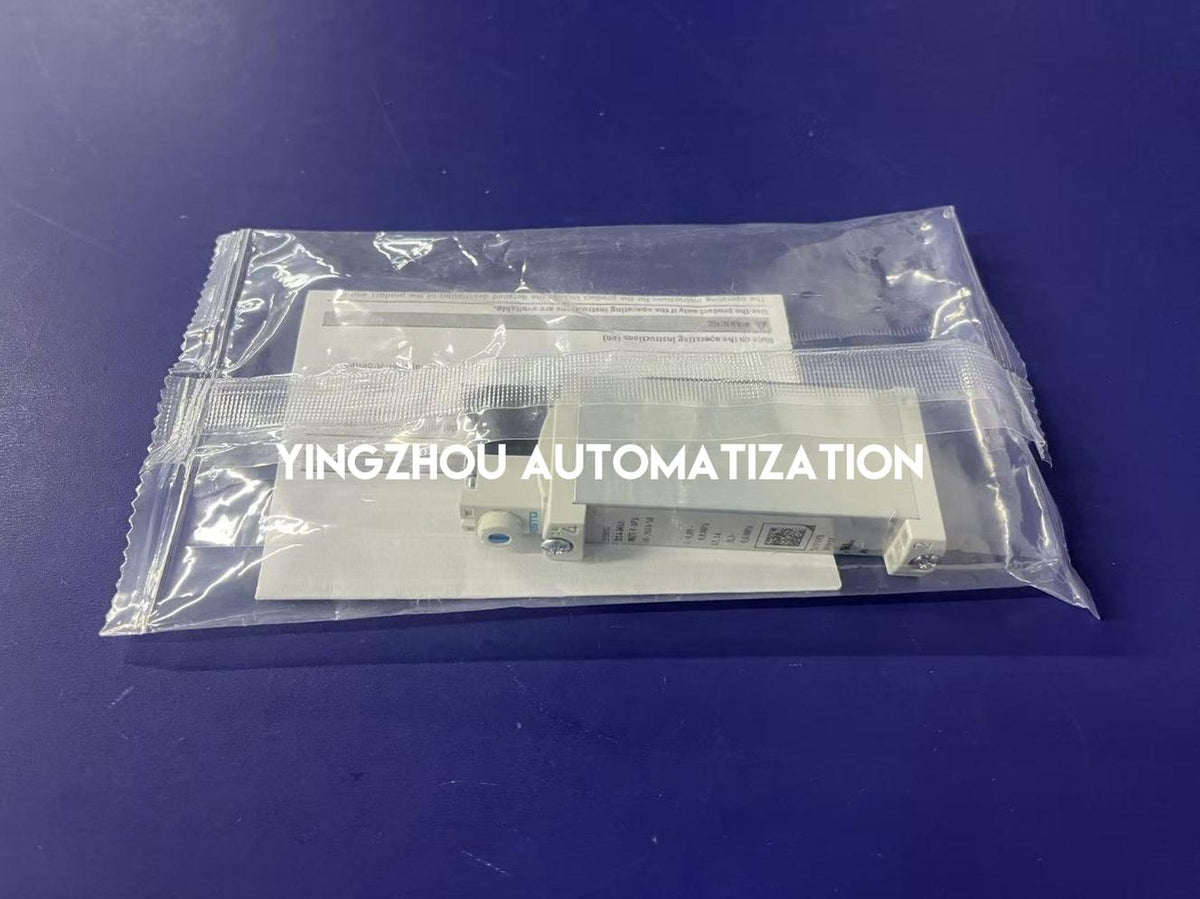

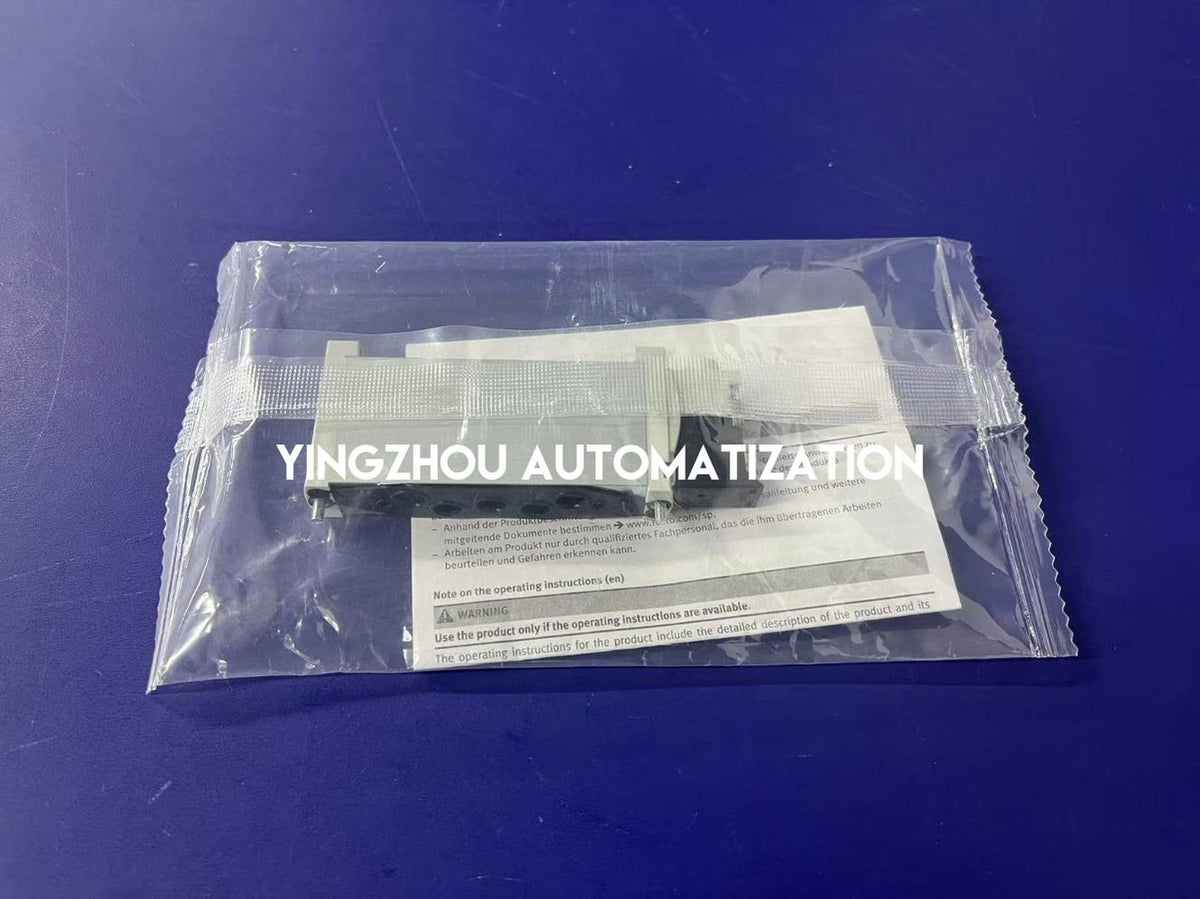

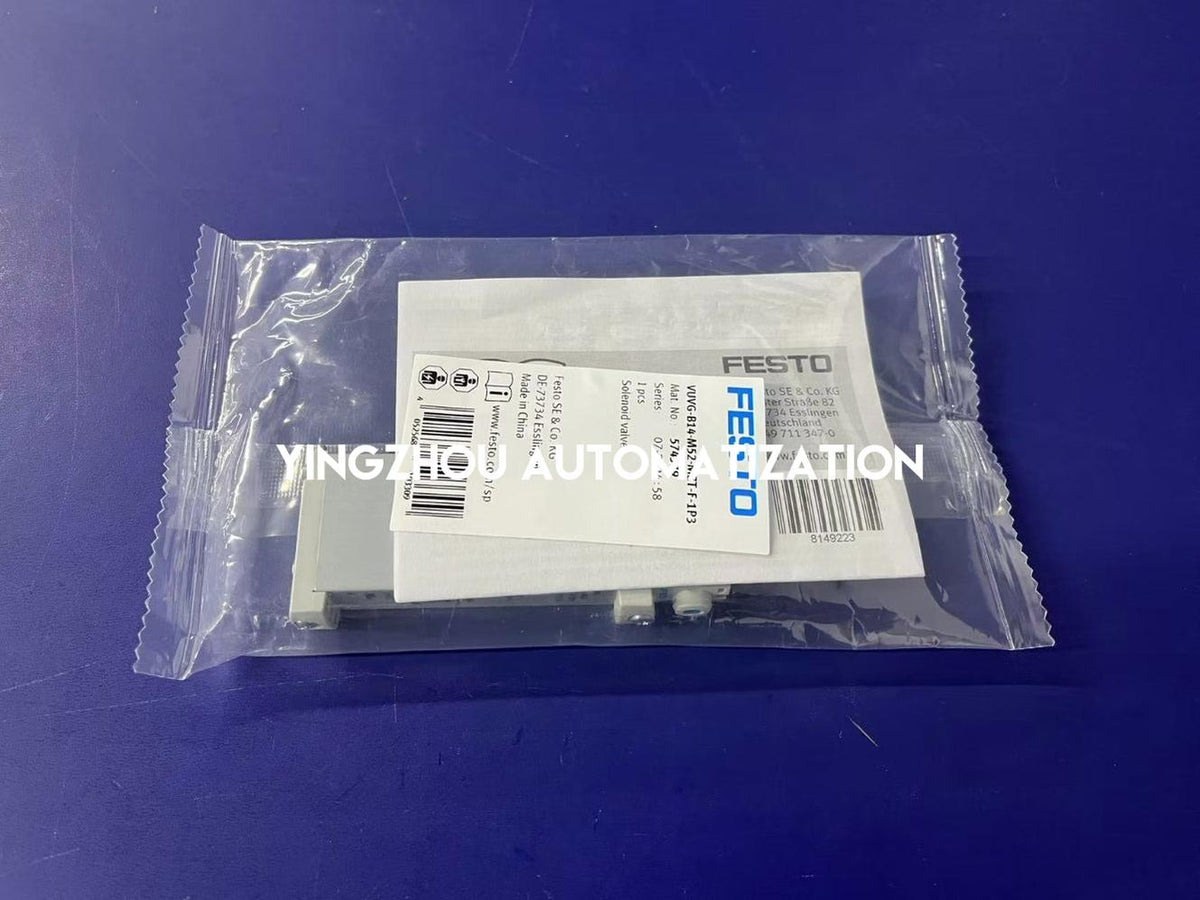

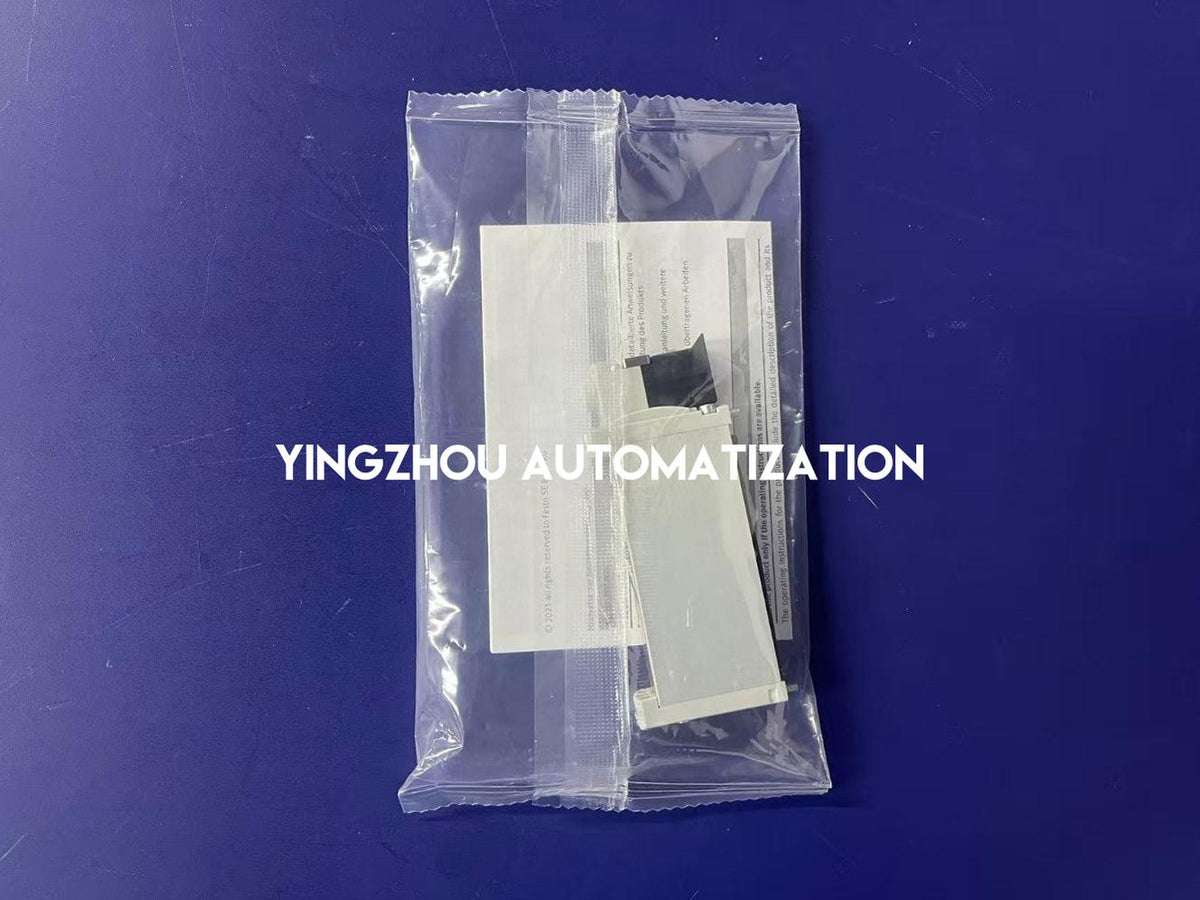

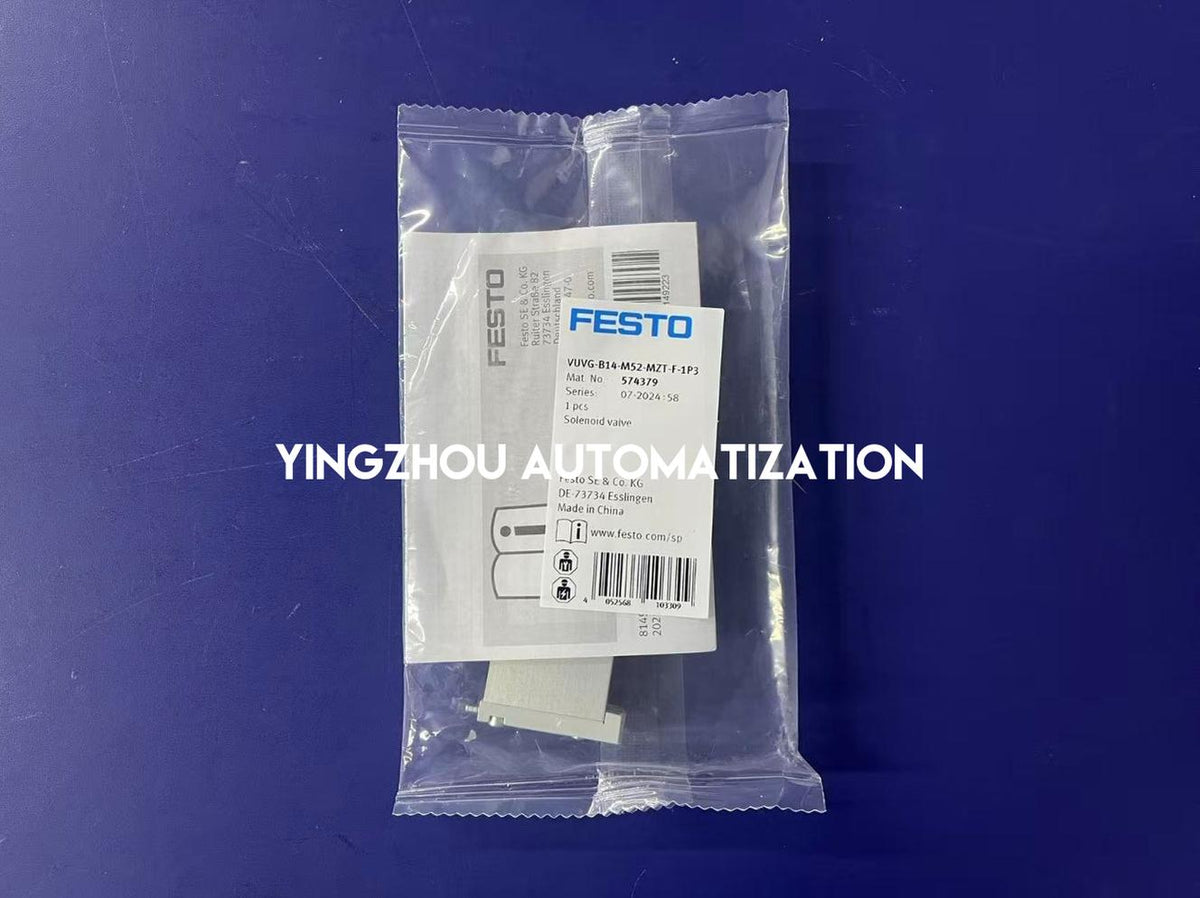

Actual Product Verification
✓ Actual product packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: VUVG-B14-M52-MZT-F-1P3
✓ Packaging material number: 574379
✓ Packaging series marking: 07-2024:58
✓ Packaging description: Solenoid Valve
✓ Packaging quantity: 1 Piece
✓ Packaging country-of-origin marking: Made in China
In Stock & Available to Order
FESTO VUVG-B14-M52-MZT-F-1P3 574379 is marked in stock based on the supplied inventory information. This 5/2-way monostable pneumatic solenoid valve is available for industrial maintenance, pneumatic automation procurement and exact-model replacement inquiries. The actual packaging photograph confirms the requested manufacturer catalog number and part number, with one piece indicated on the package. Please confirm the required quantity, 24V DC supply, flange mounting interface, external pilot air requirements, electrical sub-base and supplied accessories before completing an order.
IN STOCK
FESTO VUVG-B14-M52-MZT-F-1P3 574379
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 5/2-way monostable function, 24V DC operating voltage, flange connection, pilot air pressure and electrical connector requirements before ordering.
