FESTO VABM-L1-14S-G14-6 566622 Pneumatic Manifold Rail 6 Positions G1/4 14mm

FESTO VABM-L1-14S-G14-6 566622 Pneumatic Manifold Rail 6 Positions G1/4 14mm

$31.99 USD
$31.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

FESTO VABM-L1-14S-G14-6 566622 Manifold Rail

6 Valve Positions | G1/4 Ports | 16mm Grid | VUVG 14mm Series
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number VABM-L1-14S-G14-6
Part Number 566622
Product Family VABM-L1
Valve Series VUVG
Product Type Pneumatic Manifold Rail
Design Manifold Rail for In-line Valves
Valve Size 14 mm
Compatible Valve Category VUVG G1/8 In-line Valves; Specific Model Confirmation Required
Configured Valve Positions 6
Maximum Valve Positions in Product Series 16
Grid Dimension 16 mm
Pneumatic Connection, Port 1 G1/4
Pneumatic Connection, Port 3 G1/4
Pneumatic Connection, Port 5 G1/4
Operating Pressure -0.9 to 10 bar
H-rail Mounting Max. Torque 1.5 Nm
Valve Mounting Max. Torque 0.65 Nm
Wall Mounting Max. Torque 3 Nm
Product Weight 282 g
Corrosion Resistance Class CRC 2 - Moderate Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Suitability Class 5 according to ISO 14644-1
Li-ion Battery Production Suitability F1a - Reduced Cu/Zn/Ni Requirements
Approval RCM; cULus Recognized (OL)
Manifold Rail Material Wrought Aluminium Alloy
Materials Compliance RoHS-compliant
Solenoid Valves Included Not Verified
Mounting Accessories Included Not Independently Verified
Country of Origin Made in China - Actual Packaging Labels

Product Overview

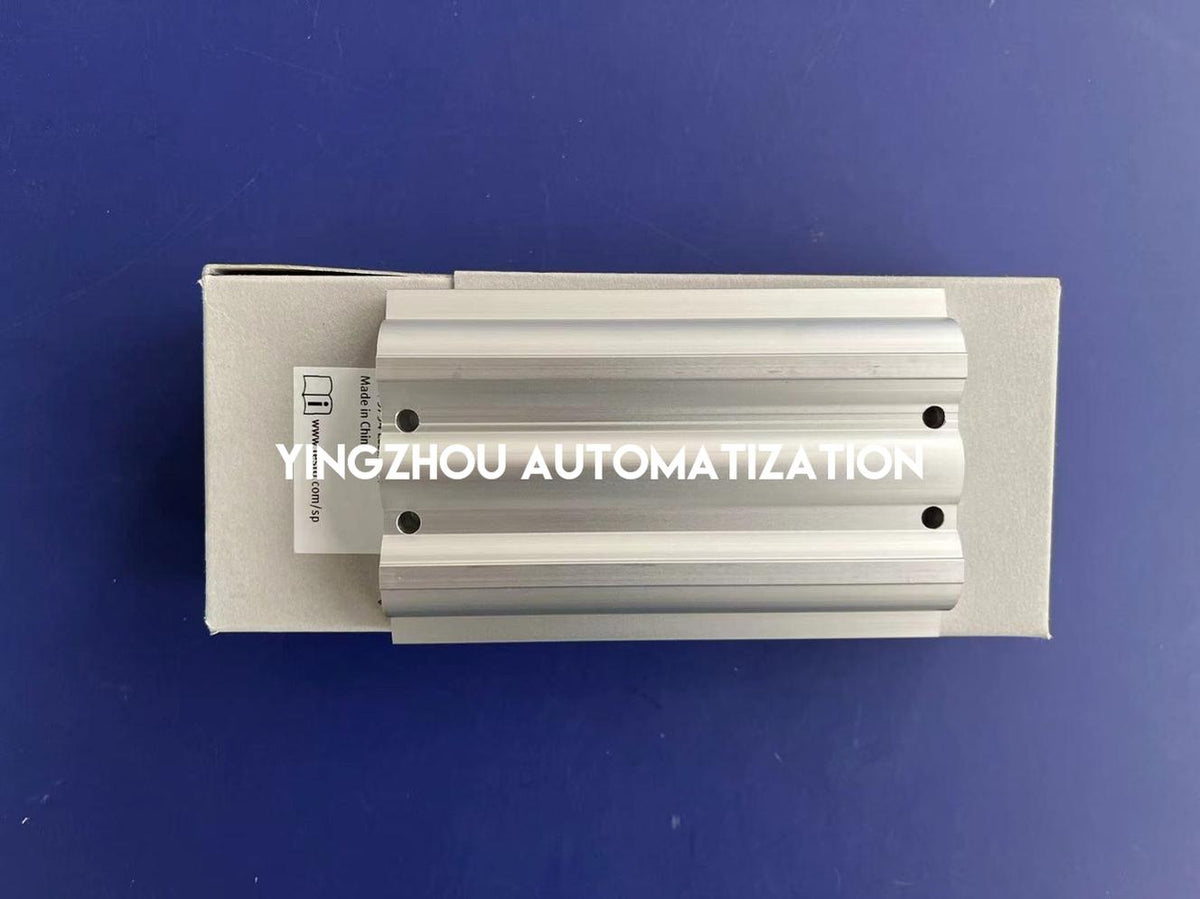

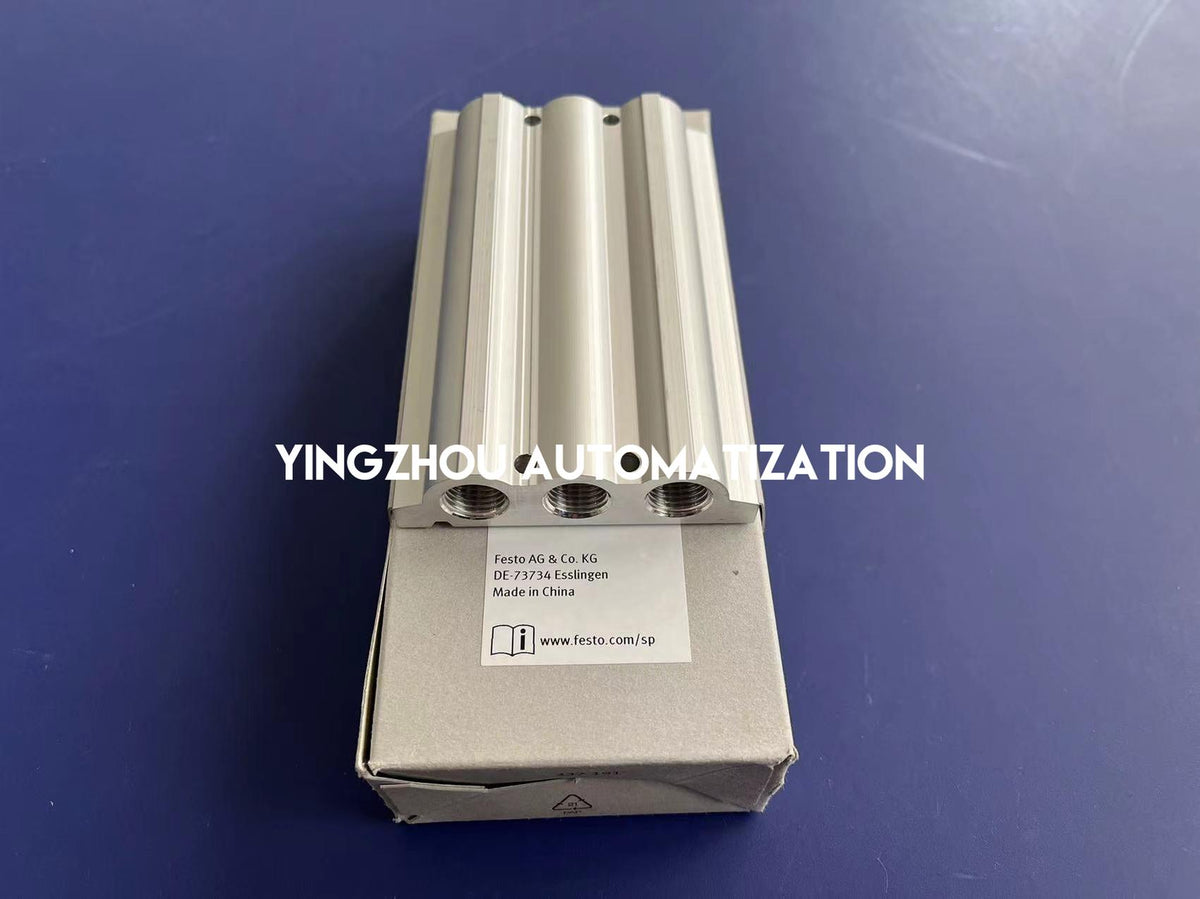

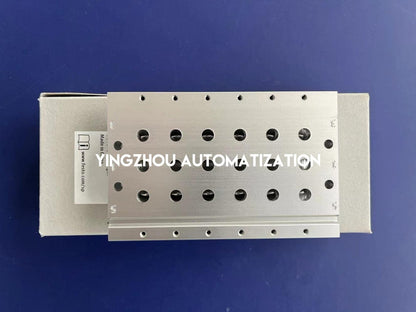

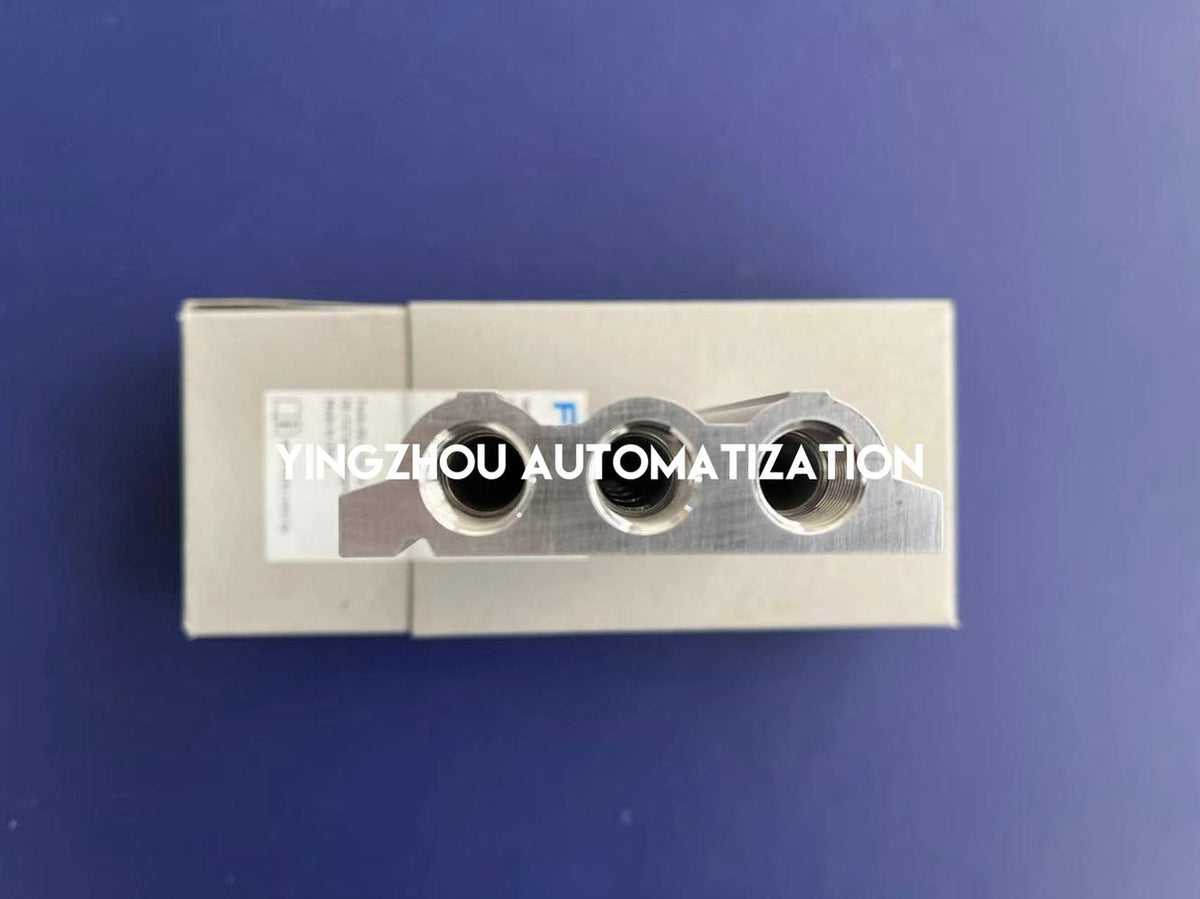

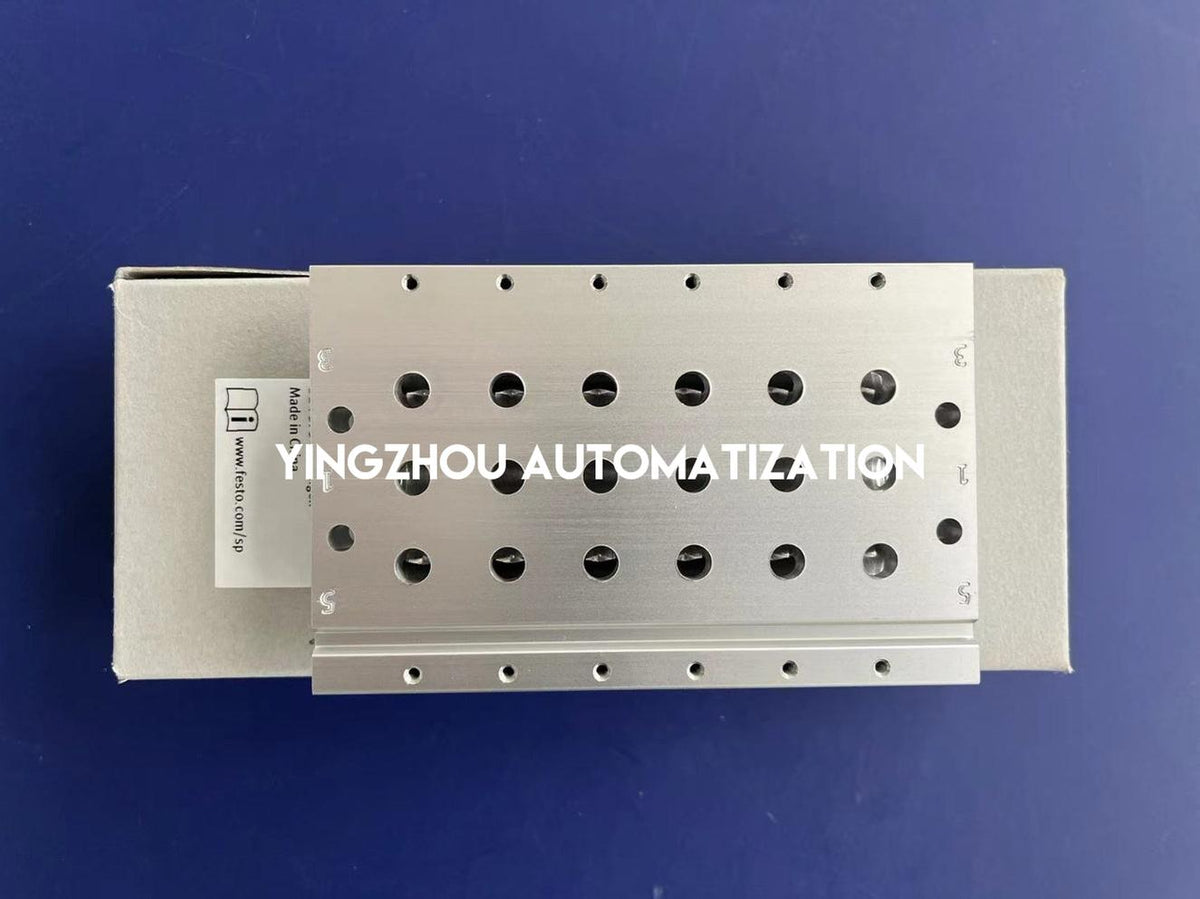

The FESTO VABM-L1-14S-G14-6, manufacturer part number 566622, is a pneumatic manifold rail from the FESTO VABM-L1 series for the corresponding VUVG 14 mm in-line valve system. This specific model is configured for 6 valve positions and features a 16 mm grid dimension. The manufacturer specifies G1/4 pneumatic connections at ports 1, 3 and 5, with an operating pressure range of -0.9 to 10 bar. The manifold rail is manufactured from wrought aluminium alloy and has a specified product weight of 282 g. It features CRC 2 corrosion resistance classification and LABS (PWIS) conformity to VDMA24364-B1/B2-L. The manufacturer also specifies maximum mounting torques of 1.5 Nm for H-rail mounting, 0.65 Nm for valve mounting and 3 Nm for wall mounting. Although the overall product range includes manifold rails with up to 16 positions, this exact -6 configuration has six valve positions. The supplied actual photographs show FESTO packaging marked VABM-L1-14S-G14-6 and 566622. The manifold rail itself is not visible, and any supplied valves or mounting accessories should be independently confirmed.

Key Product Features

  • FESTO VABM-L1 Manifold Rail — Manufacturer catalog model VABM-L1-14S-G14-6, part number 566622.
  • 6 Valve Positions — Exact configuration for six VUVG valve mounting positions.
  • G1/4 Pneumatic Connections — Manufacturer-specified pneumatic ports 1, 3 and 5.
  • 16 mm Grid Dimension — Compact grid spacing for the FESTO VUVG 14 mm valve series.
  • -0.9 to 10 bar Operating Pressure — Manufacturer-specified pressure range.
  • Wrought Aluminium Alloy Construction — Manufacturer-specified rail material with a product weight of 282 g.
  • CRC 2 Corrosion Resistance — Classified for moderate-corrosion-stress environments.

Actual Product Verification

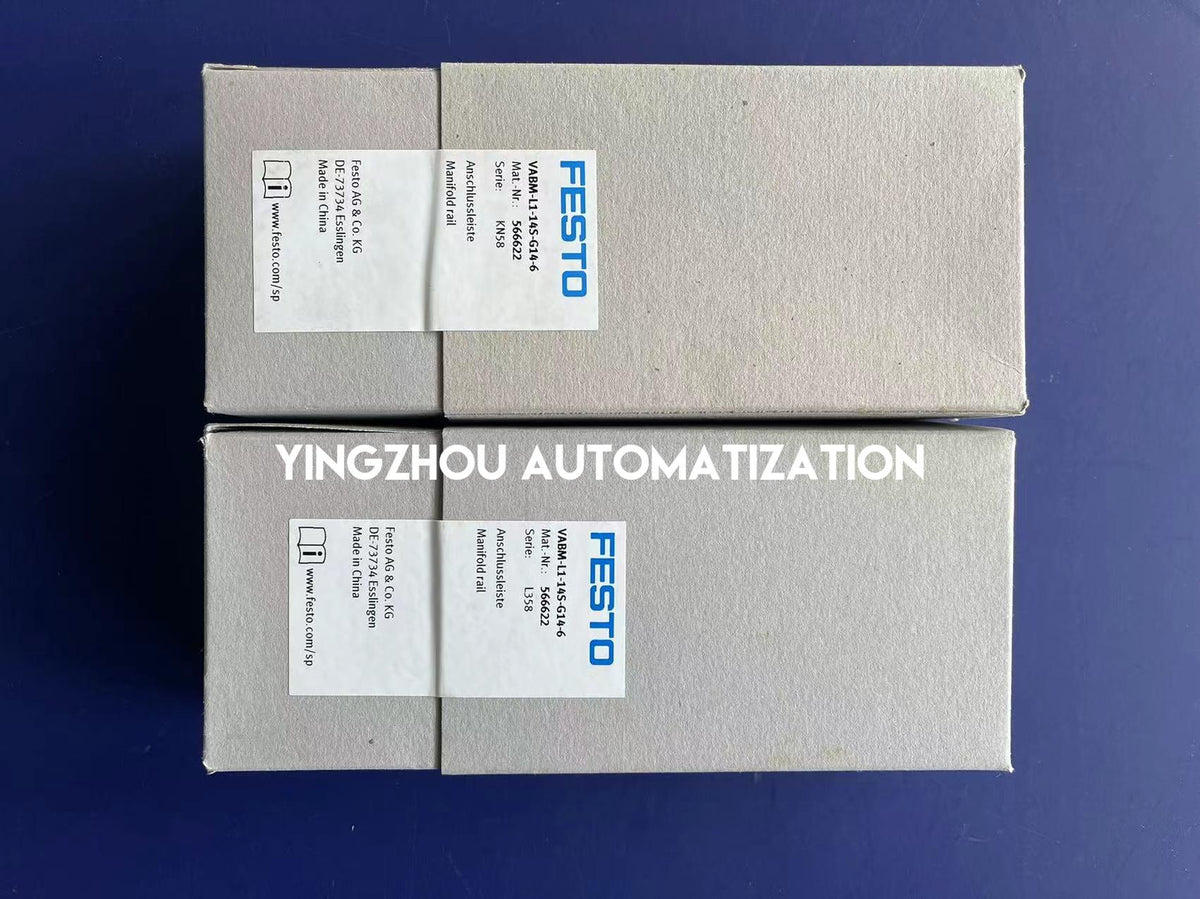

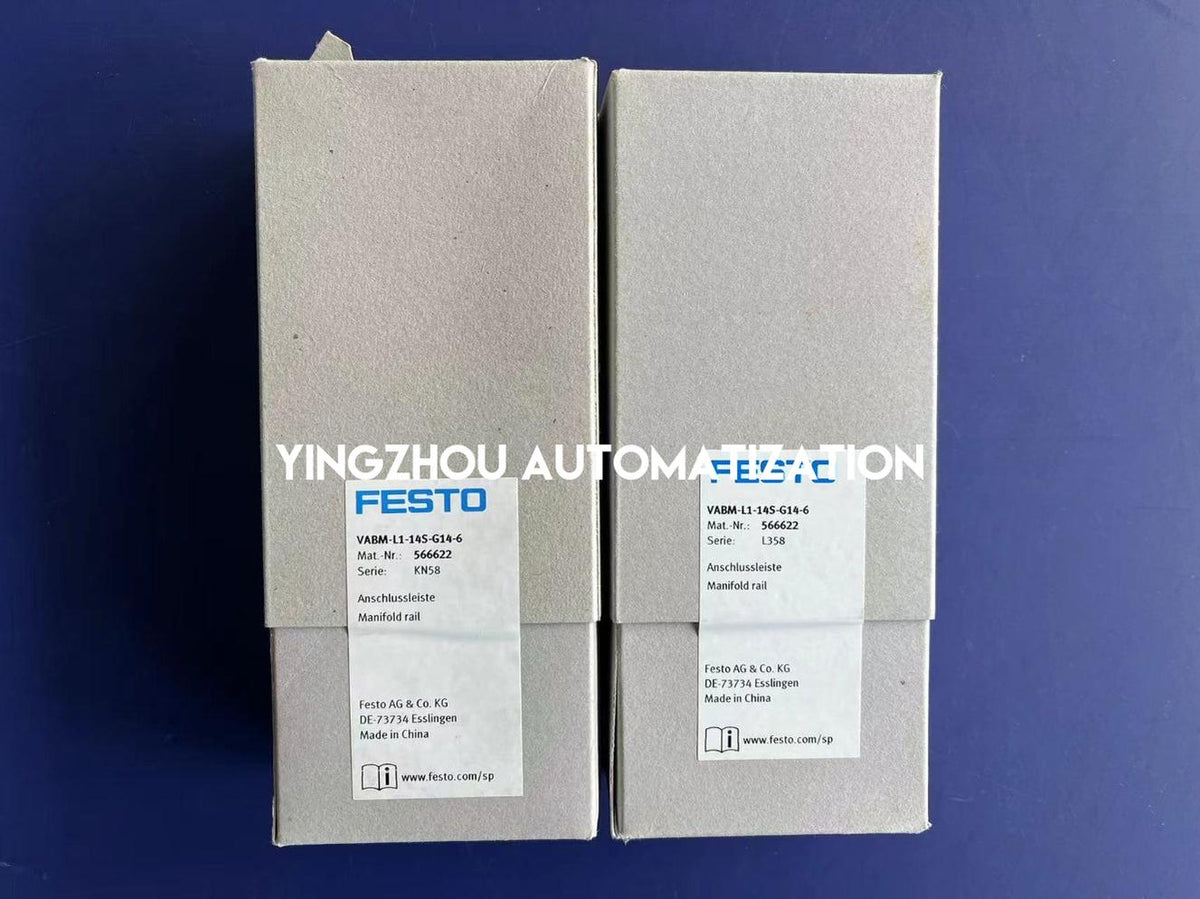

✓ Actual product packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: VABM-L1-14S-G14-6
✓ Packaging material number: 566622
✓ Left packaging series marking: KN58
✓ Right packaging series marking: L358
✓ Packaging description: Manifold Rail
✓ Packaging country-of-origin marking: Made in China
✓ Both visible packaging labels match the requested model and material number

In Stock & Available to Order

FESTO VABM-L1-14S-G14-6 566622 is marked in stock based on the supplied inventory information. This six-position pneumatic manifold rail is offered for industrial automation procurement, VUVG pneumatic valve manifold maintenance and exact-model replacement requirements. Actual packaging photographs confirm the requested catalog number and material number. Please verify the required quantity, six-position configuration, G1/4 pneumatic connections, compatible valve models, mounting hardware and included accessories before completing an order. Solenoid valves are not confirmed as included.

IN STOCK

FESTO VABM-L1-14S-G14-6 566622

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the six valve positions, G1/4 pneumatic connections, VUVG valve compatibility and mounting accessory requirements before ordering.
