FESTO SNCB-100 174395 Swivel Flange
Size 100 | ISO 15552 | 9 kN Max. Load | Cylinder Mounting
Product Overview
The FESTO SNCB-100, manufacturer part number 174395, is a swivel flange for pneumatic cylinder mounting from the FESTO SNCB series. This mechanical mounting accessory features size 100 and is based on the ISO 15552 standard. The manufacturer specifies a maximum load capacity of 9 kN and an ambient temperature range of -40°C to +90°C. The assembly features a die-cast aluminium mounting body, galvanised steel bolts, screws and disc, and a polymer bearing. It is classified as CRC 1 for low-corrosion-stress environments and complies with the manufacturer's specified materials requirements. The product weight is 1039 g according to the latest manufacturer data sheet. The supplied actual product photograph shows original FESTO packaging labeled SNCB-100, material number 174395, with one piece indicated on the package. This is a cylinder mounting accessory and does not include a complete pneumatic cylinder.
Key Product Features
-
FESTO SNCB Swivel Flange — Manufacturer catalog model SNCB-100, part number 174395.
-
Size 100 Mounting Accessory — Mechanical swivel flange for compatible pneumatic cylinder mounting configurations.
-
ISO 15552 Design Reference — Based on the manufacturer-specified ISO 15552 standard.
-
9 kN Maximum Load Capacity — Manufacturer-rated maximum mechanical load.
-
-40°C to +90°C Ambient Temperature — Wide manufacturer-specified temperature range.
-
Die-cast Aluminium Mounting — Metal mounting construction with galvanised steel connection components.
-
CRC 1 Corrosion Resistance — Designed for low-corrosion-stress operating environments.
Actual Product Verification

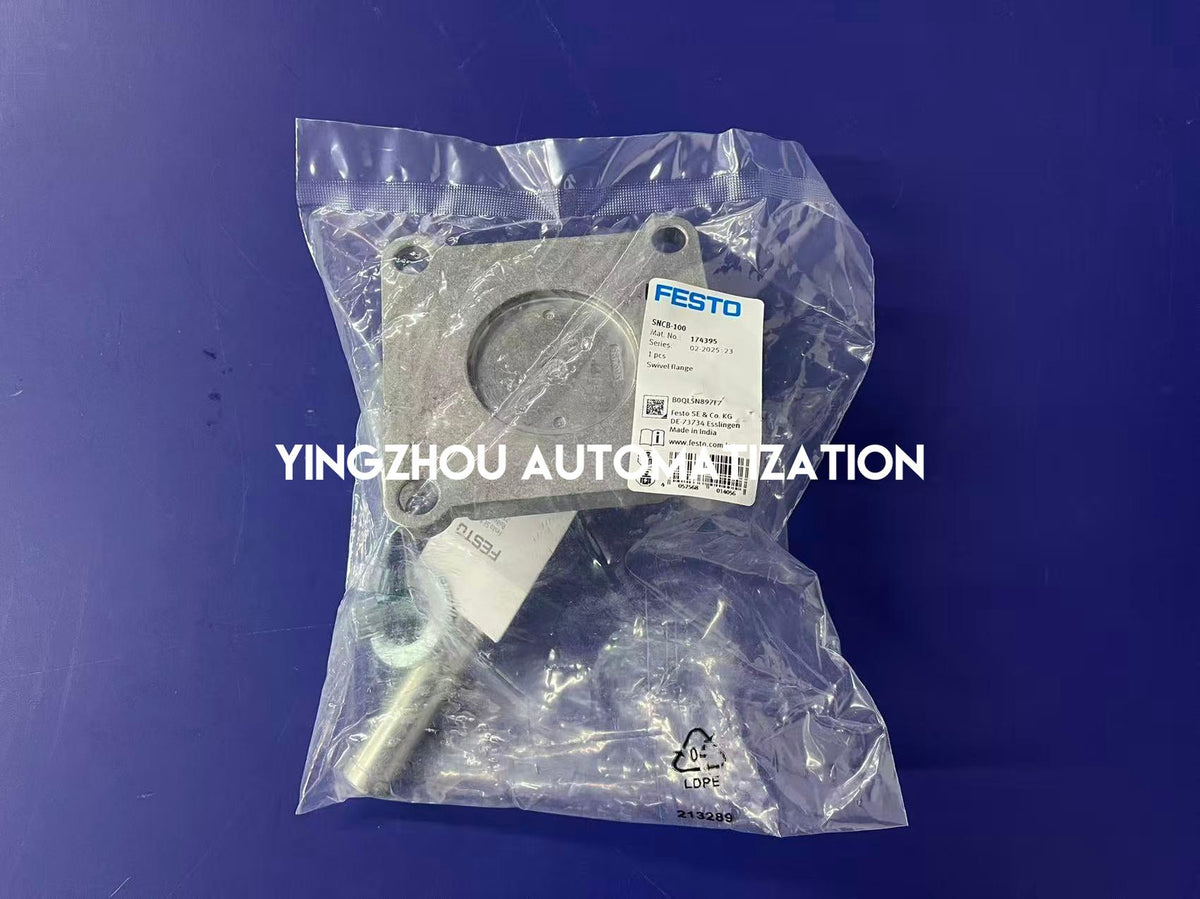

✓ Actual product and packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: SNCB-100
✓ Packaging material number: 174395
✓ Packaging series marking: 02-2025:23
✓ Packaging quantity: 1 Piece
✓ Packaging country-of-origin marking: Made in India

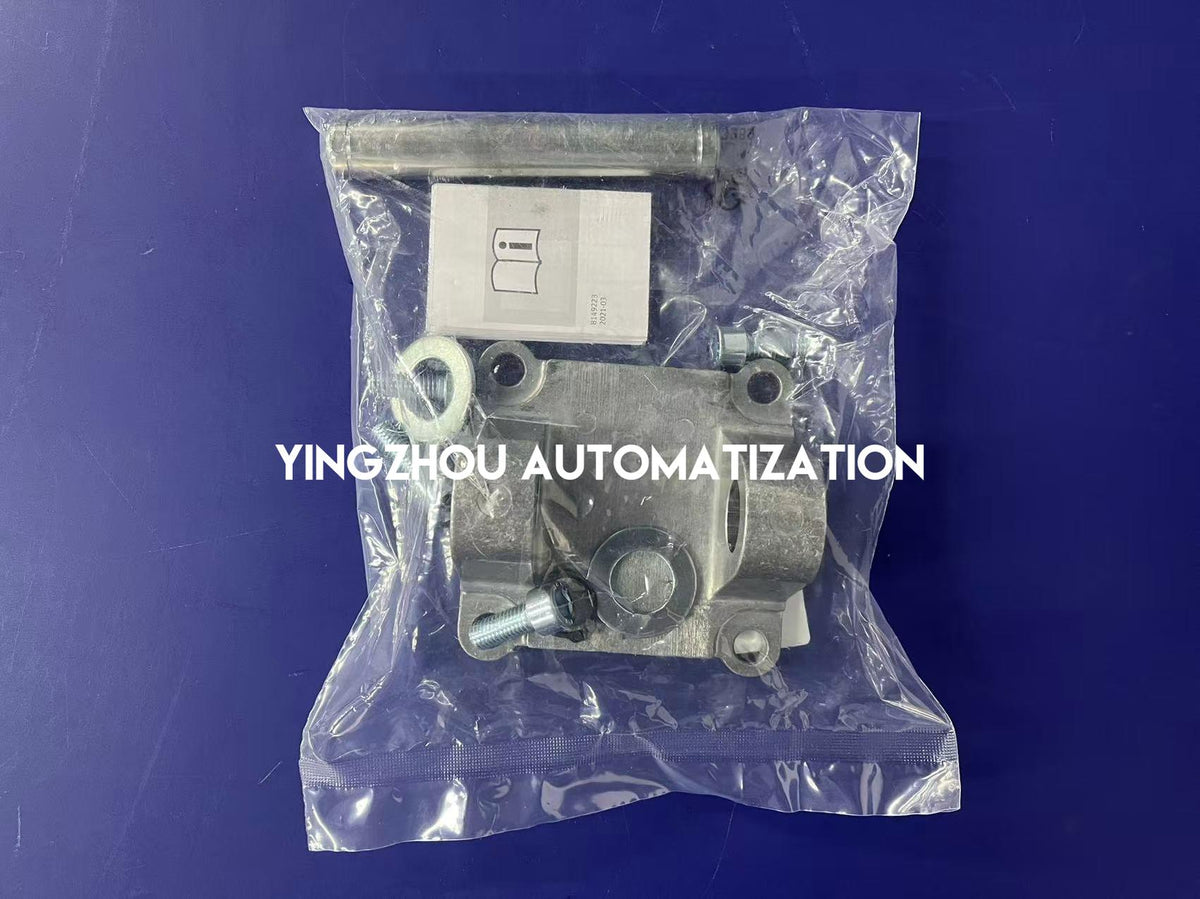

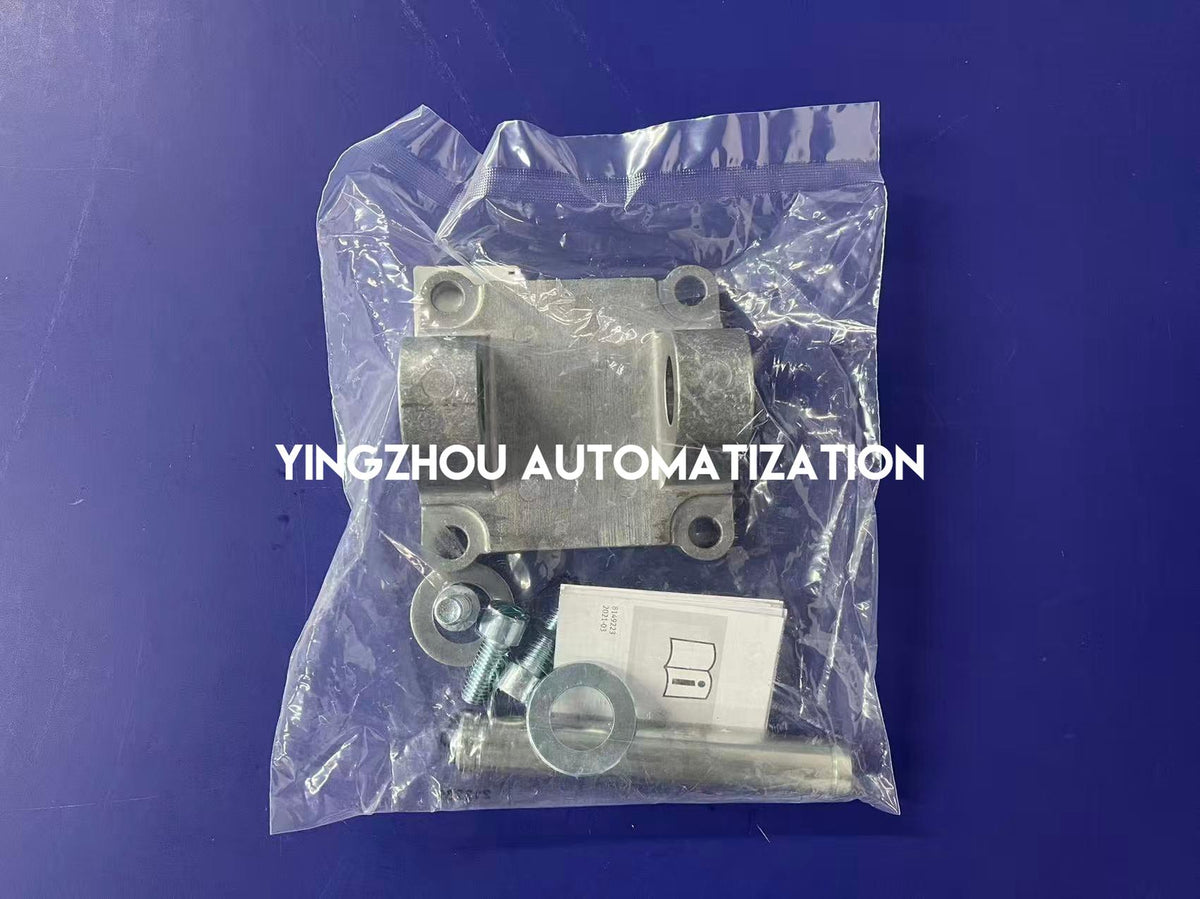

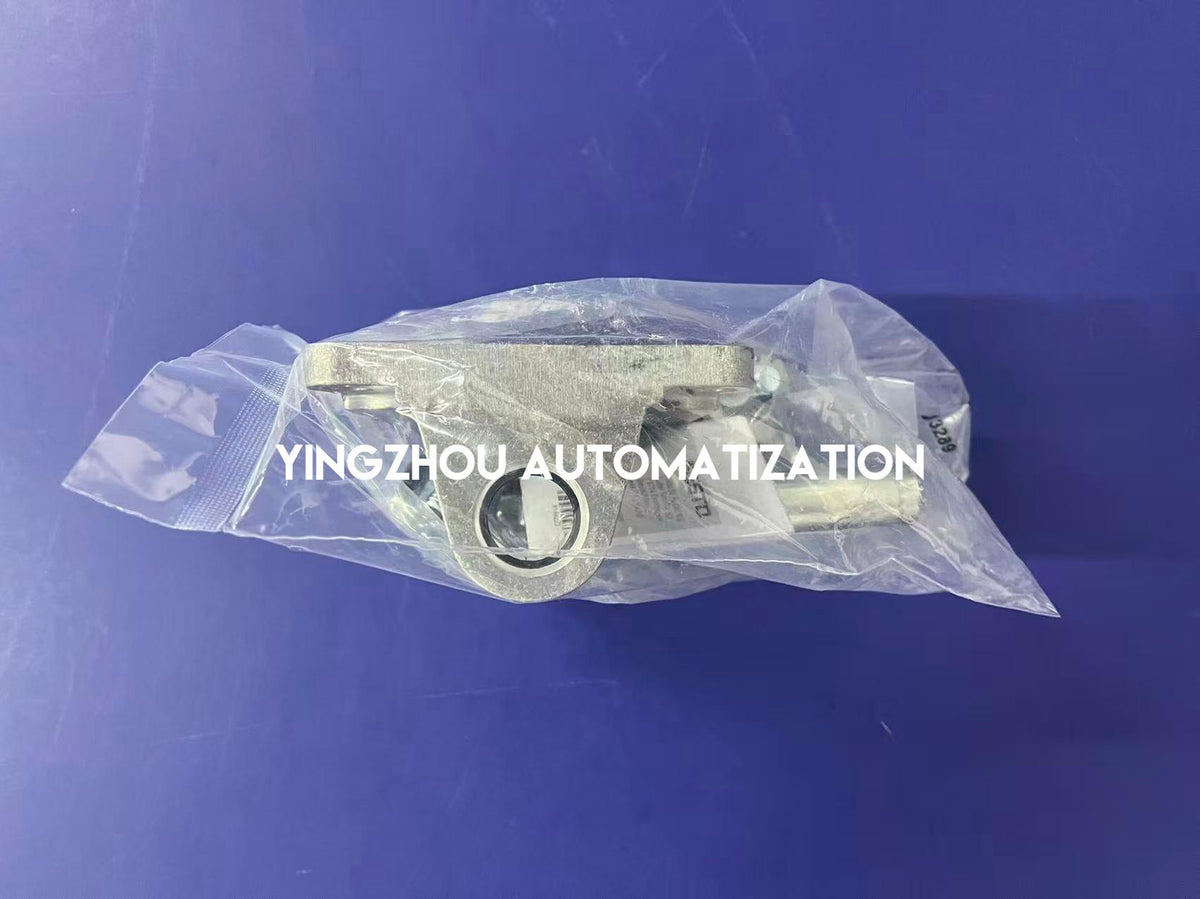

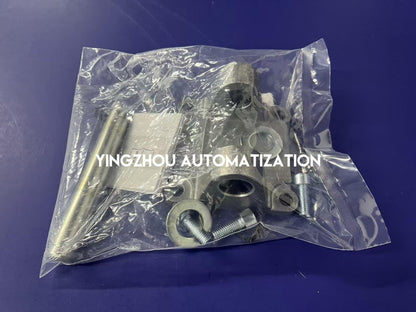

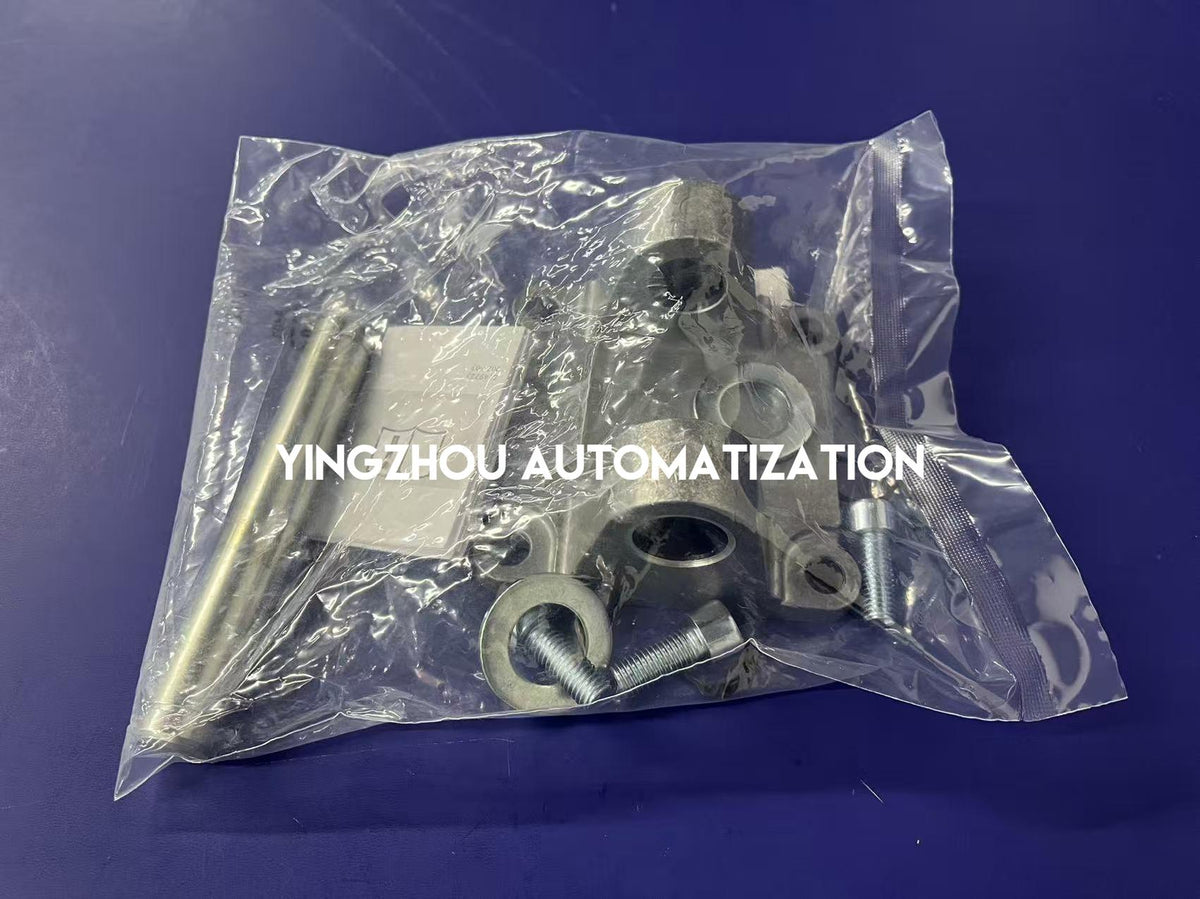

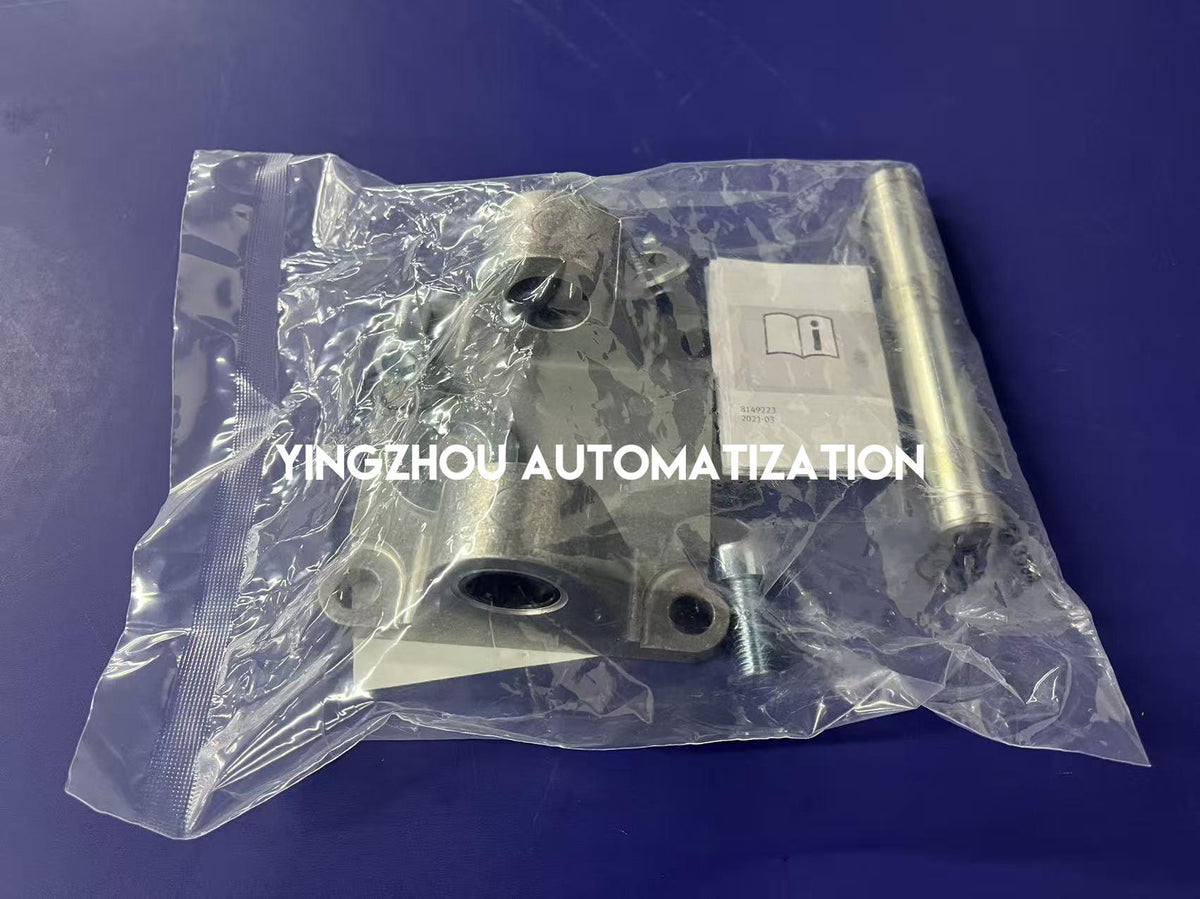

✓ Visible metal swivel flange assembly is consistent with manufacturer product imagery
In Stock & Available to Order
FESTO SNCB-100 174395 is marked in stock based on the supplied inventory information. This size 100 swivel flange is available for pneumatic cylinder mounting, industrial maintenance and replacement-part procurement. The actual packaging photograph confirms the requested manufacturer catalog number and material number, with one piece indicated on the package. Please confirm the required quantity, cylinder mounting arrangement, compatibility, included components and dispatch requirements before completing an order.
IN STOCK
FESTO SNCB-100 174395
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the size 100 mounting requirements, ISO 15552 reference and installation configuration before ordering.
