FESTO QSL-8 153072 Push-in L-Connector
8mm OD x 8mm OD | L-shaped | Push-in Connection | QS Series
| Specification |
Verified Product Data |
| Manufacturer |
FESTO |
| Catalog Number |
QSL-8 |
| Part Number |
153072 |
| Product Family |
QS Push-in Fittings |
| Product Type |
Push-in L-connector |
| Size |
Standard |
| Nominal Size |
7.2 mm |
| Design |
L-shape, Push-pull Principle |
| Pneumatic Connection, Port 1 |
For tubing outer diameter of 8 mm |
| Pneumatic Connection, Port 2 |
For tubing outer diameter of 8 mm |
| Tubing Insertion Depth |
18.1 mm |
| Operating Pressure |
-0.95 to 6 bar (full temperature range) |
| Temperature-dependent Pressure |
-0.95 to 14 bar |
| Ambient Temperature |
-10°C to +80°C |
| Operating Medium |
Compressed air; liquid, ice-free water |
| Water Operating Limit |
Maximum 6 bar at 50°C |
| Product Weight |
11 g |
| Mounting Position |
Any |
| Release Ring Color |
Blue |
| Housing Material |
PBT |
| Release Ring Material |
POM |
| Tubing Seal Material |
NBR |
| Tubing Clamp Component |
High-alloy Stainless Steel |
| Corrosion Resistance Class |
CRC 1 |
| Materials Compliance |
RoHS-compliant |
| Manufacturer Pack Size |
10 pieces (standard pack) |
Product Overview
The FESTO QSL-8, manufacturer part number 153072, is a push-in L-connector from the FESTO QS pneumatic fitting range. It provides an 8 mm outside-diameter tube connection on both ports with a compact L-shaped design and push-pull connection principle. The fitting has a 7.2 mm nominal size and an 18.1 mm tubing insertion depth. It supports an operating pressure range of -0.95 to 6 bar across the specified temperature range, with temperature-dependent operating pressure up to 14 bar. The ambient temperature range is -10°C to +80°C. Construction includes a PBT housing, POM release ring, NBR tubing seal and high-alloy stainless-steel clamping component. Manufacturer specifications identify compressed air and liquid, ice-free water as operating media, subject to the stated operating limits.
Key Product Features
-
FESTO QS Push-in Fitting — Manufacturer catalog number QSL-8, part number 153072.
-
8 mm Equal Tube Connection — Both pneumatic ports accept tubing with an 8 mm outside diameter.
-
L-shaped Connector — Compact elbow configuration with push-pull connection principle.
-
Operating Pressure — -0.95 to 6 bar across the complete specified temperature range.
-
Temperature-dependent Rating — Operating pressure up to 14 bar under applicable temperature conditions.
-
Ambient Temperature Range — Designed for -10°C to +80°C ambient conditions.
-
Durable Component Materials — PBT housing, POM release ring, NBR seal and stainless-steel clamping component.
Actual Product Verification
✓ Manufacturer model: QSL-8
✓ Manufacturer part number: 153072
✓ Product type: Push-in L-connector
✓ Connection specification: 8 mm OD x 8 mm OD
✓ Manufacturer technical specifications verified

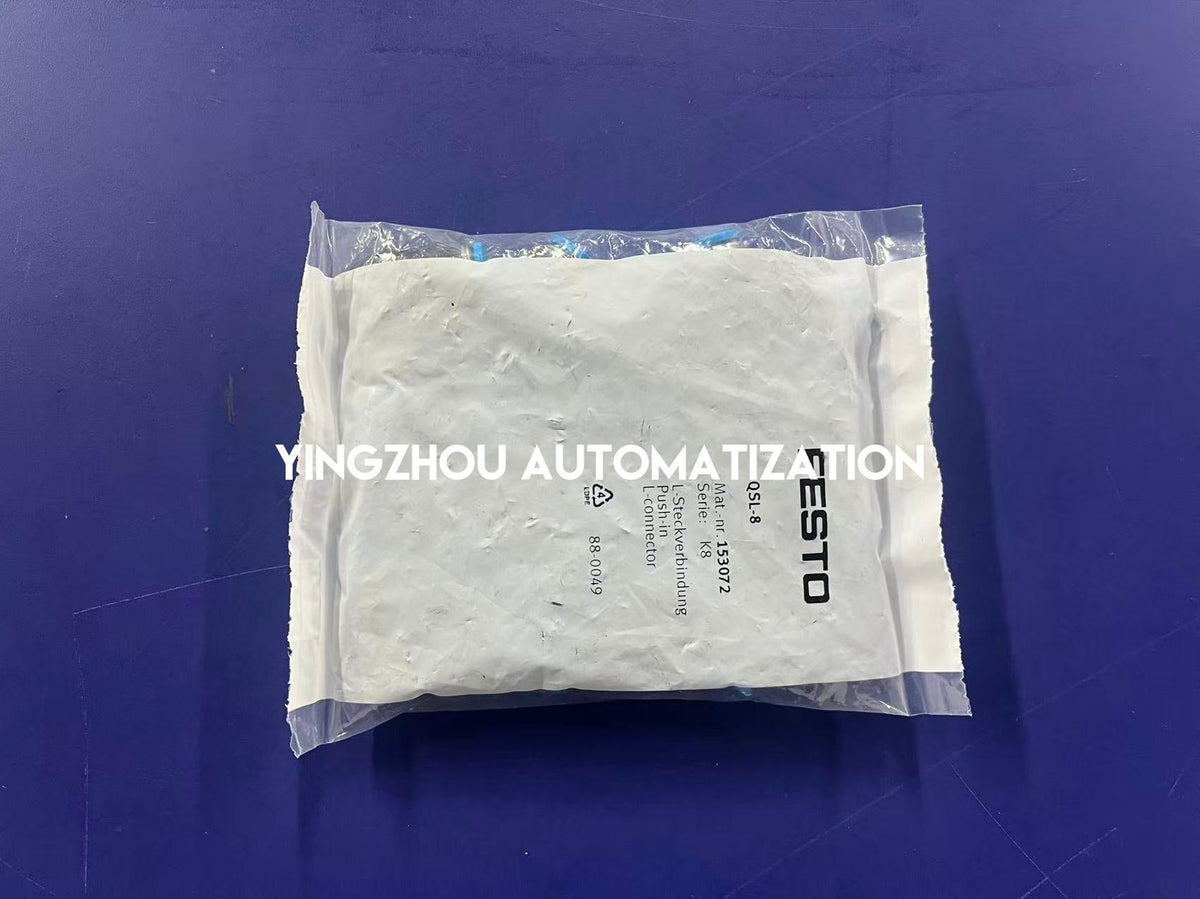

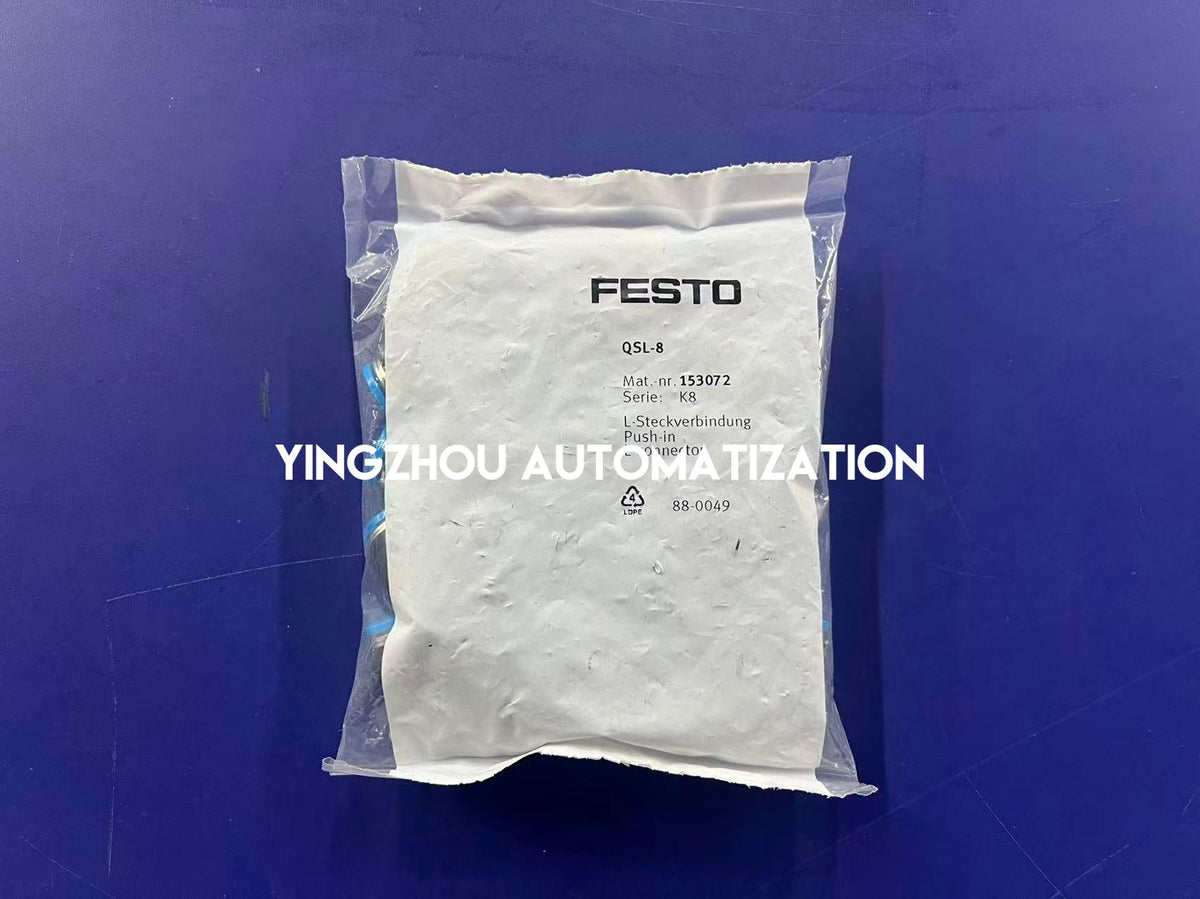

✓ Actual product photography availability confirmed by supplier
✓ Request exact-unit photo and packaging confirmation before dispatch
In Stock & Available to Order
FESTO QSL-8 153072 is marked in stock based on the supplied inventory information. This 8 mm pneumatic push-in L-connector is available for industrial procurement and replacement-part inquiries. Please confirm the required quantity, order unit, packaging requirements and dispatch arrangements before completing an order. Actual product photographs can be provided for confirmation.
IN STOCK
FESTO QSL-8 153072
Contact us for exact-model confirmation, multiple units and project sourcing. Please confirm the 8 mm tube diameter, required quantity and packaging specifications before ordering.
