FESTO PUN-H-8X1,25-RT 558287 Red Polyurethane Pneumatic Tubing 8mm OD 5.7mm ID

FESTO PUN-H-8X1,25-RT 558287 Red Polyurethane Pneumatic Tubing 8mm OD 5.7mm ID

$0.59 USD
$0.59 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

FESTO PUN-H-8X1,25-RT 558287 Pneumatic Tubing

8mm OD | 5.7mm ID | Red TPE-U (PU) | 50m Reel Packaging
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number PUN-H-8X1,25-RT
Part Number 558287
Product Family PUN-H
Product Type Plastic Pneumatic Tubing
Outside Diameter 8 mm
Inside Diameter 5.7 mm
Nominal Wall Thickness 1.25 mm
Tubing Material TPE-U (PU)
Material Type Ether-based Polyurethane
Color Red
Flow-relevant Bending Radius 37 mm
Minimum Bending Radius 21 mm
Tubing Characteristics Suitable for Energy Chains
Operating Pressure - Entire Temperature Range -0.95 to 6 bar
Temperature-dependent Operating Pressure -0.95 to 10 bar, Subject to Temperature
Operating Medium Compressed Air per ISO 8573-1:2010 [7:-:-]
Additional Operating Medium Water, Liquid and Ice-free
Water Pressure Note Maximum 3 bar at 0-60°C, Subject to Pressure-Temperature Diagram
Ambient Temperature -35°C to +60°C
Product Weight per Meter 0.0287 kg/m
Approximate 50m Tubing Weight 1.435 kg, Excluding Packaging - Calculated
Pneumatic Connection Push-in Fittings for 8mm OD Tubing
Alternative Connection Barbed Fitting for 6mm ID with Union Nut
Shore Hardness D 52 +/-3
Material Fire Classification UL94 HB
Certification TÜV
LABS (PWIS) Conformity VDMA24364-B2-L
Li-ion Battery Production Suitability F1a - Reduced Cu/Zn/Ni
Cleanroom Suitability No Meaningful ISO 14644-1 Classification for Statically Installed Element
Food Industry Suitability Refer to Manufacturer Supplementary Material Information
Materials Compliance RoHS-compliant
Packaging Length Shown 50 m - Actual Packaging Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO PUN-H-8X1,25-RT, manufacturer part number 558287, is a red polyurethane pneumatic tubing product from the FESTO PUN-H range. The manufacturer specifies an 8 mm outside diameter, a 5.7 mm inside diameter and a nominal wall thickness of 1.25 mm. The tubing uses ether-based TPE-U (PU) material and is designed for flexible pneumatic connections, including applications involving energy chains. It has a minimum bending radius of 21 mm and a flow-relevant bending radius of 37 mm. Operating pressure is specified at -0.95 to 6 bar across the entire temperature range, with temperature-dependent operation up to 10 bar under the manufacturer's specified conditions. The ambient temperature range is -35°C to +60°C. The tubing is specified for compressed air and ice-free liquid water under the applicable pressure and temperature requirements. Its weight is 0.0287 kg per meter. The supplied actual photographs show a red FESTO tubing coil and original packaging marked PUN-H-8X1,25-RT, part number 558287, with a 50 m length indication. The required sales unit and available cut lengths should be confirmed before ordering.

Key Product Features

  • FESTO PUN-H Pneumatic Tubing — Manufacturer catalog model PUN-H-8X1,25-RT, part number 558287.
  • 8mm OD and 5.7mm ID — Manufacturer-specified dimensions for the red pneumatic tubing.
  • Ether-based Polyurethane Construction — Flexible TPE-U (PU) pneumatic tubing material.
  • 21mm Minimum Bending Radius — Flow-relevant bending radius of 37mm.
  • Pressure and Temperature Performance — Up to 6 bar across the full specified temperature range, with temperature-dependent ratings up to 10 bar.
  • -35°C to +60°C Ambient Range — Manufacturer-specified operating environment limits.
  • Suitable for Energy Chains — Manufacturer-confirmed tubing characteristic for flexible routing.

Actual Product Verification

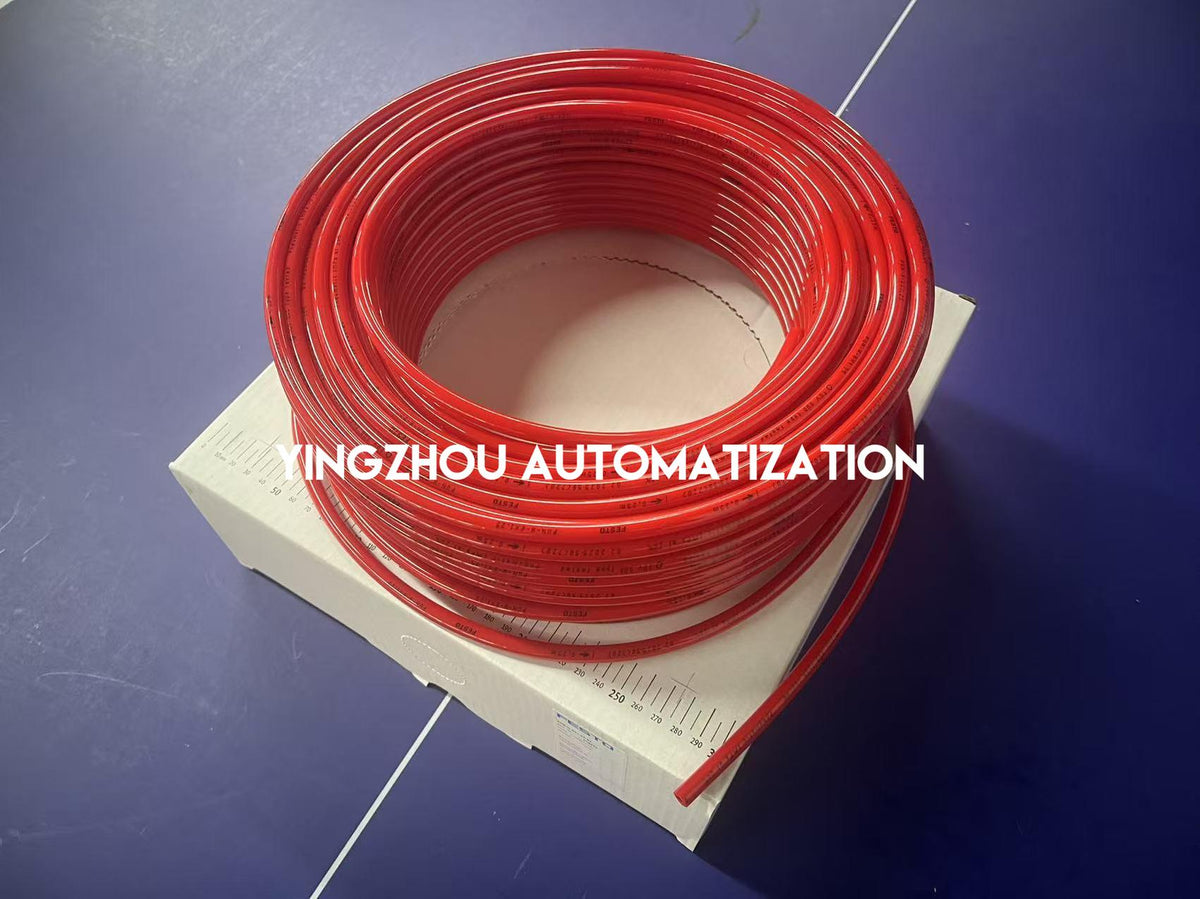

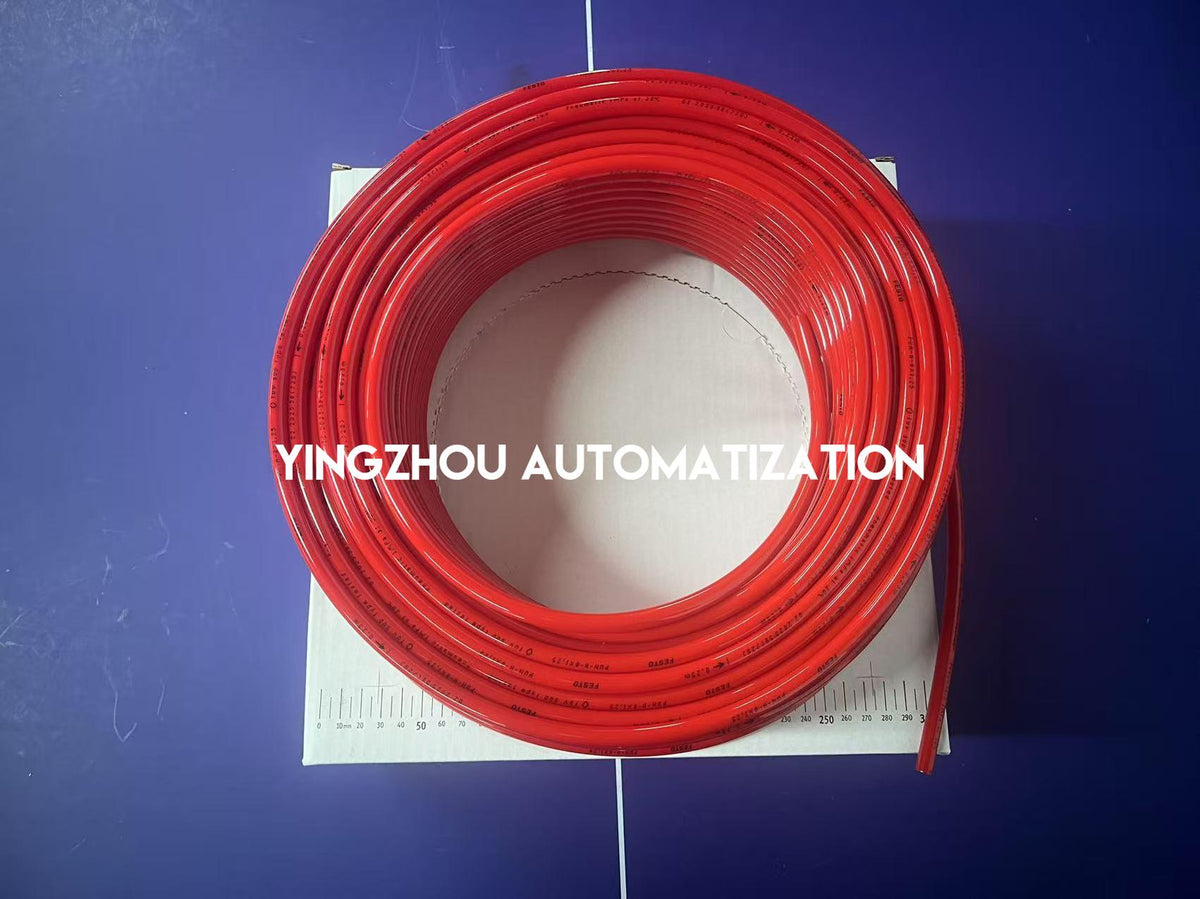

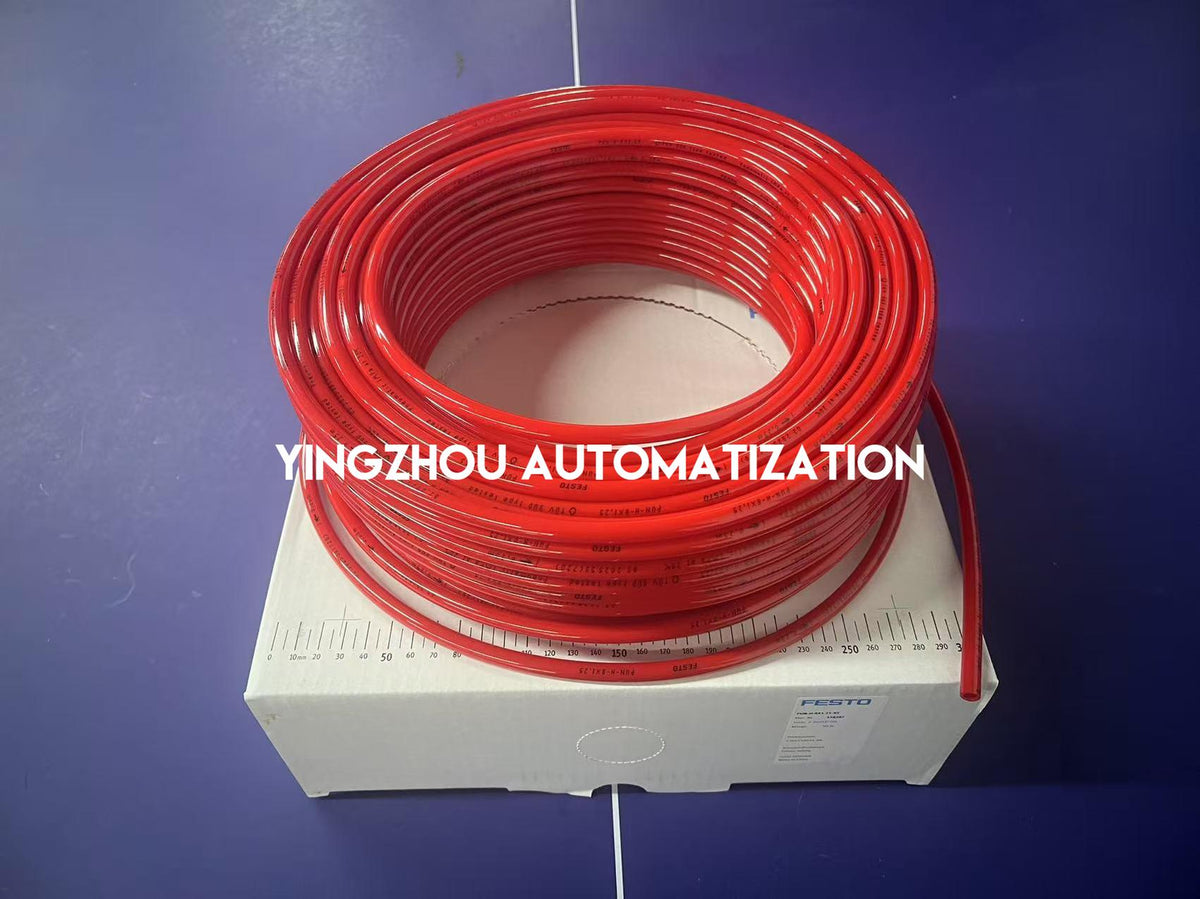

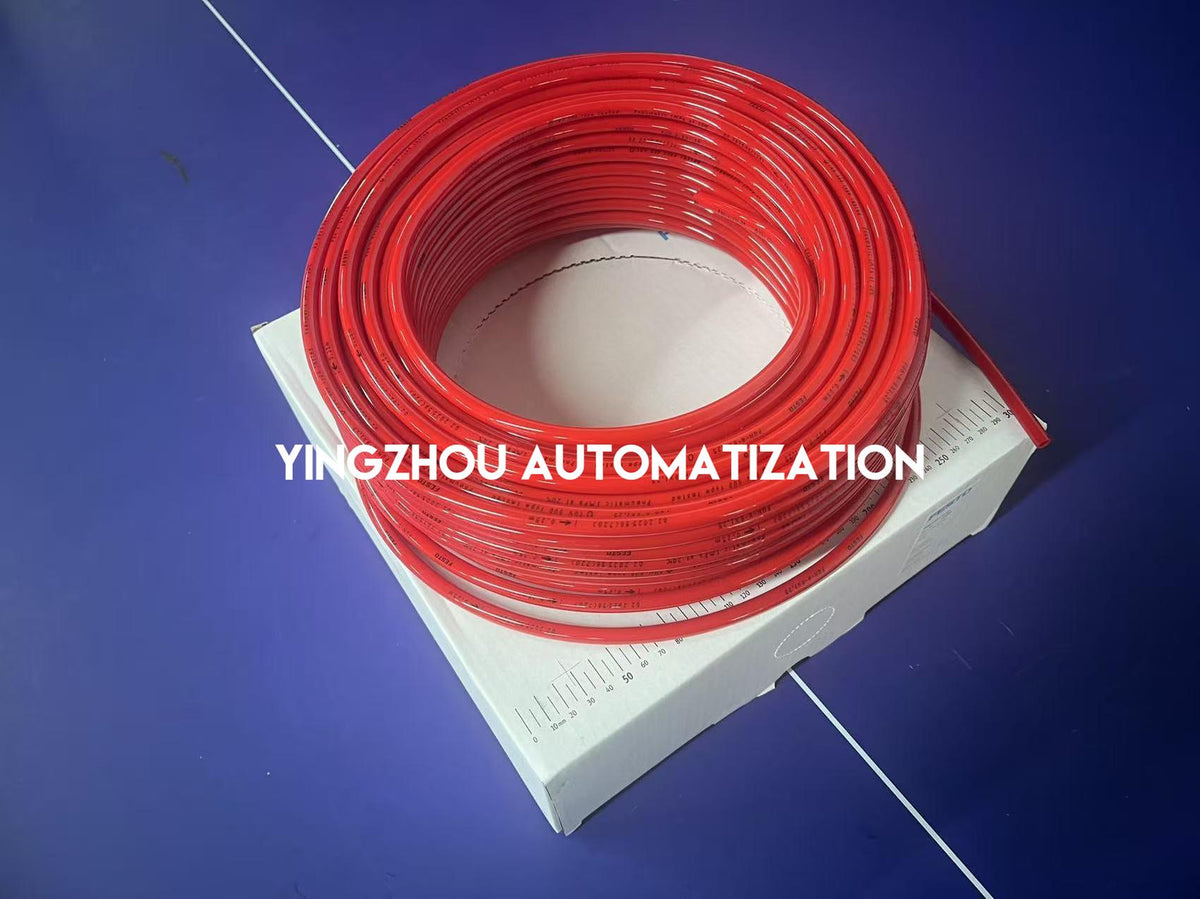

✓ Actual red tubing coil photograph supplied

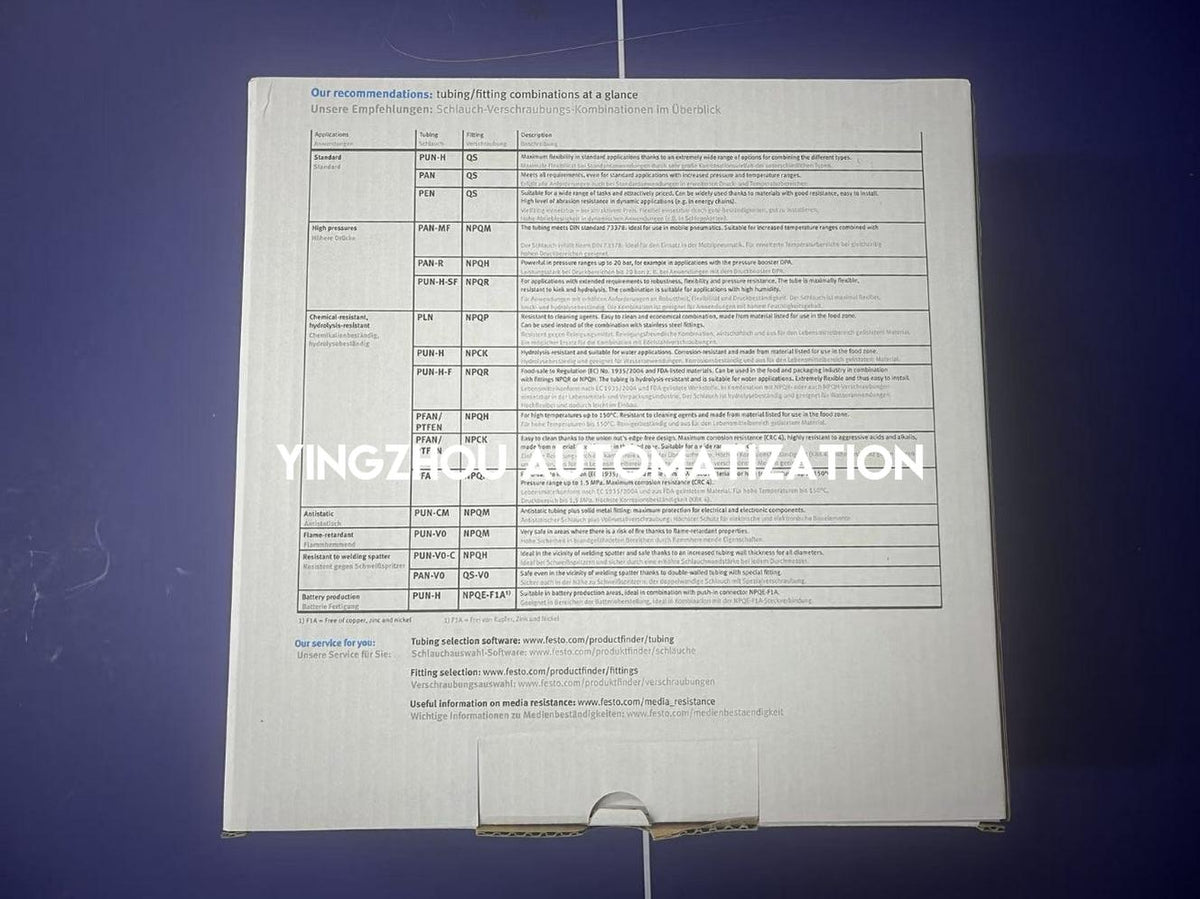

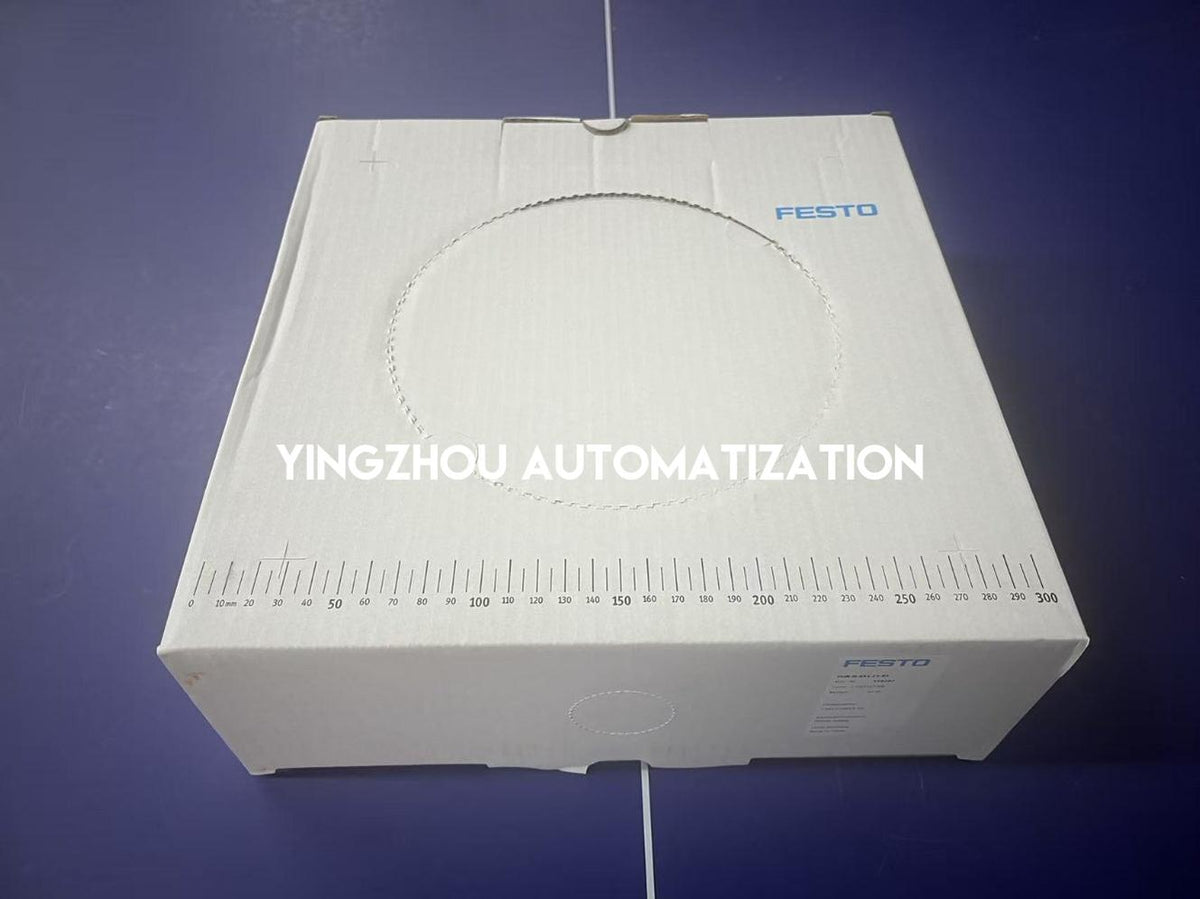

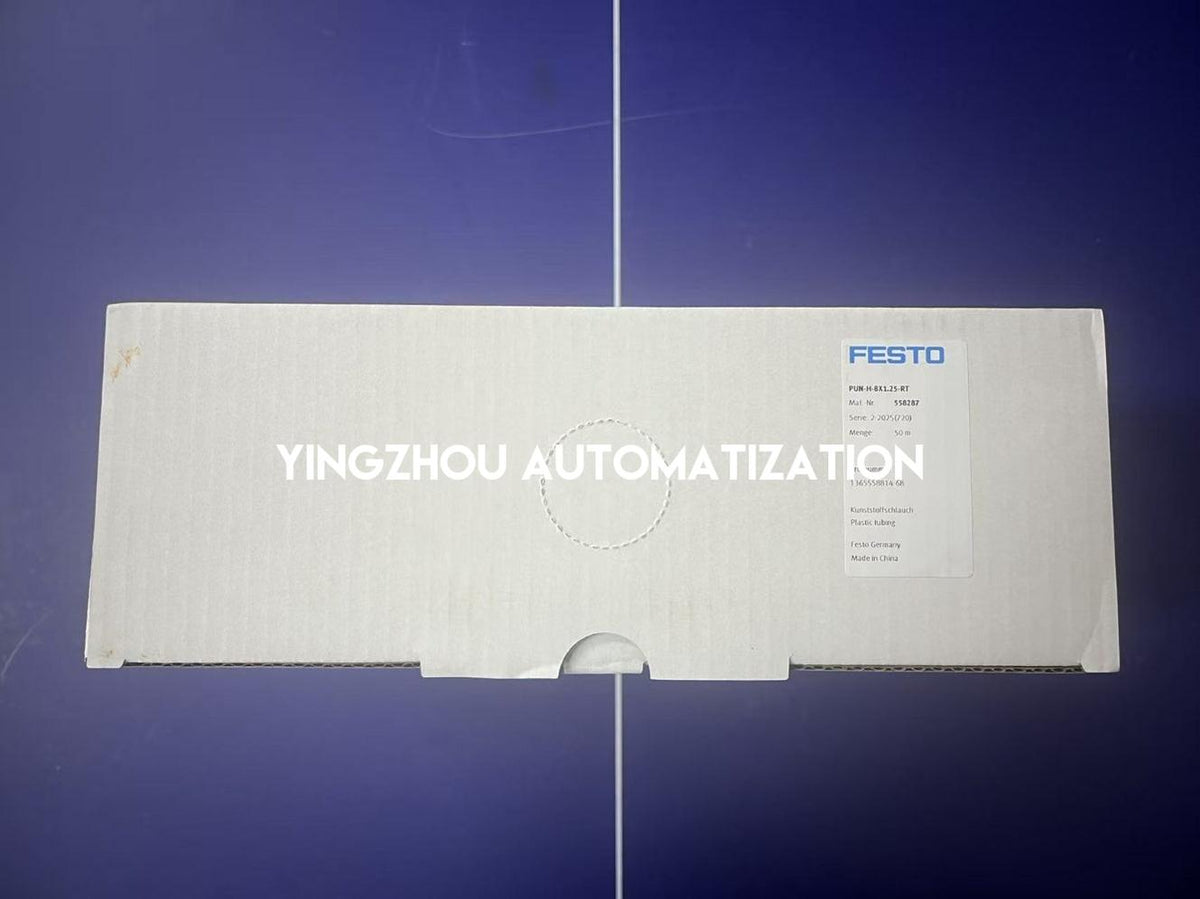

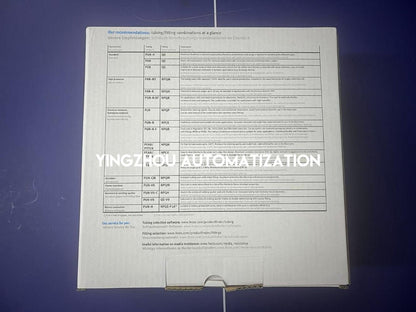

✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: PUN-H-8X1,25-RT
✓ Packaging material number: 558287
✓ Packaging description: Plastic Tubing
✓ Packaging length marking: 50 m
✓ Actual tubing color: Red
✓ Packaging country-of-origin marking: Made in China
✓ Packaging model and material number match the requested product

In Stock & Available to Order

FESTO PUN-H-8X1,25-RT 558287 is marked in stock based on the supplied inventory information. This red polyurethane pneumatic tubing is available for industrial pneumatic connections, machine maintenance and automation equipment sourcing. Actual product and packaging photographs show the red tubing and an original FESTO reel carton marked 50 m. Please confirm the required order length, whether supply is by the meter or complete reel, 8 mm tubing outside diameter, fitting compatibility and operating pressure requirements before completing an order. Exact cut-length availability must be confirmed separately.

IN STOCK

FESTO PUN-H-8X1,25-RT 558287

Contact us for exact-model verification, order quantities and project sourcing. Please confirm the required tubing length, 8mm outside diameter, pneumatic fitting requirements and whether a complete 50m reel or cut length is needed before ordering.
