FESTO PUN-H-8X1,25-BL 197385 Blue Polyurethane Pneumatic Tubing 8mm OD 5.7mm ID

FESTO PUN-H-8X1,25-BL 197385 Blue Polyurethane Pneumatic Tubing 8mm OD 5.7mm ID

$0.69 USD
$0.69 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

FESTO PUN-H-8X1,25-BL 197385 Pneumatic Tubing

8mm OD | 5.7mm ID | Blue TPE-U (PU) | 50m Reel Packaging
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number PUN-H-8X1,25-BL
Part Number 197385
Product Family PUN-H
Product Type Plastic Pneumatic Tubing
Outside Diameter 8 mm
Inside Diameter 5.7 mm
Nominal Wall Thickness 1.25 mm
Tubing Material TPE-U (PU)
Material Type Ether-based Polyurethane
Color Blue
Flow-relevant Bending Radius 37 mm
Minimum Bending Radius 21 mm
Tubing Characteristics Suitable for Energy Chains
Operating Pressure - Entire Temperature Range -0.95 to 6 bar
Temperature-dependent Operating Pressure -0.95 to 10 bar, Subject to Temperature
Water Pressure Note Maximum 3 bar at 0-60°C, Subject to Manufacturer Pressure-Temperature Diagram
Operating Medium Compressed Air per ISO 8573-1:2010 [7:-:-]
Additional Operating Medium Water, Liquid and Ice-free
Ambient Temperature -35°C to +60°C
Product Weight per Meter 0.0287 kg/m
Approximate 50m Tubing Weight 1.435 kg, Excluding Packaging - Calculated
Pneumatic Connection Push-in Fittings for 8mm OD Tubing
Alternative Push-in Size 5/16-inch OD
Alternative Connection Barbed Fitting for 6mm ID with Union Nut
Shore Hardness D 52 +/-3
Material Fire Test UL94 HB
Certification TÜV
Certificate Issuing Authority B 013277 0527 00
LABS (PWIS) Conformity VDMA24364-B2-L
Li-ion Battery Production Suitability F1a - Reduced Cu/Zn/Ni Requirements
Cleanroom Suitability No Meaningful ISO 14644-1 Evaluation for Statically Installed Element
Food Industry Suitability Refer to Manufacturer Supplementary Material Information
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568045142
Packaging Length Shown 50 m - Actual Packaging Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO PUN-H-8X1,25-BL, manufacturer part number 197385, is a blue polyurethane pneumatic tubing product from the FESTO PUN-H series. The manufacturer specifies an 8 mm outside diameter, a 5.7 mm inside diameter and a nominal 1.25 mm wall thickness. The tubing uses ether-based TPE-U (PU) material and is suitable for flexible pneumatic connections and installation in energy chains. It features a minimum bending radius of 21 mm and a flow-relevant bending radius of 37 mm. The manufacturer specifies an operating pressure range of -0.95 to 6 bar across the entire temperature range, with temperature-dependent pressure ratings up to 10 bar under the applicable conditions. The ambient temperature range is -35°C to +60°C. The tubing is suitable for compressed air and may be used with liquid, ice-free water under the manufacturer's pressure and temperature requirements. Its specified weight is 0.0287 kg per meter. The supplied actual packaging photograph shows a FESTO carton labeled PUN-H-8X1,25-BL, material number 197385, and 50 m packaging length. The internal tubing has not been directly inspected in the supplied photograph. Please confirm the required sales unit, order length and fitting compatibility before purchasing.

Key Product Features

  • FESTO PUN-H Pneumatic Tubing — Manufacturer catalog model PUN-H-8X1,25-BL, part number 197385.
  • 8mm Outside and 5.7mm Inside Diameter — Manufacturer-specified tubing dimensions.
  • Ether-based Polyurethane Material — Flexible blue TPE-U (PU) tubing construction.
  • 21mm Minimum Bending Radius — Flow-relevant bending radius of 37mm.
  • Pressure and Temperature Performance — Up to 6 bar across the complete specified temperature range, with temperature-dependent ratings up to 10 bar.
  • -35°C to +60°C Ambient Range — Manufacturer-specified environmental temperature limits.
  • Suitable for Energy Chains — Manufacturer-confirmed tubing characteristic for flexible routing.

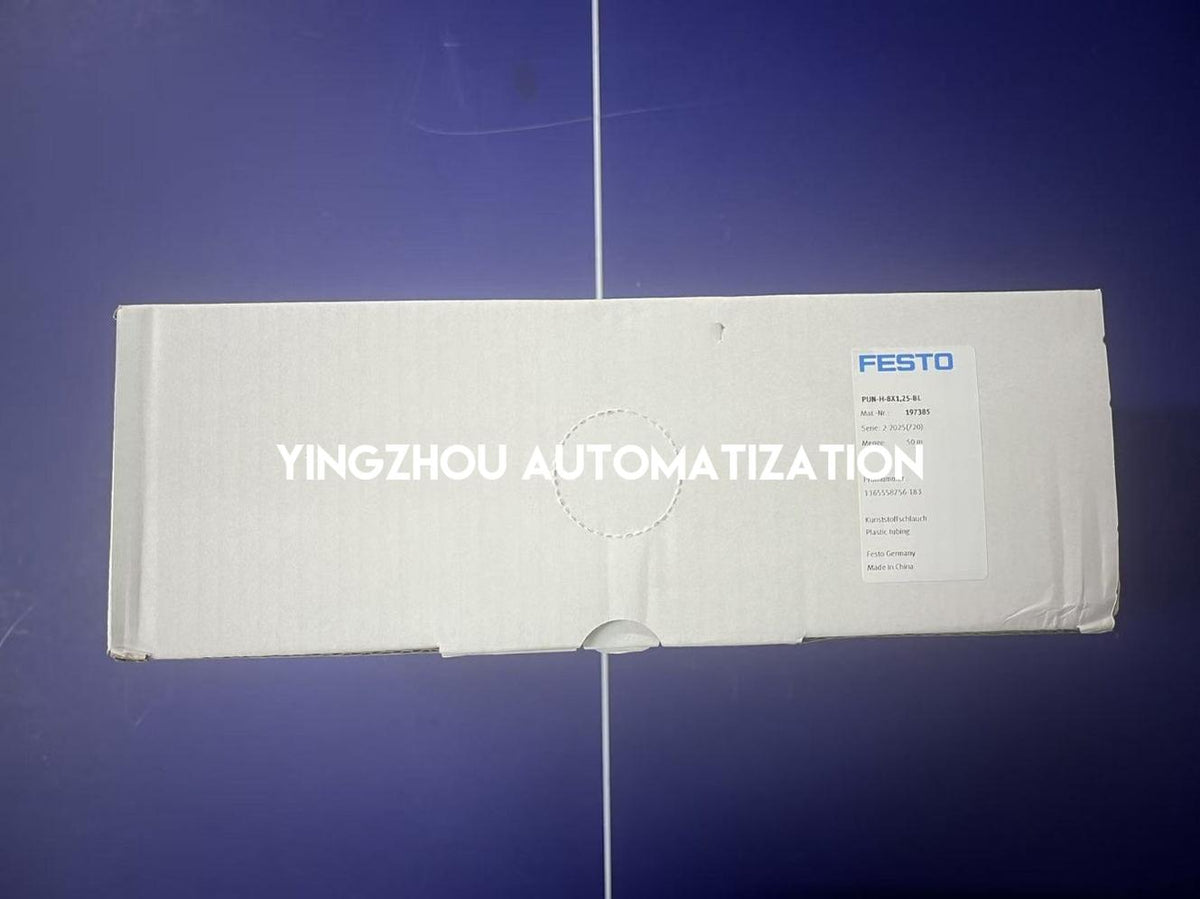

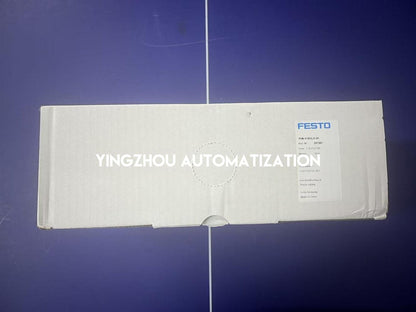

Actual Product Verification

✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: PUN-H-8X1,25-BL
✓ Packaging material number: 197385
✓ Packaging series marking: 2-2025(720)
✓ Packaging product description: Plastic Tubing
✓ Packaging length marking: 50 m
✓ Manufacturer-specified tubing color: Blue
✓ Packaging country-of-origin marking: Made in China
✓ Packaging model and material number match the requested product
✓ Actual tubing body and remaining reel length are not independently verified

In Stock & Available to Order

FESTO PUN-H-8X1,25-BL 197385 is marked in stock based on the supplied inventory information. This blue polyurethane pneumatic tubing is offered for industrial compressed-air connections, pneumatic equipment maintenance and automation sourcing. The actual packaging photograph shows a FESTO carton marked with the complete product model, manufacturer part number and 50 m packaging length. Please confirm the required order length, whether the product is sold by the meter or as a complete reel, the 8 mm outside diameter, compatible pneumatic fittings and operating pressure requirements before completing an order. Cut-length availability and actual tubing condition remain subject to confirmation.

IN STOCK

FESTO PUN-H-8X1,25-BL 197385

Contact us for exact-model verification, order quantities and project sourcing. Please confirm the required tubing length, 8mm outside diameter, compatible pneumatic fittings and whether a complete 50m reel or cut length is needed before ordering.
