FESTO HE-2-QS-10 153469 2/2-Way Manual Pneumatic Shut-off Valve QS-10

FESTO HE-2-QS-10 153469 2/2-Way Manual Pneumatic Shut-off Valve QS-10

$9.99 USD
$9.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

FESTO HE-2-QS-10 153469 Pneumatic Shut-off Valve

2/2-Way | QS-10 | Manual Actuation | -0.95 to 10 bar
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number HE-2-QS-10
Part Number 153469
Product Family HE Series
Product Type Pneumatic Shut-off Valve
Valve Function 2/2-way
Pneumatic Connection 1 QS-10
Pneumatic Connection 2 QS-10
Tubing Outer Diameter 10 mm
Actuation Type Manual
Mounting Type Direct mounting via through-hole / In-line installation
Standard Nominal Flow Rate 752.4 l/min
Nominal Size 4.7 mm
Operating Pressure -0.95 to 10 bar
Ambient Temperature 0°C to +60°C
Medium Temperature 0°C to +60°C
Operating Medium Compressed air per ISO 8573-1:2010 [7:-:-]
Sealing Principle Soft
Structural Design Piston gate valve
Type of Control Direct
Flow Direction Reversible
Mounting Position Any
Housing Material Reinforced PBT
Seal Material NBR
Corrosion Resistance Class CRC 2
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Suitability Class 4 according to ISO 14644-1
Product Weight 41 g
Materials Compliance RoHS-compliant

Product Overview

The FESTO HE-2-QS-10, manufacturer part number 153469, is a manually actuated pneumatic shut-off valve from the FESTO HE series. The valve features a 2/2-way shut-off function with QS-10 push-in pneumatic connections on both ports for 10 mm outside-diameter tubing. It provides a manufacturer-specified 752.4 l/min standard nominal flow rate, a 4.7 mm nominal size and an operating pressure range of -0.95 to 10 bar. The valve is intended for compressed-air operation with ambient and medium temperatures from 0°C to +60°C. Its construction includes a reinforced PBT housing, NBR seals and a directly operated piston gate valve design. Installation options include in-line installation and direct mounting via a through-hole. The supplied actual product photographs show FESTO packaging labeled HE-2-QS-10 with material number 153469 and product appearance consistent with the manufacturer illustration.

Key Product Features

  • FESTO HE Series Shut-off Valve — Manufacturer catalog model HE-2-QS-10, part number 153469.
  • 2/2-Way Manual Operation — Pneumatic shut-off valve with direct manual actuation.
  • QS-10 Pneumatic Connections — Push-in fittings on both ports for 10 mm outside-diameter tubing.
  • 752.4 l/min Nominal Flow — Manufacturer-specified standard nominal flow rate.
  • -0.95 to 10 bar Operating Pressure — Specified pressure range includes vacuum-range operation.
  • 0°C to +60°C Temperature Range — Specified ambient and operating-medium temperature range.
  • Industrial PBT Construction — Reinforced PBT housing, NBR seals and CRC 2 corrosion resistance classification.

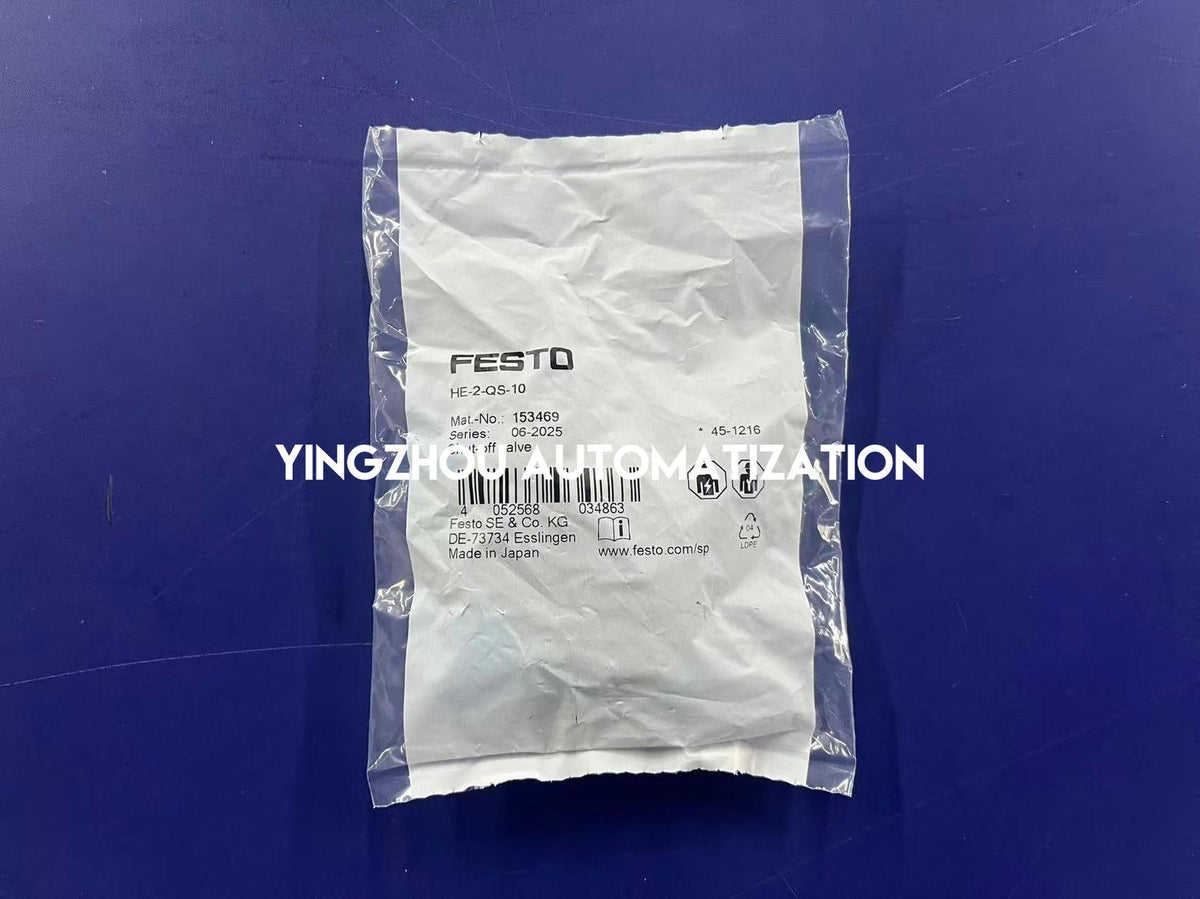

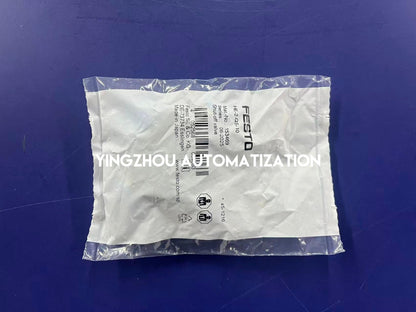

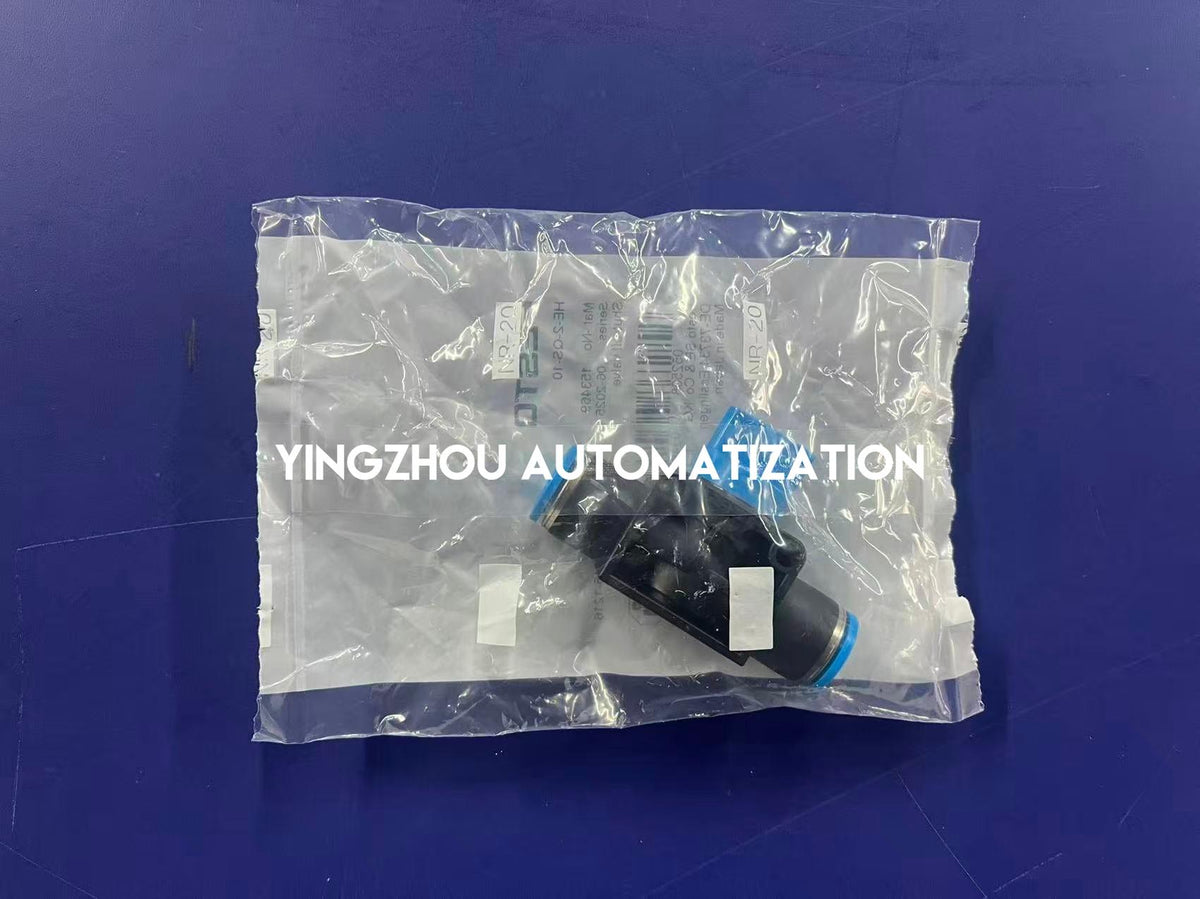

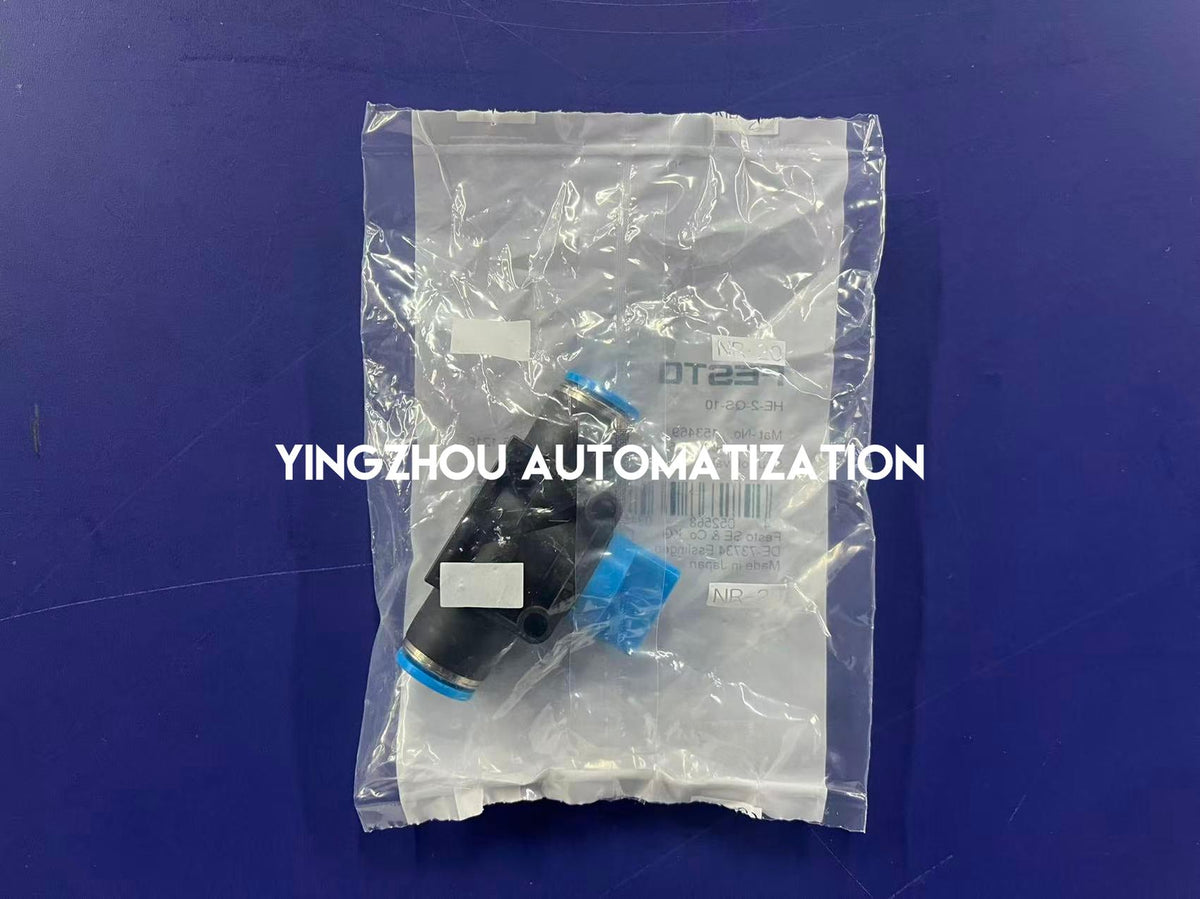

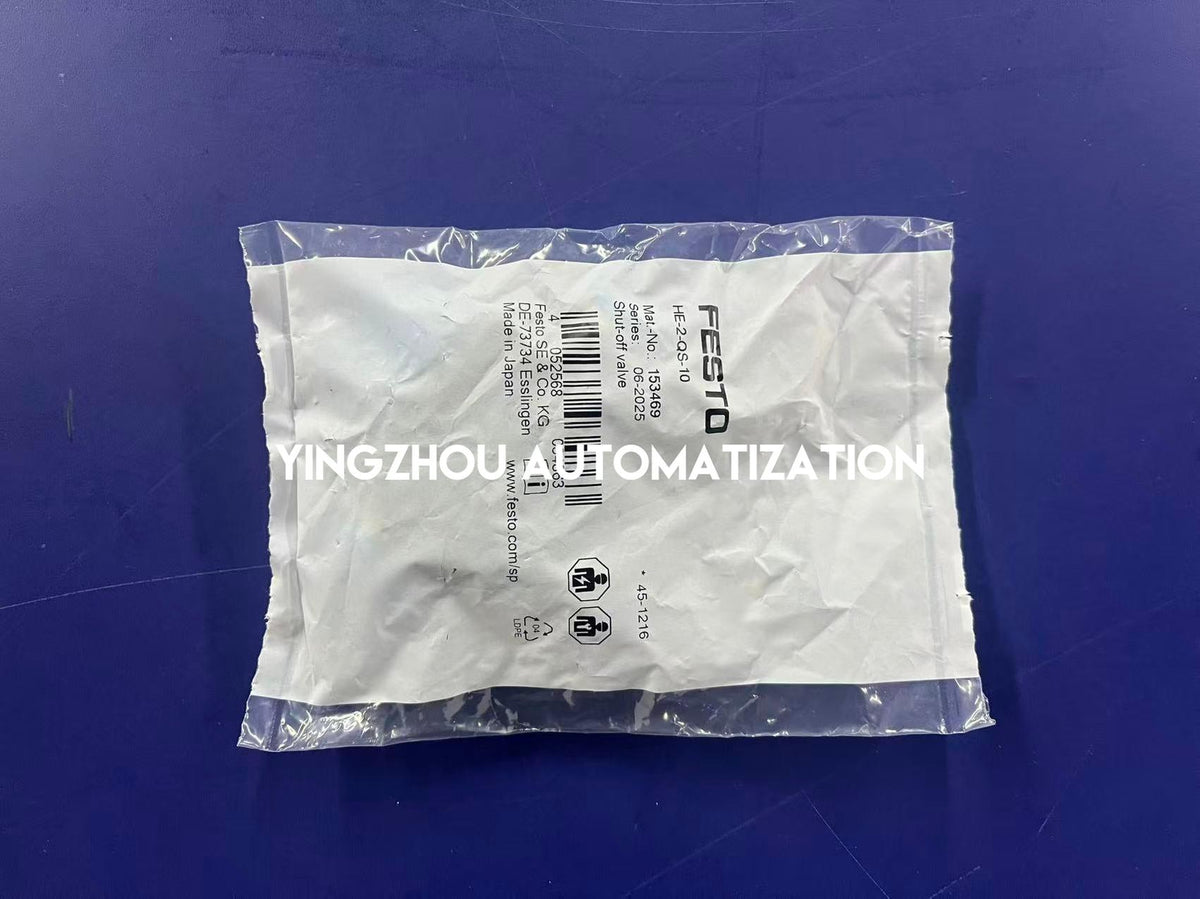

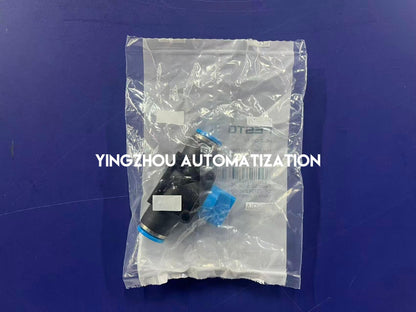

Actual Product Verification

✓ Actual product and original packaging photographs supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: HE-2-QS-10
✓ Packaging material number: 153469
✓ Packaging series marking: 06-2025
✓ Packaging country-of-origin marking: Made in Japan
✓ Visible product configuration is consistent with manufacturer product imagery

In Stock & Available to Order

FESTO HE-2-QS-10 153469 is marked in stock based on the supplied inventory information. This manually operated 2/2-way pneumatic shut-off valve is available for industrial maintenance, pneumatic equipment procurement and replacement-part inquiries. Actual product and packaging photographs are available for confirmation. Please verify the required quantity, QS-10 pneumatic connections, shipping arrangements and installation requirements before completing an order.

IN STOCK

FESTO HE-2-QS-10 153469

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the QS-10 pneumatic connections, operating pressure and installation requirements before ordering.
