FESTO ADN-32-30-I-P-A 536283 Compact Pneumatic Cylinder
32mm Bore | 30mm Stroke | Double Acting | M8 Female Thread | ISO 21287
| Specification |
Verified Product Data |
| Manufacturer |
Festo SE & Co. KG |
| Catalog Number |
ADN-32-30-I-P-A |
| Manufacturer Part Number |
536283 |
| Product Family |
ADN |
| Product Type |
Compact Pneumatic Cylinder |
| Piston Diameter |
32 mm |
| Stroke |
30 mm |
| Mode of Operation |
Double-Acting |
| Operating Pressure |
0.06–1 MPa / 0.6–10 bar |
| Conforms to Standard |
ISO 21287 |
| Piston Rod Thread |
M8 |
| Piston Rod End |
Internal / Female Thread |
| Piston Rod Configuration |
Single Rod End |
| Cushioning |
Elastic Cushioning Rings/Pads at Both Ends |
| Position Sensing |
For Proximity Sensor |
| Pneumatic Connection |
G1/8 |
| Mounting Position |
Any |
| Mounting Options |
Through-Hole / Internal Thread / Accessories |
| Operating Medium |
Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature |
-20°C to +80°C |
| Theoretical Force at 6 Bar, Advancing |
483 N |
| Theoretical Force at 6 Bar, Retracting |
415 N |
| Impact Energy at End Positions |
0.4 J |
| Moving Mass |
78 g |
| Product Weight |
328 g |
| Corrosion Resistance Class |
CRC 2 |
| Cover Material |
Anodized Wrought Aluminum Alloy |
| Seal Material |
TPE-U (PUR) |
| RoHS |
Compliant |
| Country of Origin (Photo) |
China |
Product Overview
The FESTO ADN-32-30-I-P-A, manufacturer part number 536283, is a compact double-acting pneumatic cylinder designed in accordance with ISO 21287. It features a 32 mm piston diameter and a 30 mm stroke for controlled linear pneumatic movement. The cylinder operates within a pressure range of 0.6 to 10 bar and incorporates elastic cushioning rings/pads at both ends. It features an M8 internally threaded piston rod end, G1/8 pneumatic connections, and provisions for position sensing using suitable proximity sensors. At 6 bar, the manufacturer specifies a theoretical advancing force of 483 N and a theoretical retracting force of 415 N. The cylinder is rated for ambient temperatures from -20°C to +80°C. Confirm the required mounting arrangement, air supply conditions, piston rod connection and application load before installation.
Key Product Features
-
FESTO ADN Compact Cylinder — Manufacturer part number 536283, conforming to ISO 21287.
-
32 mm Bore and 30 mm Stroke — Compact dimensions for controlled linear pneumatic movement.
-
Double-Acting Operation — Pneumatic extension and retraction with a single-ended piston rod.
-
M8 Internal Piston Rod Thread — Female-threaded piston rod end for suitable mechanical connections.
-
0.6–10 Bar Operating Pressure — Manufacturer-specified operating range for compatible compressed-air systems.
-
Elastic End-Position Cushioning — Integrated cushioning rings/pads at both cylinder ends.
-
Proximity Sensor Position Sensing — Supports suitable cylinder position-sensing accessories.
-
G1/8 Pneumatic Connections — Manufacturer-specified port size with multiple mounting options.
Actual Product Verification

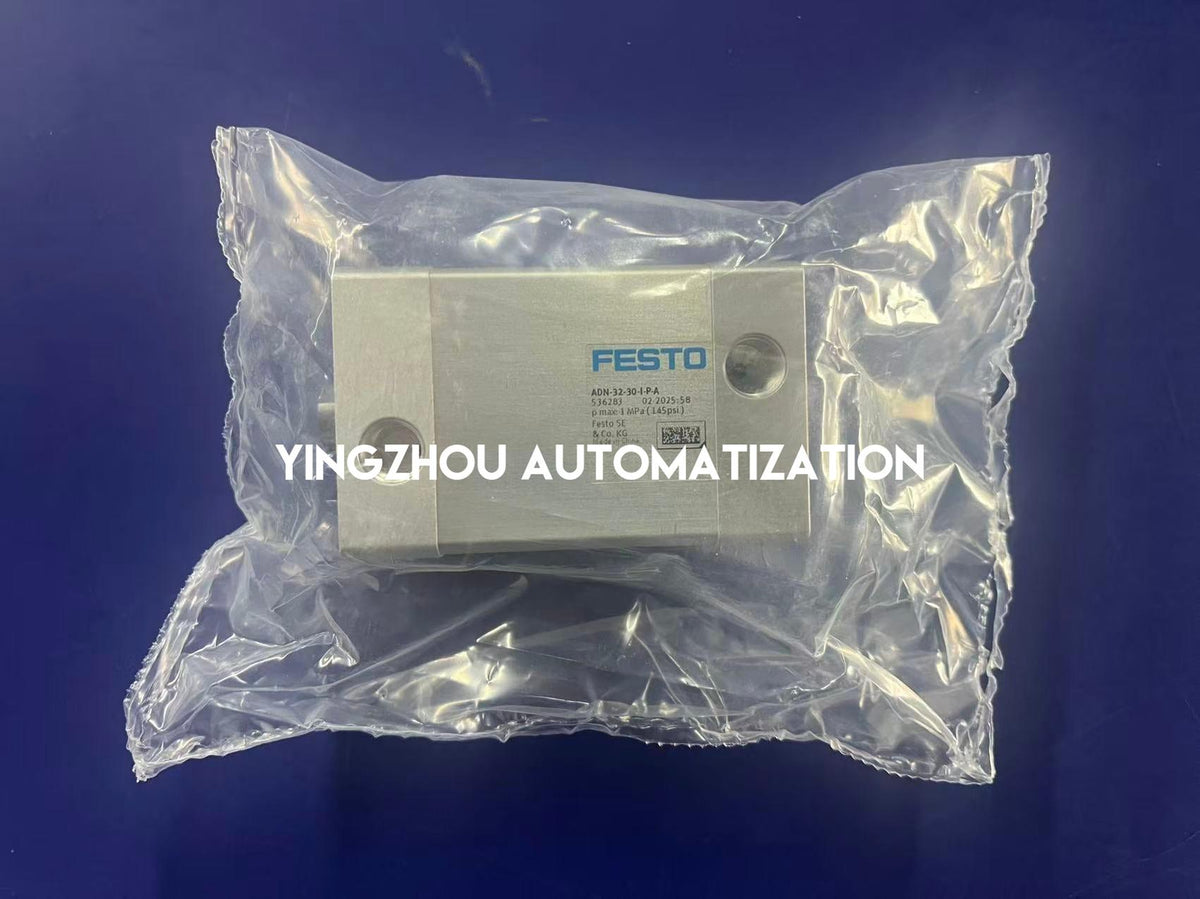

✓ Actual packaged FESTO cylinder photograph supplied
✓ Cylinder nameplate identifies model ADN-32-30-I-P-A
✓ Manufacturer material number: 536283
✓ Maximum pressure marking: 1 MPa (145 psi)
✓ Production/series marking visible: 02-2025:58
✓ Manufacturer marking: FESTO
✓ Labelled country of origin: China
✓ Requested catalog number and photographed nameplate match

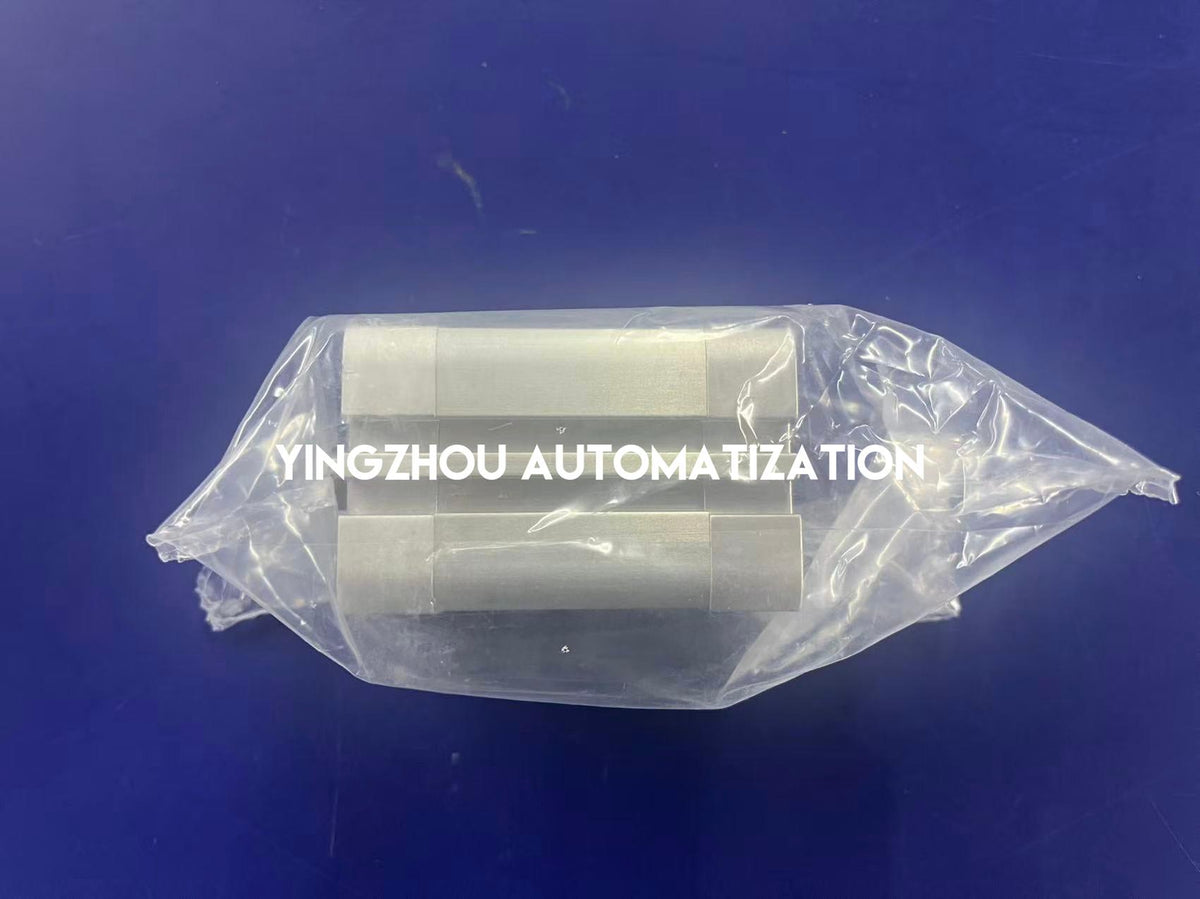

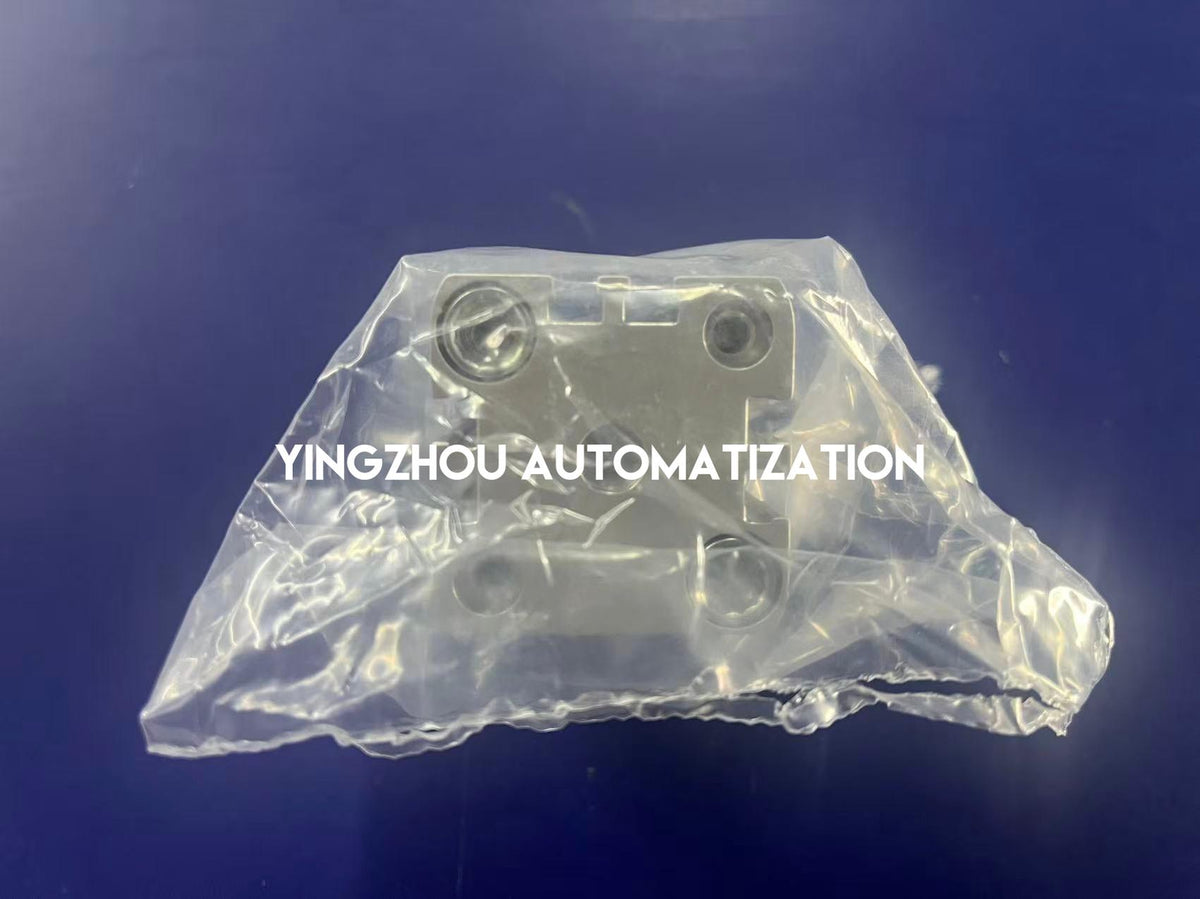

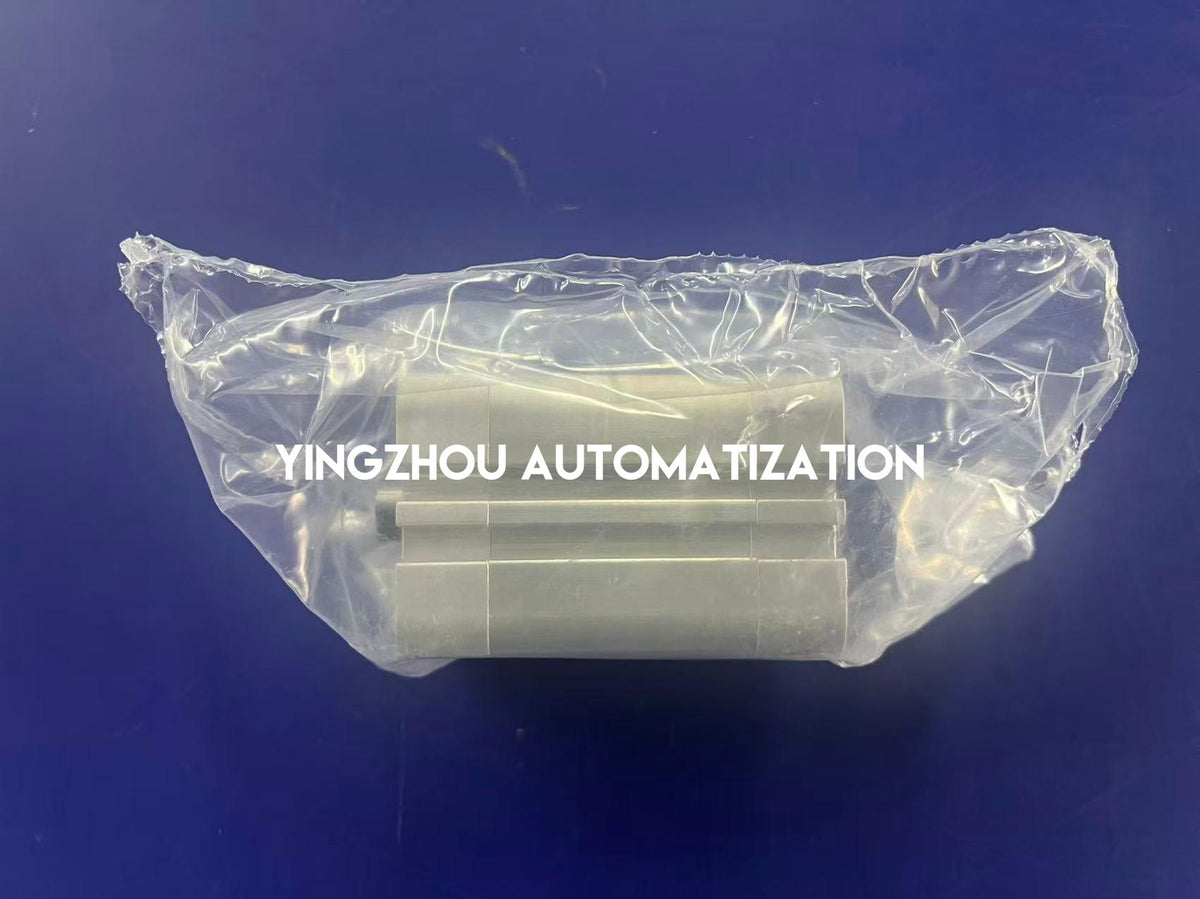

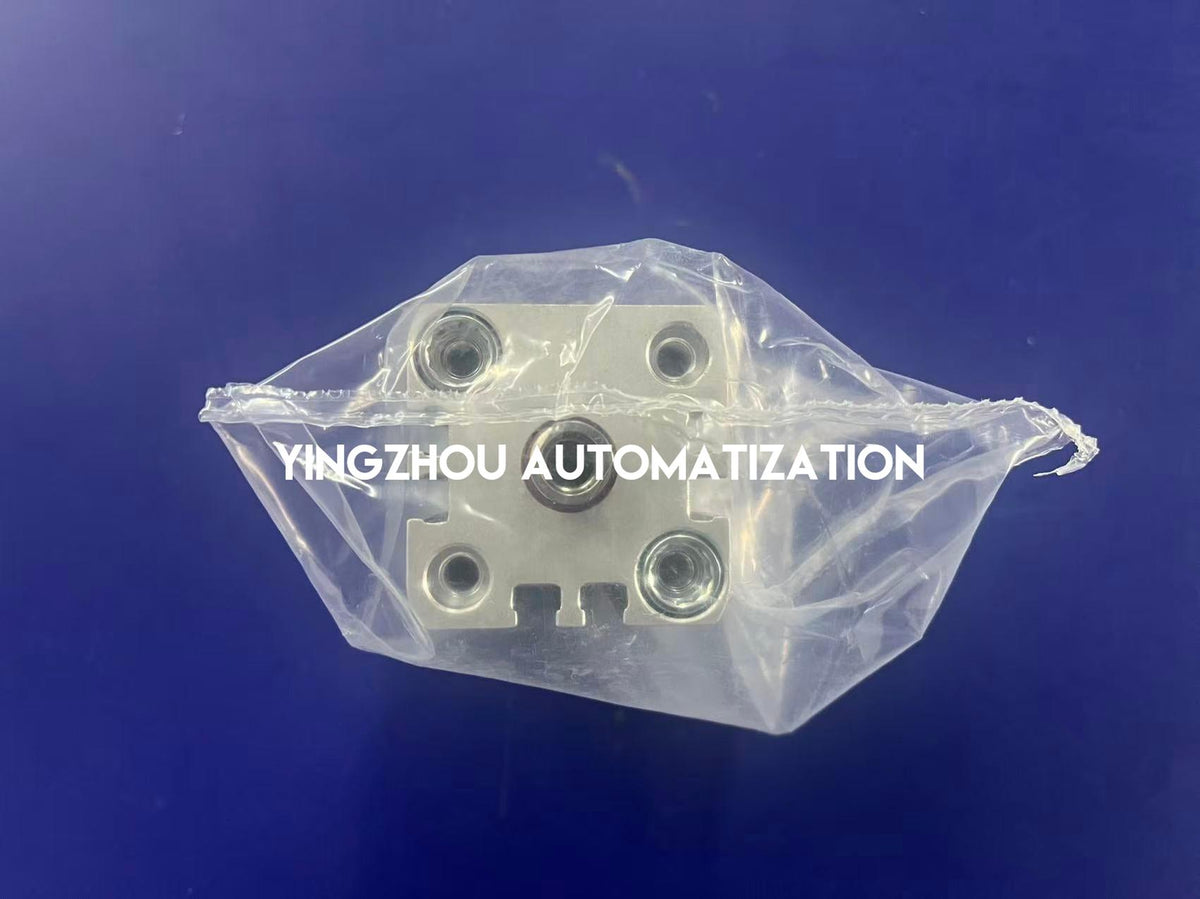

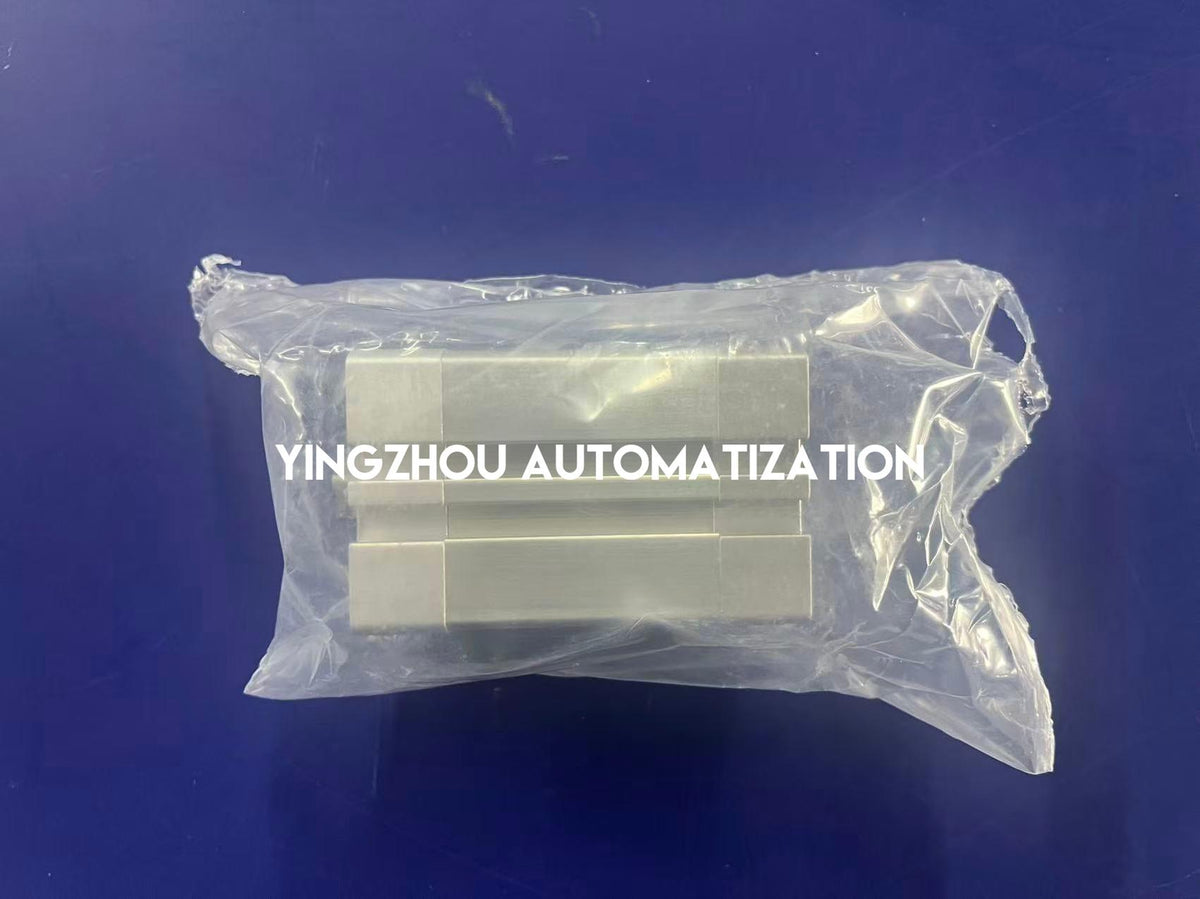

✓ Cylinder supplied in protective plastic packaging as photographed
In Stock & Available to Order
FESTO ADN-32-30-I-P-A (536283) is marked in stock based on the supplied inventory information. Actual cylinder nameplate photography is available for exact-model confirmation. This compact double-acting pneumatic cylinder features a 32 mm bore, 30 mm stroke, M8 internally threaded piston rod end, elastic end-position cushioning and a 0.6–10 bar operating pressure range. Please confirm the G1/8 pneumatic connection, installation dimensions, mounting method, application load and dispatch arrangements before ordering.
IN STOCK
FESTO ADN-32-30-I-P-A 536283
Contact us for exact-model verification, multiple units and pneumatic cylinder sourcing. Please confirm the 32 mm bore, 30 mm stroke, M8 female thread, operating pressure and installation requirements before ordering.
Request Bulk Pricing
