Delta ECMA-J11020RS ECMA Series AC Servo Motor
2kW | 400V Class | 3000 RPM | 20-bit Incremental Encoder | Low Inertia
Product Overview

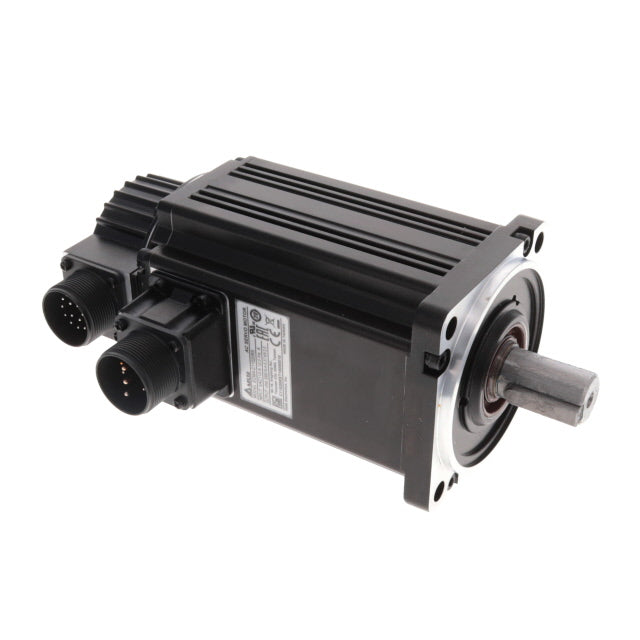

The Delta ECMA-J11020RS is a
2.0 kW low-inertia AC servo motor
from Delta's ECMA-J Series for the
400V-class ASDA-A2 servo platform.
It provides 3000 RPM rated speed,
6.37 N-m rated torque, and
19.10 N-m maximum torque.
The motor features a 20-bit incremental encoder
for high-resolution position feedback and an
RS shaft configuration with oil seal,
keyway with fixed screw hole, and no integrated holding brake.
Key Product Features
-
2.0 kW low-inertia AC servo motor
-
400V-class three-phase servo system configuration
-
3000 RPM rated speed and 5000 RPM maximum speed
-
6.37 N-m rated torque and 19.10 N-m maximum torque
-
20-bit incremental encoder for motor position feedback
-
Without brake and with oil seal
-
100 mm frame with 22 mm standard keyway shaft
In Stock & Ready to Order
Delta ECMA-J11020RS is currently in stock.
Please confirm the exact model, required quantity,
matched servo drive, and mechanical configuration before ordering.
