Delta ECMA-J10807RS ECMA Series AC Servo Motor
750W | 400V Class | 3000rpm Rated | 20-bit Incremental Encoder | Without Brake
|
Specification
|
Product Data
|
| Brand |
Delta Electronics |
| Exact Model |
ECMA-J10807RS |
| Motor Series |
ECMA Series |
| Servo System Family |
ASDA-A2 |
| Product Type |
AC Servo Motor |
| Inertia Type |
Low Inertia |
| Voltage Class |
400 V |
| Motor Nameplate Input |
220 VAC, 3.1 A (Actual Nameplate) |
| Rated Power |
0.75 kW (750 W) |
| Rated Speed |
3000 rpm |
| Maximum Speed (Catalog) |
5000 rpm |
| Rated Torque |
2.39 Nm |
| Maximum Torque |
7.16 Nm |
| Rated Current (Catalog) |
3.07 Arms |
| Maximum Instantaneous Current |
9.5 Arms |
| Encoder Type |
20-bit Incremental Encoder |
| Motor Frame Size |
80 mm |
| Shaft Diameter |
19 mm |
| Mounting Hole PCD |
90 mm |
| Mounting Hole Diameter |
6.6 mm |
| Motor Body Length (Without Brake) |
138.3 mm (LL Dimension) |
| Shaft Configuration |
Keyway with Fixing Screw Hole |
| Shaft Diameter Type |
Standard |
| Motor Brake |
Without Brake |
| Oil Seal |
Equipped |
| Rotor Inertia (Without Brake) |
1.13 x 10^-4 kg.m2 |
| Weight (Without Brake) |
3.0 kg |
| Rated Power Rate |
50.4 kW/s |
| Mechanical Time Constant |
0.66 ms |
| Torque Constant |
0.78 Nm/A |
| Voltage Constant |
28.24 mV/rpm |
| Armature Resistance |
1.22 ohm |
| Armature Inductance |
10.68 mH |
| Electrical Time Constant |
8.75 ms |
| Maximum Radial Load |
245 N |
| Maximum Axial Load |
98 N |
| Insulation Resistance |
Greater than 100 Mohm at 500 VDC |
| Protection Rating |
IP65 under Specified Sealing Conditions |
| Operating Temperature |
0 to 40 degrees C |
| Storage Temperature |
-10 to 80 degrees C |
| Operating / Storage Humidity |
20 to 90% RH, Non-condensing |
| Vibration Resistance |
2.5 G |
Product Overview
The Delta ECMA-J10807RS is a
0.75 kW (750 W) AC servo motor
from Delta's ECMA Series for
compatible ASDA-A2 servo systems.
This low-inertia motor belongs to the
400V class and provides
3000 rpm rated speed with
2.39 Nm rated torque.
It features a 20-bit incremental encoder,
an 80 mm motor frame, and a
19 mm keyed shaft with oil seal,
without an integrated holding brake.
Key Product Features
-
0.75 kW (750 W) rated motor output
-
Low-inertia ECMA motor design
-
3000 rpm rated rotational speed
-
2.39 Nm rated torque
-
20-bit incremental encoder
for motor position feedback
-
80 mm motor frame
with standard 19 mm shaft diameter
-
Without integrated holding brake
in the RS configuration
-
Keyed shaft with oil seal
and fixing screw hole
Actual Product Verification
✓

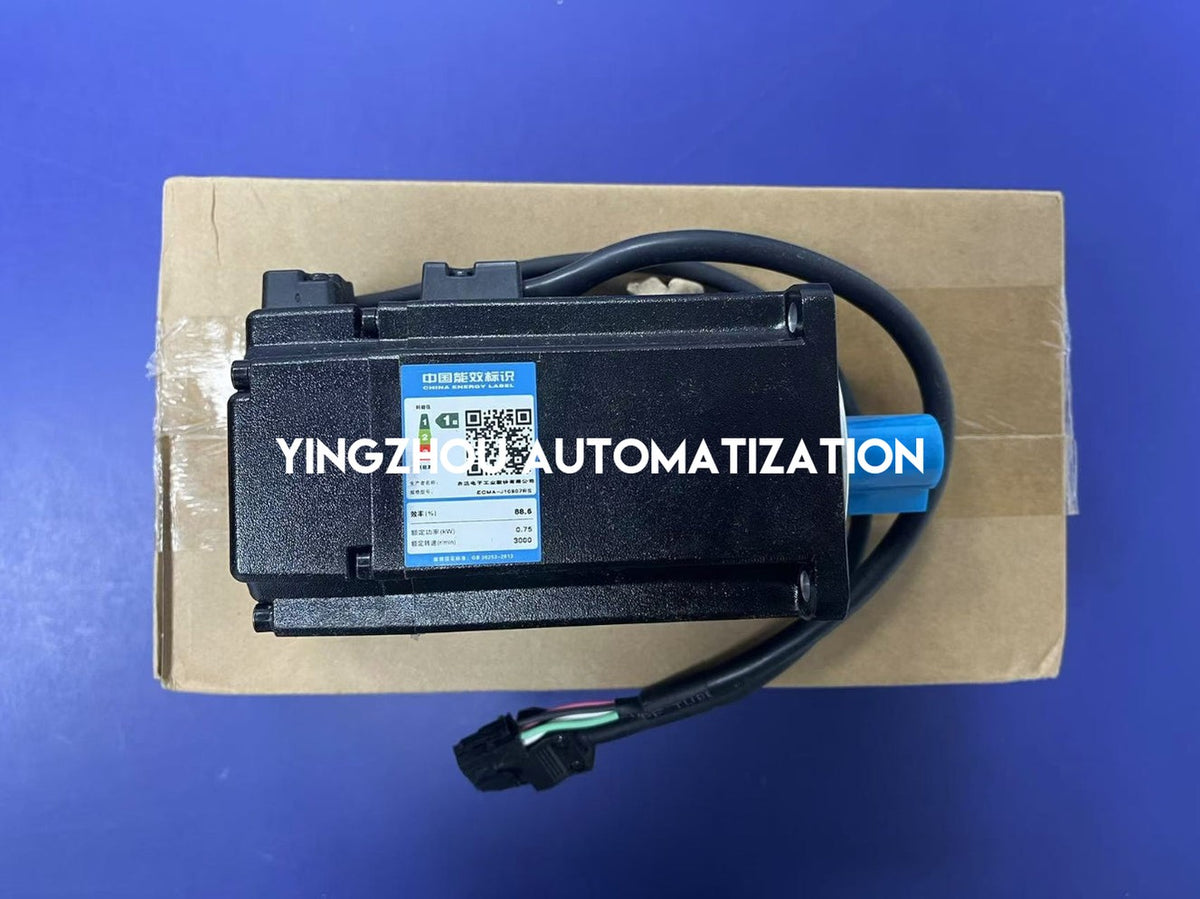

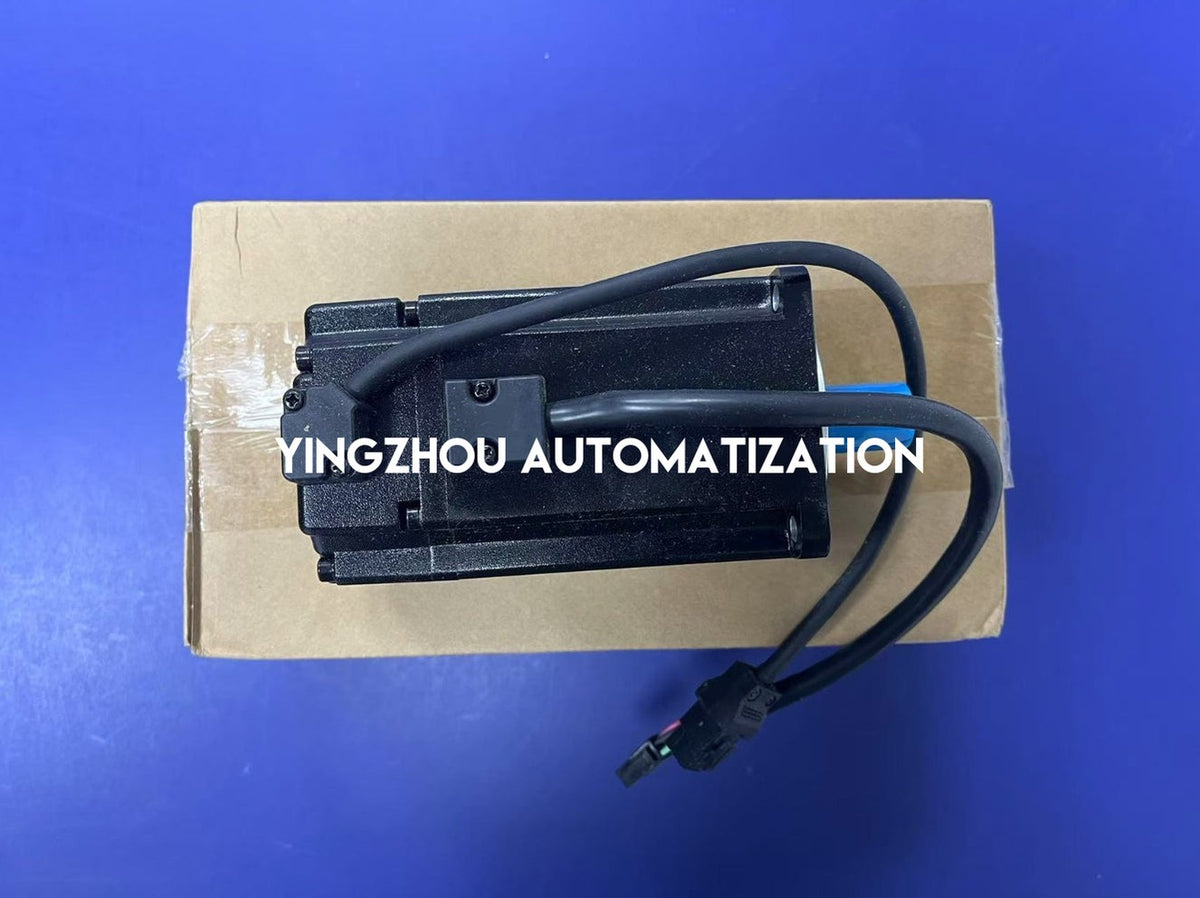

Actual product photo
✓

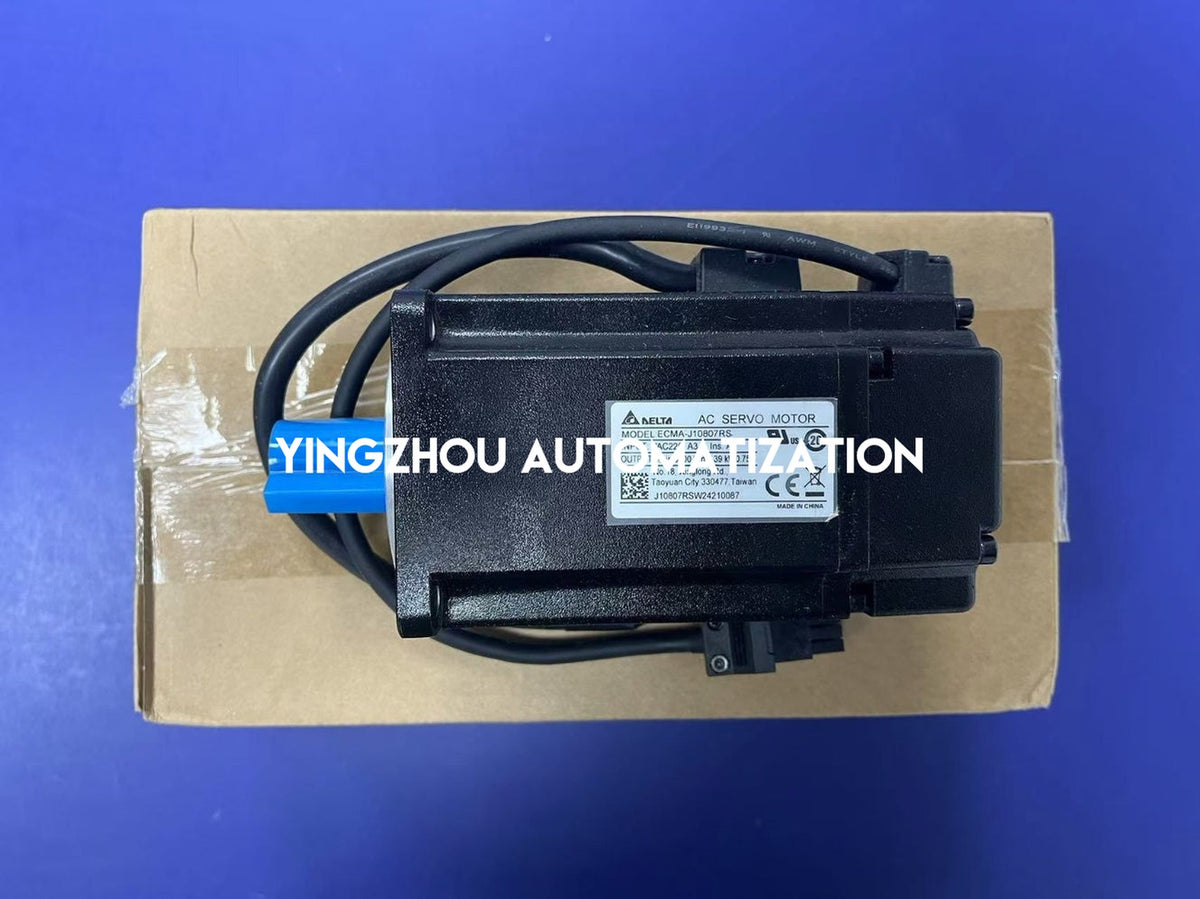

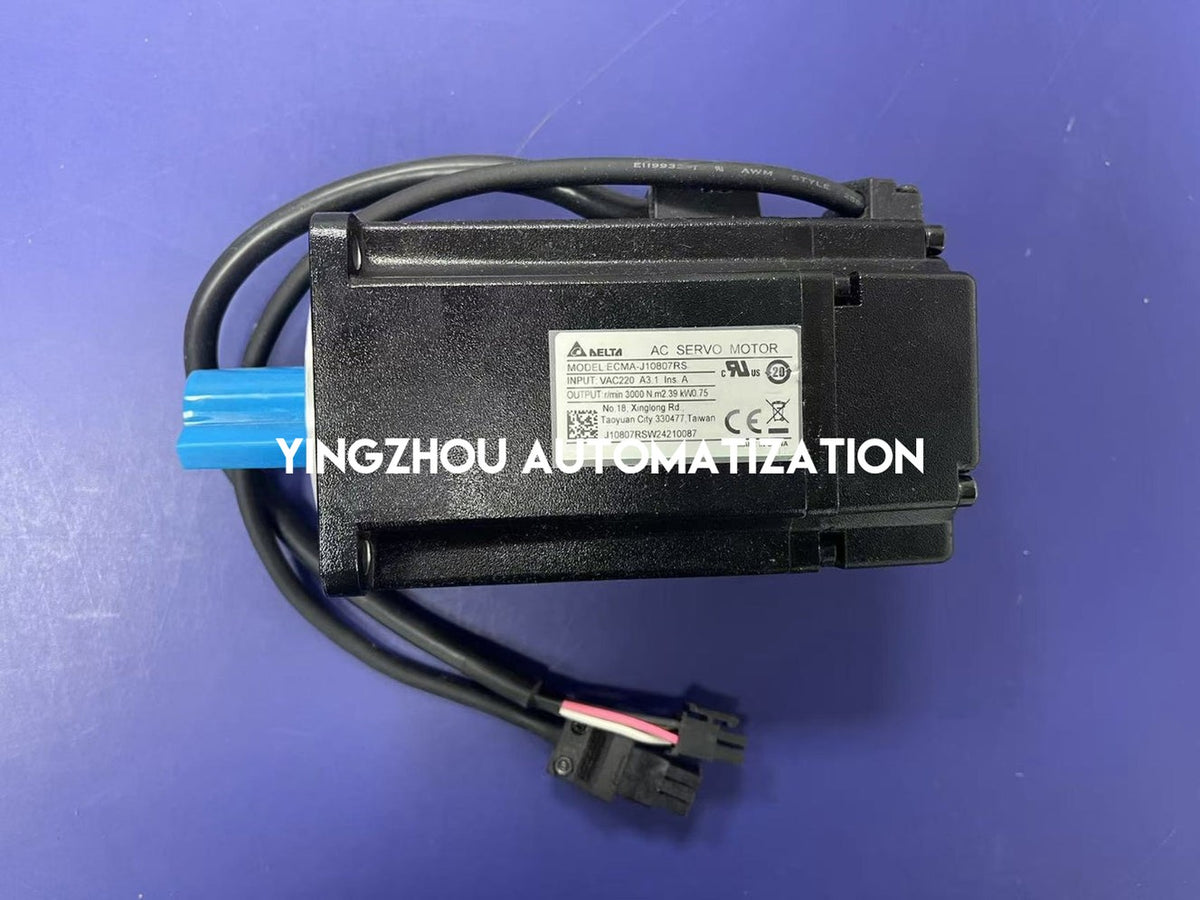

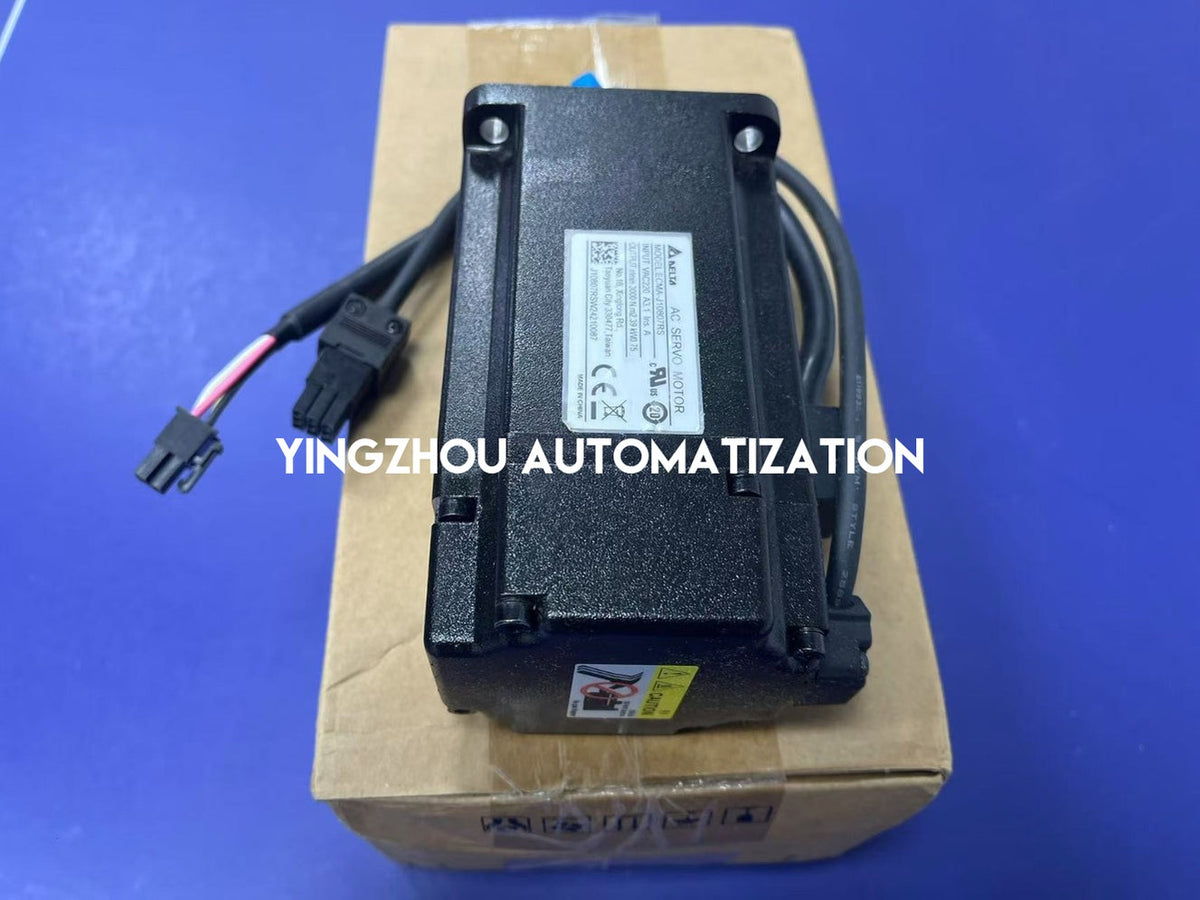

Exact model/nameplate visible
✓

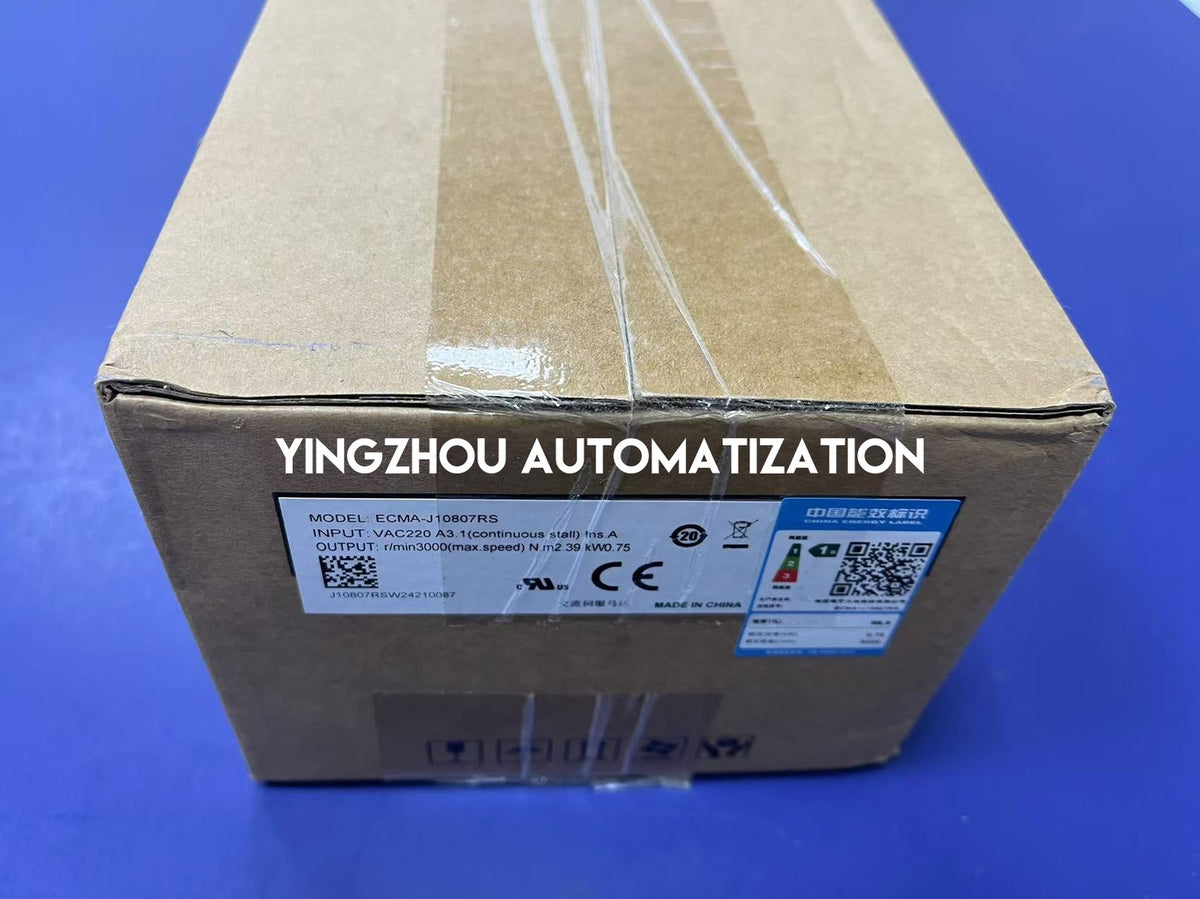

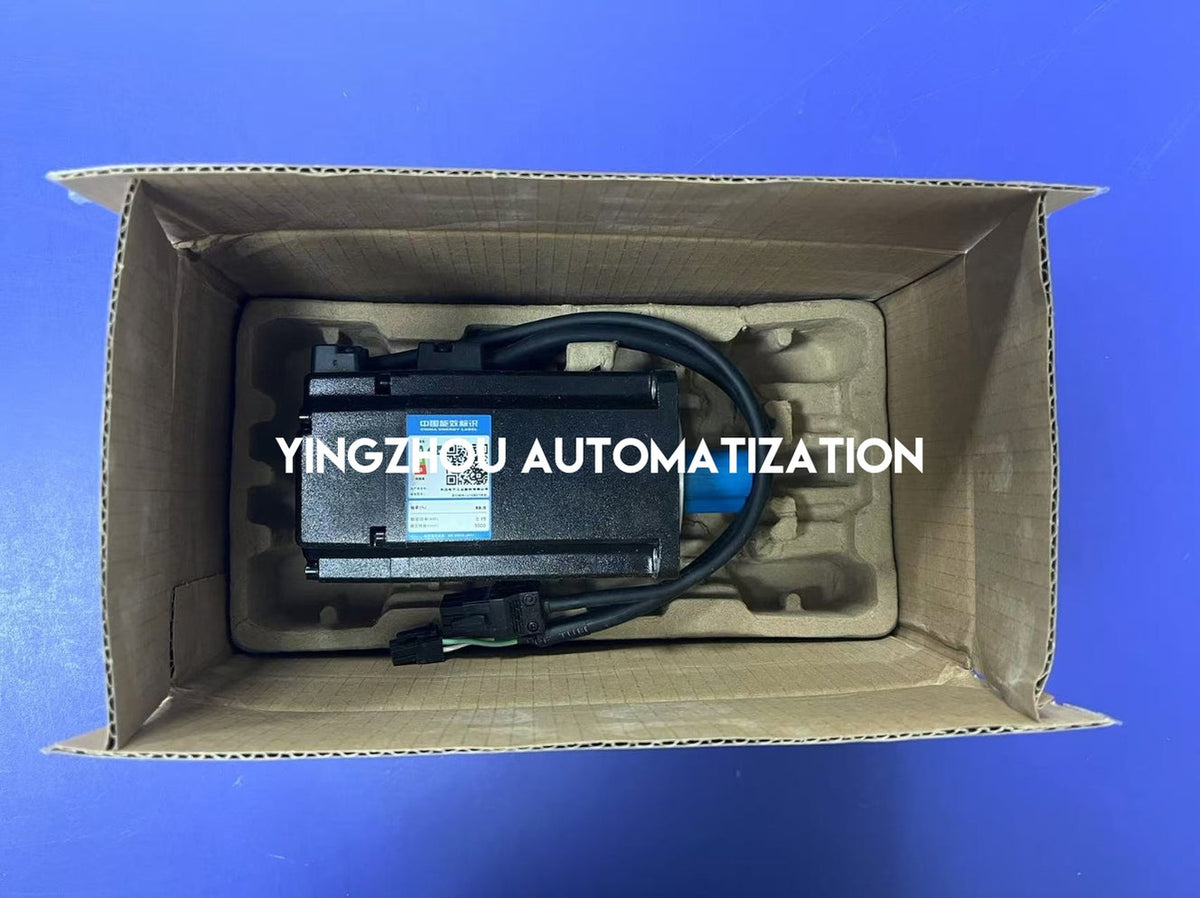

Packaging with exact model label shown
✓

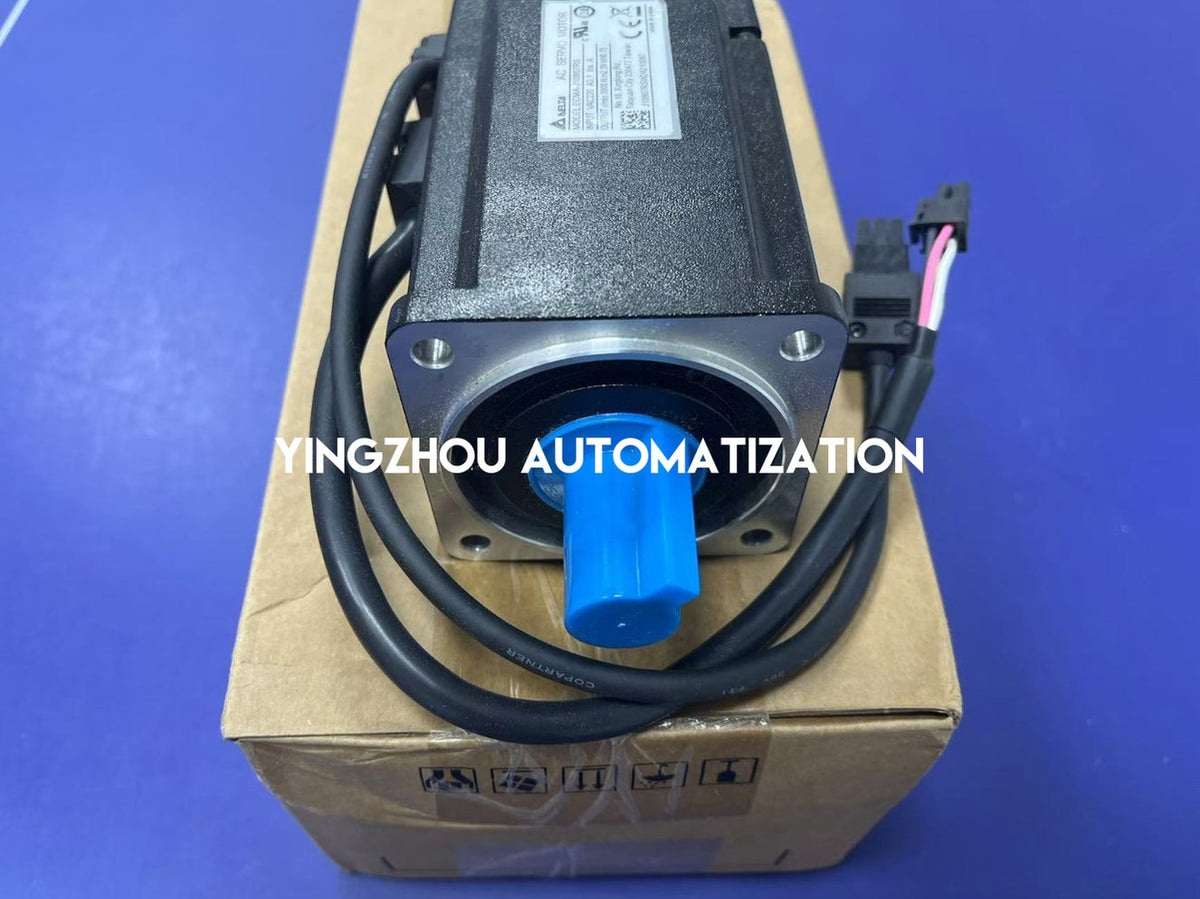

Motor housing, cable connectors and shaft protection shown
✓
Verify exact model ECMA-J10807RS before ordering
In Stock & Ready to Order
Delta ECMA-J10807RS
is currently in stock.
Actual product and packaging photos are provided
for buyer verification.
The RS configuration includes an oil seal
and is supplied without an integrated holding brake.
Order online or contact us for project
and quantity-based purchasing assistance.
